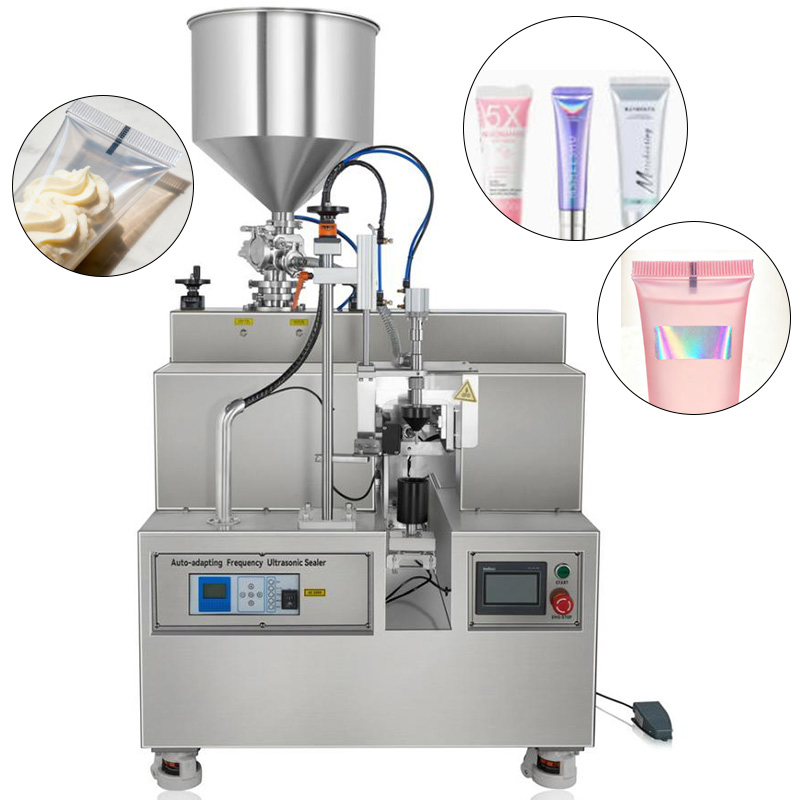

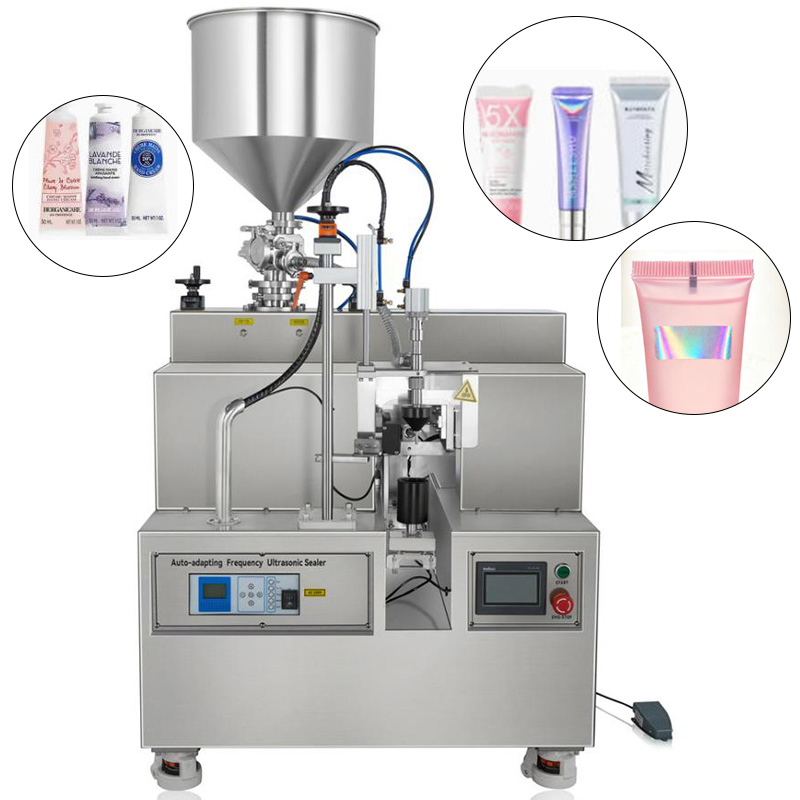

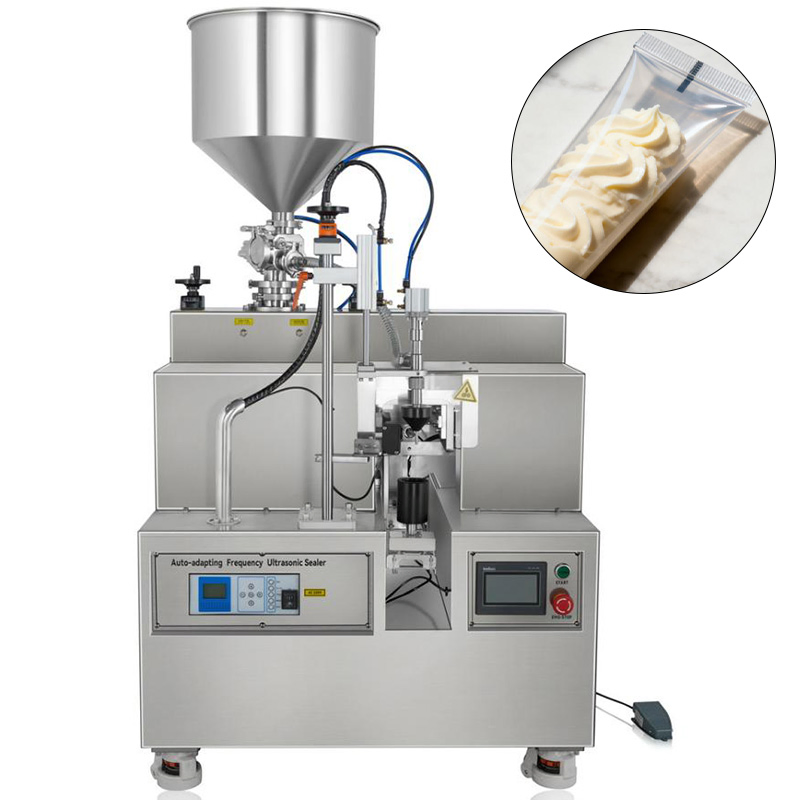

Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
1 / 5
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine
Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine

Ultrasonic Plastic Lotion Tube Cosmetic Cream Paste Tube Semi Automatic Soft Tube Filling and Sealing Machine

Additional Capabilities: Gang Control
After-sales Service: Online Support, video Technical Support
Application: Cosmetics, Food, Chemical Industry, Medicine
Send Inquiry

Product Description

📋 Basic Information
Model NO.
002
Certification
CE
Control System
Pneumatic
Main Material
Nonrust Steel
Power
2600W
Power Supply
220V 50Hz
Air Pressure
0.5MPa
Filling Range
25-250ml
Net Weight
130kg
Frequency
20kHz
Shell Material
304 Stainless Steel
Machine Size
1000*780*1550mm
⚙️ Product Description

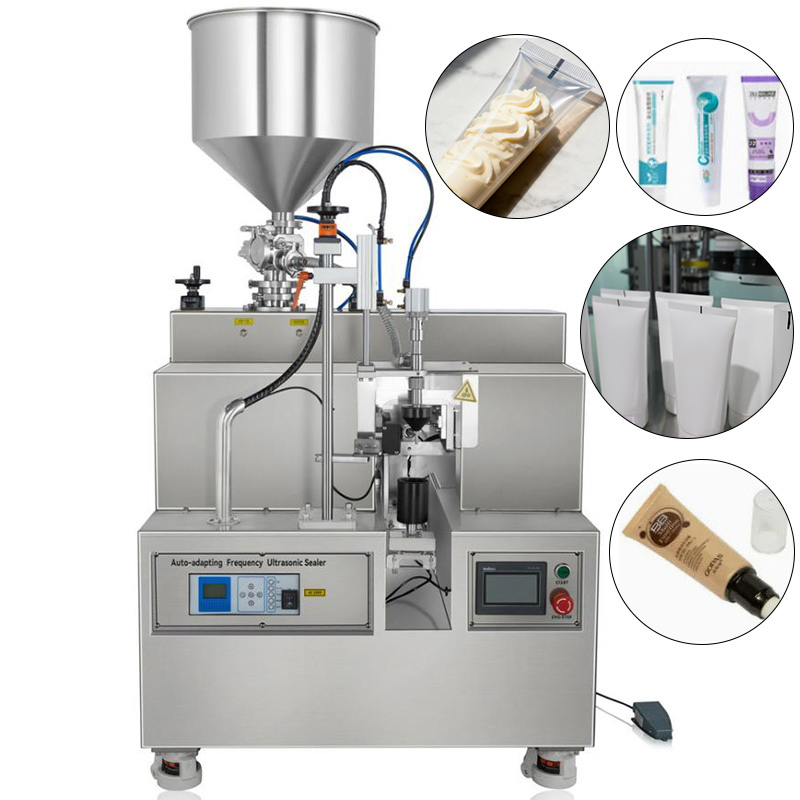

Semi-Automatic Ultrasonic Tube Filling and Sealing Machine

The ultrasonic tube filling and sealing machine is a high-quality, high-performance liquid and paste container filling and sealing packaging machine. It adopts manual tube loading, automatic color mark orientation, automatic filling, automatic sealing, and automatic trimming. Using PLC control and a touch-type human-machine interface, this equipment offers simple, stable, and reliable operation.

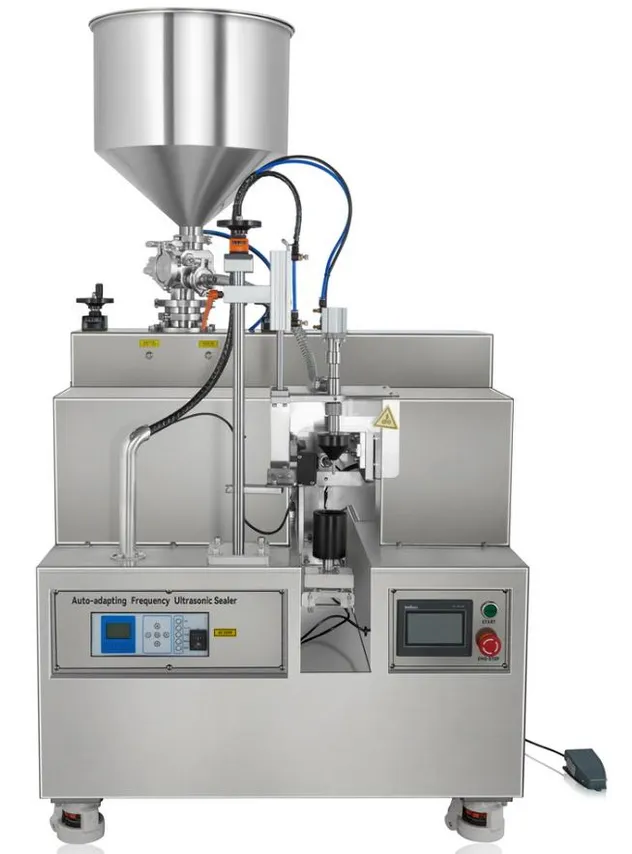

Ultrasonic Tube Filling Machine Front View

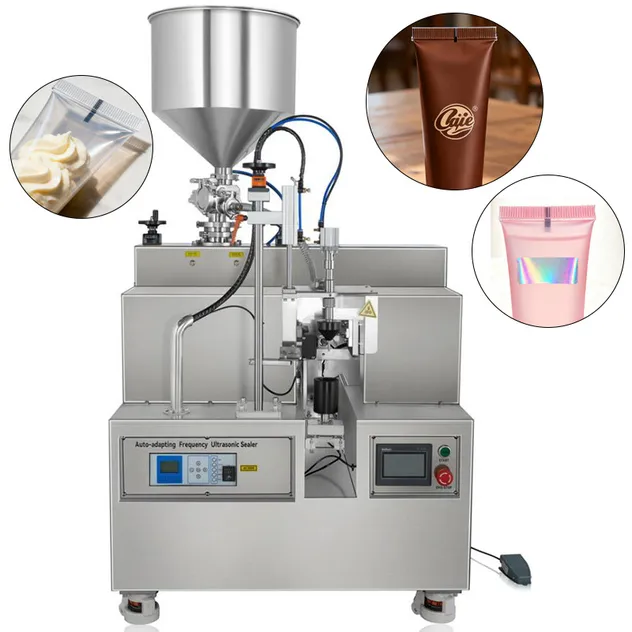

Ultrasonic Tube Filling Machine Side View

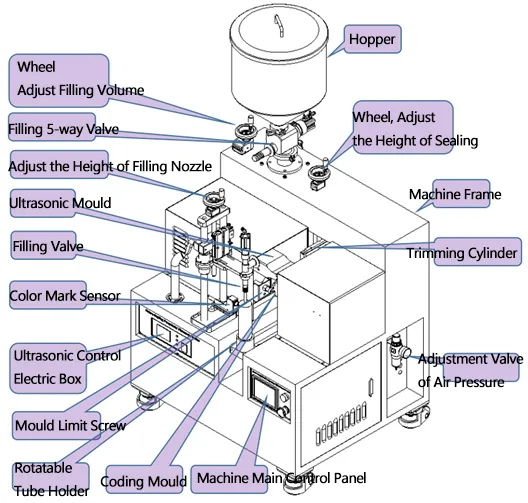

Tube Sealing Details
📊 Main Technical Parameters
1. Power Supply: 220v 50Hz 2. Air Pressure: 0.5Mpa 3. Productivity: 10-15pcs/min
4. Filling Volume: 25-250ml 5. Filling Accuracy: ±1% 6. Radius of Sealing: 13-50mm
7. Height of Sealing: 50~210mm 8. Frequency: 20KHz 9. Power: 2600W
10. Material: 304 Stainless Steel 11. Weight: 180kgs 12. Dimension: 850*736*1550mm
💡 Usage and Function
Main Features:
  • Applicable for filling and sealing various plastic or metal-plastic tubes in food, medicine, cosmetics, and chemical industries.
  • Titanium alloy screw used for mold and transducer connection.
  • Light-eye sensor switch: No tube, no sealing protection.
  • Equipped with C440 stainless steel material cutter for clean trimming.

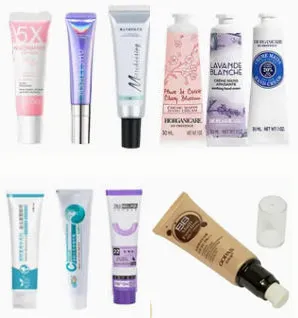

Machine Overview
📦 Packing & After Sales Service
Packing 1
Packing 2
Packing 3
After Sales Service Banner
📜 Certifications & Factory Display
Certification 1
Certification 2
Certification 3

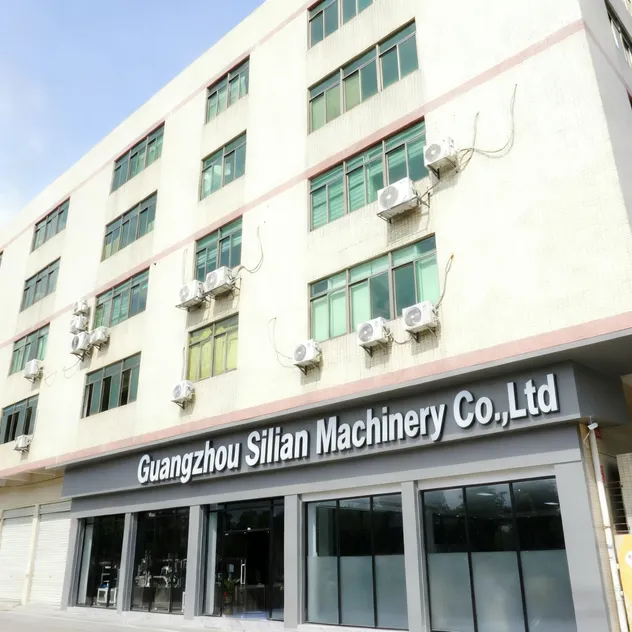

Factory 1
Factory 2

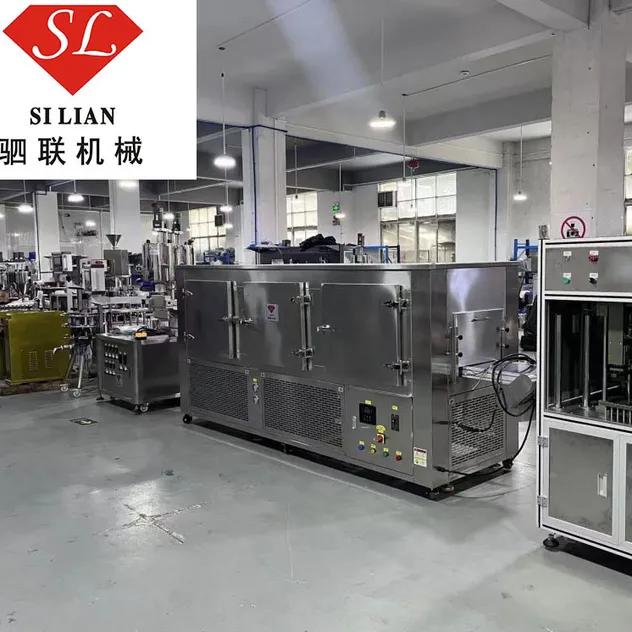

Factory 3
❓ Frequently Asked Questions
Are you a factory or a trading company?
We are a factory with professional trading services, backed by over 20 years of manufacturing experience.
How do you guarantee the quality of your machines?
We have extensive experience in the cosmetic, chemical, food, and pharmaceutical industries, ensuring every machine meets high standards before delivery.
What support is provided if I am unfamiliar with the product?
Instruction manuals, maintenance guides, and teaching videos are provided. Our professional after-sales team is available to assist with installation and usage.
Do you offer OEM or ODM services for new designs?
Yes, both OEM and ODM services are available. Our senior engineers can provide technical improvements based on your requirements.
What are the payment terms and MOQ?
The Minimum Order Quantity is 1 set. We accept various payment terms including T/T, L/C, and Western Union.
What is the warranty period for the machine?
We provide a 1-year warranty for the equipment to ensure reliable performance and customer satisfaction.
