Customization: Available
After-sales Service: 24 Hours
Warranty: 15 Months
Send Inquiry

Product Description

Basic Information
Model NO.
PFR24-10
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Paste
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Capacity
200bpm (500ml)
Power
4.5kw
Weight
4500kgs
Voltage
380-440V 50Hz / 220V 60Hz
Filling Accuracy
+-0.5%
Main Components
Siemens
Technical Parameters
Item / Model PFR8-1 PFR12-4 PFR18-6 PFR24-8 PFR32-10 PFR40-12
Number of heads 8 12 18 24 32 40
Number of Capping heads 1 4 6 8 10 12
Capacity-500ml (B/H) 2000bph 4000bph 7000bph 12000bph 16000bph 20000bph
Power 2.5kw 3.5kw 3.75kw 4.5kw 5.75kw 6.55kw
Air consumption (m³/min) 0.3 0.3 0.4 0.4 0.5 0.5
Filling Temperature 0-90ºC
Applicable Materials Ketchup, Chili Sauce, Jam, Paste, Mayonnaise, Tomato Sauce, Honey
Product Description
  • Wide Application: Suitable for filling and capping ketchup, chili sauce, jam, mayonnaise, honey, and other paste products.
  • Precise Quantification: Minimal error strictly controlled within +/-0.5% using advanced quantitative filling technology.
  • One-Key Operation: Filling volume can be adjusted conveniently via the human-machine interface with a single click.

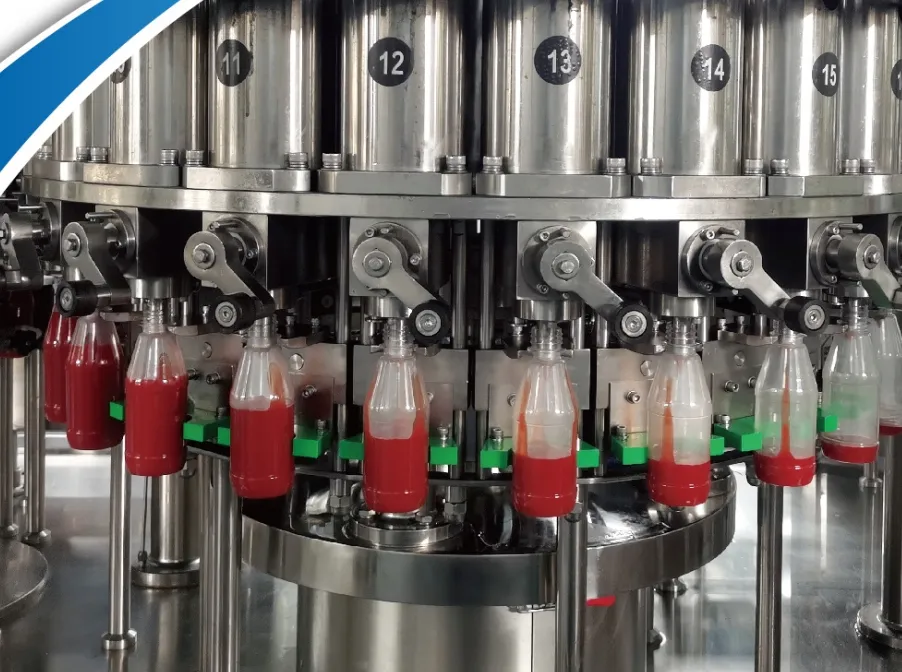

Paste Filling Machine
  • Efficient Capping: Mature solutions for special-shaped caps with an unqualified rate of less than 0.1%.
  • Strong Compatibility: Modular tooling design allows quick adaptation to round, square, and special-shaped bottles.
  • High Automation: Fully automated control from feeding to discharging reduces manual labor and improves efficiency.

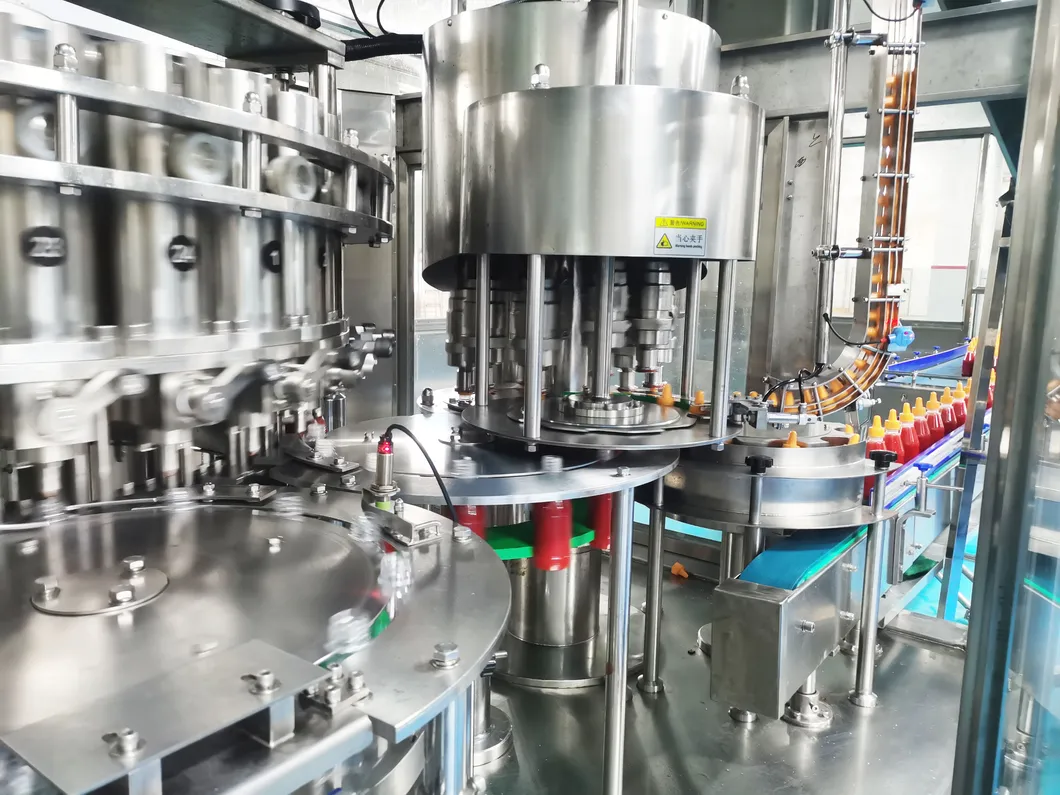

Capping Process
  • Safety Protection: Main drive overload protection automatically shuts down the equipment in case of operational errors to prevent damage.
  • Durable Construction: Selected high-quality materials and advanced manufacturing ensure long-term stable operation.

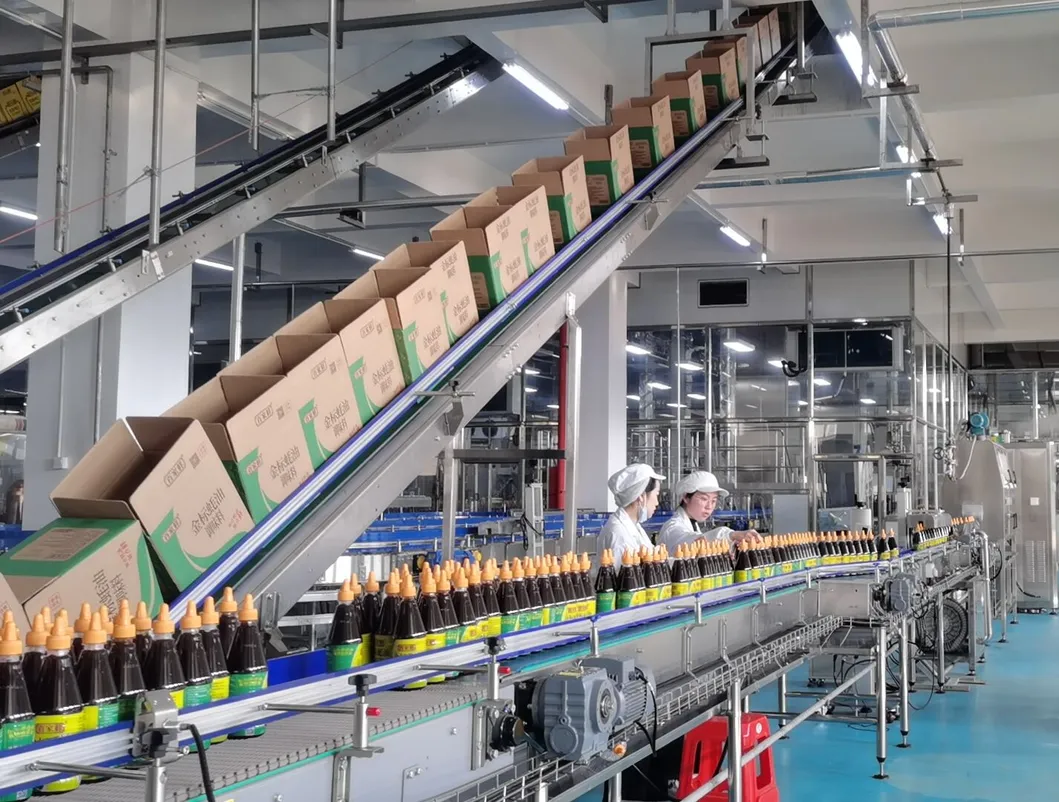

Machine Structure
Complete Bottling Solutions
Sauce Filling
Cream Filling

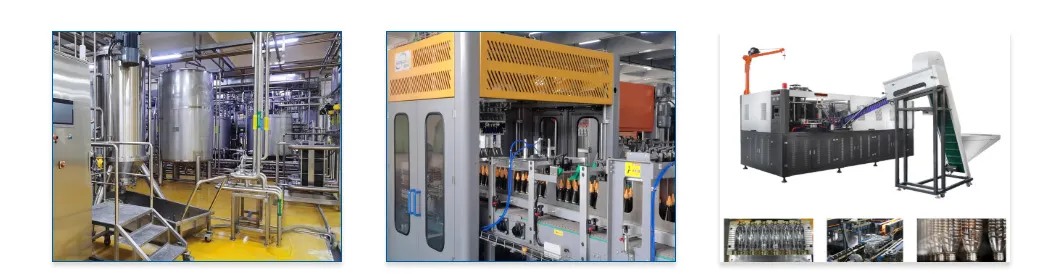

Processing System
Detailed View 1 Detailed View 2
Component 1
Component 2
Frequently Asked Questions
What materials are compatible with this filling machine?
This machine is designed for high-viscosity pastes and liquids, including ketchup, chili sauce, jam, mayonnaise, honey, and tomato sauce.
How accurate is the filling volume?
The machine utilizes advanced piston/plunger technology, ensuring a filling error range of less than +/-0.5%.
Can it handle different bottle shapes?
Yes, the modular tooling design allows for quick changes to accommodate round bottles, square bottles, and various special-shaped containers.
Is the operation difficult for new users?
Not at all. The machine features a fully automated control system with an intuitive human-machine interface (HMI) for easy one-key adjustments.
What safety measures are in place?
It includes main drive overload protection which automatically stops the machine if it gets stuck due to operational errors, preventing mechanical damage.
What is the capacity of the PFR24-10 model?
The PFR24-10 model has a capacity of up to 200 bottles per minute for 500ml containers.
