| Model NO. | CDA-1 |
| Packaging | Bottles |
| Automatic Grade | Semi-Automatic |
| Packaging Material | Aluminum Foil |
| Application | Drinks, Oil, Vegetable, Fruit |
| Usage | Outpacking |
| Type | Packaging Sealing Machine |
| Material Type | Liquid |
| Bottle Diameter | 60-100mm |
| Bottle Height | 160-320mm |
| Neck Diameter | 22-32mm |
| Transport Package | Wooden Box Package |
| Specification | 1000*1000*1200 |
| HS Code | 8422303090 |
| Production Capacity | 1000sets/Year |

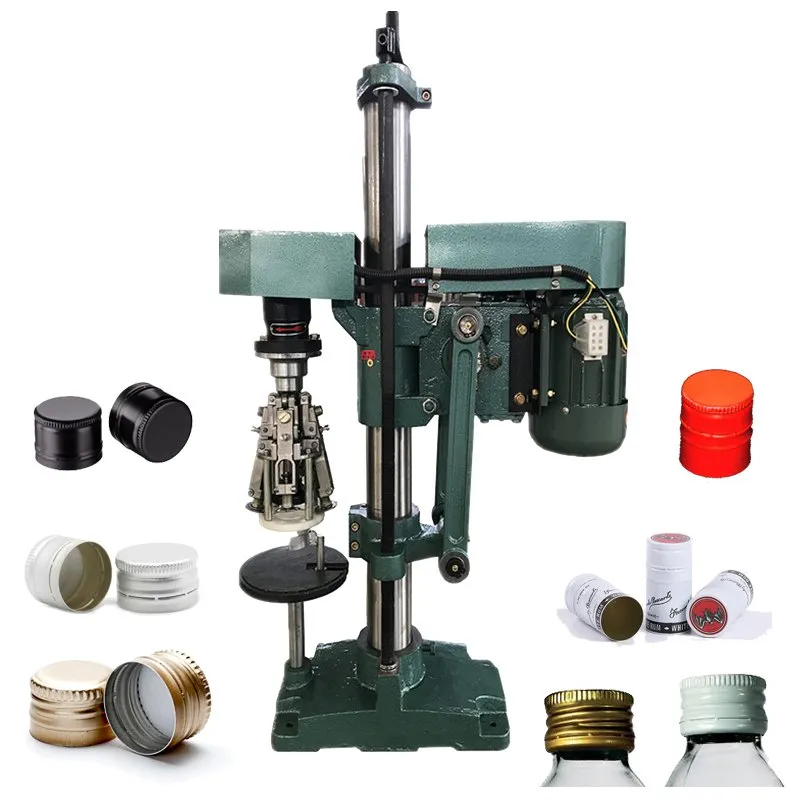

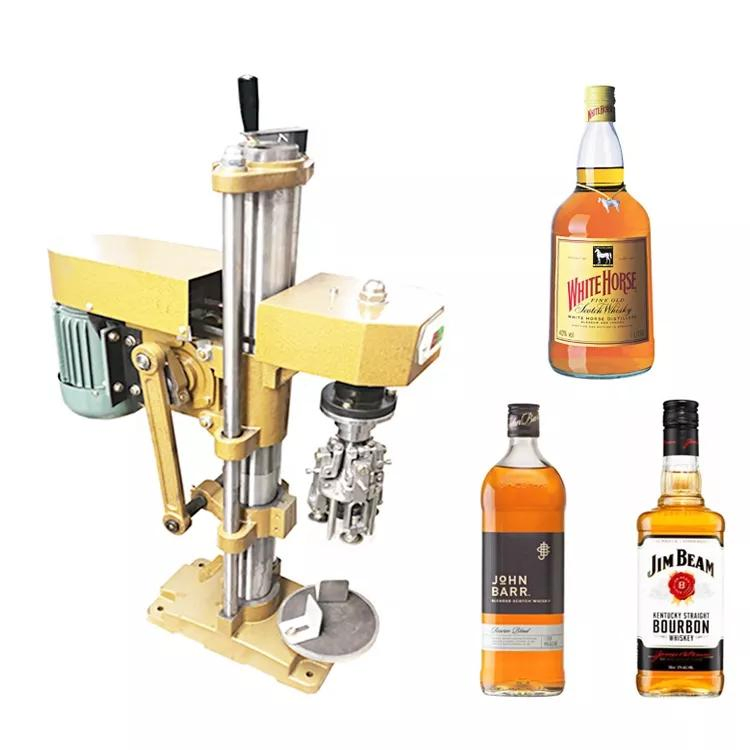

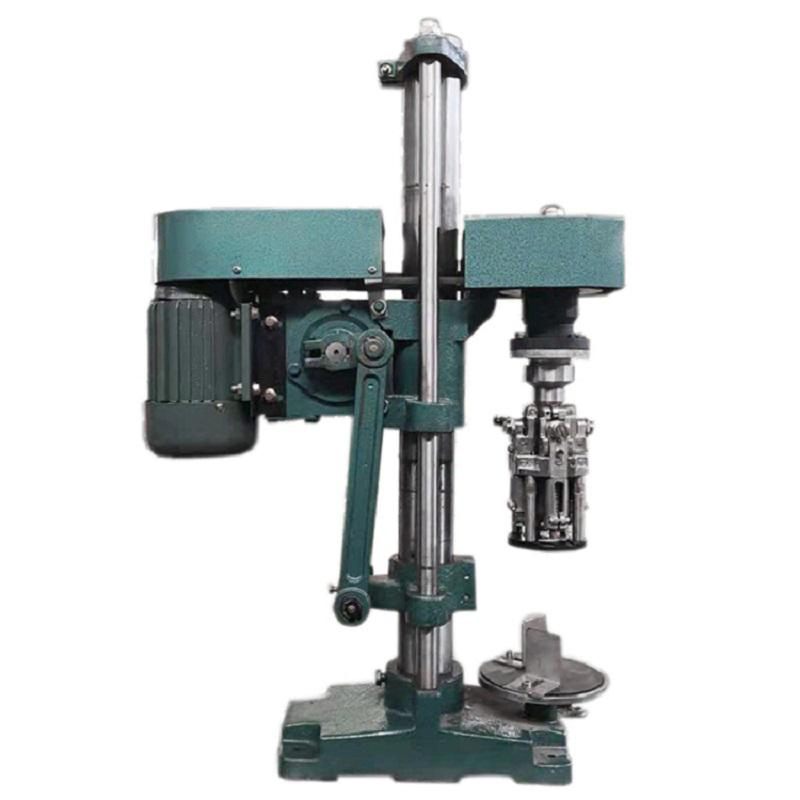

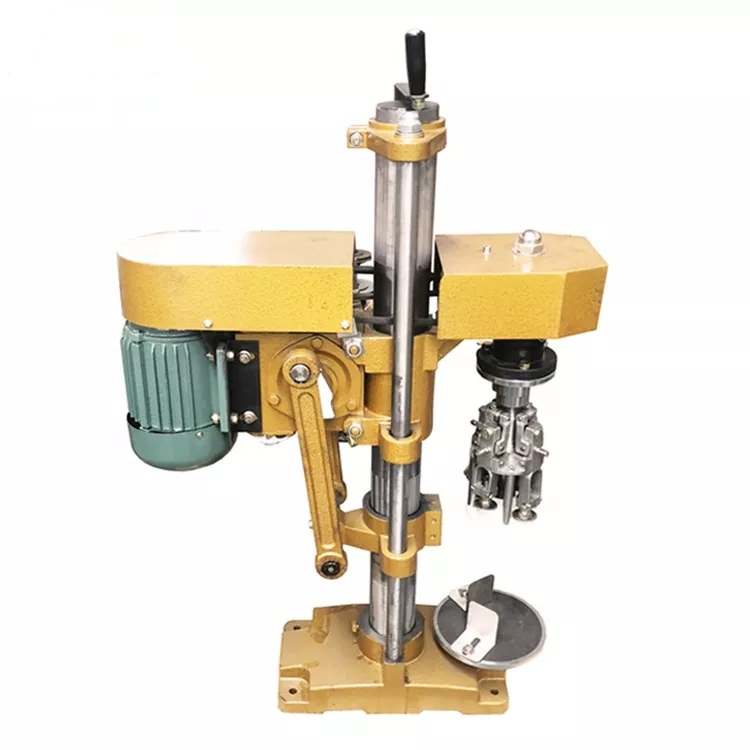

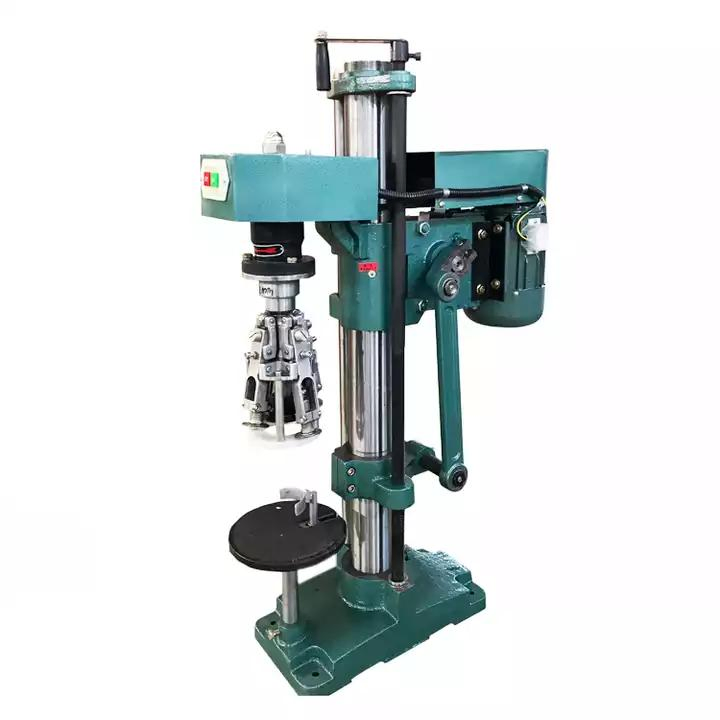

This machine is one of most widely used capping machines. It is suitable for capping aluminum screw caps, ropp caps for glass or plastic bottles. It is a necessary capping equipment for wine, olive oil, water, beverage, drinks, vinegar etc.
| Model | CDA-1 |
| Yield | 800-1200BPH |
| Power | 380v/220v/110v 0.37kW |
| Applicable bottle diameter | 18-42mm |
| Suitable bottle height | 100-350mm |
| Dimensions | 700*300*1050mm |

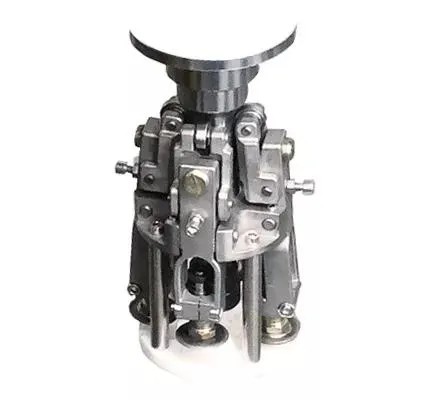

Function: Screwing cap to the bottle.
Four knives to emboss the screw along the thread of bottle mouth and close up the bottle tightly.

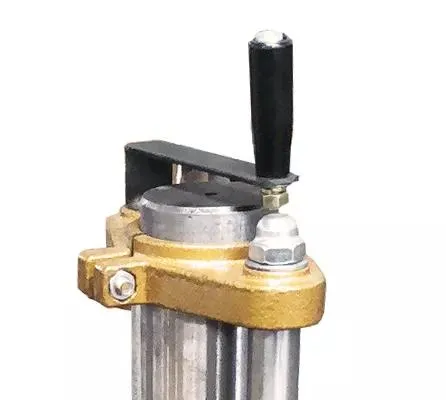

Mechanism: Handle shake.
Shake the handle to adjust the capping height easily to suit different bottle heights.

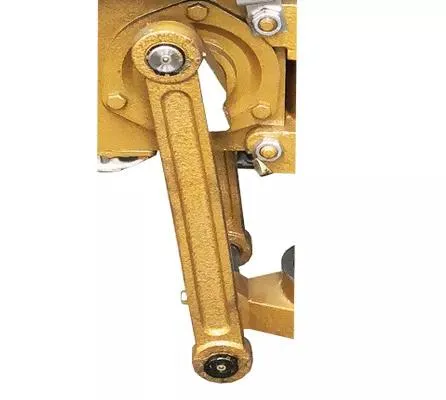

Up and Down Movement: The motor rotates the spindle through the reducer. The rotary motion between curved cams is converted into precise up and down head movement.

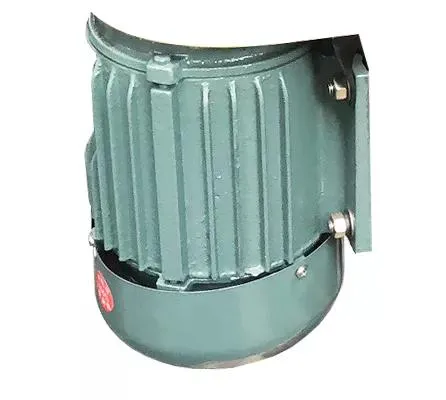

Motor Reducer: High-quality motor reducer drives the curved cam at the bottom to ensure equipment dial intermittently and smoothly.
This automatic capping machine is designed to tighten pilfer-proof caps for wine bottles, olive oil bottles, drinks bottles, etc. It is suitable for φ20-32mm bottle caps. The automatic operation helps save labor and reduce production error.

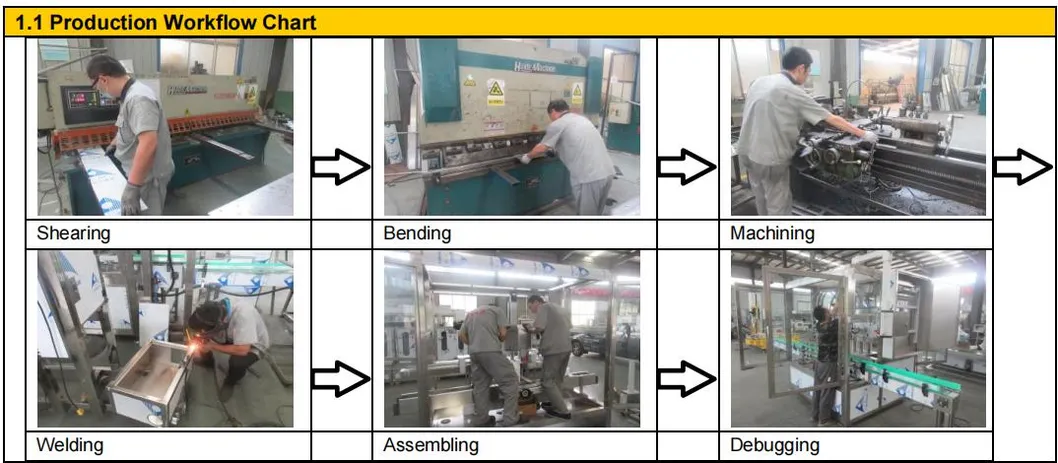

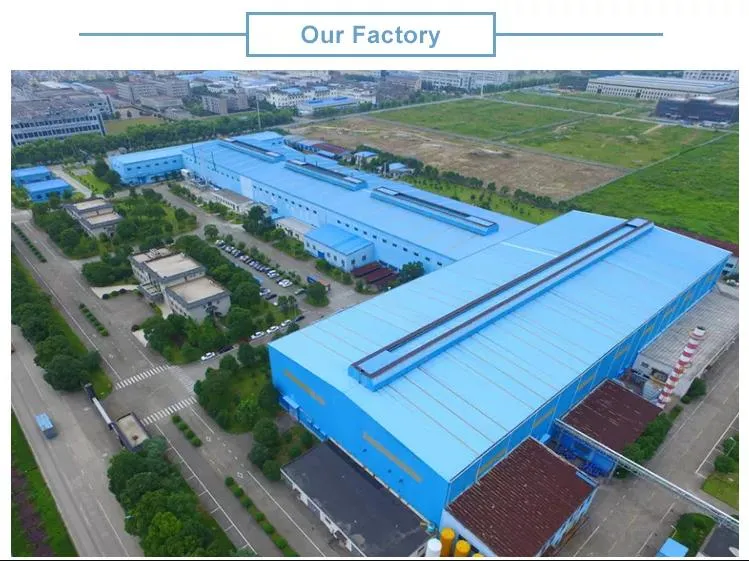

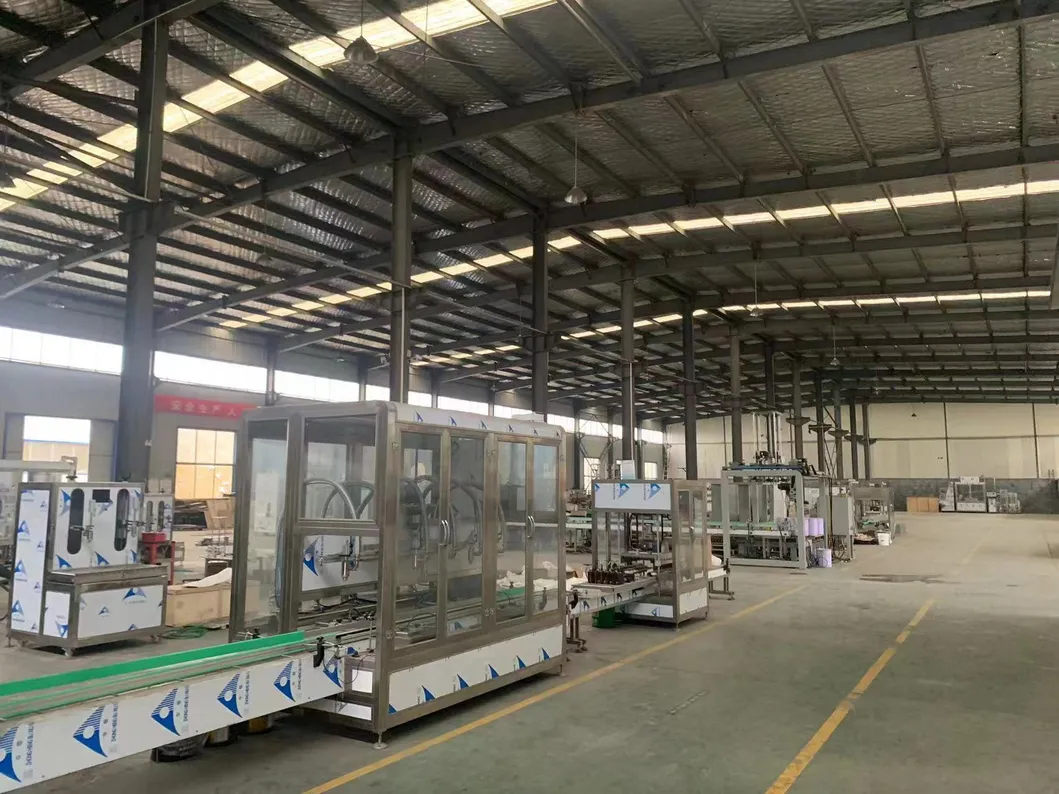

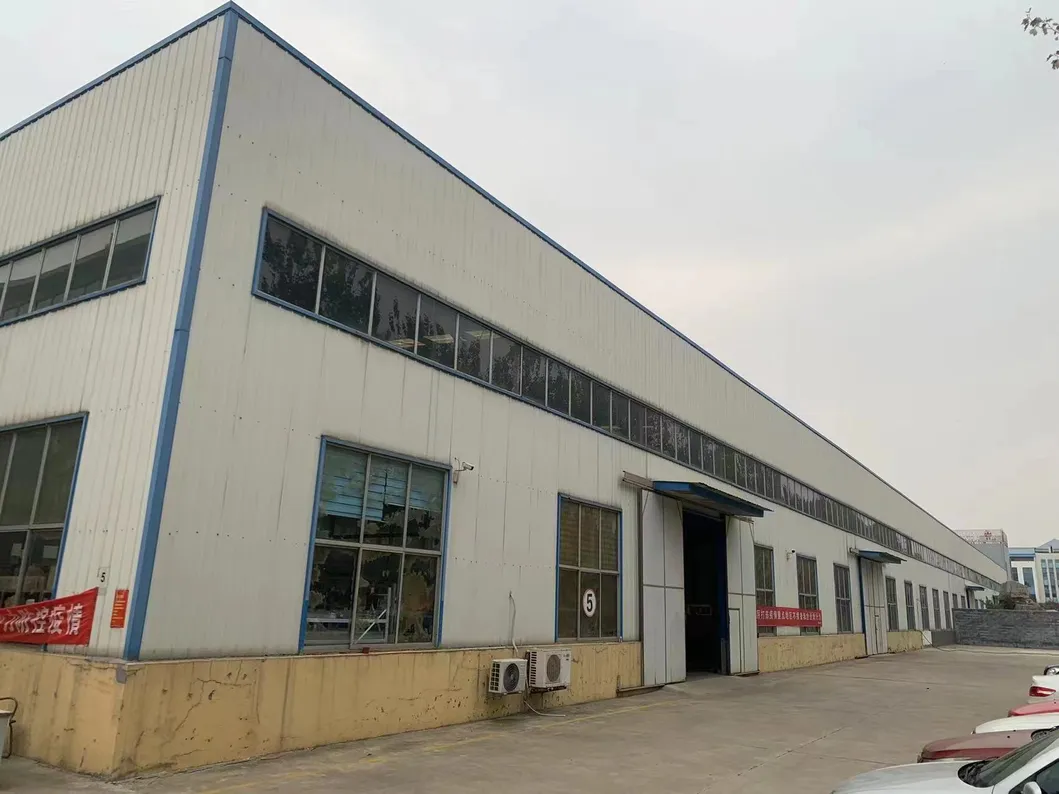

Founded in 1998, we are an early filling machinery manufacturing enterprise, covering an area of 6,000 square meters with more than 30 employees. The workshop features CNC machine tools and large cutting machines to ensure precision and capacity.

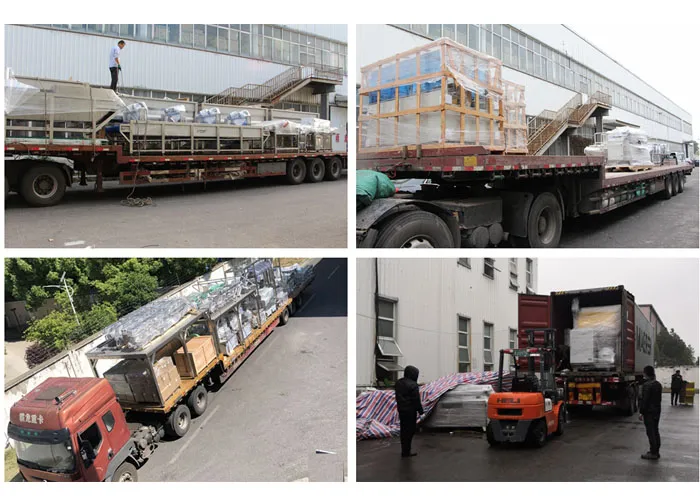

1. Packing: Anti-rust treatment followed by plastic packaging and thick wood/steel frame protection for long-distance sea transport.
2. Delivery: Even with customization, we maintain key spare parts in stock to shorten lead times.
3. Shipping: Economic sea freight is standard; air or express options are available for urgent needs.
