Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
1 / 5
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles
Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles

Automatic High Speed Single Side Labeling Machine for Square Glass Beverage Bottles

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

📊Basic Information

Model NO.CYL-218
Automatic GradeAutomatic
ApplicationCosmetics, Drinks, Cleaning, Detergent, Skin Care, Oil, Food, etc.
TypeSelf-Adhesive Labeling Machine
Driven TypeElectric
Labeling Accuracy±1mm
Running Speed12,000 Bottles/Hour
Power Supply220V 50Hz 2000W
MaterialHigh-grade Metal / Stainless Steel
Suitable forVarious Round and Square Containers

⚙️Product Description

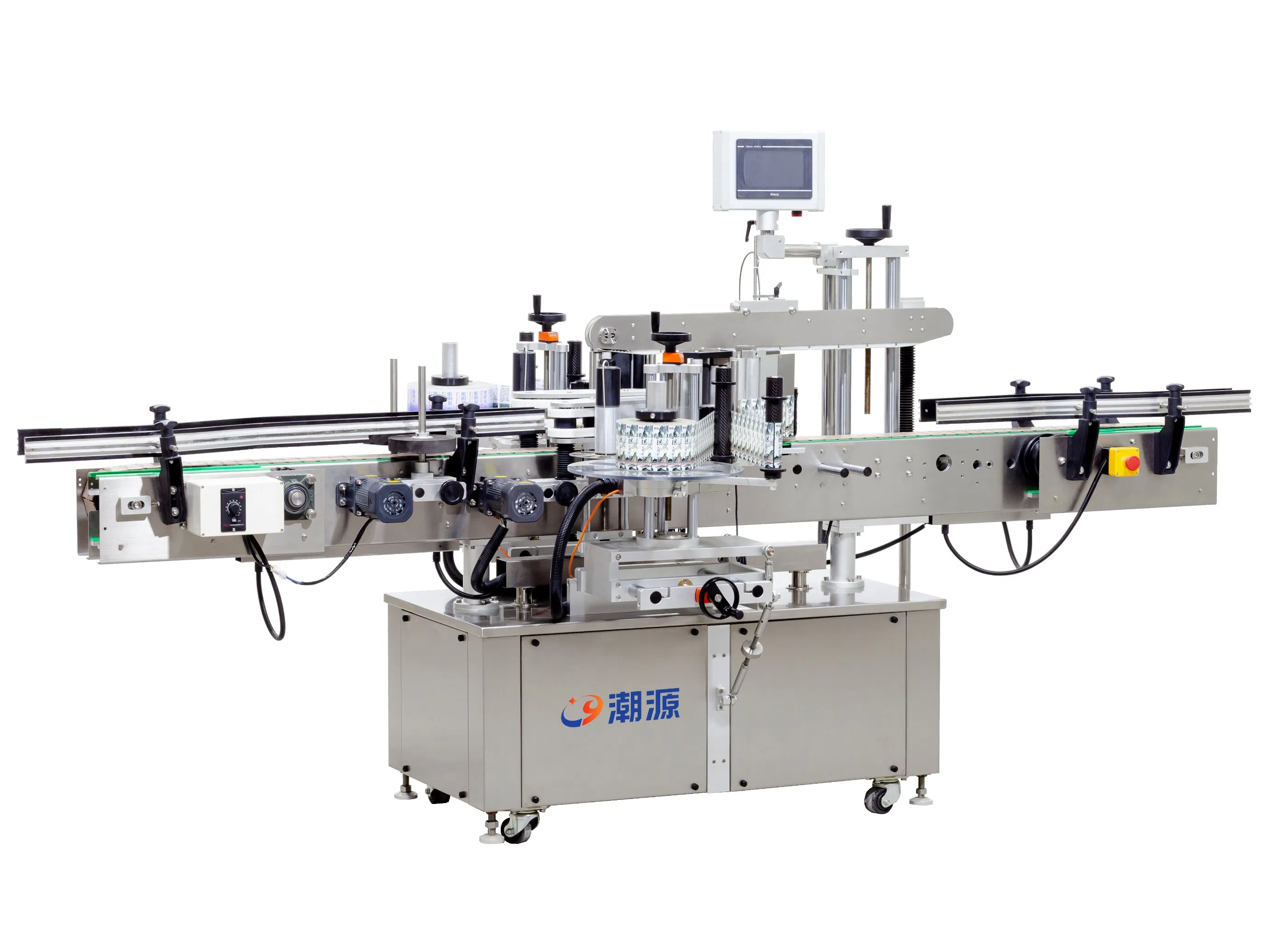

Automatic Single Side Labeling Machine CYL-218
High Speed Labeling Machine

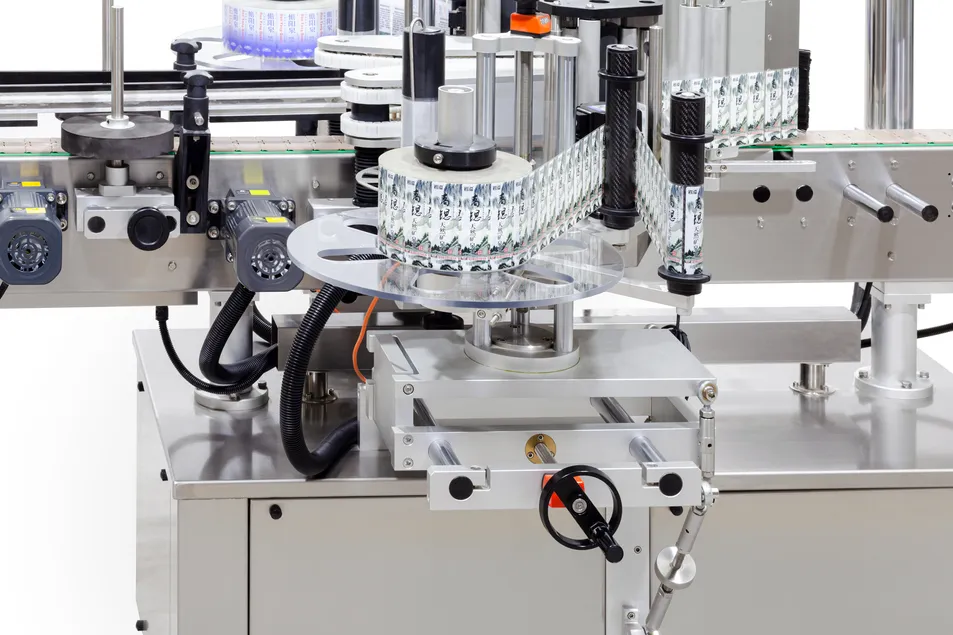

Labeling Machine Detail 1
Labeling Machine Detail 2

Key Product Features

  • Versatile Application: Designed for single-sided labeling of round, square, or flat objects.
  • 6D Adjustment System: The six-dimensional label head allows for precise adjustments within minutes.
  • Stable Tension Control: Double-roller header structure ensures label paper is tightly stretched, preventing breakage.
  • High Precision Drive: Utilizes advanced servo motors for true closed-loop control and high-speed positioning.
  • Synchronized Operation: The belt system is connected to the main gear, ensuring absolute synchronization of conveyor belts.
  • User-Friendly Interface: Advanced HMI system for parameter storage, fault prompts, and easy operation.

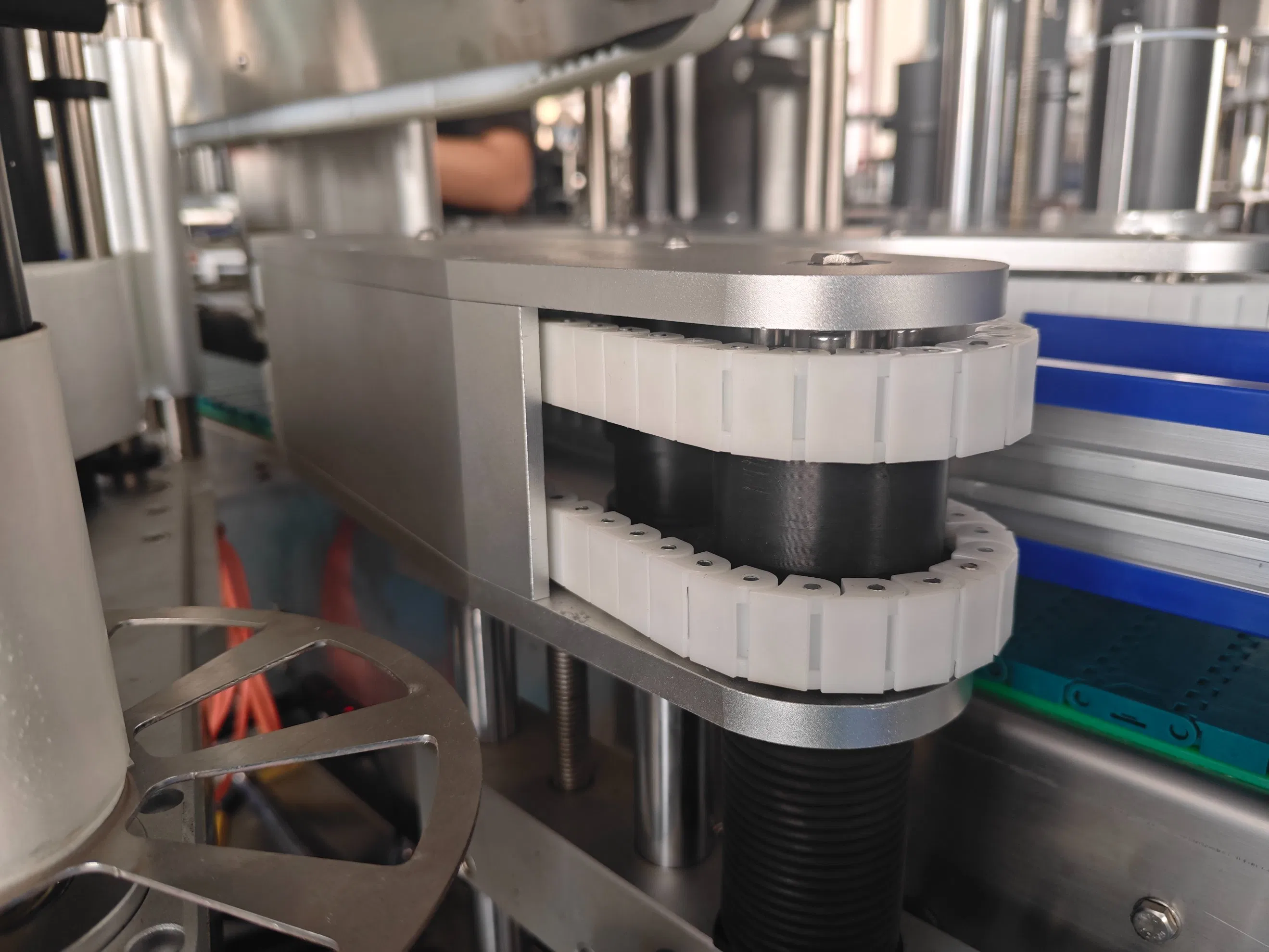

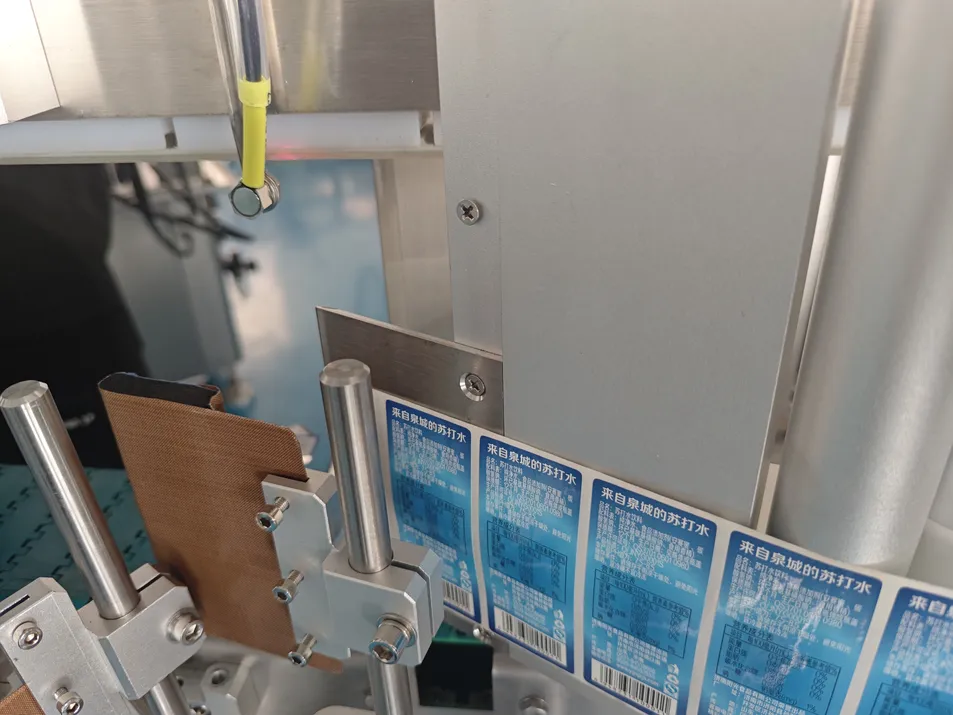

Belt Tensioning
Belt Tensioning Mechanism

Spiral bevel gear transmission synchronizes with the conveyor to ensure high labeling accuracy.

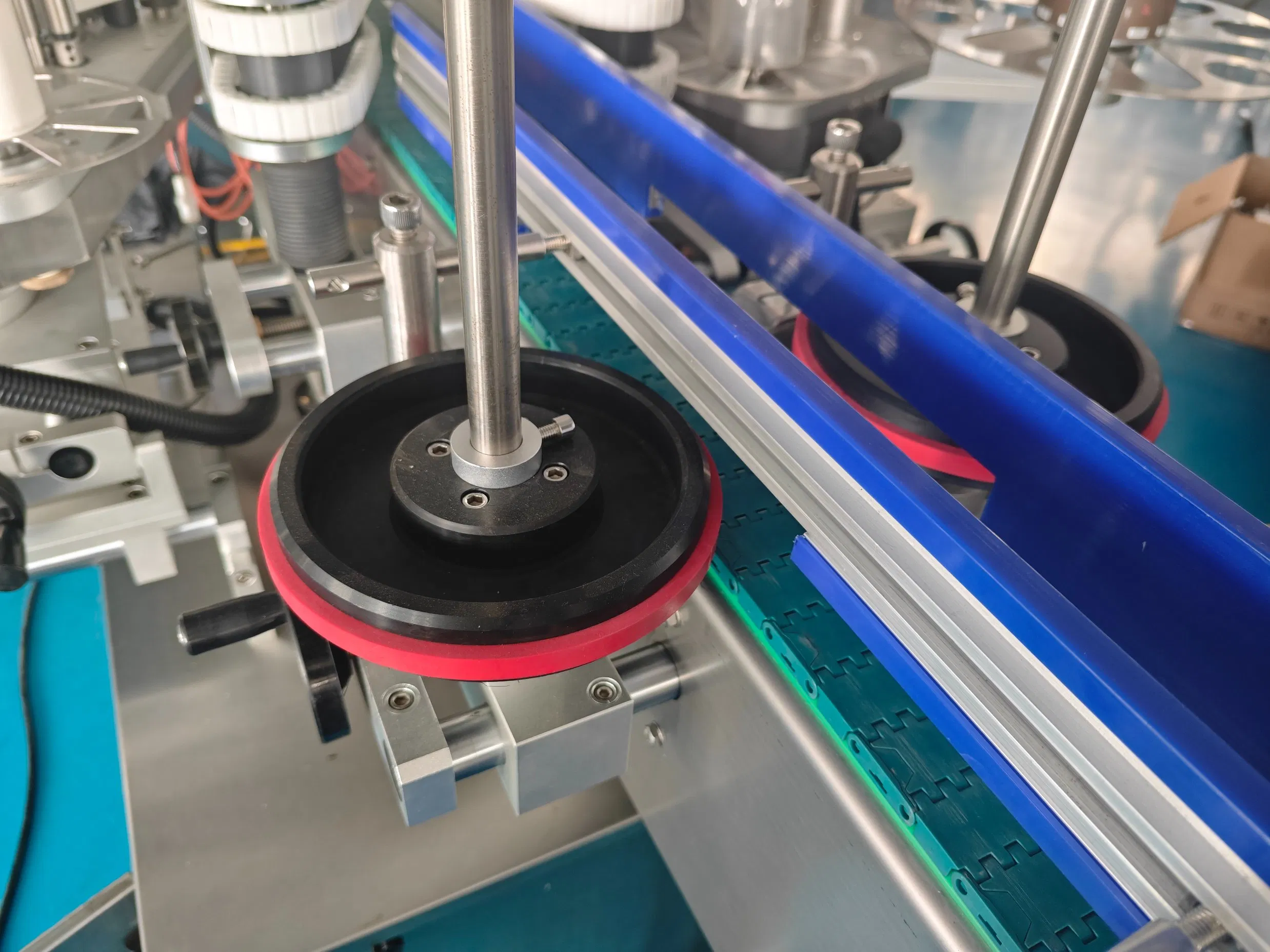

Guide Tube
Guide Tube Mechanism

Dual-coordinate adjustable wide guide rails allow rapid adaptation to various bottle shapes.

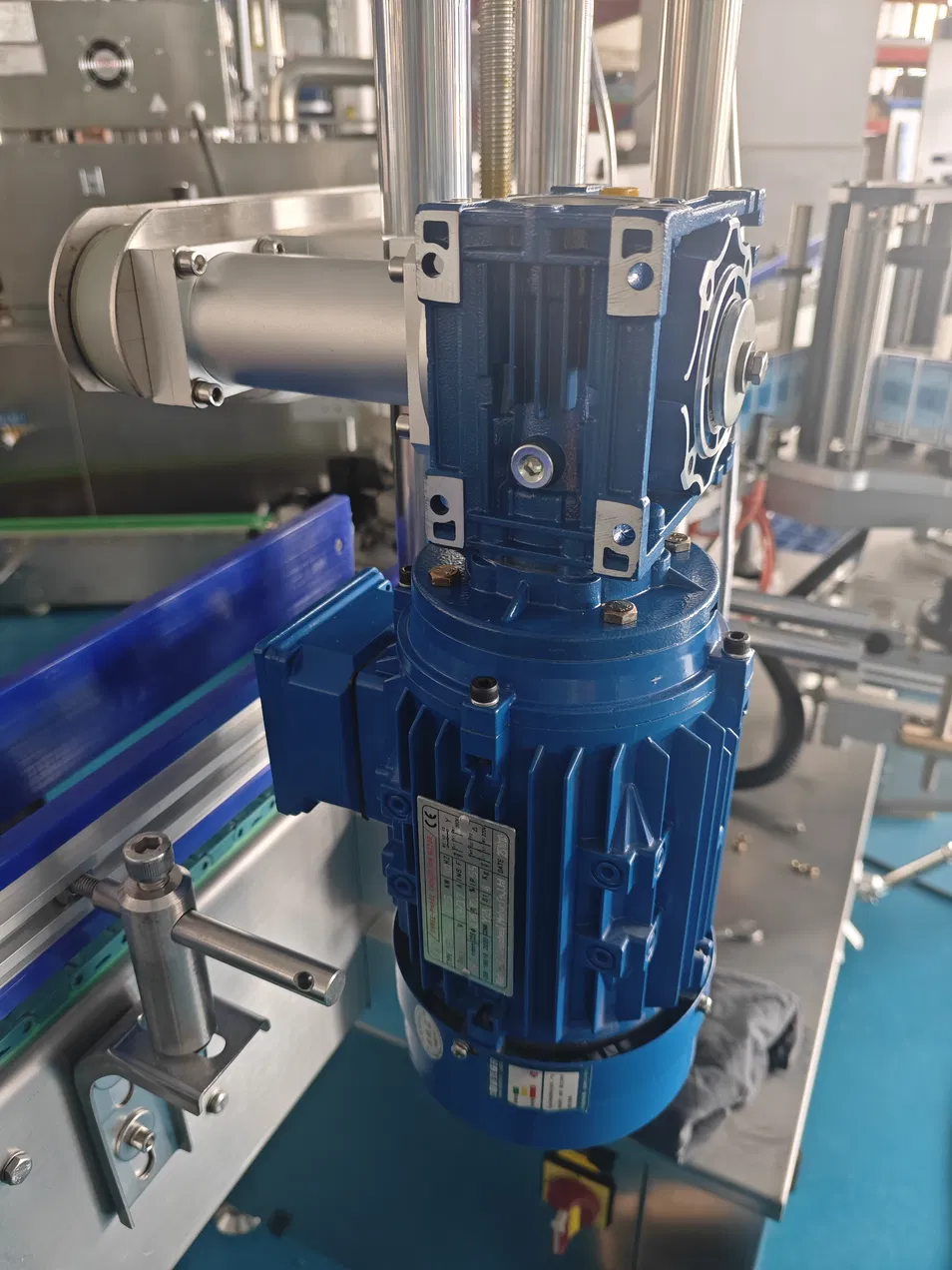

Eye Inspection System
Bottle Outlet Inspection
Advanced Eye Inspection at Bottle Filling & Outlet Ends

📋Technical Parameters

Producing Speed12,000 BPH
Labeling Accuracy±1mm
Label Max Height200mm (Vertical)
Label Max Width500mm
Bottle Diameter Range30mm - 90mm (Customizable)
Bottle Height RangeUp to 360mm (Customizable)
Label Inner Diameterφ76mm
Label Outer Diameterφ400mm
Outline Size (LxWxH)3048 x 1200 x 1650 (mm)
Power Requirements220V 50Hz 2000W

📦Main Product Series

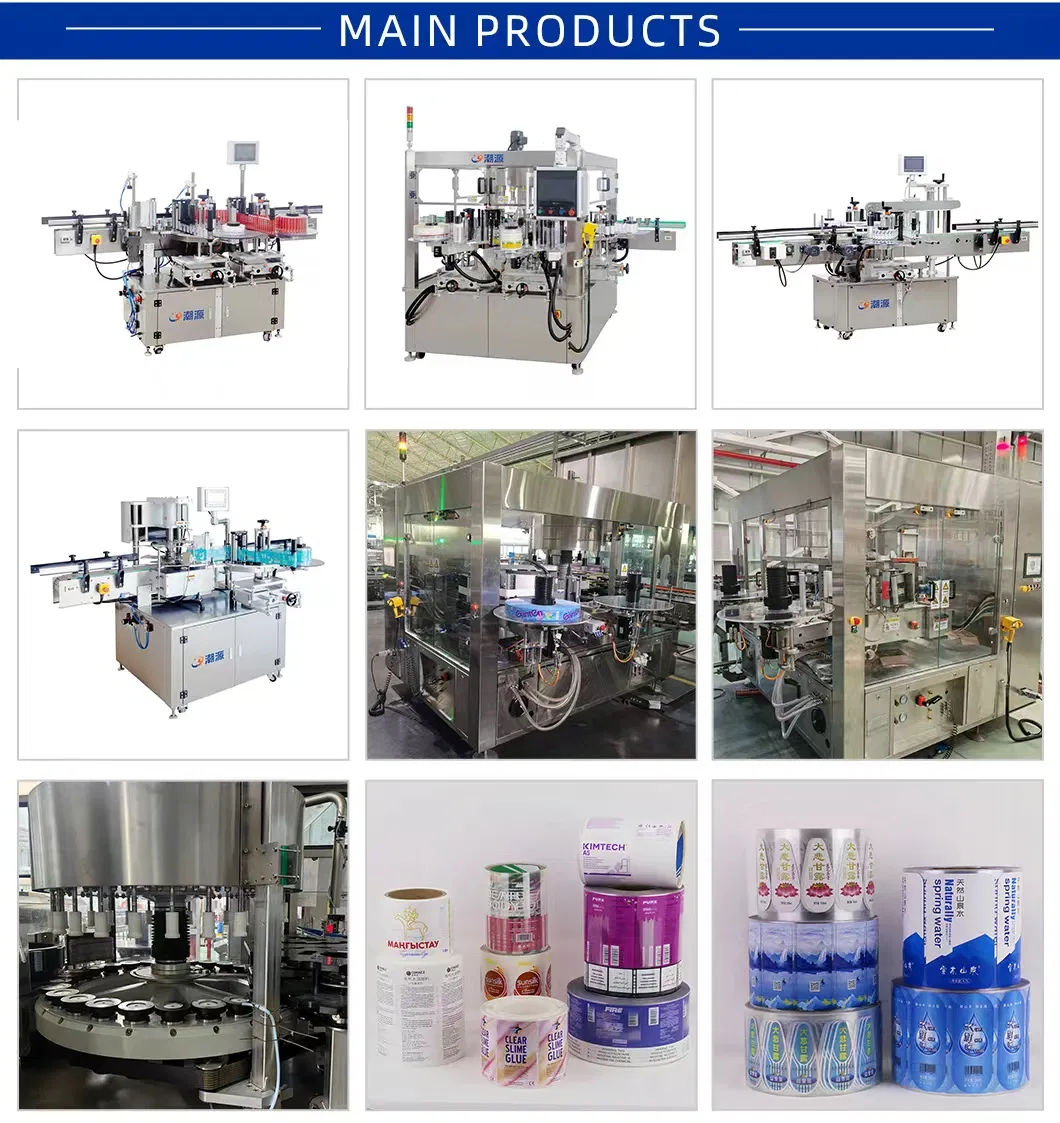

Labeling Machine Series

🏢Workflow & Standards

Production Workflow

Our commitment to independent innovation and pioneering technology allows us to provide cost-effective, highly automated packaging solutions. Our machines are built with CNC precision components for low noise and long-term industrial durability.

Automatic Workflow Process

  • Material Distribution & Conveying
  • Photoelectric Detection for accuracy
  • Signal Reception & Label Application
  • Rapid Positioning on product surface
  • Pressure Roller Final Application
  • Finished Product Discharge
Production Line View
Machine Assembly

🛡️Certifications & Delivery

Quality Certifications
Packing and Shipping
❓Frequently Asked Questions
Q1: Are you a factory or a trading company?
A: We are a manufacturing factory located in Guangdong Province, China. We have a professional export team and experienced technicians specializing in automated labeling solutions.
Q2: How can I verify the machinery quality before ordering?
A: We can provide detailed videos of our machinery in operation. You are also welcome to visit our facility to inspect the machine quality and build standards in person.
Q3: What support is provided if we cannot operate the machine upon receipt?
A: An operation manual and video demonstrations are sent with the machine. Additionally, our after-sales group can provide instructions or technicians can be trained for free.
Q4: Can you provide a complete production line?
A: Yes, we manufacture a full range of machinery including liquid filling, bottle labeling, capping, and final packaging systems.
Q5: Do I need to pay extra costs like taxes or duties?
A: Yes, custom duties and taxes are the buyer's responsibility. The shipping cost typically does not include these import charges.
Q6: Is the equipment suitable for harsh industrial environments?
A: Absolutely. All materials are designed for corrosion resistance, and professional waterproof designs ensure all bearings operate in a dry environment.
