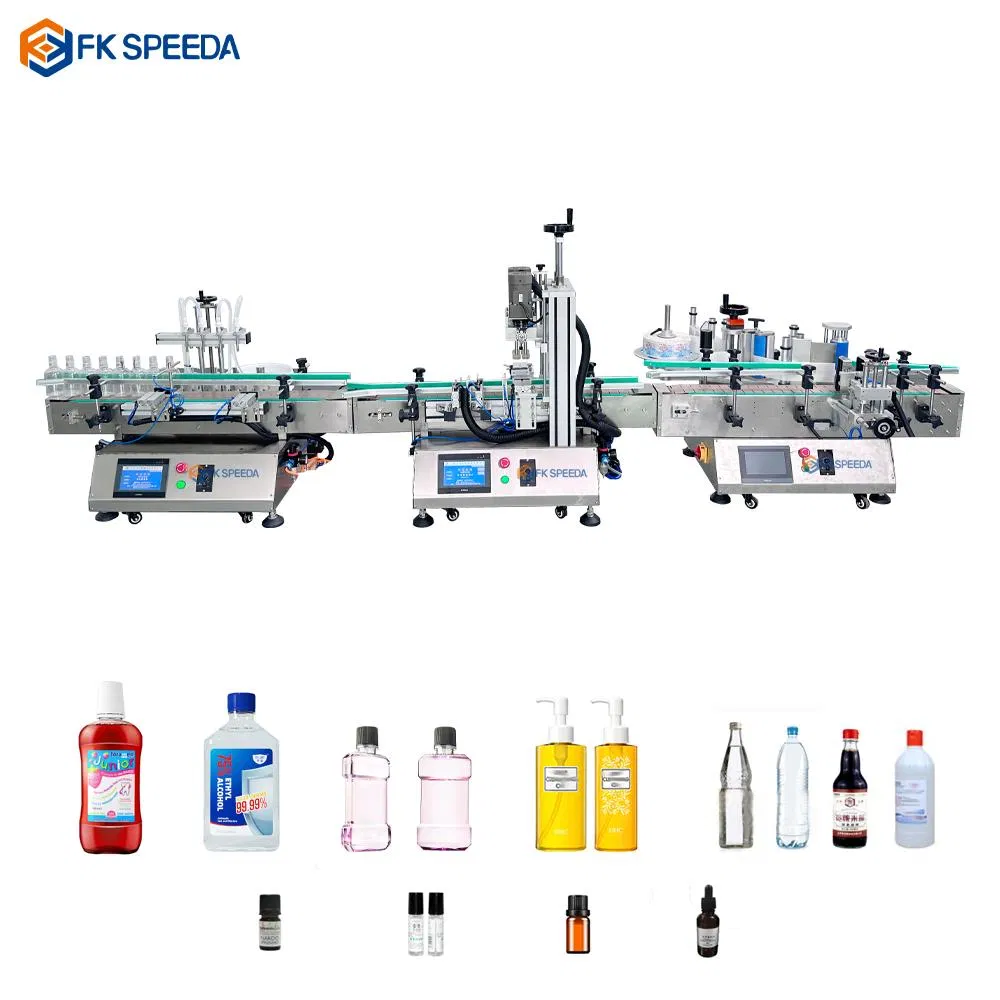

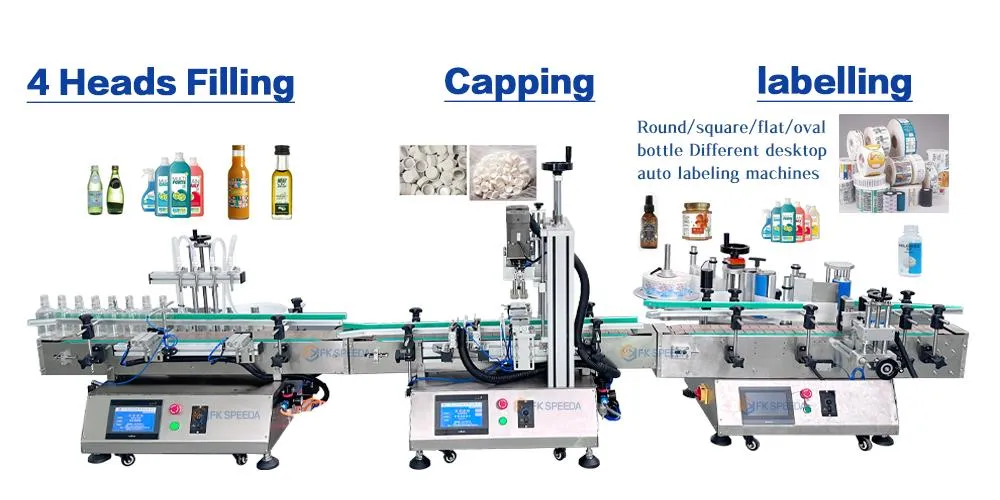

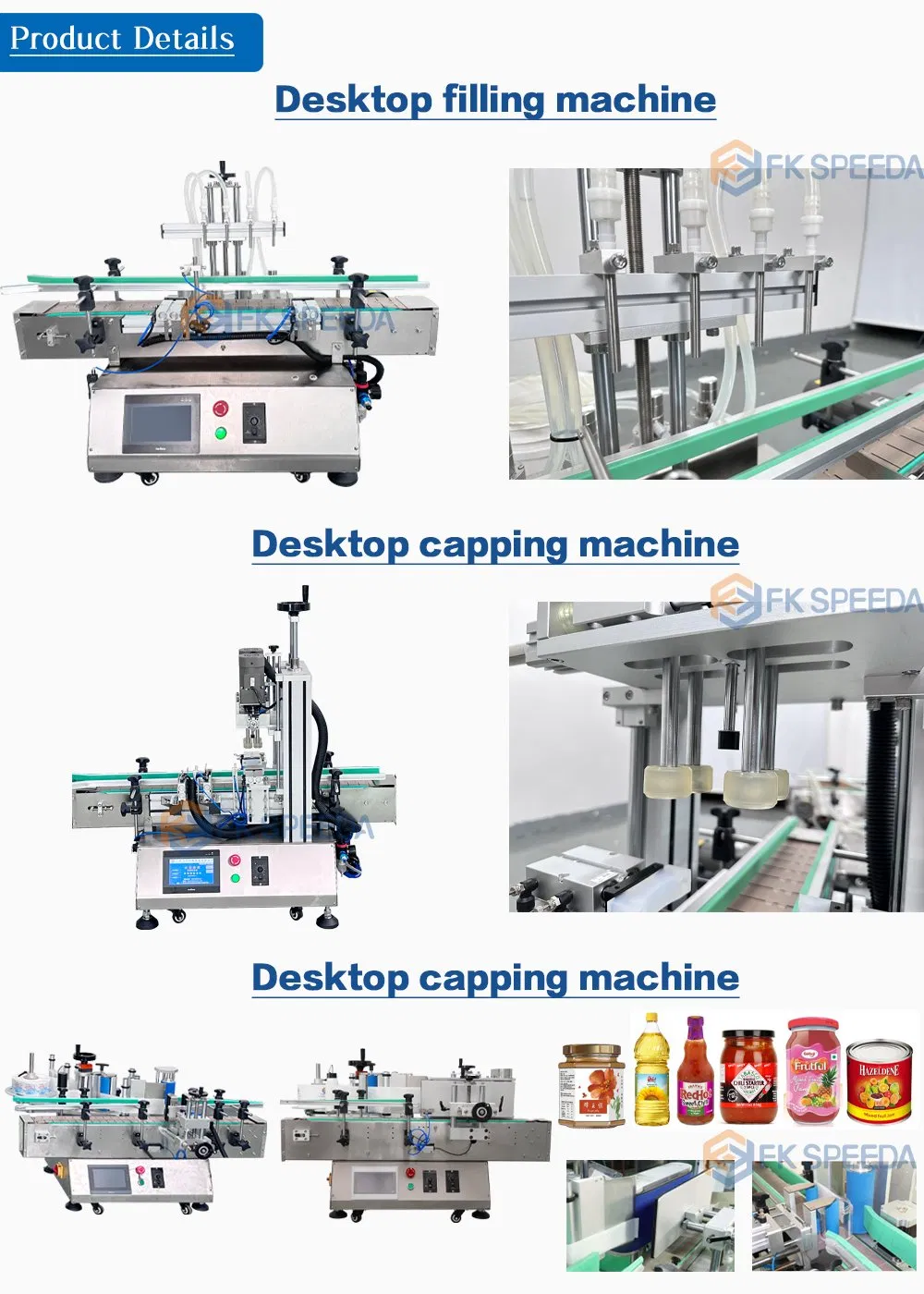

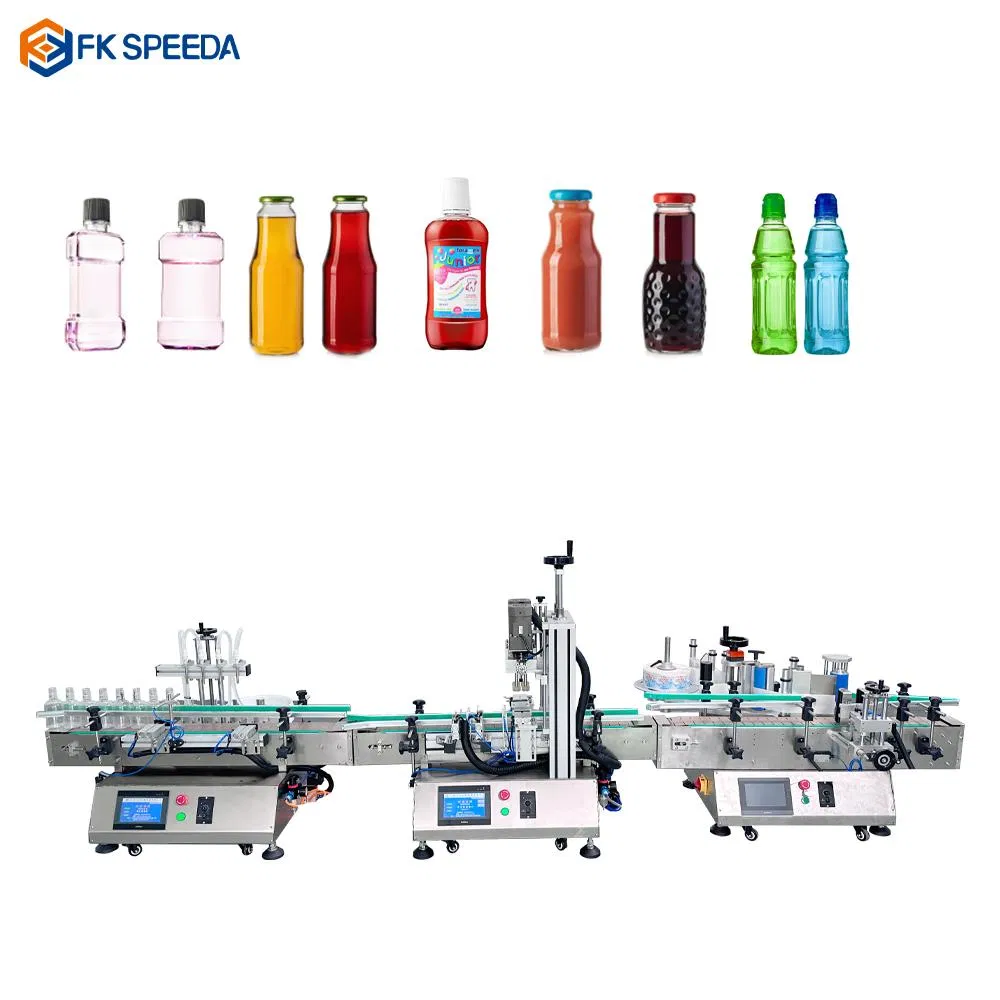

The FK-D4 Magnetic pump filling machine is a compact automatic filling-capping-labeling production line, perfectly suited for small batch production facilities. It is designed to handle a variety of corrosive, low-viscosity, and particle-free liquids. Different models can be selected based on the specific dimensions of the bottle mouth.
This versatile machine is suitable for most liquids, sauces, and gels, excluding materials as thick as dough. Depending on material requirements, the line can be configured with piston filling, diaphragm pump filling, or electric liquid filling systems.
| Parameter | Data Details |
|---|---|
| Filling Material | Liquids (excluding powders, particles, and highly viscous dough-like substances) |
| Filling Tolerance | ±1% |
| Filling Capacity | 50ml - 1800ml (Customizable) |
| Bottle Size Suitability | Customizable based on requirements |
| Production Speed | One filling head: 175~250 bottles/min (Scalable by adding heads) |

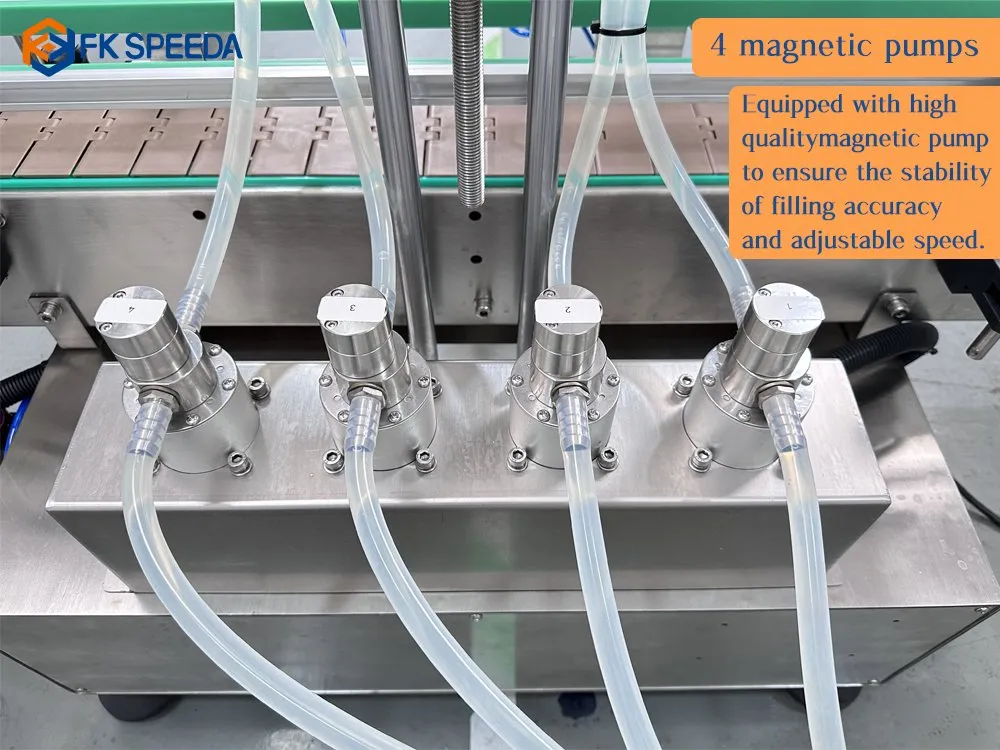

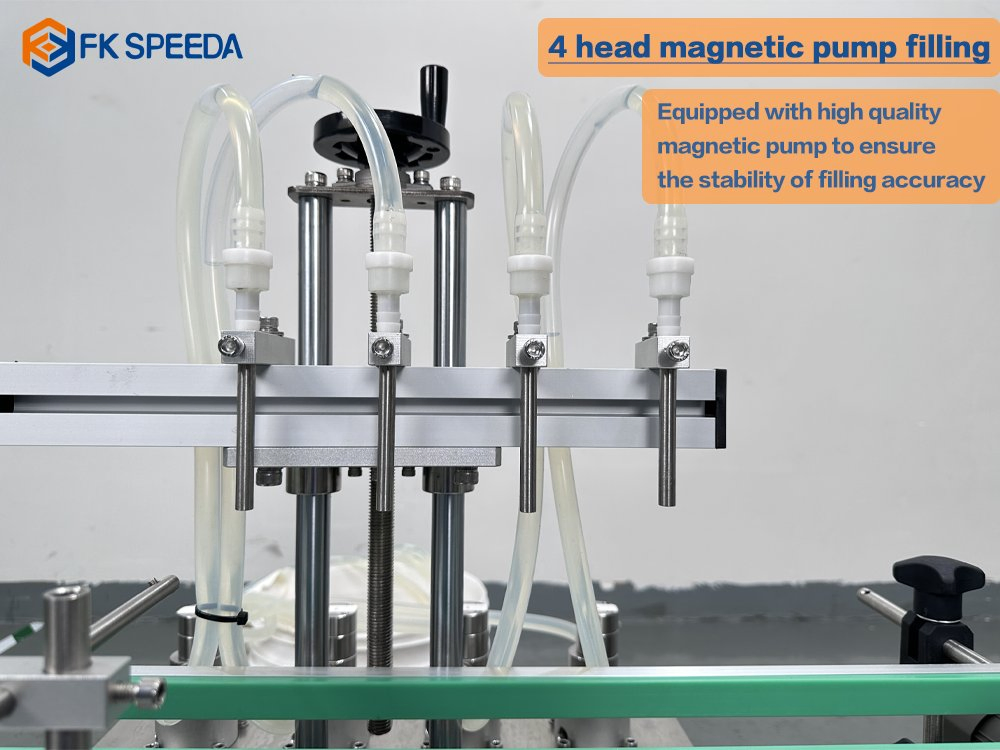

| Quantitative Method | Magnetic Pump / Piston |
| Machine Dimensions | 120 * 55 * 87.8 cm |
| Voltage | 380V/50(60)HZ (Customizable) |
| Power | 600W |
| Net Weight / Gross Weight | 300 KG / 335 KG |
| Additional Functionality | Anti-drip, anti-splash, anti-wire drawing; High precision; Corrosion resistant |
