Basic Information
| Model NO. | PX-BFC850 |
| Type | Piston Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Multi-Head |

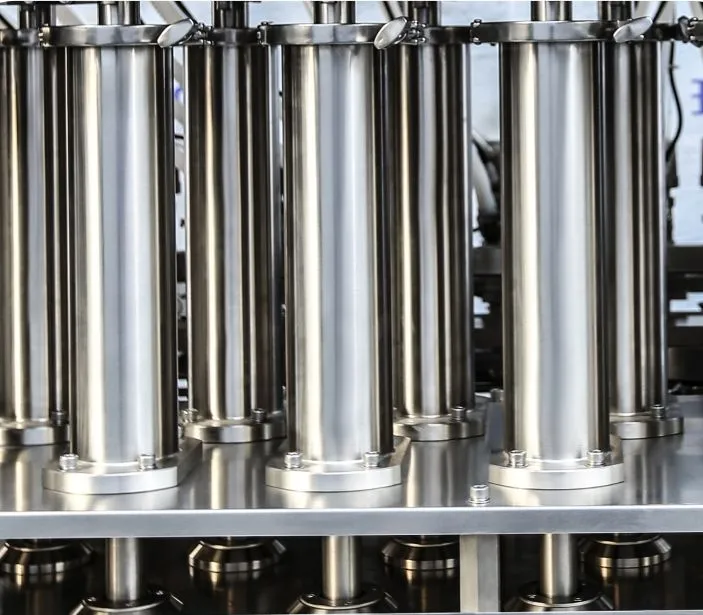

| Dosing Device | Plunger |
| Filling Principle | Pressure |
| Drive Type | Servo Motor |
| Control System | PLC Control System |
| Material | 304 Stainless Steel |
| Production Capacity | 2500-9000bph |
| Specification | 2400mm*1500mm*2480mm |
Product Description

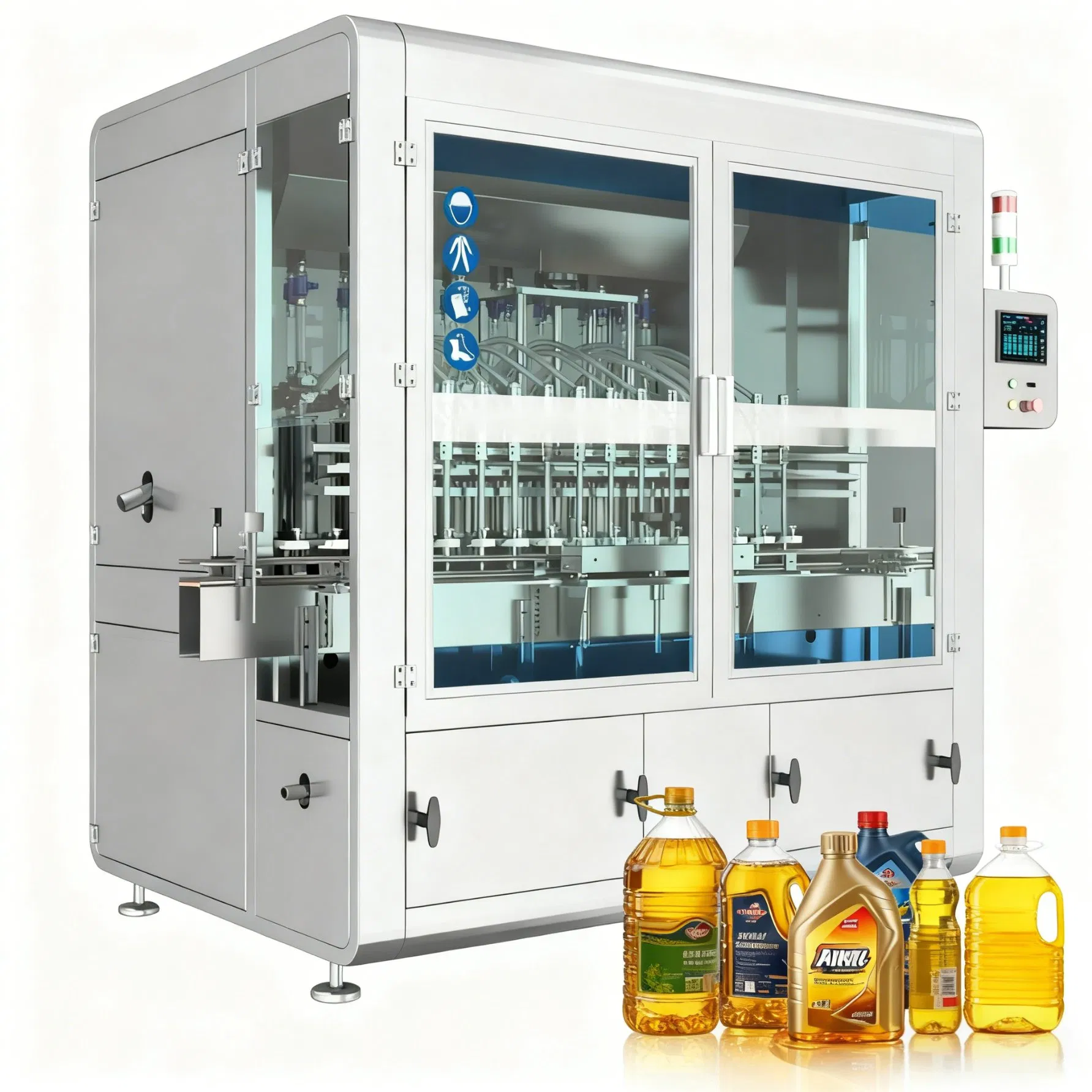

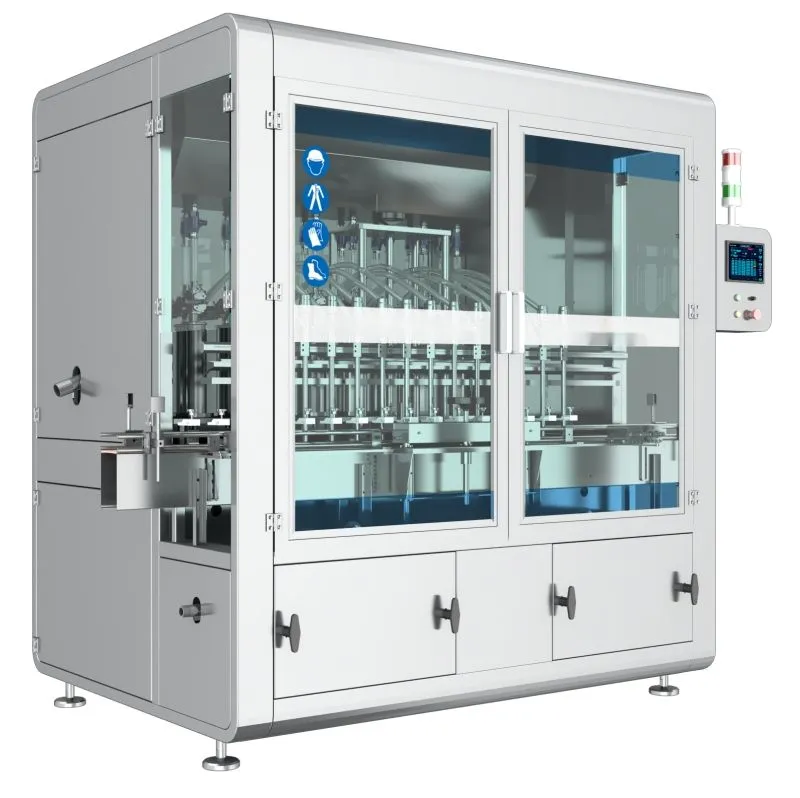

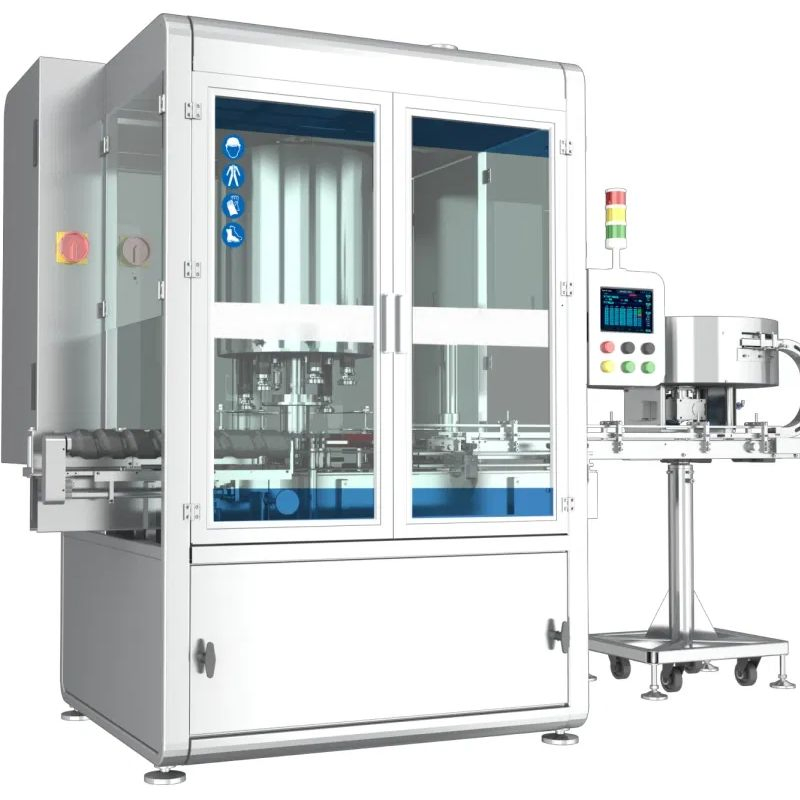

Integrated Bottling Line: Auto Filling, Capping & Labeling Machine for Multiple Industries
This latest generation, improved volumetric filler is suitable for packaging a wide range of aqueous solutions, emulsions, oily suspensions, suspensions, and high-viscosity materials. Driven by a servo motor, it utilizes volumetric metering to achieve high-precision dosing.
Product Parameters
| Containers and Specifications |
| Bottle Material | PET / PP / PE / Glass / Metal |
| Bottle Shape | Round / Square / Unique Shape |
| Filling Range | 200ml-30L (Customizable) |
| Filling Precision | Limit deviation: ±2-3g; standard deviation: 1.5 |
| Filling Valve | Servo motor controlled, segmented speed control, vacuum resorption (no leakage) |
| Power Supply | Voltage: 380V±5%, 3phase; Frequency: 50HZ±1% |
Detailed Features & Photos

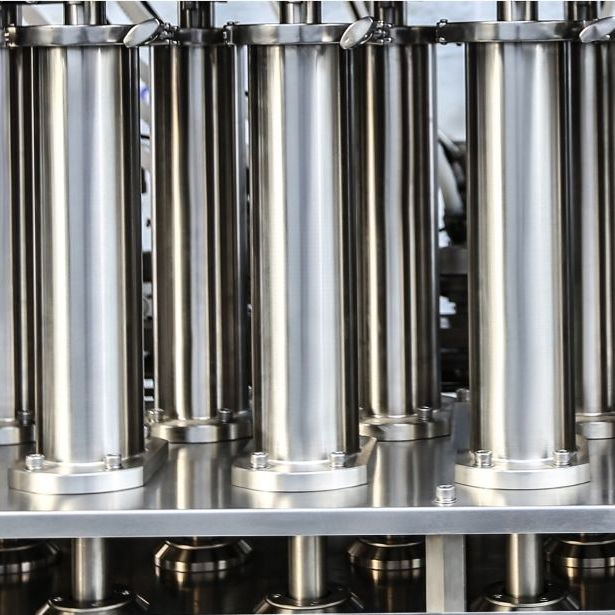

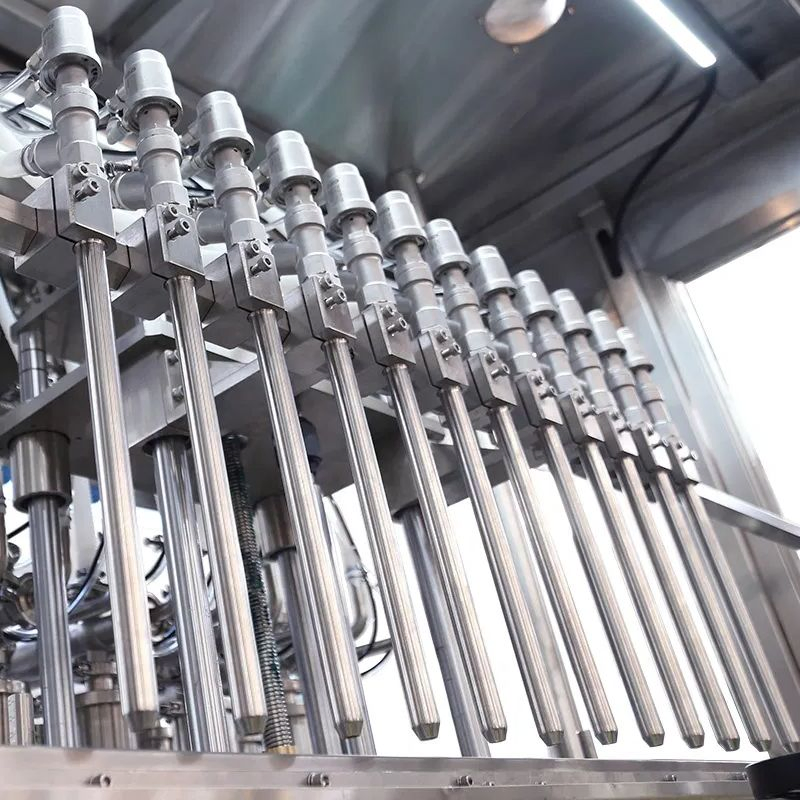

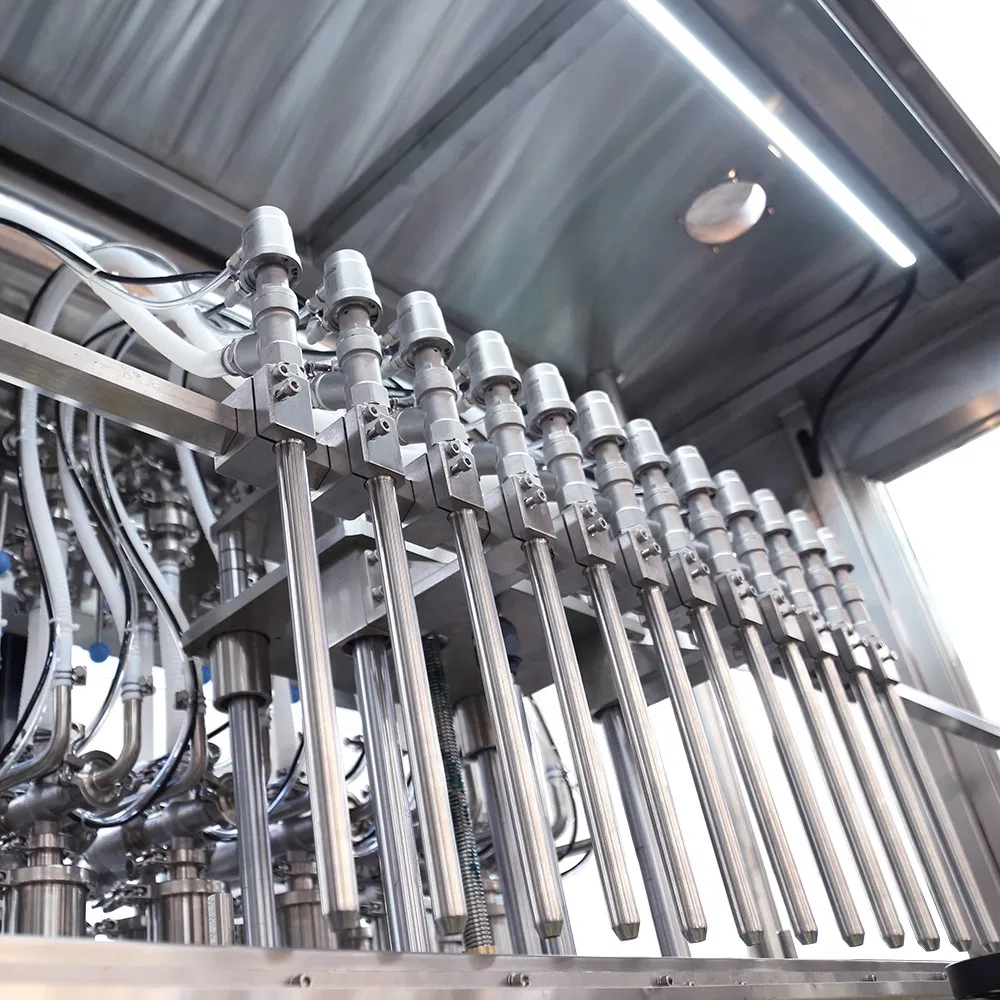

1. High-Precision Filling Valve: High standard professional filling valve ensures fast, accurate, and stable filling. The valve body is made of stainless steel with a special anti-dripping design.

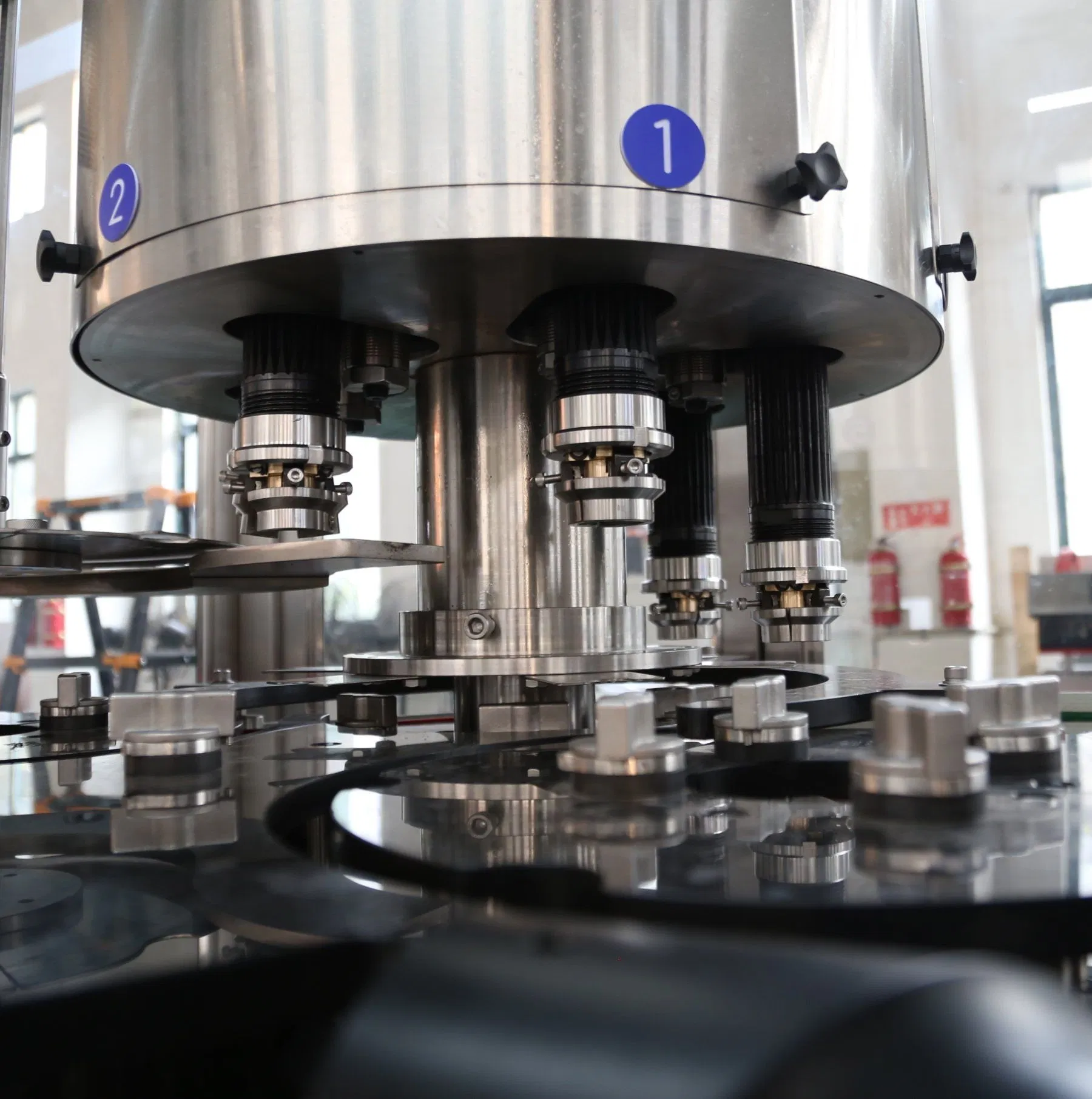

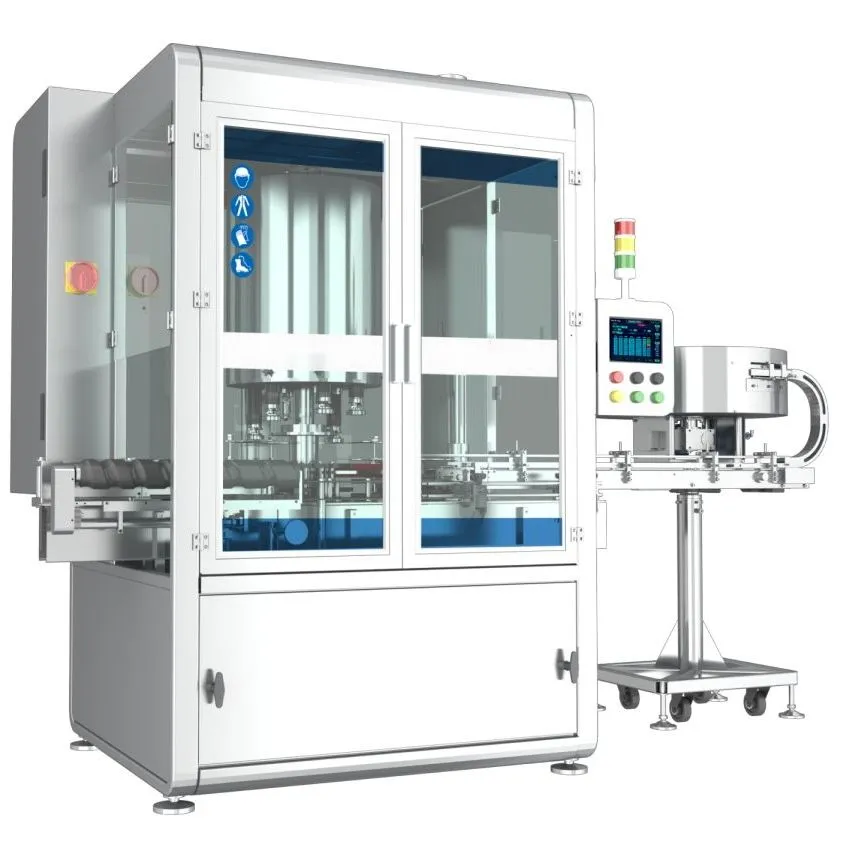

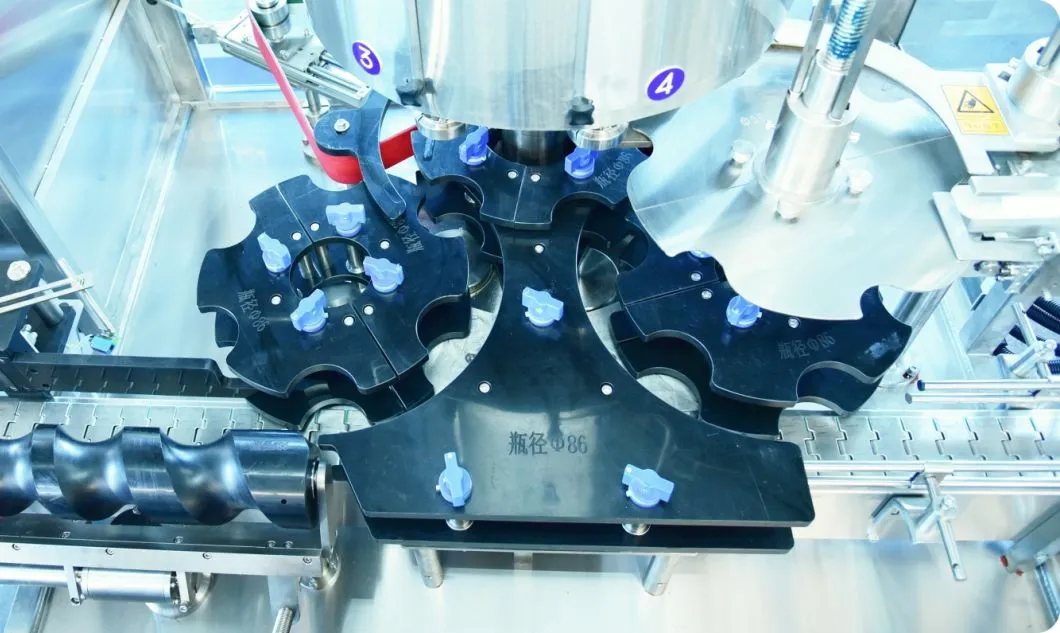

2. Twisting Capping Machine: Suitable for various glass or plastic lids. PLC controlled with an intuitive touch interface. Quick installation design allows for tool-free mold replacement.

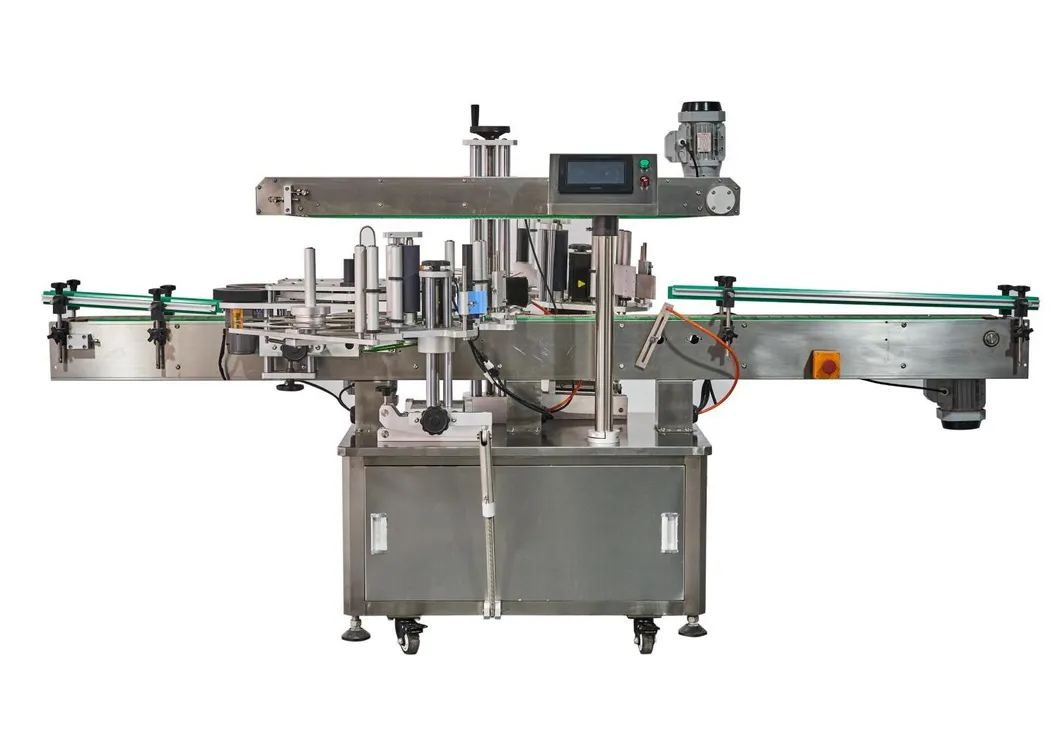

3. Automatic Labeling Machine: Features PLC control technology for high-speed stability. Applicable for square, round, and oval flat bottles.
Product Application
Ideal for quantitative filling of various oils and liquids:
- ▶ Sunflower seed oil, soybean oil, palm oil, and vegetable oils.
- ▶ Engine lubricating oils, industrial oils.
- ▶ Beverages, daily chemicals, and corrosive liquids.
Our Advantages & Service
Service Highlights:
- 🛡️ 12-month quality guarantee with free wearing parts.
- 🛠️ On-site installation, debugging, and staff training by seasoned technicians.
- ⚡ 24/7 Online Service for machine operation support.
- 📋 Standardized workshop with water jet, plasma, and laser cutters for precision parts.
Frequently Asked Questions
Q1: When can I get installation service and what is the cost?
A: Once preparation conditions (water, electricity, air supply, materials) are ready according to the layout, we will dispatch an engineer. The customer is responsible for travel expenses, board, visa fees, and a daily allowance of 100 USD per person.
Q2: How long does the installation process take?
A: Depending on the order complexity, it typically takes 15 to 30 days for one or two engineers to complete the plant setup.
Q3: What is the typical production and delivery time?
A: Standard production time is between 30-60 days. The total time depends on the specific machines ordered and the destination port for shipping.
Q4: How are machines tested before they leave the factory?
A: All machines are connected in a line and run non-stop for over 8 hours. We provide testing videos or live video inspections for your approval.
Q5: Do you provide customized machinery solutions?
A: Yes, we develop machines based on your specific requirements (material, power, filling type, bottle kinds) using our 30+ years of industrial experience.
Q6: How do you handle spare parts?

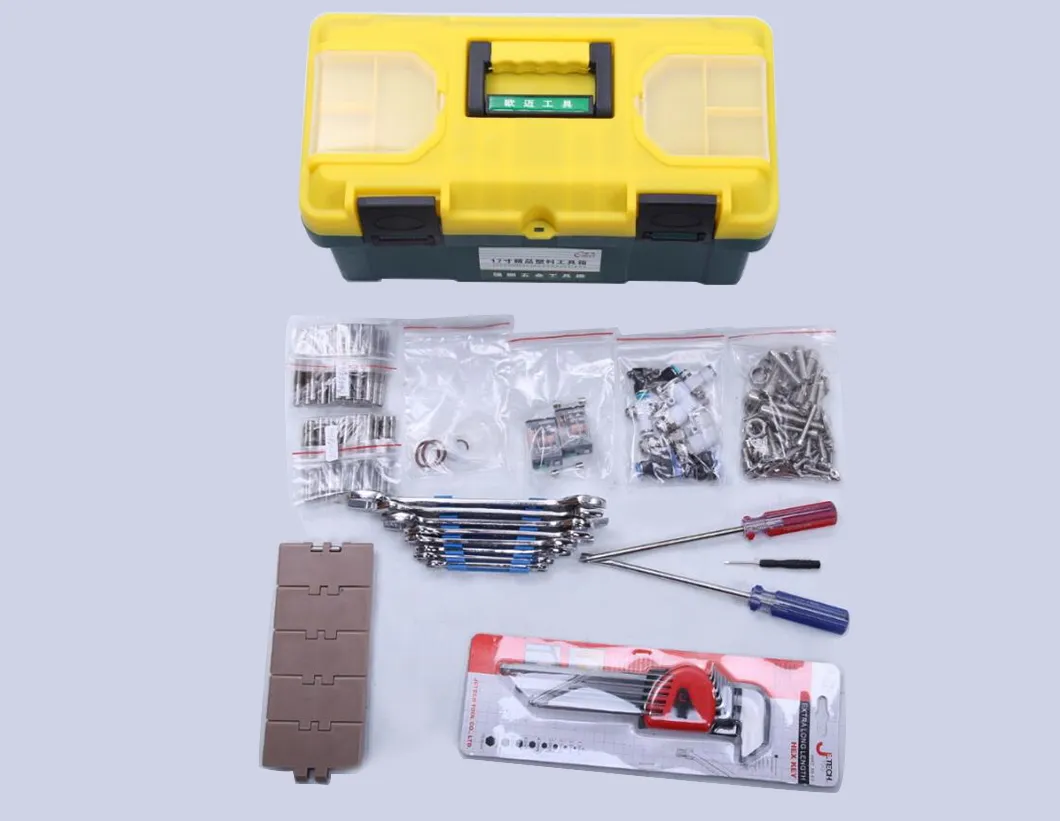

A: We include a one-year supply of easy-to-wear spare parts with the machine delivery. During the warranty period, we supply parts at cost price.
