Basic Information
Automatic Grade
Automatic
Application
Cleaning, Detergent, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Seasoning
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Transport Package
Wooden Box
Specification
(L*W*H) 630*750*1600mm or 1000*750*1700mm
Product Description

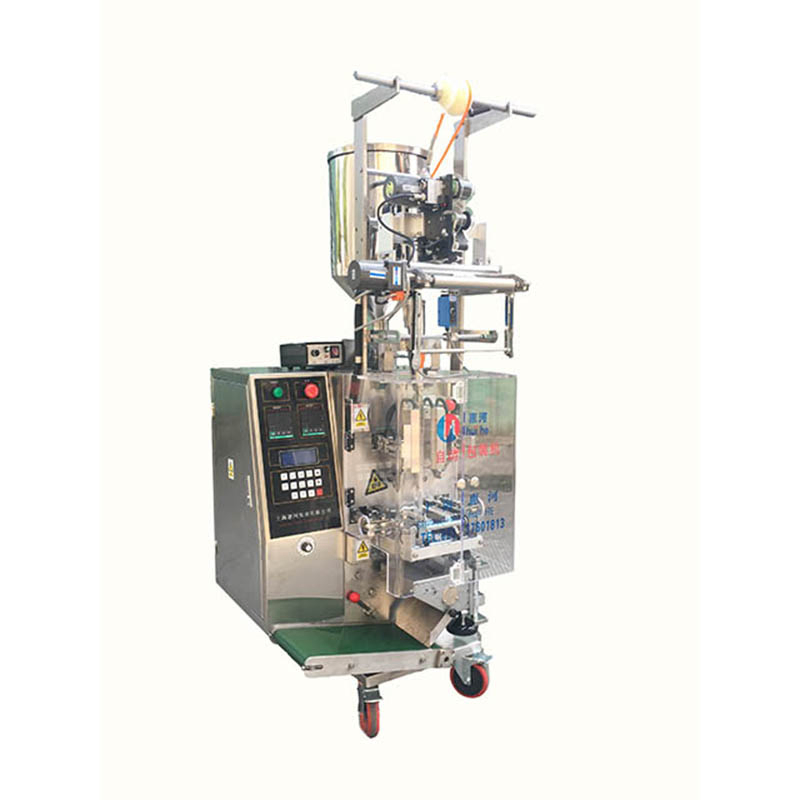

Sauce / Juice / Soap Water / Tomato Paste / Cream / Ketchup / Fruit Jam / Beverage / Peanut Butter / Shampoo / Oil / Honey / Liquid Sachet Filling Package Packaging Packing Machine
Key Features
Full automatic functions: filling, measuring, bag forming, sealing and cutting.
High precision bag-making system with step motor (error < 1mm).
User-friendly controller with Chinese or English display for direct monitoring.
4-side heating control system with independent temperature adjustment for optimal seal quality.
Intelligent photoelectric controller system for precision.
Side-open protective platens for safety and high visibility.
Advanced hopper sets designed for easy cleaning and adjustment-free setup after maintenance.
Versatile sealing options: 3-side, 4-side, or back side seal according to requirements.
Optional ribbon printer for 1-3 lines of text (date of production/batch number).
Compatible materials: PET/PE, Paper/PE, PET/AL/PE, OPP/PE, and other composite films.
Technical Specifications
| Model |
DXDL-240 |
DXDL-300 |
| Bag Type |
3 or 4 sides seal |
Back side seal |
| Bag Size |
W: 30-120mm, L: 30-170mm |
W: 30-140mm, L: 30-170mm |
| Packing Speed |
20-60 bag/min |
20-60 bag/min |
| Method of Measurement |
Piston pump type |
Piston pump type |
| Range of Measurement |
0-100ml |
0-150ml |
| Total Power |
1400W |
1600W |
| Machine Weight |
200kg |
260kg |
| Machine Size (L*W*H) |
630*750*1600mm |
1000*750*1700mm |
| Voltage |
380V or 220V (customizable) |
380V or 220V (customizable) |
Application
Ideal for small sachet packaging of liquid, paste, and sauce products including water, oil, peanut butter, ketchup, honey, salad dressing, soup, juice, milk, and shampoo.

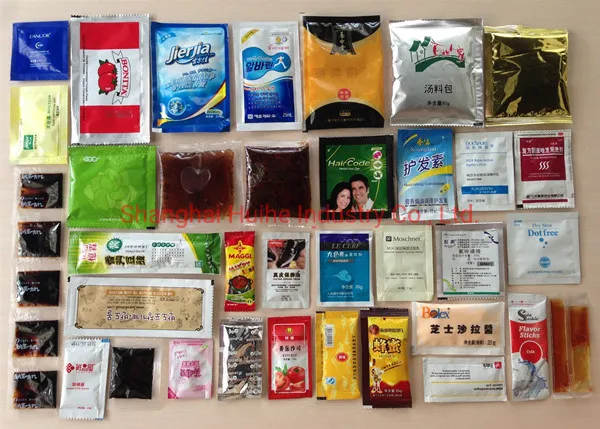

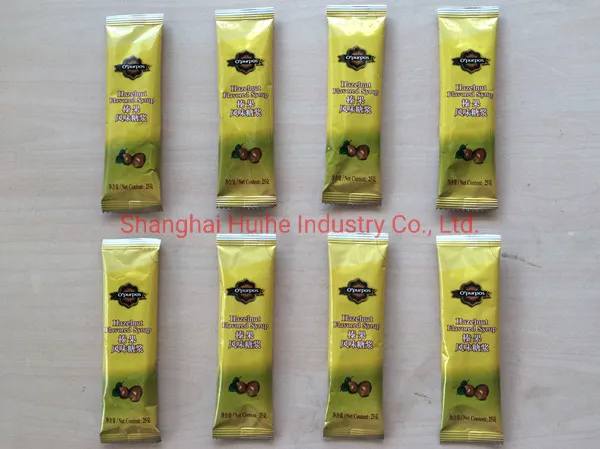

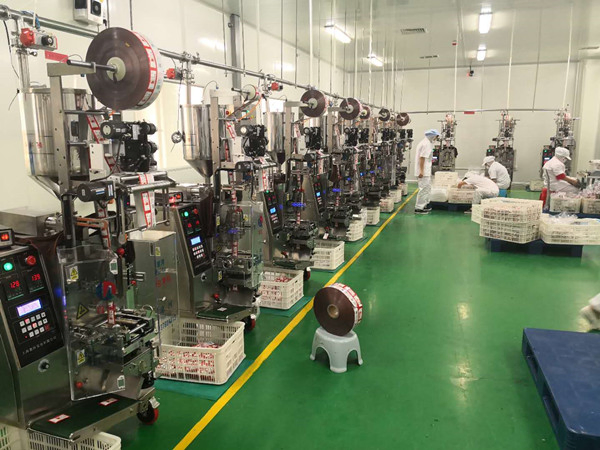

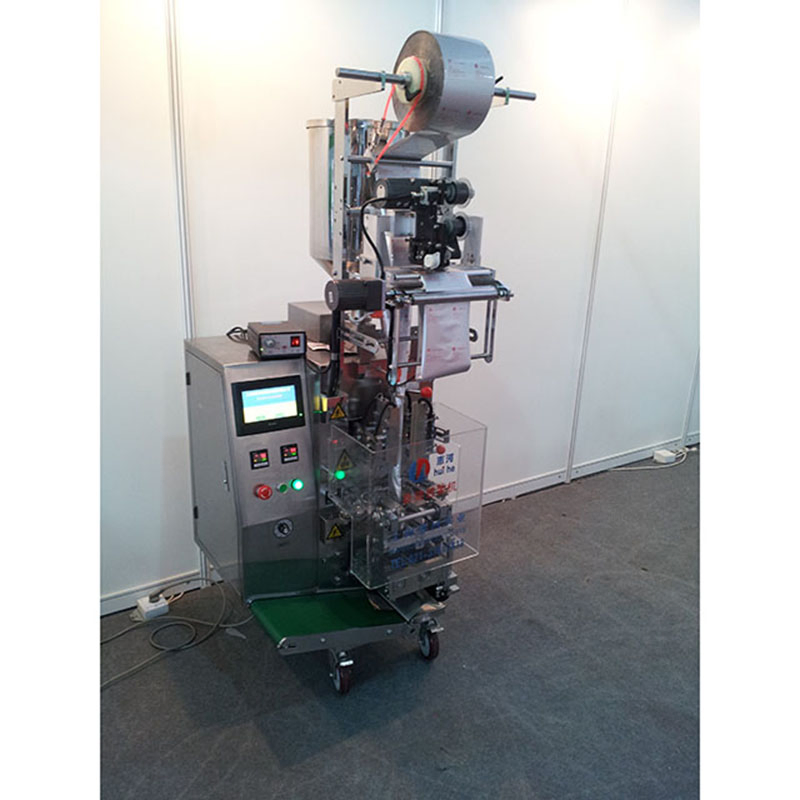

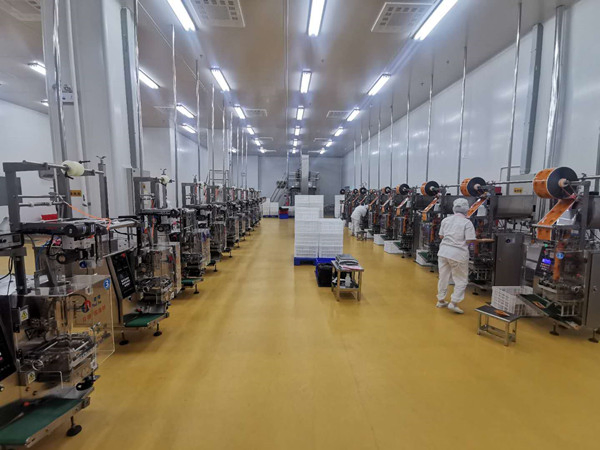

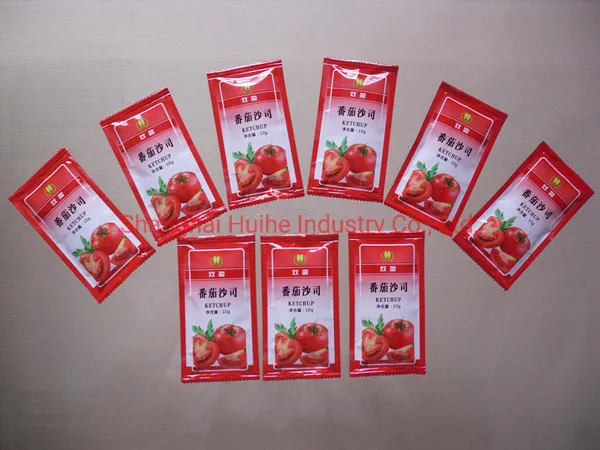

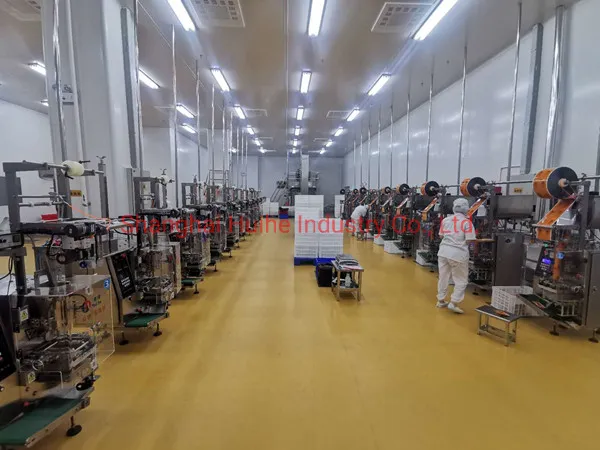

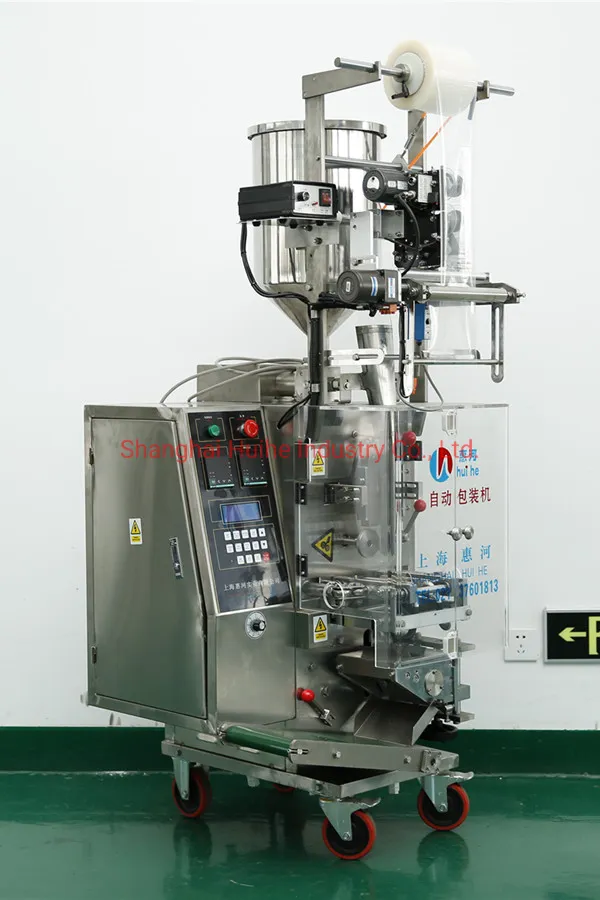

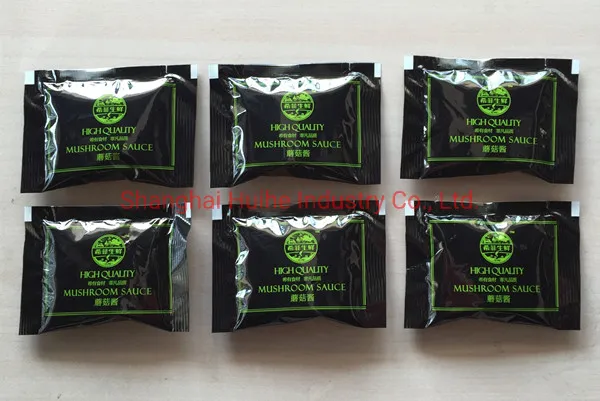

Machine & Sample Display
Service & Installation
1
Payment: 30% down payment, 70% balance before shipment after video inspection or factory visit.
2
Warranty: One Year. Consumable accessories and all spare parts are readily available.
3
After-Sales: 24/7 consulting service, English manuals, and overseas engineering dispatching available.
4
Installation: Video and telephone instructions provided. Site installation and training session available upon request.
Frequently Asked Questions
What types of products can this machine pack?
This machine is versatile and suitable for a wide range of liquid, paste, and sauce products including honey, shampoo, oil, juice, ketchup, peanut butter, and detergent.
What are the available sealing types for the bags?
Depending on your needs and the model chosen, the machine can perform 3-side sealing, 4-side sealing, or back-side sealing.
Is it easy to maintain and clean the hopper?
Yes, the machine adopts the newest hopper sets which are designed for easy removal and cleaning. No readjustment is needed after cleaning, significantly improving work efficiency.
How accurate is the bag-making system?
The bag-making system uses a high-precision step motor, ensuring an error margin of less than 1mm for consistent packaging quality.
What kind of after-sales support do you provide?
We offer a one-year warranty, a set of consumable accessories, English manuals, and 24/7 consulting. Our experienced engineers are also available for overseas dispatching if required.
Can I print production dates on the sachets?
Yes, a ribbon printer can be added as an optional accessory to print up to three lines of text, including production dates and batch numbers.
