| Model NO. | PX-BFC850 |
|---|---|
| Type | Piston Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid / Paste |
| Filling Valve Head | Multi-Head (Customizable) |
| Dosing Device | Plunger / Piston Pump |
| Filling Principle | Pressure |
| Driving System | Servo Motor Driving |
| Packaging | Bottle / Jar (Metal/Plastic/Glass) |
| Production Capacity | 2500-3000 BPH |

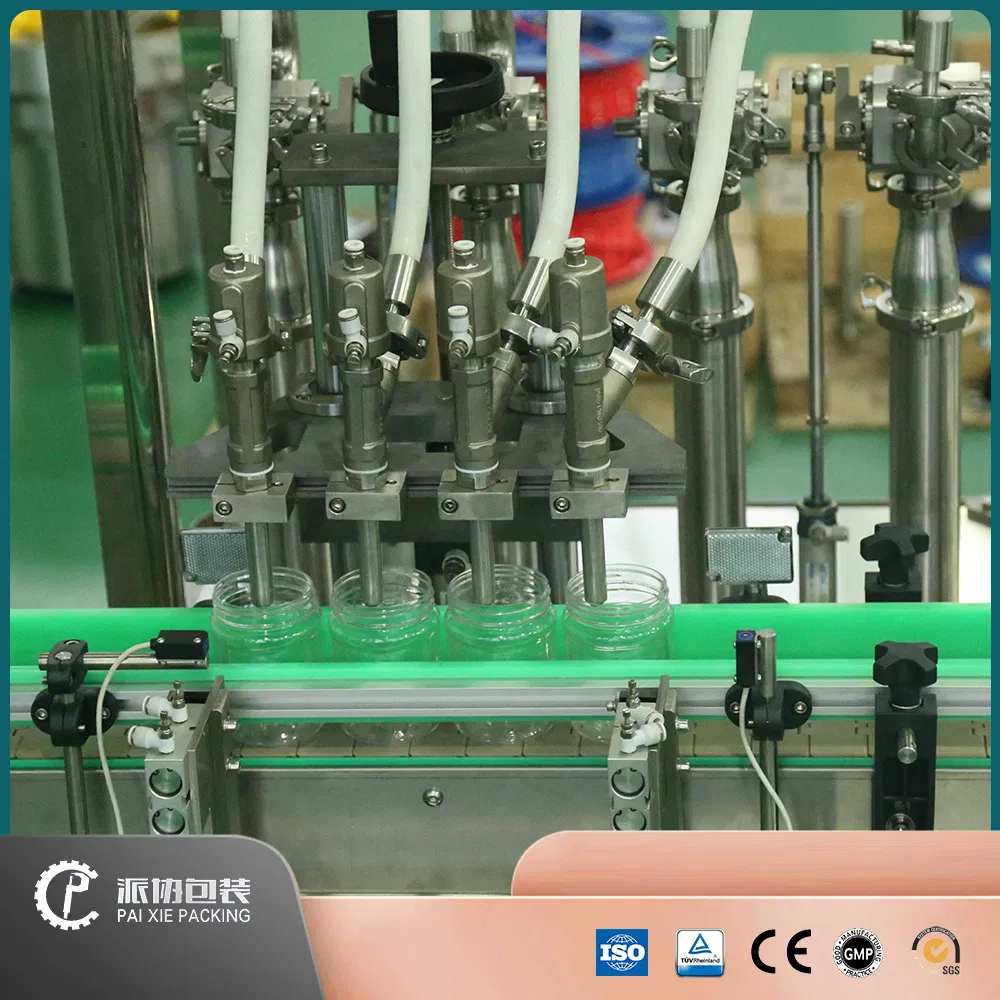

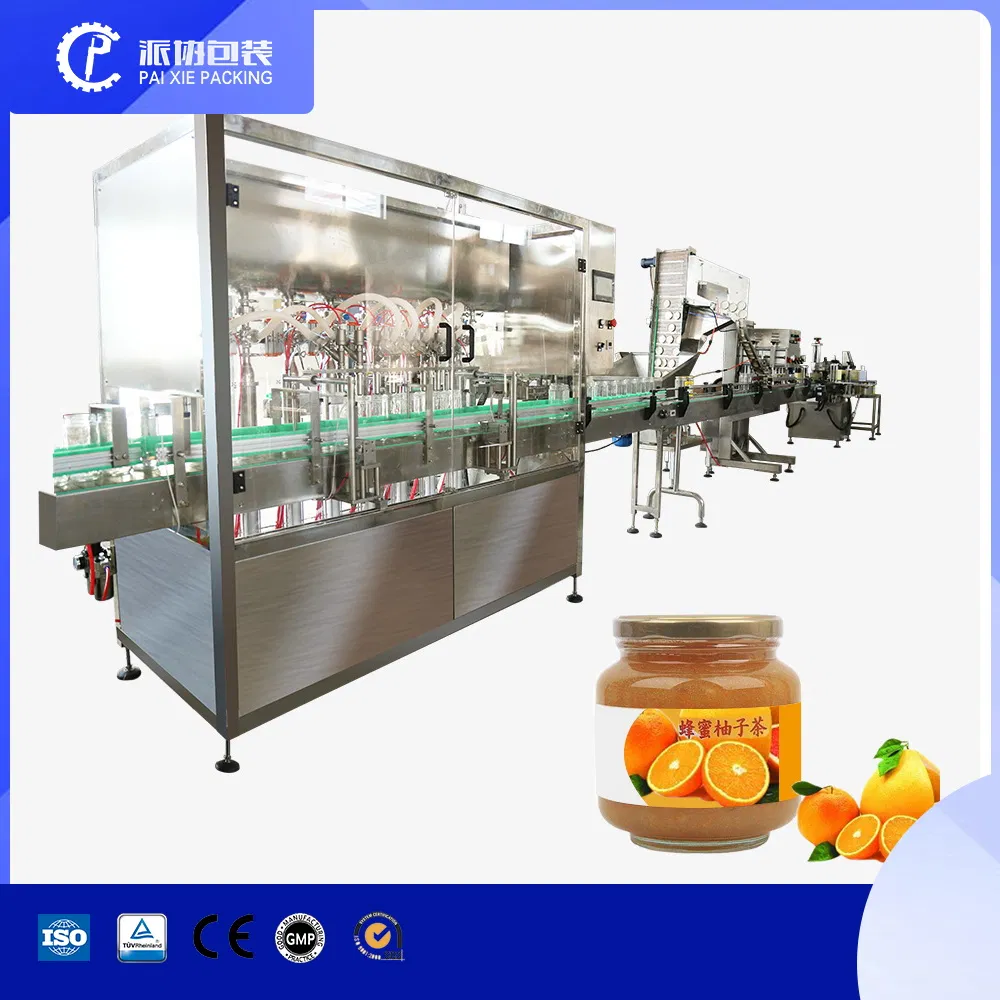

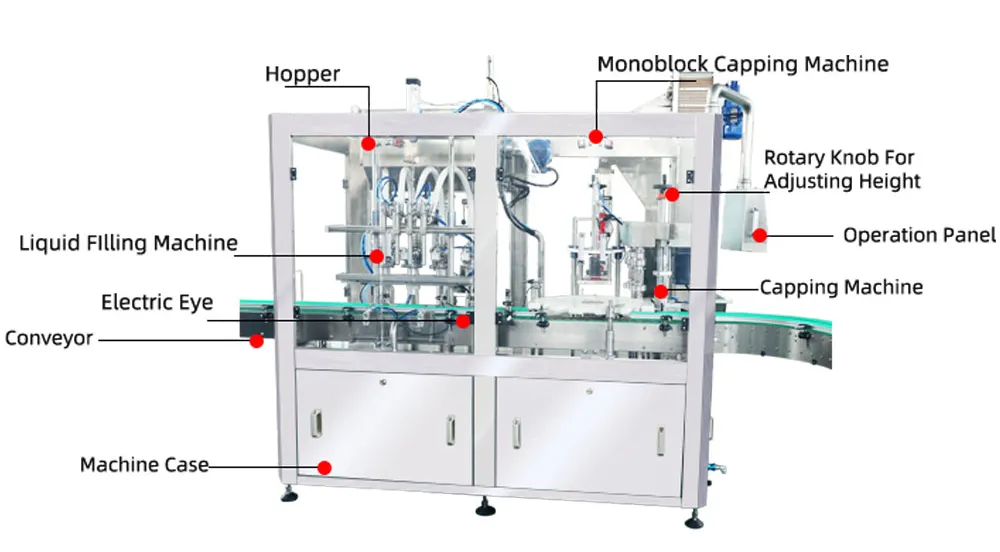

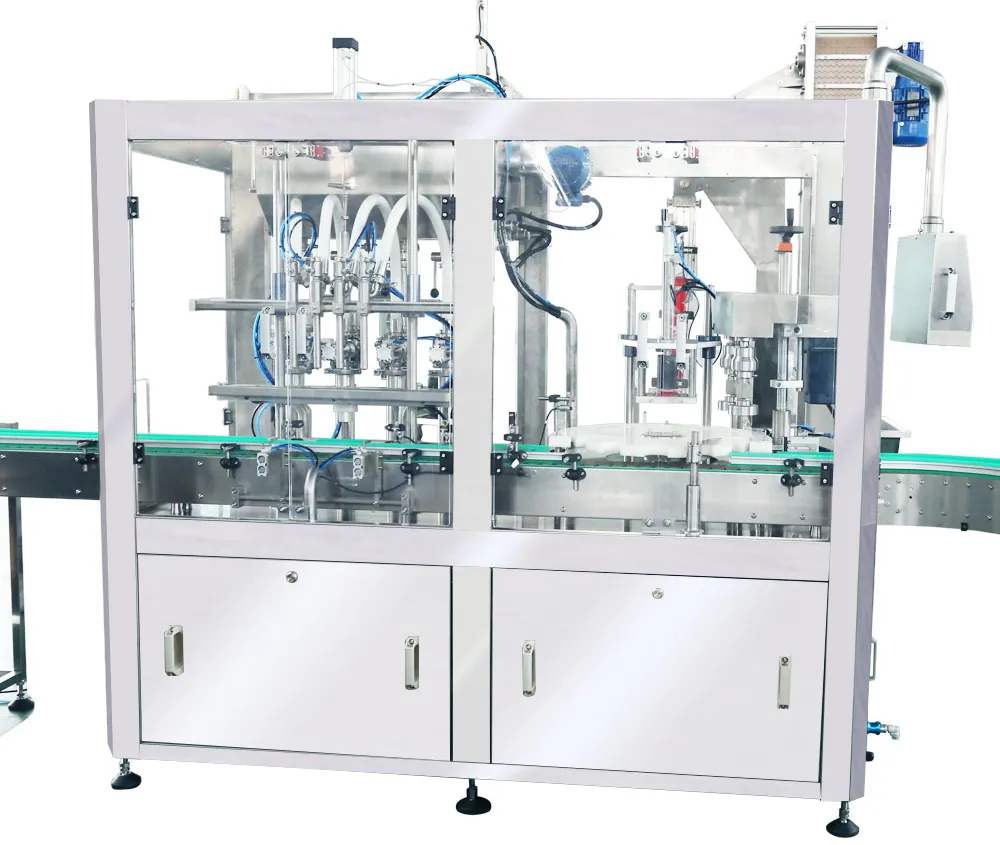

Introduction: This advanced piston pump and rotary valve system is engineered for filling thick and sticky materials across multiple industries:
| Parameter | Specifications | ||||
|---|---|---|---|---|---|
| Material | SUS304 and SUS316L Stainless Steel | ||||
| Filling Heads | 4 | 6 | 8 | 10 | 12 |
| Filling Range | 10-100ml up to 500-5000ml (Customizable up to 6000ml) | ||||
| Filling Speed (500ml) | 2000-2500 | 2500-3000 | 3000-3500 | 3500-4000 | 4000-4500 |
| Filling Precision | ±0.5-1% | ||||
| Power Supply | 220/380V 50/60Hz 1.5Kw (Customizable) | ||||
| Air Pressure | 0.4-0.6Mpa | ||||
Bottle Feeding & Collecting
Automatic feeding turntable with variable speed.

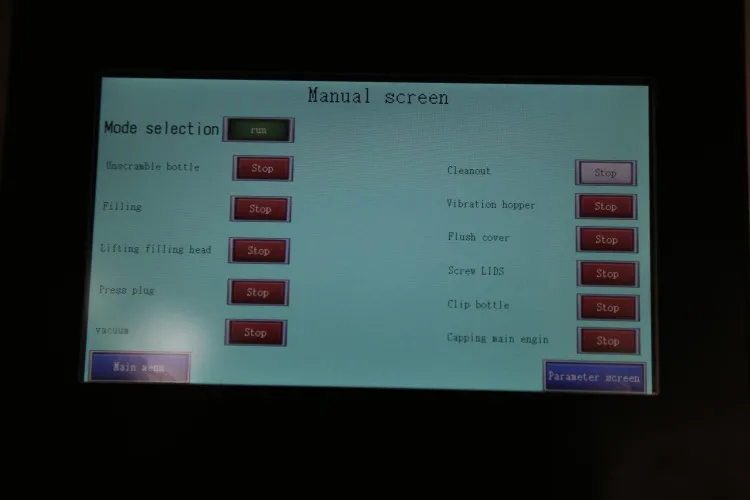

HMI Control Panel
Bilingual interface (English/Chinese) for easy operation.

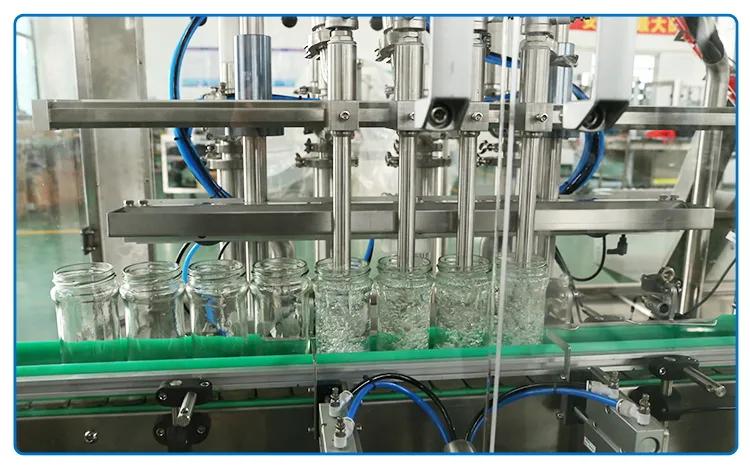

Anti-drip Nozzle
316L stainless steel, smooth seal, and accurate filling.

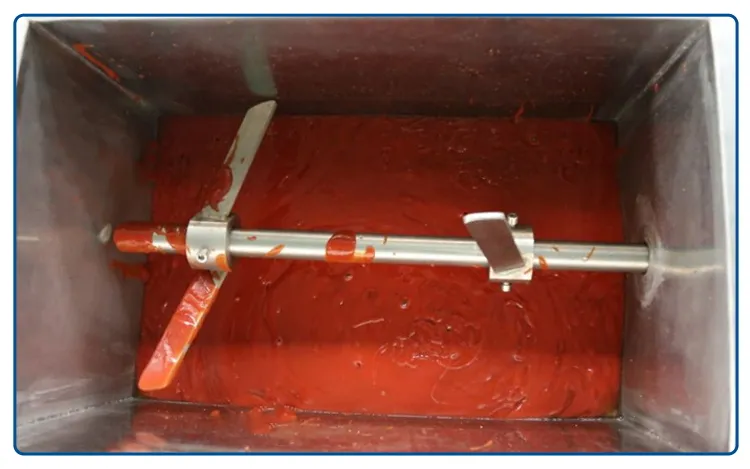

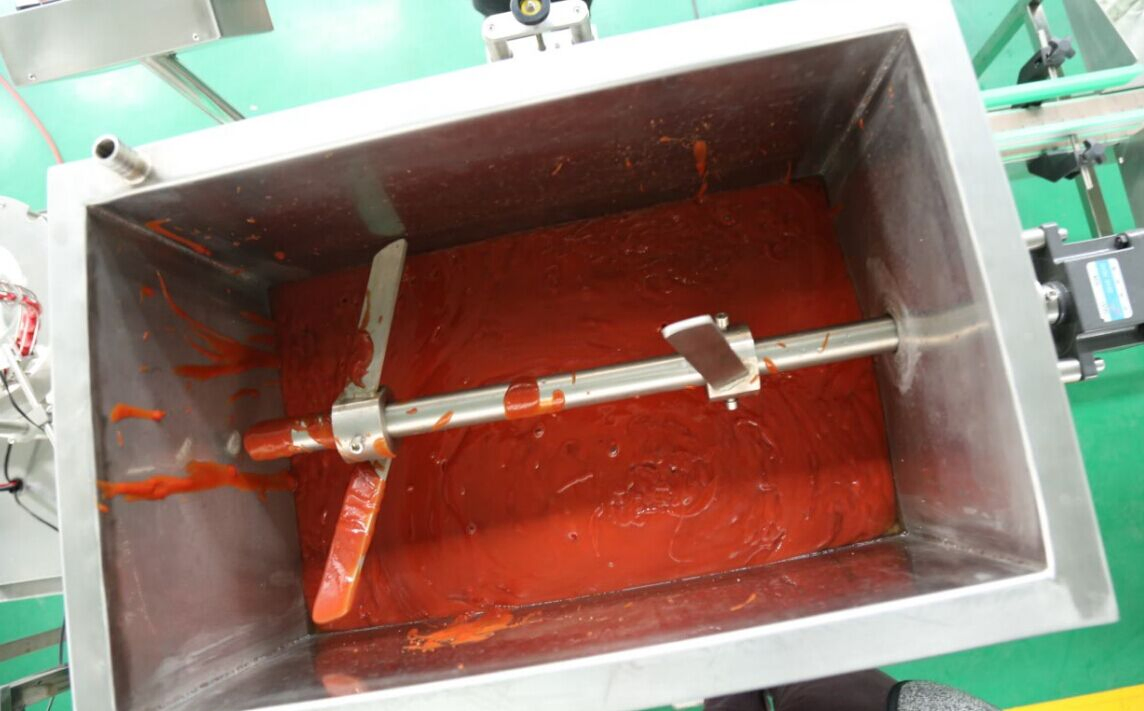

Hopper with Agitator
Ensures even material mixing and high precision.

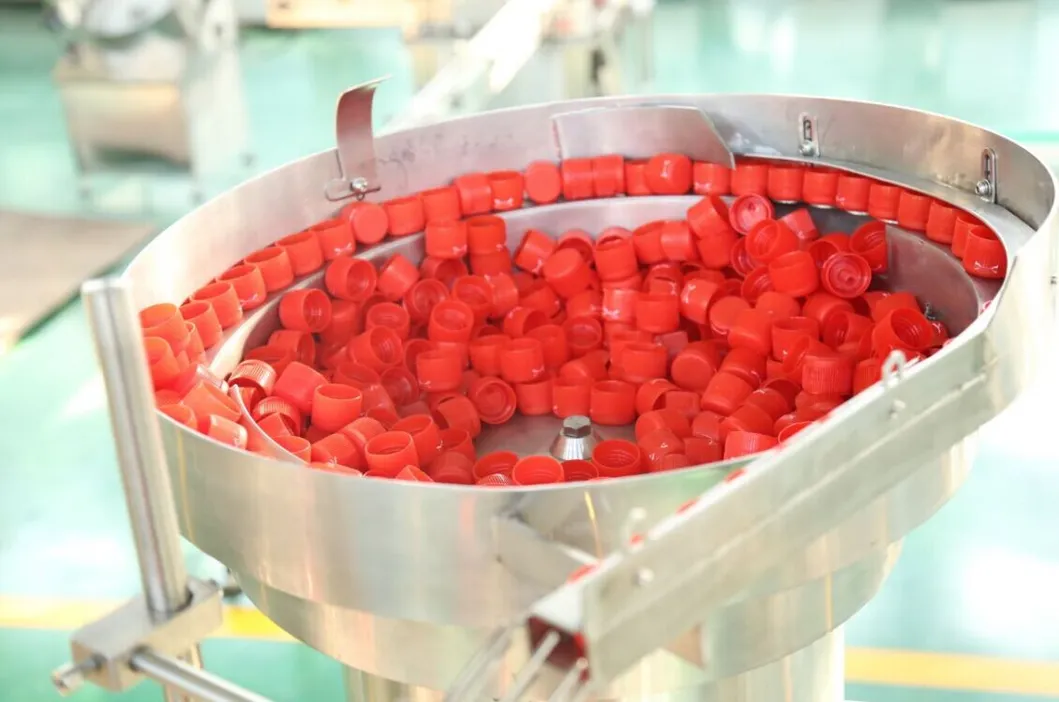

Cap Vibrator System
Automatic sorting and feeding for high-speed lines.

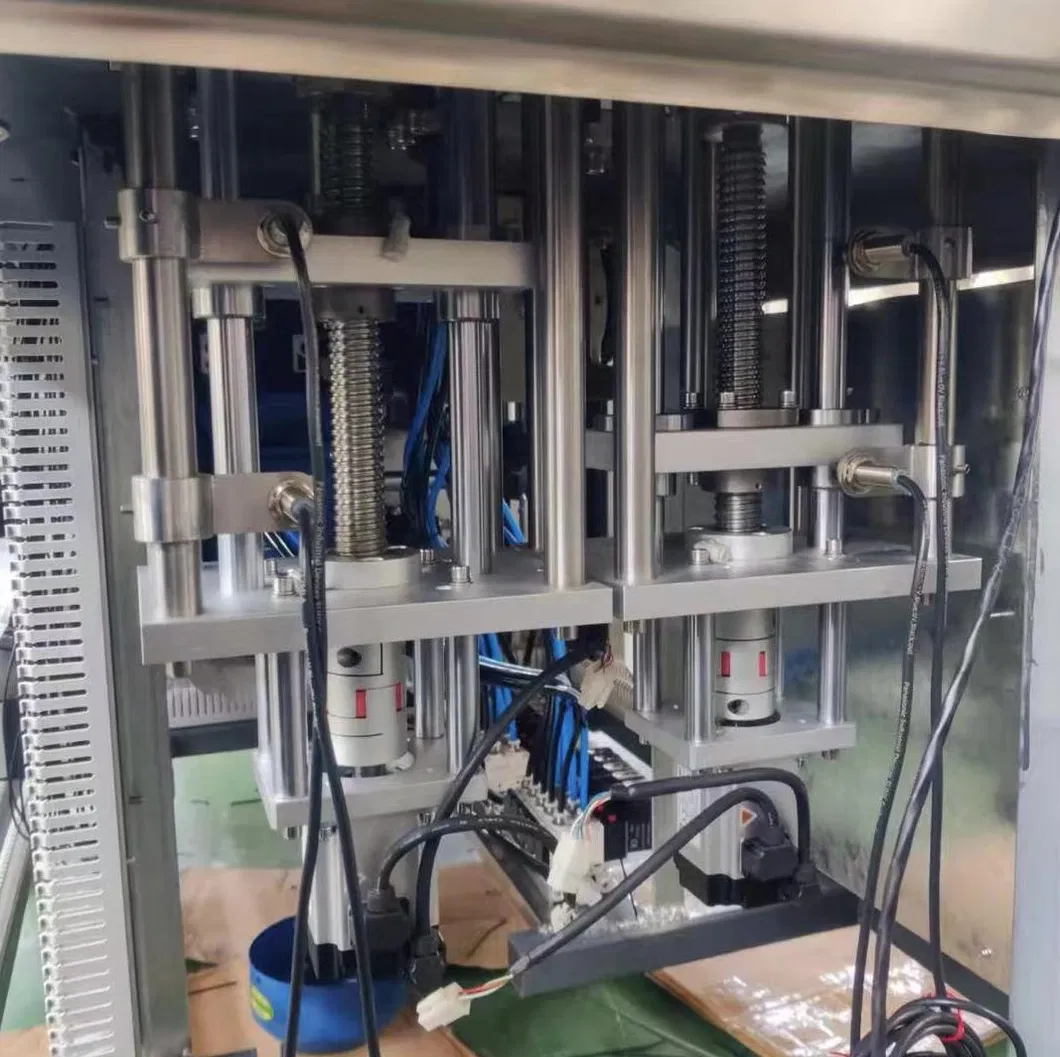

Servo Motor Drive
Precision control for different volume changes via HMI.
Suitable for filling and capping semi-liquid products with or without small particles: sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, shampoo, and liquid detergents.
Global standard plugs (US, UK, EU) provided before shipping.

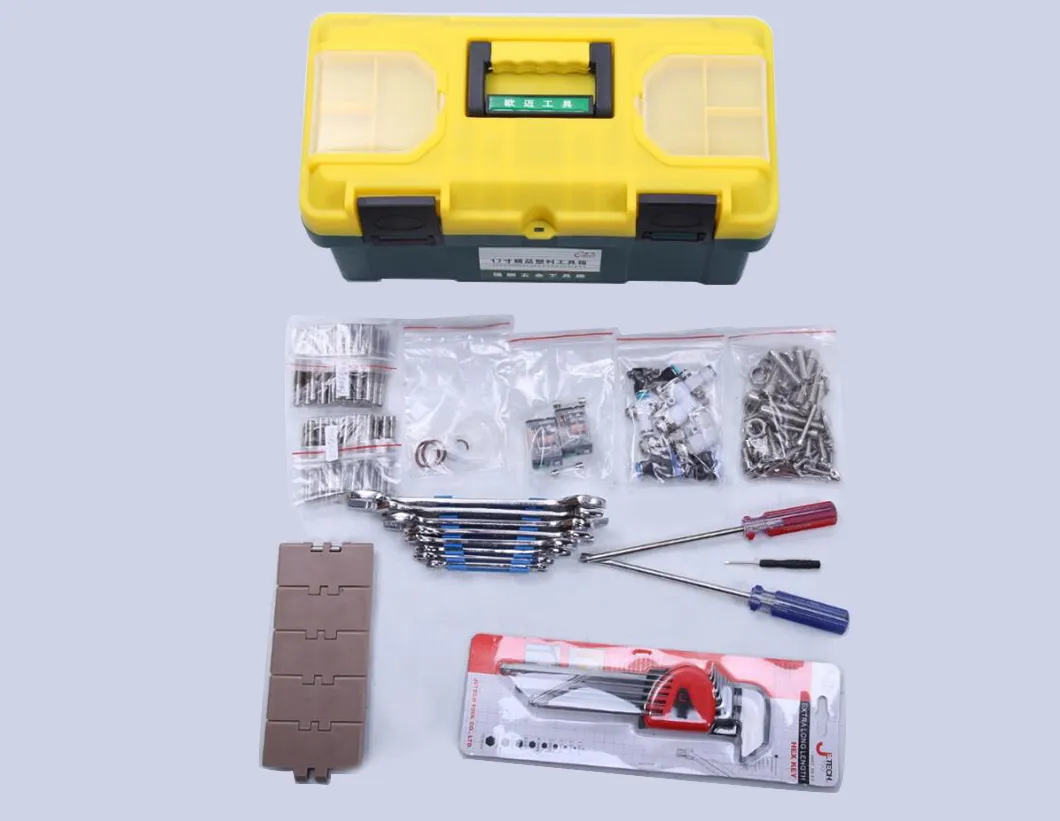

Complimentary installation kit included with every machine.
We are a professional manufacturer specializing in filling, sealing, capping, and labeling machines with over ten years of expertise in designing tailor-made packaging solutions for food, chemical, and pharmaceutical industries.
