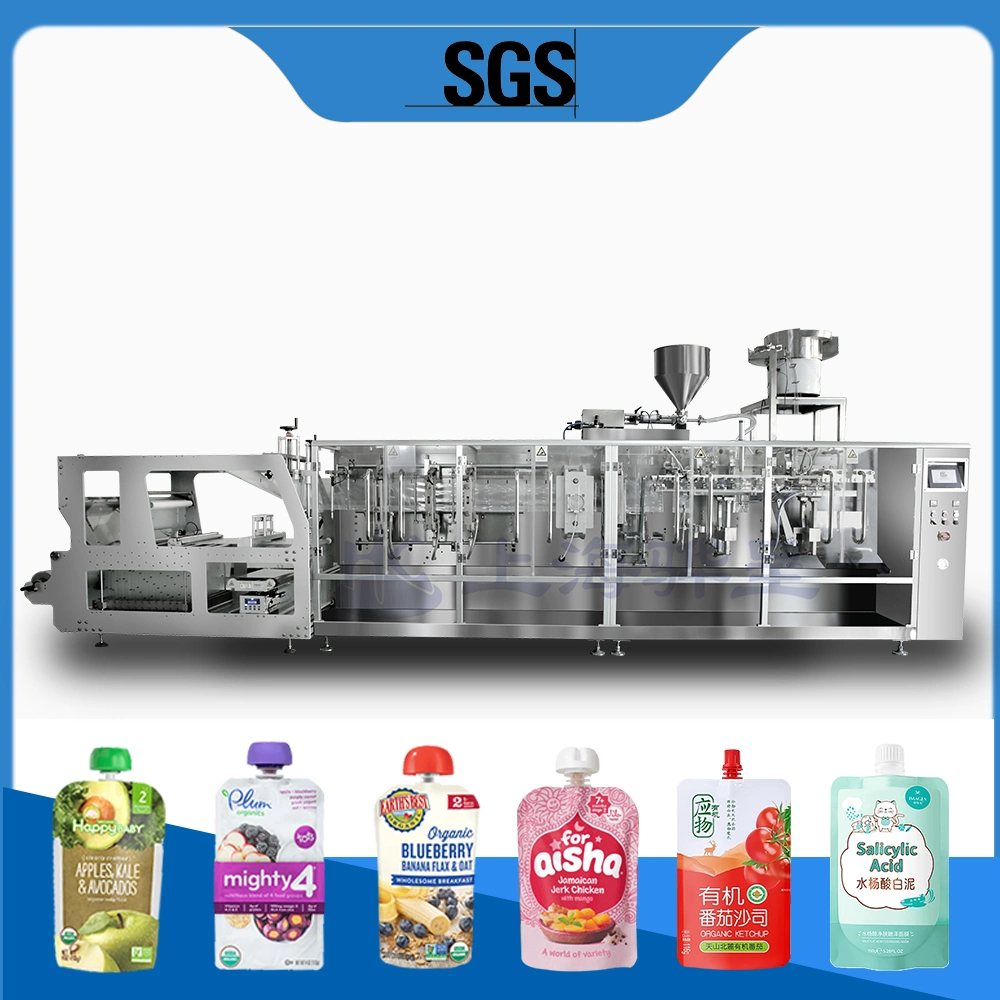

6-5000g Automatic Top Corner Slant Spout Servo Doypack Stand up Pouch Bag Ketchup Tomato Paste Juice Water Liquid Sauce Filling Packing Packaging Machine Price

1 / 5

6-5000g Automatic Top Corner Slant Spout Servo Doypack Stand up Pouch Bag Ketchup Tomato Paste Juice Water Liquid Sauce Filling Packing Packaging Machine Price

Customization:	Available
After-sales Service:	Oversea Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

180S/240S/330S

Automatic Grade

Automatic

Application

Cleaning, Detergent, Cosmetics, Drinks, Skin Care, Dairy, Oil, Food, etc.

Type

Forming Filling Sealing Machine

Driven Type

Electric / Servo Motors

Material Type

Powder/Liquid/Granule

Bag Shape

Doypack, Zip Lock Bag, Spout Pouch

Speed

40-60bpm / Duplex 80-120bpm

Product Description

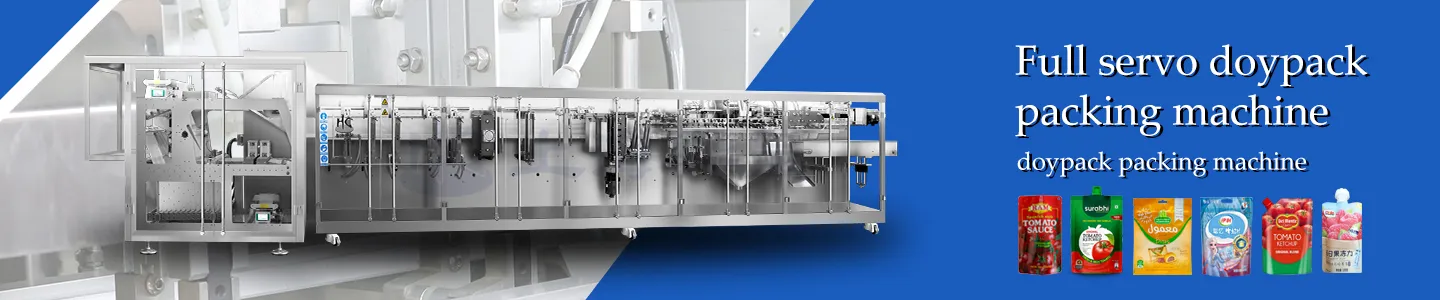

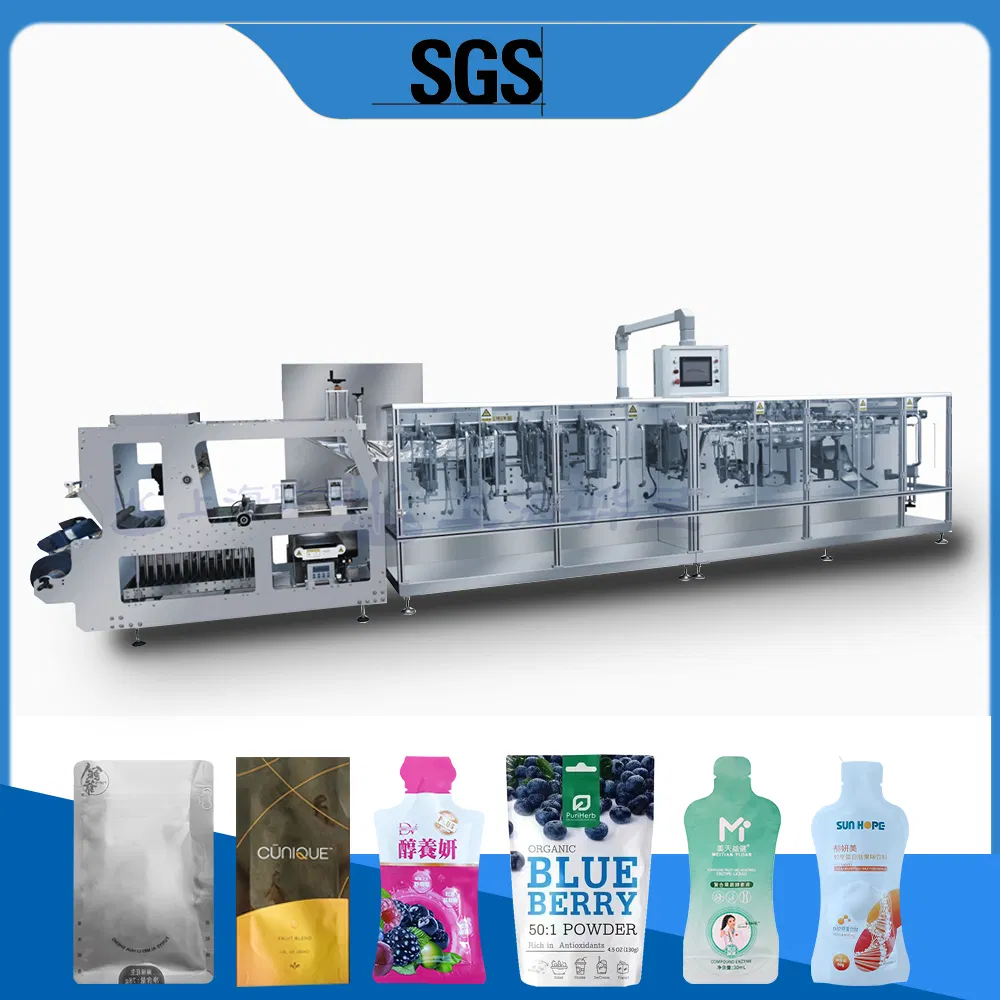

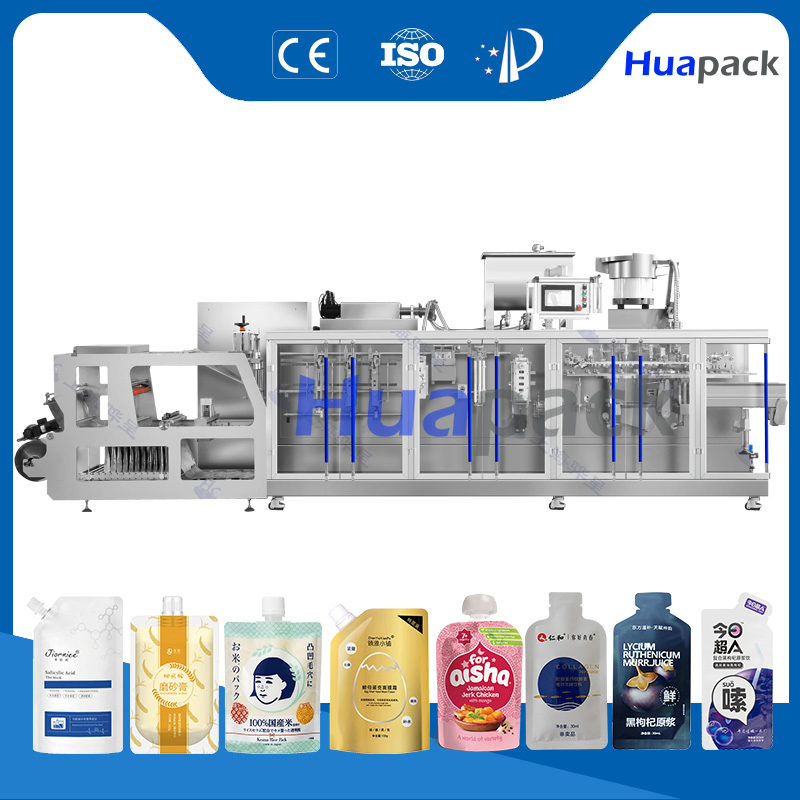

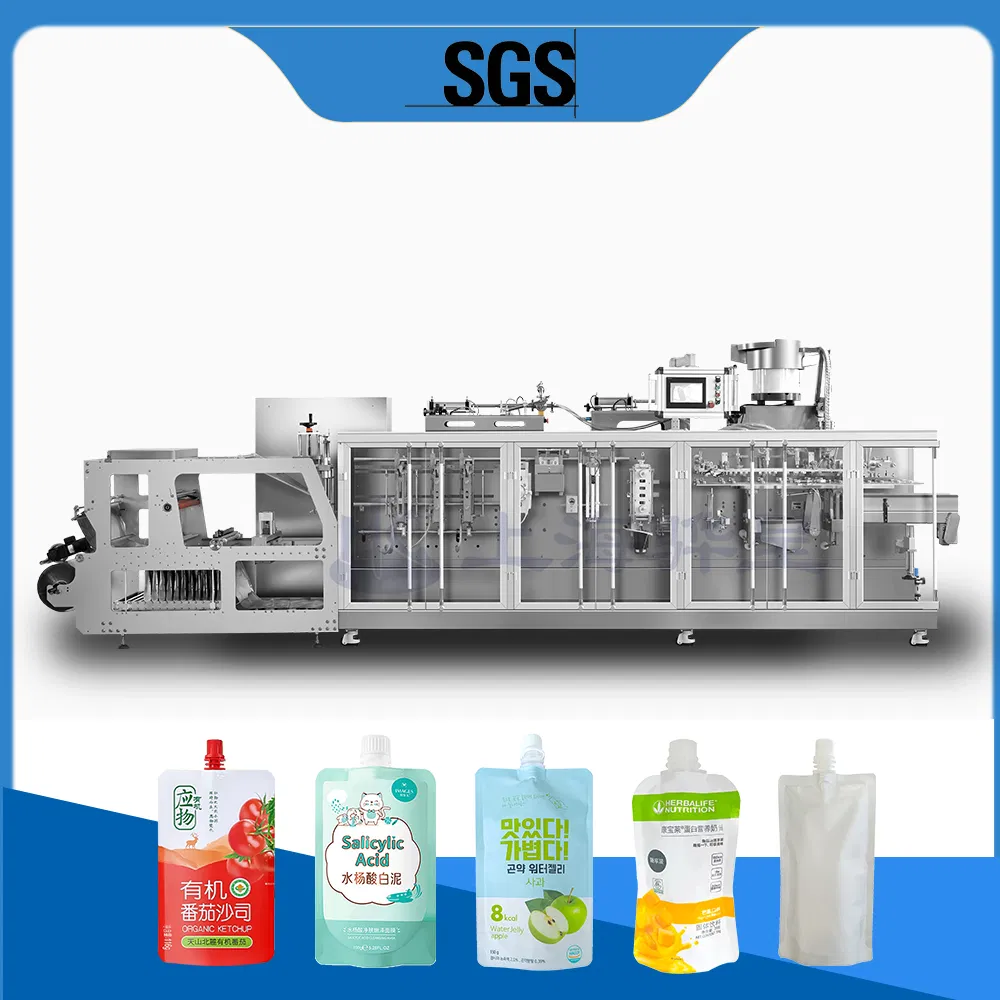

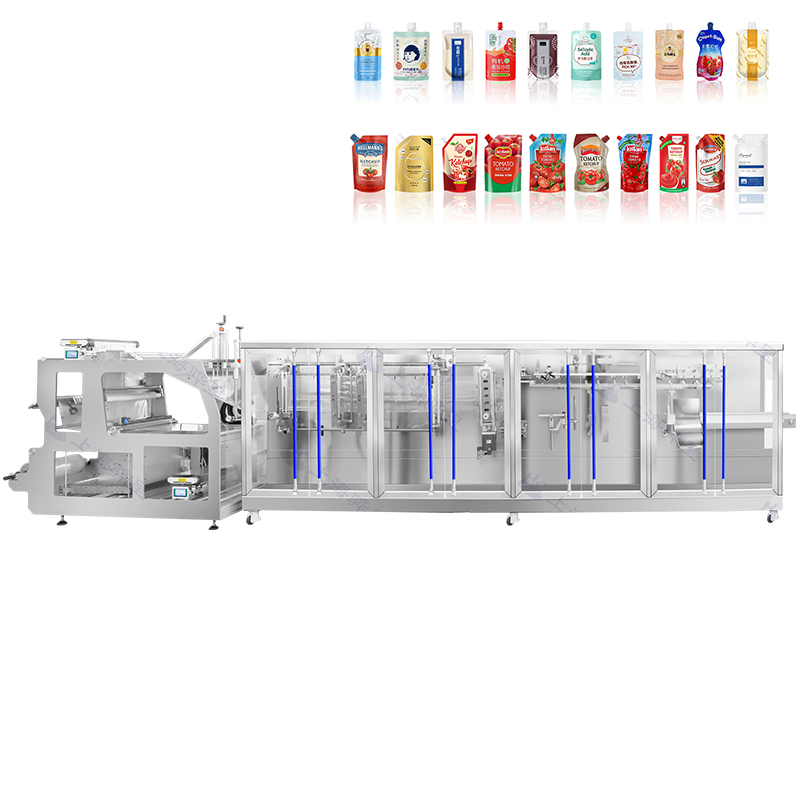

Horizontal Roll Film Forming Spout Doypack Filling and Sealing Machine
Designed for doypack with spout, featuring functions for hanging holes and special shapes. This series integrates European technology to provide high-quality performance with competitive manufacturing efficiency.

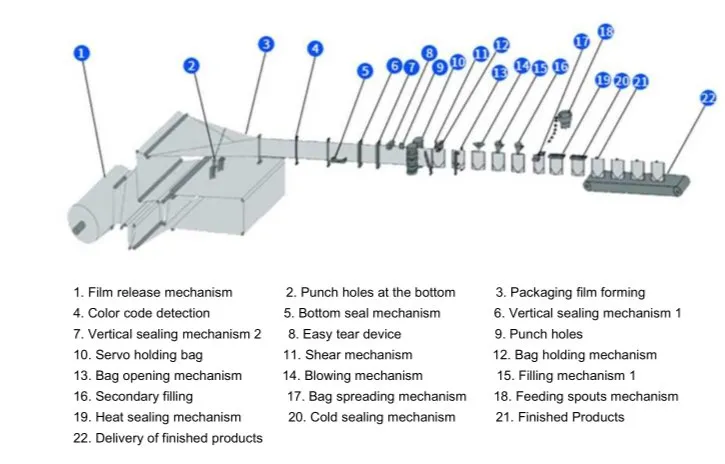

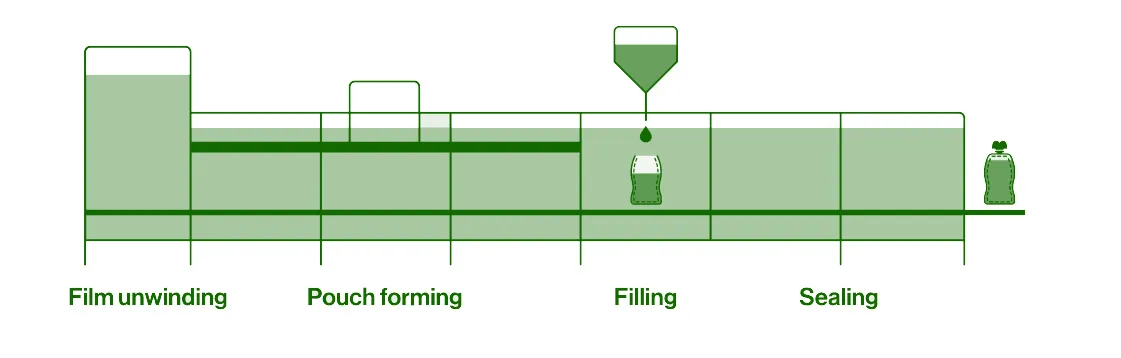

Horizontal Form Fill Seal (HFFS) doypack machines are integrated systems where pouch forming, filling, and sealing occur on a single machine. Filling is performed through the open-top part of the pouch for maximum efficiency.

Key Advantages

Smart HMI: Includes digital instruction manuals and troubleshooting guides.
Superior Sealing: Parallel motion vertical sealing bars ensure improved seal quality and easier maintenance.
Full Servo Motion: Independent operation between stations offers high reliability and minimal maintenance.
Walking Beam Transport: Secure gripper system transports pouches precisely from forming to closing.
Versatile Filling: Supports both hot and cold filling applications.

Technical Features & Components

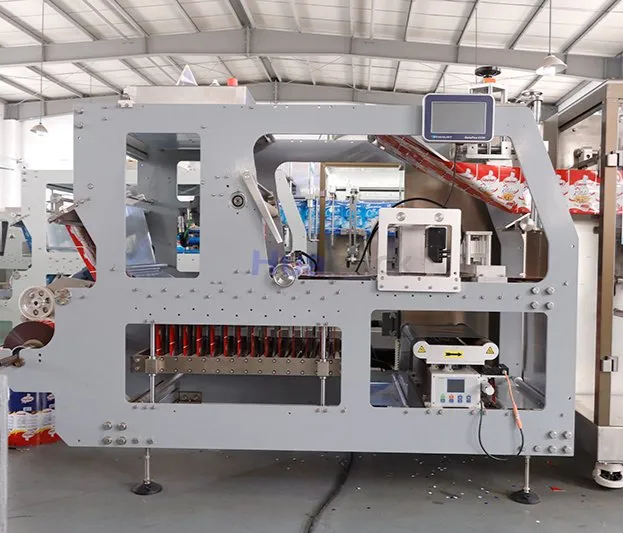

Independent Film Unwind Unit

Air expansion shaft for easy loading, CNC rollers, and floating rollers for tension control.

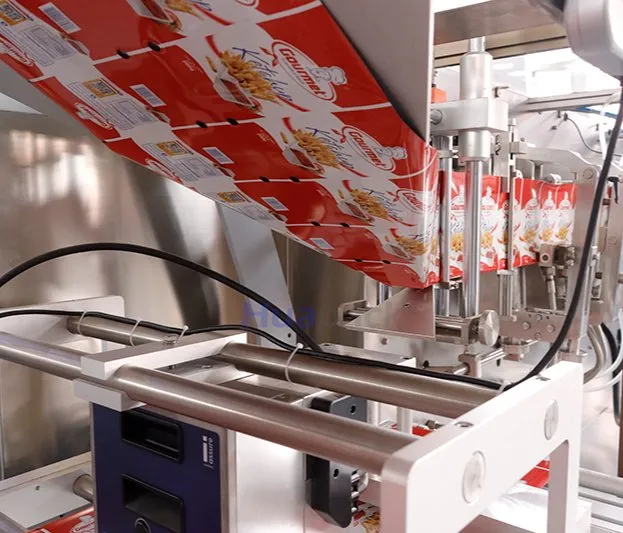

Multi-Specification Molding

High forming precision with convenient switching between multiple bag specifications.

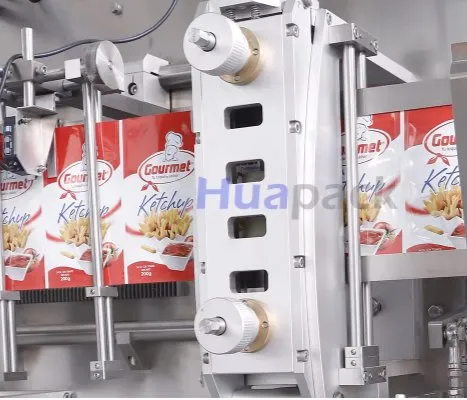

Servo Advance System

Digital specification switching and stable pouch advance with high torque.

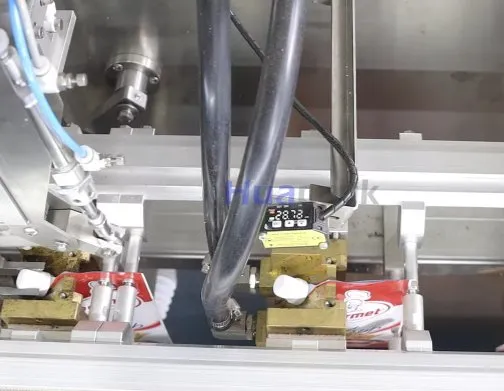

Spout Function Station

High seal strength and auto-adding spout station for professional finish.

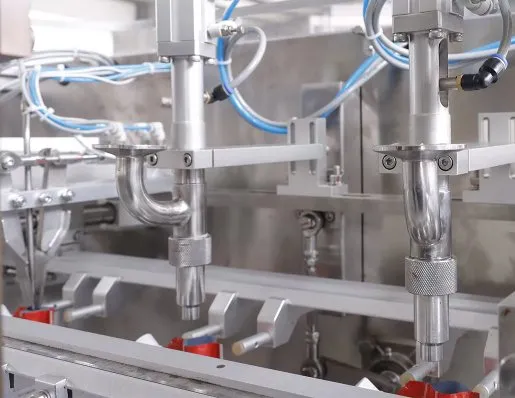

Dosing Systems

Compatible with volumetric, multihead weighers, and piston pumps.

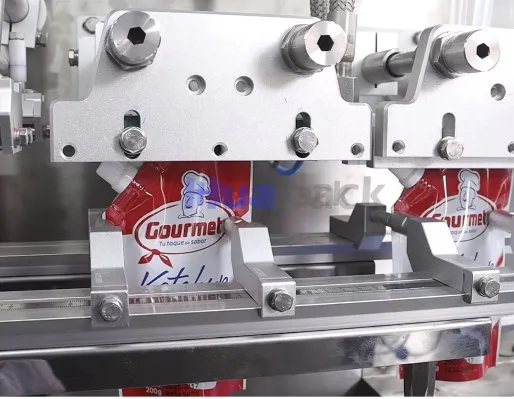

Independent Sealing

Prevents creasing and leakage through precise temperature and timing control.

Technical Specifications

Model		180SP	180SDP	240SP	240SDP	280SP	280SDP	330SDP
Pouch Size(mm)	Min	80*130	70*110	90*130	90*125	90*140	90*125	90*125
Pouch Size(mm)	Max	182*250	90*225	240*300	120*250	280*300	140*250	165*250
Filling Volume	ml	1000	300	2000	500	3000	500	700
Speed	ppm	≤60	60-120	≤60	60-120	≤50	60-100	60-90
Power	kw	8	8.8	9	9.8	9.5	9.8	15.8

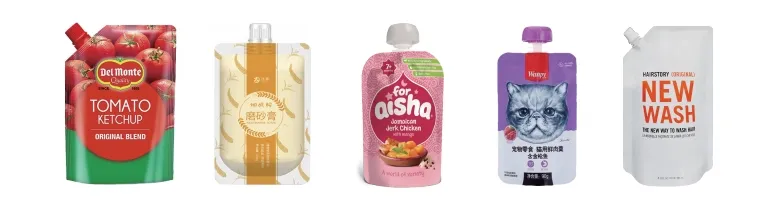

Pouch Samples & Applications

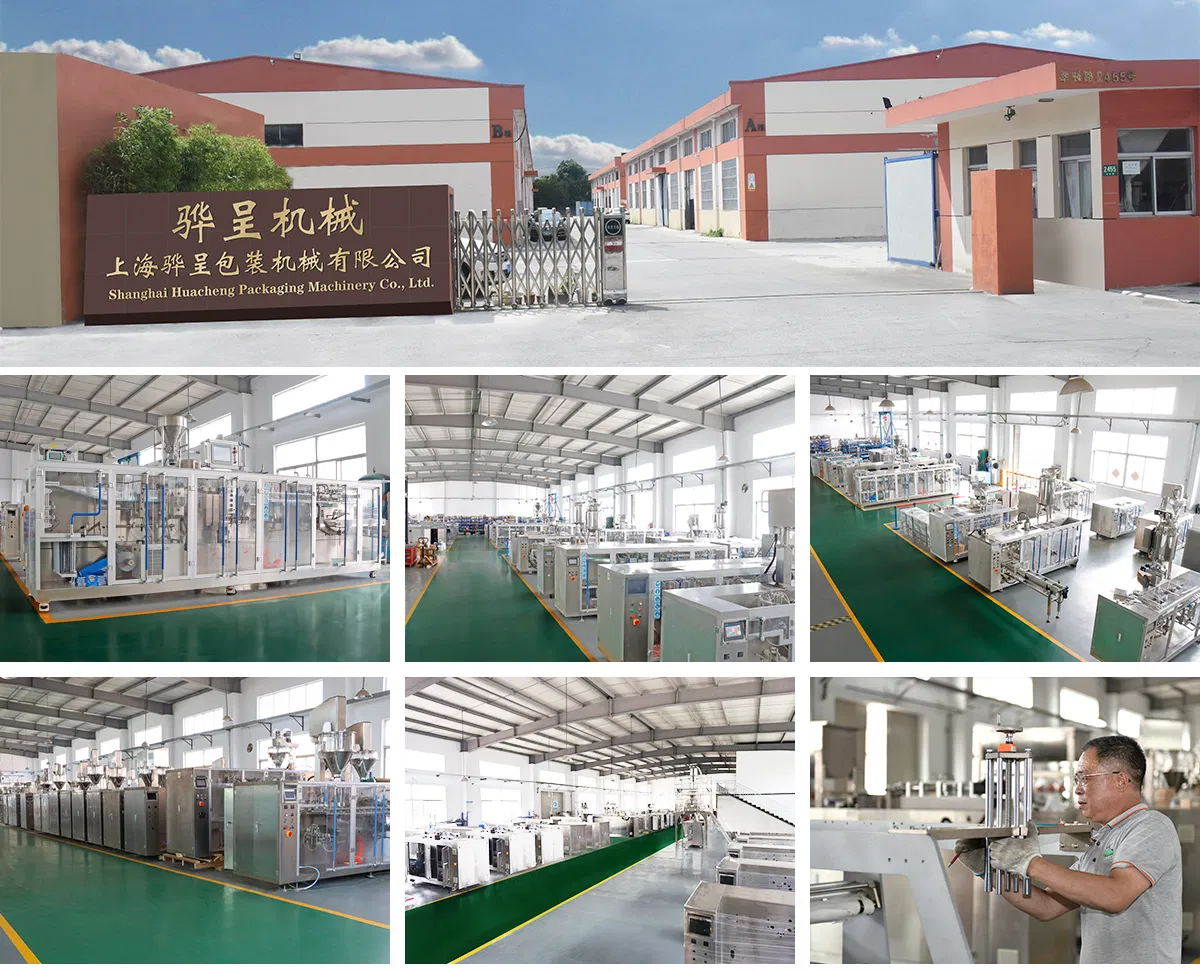

Manufacturing & Quality

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a specialized manufacturer with our own factory facility, dedicated to producing high-quality packaging machinery.

What kind of bags can your machinery handle?

Our equipment is capable of packing doypacks (stand-up pouches) and sachets (flat bags). We offer optional features for adding zippers, spouts, and custom pouch shapes.

Which products are compatible with these machines?

The system is versatile and can pack powders, granules, liquids, and even irregular-shaped products using different dosing units.

What is the typical production speed?

We provide simplex machines (35-80 ppm), duplex machines (60-160 ppm), and quadruplex machines (160-180 ppm) depending on your capacity requirements.

What is the lead time for a new order?

Standard machines typically require 45-60 days for delivery. Highly customized configurations may require additional time.

What kind of warranty and service do you provide?

We provide a one-year warranty, one year of spare parts, and 24-hour online technical support to ensure your operations run smoothly.
