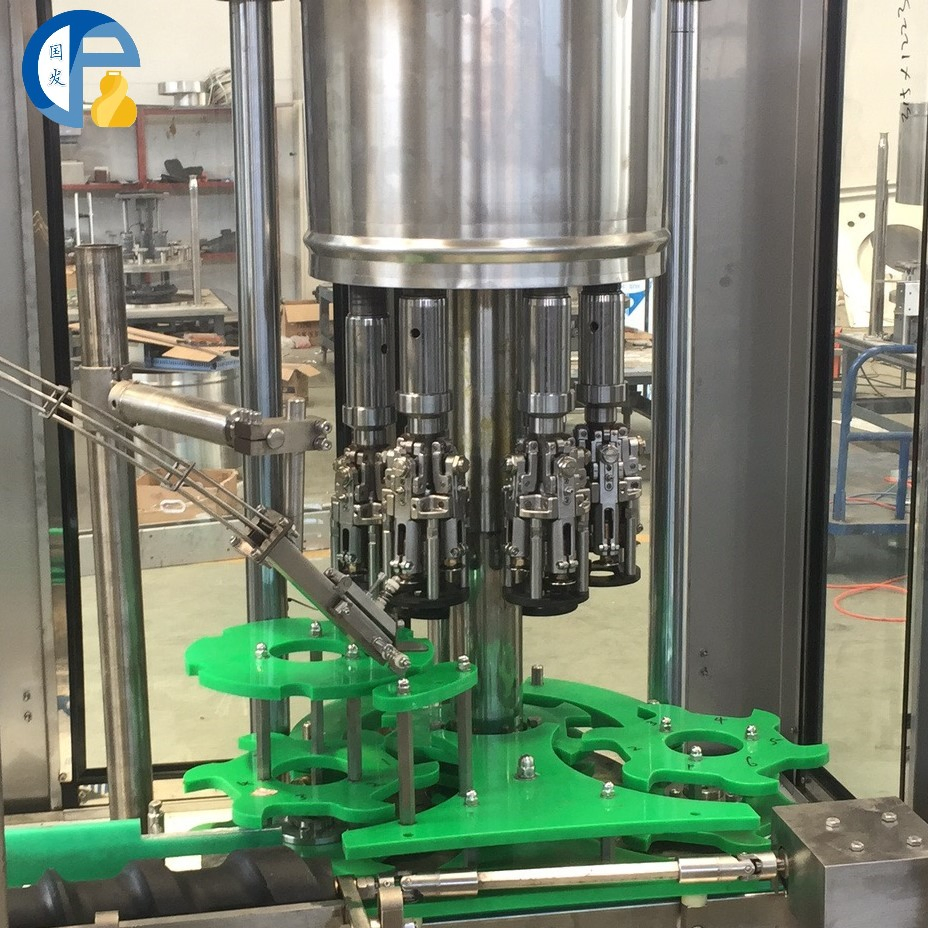

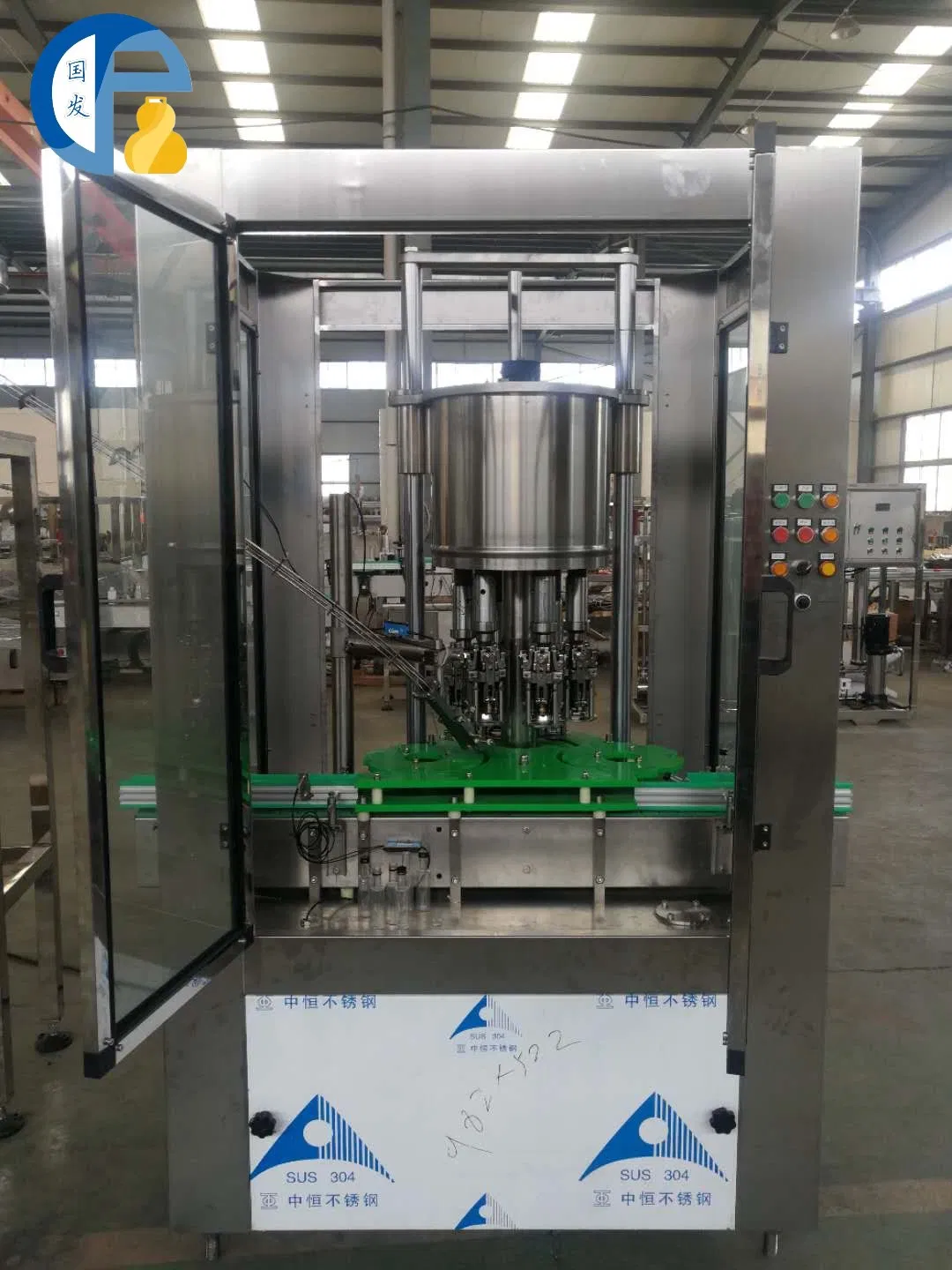

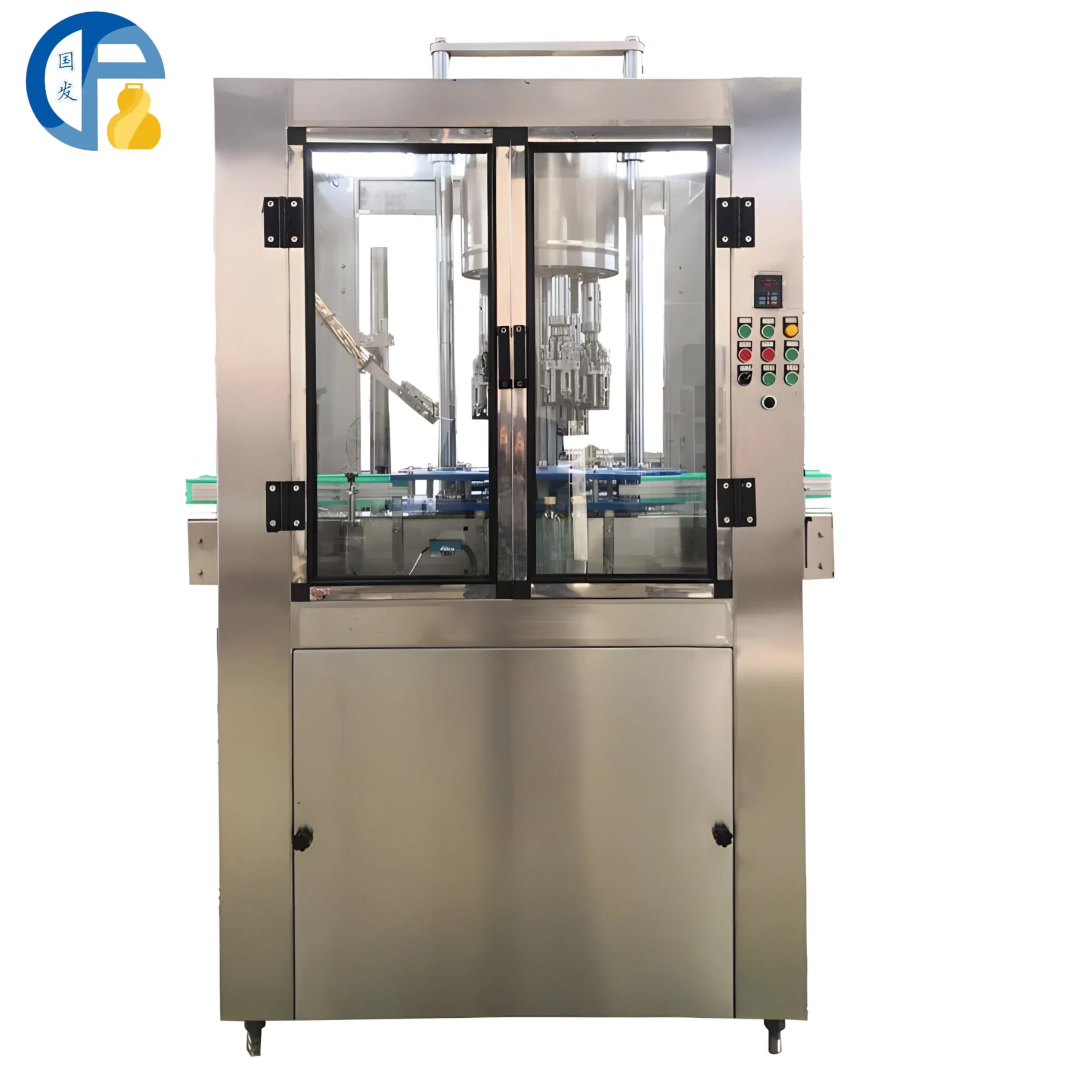

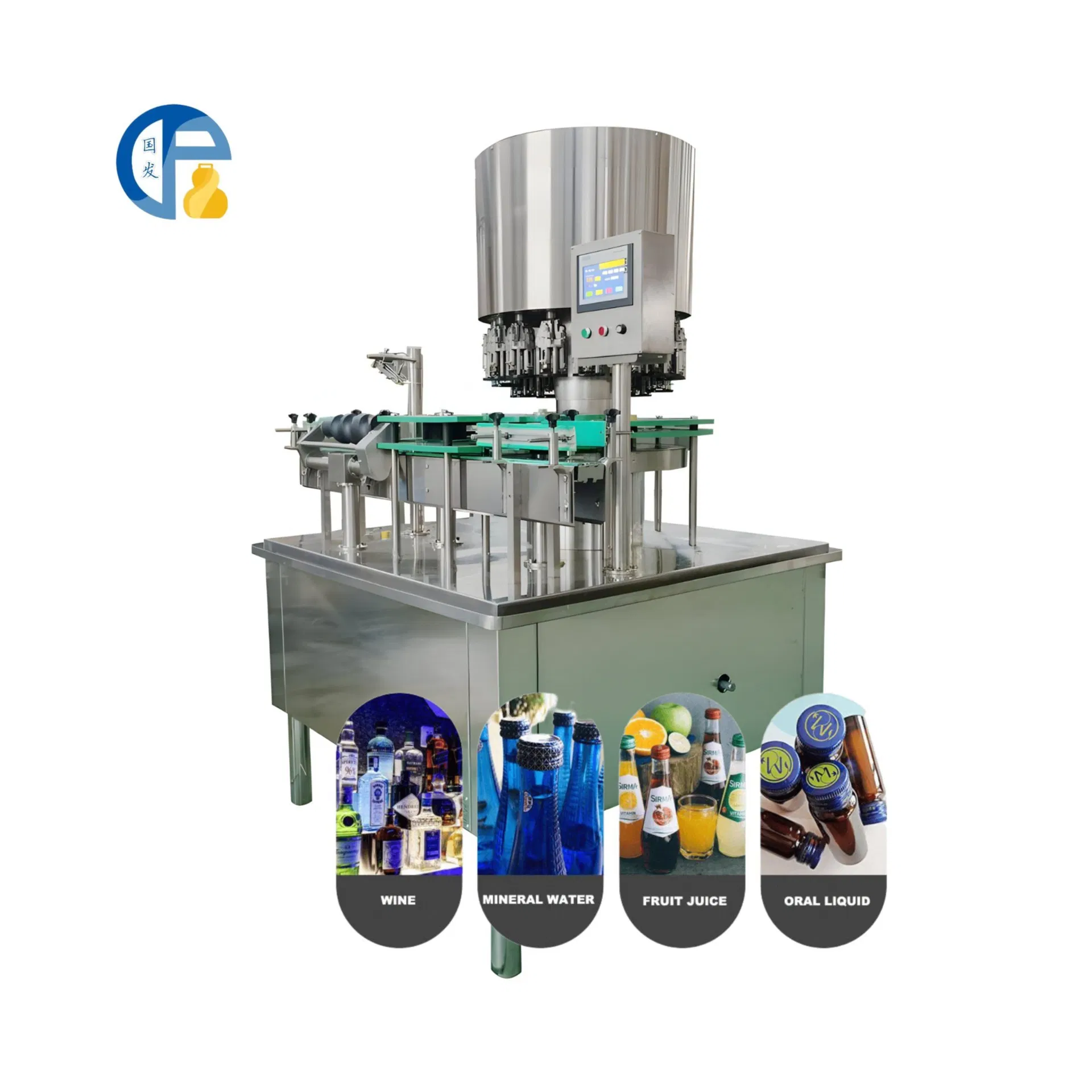

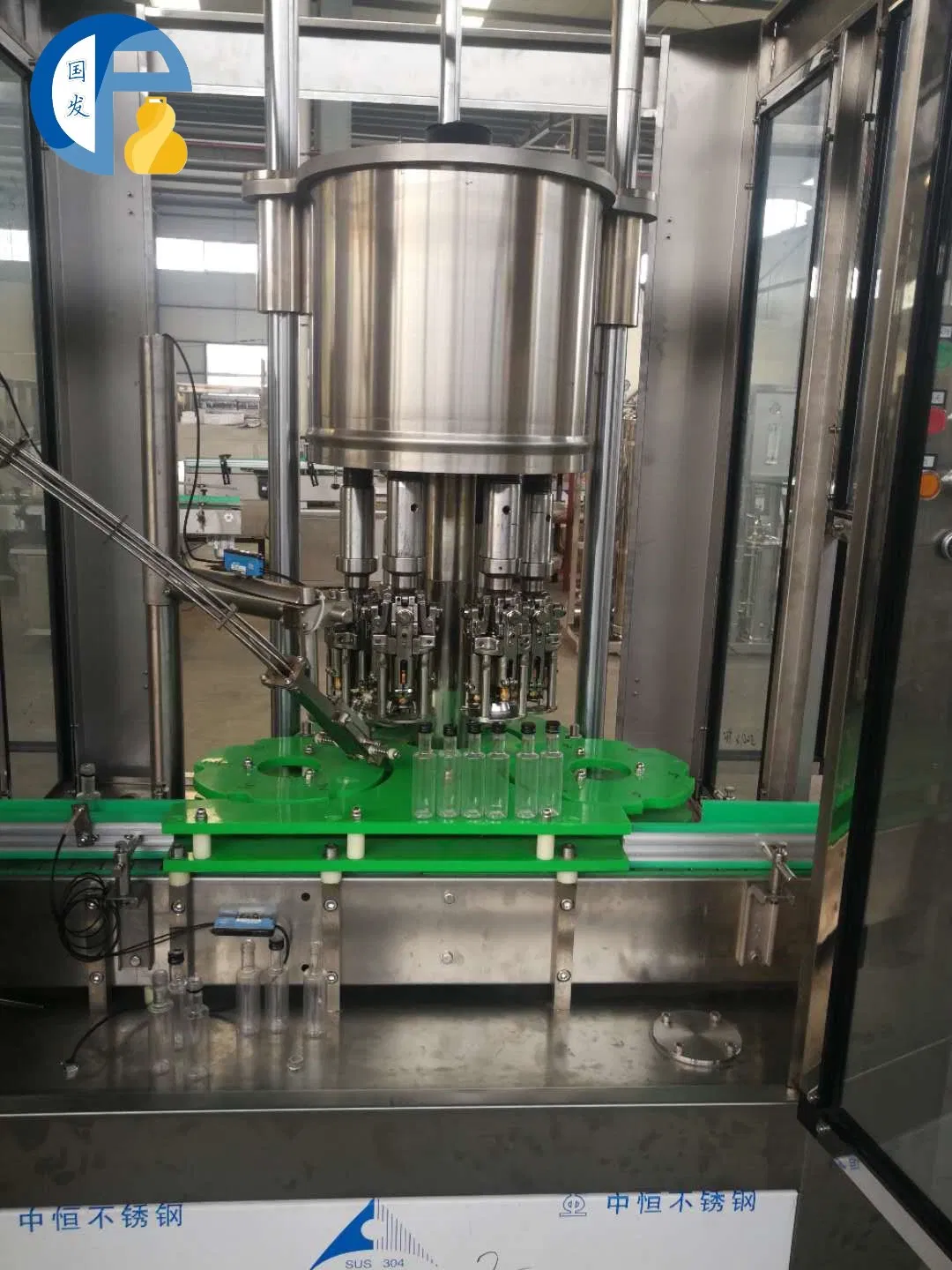

The automatic twist off capping machine which is designed to tighten twist off caps, screw caps for wine bottles, olive oil bottles, drinks bottles etc. It is suitable for various size bottle caps. The automatic operation helps you save labor and reduce production error and make your goods more worthy.
| Auto aluminum screw twist off capping machine | ||||||
|---|---|---|---|---|---|---|
| Model | GFXGJ-1 | GFXGJ-4 | GFXGJ-6 | GFXGJ-8 | GFXGJ-10 | |
| Capping heads | 1 | 4 | 6 | 8 | 10 | |
| Capping speed(BPH) | 2000 | 4000 | 6000 | 9000 | 12000 | |
| Bottle diameter (mm) | φ60-100 | φ60-100 | φ60-100 | φ60-100 | φ60-100 | |
| Bottleneck diameter (mm) | φ15-32 | φ15-32 | φ15-32 | φ15-32 | φ15-32 | |
| Bottle height(mm) | 150~320 | 150~320 | 150~320 | 150~320 | 150~320 | |
| Power | 0.75Kw | 1.1Kw | 1.5Kw | 1.5Kw | 2Kw | |
| Weight(Kg) | 400Kg | 600Kg | 800Kg | 1000kg | 1200KG | |

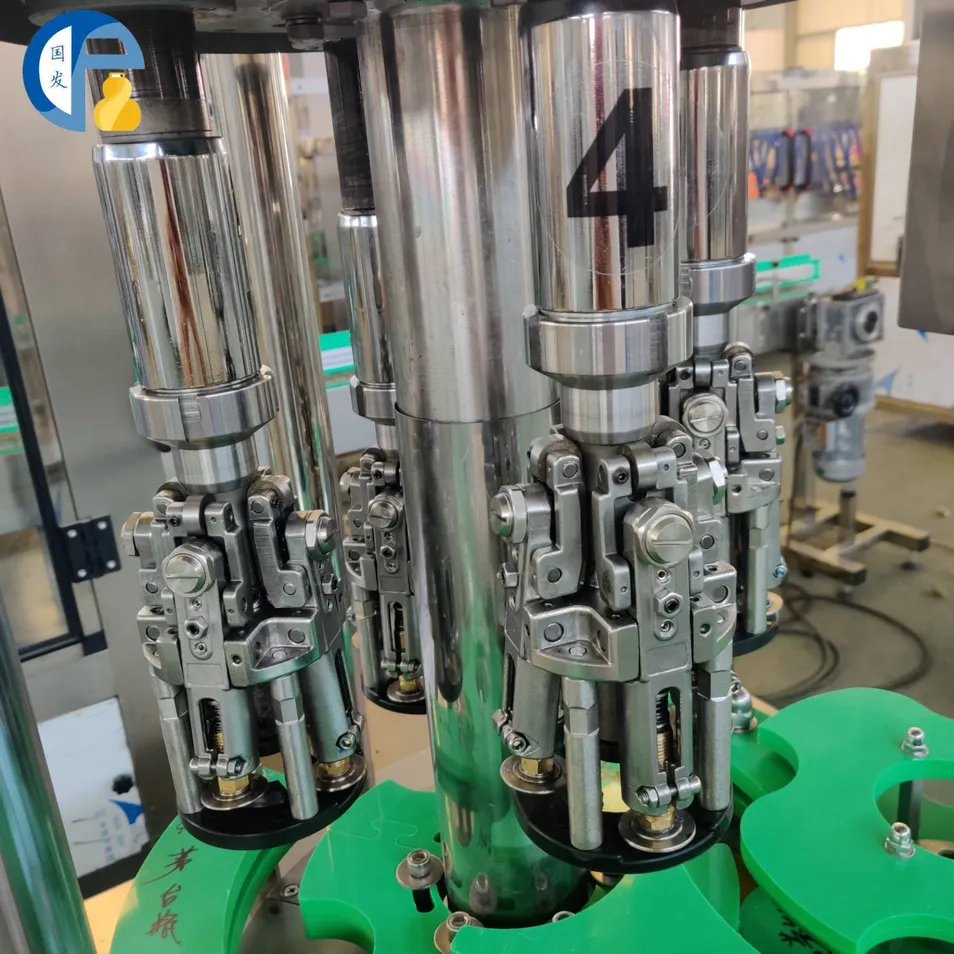

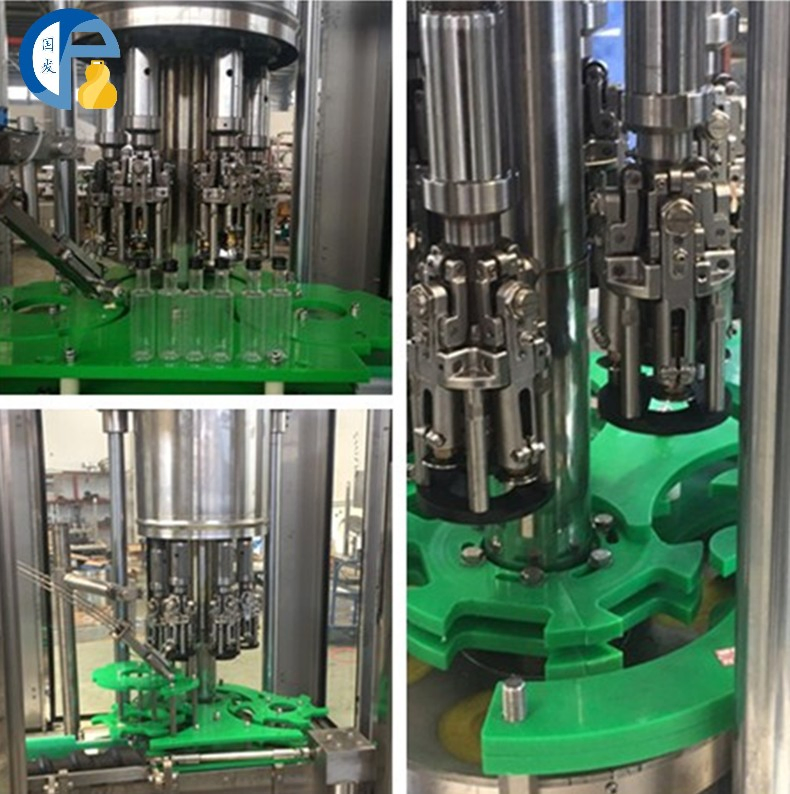

● Four-jaw balanced heads to force evenly.
● Simple adjustment for different size caps.
● Correctly formed thread.
● No scratch caps, no damage caps.

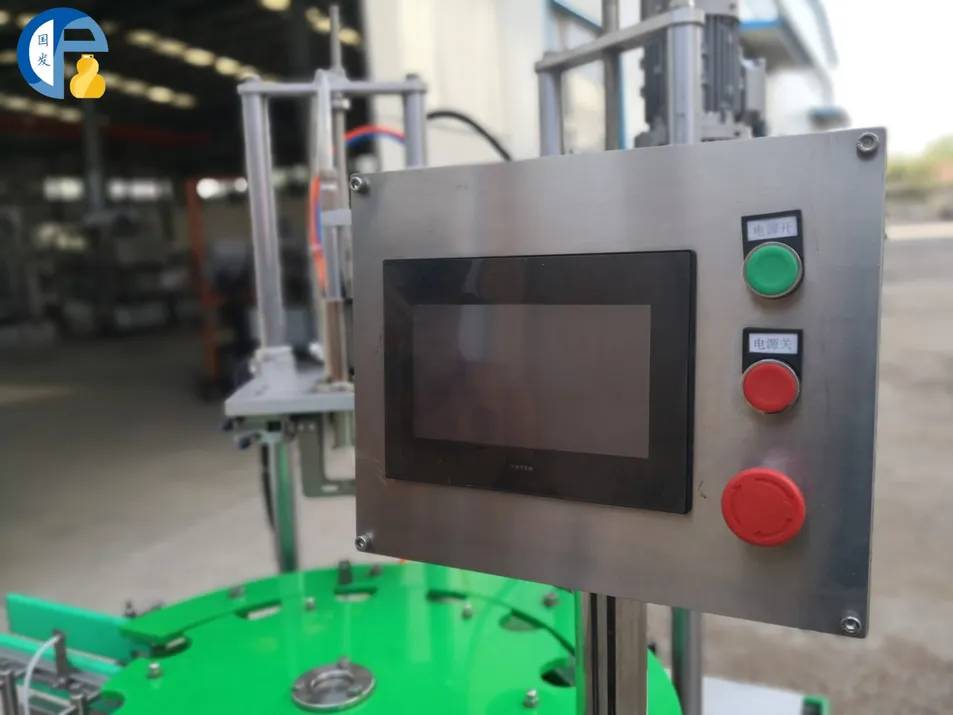

Easy to adjust and control, providing intuitive operation for all machine functions.
High brightness, energy saving, and stable performance. Suitable for various industrial environments with a focus on durability and efficiency.

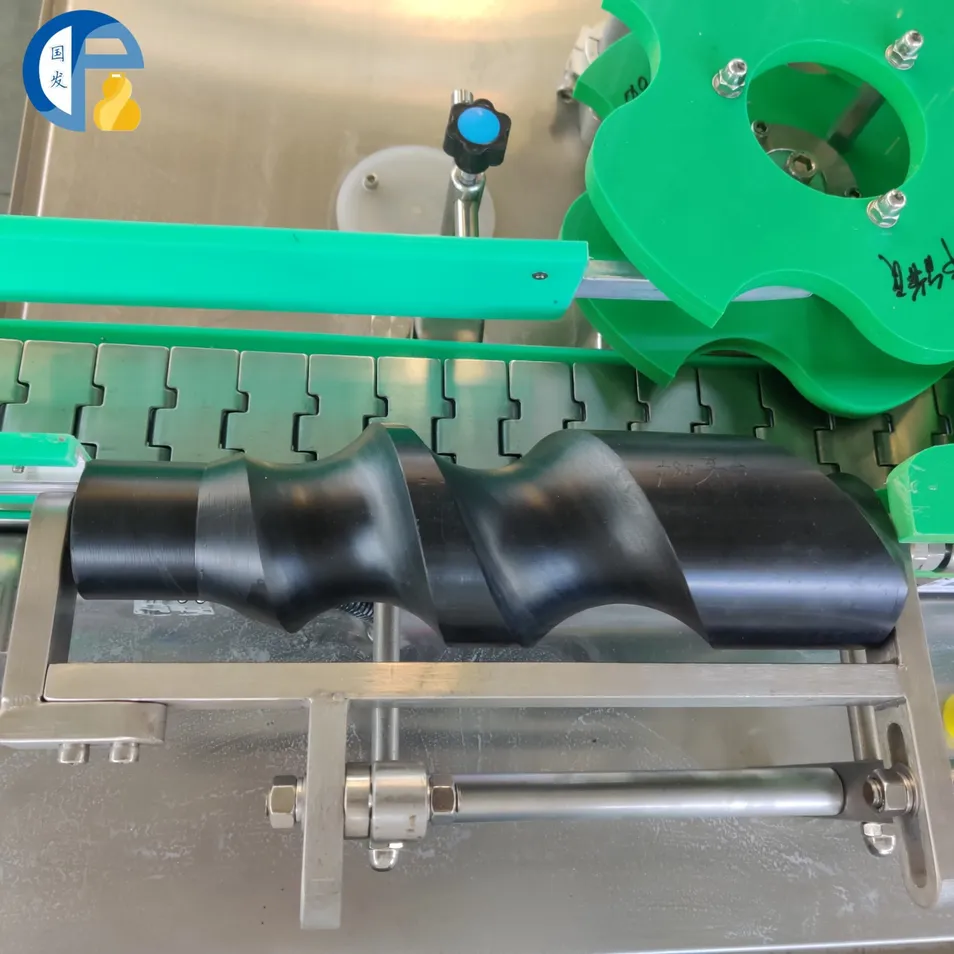

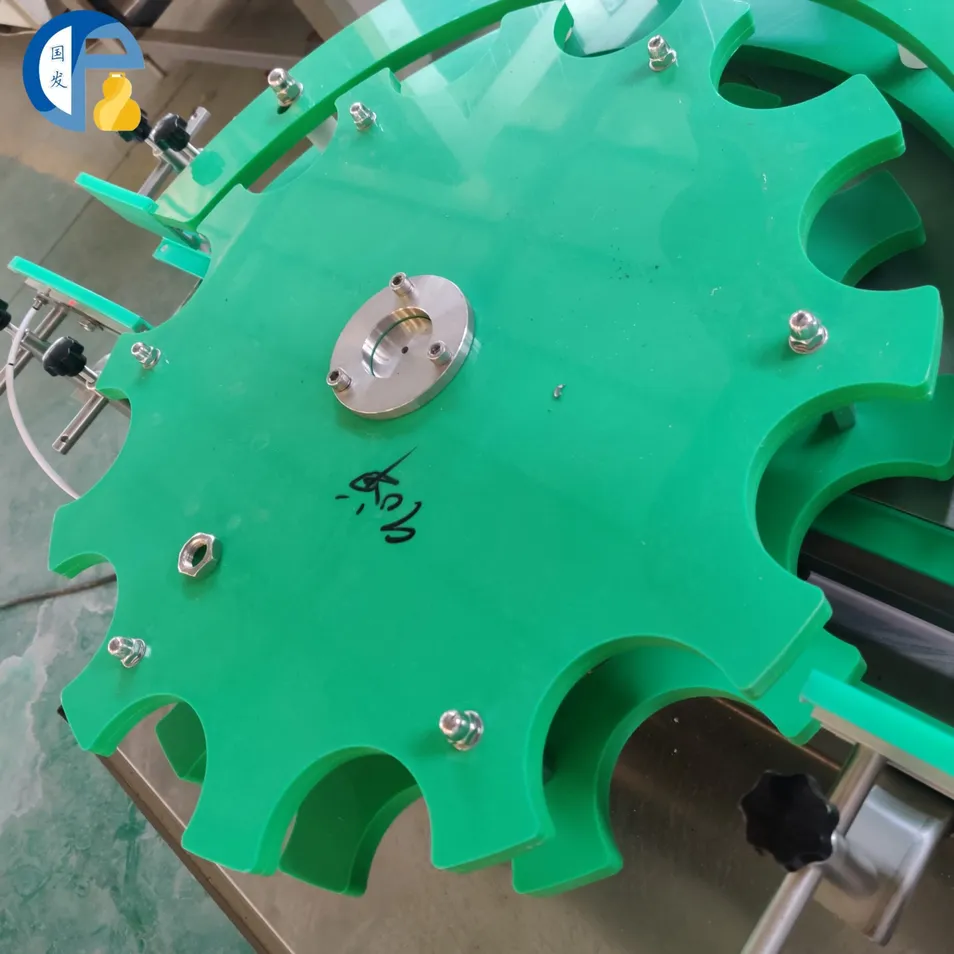

Achieve different size bottles capping in one machine by simply changing the customized gears.
