| Model | Capacity (b/h) | Power (kw) | Applicable Bottles | Dimension (mm) | ||
|---|---|---|---|---|---|---|
| Bottle Diameter (mm) | Bottle Mouth (mm) | Height (mm) | ||||
| FW-1 | 2000 | 1.5 | φ30- φ90 | φ20- φ32 | 100-330 | 1000*1100*1700 |
| FW-4 | 4500 | 1.5 | φ30- φ90 | φ20- φ32 | 100-330 | 1300*986*1925 |
| FW-6 | 6000 | 1.5 | φ30- φ90 | φ20- φ32 | 100-330 | 1500*1000*1925 |
| FW-8 | 8000 | 2.2 | φ30- φ90 | φ20- φ32 | 100-330 | 1600*1300*2000 |
| FW-12 | 12000 | 2.5 | φ30- φ90 | φ20- φ32 | 100-330 | 1600*1300*2000 |
| FW-20 | 24000 | 3.8 | φ30-φ90 | φ20-φ32 | 100-330 | 2050*1750*2100 |

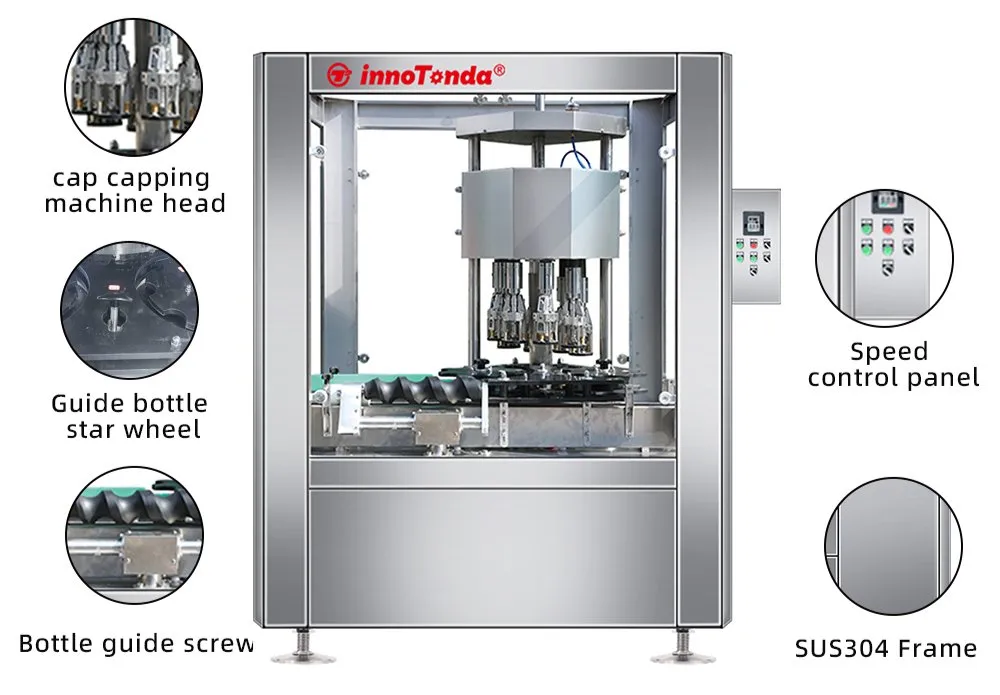

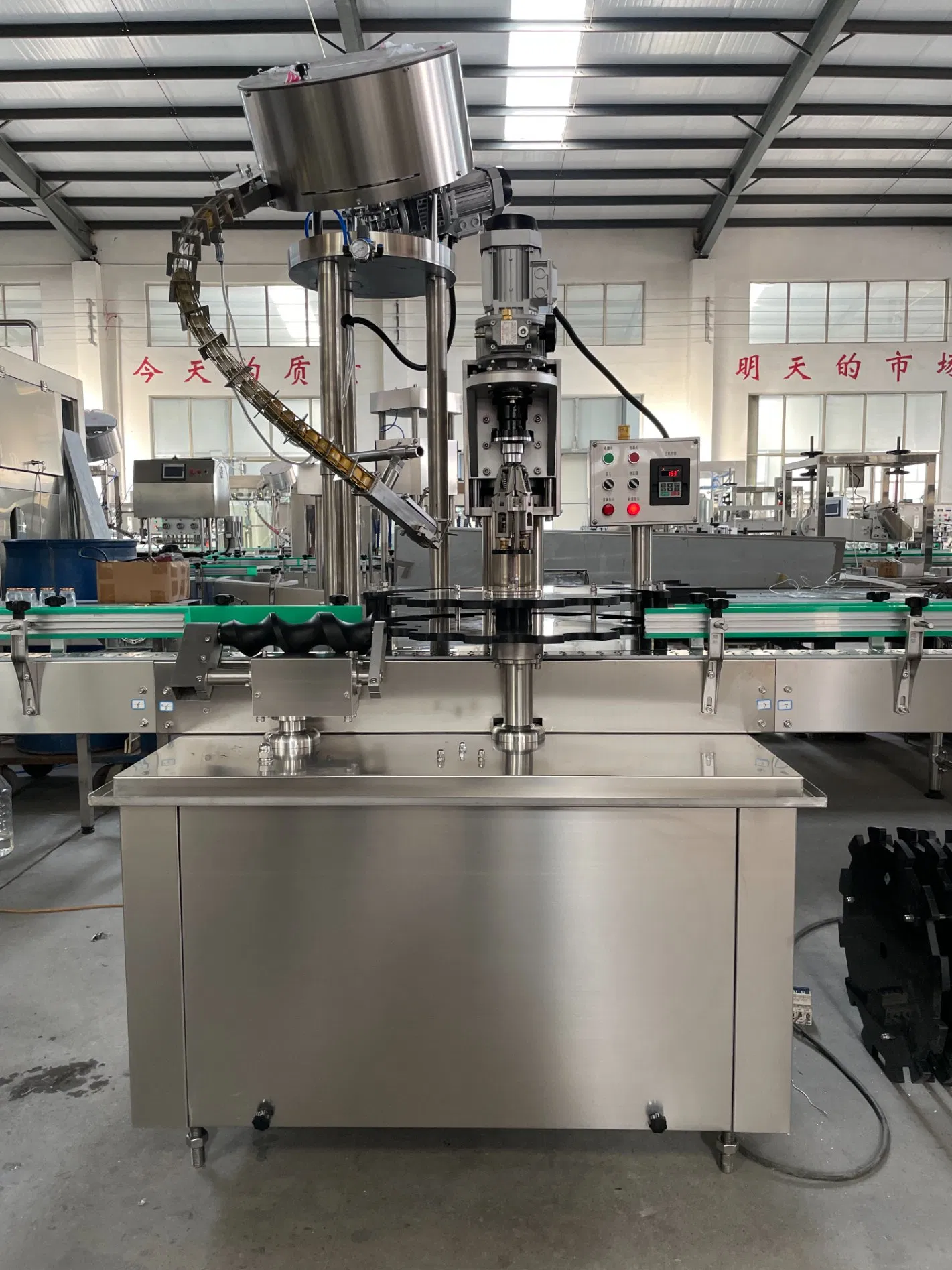

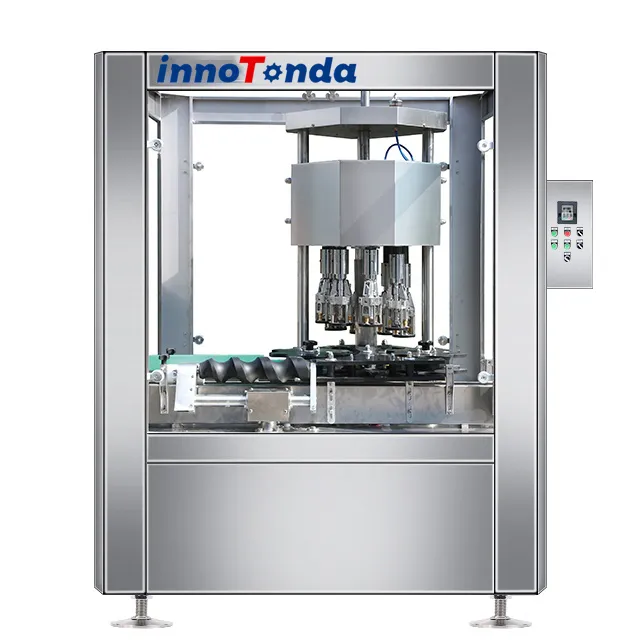

This series is dedicated to the sealing of twist-off aluminum anti-theft caps. Features include seamless seals, zero scratches, and a tight back cover. Compatible with German flat swing heads or four-wheel balanced lever heads.

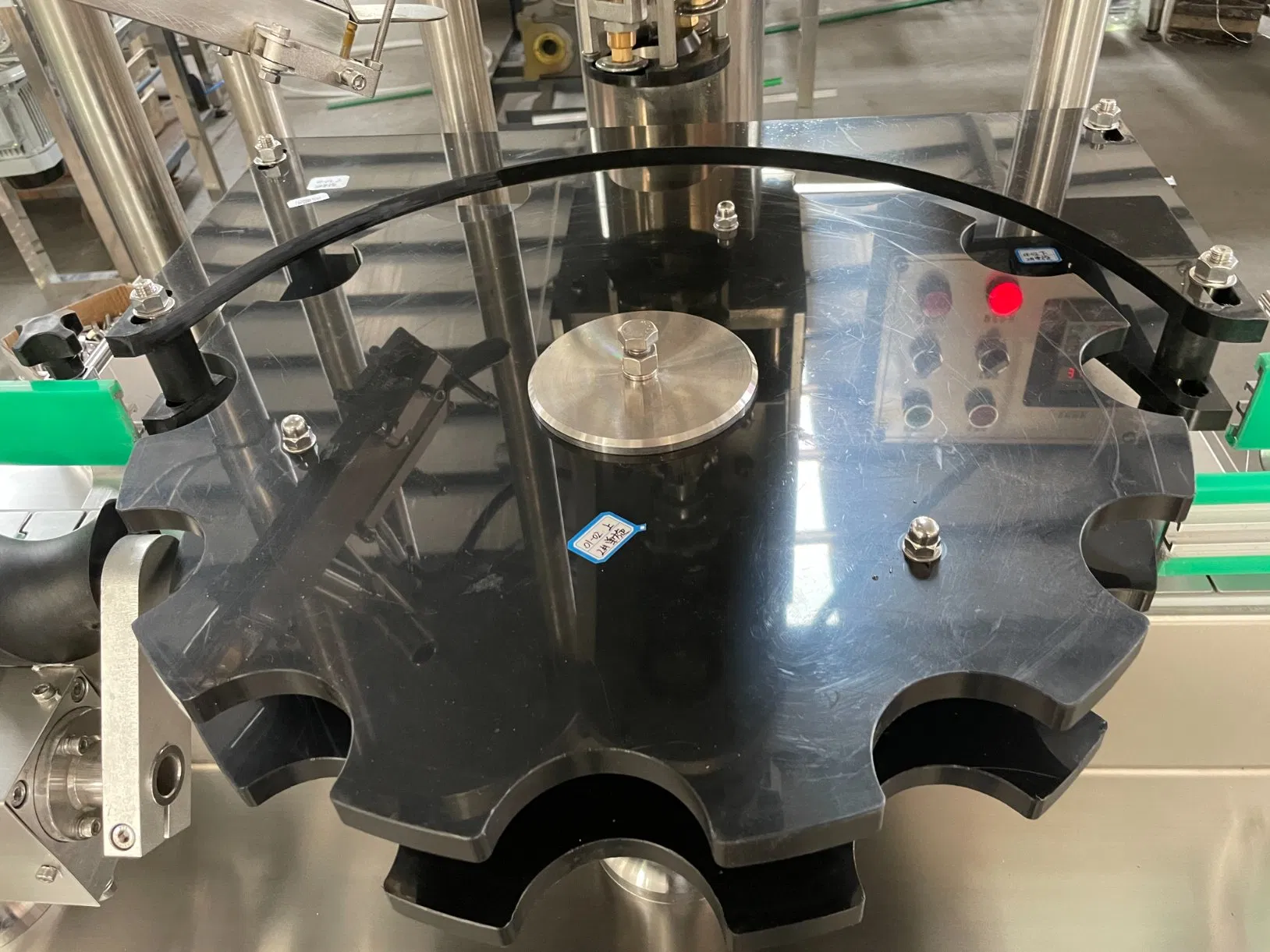

Equipped with a bottle mouth positioning device, ensuring the head and mouth are accurately aligned. This significantly reduces cap damage and improves utilization rates.

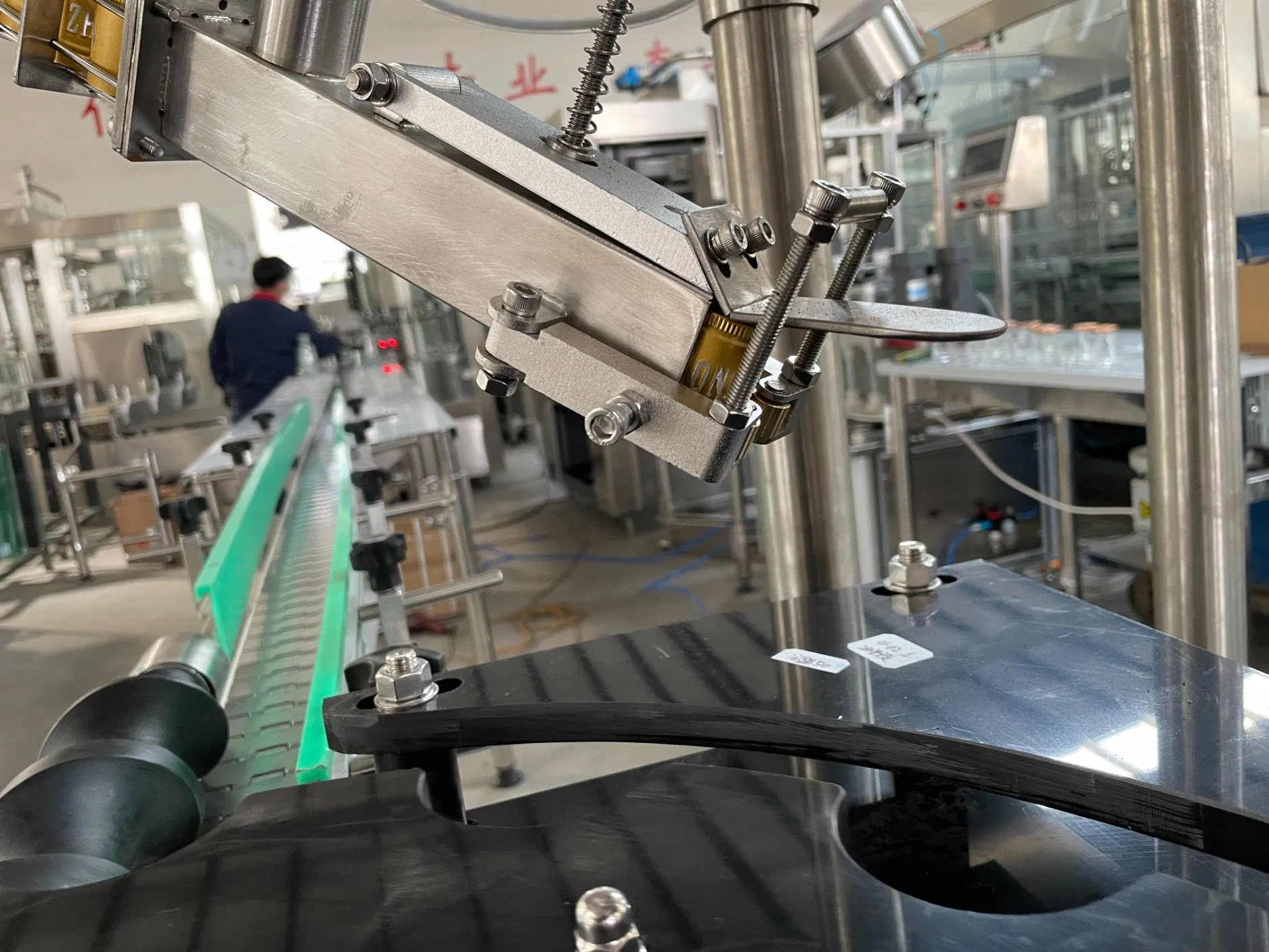

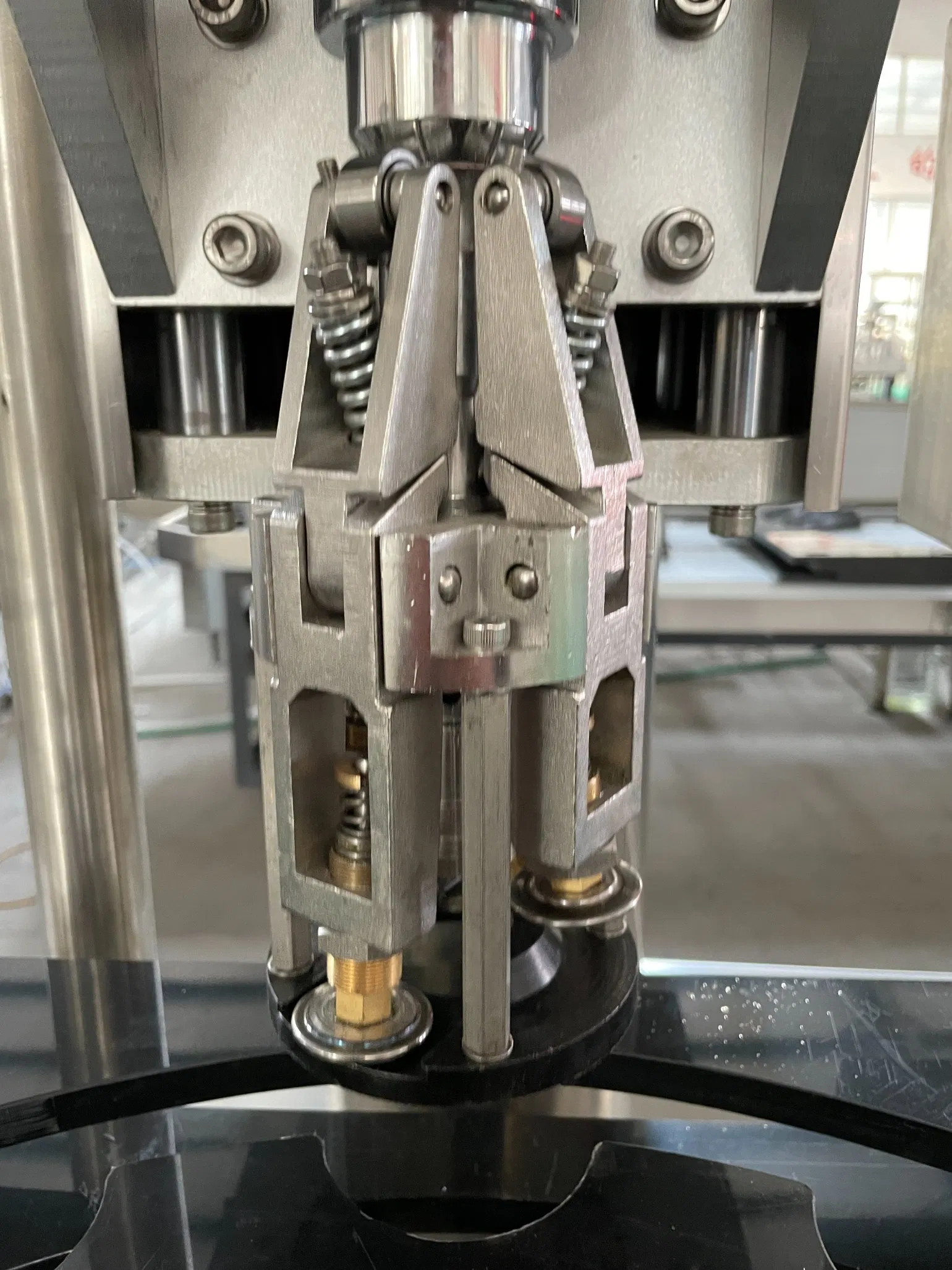

Features automatic lid management and hanging functions. The sealing wheel is constructed from special, durable materials to ensure a long service life.
