Basic Specifications
Model NO.
CDA-1, CDA-4, CDA-6, CDA-8
Packaging Material
Aluminum Foil
Application
Drinks, Oil, Vegetable, Fruit
Type
Packaging Sealing Machine
Mechanical Properties
Full Automatic Filling and Sealing Machine
Production Capacity
1000sets/Year
Product Description

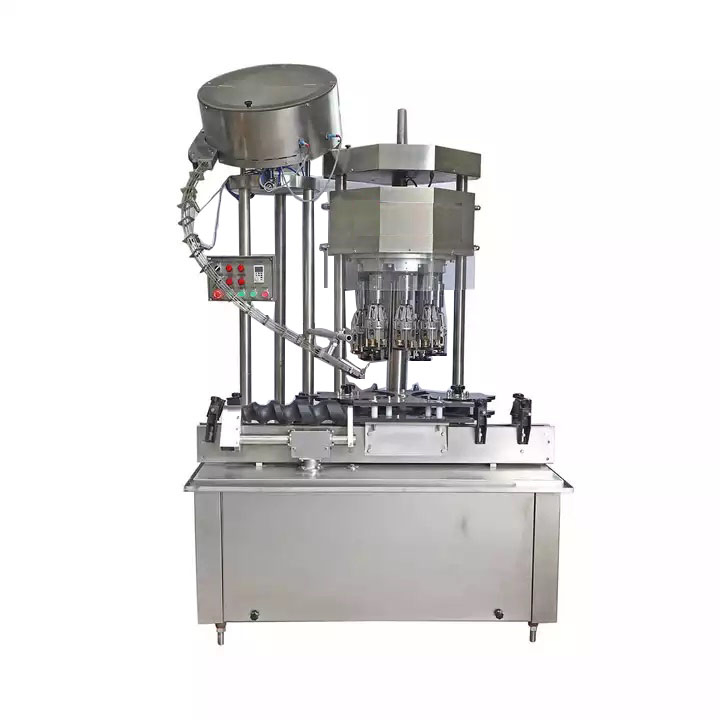

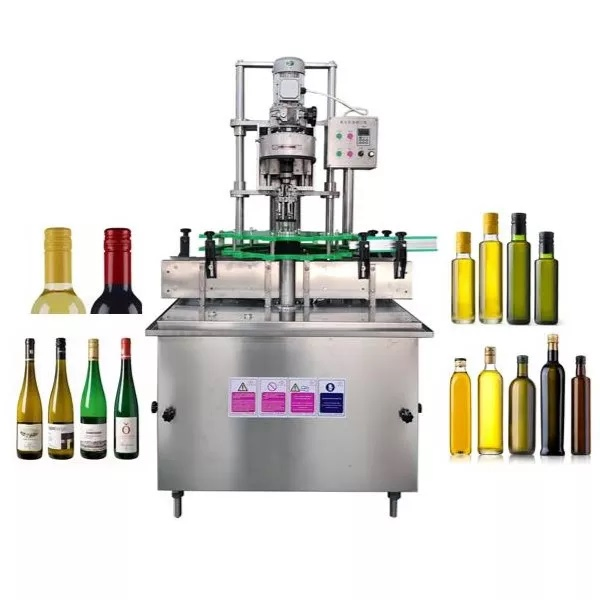

This is an automatic capping machine equipped with an existing conveyor. At a rate of up to 30 caps per minute, it tightens different sizes of bottle caps, and we can customize the capping mold according to your needs. We designed it to provide our customers with a self-contained and easy-to-adjust automatic bottle capping machine.
Technical Parameters
| Type |
GFLBFQ-1 |
GFLBFQ-4 |
GFLBFQ-6 |
GFLBFQ-8 |
| Capper head | 1 | 4 | 6 | 8 |
| Yield(B/H) | 2000 | 4000 | 6000 | 9000 |
| Bottle diameter(mm) | Φ60-100 | Φ60-100 | Φ60-100 | Φ60-100 |
| Neck diameter(mm) | Φ22-32 | Φ22-32 | Φ22-32 | Φ22-32 |
| Bottle height(mm) | 160-320 | 160-320 | 160-320 | 160-320 |
| Total power(KW) | 0.75 | 1.1 | 1.5 | 1.5 |
| Dimensions(mm) | 1000*1000*1200 | 1300*986*1925 | 1500*1000*1925 | 1600*1400*2100 |

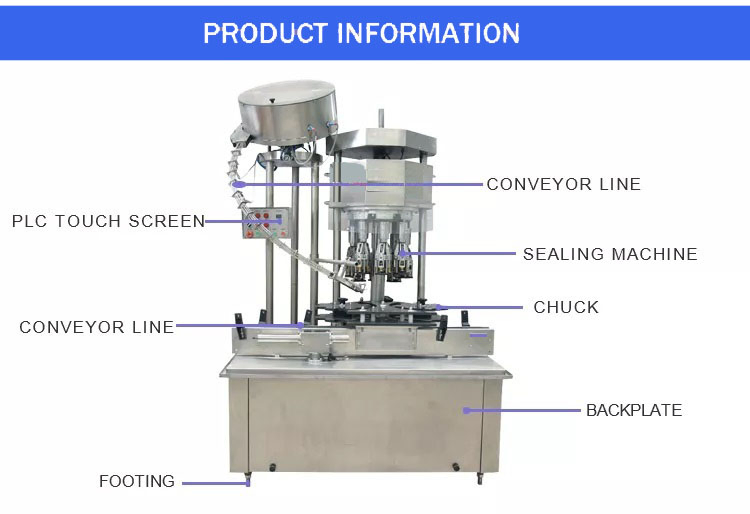

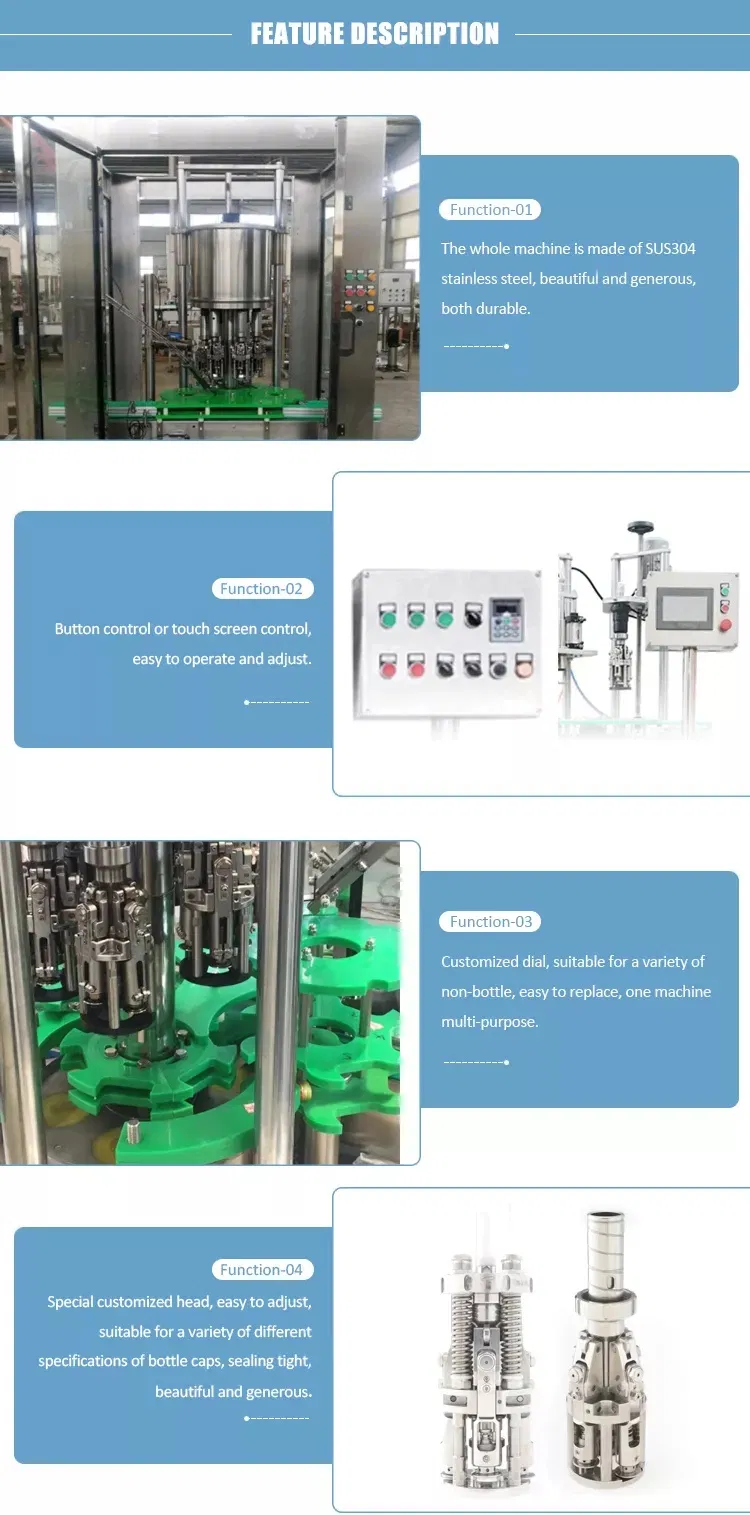

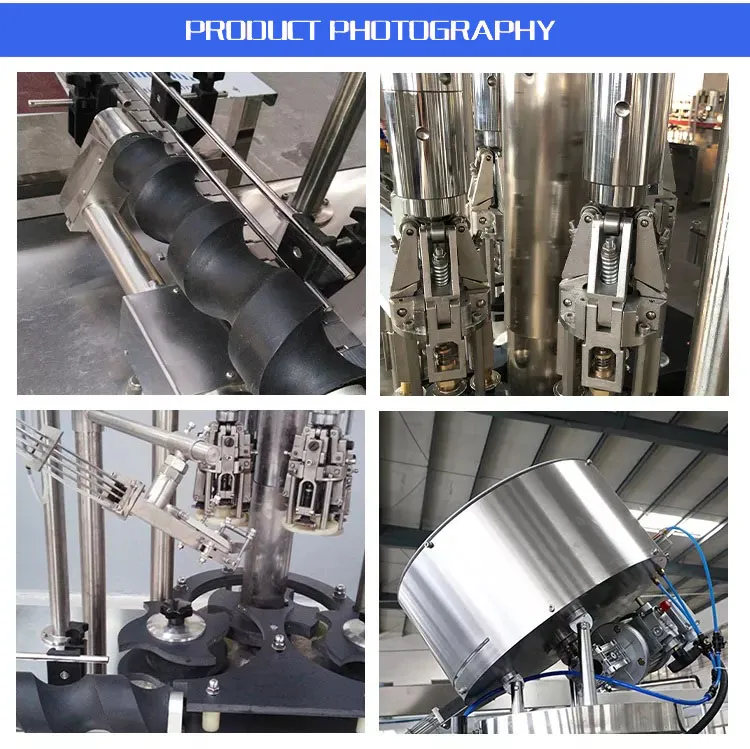

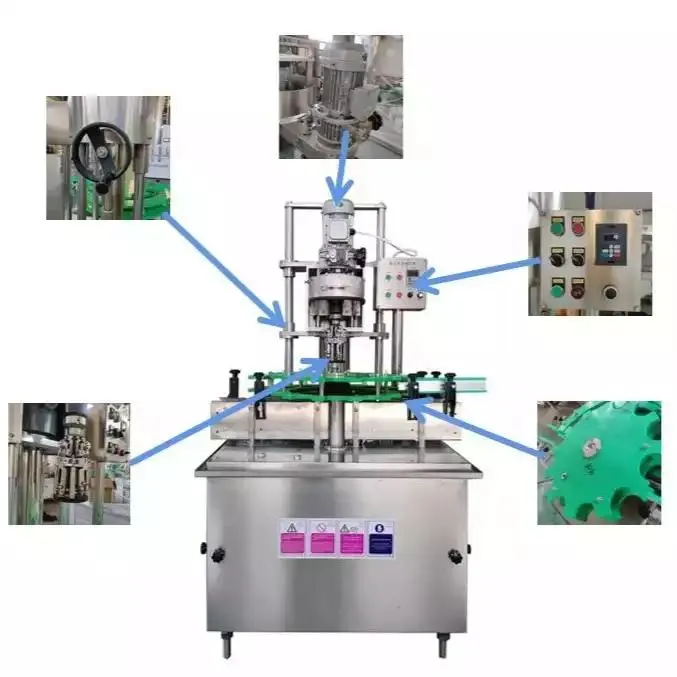

Component Details
01

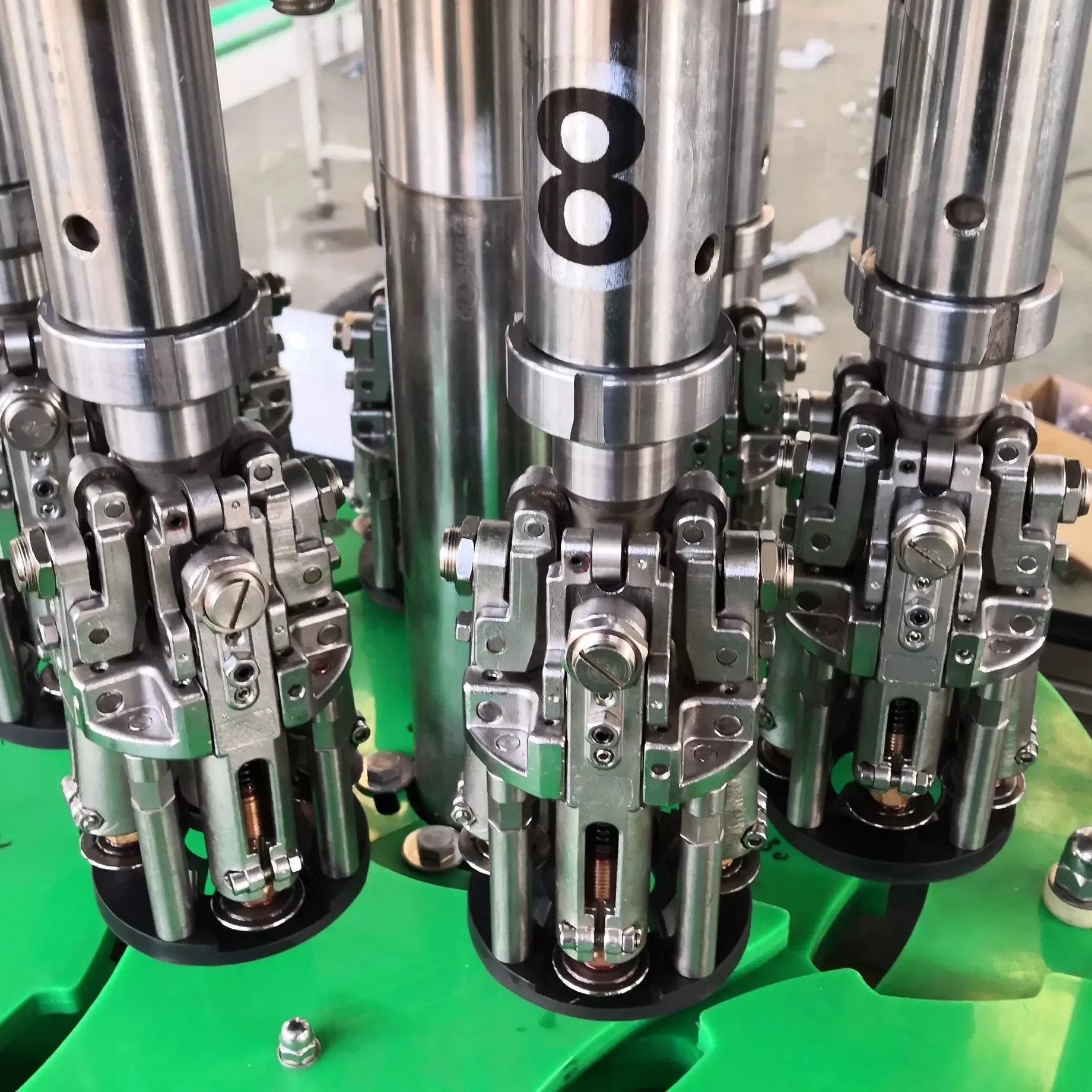

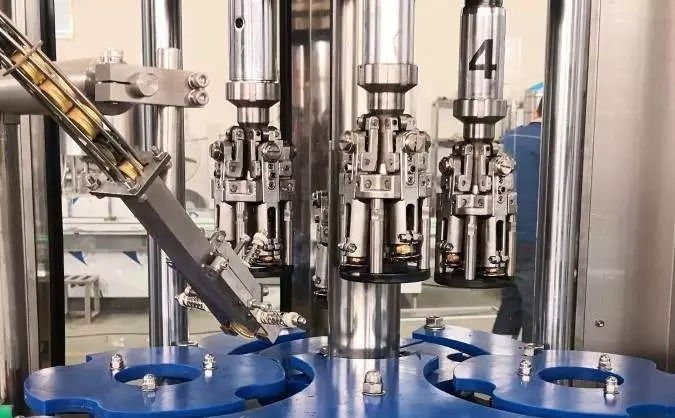

The capping head: Made of special high-strength material. The number of heads can be customized. The sealing knife distance is adjustable to suit different bottle sizes.
02
Bottle sorting dial: Customizable based on the customer's specific bottle shape for precise handling.
03
Electric plate: Consists of high-quality components like PLC and relays. Premium brands are used to ensure stability.
04
Electric motor: Provides robust power for the sealing head to ensure a perfect sealing effect.
05
The adjusting handle: Allows manual adjustment of the height between the capping head and conveyor. Touch screen adjustment options are also available.
06
Operation panel: Intuitive control for switching, speed adjustment, and height settings.
Key Features
✔ Automatic cap sorting, feeding, and capping for high efficiency.
✔ Versatile application: suitable for round, square, and special-shaped bottles.
✔ Low failure rate and long service life.
✔ Adjustable cap sorting speed.
✔ Smart automatic start and stop function.
Application Scope
This machine is designed to tighten pilfer-proof caps for wine bottles, olive oil bottles, drink bottles, etc. It is suitable for φ20-32mm bottle caps. The automatic operation significantly reduces labor costs and production errors.

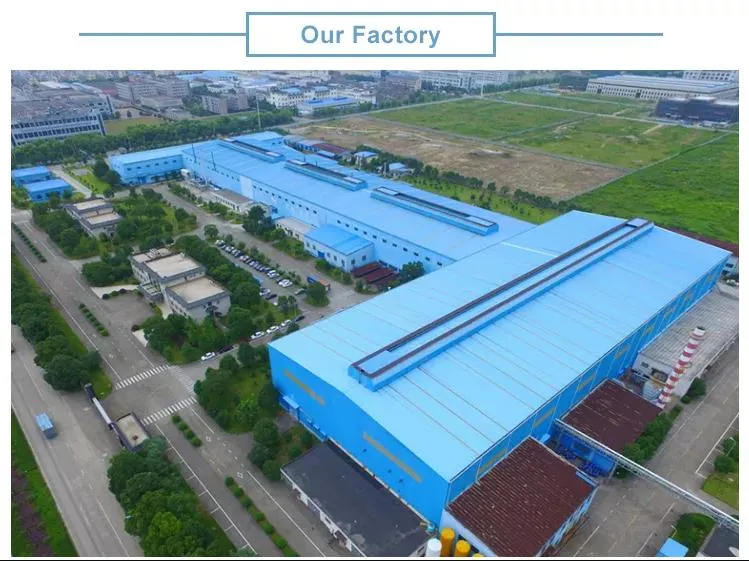

Manufacturing Excellence

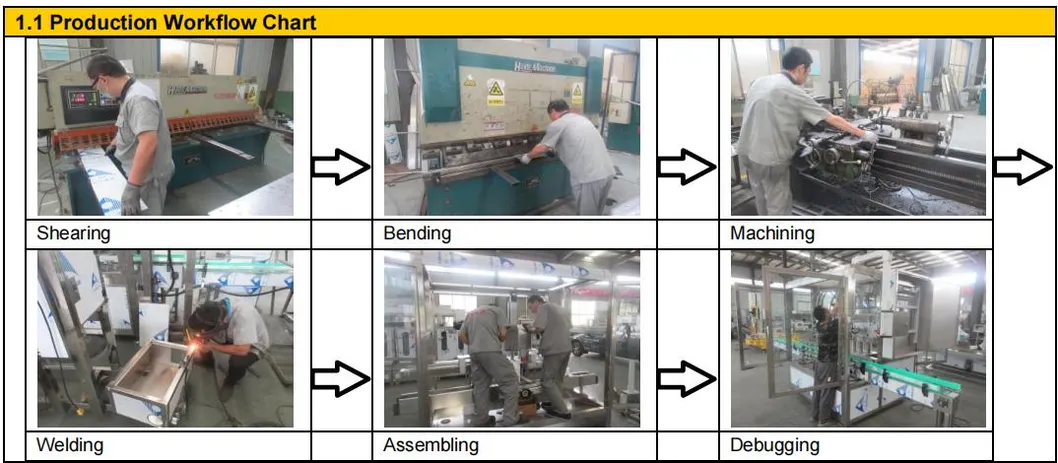

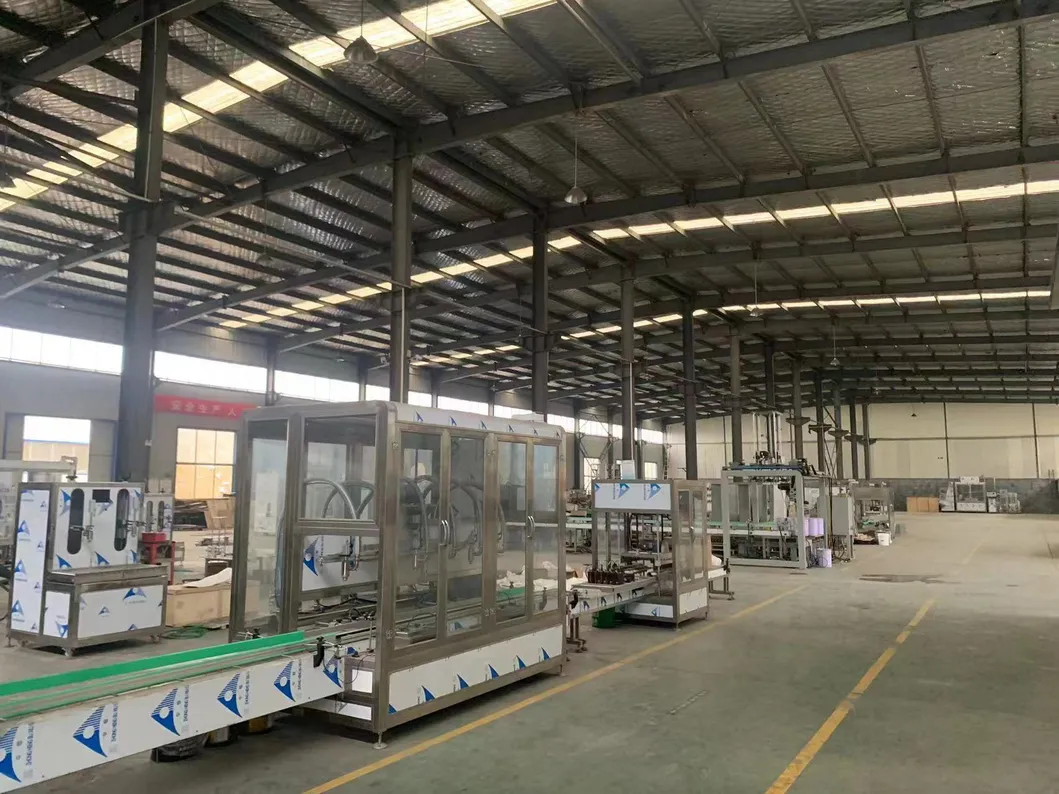

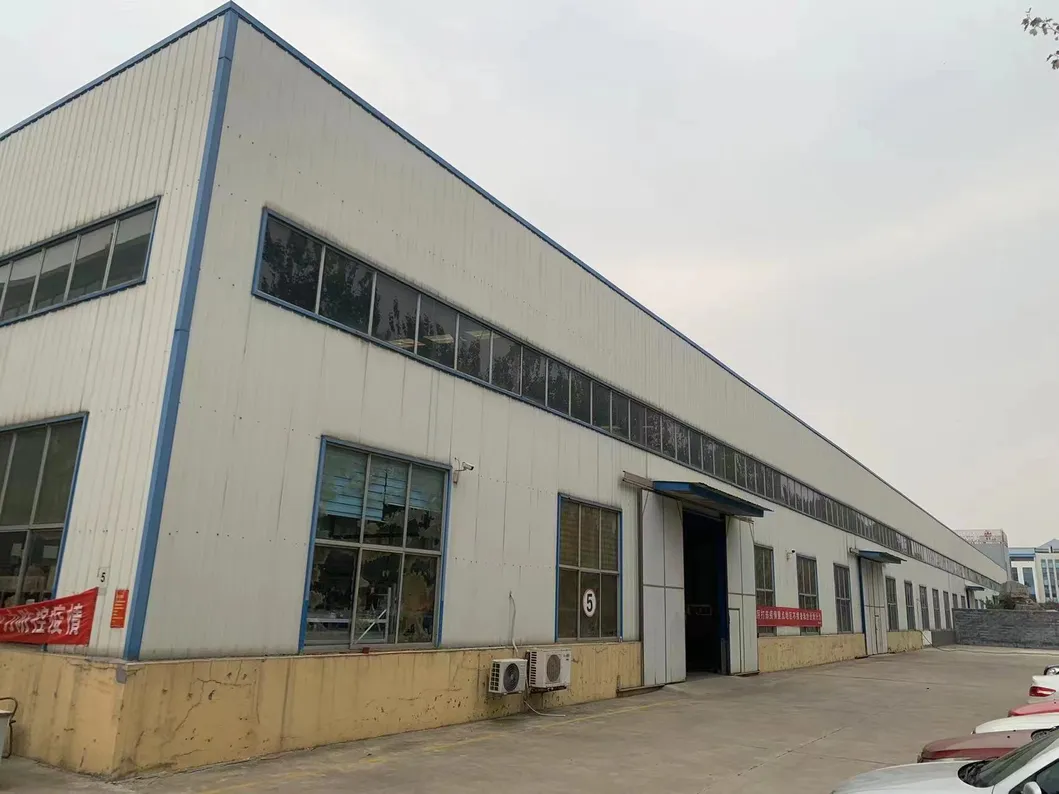

Founded in 1998, we are an early pioneer in filling machinery manufacturing. Our facility covers 6,000 square meters with a dedicated team of over 30 employees. We utilize advanced CNC machine tools and large cutting machines to ensure high production capacity and service quality.
Why Choose Us
★ Over 10 years of experience in liquid packaging machinery design.
★ Advanced CNC production equipment for precision and aesthetics.
★ Professional R&D, Sales, and After-sales teams (over 40 experts combined).
★ 95% of parts are manufactured in-house, ensuring flexible production cycles.
Professional Services
During Production: Regular updates and testing videos provided. Buyers are invited for factory inspections before shipping.
Customized Service: We design machines according to your material, power, and bottle type requirements, providing professional layout drawings.
Installation: Detailed installation videos and online guidance. On-site installation is also supported.

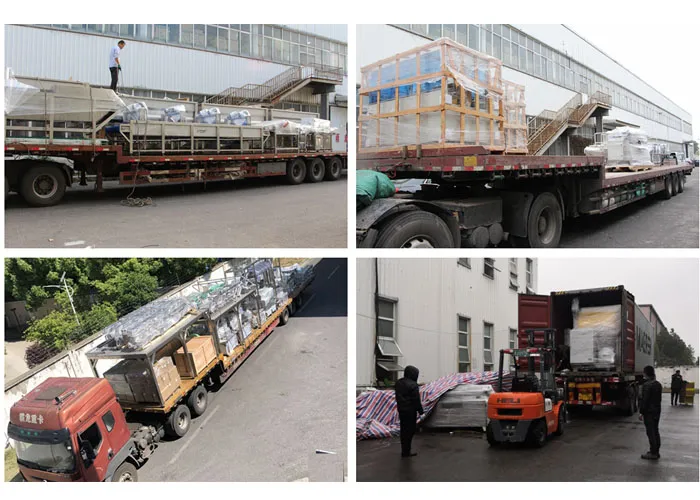

Packing & Shipping
1. Packing: Anti-rust treatment followed by plastic wrap and thick wooden case/steel frame protection for long-distance sea freight.
2. Delivery: We stock key electronic parts and frames to shorten delivery times even for customized orders.
3. Shipping: Economic options via sea, air, or express. Major ports include Qingdao and Shanghai.
Frequently Asked Questions
Q1: How long will it take for the delivery of the product?
It takes 10 days for standard models. If the machine is in stock, delivery is immediate. Customized models usually take about 20–30 days depending on requirements.
Q2: What is the after-sale service insurance after purchase?
All products are tested by our QC department before delivery. We provide a one-year warranty for all machines and lifelong technical support.
Q3: Is the machine easy to install at the work site?
Yes. Every model comes with an intuitive installation video. We also provide remote video technical support to ensure correct installation.
Q4: How do I get after-sale service during machine use?
We have professional engineers with years of international experience. We provide on-site commissioning and can guide your workers directly.
Q5: Do accessories need to be changed frequently?
Accessory life depends on daily maintenance. We provide free wearing parts with your order and a detailed maintenance strategy to maximize lifespan.
Q6: Can the machine handle different bottle shapes?
Yes, the machine features high applicability for round, square, and various special-shaped bottles through customizable sorting dials.
