Request for Zp17e/Zp19e Variable-Speed Rotary Tablet Press

Customization:	Available
Automation Level:	Fully Automatic
Capacity:	132,600 PCS/H

Send Inquiry

Product Description

Basic Information

Model NO.	ZP17E	Certification	CE Certified, GMP Compliant, ISO Certified
Tablet Shape	Oval, Rectangular, Round, Square	Warranty	1 Year
Number of Stations	17	Max Main Pressure	50 kN
Max Pre-Pressure	10 kN	Max Tablet Diameter	Round 20 mm / Irregular 22 mm
Max Filling Depth	15 mm	Max Tablet Thickness	6 mm
Max Turret Speed	40 R/Min	Production Capacity	Up to 48,000 PCS/H
Motor Power	2.2 Kw	Machine Weight	900 Kg

Product Description

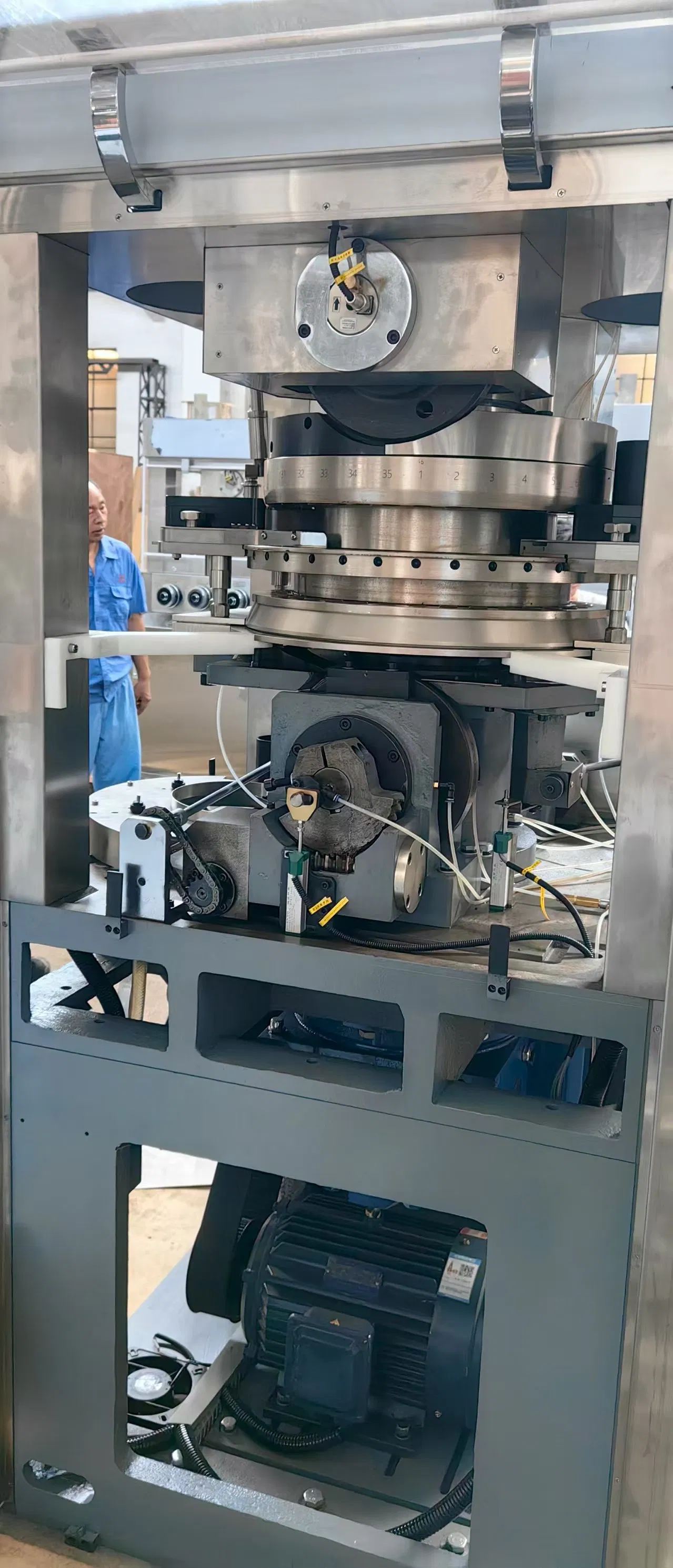

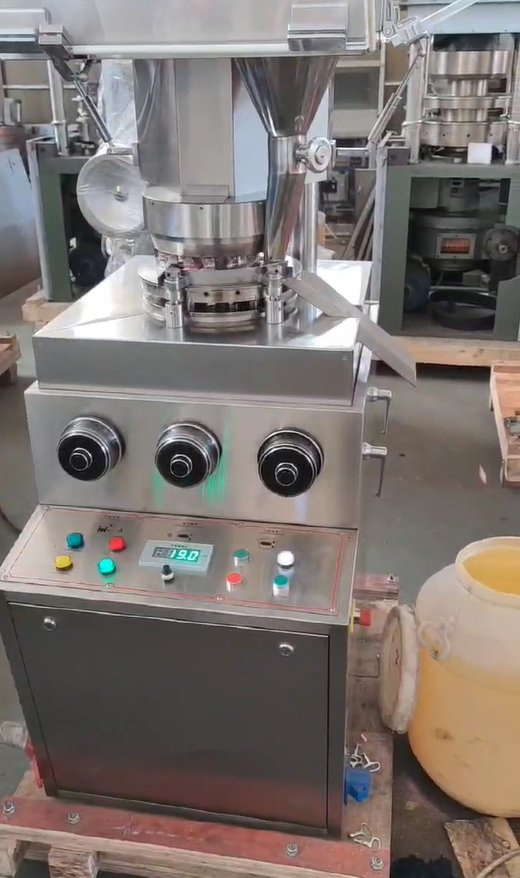

The ZP17E/ZP19E Rotary Tablet Press is a high-performance, small-batch-oriented tablet-forming device designed to solve the flexible production needs of round and irregular-shaped tablets. It combines GMP-compliant hygiene, safe operation, and easy maintenance, making it an ideal choice for small-scale manufacturing scenarios.

In terms of hygiene and compliance, the machine features a fully enclosed housing made of stainless steel, with a wear-resistant hardened layer on the turret surface-effectively preventing cross-contamination between materials and equipment. The transparent acrylic shield allows real-time observation of the pressing process and can be fully opened for thorough cleaning and maintenance.

For operational stability, it adopts variable frequency speed regulation (up to 40 r/min). The built-in pre-pressure device is a key advantage: it eliminates air trapped in granular materials, significantly improving tablet density and reducing common defects like capping or cracking. It is also equipped with over-pressure shutdown protection for operator safety.

Technical Specifications

Parameter	ZP17E	ZP19E
Number of Stations	17	19
Max Main Pressure (KN)	50	50
Max Pre-pressure (KN)	10	10
Max Tablet Dia (Round/Irregular)	20mm / 22mm	13mm / 16mm
Max Filling Depth (mm)	15	15
Max Turret Speed (r/min)	40	40
Production Capacity (pcs/h)	40,800	45,600
Overall Size (mm)	950 × 770 × 1740

Product Functions

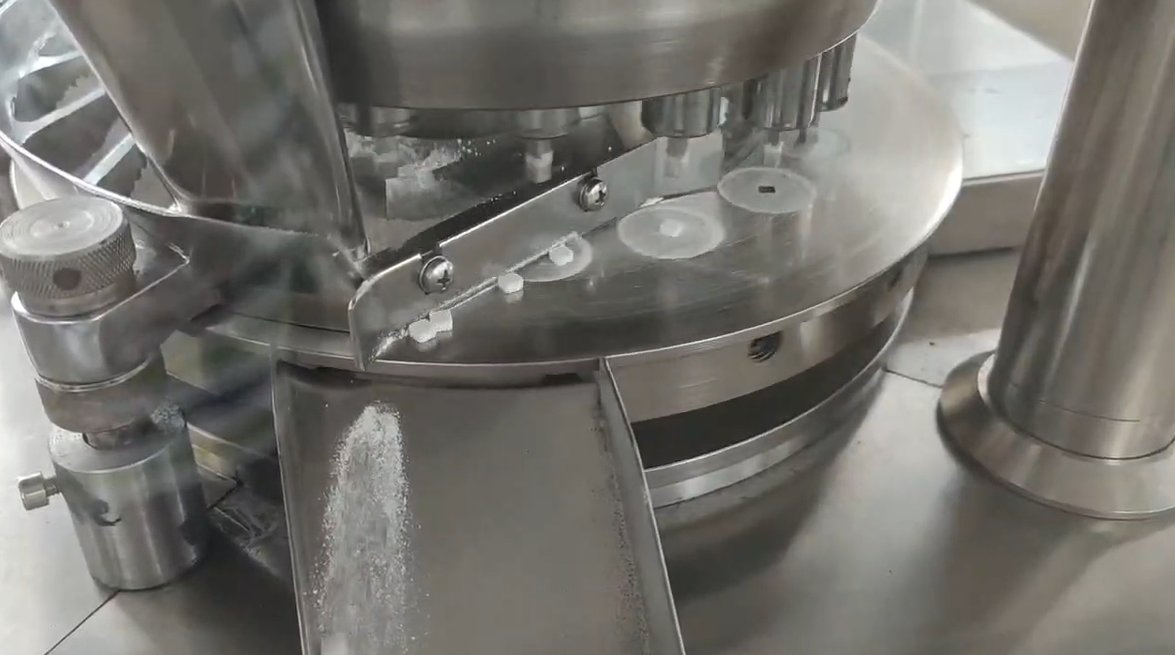

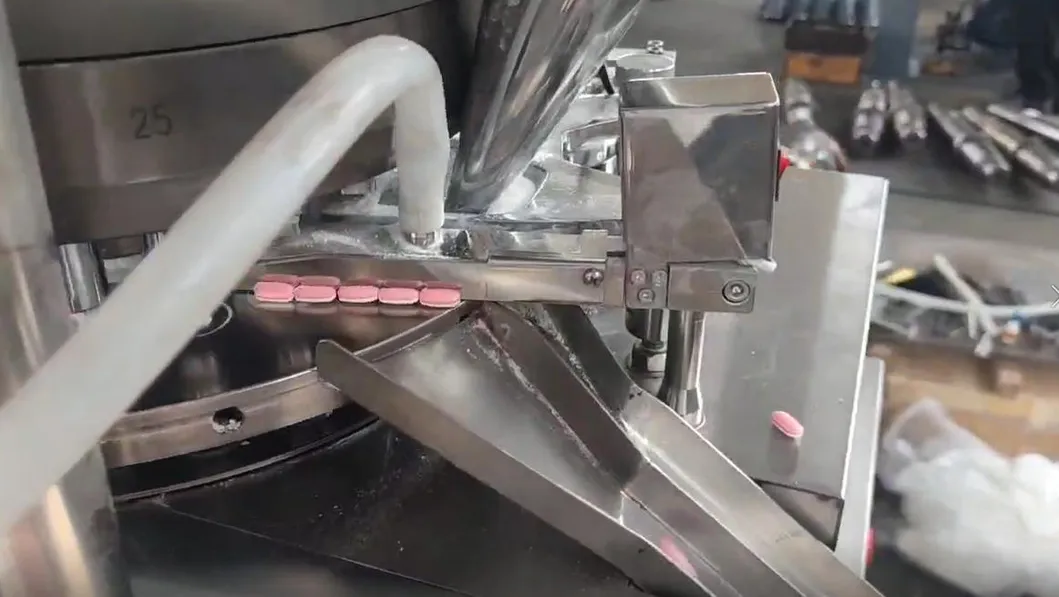

Multi-Type Tablet Pressing: Processes round, irregular, and double-scoring engraved tablets.
Intelligent Parameter Control: Uses PLC and touch screen for monitoring pressure, speed, and fault diagnosis.
Automatic Safety Protection: Emergency stop triggers if punches break or pressure limits are exceeded.
Pre-Press Optimization: Enhances tablet density and stability via integrated pre-press technology.
Quick Changeover: Rational structure allows fast mold replacement and easy sanitation.

Core Selling Points

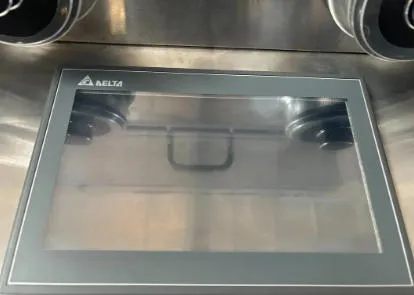

Advanced Control System

HMI 10-inch Touch Screen (Multi-language support).
Real-time pressure value display for each punch.
Automatic main pressure and tablet weight adjustment.
Product formula management system.

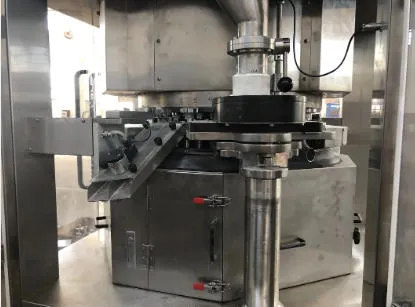

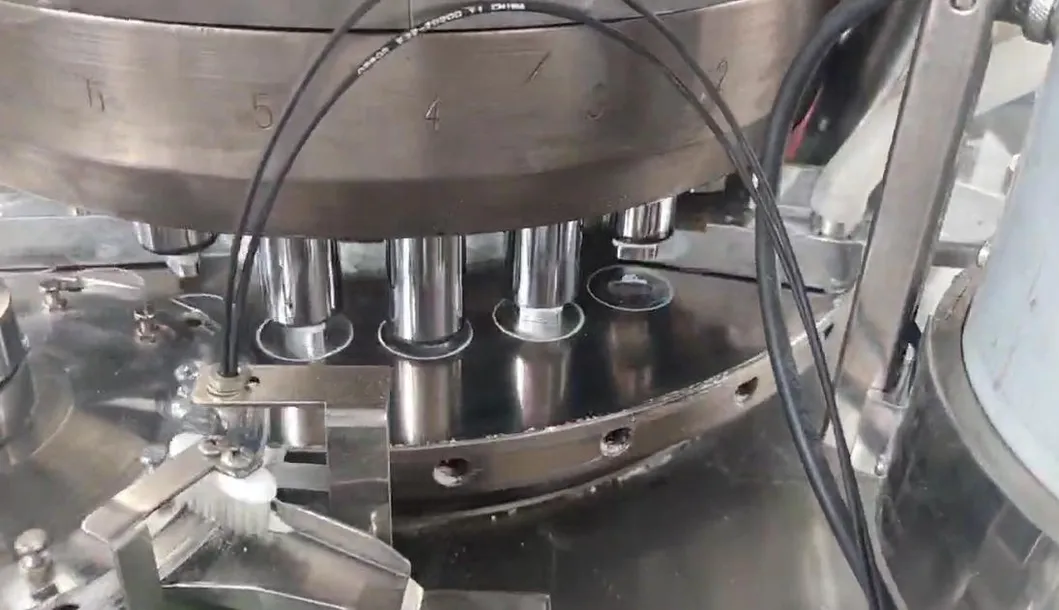

Turret Structure & Materials

Three-part turret structure using HT300 & 2Cr13 materials.
Surface hardened layer for superior wear resistance.
Upper/Lower punches with oil-proof and dust-proof rings.
Full closed working area for zero contamination.

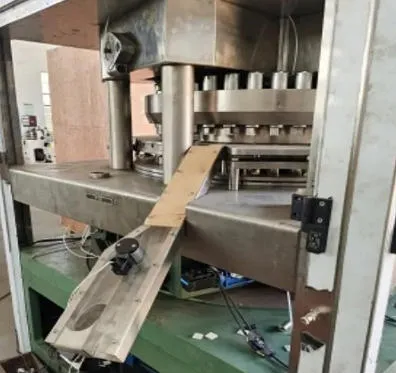

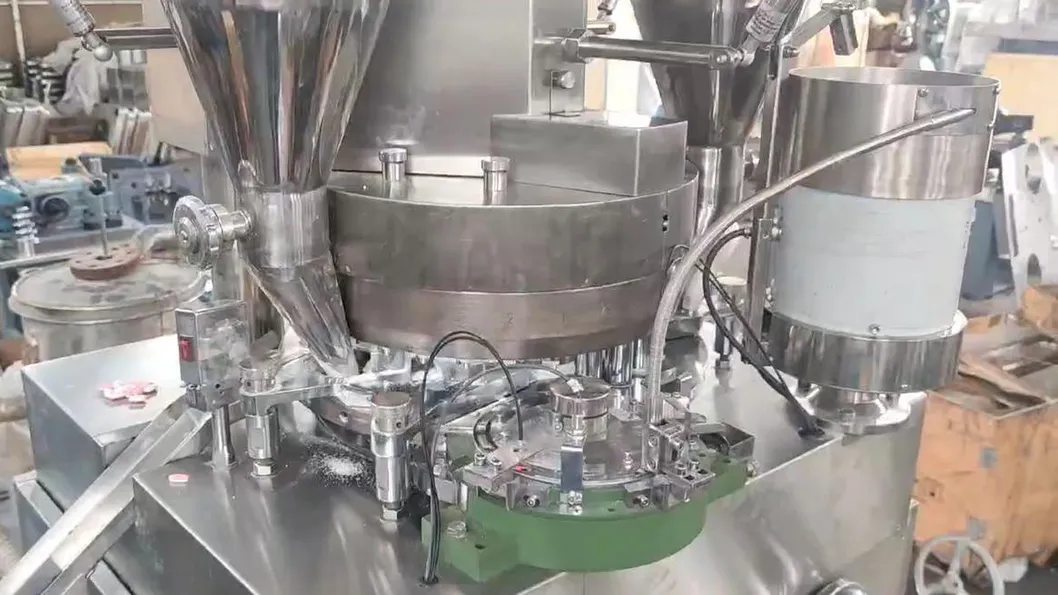

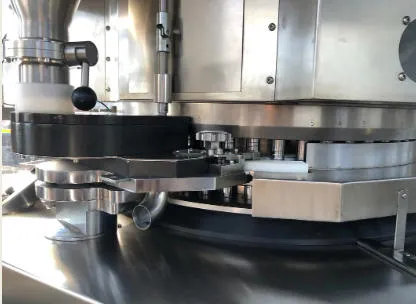

Force Feeder & Punch Protection

Double impeller force feeder to ensure filling precision of poor-flow granules.
Stainless steel SS316L hopper with powder level sensor.
Punch tightness protection sensor stops machine automatically if powder sticks.

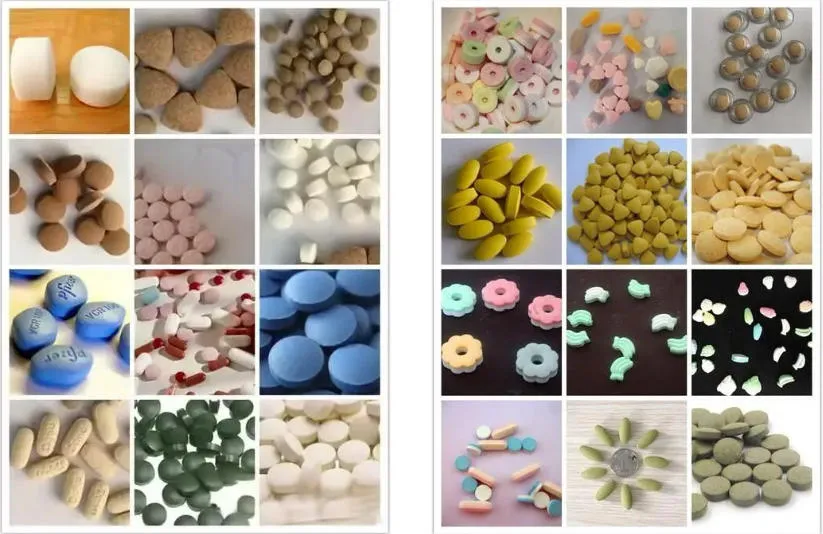

Application Fields

Pharmaceutical: Oral medications and tablets.
Chemical: Detergent tablets, catalyst tablets.
Food: Vitamins, effervescent tablets, candy.
Electronics: Functional component tablets.
Other Sectors: Agricultural and cosmetic tablets.

Packaging & Global Presence

Exhibition & Certificates

Frequently Asked Questions

Q1: What types of tablets can the ZP17E/ZP19E produce?

It can press granular materials into both round tablets and various irregular geometric-shaped tablets, perfectly meeting the needs of diverse product forms.

Q2: Is the machine suitable for large-scale mass production?

This model is specifically designed for small-scale batch production and trial runs, offering a compact structure and flexible operation for small-volume manufacturing.

Q3: Does the machine comply with GMP standards?

Yes. It features a fully enclosed stainless steel housing, wear-resistant turret surfaces, and easy-to-clean components, fully meeting international GMP requirements.

Q4: Can the operating speed be adjusted?

Absolutely. It is equipped with variable frequency speed regulation, allowing you to set the appropriate production rhythm based on your material properties.

Q5: How does the pre-pressure device improve quality?

The built-in pre-pressure device eliminates air from filled materials before the main press, which increases tablet density and prevents defects like capping or lamination.

Q6: What maintenance is required for the turret?

The turret adopts a hardened wear-resistant layer. Regular cleaning with the fully openable acrylic shields and ensuring the dust-proof rings are intact will significantly prolong the machine's life.
