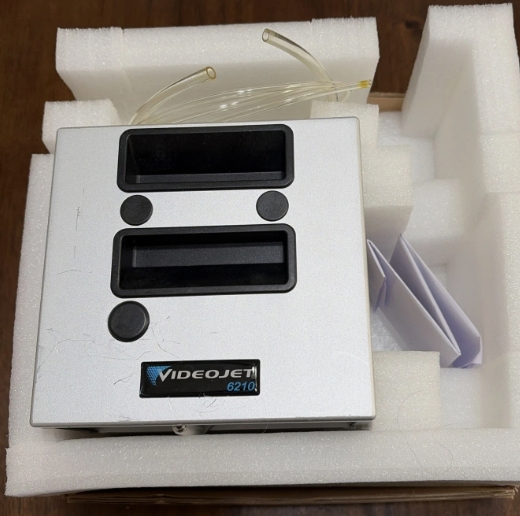

Video Jet 6210 Thermal Transfer Coding System

1 / 5

Video Jet 6210 Thermal Transfer Coding System

After-sales Service:	Online Tech Support
Warranty:	1 Year
Type:	Continuous Jet Type Coding Machine

Send Inquiry

Product Description

📑 Basic Specifications

Model NO.:6210

Usage:Daily Industrial, Chemical, Food

Automatic Grade:Automatic

Classification:Thermal Transfer Overprinter

Working Patterns:On-Line

Supplies:Ribbon

Weight:10 Kg

Core Components:Motor

Printhead:32mm

HS Code:8443399000

🔍 Product Description

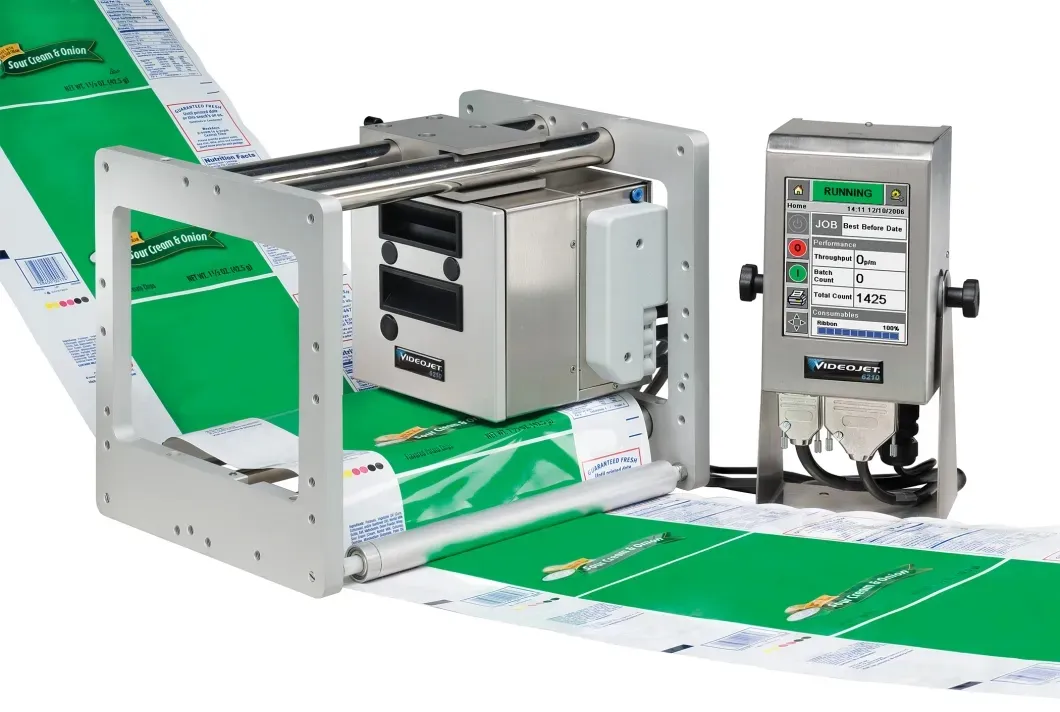

The Vj 6210 Thermal Transfer printer is a proven, cost-effective solution for users migrating to a digital solution from analog equipment like hot stamp and roller coders. It is ideal for lower speed intermittent and continuous motion flexible packaging applications primarily in the food industry.

Key Application Benefits:

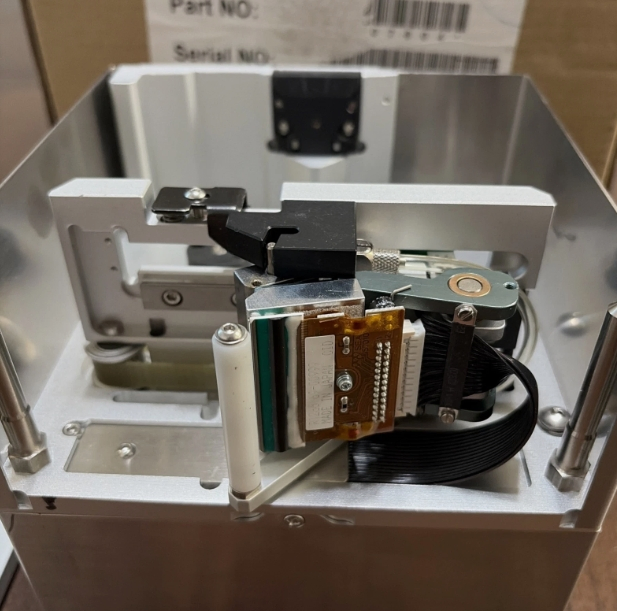

Intelligent printhead with automatic setting and bad point detection.
Optional promotion code printing for unique packaging codes.
Site-changeable left & right hand machine configurations.

📊 Technical Data

Feature	Specification
Model	VJ 6210
Max Ribbon Length	700m
Print Head	33mm, 200dpi, 8dots/mm
Intermittent Print Area	32mm(W) * 34mm(L)
Continuous Print Area	32mm(W) * 40mm(L)
Printing Speed	150 prints/min
Gap Mode Speed	50mm/s - 300mm/s
Continuous Mode Speed	40mm/s - 500mm/s
Ribbon Saving Mode	Reduces ribbon usage by up to 50%

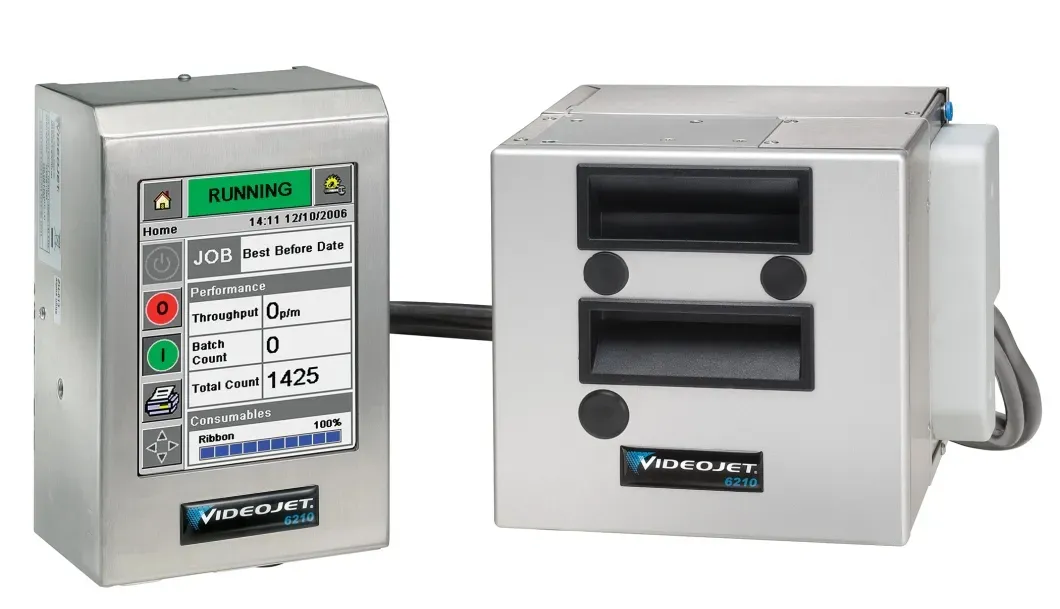

Controller	CLARiTY™ 5.7 inch SVGA color LCD touchscreen

⭐ Major Advantages

🚀 Consistent High Quality Print:

300 dpi resolution ensures crisp, clear codes every time.
Software-controlled ribbon drive manages tension precisely.

🛠️ Simple Usability:

Intuitive CLARiTY color touchscreen reduces operator errors.
Automated date and time updates eliminate manual stamp changes.

⏳ Uptime Advantage:

Clutchless drive technology eliminates ribbon-related downtime.
700m ribbon length allows for fewer changes and longer runs.

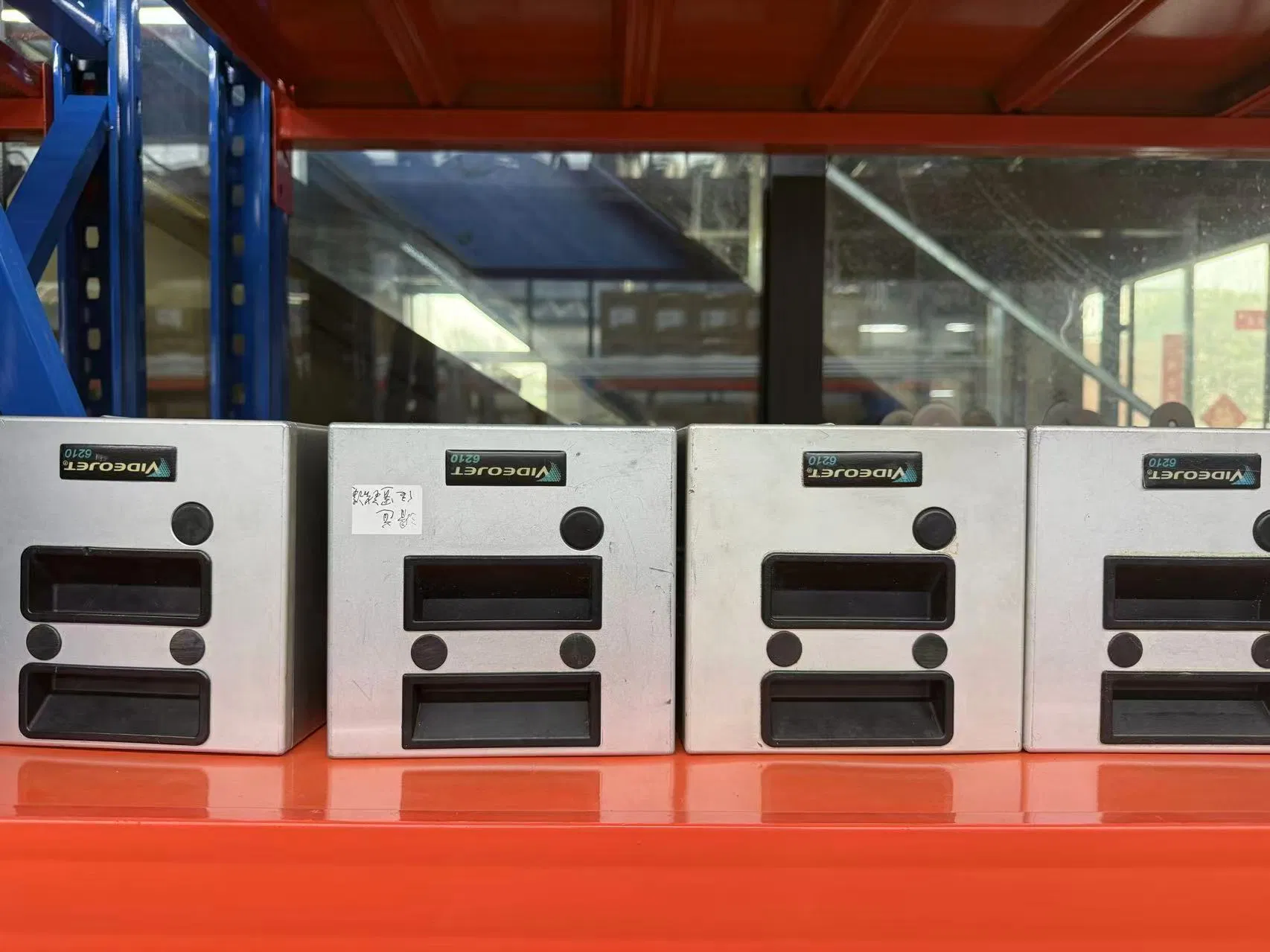

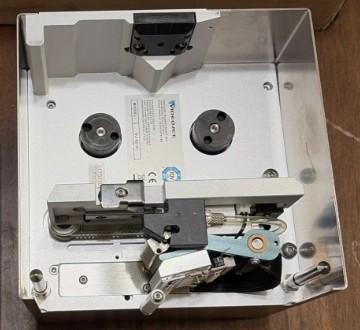

📸 Product Gallery

⚙️ Components & Accessories

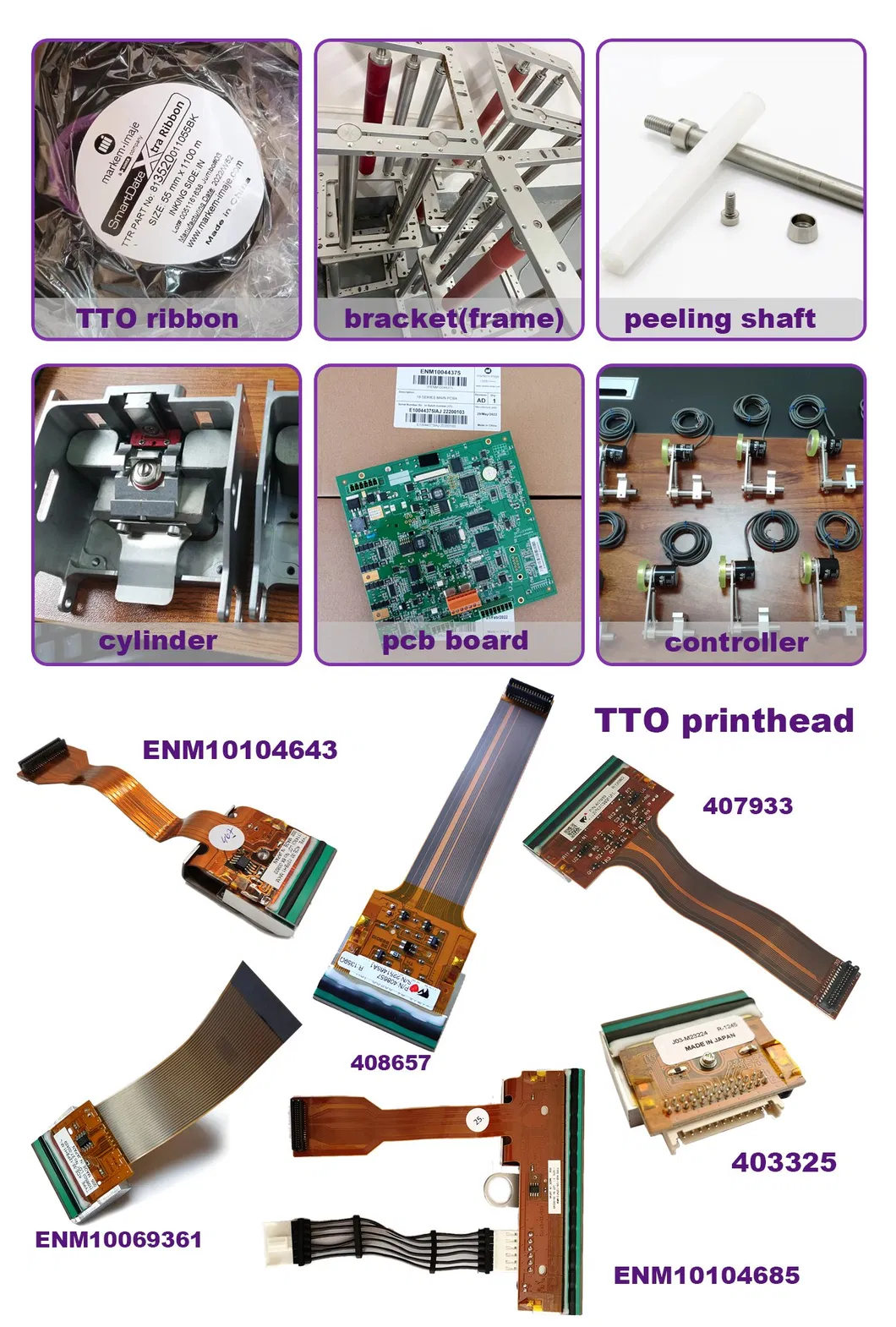

We provide a wide range of accessories for thermal transfer overprint machines, including high-performance printheads, PCB motherboards, PHM actuators, and specialized ribbons.

❓ Frequently Asked Questions

1. What industries is the 6210 Thermal Transfer printer best suited for?

It is ideal for lower-speed intermittent and continuous motion flexible packaging, widely used in the food, beverage, chemical, and pharmaceutical industries.

2. How does the ribbon saving feature work?

The printer uses an innovative interleaving feature and software-controlled drive that can double ribbon utilization, reducing ribbon waste by up to 50%.

3. Can this machine switch between intermittent and continuous printing?

Yes, the 6210 supports both intermittent and continuous printing modes in the same machine, allowing for future packaging equipment upgrades without changing the coder.

4. What is the maximum print resolution and speed?

The system offers a 300 dpi print resolution and can achieve speeds up to 40 meters per minute or 125-150 packs per minute depending on the mode.

5. Is the interface user-friendly for operators?

Yes, it features the CLARiTY™ 5.7-inch color touchscreen, which makes setup fast and easy while minimizing the risk of coding errors.

6. What supplies are required for operation?

The primary supply needed is thermal transfer ribbon. We offer various lengths (up to 700m) to ensure long-running production with minimal downtime.
