High-Efficiency Vertical Hydraulic Press for Rotor Metal Shaping

Customization:	Available
After-sales Service:	One Year
Warranty:	Technical Guidance

Basic Specifications

Type

General Punching Machine

Punch Shape

Open Punch

Controlling Mode

Artificial

Automatic Grade

Automatic

Power Source

Mechanical Drive

Precision

High Precision

Certification

ISO 9001

Condition

New

Specification

5000KG

Production Capacity

2000 pieces/Year

Technical Parameters

Item	Parameter Value
Press Force	630 kN
Slider Stroke	500 mm
Throat Depth	320 mm
Return Force	69 kN
Main Motor Power	5.5 kW
Customizable	Yes

Product Highlights

High Precision Metal Forming: Adopts advanced hydraulic control system and high-rigidity body structure, realizing micron-level forming accuracy for electronic rotor metal parts.

Specialized for Electronic Rotor Molding: Customized structural design targeting the processing characteristics of electronic rotor metal blanks, enabling one-step efficient forming.

Stable & Durable Vertical Structure: Integrated high-strength vertical frame design, effectively avoiding lateral deviation during pressing and prolonging service life.

High-Efficiency & Energy-Saving: Equipped with intelligent variable-frequency hydraulic power unit, featuring fast pressing speed and low energy consumption.

Intelligent Operation & Easy Control: Supports PLC touchscreen interface with programmable pressure, stroke, and speed; realizes automatic feeding and unloading.

Strong Safety Performance: Configured with multiple safety protection devices including overload protection, emergency stop, and safety door interlock.

Wide Processing Compatibility: Suitable for stamping, extrusion, shaping, and riveting of copper, aluminum, and alloy steel materials.

Small Occupancy & Flexible Layout: Compact vertical integrated structure saves workshop space and is easy to install in automated production lines.

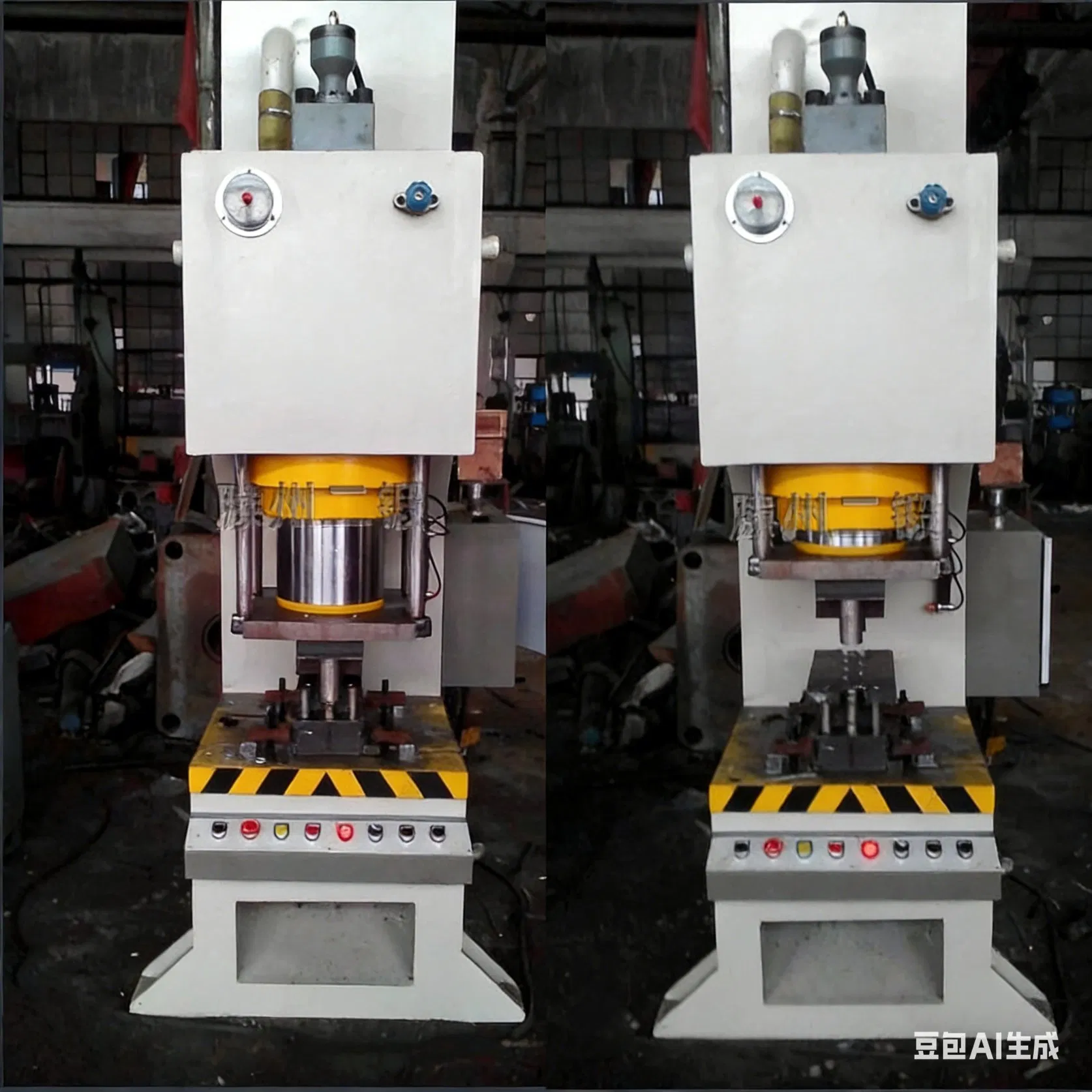

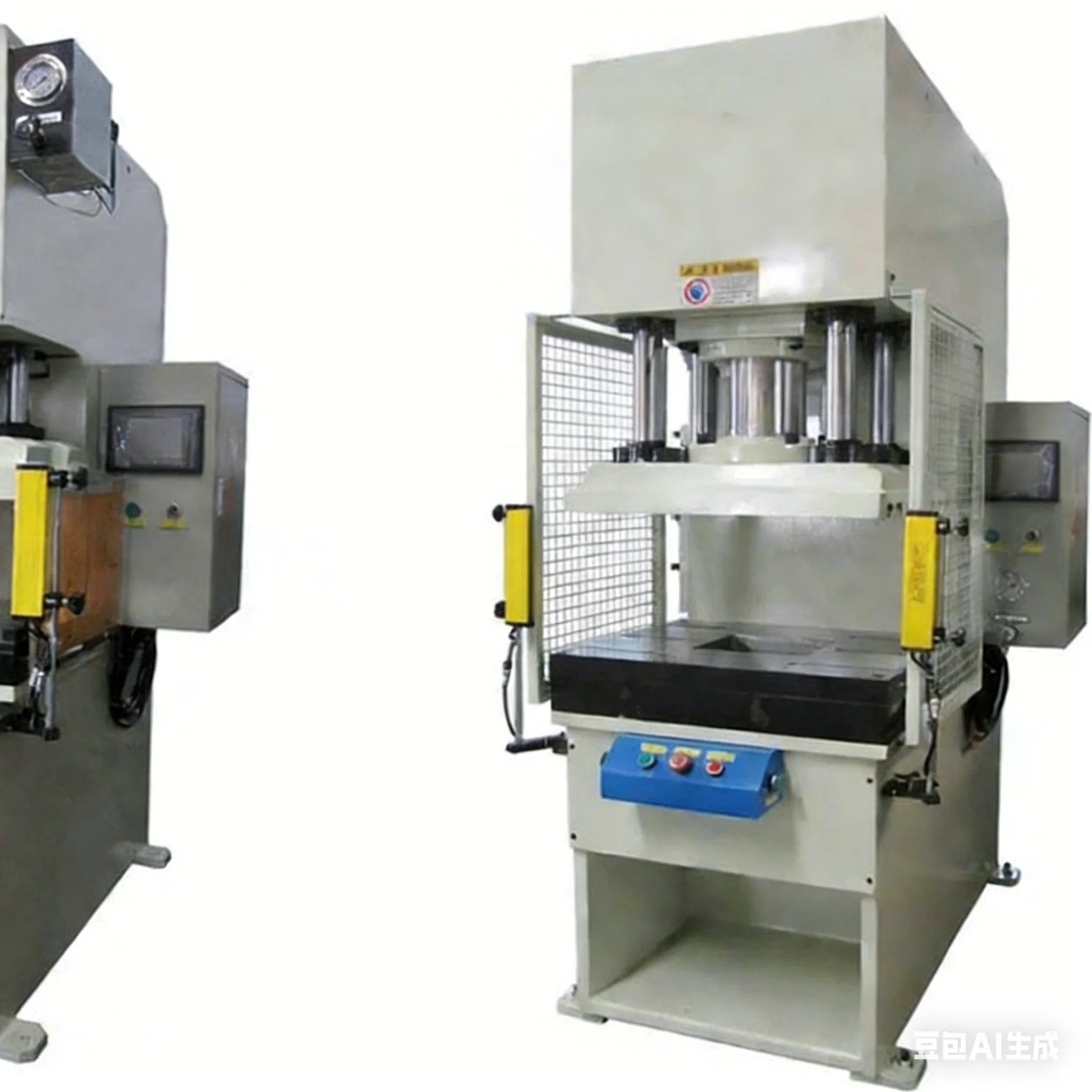

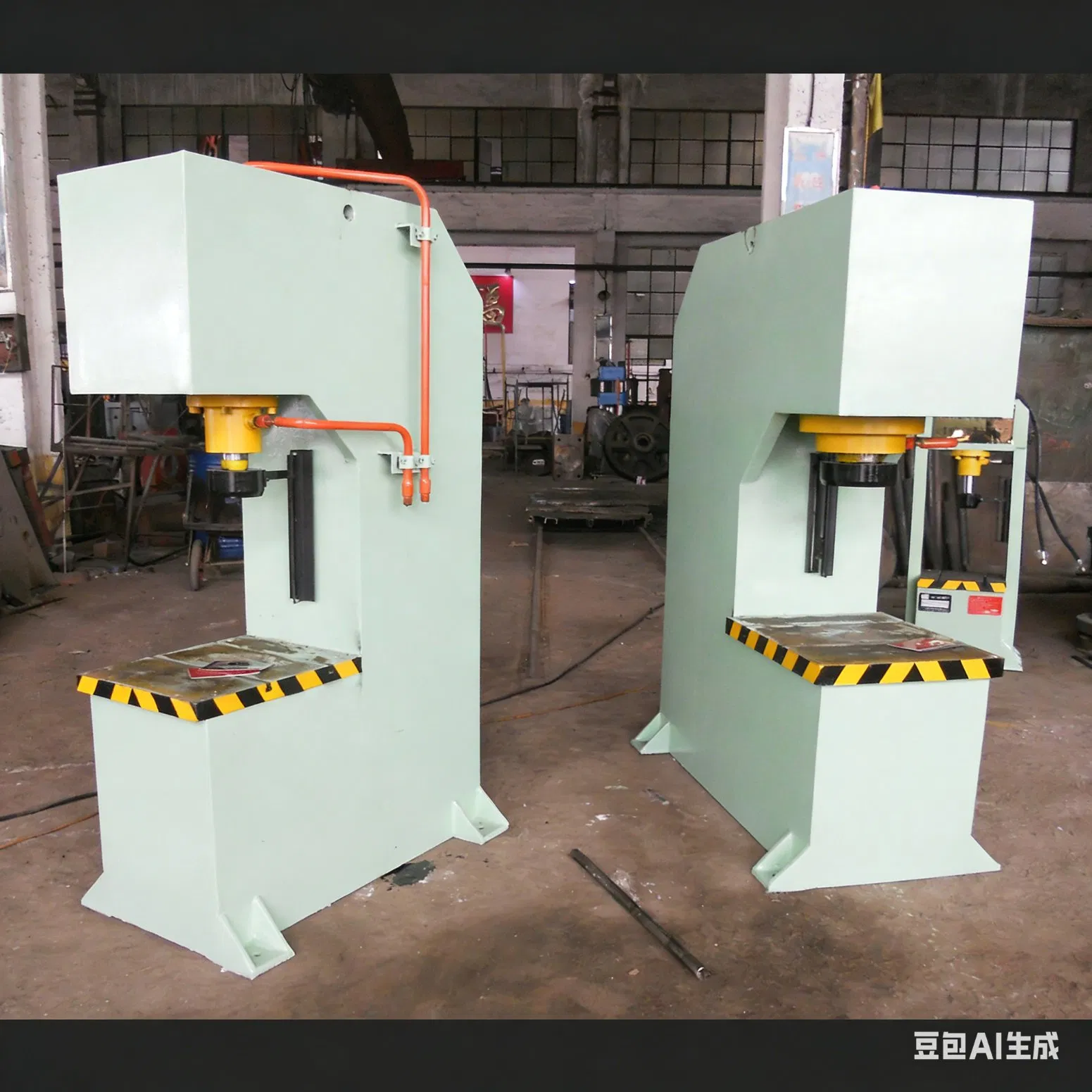

Product Gallery

High-Efficiency Vertical Hydraulic Press for Rotor Metal Shaping

Frequently Asked Questions

What materials can this hydraulic press handle?

This machine is highly compatible with various metals including copper, aluminum, and alloy steel, specifically designed for electronic rotor manufacturing.

Is the pressing stroke and speed adjustable?

Yes, the machine supports a PLC touchscreen man-machine interface where the pressing pressure, stroke, and speed can be fully programmed.

What are the primary safety features of this equipment?

It is equipped with international standard safety devices, including overload protection, emergency stop buttons, and safety door interlocks to ensure operator safety.

Can this machine be integrated into an automated production line?

Absolutely. Its compact vertical structure and intelligent control system make it ideal for both standalone operation and integration into fully automated production lines.

Does the machine support customization for specific rotor sizes?

Yes, technical parameters like press force and slider stroke can be customized to meet specialized electronic rotor molding requirements.

How does the hydraulic system save energy?

The machine uses an intelligent variable-frequency hydraulic power unit which optimizes power consumption based on the load, significantly reducing daily operation costs.
