Basic Information
Model NO.:Weighing Filling Machine
Automatic Grade:Automatic
Material Type:Powder
Filling Valve Head:Single-Head
Dosing Device:Plunger
Filling Principle:Pressure
Machine Material:SUS304
Accuracy:±0.1%
Production Speed:4-20 Bags/H
HS Code:8422303090
📦
Product Description

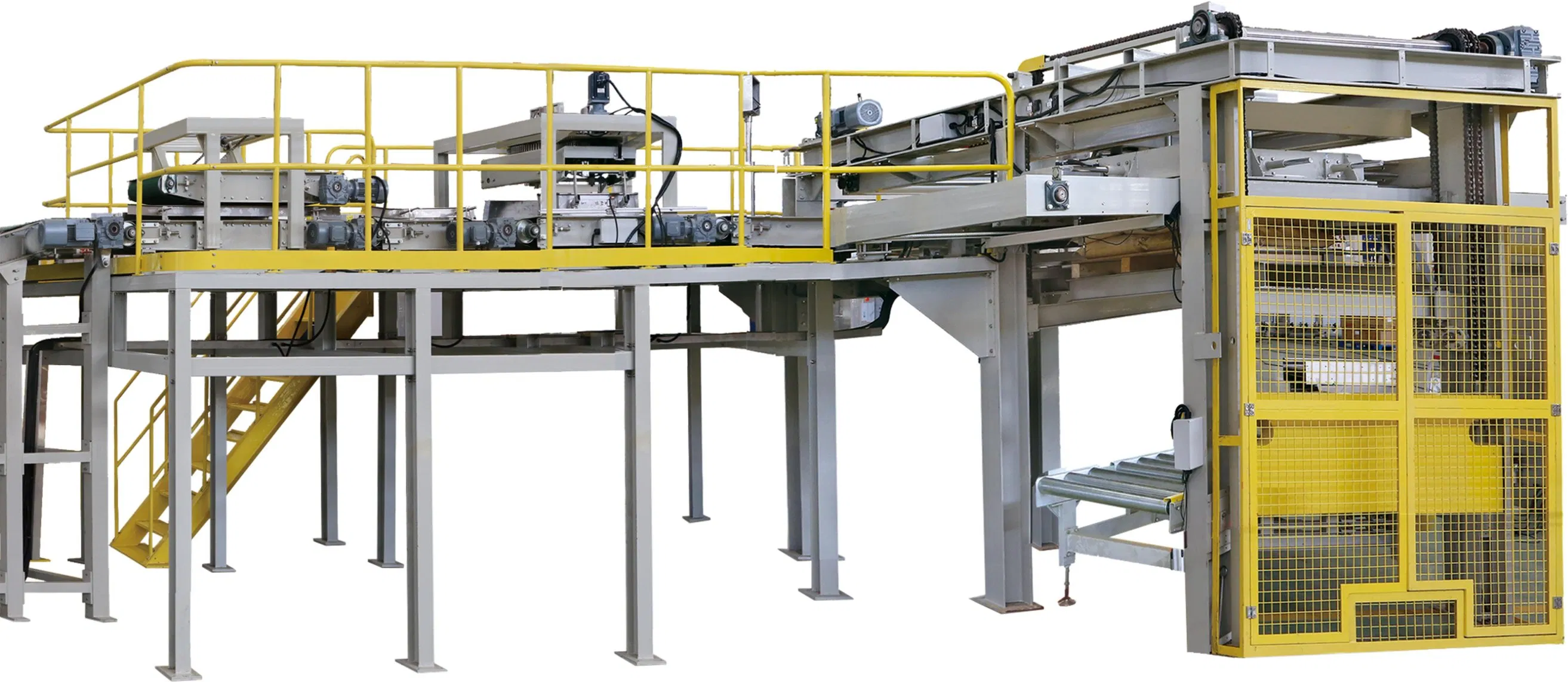

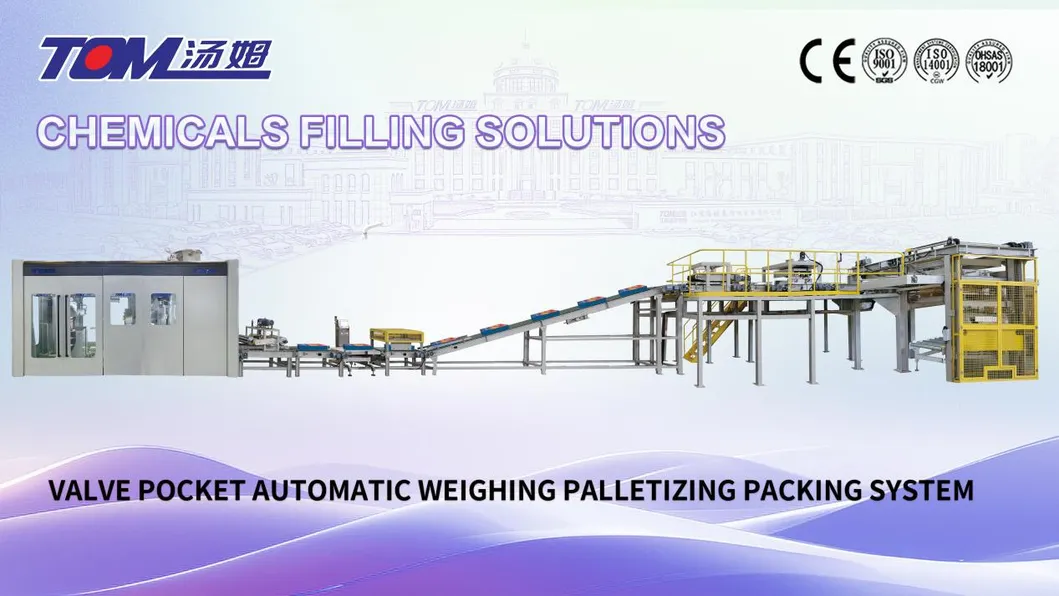

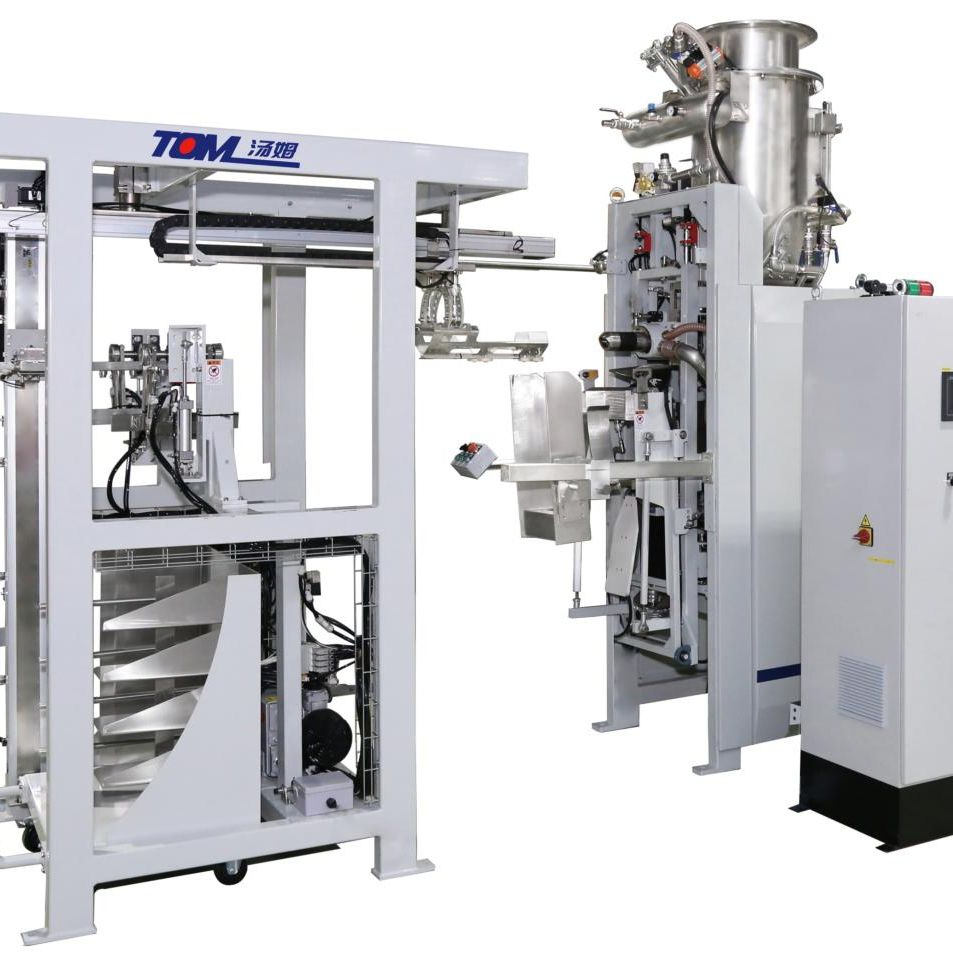

Valve Pocket Automatic Weighing And Palletizing Packing System
Scope of application: Applicable to 10-50kg paper, PPEE and PPPP valve bags and composite valve bags.
Main Features:
- Excellent adaptability for different materials and flow characteristics.
- High speed clean filling process.
- Continuous filling system (no clogging, no bridging).
- Maintains high weight accuracy during high-speed operations.
- Simplified maintenance and cleaning procedures.
- Optional auto-adjustment for varying packing materials and bags.
📊
Technical Parameters
| Parameter Item |
Specifications |
| Compressed air consumption | 40-45 m³/h |
| Air pressure | >6 bar |
| Total dust removal air volume | 2000m³/h |
| Bag length range | 400mm - 550mm |
| Bag width maximum | 500mm |
| Thickness of bag bottom | 100 - 120mm |
🛠️
Application & Bag Types
This system is specifically engineered for the chemical industry and works seamlessly with various valve bag types.
⚙️
Main Configuration

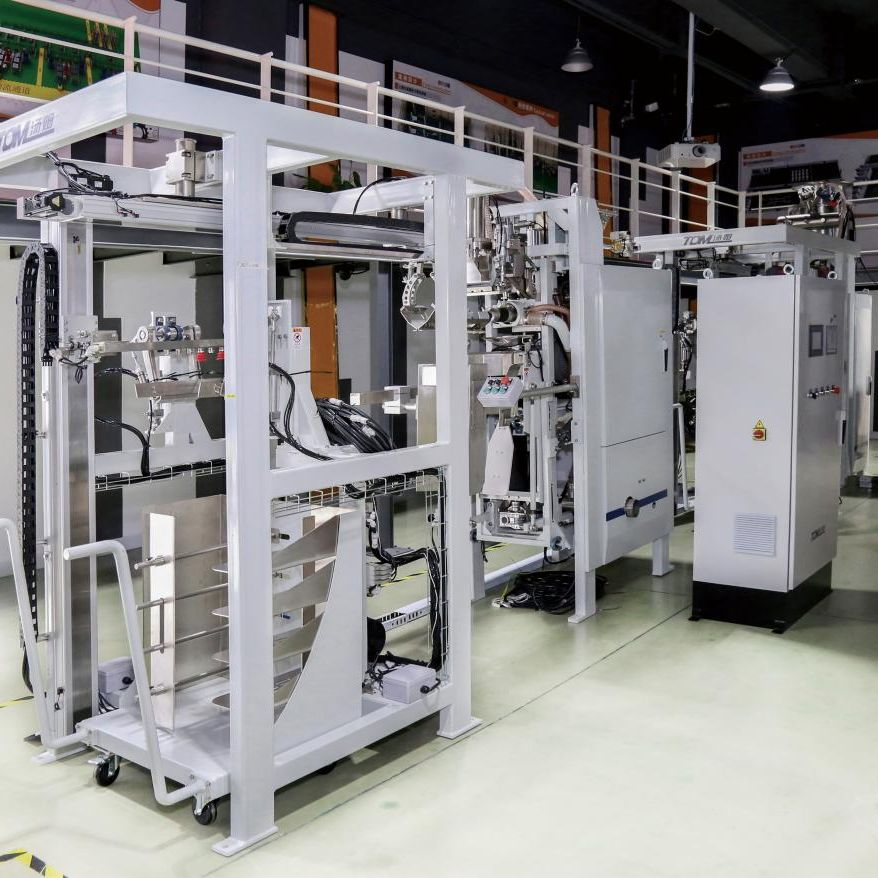

Intelligent Valve Pocket Packaging Machine
- Packaging range: 10-50kg
- Packing speed: 7-8 tons / hour (based on 25kg/bag tile adhesive)
- Measuring accuracy: ±100-150g/bag
- Temperature range: -5 ºC to 45 ºC
High-Level Palletizer
- Weighing range: 20 - 50 kg per package
- Weighing accuracy: ≤ ± 0.2%
- Packaging capacity: 500 - 1500 packages per hour

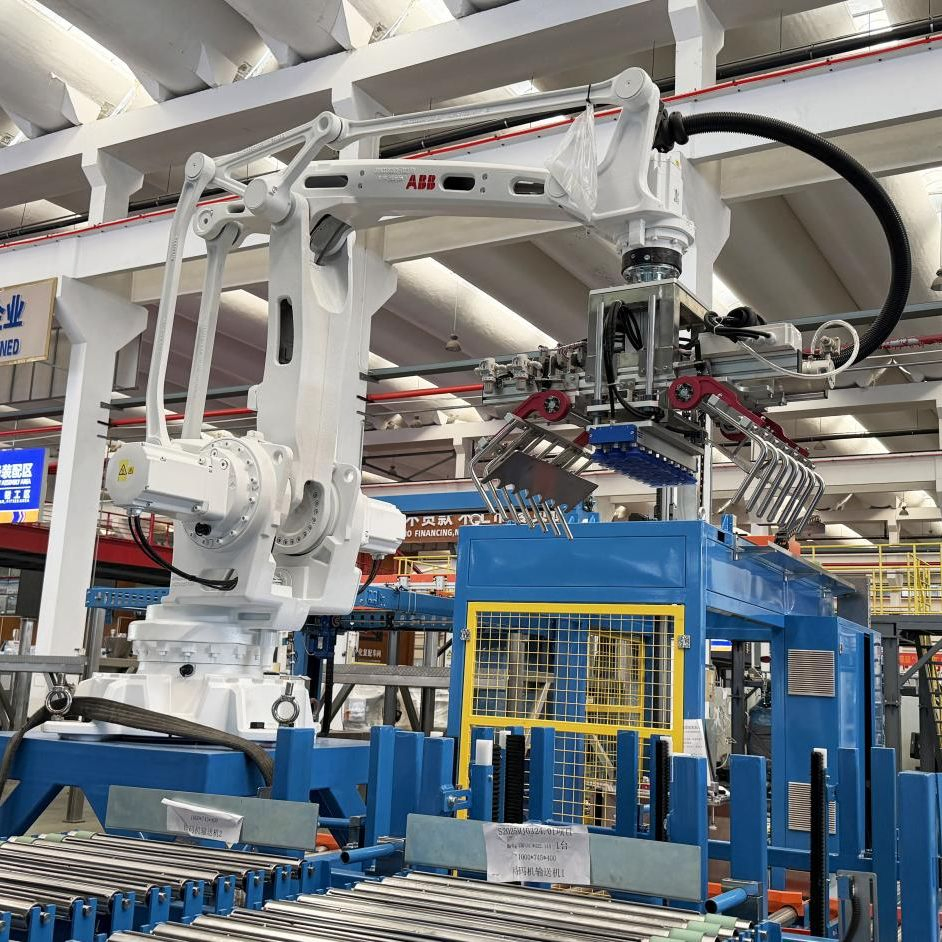

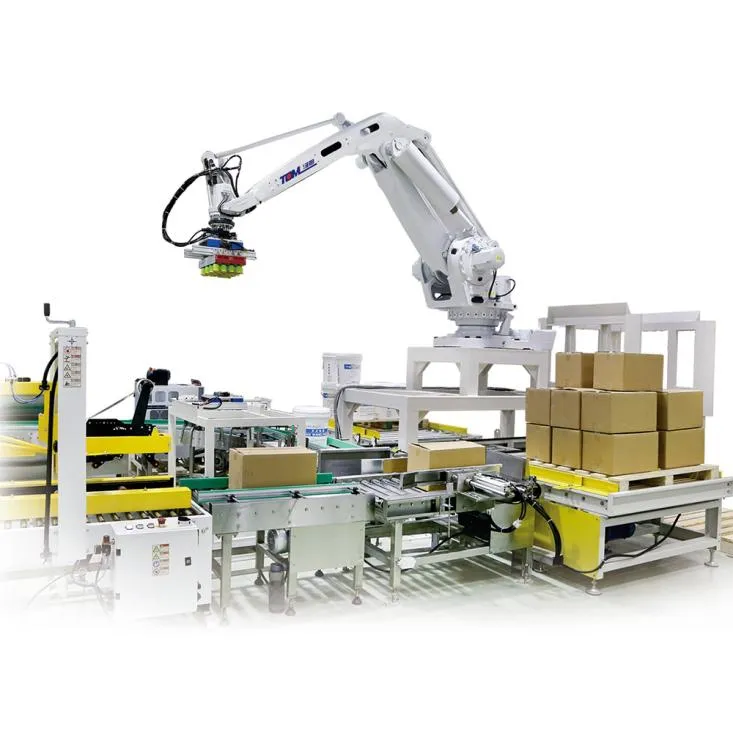

ABB Robot Palletizer
- Maximum load: 110Kg
- Reset positioning accuracy: 0.1mm
- Arrival distance: 2400mm
🏢

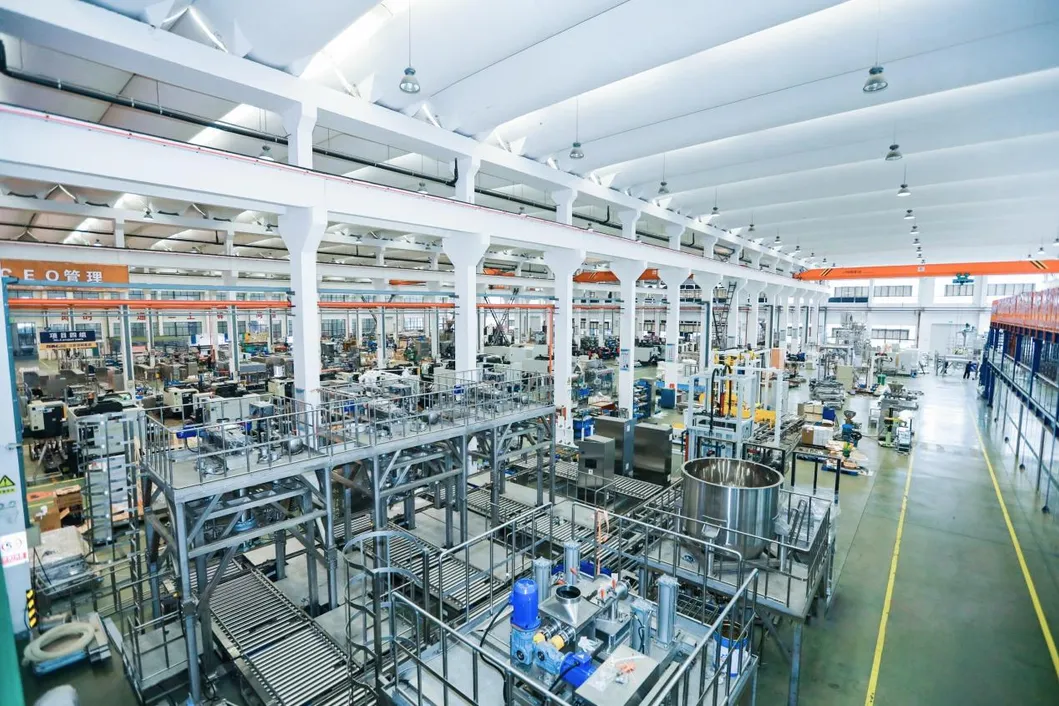

Industry Expertise

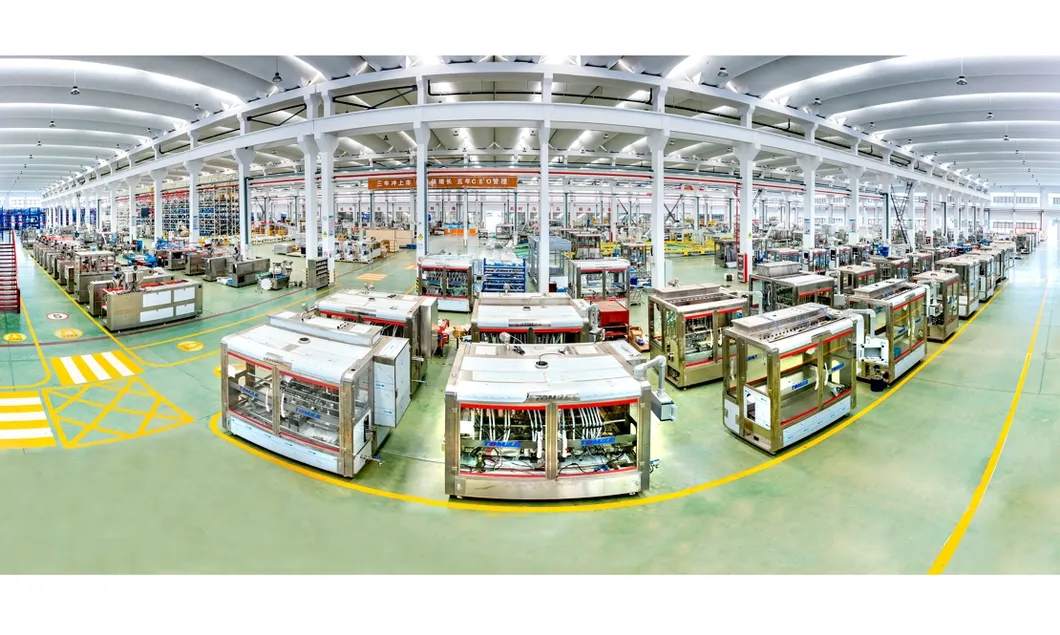

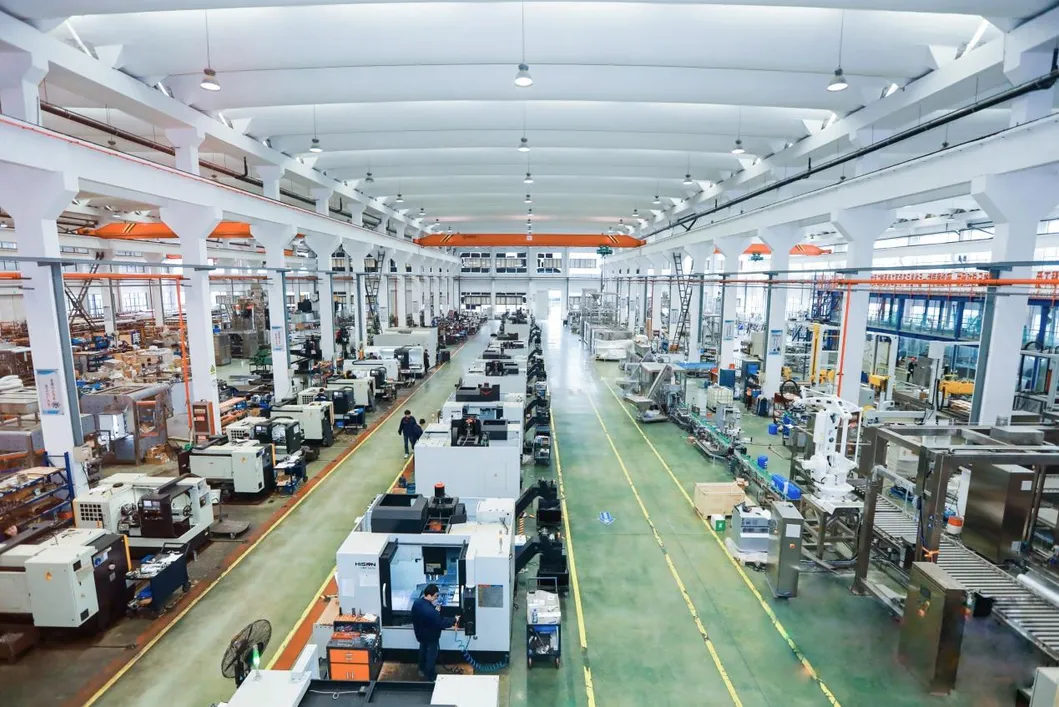

With decades of experience since 1998, our enterprise specializes in the production of intelligent packaging machines. We are a full-service provider specializing in the research, design, and production of intelligent filling equipment, committed to creating Industry 4.0 intelligent factories for global customers.
Core Product Categories
- Pesticide and Fertilizer Packaging
- Shampoo and Detergent Machines
- Edible Oil and Condiment Systems
- Lubricant Packaging Solutions
- Coating and Paint Equipment
- Chemical Packaging Machines
❓
Frequently Asked Questions
What is the weighing accuracy of the machine?
The system offers high precision with a weighing accuracy of ±0.1% for the filling process and ≤ ± 0.2% for the palletizing unit.
What bag sizes can this equipment handle?
The machine is compatible with bag lengths ranging from 400mm to 550mm, with a maximum bag width of 500mm and bottom thickness between 100-120mm.
What is the production capacity of the automatic line?
The valve pocket packaging machine can reach speeds of 7-8 tons per hour, while the high-level palletizer can handle 500 to 1500 packages per hour depending on configuration.
Which industries are best suited for this system?
It is ideal for the chemical industry, particularly for products like pesticides, fertilizers, coatings, paints, and construction materials like tile adhesive.
What materials are used in the machine construction?
The machine is primarily constructed using high-quality SUS304 stainless steel to ensure durability, hygiene, and resistance to corrosion.
Can the machine handle different types of valve bags?
Yes, it is designed for 10-50kg paper bags, PPEE and PPPP valve bags, as well as various composite valve bag materials.
