Thg100 Series Automatic Liquid Filling Machine

1 / 3

Thg100 Series Automatic Liquid Filling Machine

After-sales Service:	1 Year
Warranty:	1 Year
Type:	Volumetric Filling Machine

Send Inquiry

Product Description

Basic Specifications

Model NO.

THG

Automatic Grade

Fully Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Feed Cylinder

Multi-Room Feeding

Dosing Device

Capacity Cup

Filling Principle

Pressure

Lifting Structure

Pneumatic Lifting

Structure

Linear

Packaging

Bottle / Plastic

Transport Package

Wood

Trademark

SPM

Origin

China

★

Product Description

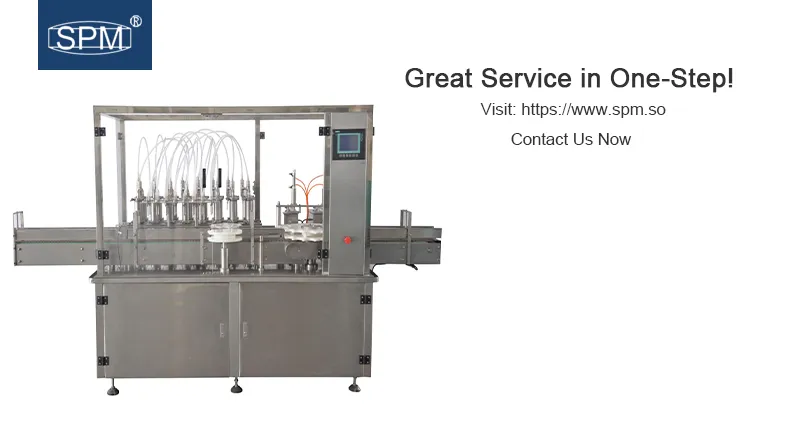

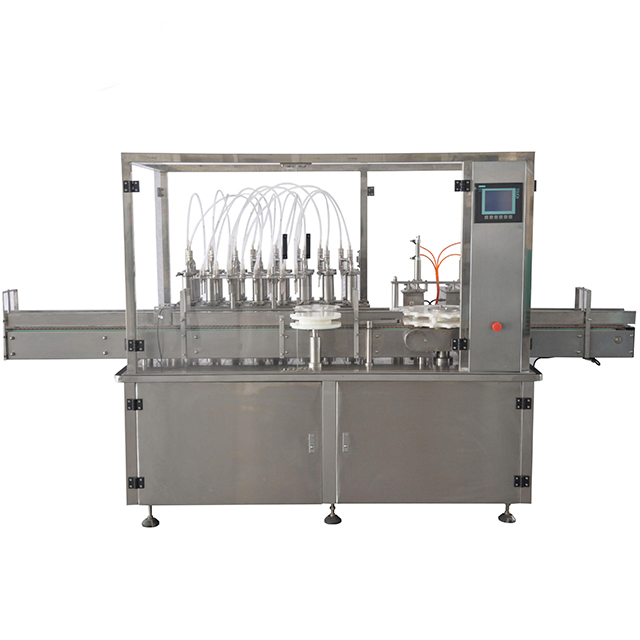

THG100 Series Automatic Liquid Filling Machine

This machine adopts foreign advanced technology to develop a new generation of filling installation. Using piston measurement, it integrates electromechanics and pneumatics into an organic whole. Controlled by PLC, the structure is compact and designed rationally to ensure accurate filling, reliable operation, and high efficiency.

Extensively suitable for various kinds of liquid, thick glue, lotions, and sauced materials including particles. It offers multiple pouring amount options to meet your specific choices.

✔

Key Characteristics

Stainless Steel Construction: All contact parts are made of stainless steel, fully according with GMP standards.
Easy Maintenance: Designed for fast disassembly, making it simple and swift to unpick and wash.
High Flexibility: Filling speed is conveniently adjustable. Changes for different bottle specifications do not require changing parts, just easy adjustment.
Leak Protection: Features a leak protection device in the filling head to prevent wire drawing and water clocking.

📊

Technical Parameters

Capacity	20-50 pcs/min
Filling station	4 heads
Capping head	One
Applied for	30-150ml
Filling tolerance	±1%
Qualified Cap putting	≥98%
Qualified Capping	≥98%
Speed control	By inverter
Power supply	380V 50Hz/60Hz
Total power	1.8KW
Outside dimension	3000×900×1700mm

📷

Machine Details Gallery

Frequently Asked Questions

What types of liquids can the THG100 series handle?

It is suitable for various kinds of liquid, thick glue, semi-fluid, lotion, and sauced materials, including those containing particles.

What is the production capacity of this machine?

The machine can reach a capacity of 20-50 pieces per minute, controlled by a high-efficiency inverter.

Does the machine meet hygiene standards?

Yes, all parts in contact with supplies are made of stainless steel, totally according with GMP standards.

How accurate is the filling volume?

The machine provides high precision with a filling tolerance of ±1%.

What container sizes is this machine applied for?

It is designed for bottle packaging with a volume range of 30ml to 150ml.

Is it difficult to change bottle specifications?

No, changing different bottles or specifications is easy and doesn't require part changes, only simple adjustments.
