Basic Information
Certification
CE Certified, GMP Compliant, ISO Certified
Tablet Shape
Oval, Rectangular, Round, Square
Production Capacity
48000 PCS/H
Product Description

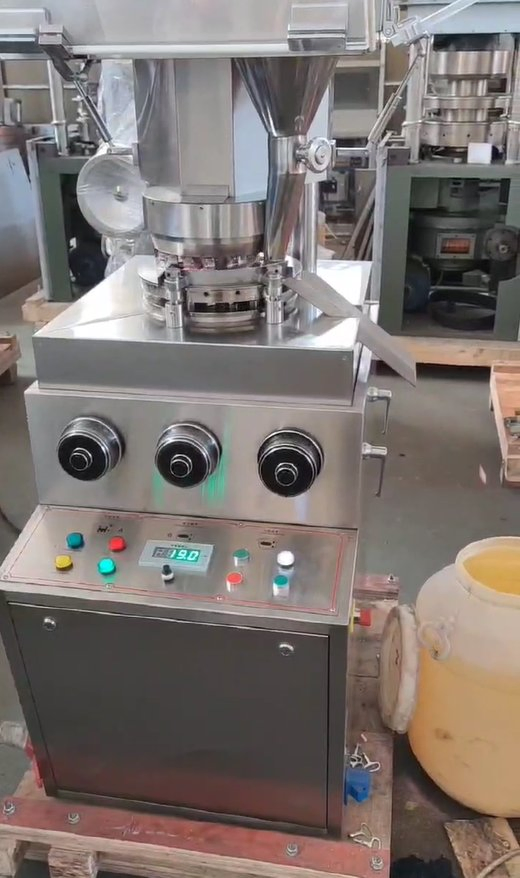

The ZP17E/ZP19E Rotary Tablet Press is a high-performance, small-batch-oriented tablet-forming device designed to solve the flexible production needs of round and irregular-shaped tablets. It combines GMP-compliant hygiene, safe operation, and easy maintenance, making it an ideal choice for small-scale manufacturing scenarios.
In terms of hygiene and compliance, the machine features a fully enclosed housing made of stainless steel, with a wear-resistant hardened layer on the turret surface—effectively preventing cross-contamination between materials and equipment. The transparent acrylic shield allows real-time observation of the pressing process and can be fully opened for thorough cleaning and maintenance.
For operational stability, it adopts variable frequency speed regulation, adapting to different small-batch production rhythms. The built-in pre-pressure device eliminates air trapped in filled granular materials, significantly improving tablet density and reducing common defects like capping or cracking.
Product Parameters
| Model |
ZP17E |
ZP19E |
| Number of Stations | 17 | 19 |
| Max Main Pressure (KN) | 50 | 50 |
| Max Pre-pressure (KN) | 10 | 10 |
| Max Tablet Dia (Round/mm) | 20 | 13 |
| Max Tablet Dia (Irregular/mm) | 22 | 16 |
| Max Filling Depth (mm) | 15 | 15 |
| Max Tablet Thickness (mm) | 6 | 6 |
| Max Turret Speed (r/min) | 40 | 40 |
| Max Production Capacity (pcs/h) | 40800 | 45600 |
| Motor Power (kw) | 2.2 | 2.2 |
| Overall Size (mm) | 950×770×1740 |
Product Functions
- Multi-Type Tablet Pressing: Processes round, irregular, and engraved tablets.
- Intelligent Parameter Control: PLC and touch screen for monitoring pressure, speed, and fault diagnosis.
- Automatic Safety Protection: Emergency stop triggers if pressure exceeds safe limits.
- Pre-Press Optimization: Enhances tablet density and quality stability.
- Quick Changeover: Rational structure allows fast replacement of molds and easy cleaning.
Core Selling Points

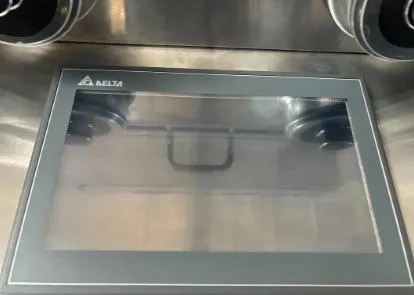

HMI Touch Screen (10 inch)
1. Display pressure value for each punch
2. Automatic adjusting main pressure and tablet weight
3. 3-level management authority and formula management
4. Industrial computer configuration available

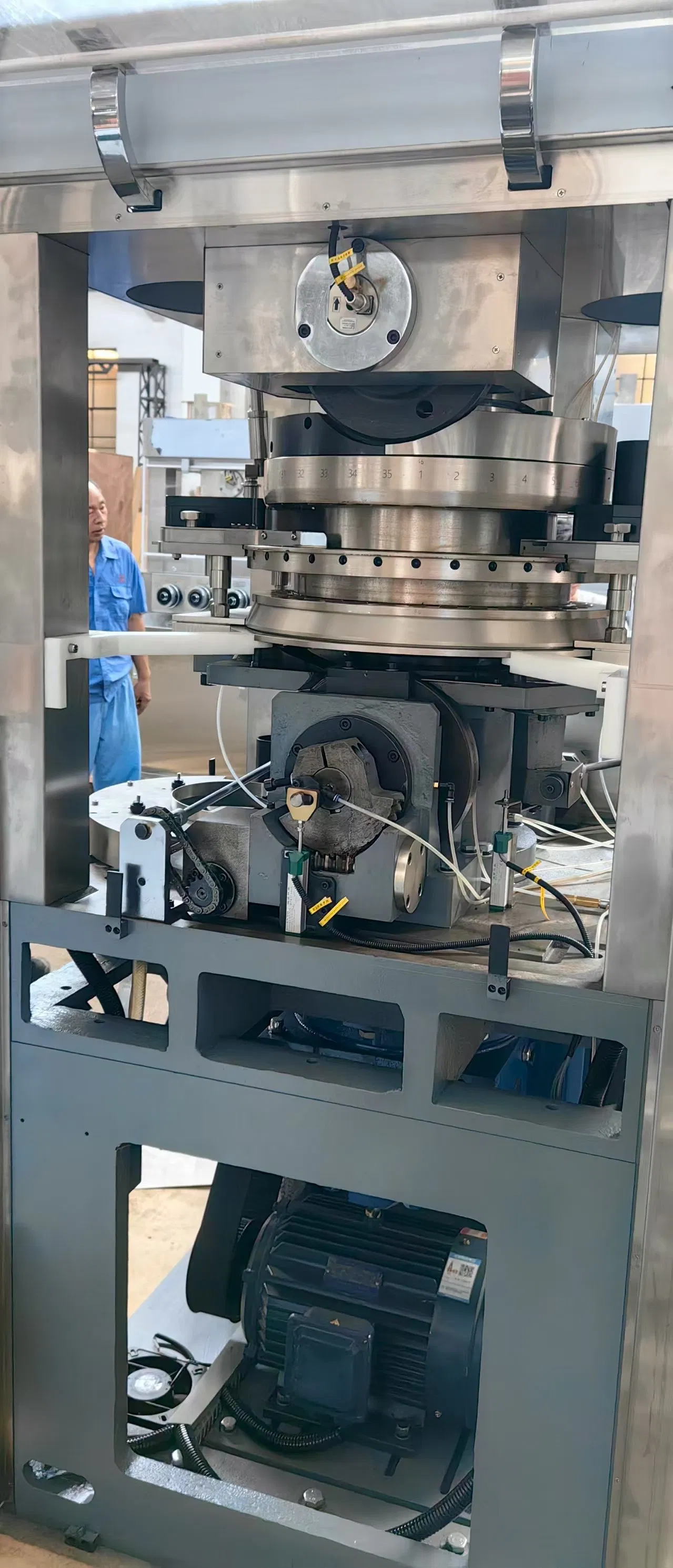

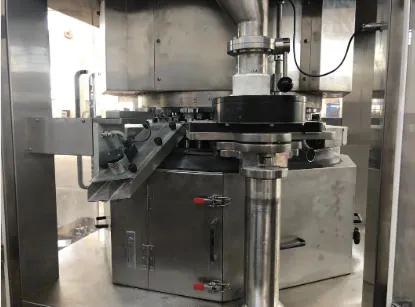

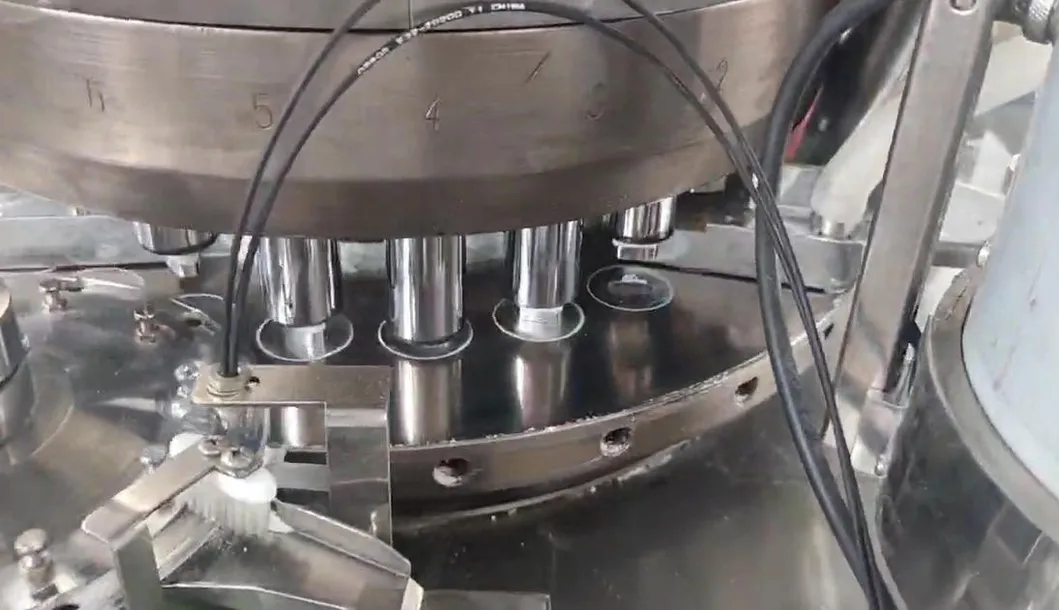

Turret Structure & Force Feeder
The turret utilizes a three-part structure made of HT300 & 2Cr13 with a hardened wear-resistant layer. The force feeder system features a double impeller type to improve granules flow-ability and filling precision.

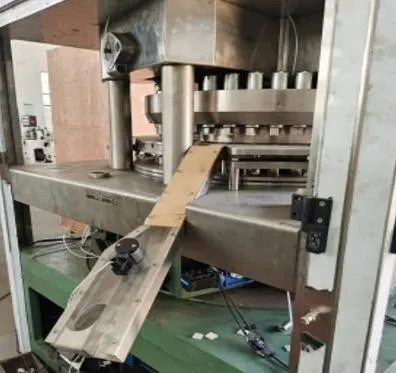

Punch Protection & Dies
Application Fields
- Pharmaceutical: Oral medications and pharmaceutical granules.
- Chemical: Detergent tablets, catalyst tablets, and industrial chemicals.
- Food: Vitamin tablets, effervescent tablets, and food supplements.
- Electronic: Processing small electronic functional tablets.
- Other Industries: Cosmetic tablets and agricultural chemical tablets.

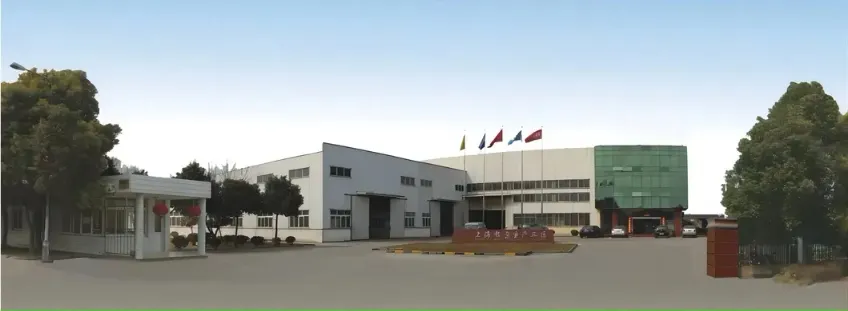

Manufacturing Excellence
We are a professional supplier of deep processing machinery, integrating development, sales, and after-sale services. Our expertise covers extraction, drying, mixing, and grinding equipment, providing turnkey projects for the food, pharmaceutical, and agriculture industries. With a focus on stability and reliability, our equipment has been delivered to more than 160 countries across Asia, Europe, and the Americas. We are dedicated to the principle of "Customers First," researching high-quality, low-energy, and high-efficiency equipment.
Global Presence & Certificates
Frequently Asked Questions
Q1: What types of tablets can the Rotary Tablet Press produce?
A1: It can press granular materials into both round tablets and various irregular geometric-shaped tablets, meeting diverse product specifications.
Q2: Is the machine suitable for small-batch production?
A2: Yes, it is specifically designed for small-scale batch production, featuring a compact structure and flexible operation ideal for laboratories or small volume manufacturing.
Q3: Does the equipment comply with GMP standards?
A3: Absolutely. The machine features a fully enclosed stainless steel housing and easy-to-clean components, fully adhering to GMP requirements for hygiene.
Q4: Can I adjust the machine's operating speed?
A4: Yes. It is equipped with variable frequency speed regulation, allowing simple adjustment to find the optimal rhythm for different material properties.
Q5: How does the pre-pressure device improve tablet quality?
A5: The pre-pressure device eliminates air trapped in granules and extends the pressing time, which enhances tablet density and prevents capping or lamination.
Q6: What safety features are included?
A6: The machine includes over-pressure shutdown protection and emergency stops for punch breakage, ensuring both equipment longevity and operator safety.
