Cleaning, Detergent, Cosmetics, Drinks, Skin Care, Hair Care
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Powder
Packaging
Bags, Sachet, Bottles, Cans
Packaging Material
Plastic, Paper, Bottles, Cans etc
HS Code
8422400000
Production Capacity
100 Units Each Month
Product Description

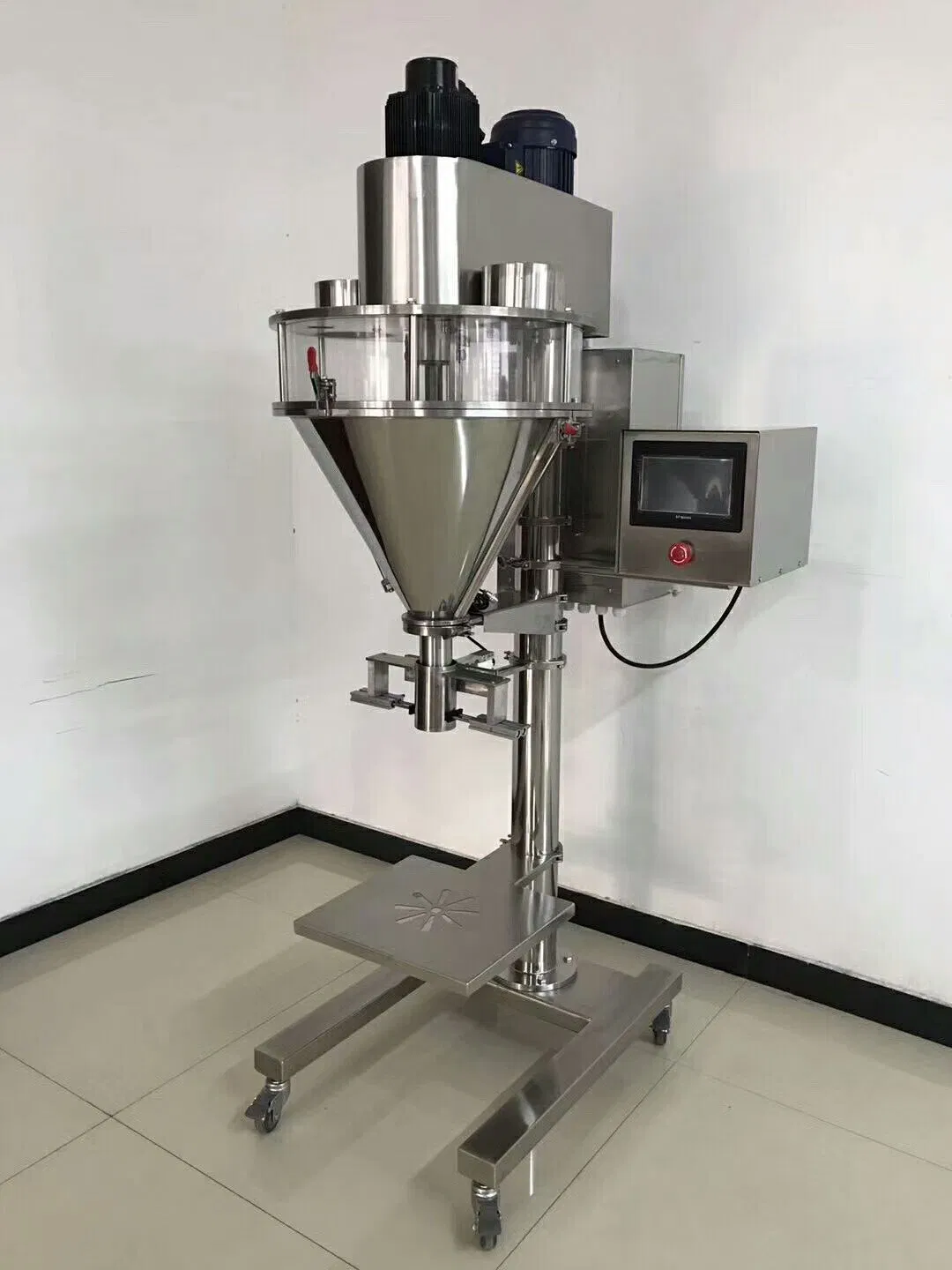

Semi Automatic nutrition milk protein spice talc chemical powder auger filler Powder Dosing Filling Packing Machine powder dosing machine dose and fill into cans/bottles/jar
powder dosing machine dose and fill into pre-made bag/pouch
Technical Parameter:
Model
MQD-5F
Packing supply
5-5000g
Accuracy
1% or 0.3% (add load cell)
Packing speed
10-60 bags/minute
Power
AC380V 50HZ, 900W
Machine weight
300kg
Machine size
LxWxH = 1000x650x1900 (mm)
Main Features
✔Stepping motor and electronic weighing technology for economical operation.
✔Spiral cutting and light-control technology for precision.
✔Wide adjustment range (2-5000g) with replaceable spiral specifications.
✔Suitable for various containers (bags, cans) with no unlimited restriction.
✔Automatic tracking and error correction based on material weight changes.
✔Photoelectric switch control; easy manual bagging and sealing.
✔Optional screw feeder for automatic material feeding control.
Application Range
Ideal for pesticides, veterinary drugs, chemicals, additives, flour, milk, detergent powder, salt, drinks, sugar, monosodium glutamate, condiments (such as spicy fresh), natural flavourings, enzymes, and other powder or ultrafine powder materials.
Product Details

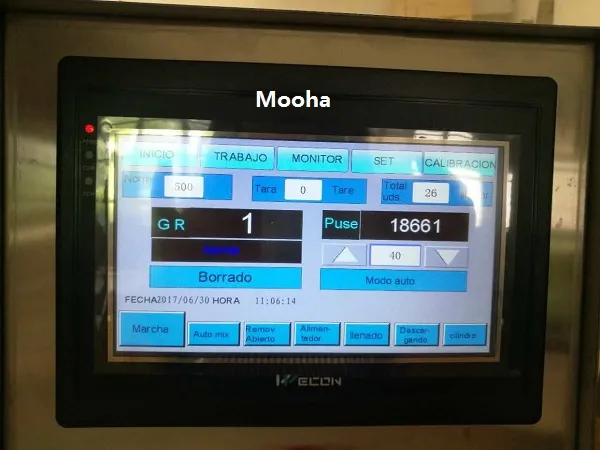

Digital panel (Customizable languages)

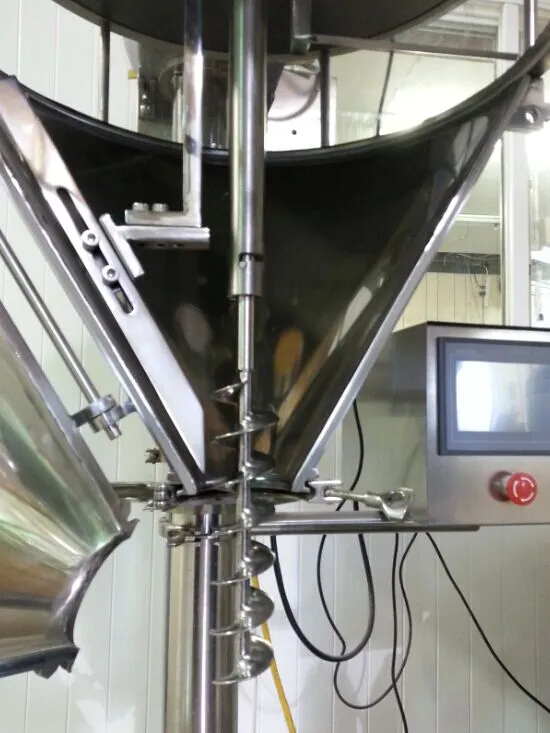

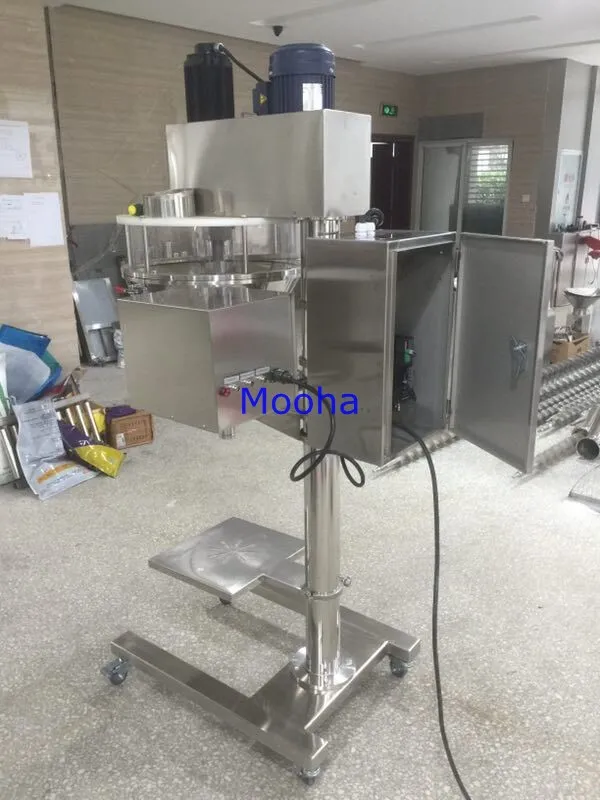

Easy-to-open hopper & adjustable agitator
Internal mixing structure

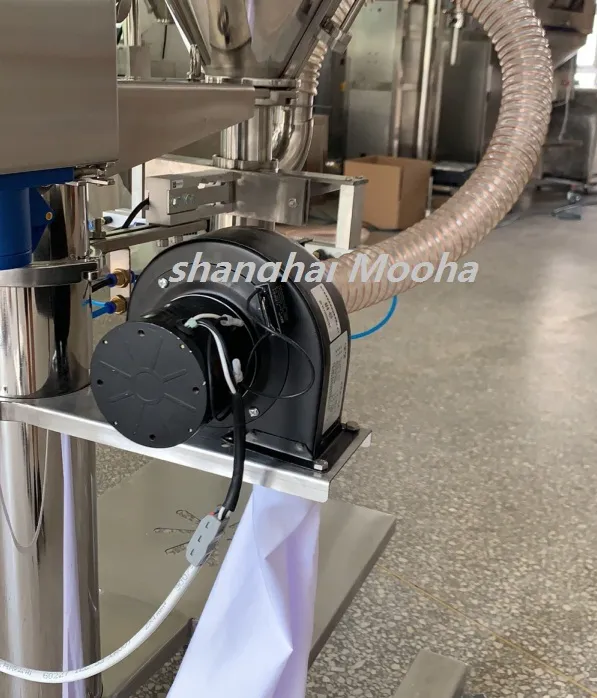

Dust collector unit

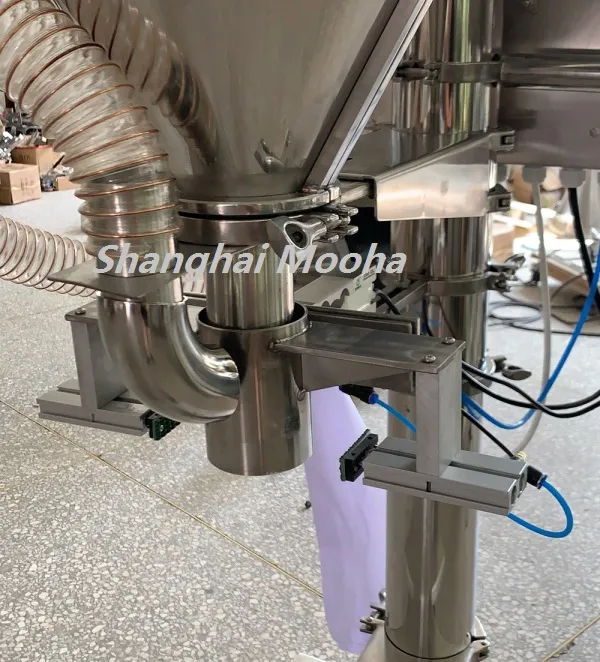

Precision bag clamp

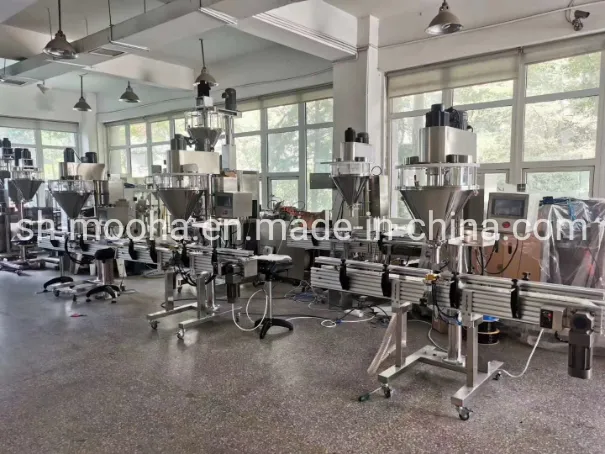

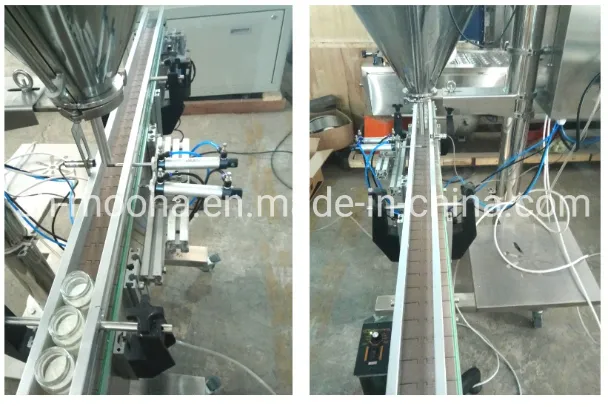

Bottle conveyor system

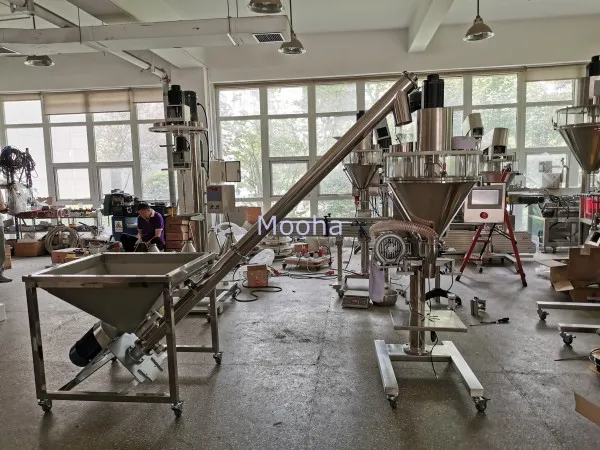

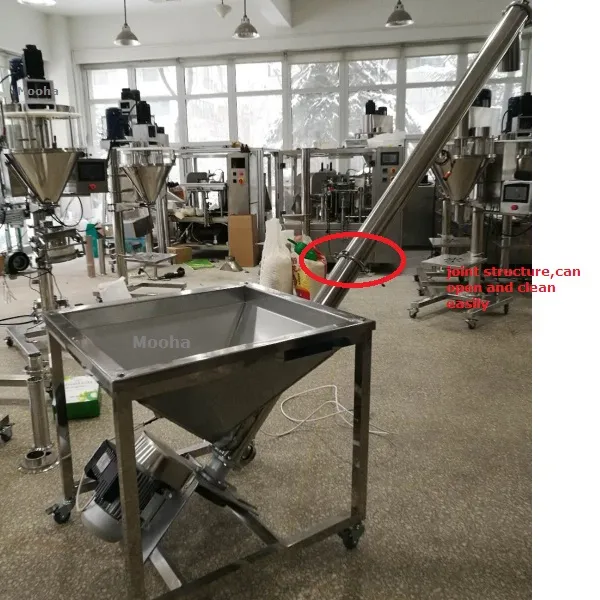

Powder dosing feeder

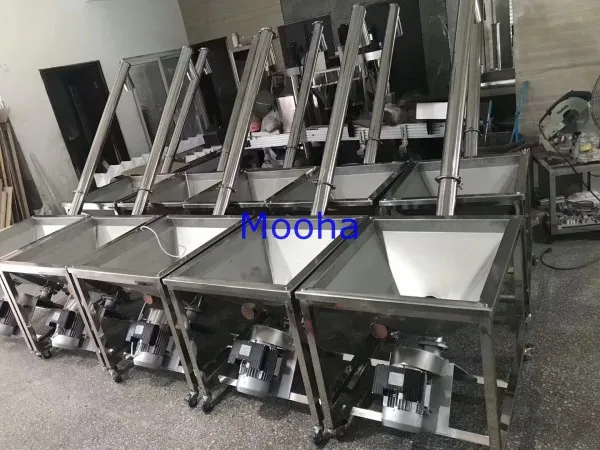

Feeder assembly

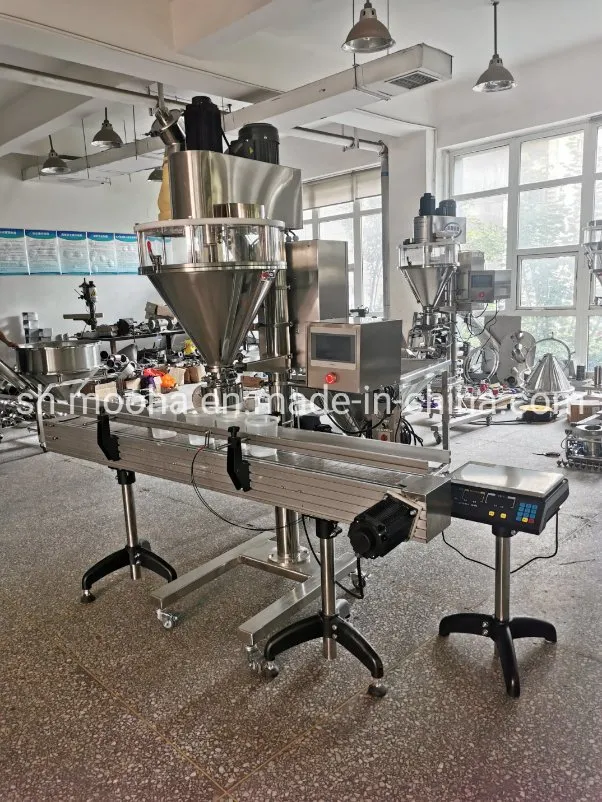

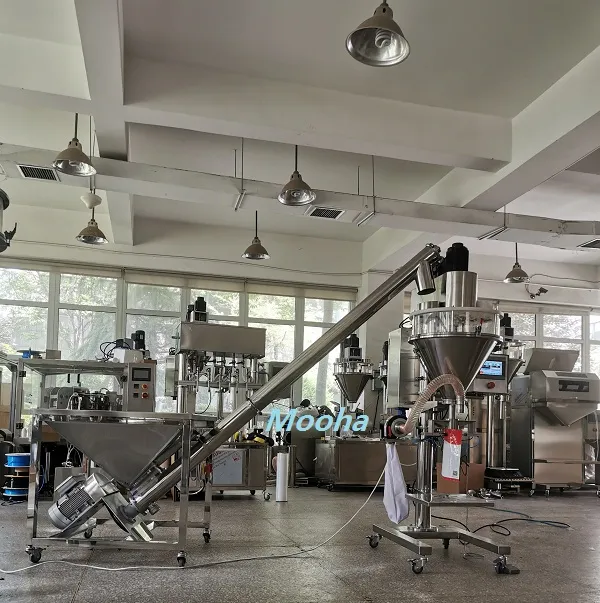

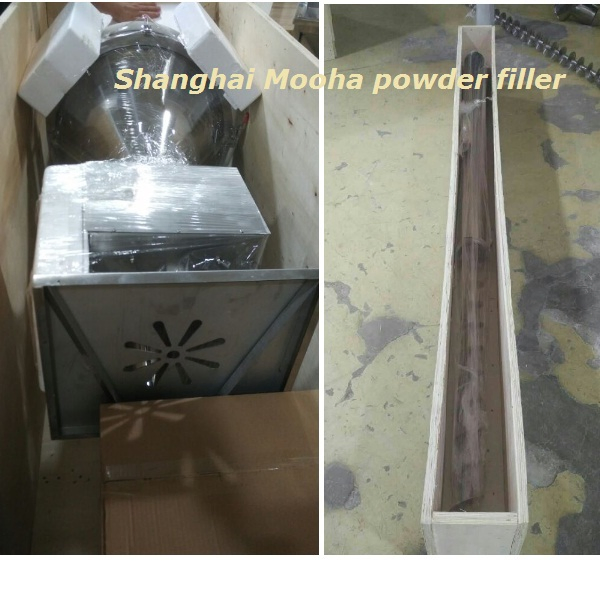

Different packing cases:
Frequently Asked Questions
1. What is the range of packing weight for this machine?
The MQD-5F can handle a wide range of packing weights from 5g up to 5000g, which can be adjusted through the interface and by changing the material spiral specifications.
2. How accurate is the powder filling process?
The standard accuracy is approximately 1%. If higher precision is required, an optional load cell can be added to achieve an accuracy of 0.3%.
3. What types of materials can this machine pack?
It is designed for any powder materials with a certain fluidity, including chemicals, flour, milk powder, detergent, spices, salt, sugar, and pesticides.
4. Can I use different containers like bags and bottles on the same machine?
Yes, the machine is versatile and can fill into various containers such as pre-made bags, pouches, cans, jars, and bottles.
5. Is the digital control panel available in other languages?
Yes, the digital panel is customizable and can be programmed with different languages according to your specific requirements.
6. Does the machine support automatic material feeding?
While the standard operation involves manual bagging, the machine can be equipped with an optional screw feeder for automatic material feeding control.
