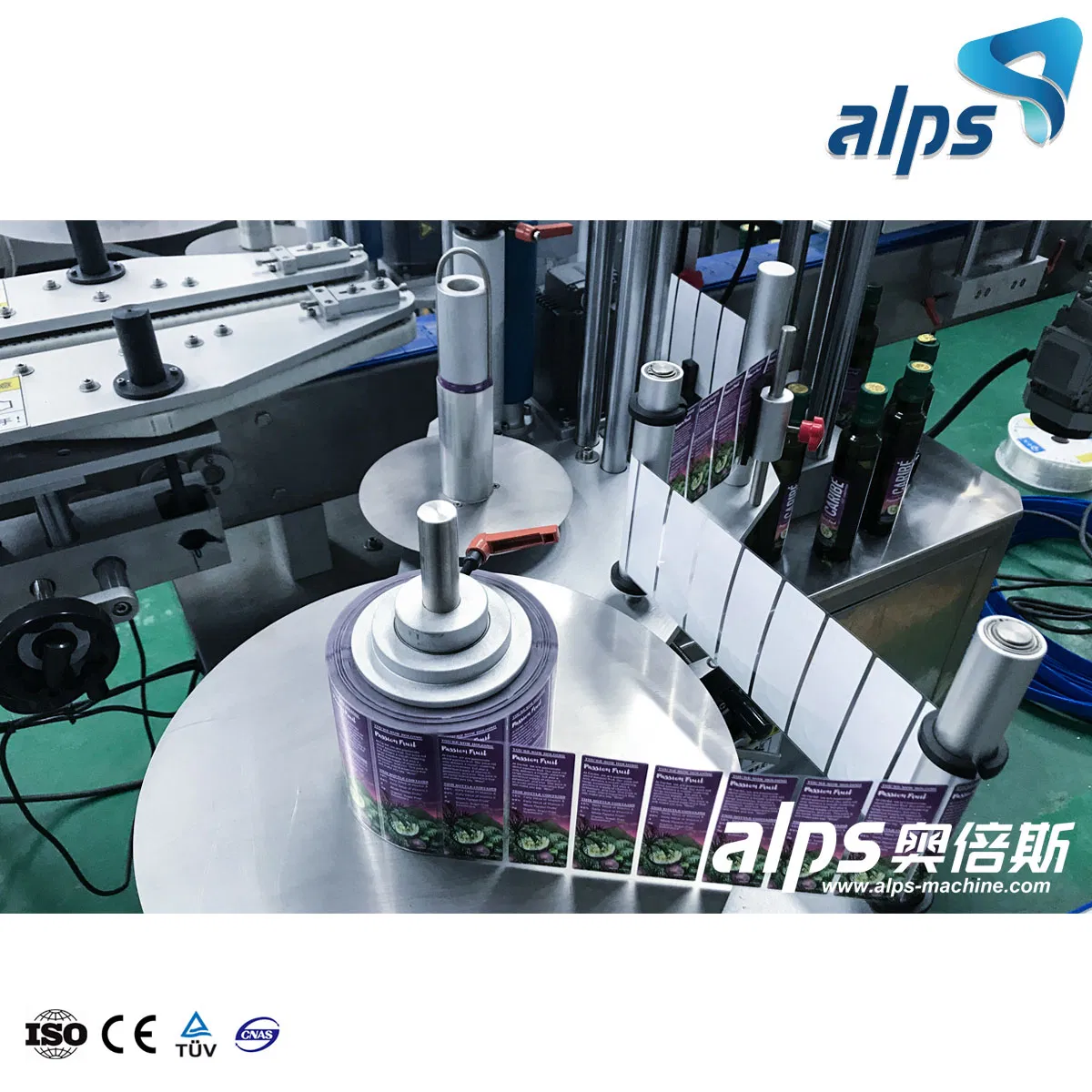

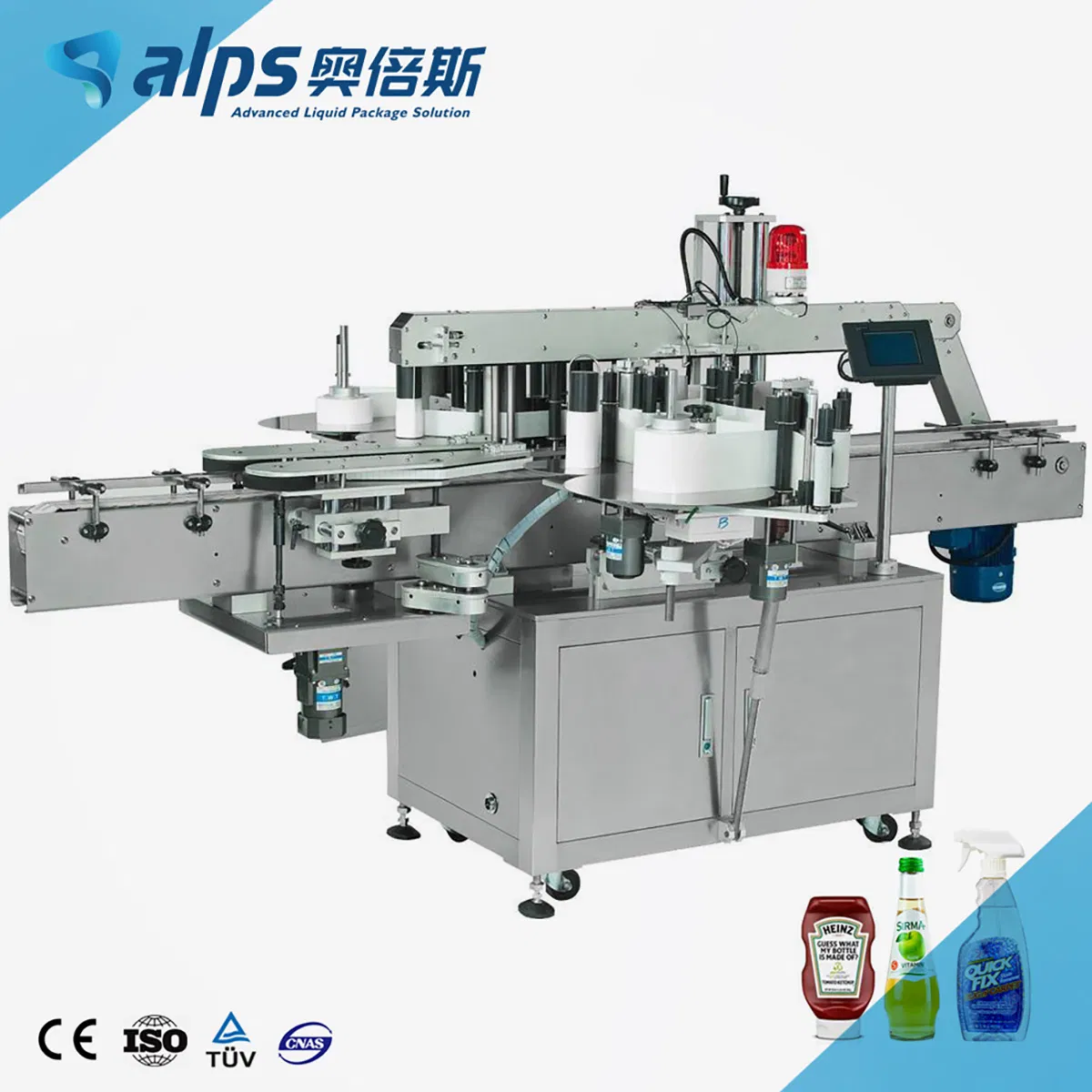

Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
1 / 5
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine
Self-Adhesive Front and Back 2 Sides Labeling Machine

Self-Adhesive Front and Back 2 Sides Labeling Machine

Customization: Available
After-sales Service: Available
Warranty: 2years
Send Inquiry

Product Description

📦 Basic Specifications
Model NO.
UHL-XX
Automatic Grade
Automatic
Type
Sleeve Labeling Machine
Driven Type
Electric
Capacity
6000bph - 30000bph
Material
SUS 304 Stainless Steel
Control
PLC (Siemens)
Suitable Label
PVC / PE / OPS Shrink Label
Bottle Size
100ml to 5L
Bottle Material
Plastic, Glass
Certification
CE, ISO, SGS
HS Code
8422309090
Self-Adhesive Front and Back 2 Sides Labeling Machine

Self-adhesive Front and Back 2 Sides Labeling Machine

Introduction: This shrink sleeve labeling applicator function is for PVC label shrink on the bottle, used for beverage bottle package solution. Featuring international advanced technology, it covers the circle label on PET bottles and utilizes hot shrinking to fix the label to designated positions on the bottle body.

The machine structure is compact and suitable for production lines of different directions and heights. The machine part adopts modular designing for a reasonable layout. Height adjustment is conveniently managed by fluctuating motors, making material replacement simple. The special cutter head design ensures film rolling is cut exactly and reliably.

📊 Technical Parameters
Model SLM150 SLM200 SLM300 SLM450
Host Size2100*850*20002100*850*20002100*1100*22002500*1200*2200
Production Speed150B/MIN200B/MIN300B/MIN450B/MIN
Label MaterialPVC / PET / OPS Shrink label
Power Supply2.2kw
FrameworkStainless Steel
Label Length30mm ~ 260mm
Label Thickness0.03mm ~ 0.13mm
Bottle Diameter28mm ~ 125mm
Bottle Height50mm ~ 280mm
Bottle ShapeSquare, round, oval, flat bottle
Furnace Power18KW ~ 36KW

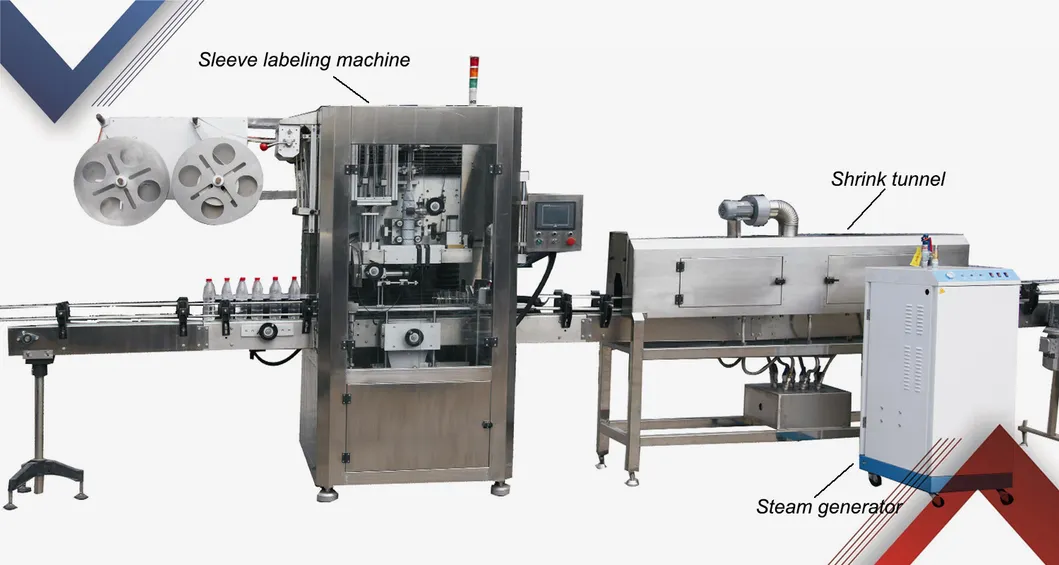

Machine Overview
🌟 Main Features
✔ Stainless steel and high-quality aluminum alloy frame.
✔ Non-fixed feet bolt for easy movement and flexibility.
✔ Adjustable locking gear for different shrinkable film rolls.
✔ Applicable for both square and round bottles.
✔ Tool-less adjustment for different bottle sizes.
✔ Reasonable and convenient label insertion methods.
✔ Full automatic feeder with integrated shrinking and tension adjustment.
✔ Low error rate due to precise rolling label cut inspection.
✔ Quick-change blade design and base.
✔ Schneider servo motor (France) for precision cutting.
✔ Mitsubishi PLC (Japan) for advanced automatic control.

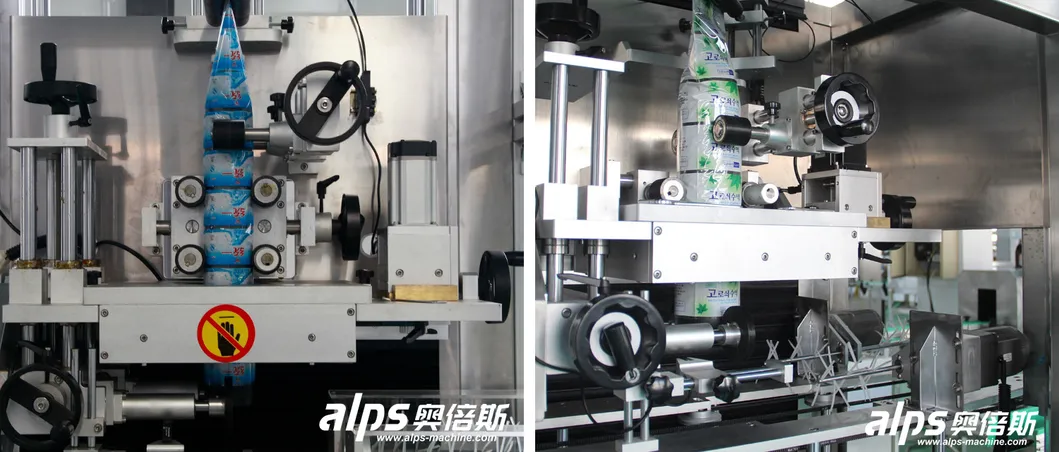

Machine Details
🔍 Machine Detailed Components

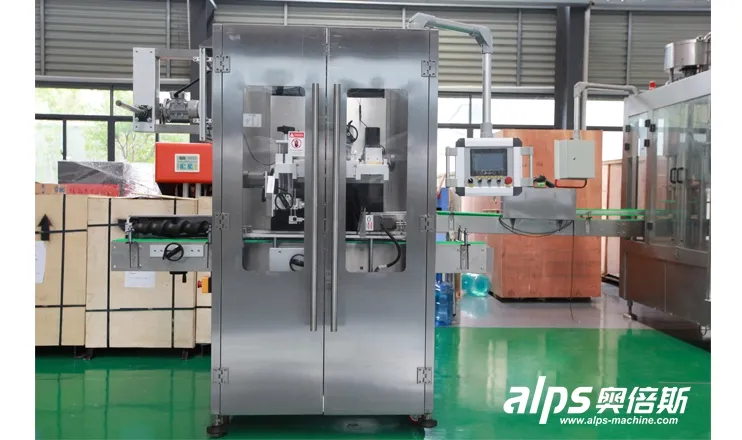

Sleeve Labeling Machine

Sleeve Labeling Machine

Application: PVC / PET / OPS label sleeve. Features a stainless steel main machine frame and famous electrical components including SIEMENS PLC controller, Inverter, and Mitsubishi Motor.

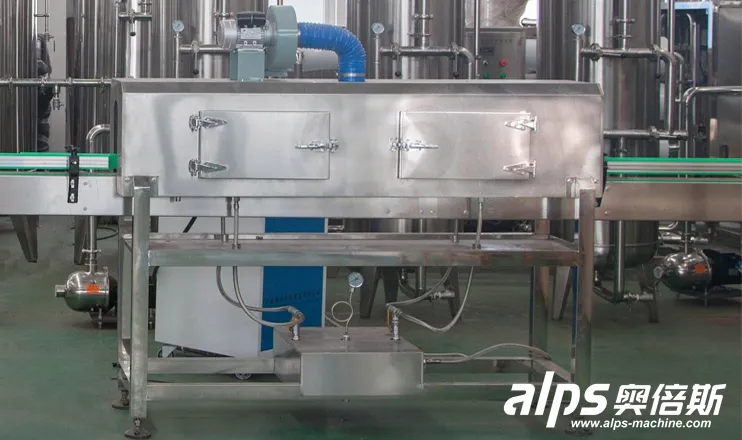

Shrink Tunnel

Application: Label Shrink by Steam or Electric heating. Includes a full stainless steel cover body, waterproof design, and easy adjustment for different bottle sizes with precise steam pressure control.

Shrink Tunnel

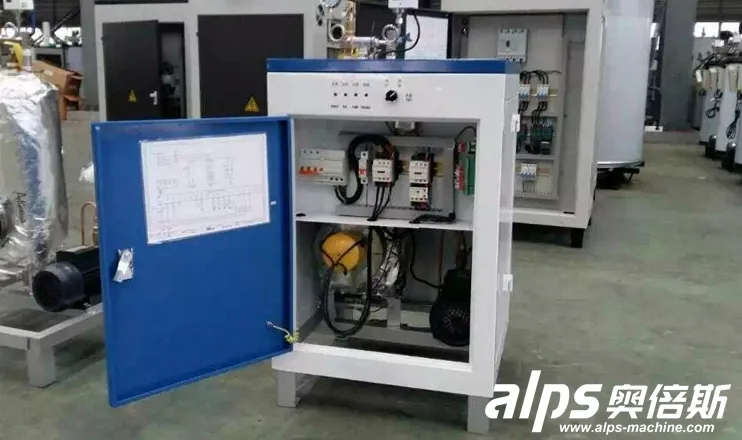

Steam Generator

Steam Generator

Application: Provides steam for the shrink tunnel. Features full automatic steam pressure control, automatic water feed system, and high-quality heating tubes.

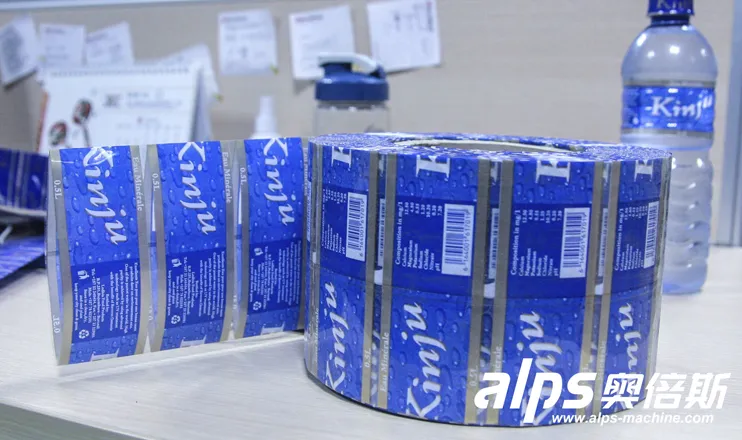

PVC / PET / OPS Shrink Label

Application: Food, beverages, mineral water, and daily products. PVC shrinkage: longitudinal 1%-4%, transverse 55%. PET shrinkage: longitudinal 1%-3%, transverse 70%.

Shrink Labels
🛠️ Components & Certification

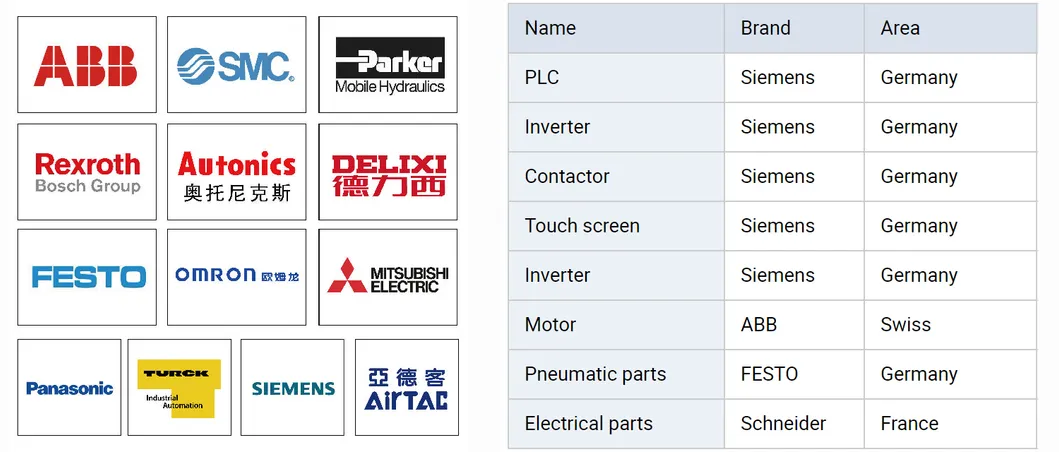

Main components Certification Documents

The equipment complies with ISO9001:2000 international quality management systems. Modern enterprise management systems are executed to ensure quality control during all production processes, earning recognition through high-quality performance and service.

❓ Frequently Asked Questions
Q1: What types of bottle shapes can this machine handle? A: This machine is highly versatile and can process square, round, oval, and flat bottles made of either plastic or glass.
Q2: What are the compatible label materials? A: It is designed to work with PVC, PET, and OPS shrink labels with a thickness ranging from 0.03mm to 0.13mm.
Q3: What is the production capacity range? A: Depending on the model (SLM150 to SLM450), the production speed ranges from 6,000 to 30,000 bottles per hour (150 to 450 bottles per minute).
Q4: Does the machine require tools for changing bottle sizes? A: No, the driven machinery and central clamping device can be adjusted to meet different bottle sizes without the need for specialized tools.
Q5: What control system is used for operation? A: The machine utilizes a high-quality Siemens or Mitsubishi PLC controller with a user-friendly interface for reliable and automatic operation.
Q6: What certifications does this equipment hold? A: The machine is fully certified with CE, ISO9001, and SGS standards, ensuring international quality and safety compliance.
