Selltrion Packaging
1 / 5
| Model NO. | GZM-1000L |
| Type | Weighing-type Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Liquid |
| Filling Valve Head | Single-Head |
| Filling Principle | Pressure |
| Structure | Linear |
| Packaging | Barrel |
| Filling Accuracy | 99.99% |
| Voltage | 220V 50/60Hz |
| Applicable Industries | Oil, Lube, Engine Oil, Liquid Soap, Gel, Bitumen, etc. |
| Specification | 3900*1000*1700mm |
| Applicable Materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals |
| Filling Range (L) | 100-1000L |
| Air Pressure (Mpa) | 0.6-0.8MPA |
| Filling Accuracy (%) | ±0.2% |
| Speed | 12~15 barrels/hour (1000L single station) |
| Material Construction | SUS304 / SUS316 / Carbon Steel / PTFE |

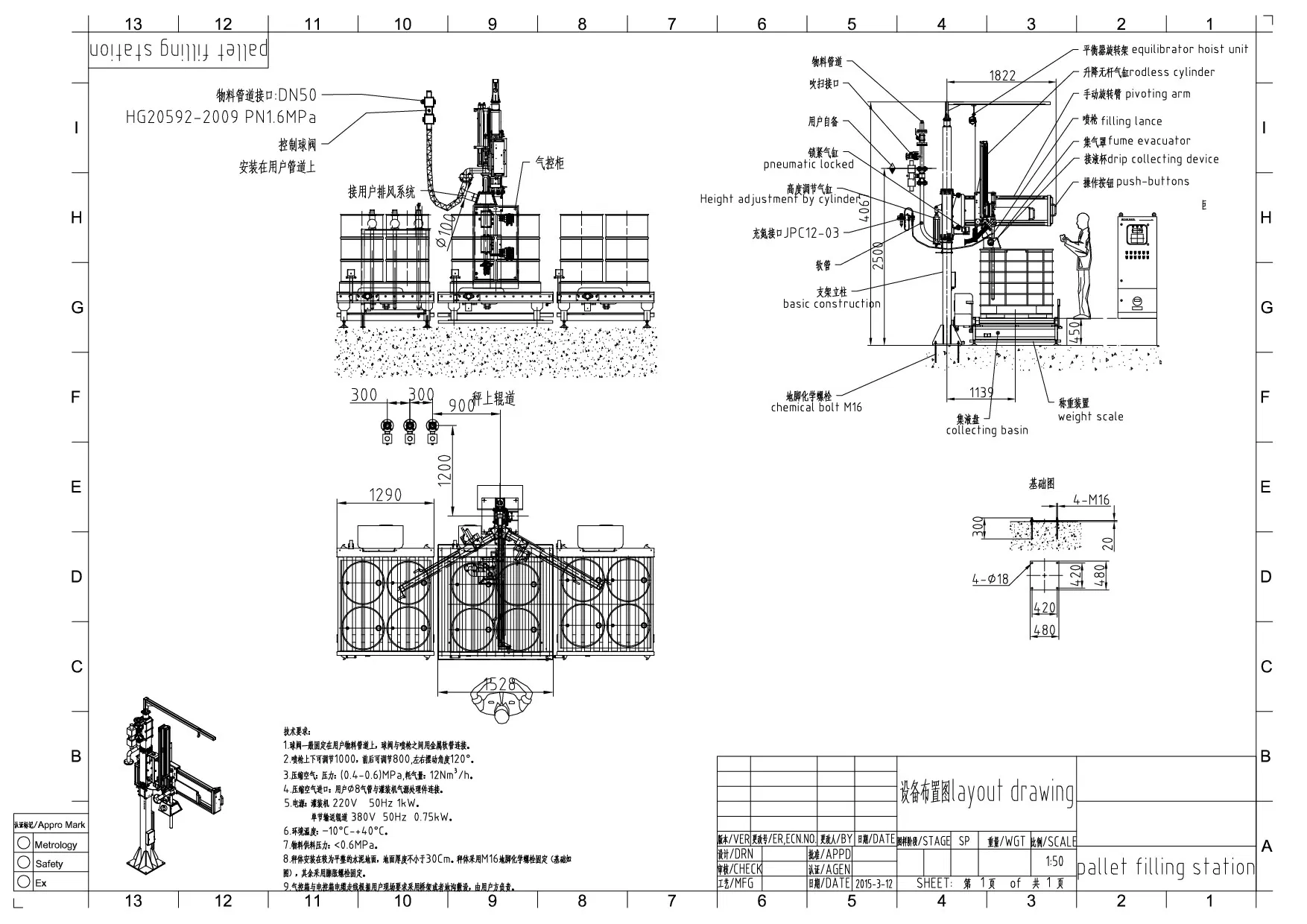

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.

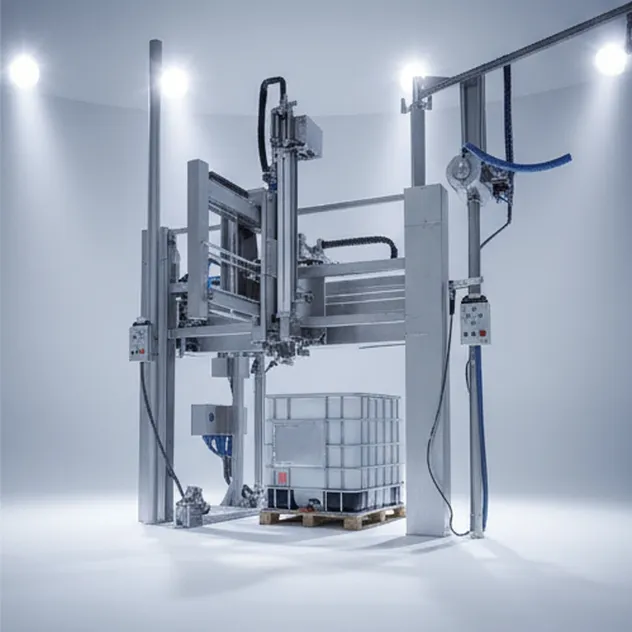

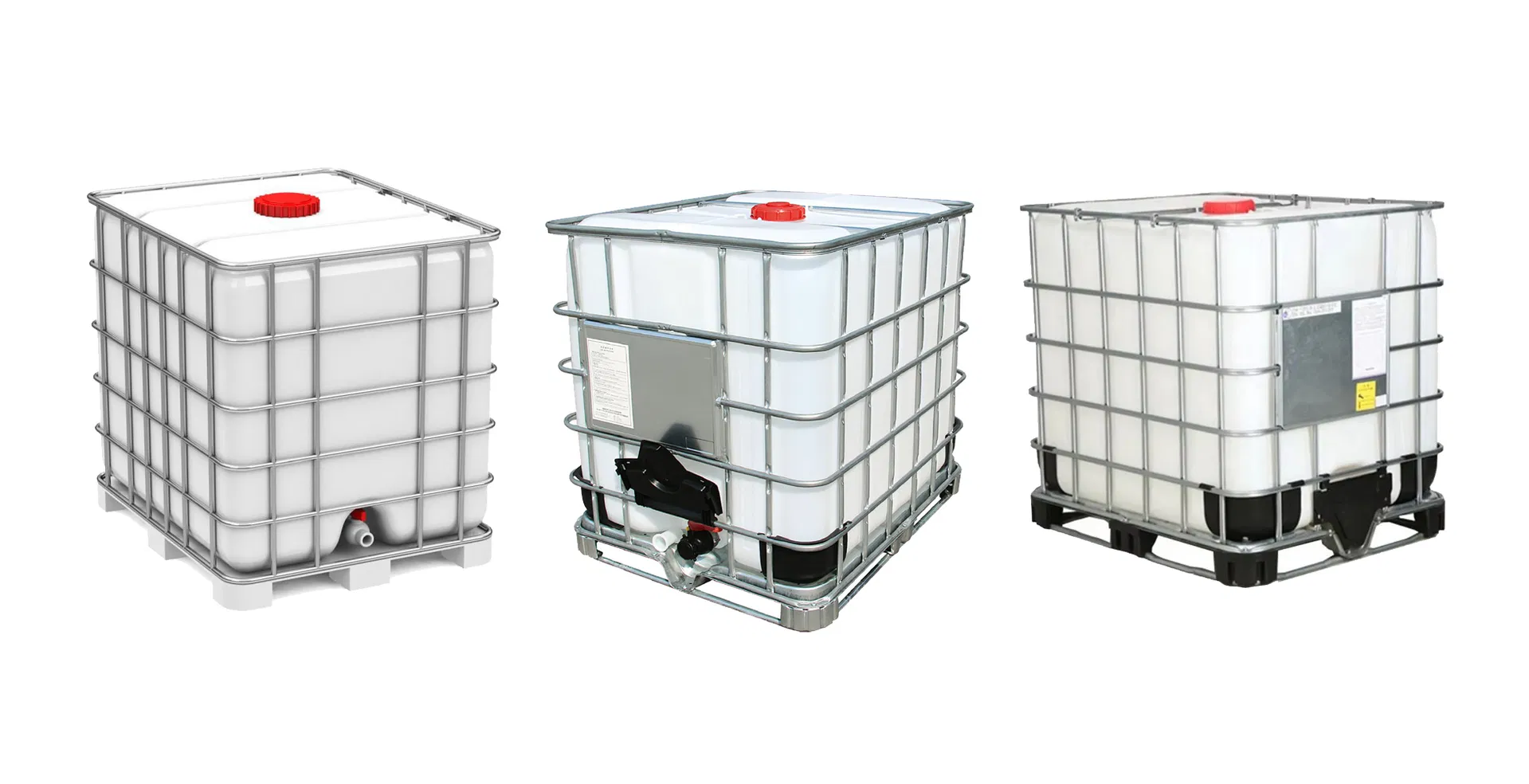

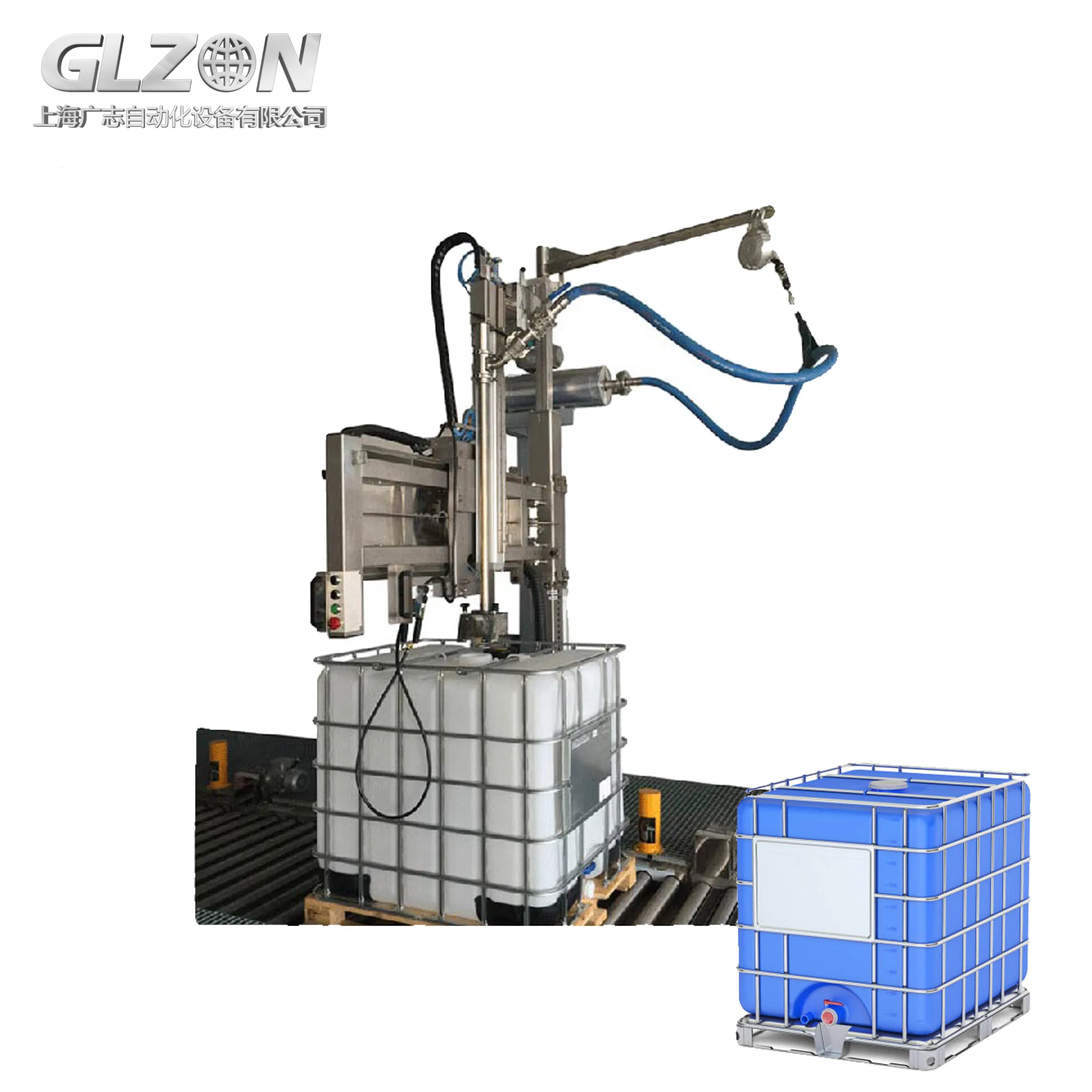

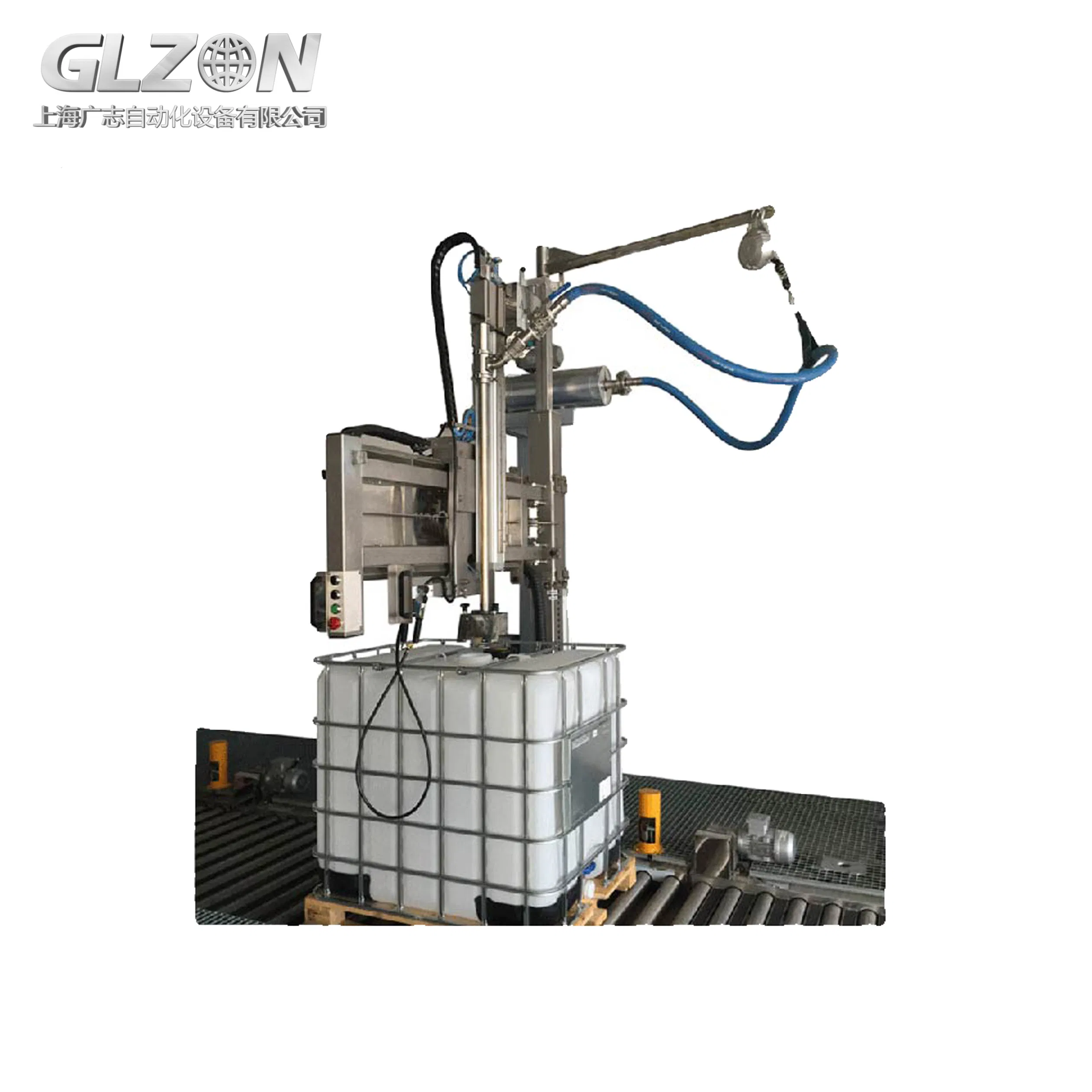

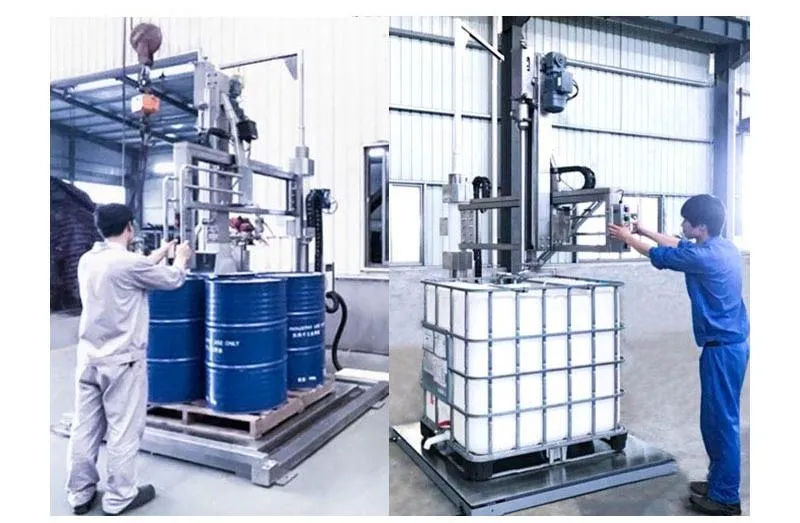

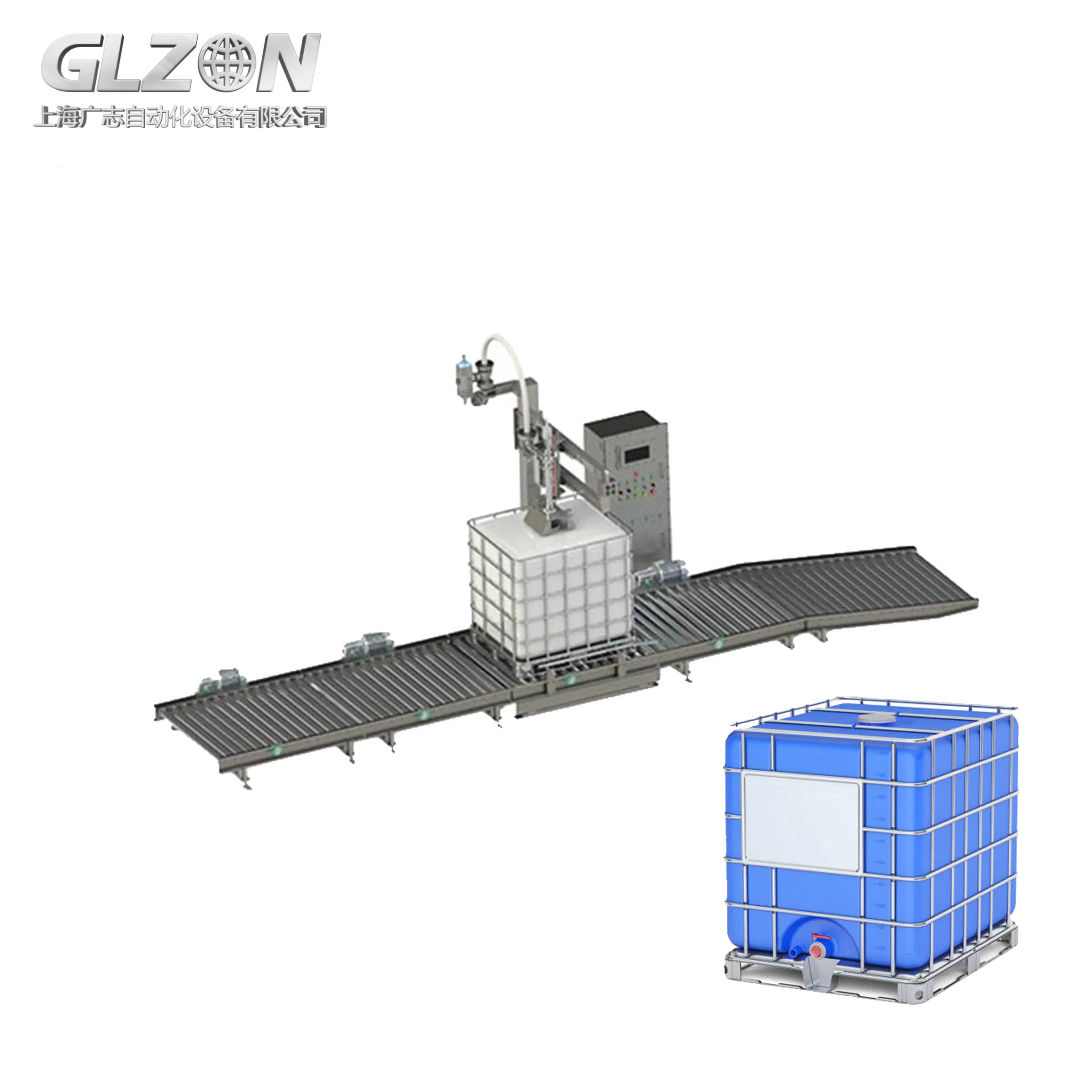

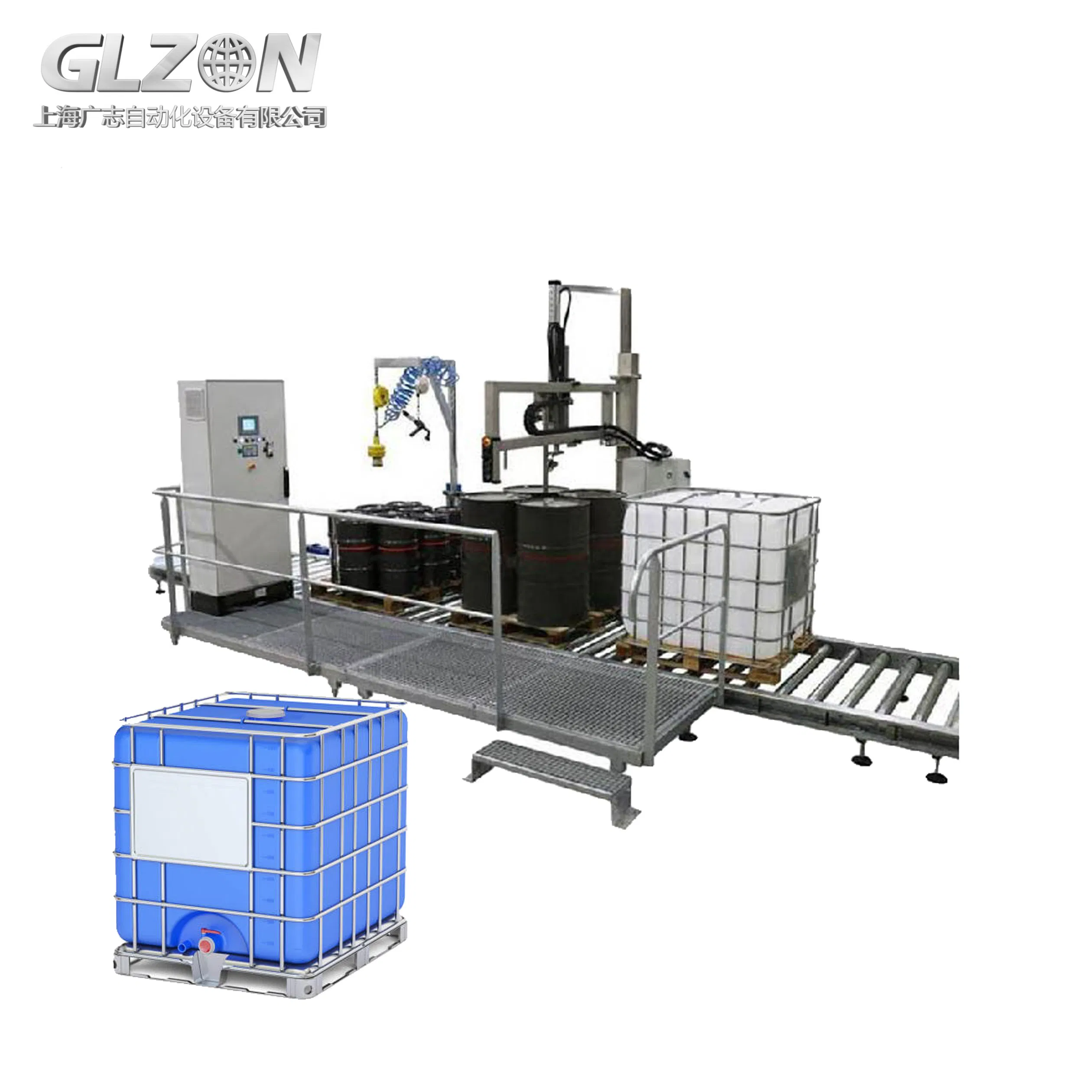

The fully automatic IBC barrel filling line is designed for 1000L containers. It automates supply, positioning, filling, weighing, and metering.

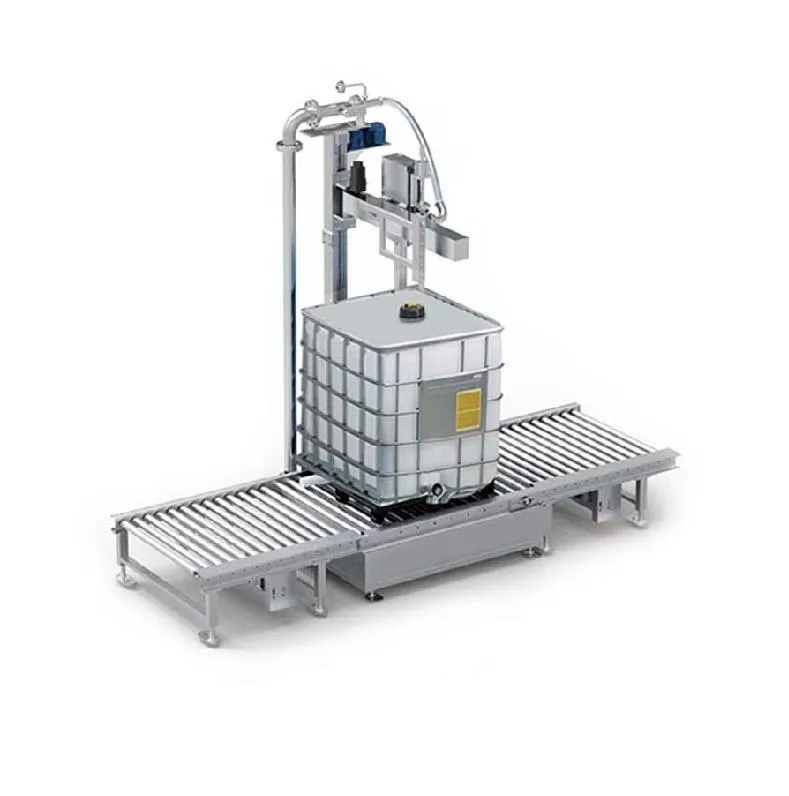

Features include: explosion-proof components, safety protection, zero gas pollution, and leakage prevention. It utilizes a fixed weight metering method for high speed and accuracy.
Additional auxiliary functions: Nitrogen replacement, air curtain protection, pipeline purging, and seamless integration with intelligent warehouse management.

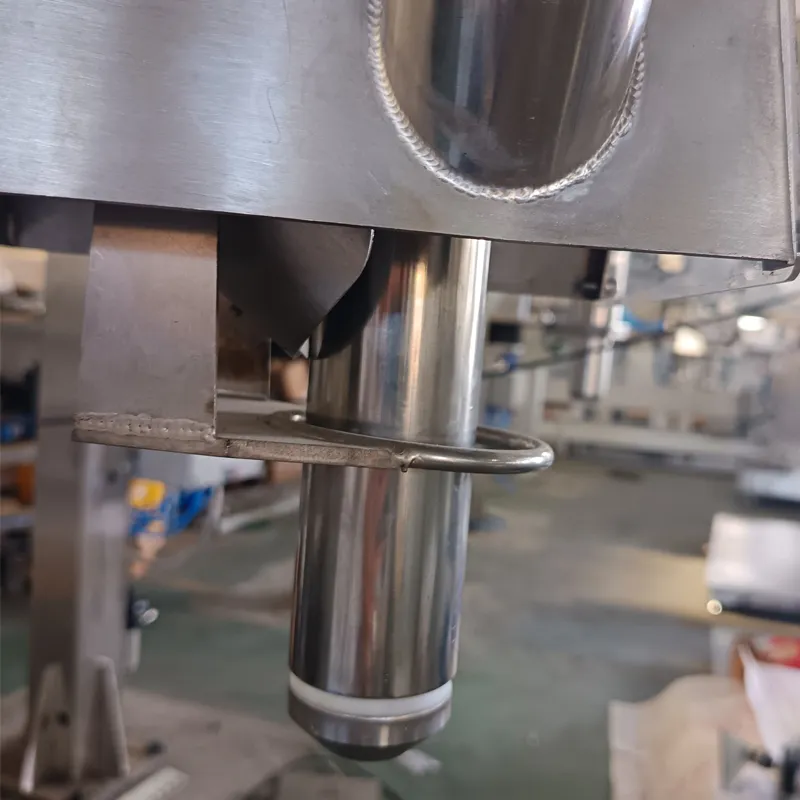

Built with high-grade SS304/SS316 for exceptional durability and corrosion resistance in harsh industrial environments.

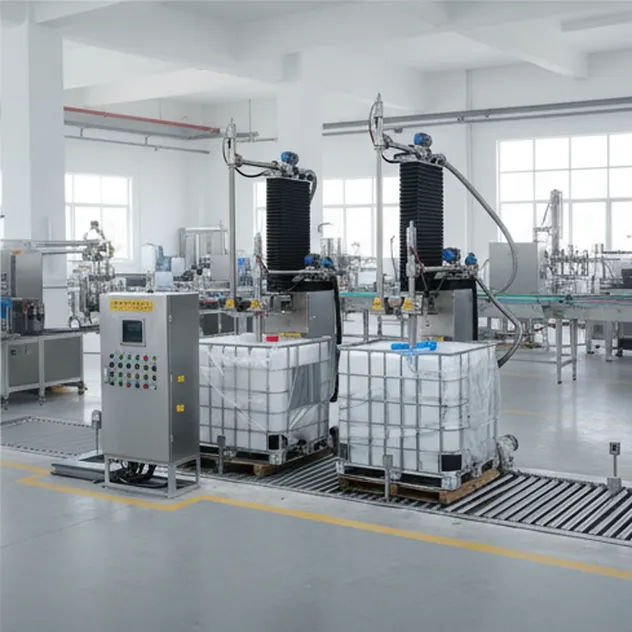

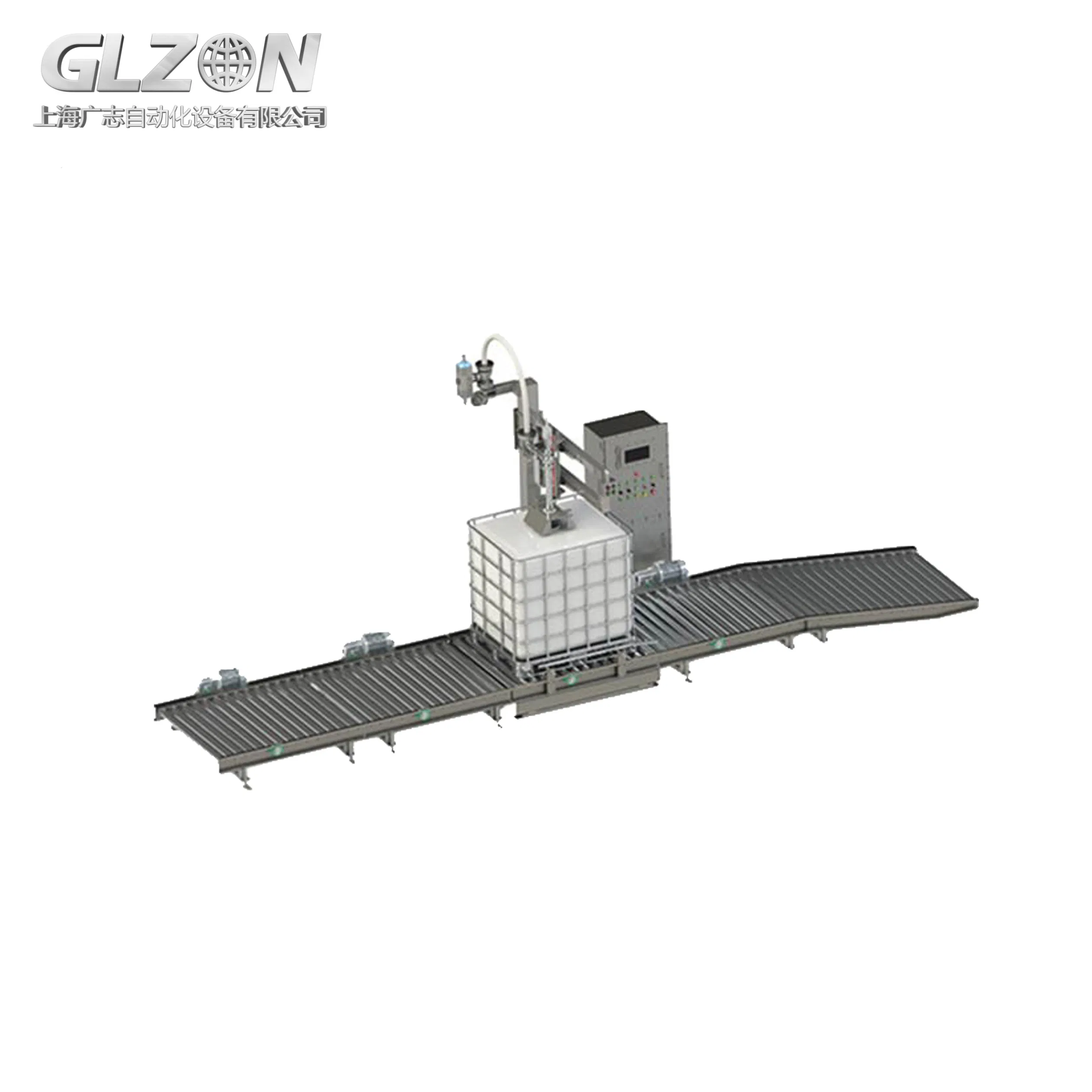

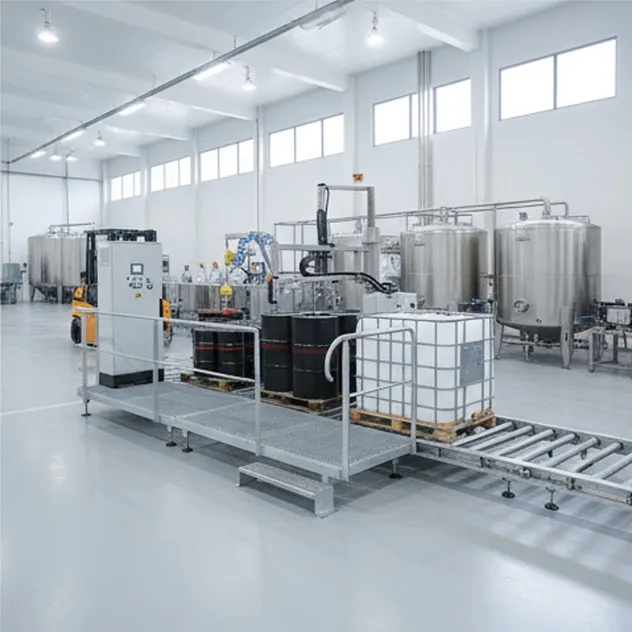

Fully or semi-automated systems that integrate with conveyors for streamlined production lines.
Explosion-proof, leak-proof, and anti-static designs for hazardous environment operations.
We are a professional manufacturer specializing in filling machines, packaging machines, and weighing systems. Our engineering teams focus on high-technology development, quality enhancement, and humanized operating systems.
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and rapid spare parts supply.

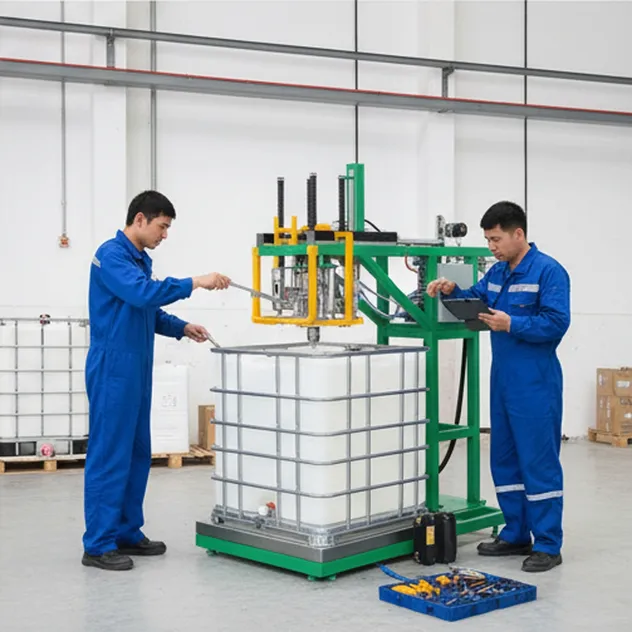

Training: Comprehensive on-site or remote operation and maintenance training for your staff.
A: Standard models typically ship within 15-30 days, while customized units require approximately 30-45 days.
A: Yes, we provide global technical assistance and have partnered service centers in key regions to support our clients.
A: Absolutely. We offer tailored attachments and flexible configurations to suit different barrel sizes and liquid viscosities.
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (CoC).
A: The system achieves a high filling accuracy of approximately ±0.2% through its advanced weighing-type metering method.
A: Please contact our sales team with your specific material requirements to receive a detailed quotation and confirm via a Purchase Order (PO).
