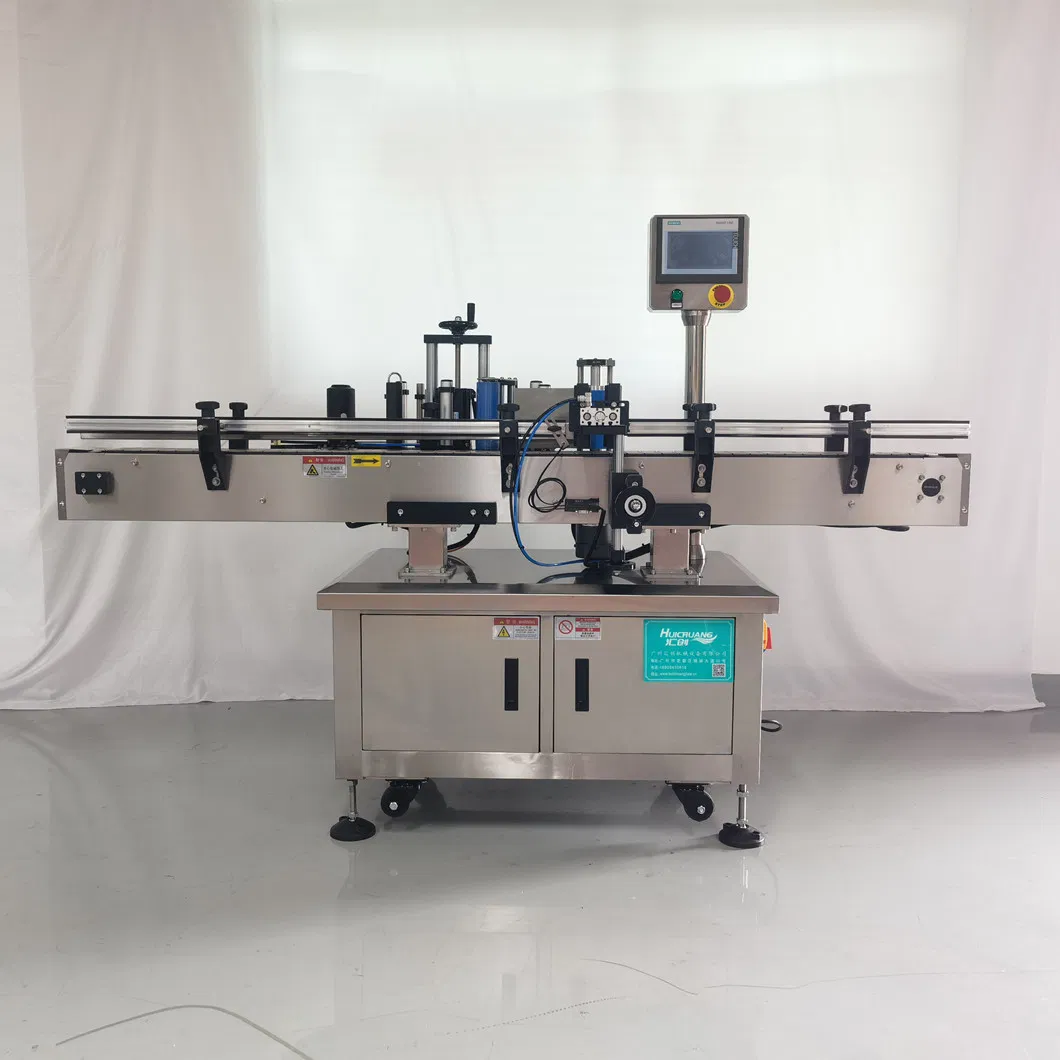

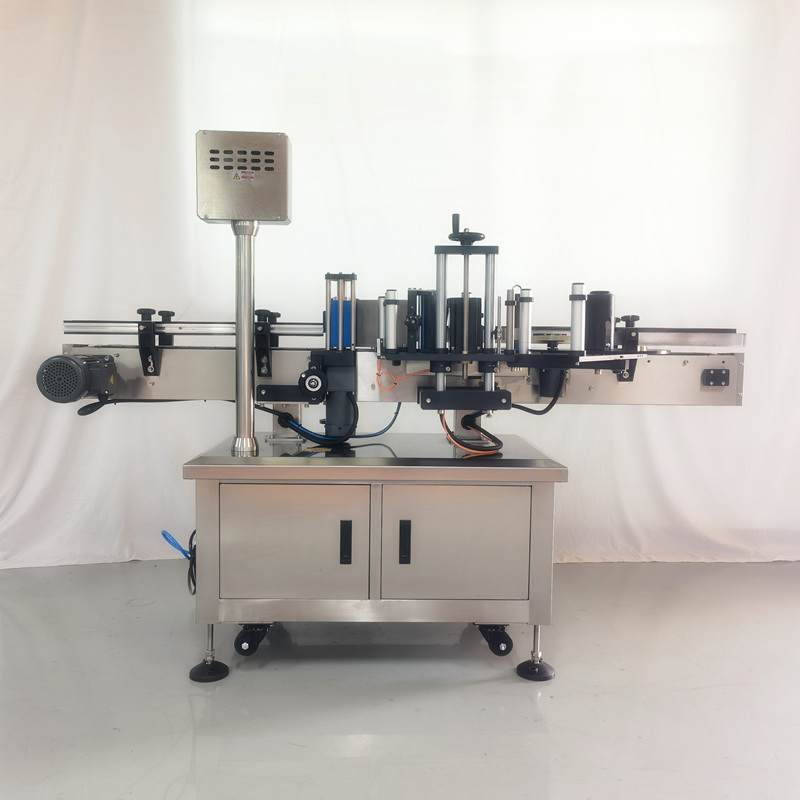

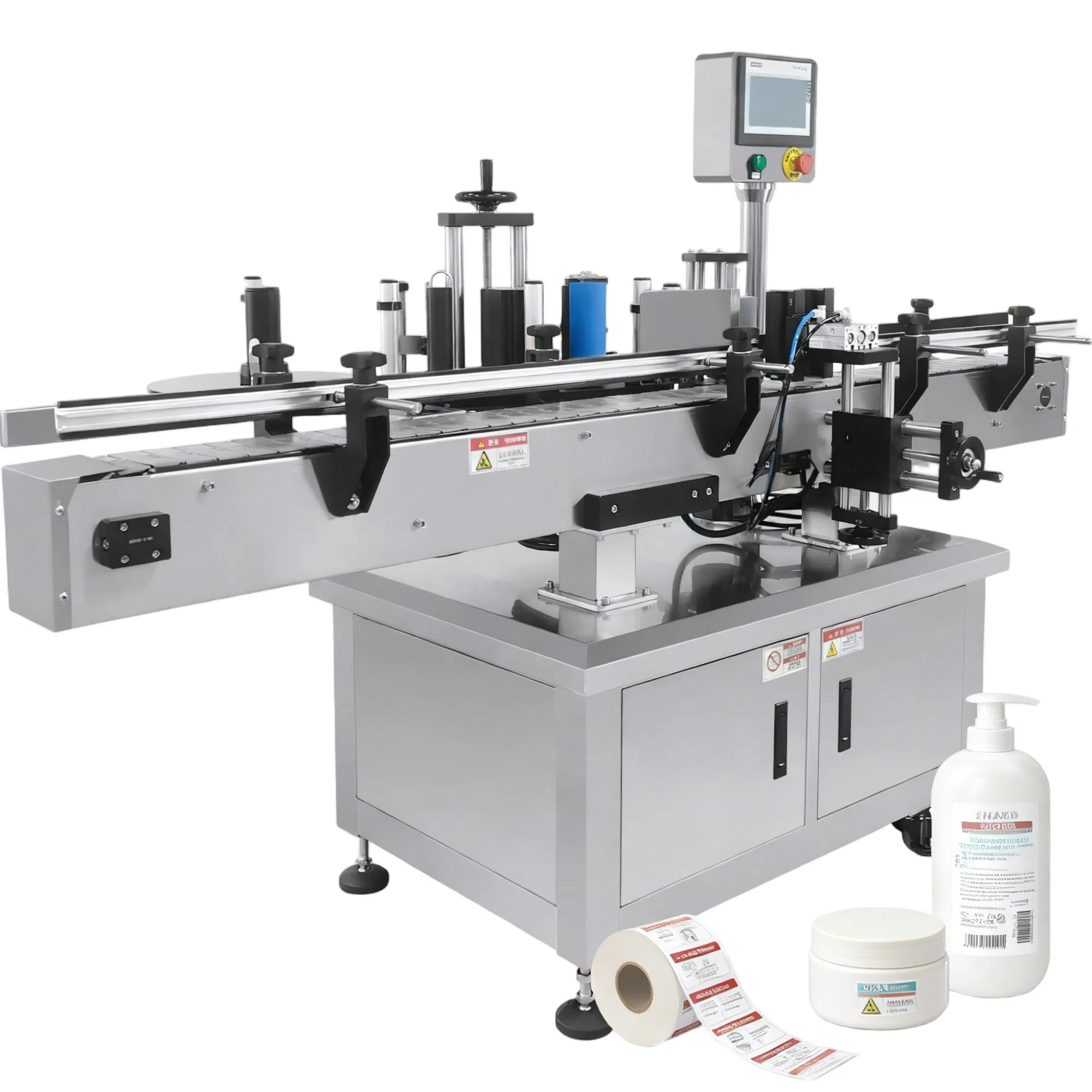

High-Efficiency Automatic Labeling System
Designed for square bottles, cream jars, and glass bottles across multiple industries including Cosmetics, Food, and Pharmacy.

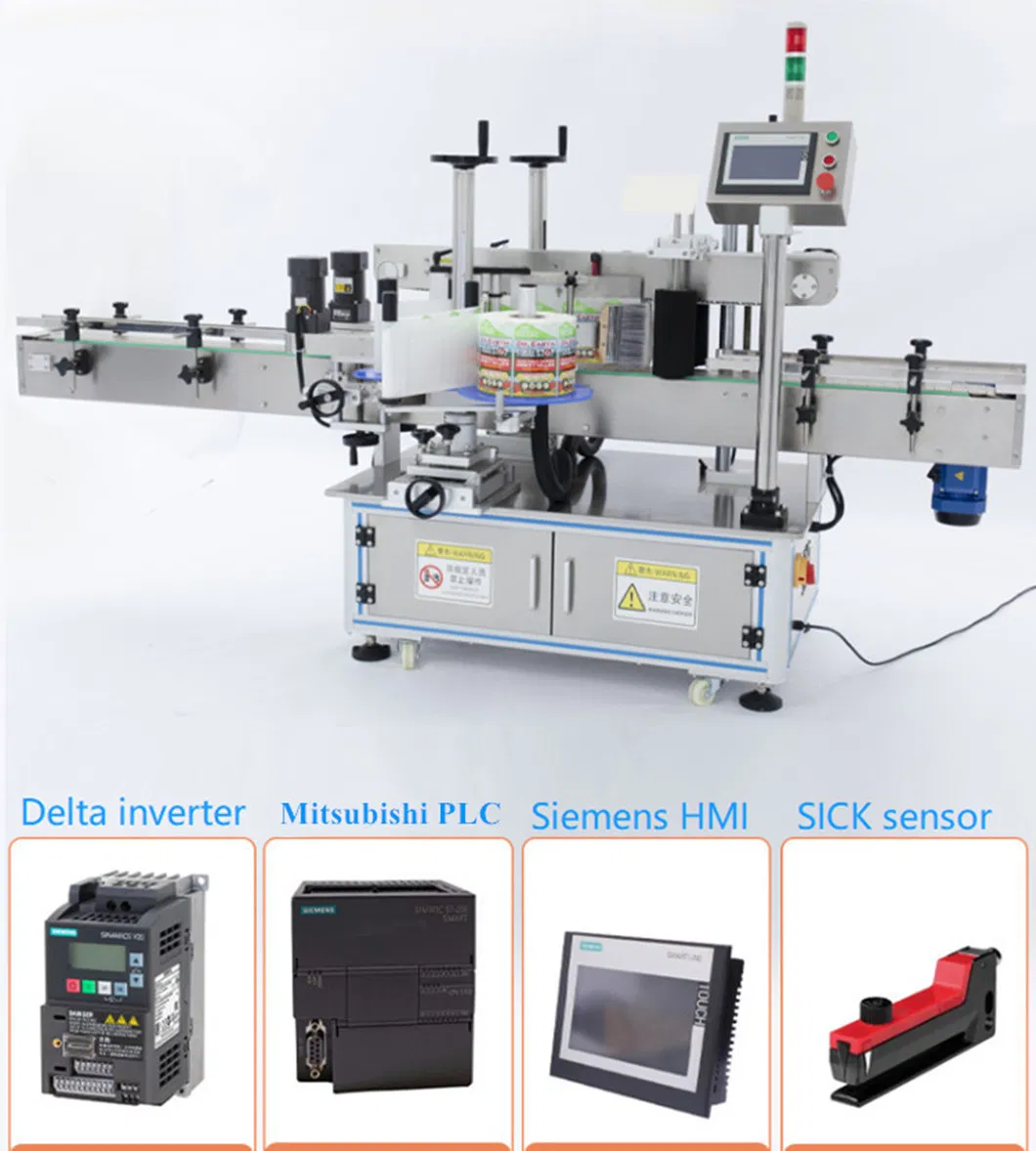

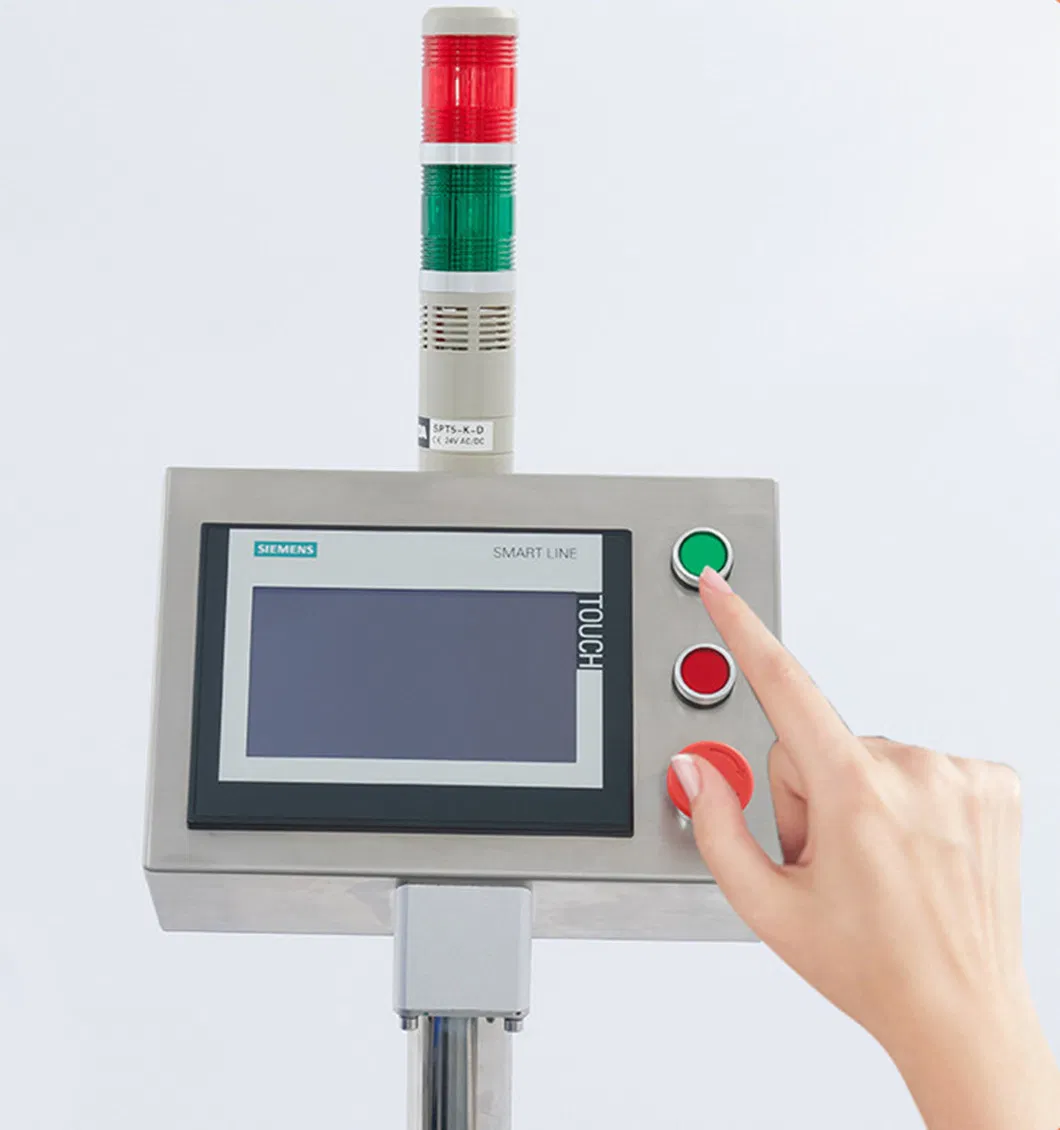

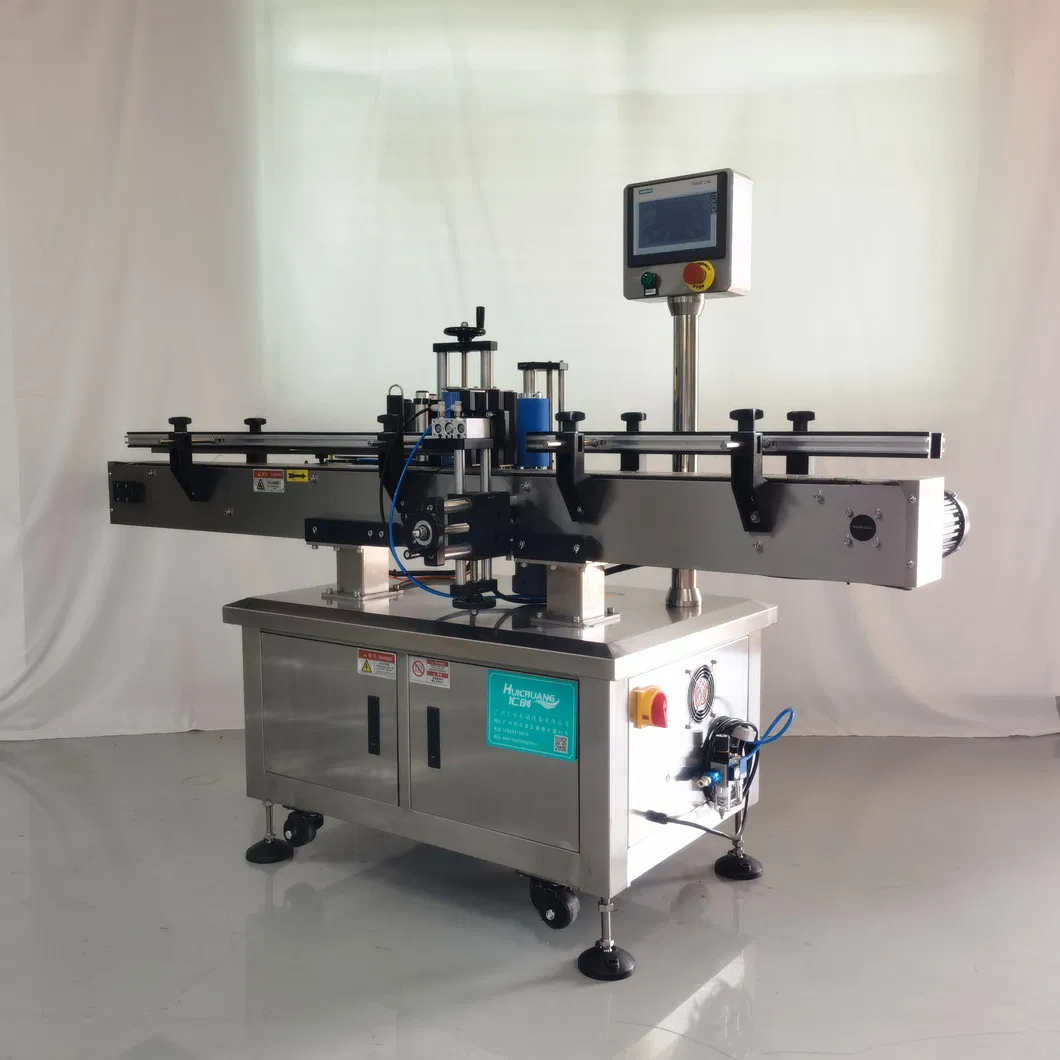

This labeling machine is equipped with an HMI touch panel featuring a large-scale integrated circuit. Controlled by a micro-computer with a multi-language character touch screen, it facilitates seamless man-machine communication. The configuration allows for all data input via touch screen and comprehensive monitoring of running conditions.

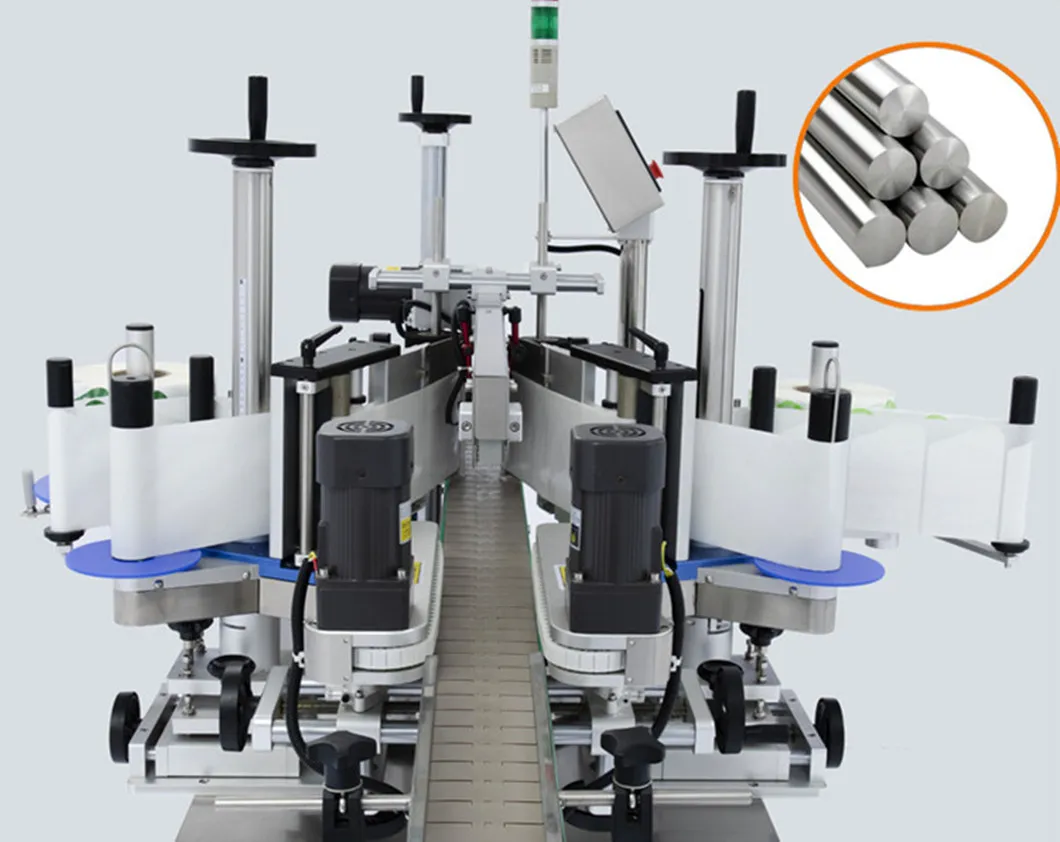

Key Functionality: It performs labeling on left, right, and top sides efficiently and simultaneously. Users can choose between single-side or double-side labeling and have the option to integrate a date coding machine.
| Parameter Item | Specification Details |
|---|---|
| Label Max Diameter | 330 mm |
| Label Inner Diameter | 76.2 mm |
| Label Size Range | Height: 15-200mm | Length: 20-300mm |
| Bottle Size Range | Diameter: φ30~φ100mm | Height: 30-300mm |
| Labeling Speed | 0-30 Meters/Min |
| Working Accuracy | ±1mm |
| Air Pressure Required | 0.4-0.8Mpa |
| Machine Noise | ≤70dB |
| Dimensions (L*W*H) | 3000 * 1400 * 1750mm |
| Net Weight | 360kg |
| Power Supply | AC220V 50HZ 1Phase / 1.2Kw |
We provide a 2-year warranty for large equipment like full automatic labeling lines and a 1-year warranty for small batch series. Technical support is provided for a lifetime.
No. For initial installation, an engineer can be sent for setup and training. We also provide detailed manual instructions and solution videos/photos for ongoing support.
Standard machines can be delivered within 35 days. For customized (OEM) equipment, the lead time is approximately 40-50 days.

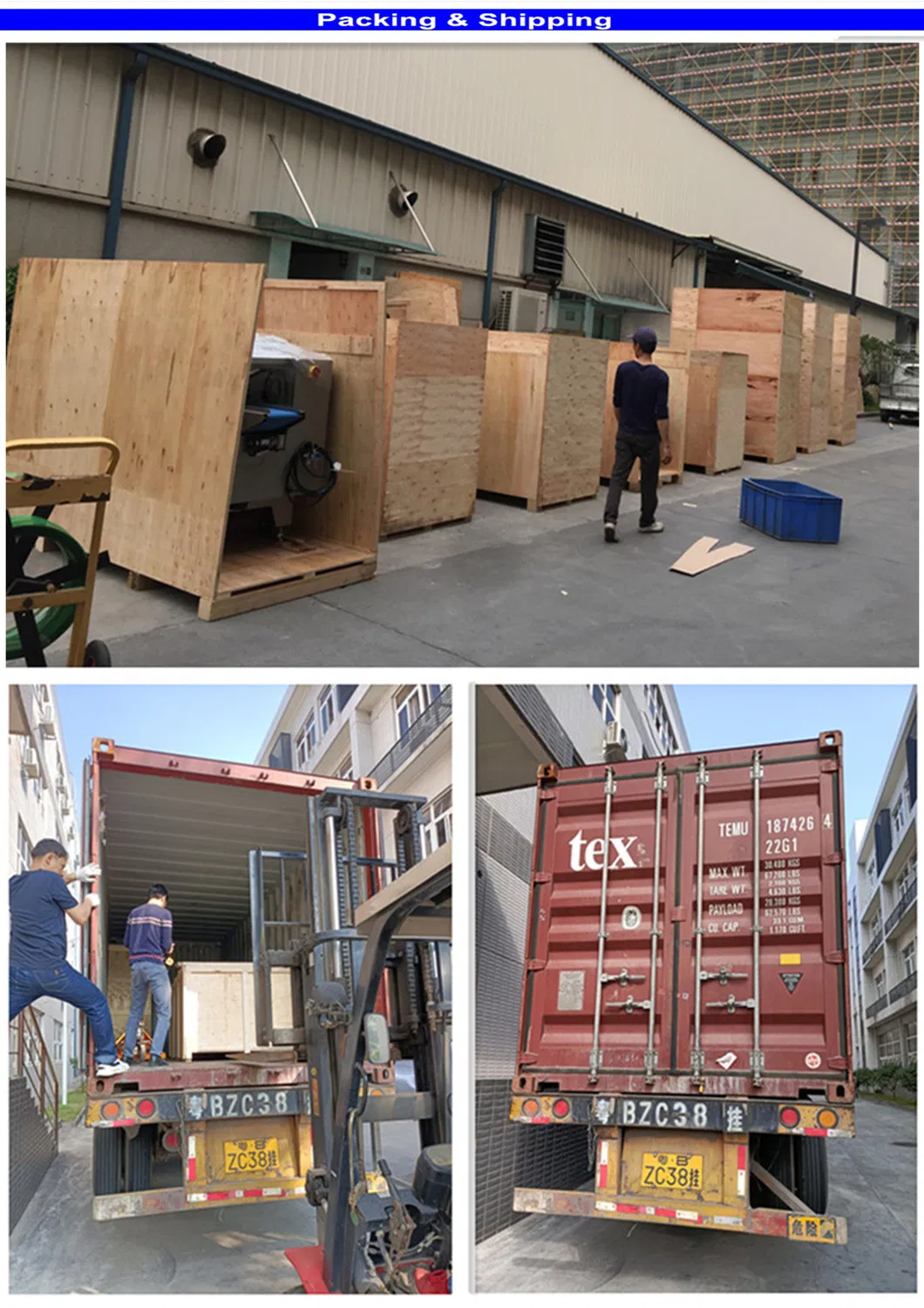

Our dedicated QC department strictly controls quality. All machines undergo testing during production and a final test before packaging in secure wooden cases.
It is highly versatile and suitable for Daily Chemicals, Cosmetics, Food, Beverages, Pharmaceuticals, and the General Chemical industry.

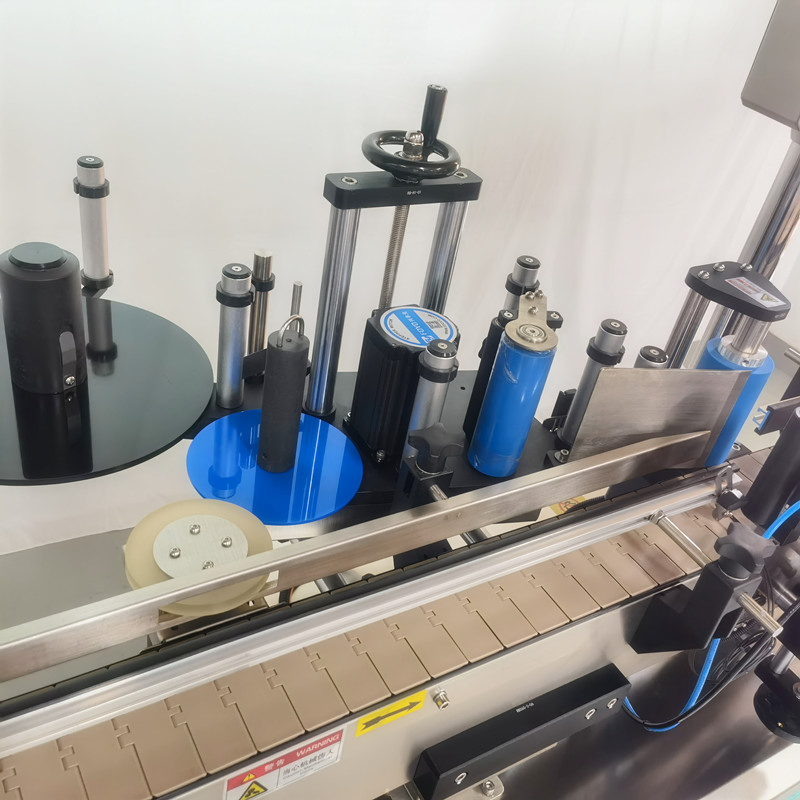

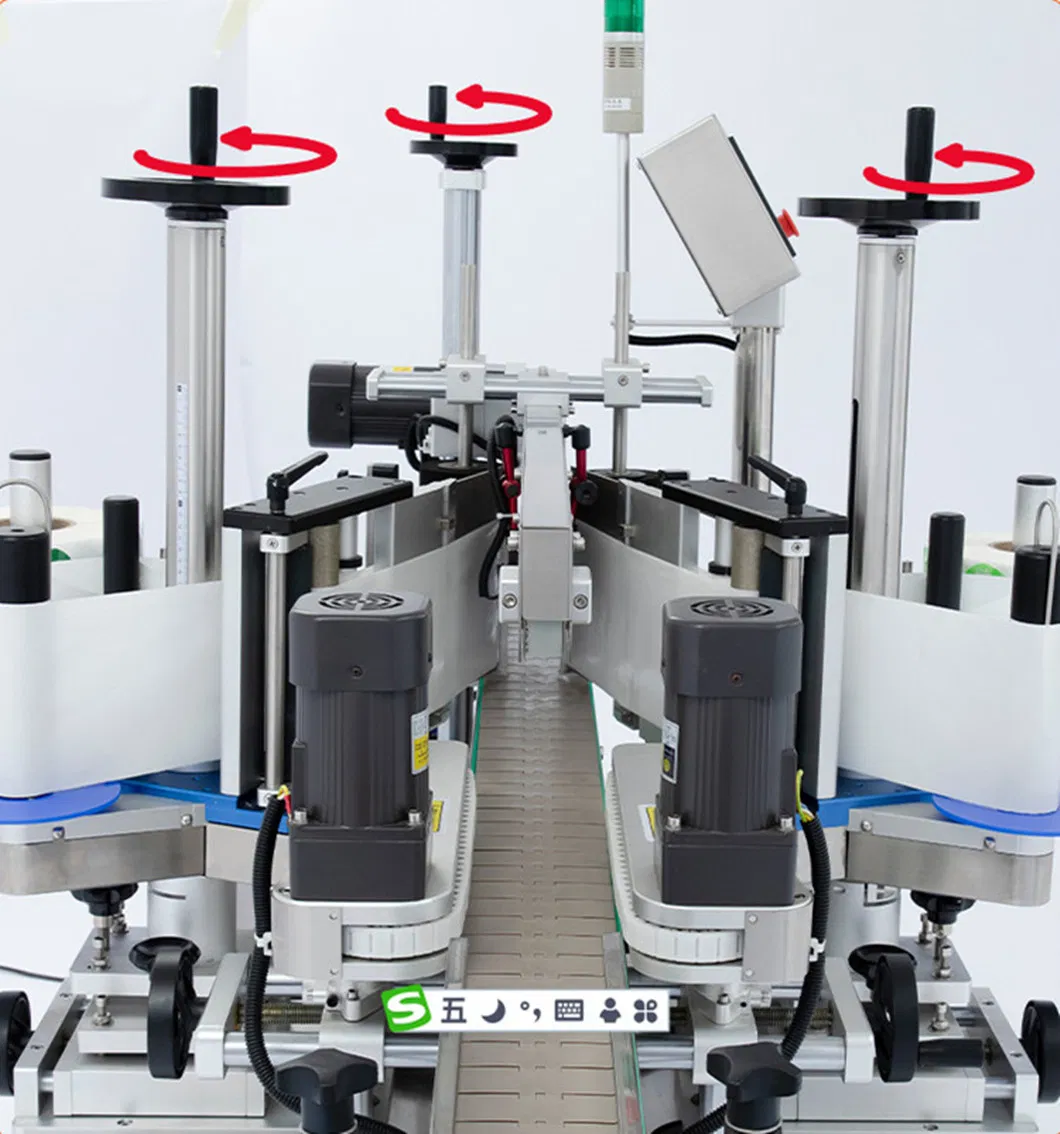

Yes, the system is designed for round, flat, and square bottle labeling with adjustable mechanisms to accommodate various sizes.
