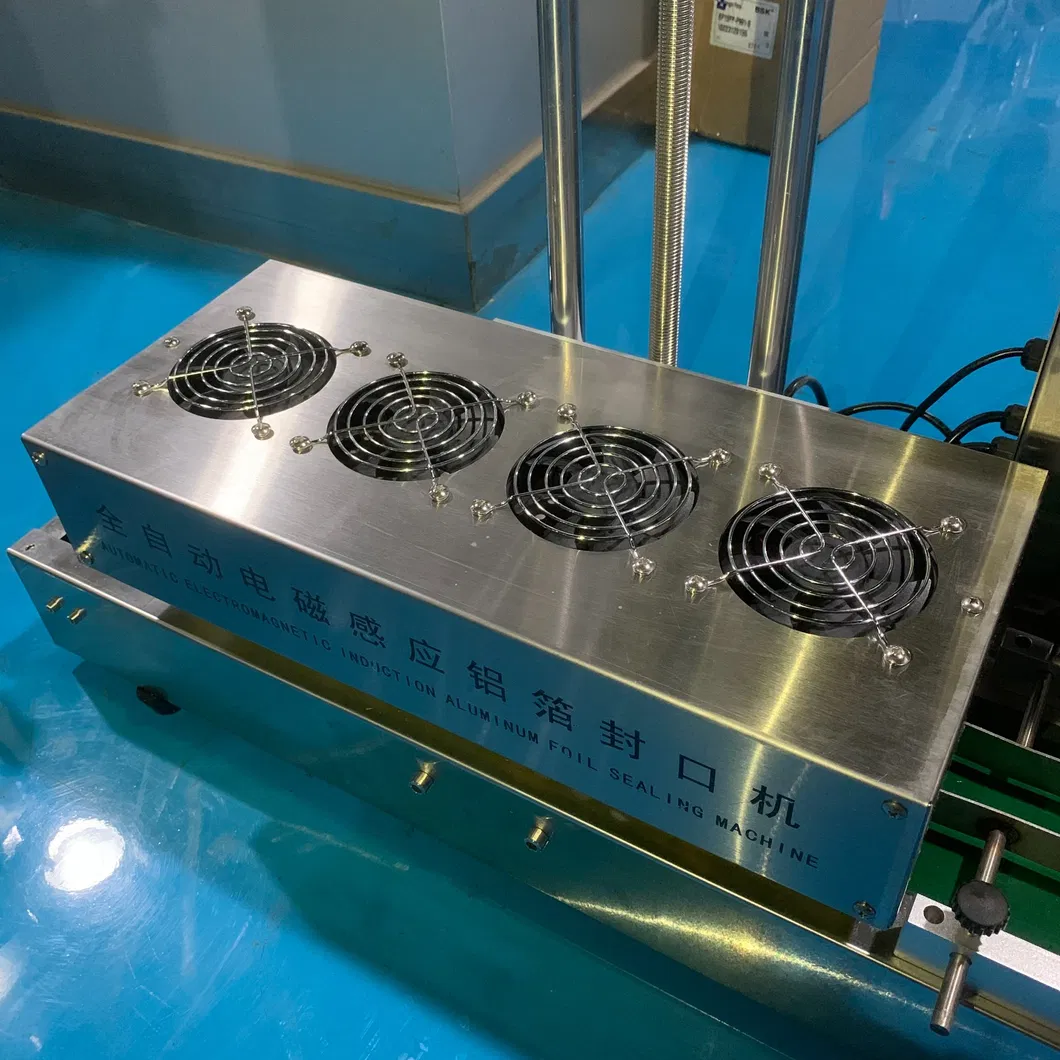

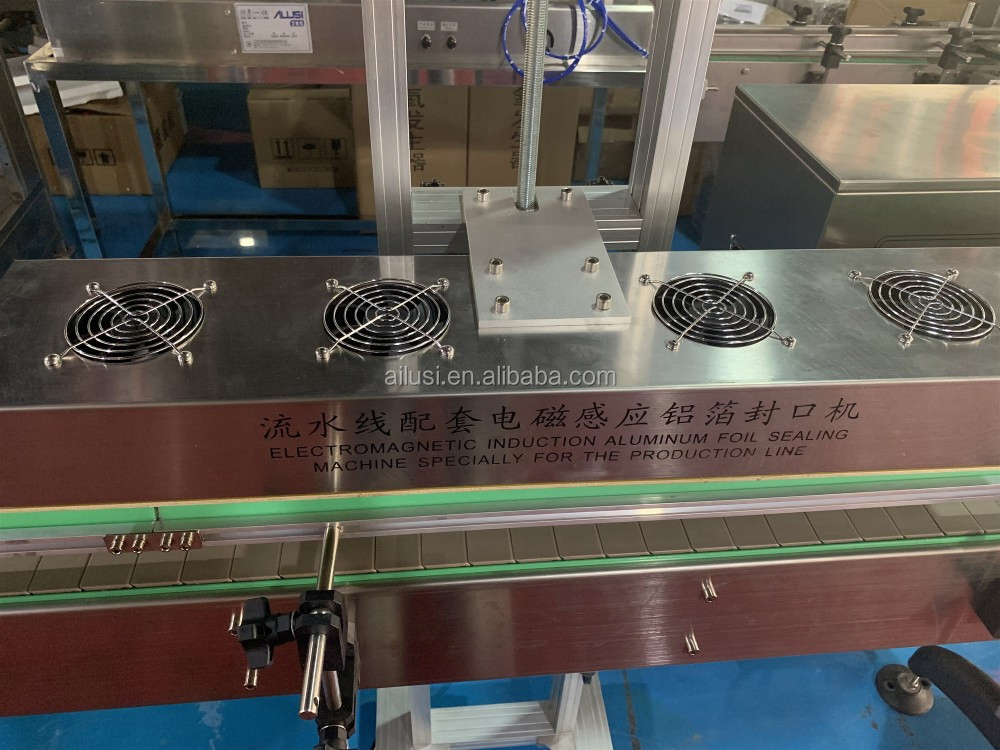

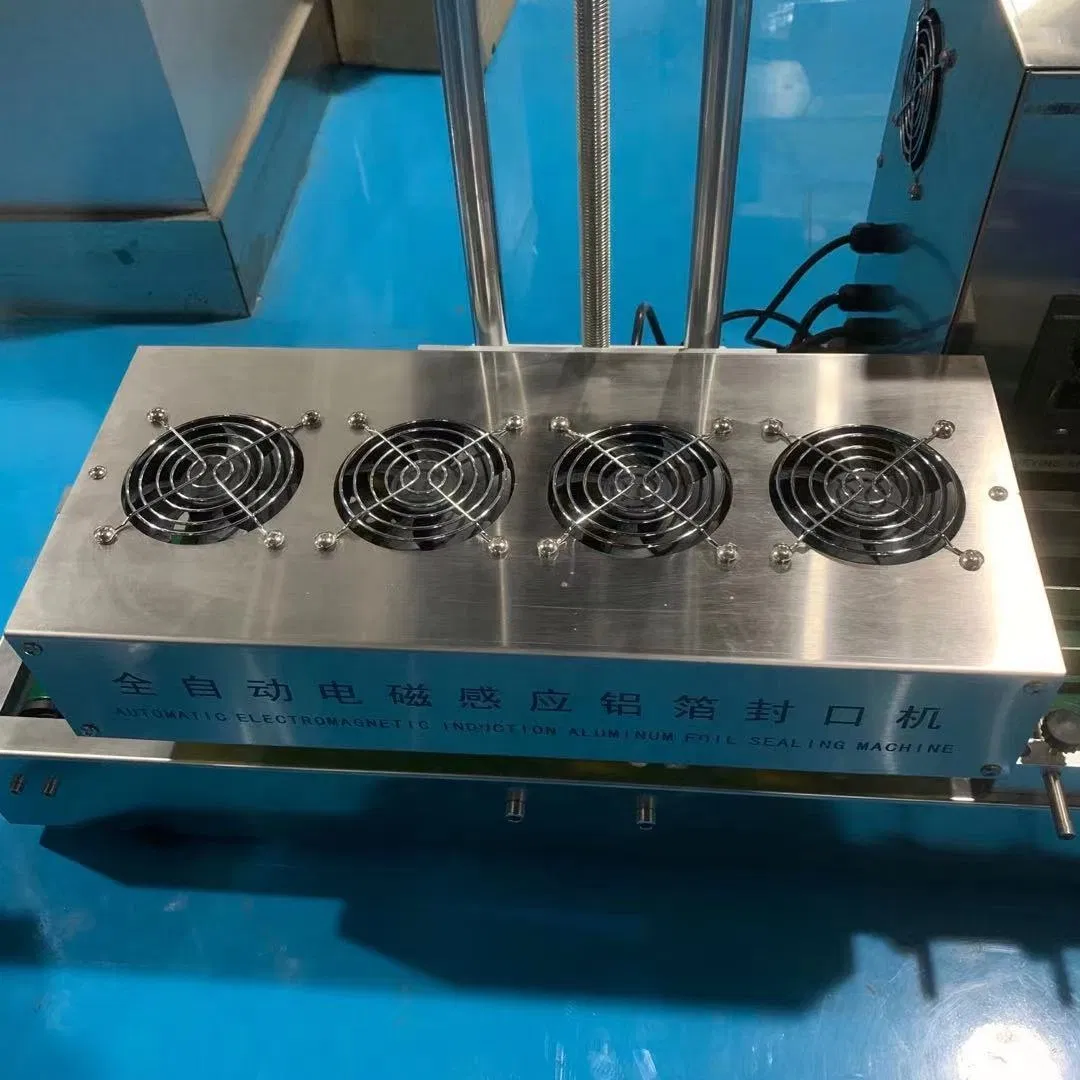

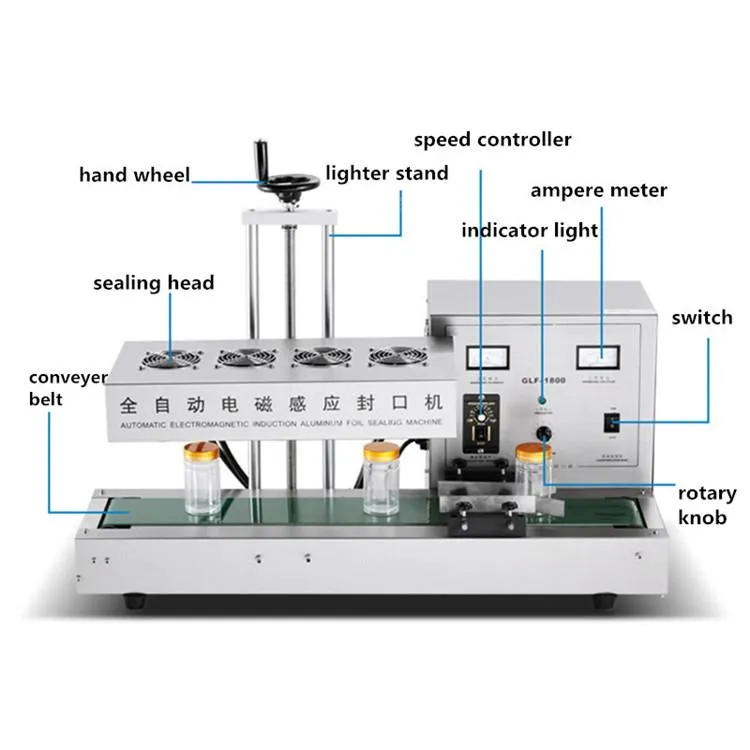

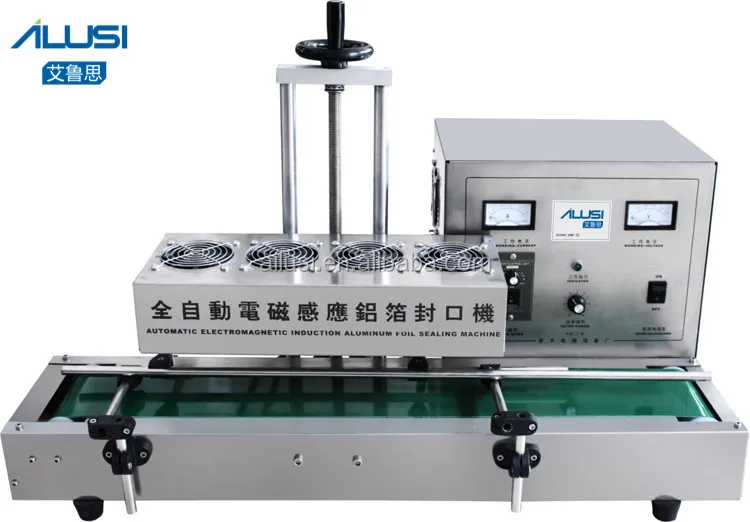

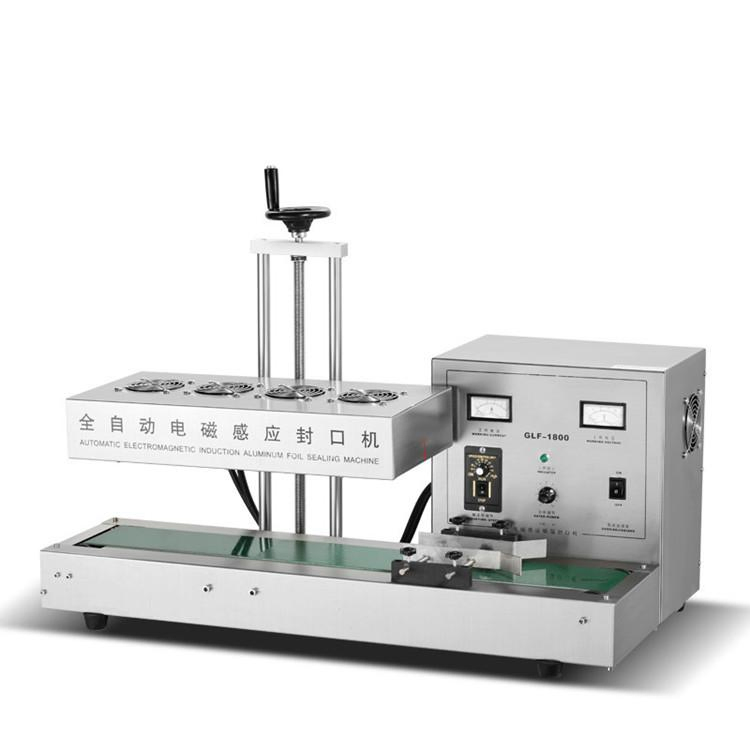

Compact semi automatic Induction Sealing Machine

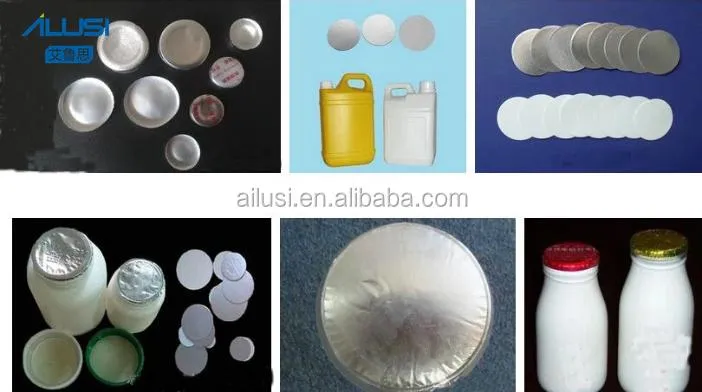

This Automatic aluminum foil caps sealing machine is specially for aluminium foil sealing of the PET bottles, PP bottles, PVC bottles, PE bottles, plastic bottles, glass bottles, etc. It is widely used in cosmetic, drinks, chemical, medical, food industry etc.

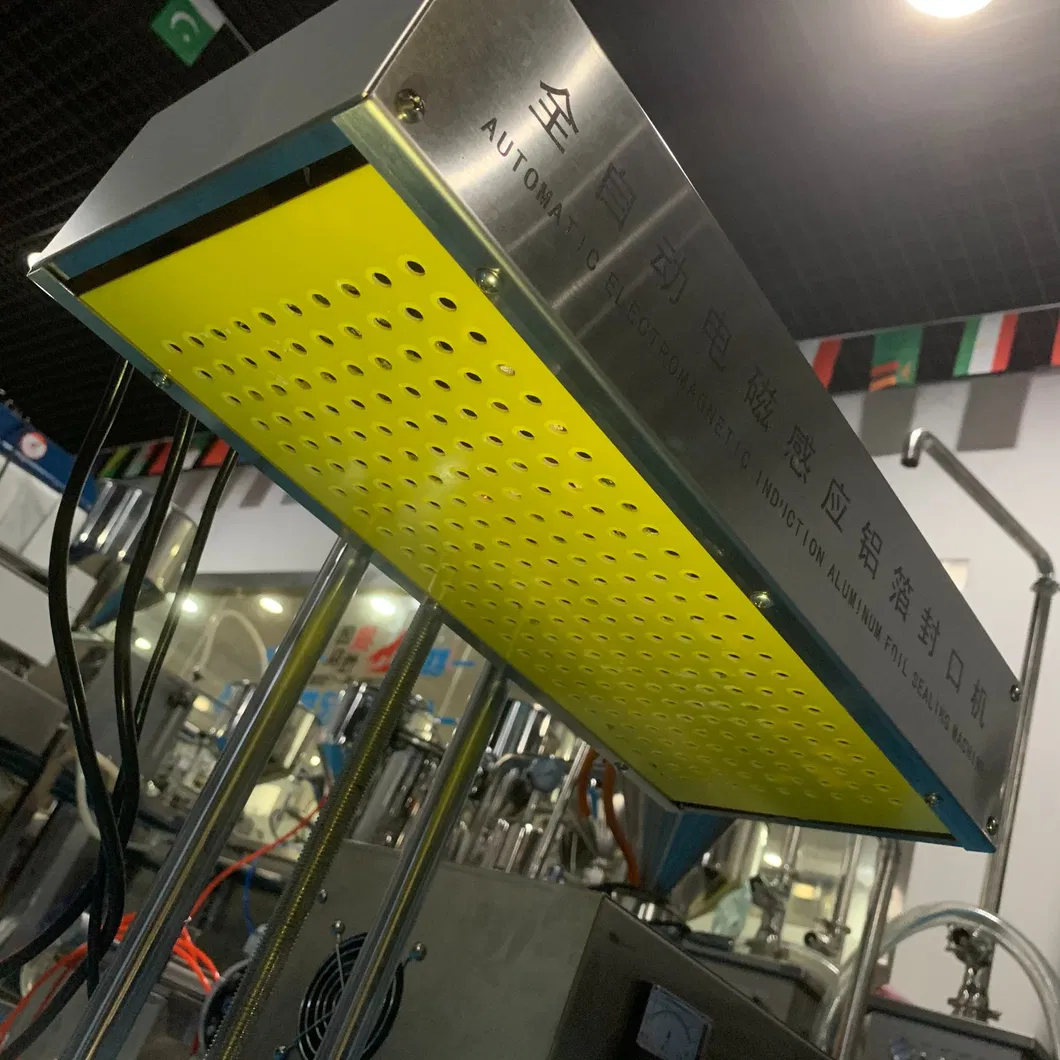

Working principle: The host transmits the super-audio current to the sensor head, and the aluminum foil is electromagnetically induced to generate super-audio current, which instantly reaches a high temperature, making the composite film adhere to the bottle mouth.
| No. | Item | Data |
|---|---|---|
| 1 | Voltage | AC 220V 50Hz |
| 2 | Sealing diameter | φ50-120mm / φ60-130mm |
| 3 | Bottle height | 10-350mm |
| 4 | Sealing speed | 0-260 bottles/min |
| 5 | Conveyor | 0-12.5m/min (adjustable) Variable frequency speed |
| 6 | Cooling way | Air-cooled |
| 7 | Machine Size | 900*500*560mm |
| 8 | Packing size | 960*540*450mm |
| 9 | Weight | 23.6KG |
