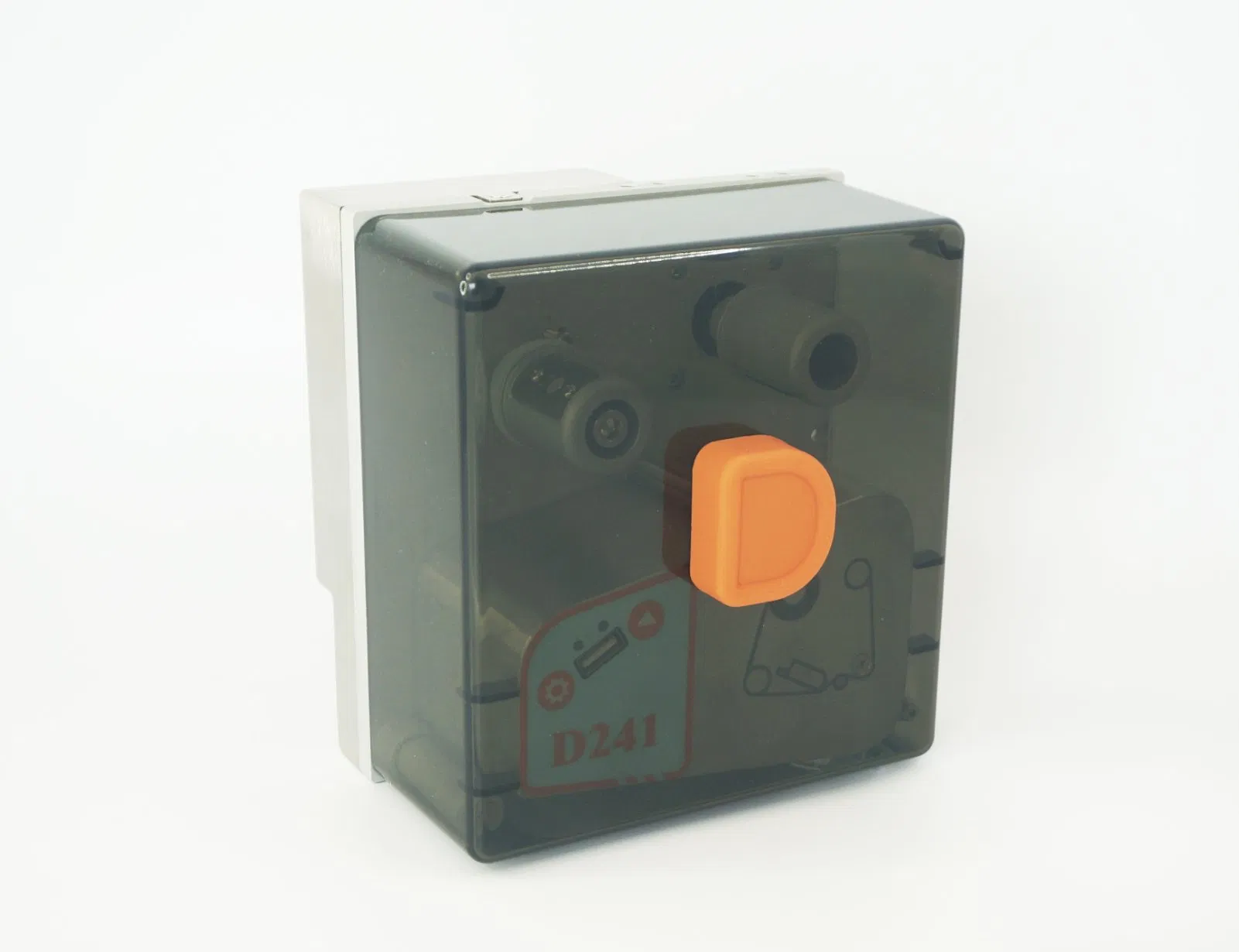

on-Line Tto Printing System - Easy Integration & Low Maintenance

After-sales Service:	After-Sales Service Available
Warranty:	1 Year
Type:	Thermal Transfer Overprinter

ℹ️ Basic Information

Model NO.

D241

Usage

Daily Industrial, Chemical Products, Drug, Food, Date Batch Number Qr Code Logo Picture

Automatic Grade

Automatic

Principle

Thermal Transfer Overprinter

Printhead

24mm

Resolution

203dpi (8 Dots/mm)

Speed

20mm/S-200mm/S

Supplies

Ink Ribbon

📝 Product Description

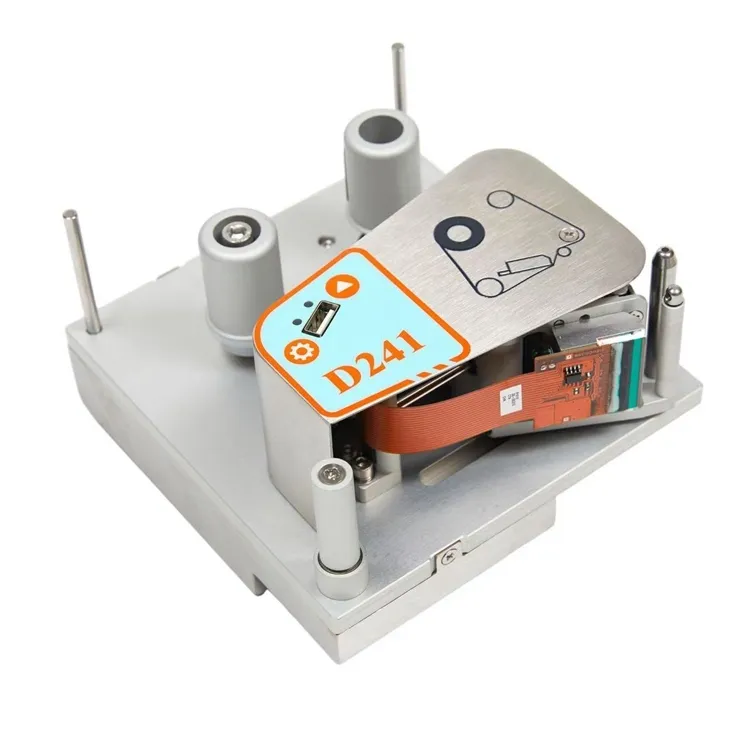

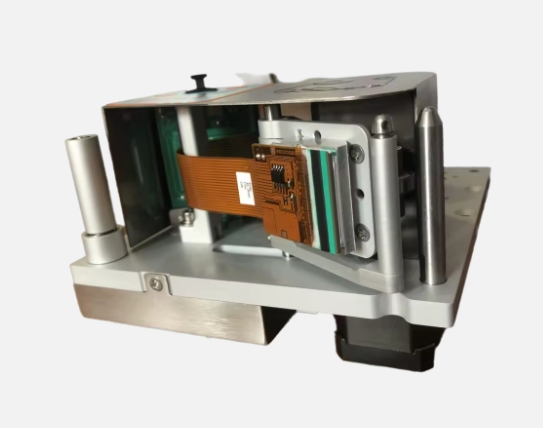

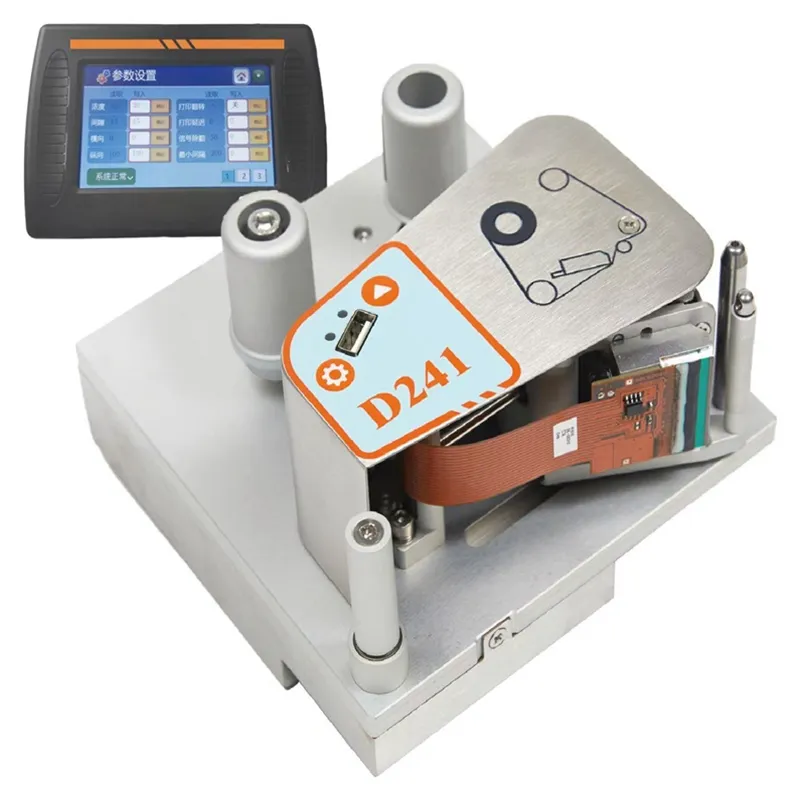

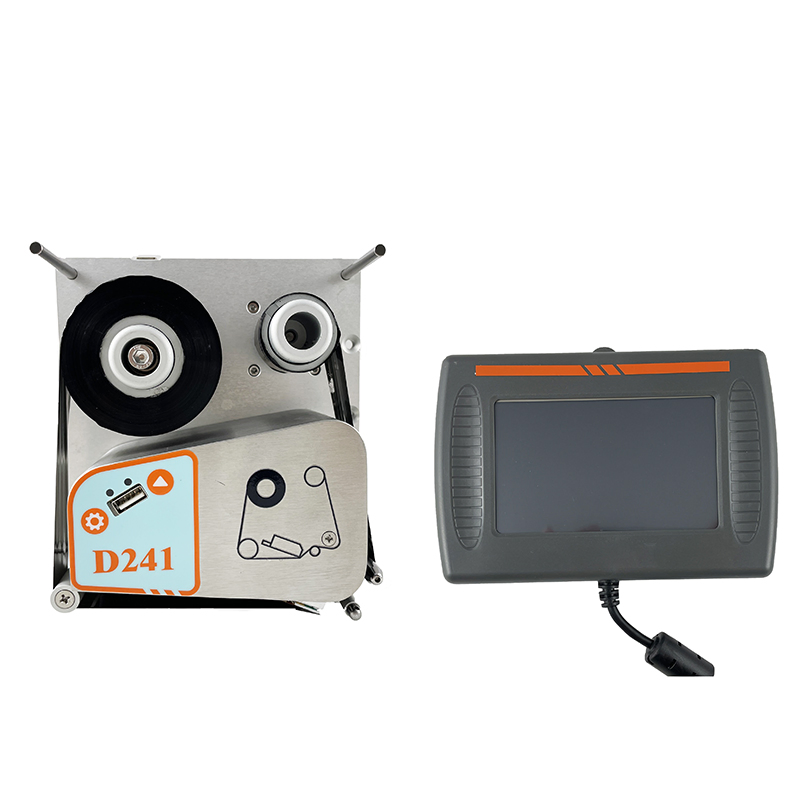

D241 is an enhanced smart TTO product designed for the leapfrog upgrade of traditional TTO. In addition to use it to easily complete the printing of production date, shelf life, series number, batch number, time (accurate to seconds), etc., you can also print any 1D code, 2D code, product traceability code, logo, graphics and other content as needed.

The D241's distinctive innovative structure and working principle have applied for many invention patents. It features a small structure, simple installation, and faster printing speed. The 200dpi high-resolution print head presents a clearer and more beautiful coding effect.

📊 Technical Specification

Printing head	24mm, 200dpi
Print area	Intermittent mode: 24mm × 15mm
Maximum ribbon length	350 meters
Ribbon width	25mm
Print speed	≤ 20m/min
Printing frequency	≤ 200 times/min (intermittent)
Specific function	Time, Date, Counter, Fixed/Variable text
Power Supply	AC90-264 V, 3A, 50/60Hz (75W)
Weight	2.1kg print body, 0.48kg control box

🛡️ Operating Principles & Safety

01Installation must be completed by trained staff within 3.0 meters of the power socket.

02Always disconnect the power supply before performing maintenance.

03Keep clear of the print head and rubber roller during operation to avoid sudden rotation risks.

04Do not operate without cover plates; ensure all safety labels are intact.

05Use anti-static consumables to ensure safety and printing applicability.

❓ Frequently Asked Questions

Q1: What types of content can the D241 TTO printer print?

A: The D241 can print production dates, shelf life, serial numbers, batch numbers, real-time clocks (accurate to seconds), 1D/2D codes, traceability codes, logos, and graphics.

Q2: What is the maximum printing speed and resolution?

A: The D241 offers a printing speed of up to 20m/min with a high-resolution 203dpi (8 dots/mm) print head for clear coding.

Q3: What industries is this printer suitable for?

A: It is widely used in the food, beverage, pharmaceutical, chemical, and daily industrial sectors for flexible packaging coding.

Q4: What are the main requirements for installation?

A: It should be installed by trained staff. The power socket should be within 3 meters, and the input voltage must match the equipment specifications to prevent damage.

Q5: What consumables does the D241 use?

A: This printer uses thermal transfer ink ribbons, with a standard width of 25mm and a maximum length of 350 meters per roll.

Q6: Can it be integrated into automated production lines?

A: Yes, it is an automatic grade on-line TTO system designed for easy integration into various packaging machines.
