Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
1 / 5
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine
Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine

Multi-Head Single-Room Feeding Carbonated Drink Production Line Glass Bottle Filling Machine

Customization: Available
After-sales Service: Overseas Installing Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
BDCGN 18-18-6
Type
Negative Pressure Filling
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Filling Principle
Negative Pressure
Structure
Rotary
Packaging
Bottle (Glass)
Control System
PLC+ Remote Operation System
Certification
CE, ISO, SGS
Capacity
2000bph-12000bph
Bottle Size
200ml to 2000ml
Material Specification
Stainless Steel 304/316
Product Overview

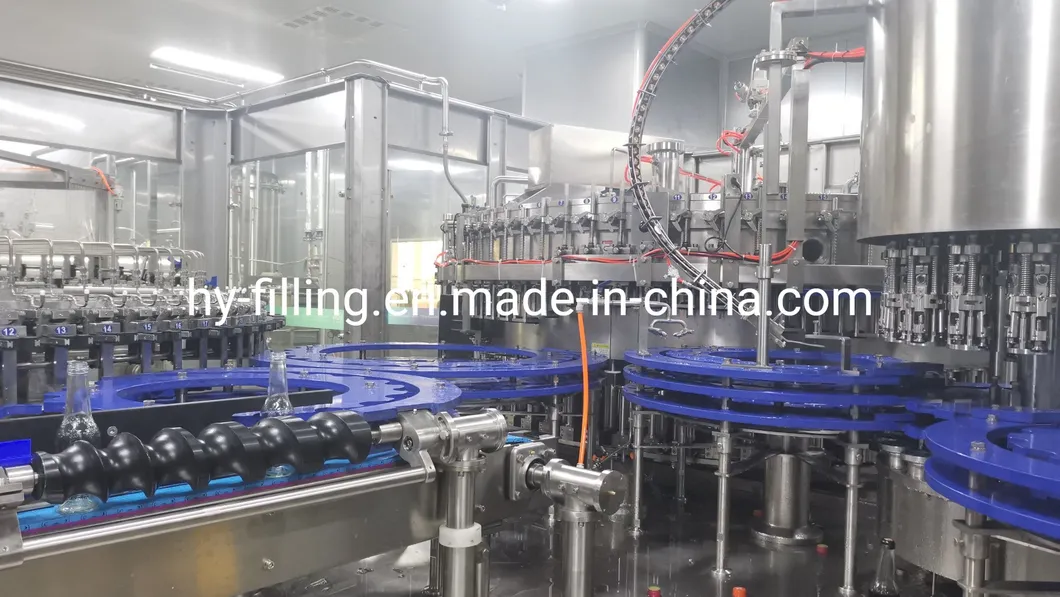

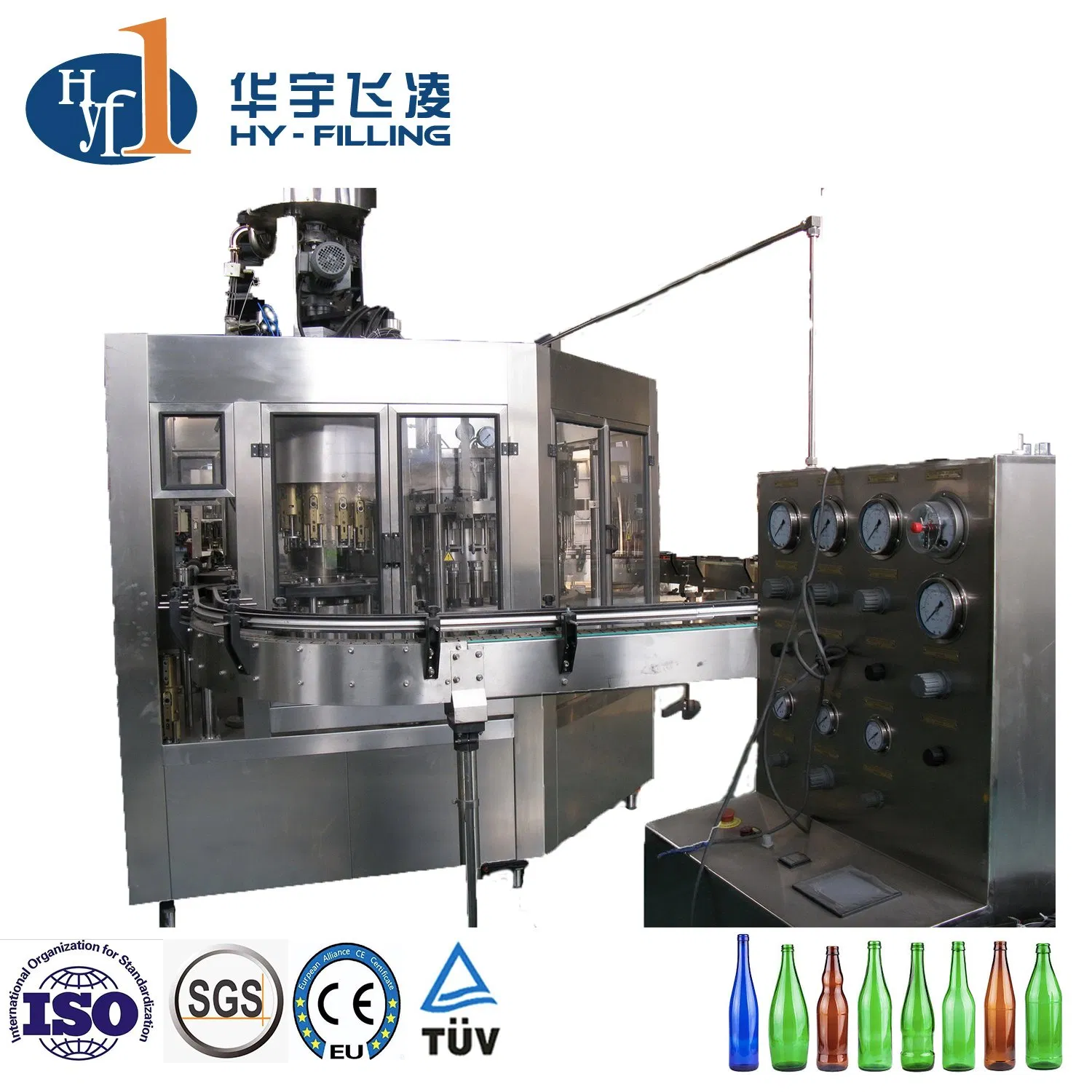

Carbonated Drink Filling Machine
It is special for glass bottled carbonated beverage filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technology, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.
Core Components & Details

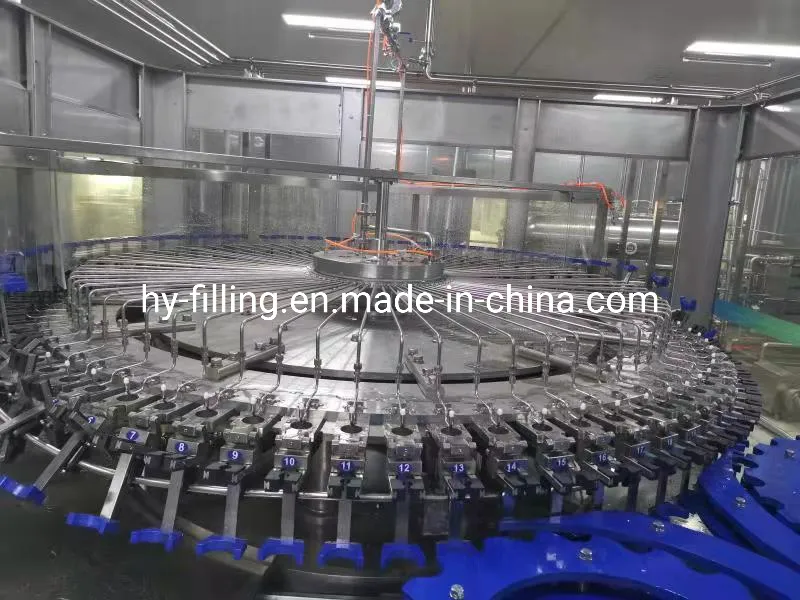

Rinsing Part

Rinsing Part

Rotary rinser: applicable for wine, beverage and water cleaning. The bottle neck is held upwards, and after aseptic water rinsing, the bottle neck goes up and is transported to the next process. The rinsing contact parts adopt stainless-steel material.

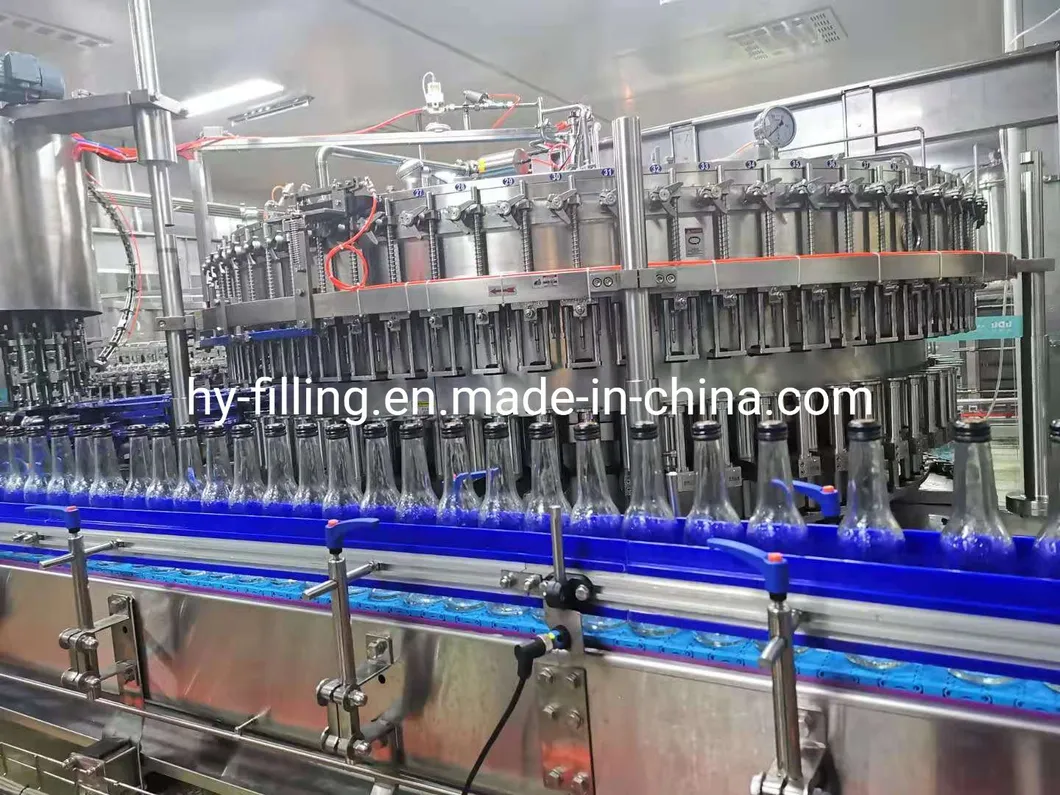

Filling Part

Filling Part

Utilizes the isobaric filling principle design. Adopt isobaric mechanical valves for fast filling with high precision filling levels, ensuring stable performance for carbonated liquids.

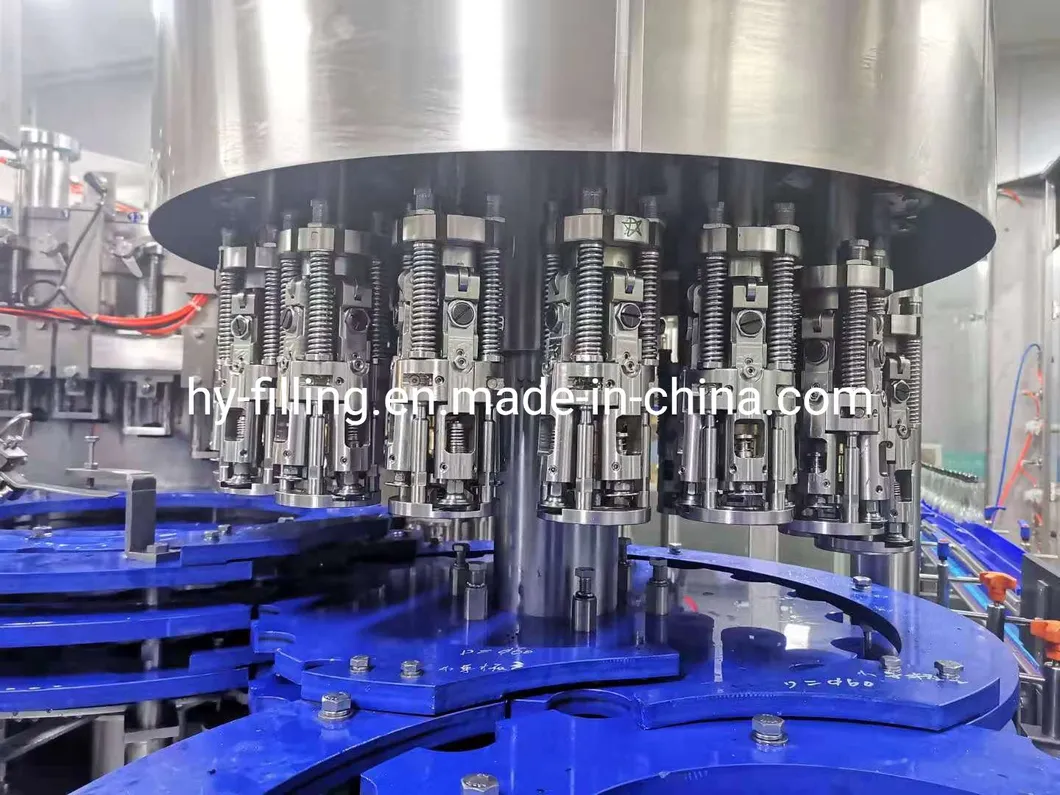

Capping Part

Capping Part

The capper rotates through a speed reducer. The cap quantity is controlled by a photoelectric switch, which ensures the capping effect. Suitable for various cap types including Crown and Ropp caps.

Technical Parameters
Parameter Item Specifications
Rated Capacity3000-36,000BPH (500ml)
Filling MethodCounter pressure Filling
Filling Pressure0.2-0.4Mpa
Filling Valve Speed110-150ml/s
Applicable BottleGlass Bottle (Dia 45-90mm, Height 120-310mm)
Applicable CapCrown Metal Cap, ROPP cap, easy-open cap etc.
Air Supply Pressure0.7 MPa
Rated Voltage380V
Complete Turnkey Solutions
  • Water Treatment System (Filtration)
  • Preparation/Processing Mixing System
  • Injection Molding Machines
  • Bottle Blowing Machine
  • Air Conveyor Systems
  • Filling Machine (Rinsing/Filling/Capping)
  • Cap Elevator & Transport
  • Blow Dryer (Water Removal)
  • Flat Conveyor Systems
  • Date Code Printer
  • Labeling Machine
  • Bottle Packing Machine
  • Palletizing Machine
Auxiliary Equipment

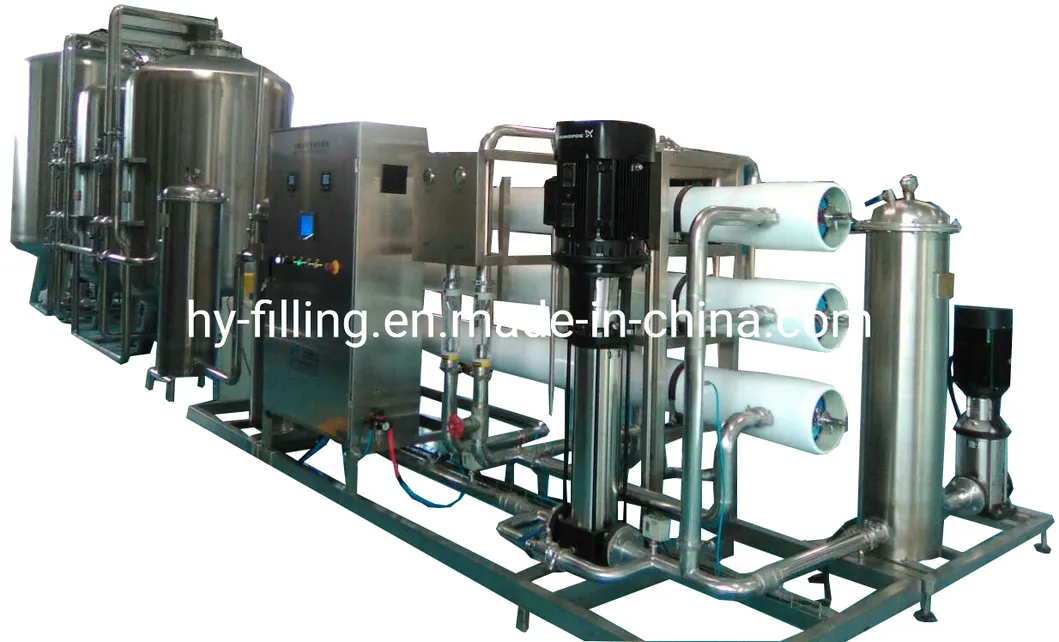

Water Treatment

1. Water Treatment

Equipped for pure and mineral water. Contains RO, natrium filter, ultra filter, activated carbon filter, and ozone processors.

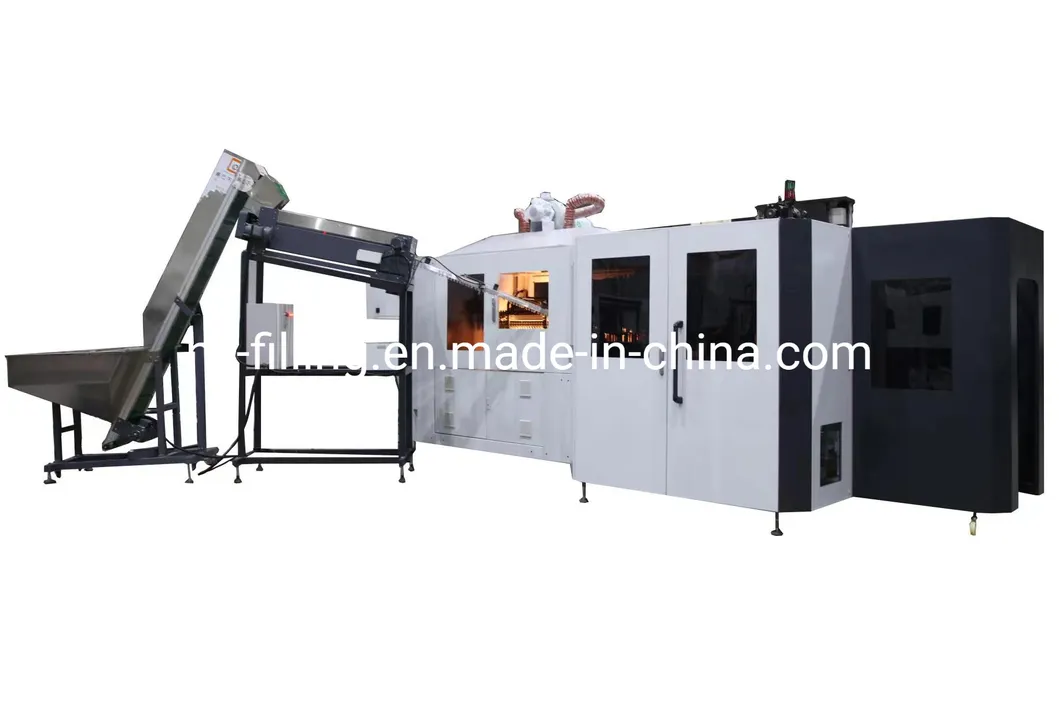

Bottle Blowing

2. Bottle Blowing Machine

Available in semi-automatic and full automatic models. Suitable for PET bottles ranging from 500ml to 2L.

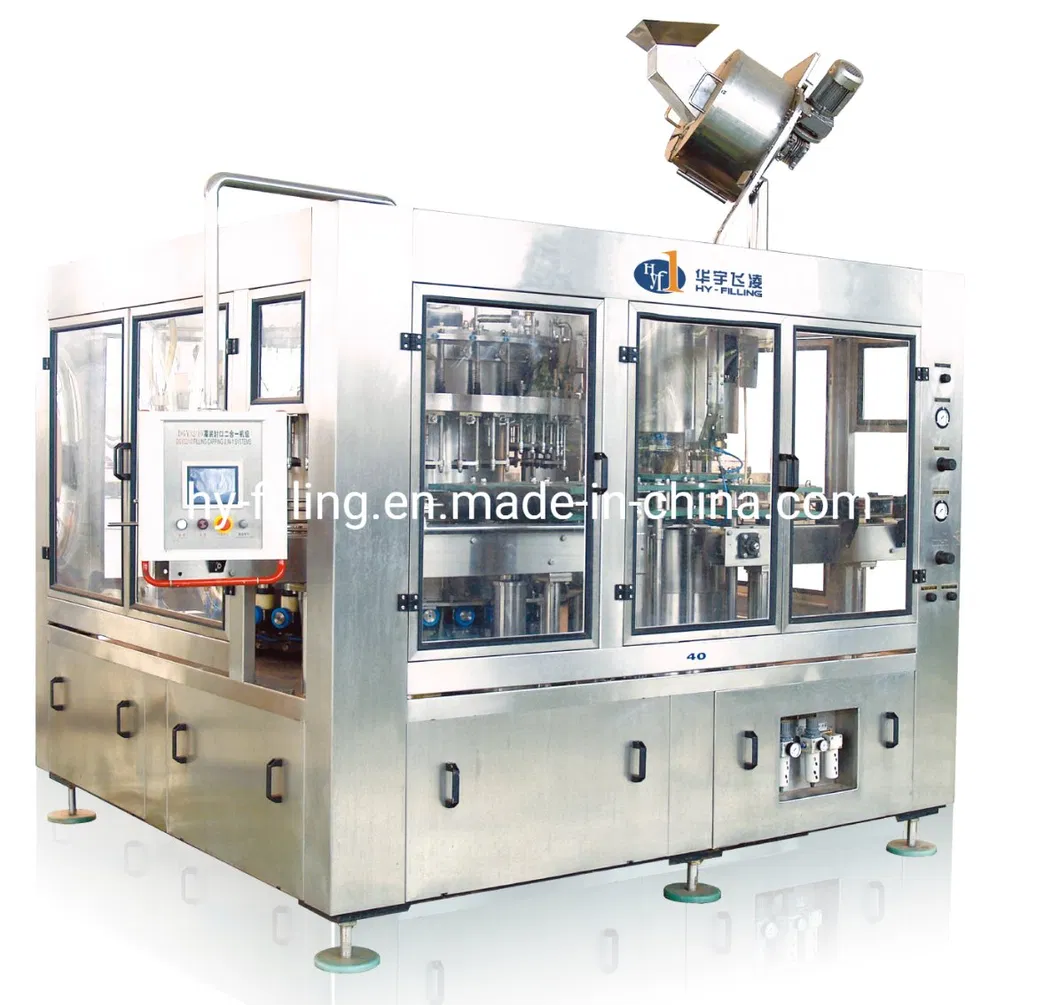

Filling System

3. Filling System

Combined rinsing, filling, and capping unit. Features stable characteristics, advanced technology, and complete functionality.

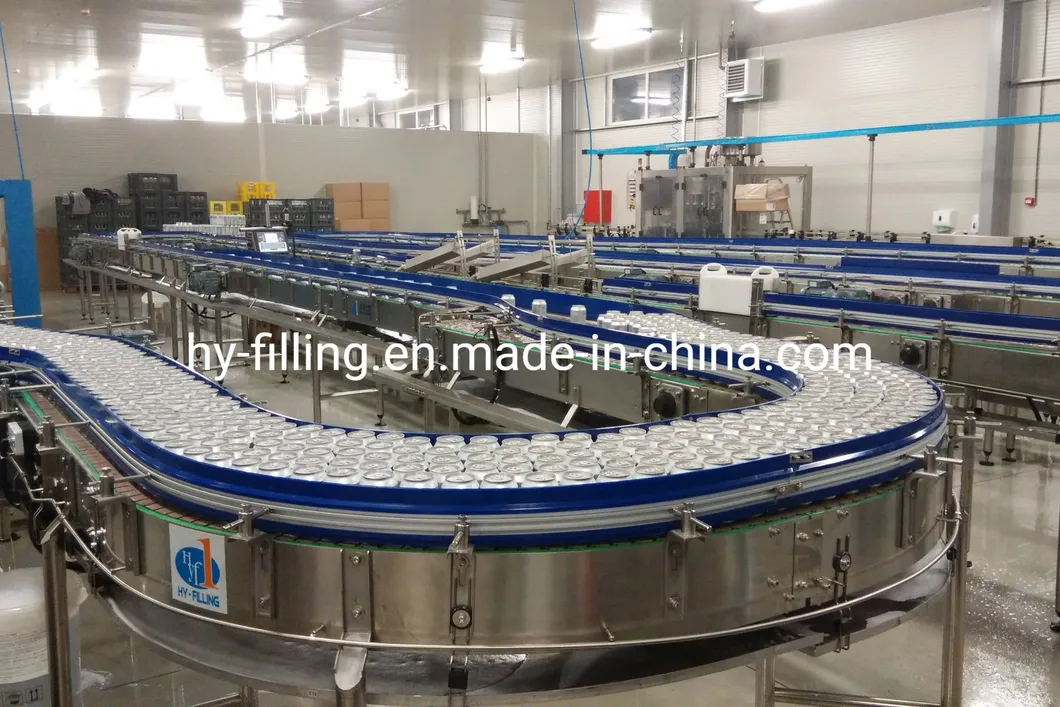

Conveyor System

4. Conveyor System

Modular design with easily interchangeable components. Compact structure with low noise and high flexibility.

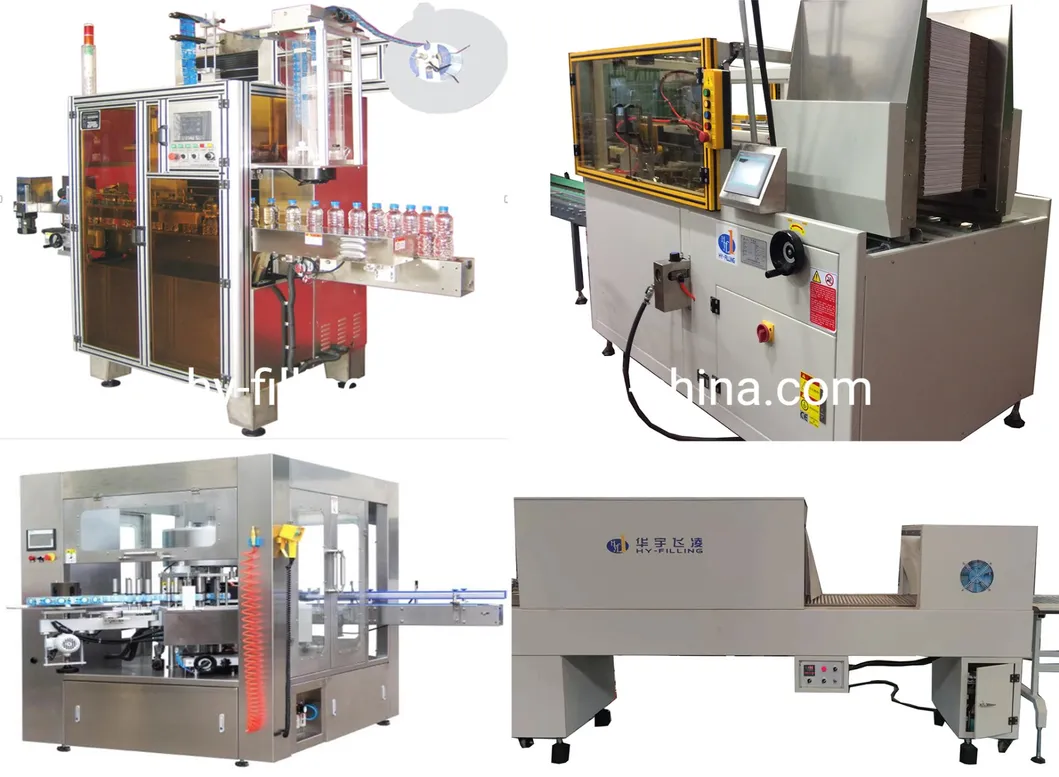

Packaging System

5. Packaging System

Customized solutions including sleeve labeling, film shrink-wrapping, and palletizing machines.

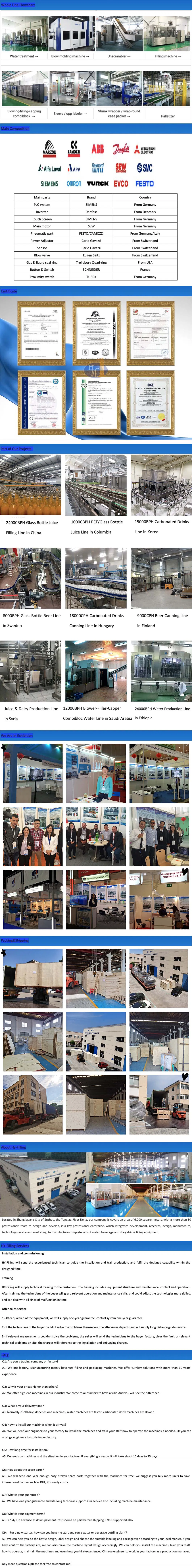

Production Line Infographic
Frequently Asked Questions
What types of beverages can this machine handle?
This machine is specifically designed for carbonated beverages, including sparkling water, soft drinks, and carbonated alcoholic drinks in glass bottles.
Does the machine support different bottle sizes?
Yes, it is compatible with glass bottles ranging from 200ml to 2000ml in volume, with diameters between 45-90mm.
What is the filling principle used?
It uses the isobaric (counter-pressure) filling principle, which is essential for maintaining CO2 levels in carbonated drinks during the filling process.
What materials are used in construction?
All contact parts and outer covers are made from high-quality Stainless Steel 304 or 316 to ensure hygiene and durability.
Is the operation fully automated?
Yes, the machine is fully automatic and controlled by a high-end PLC system (Siemens/Mitsubishi) with a remote operation interface.
What is the production capacity?
The rated capacity ranges from 2,000 to 12,000 bottles per hour (BPH), depending on the specific model and bottle size.
