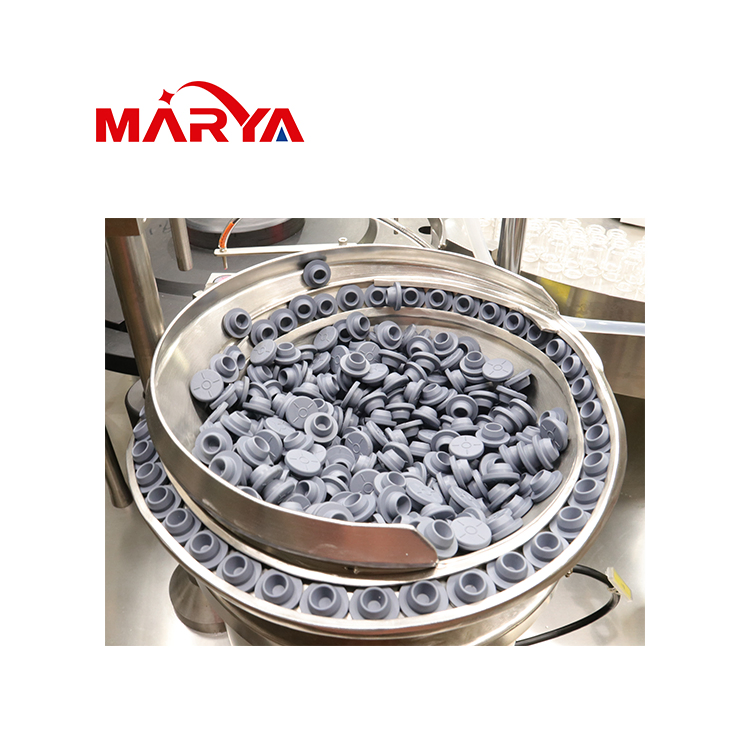

Marya Pharmaceutical High-Speed Vial Filling and Stoppering Equipment Manufacturer

Customization: Available
Certification: CE, GMP, ISO
Condition: New

Product Description

📋

Basic Specifications

Voltage
380V
Warranty
1 Year
Applicable Bottle
1-30ml Glass Vial Bottle
Filling Capacity
100-600bpm
Process Type
Washing, Sterilizing, Filling, Stoppering, Capping
Pump Type
Ceramic, Peristaltic, Metal Pump
Precision
High Precision
HS Code
8422303090
📦

Packaging & Delivery

Package Size
350.00cm * 150.00cm * 180.00cm
Gross Weight
3500.000kg
🛠️

Product Description

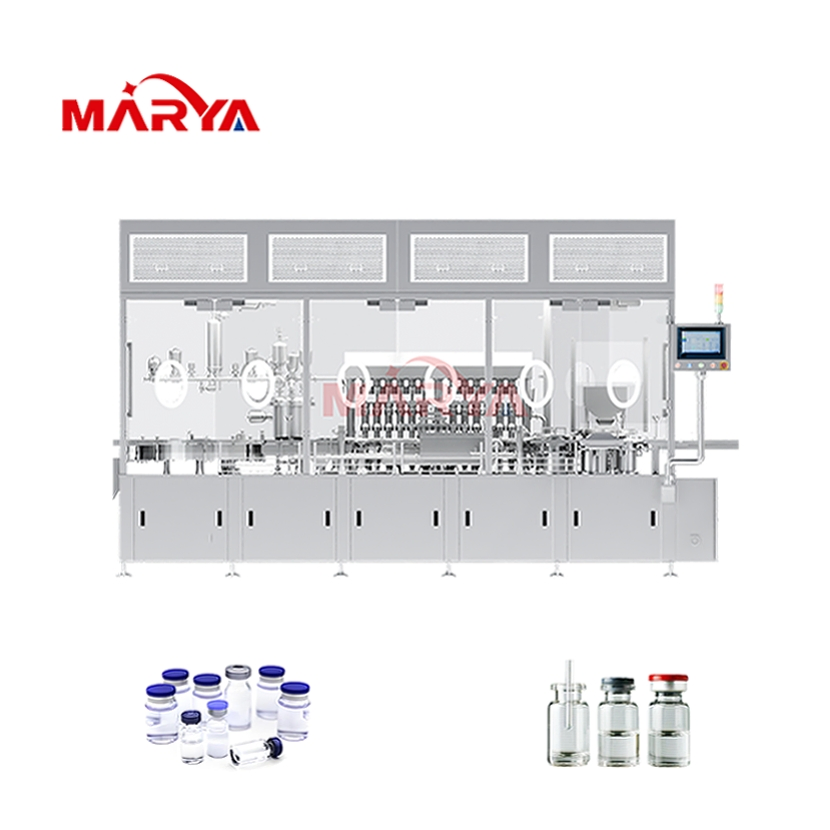

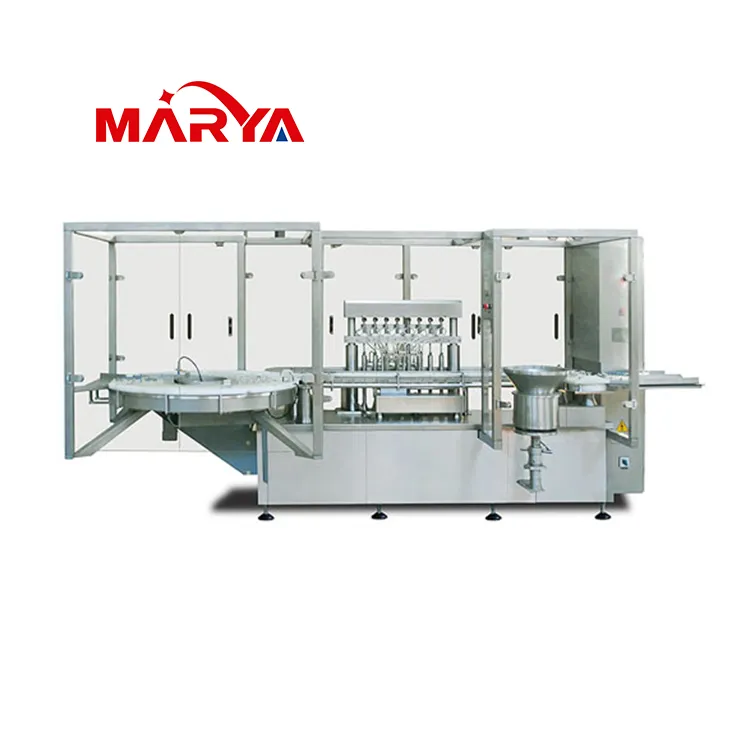

Pharmaceutical High-Speed Vial Filling and Stoppering Equipment

The vial filling and stoppering equipment is a highly efficient and automated device used to fill and seal vials with liquids or semi-solids, such as vaccines, medicines, and other injectable drugs. These machines are designed to increase the speed and accuracy of vial filling and sealing, widely used in the pharmaceutical, biotech, and cosmetic industries.

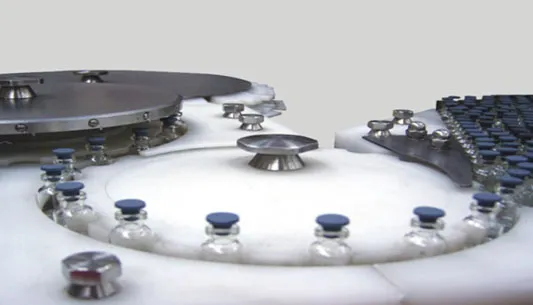

Vial Filling Machine

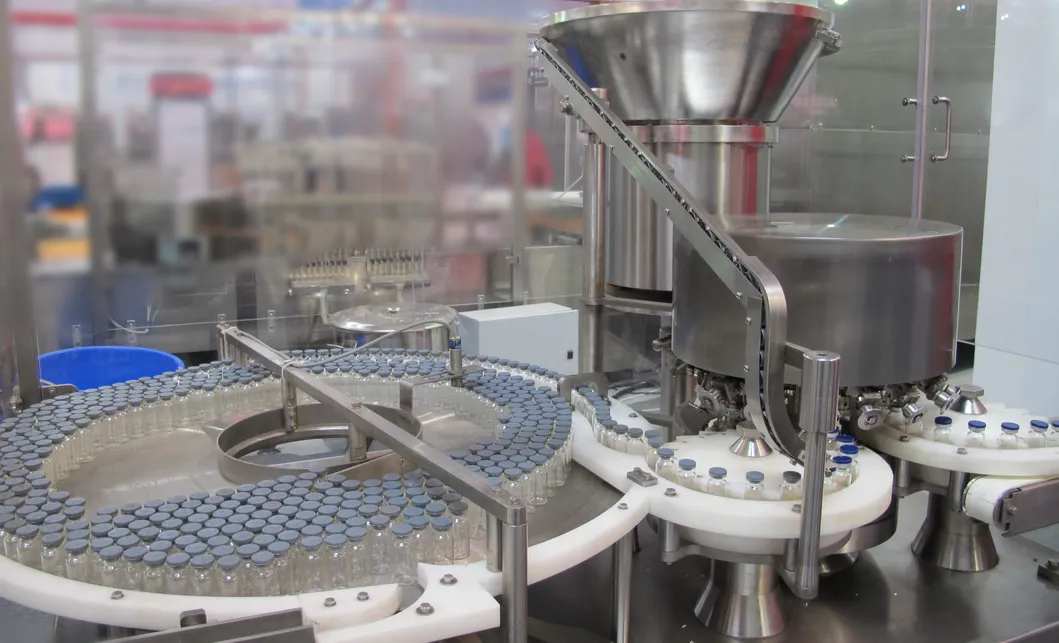

Production Line

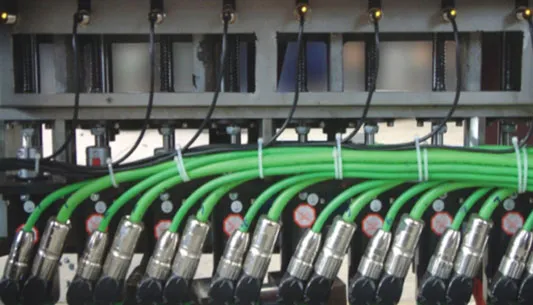

Filling Equipment
Technical Parameters
Model KGF4 KGF6 KGF8 KGF10 KGF12 KGF20
Applicable Specs 2~30ml vial bottles
Filling heads 4 6 8 10 12 20
Capacity 50-100bts/min 80-150bts/min 100-200bts/min 150-300bts/min 200-400bts/min 250-500bts/min
Stoppling Rate >=99%
Air Cleanliness 100 grade
Power Supply 380V 50Hz
Performance Features
  • Meets GMP requirements, and cleaning effect meets Pharmacopoeia standards.
  • Supports straight-line or wall-to-wall L-shaped layout to ensure aseptic level.
  • Production Capacity: 1000-36000 BPH.
  • Filling Accuracy: ≤ ±1% (according to drug characteristics).
  • Multiple pump choices: glass, metal, peristaltic, or ceramic pumps.
  • Stable performance with high degree of automation and few operators required.
  • Optional real-time display and printing system of sterilization temperature.
  • Optional open-RABS isolation protection system and class 100 laminar flow hood.
  • Optional high-performance no-bottle-no-filling and no-bottle-no-capping functions.
  • Equipped with PLC automatic control and high-precision colored touch screen.
Equipment Detail
Machine Structure
Process View
Internal Components
Technical Drawing
Control Panel
Module Detail
Finished Product
Packaging View
Workflow Detail
Component Assembly
Overall System Layout

Frequently Asked Questions

What vial sizes are compatible with this equipment?
The equipment is designed for vial sizes ranging from 1ml to 30ml as standard, and can be customized to handle up to 100ml vials based on user requirements.
What is the typical production capacity?
The production capacity ranges from 1,000 to 36,000 BPH, depending on the model and the number of filling heads selected (available from 1 to 20 heads).
Does the machine meet international pharmaceutical standards?
Yes, the equipment meets new GMP requirements and the cleaning effects comply with the latest Pharmacopoeia standards.
What types of filling pumps can be used?
Users can choose from various filling pumps, including glass pumps, metal pumps, peristaltic pumps, and ceramic pumps, depending on the drug characteristics.
How is the sterile environment maintained during operation?
The system supports an aseptic environment through wall-to-wall L-shaped layouts, class 100 laminar flow protection, and optional open-RABS isolation systems.
Is the equipment automated for error detection?
Yes, it features advanced monitoring for no-bottle-no-filling, no-bottle-no-stoppering, and no-bottle-no-capping to ensure operational efficiency and safety.
