| Item | Content |
|---|---|
| Power supply | Single Phase 220V 50Hz |
| Power | 30W |
| Max. Weighing | 120kg |
| Min. Weighing | 1kg |
| Graduation value | 50g |
| Accuracy level | Medium accuracy |
| Operating temperature | -40ºC ~ 50ºC |
| Operating humidity | Relative humidity ≤ 90% |
| Work Pressure | 2.4MPa |
| Scale table size | 420mm × 530mm |
| Explosion proof signs | Exdmeib AT3 |

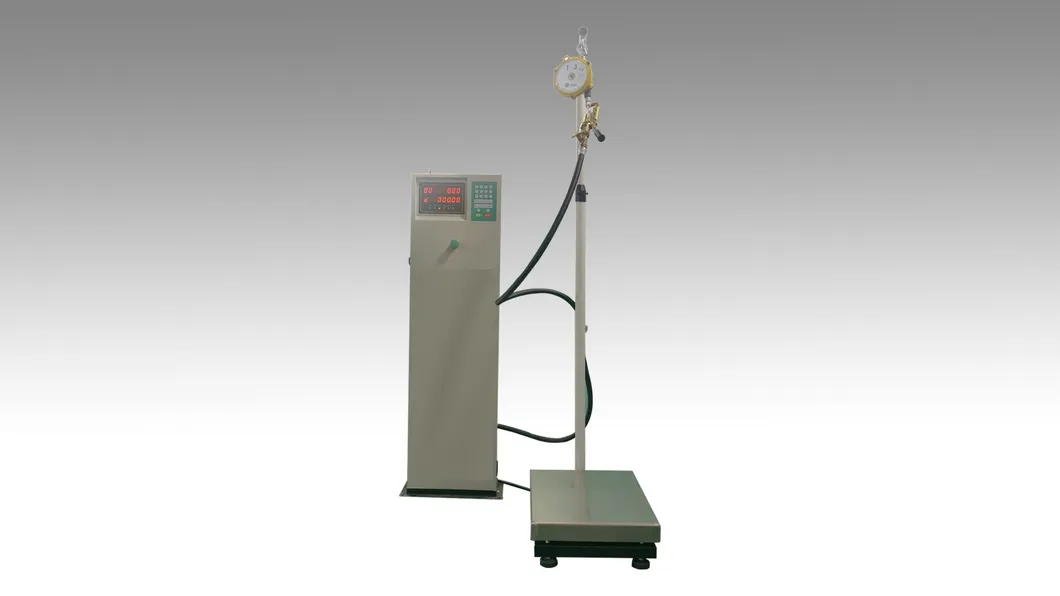

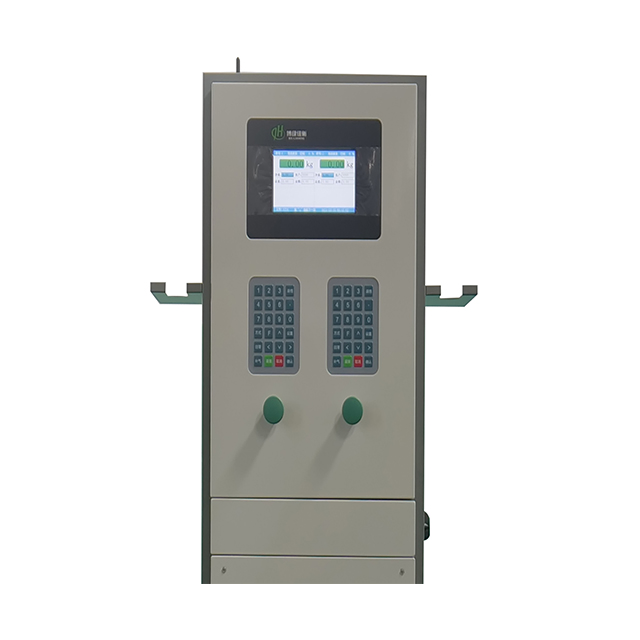

This product consists of a box, a weighing platform, a hanger, a DKX1-12 power control box, a controller, a keyboard, a display, an explosion-proof solenoid valve and a filling gun. The DKX1-12 power control box is explosion-proof and intrinsically safe (Exd (ib) AT3). The controller, keyboard, and display are intrinsically safe (Exib AT3); the 8341 solenoid valve is a cast-in and increased safety type (Exme T4).
| NO. | Tare lower limit | Filling limit | Total weight | Net weight |
|---|---|---|---|---|
| 1 | 3 | 6 | 5 | 2 |
| 2 | 6.5 | 13 | 11.5 | 5 |
| 3 | 13.5 | 34 | 28.5 | 15 |
| 4 | 40 | 110 | 90 | 50 |
