Selltrion Packaging
1 / 5

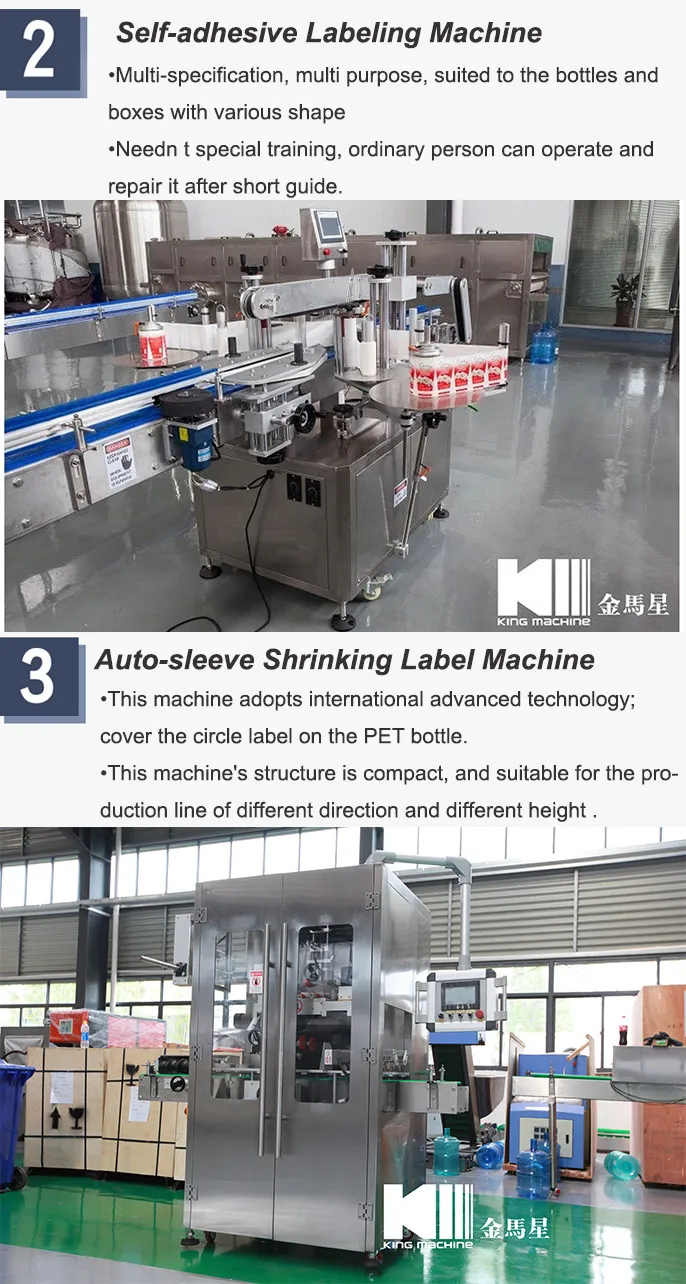

| Specification | Automatic Self-adhesive Labeling Machine. |
| Speed | 50~180 bottles/minutes (based on bottle and label spec) |
| Packaging Details | Label size: L: 20-150mm W: 10-250mm Bottle Size: D: 10-150mm H: 30-350mm |
| Power | 500W 220V 1Ph 50-60Hz |
| Overall Size | 1800*1000*1500 mm |
| Weight | 420 Kg |
| Label Position | Single label / Double sides / Front back neck three sides |

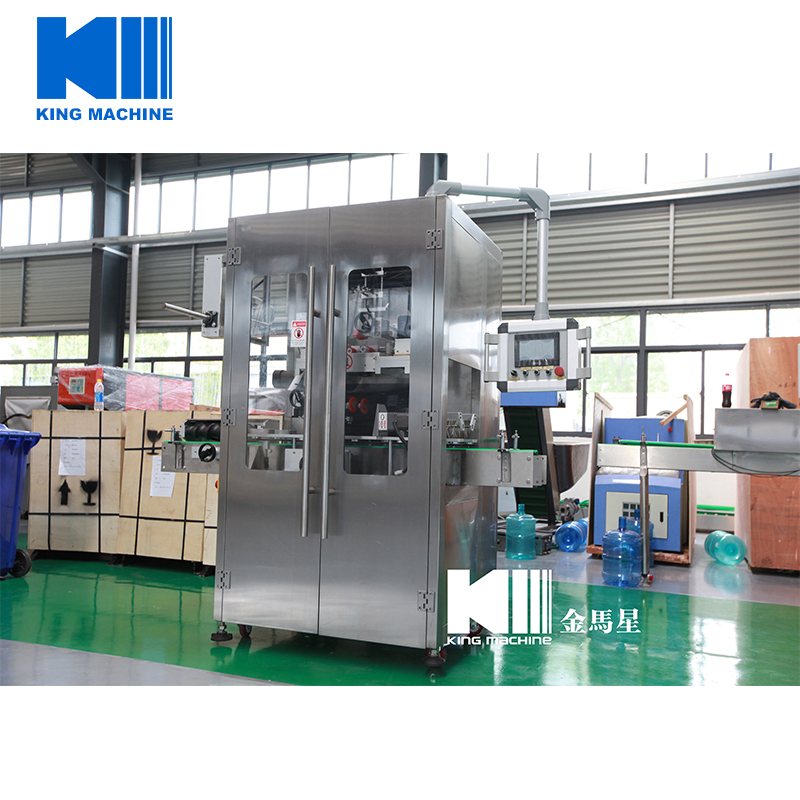

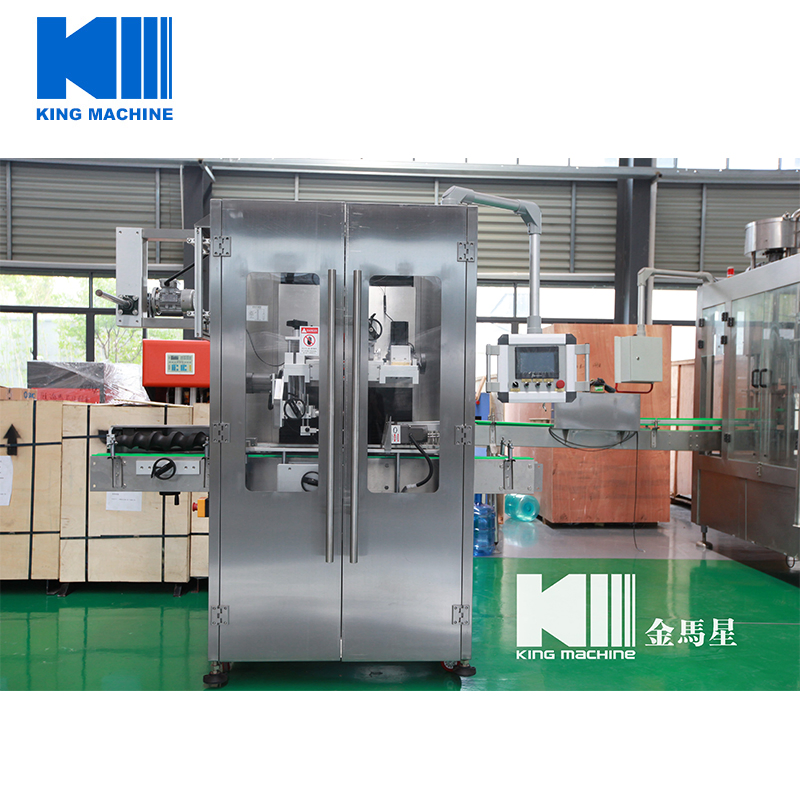

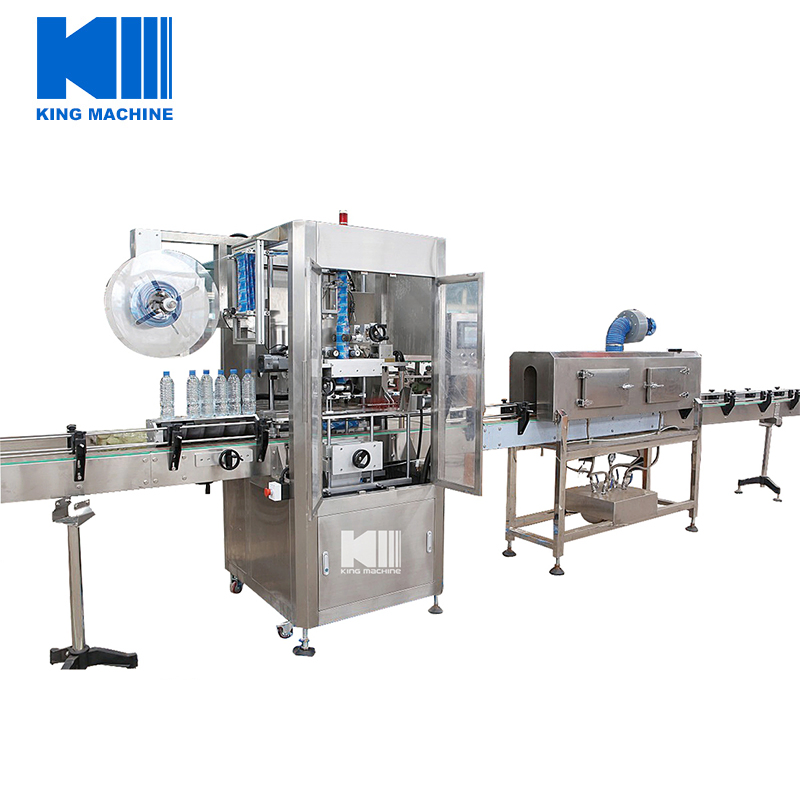

| Model | SPC-150B | SPC-250B |
|---|---|---|
| Capacity (500ml) | 3000BPH-6000BPH | 6000BPH-10000BPH |
| Label size | Diameter 50-110mm | Diameter 30-125mm |
| Bottle heights | 50-200mm | |
| Bottle diameter | Diameter 40-120mm | Diameter 28-125mm |
| Label sleeve length | 40-150mm | 30-250mm |
| Label material | PVC / PET | |
| Electrical power | 2.5KW (380V 50HZ) | |
| Range of output capacity | 3000-12000 b/h |
| Label Width | 50-130 mm |
| Label Box Capacity | 7000 pieces |
| Main Motor Power | 3 KW |
| Air Pressure/Flow | 0.35-0.5 Mpa / 0.9 m3/min |
| Weight/Dimension | 2000 kg / 1800 * 1400 * 2000 mm |
We provide comprehensive equipment layout planning and arrange seasoned technicians for on-site installation, debugging, and test production to ensure the line reaches rated capacity.
Full technology training including equipment structure, maintenance, and control operations. We ensure your technicians can master the process and handle common failures independently.
All equipment is guaranteed to be new, made of high-grade materials, and designed to meet exact contract specifications. One-year storage stability without aseptic additives is promised.
12-month quality guarantee with free wearing parts. We offer life-long technical support via phone guidance or on-site technician arrangement if problems persist.
