⚙️ Basic Information
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Atmospheric Pressure
Applicable Industries
Manufacturing Plant, Pharmaceutical
Filling Volume
50 - 5000 Ml
📋 Product Description

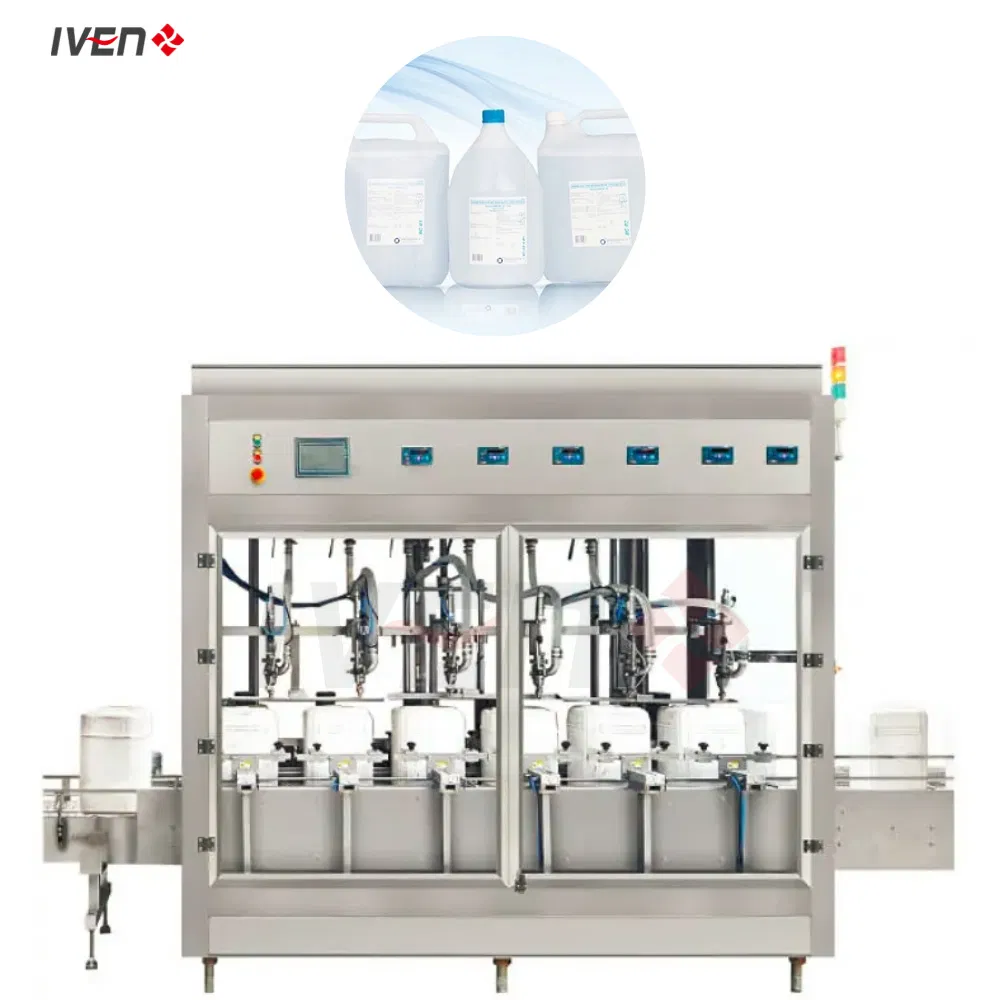

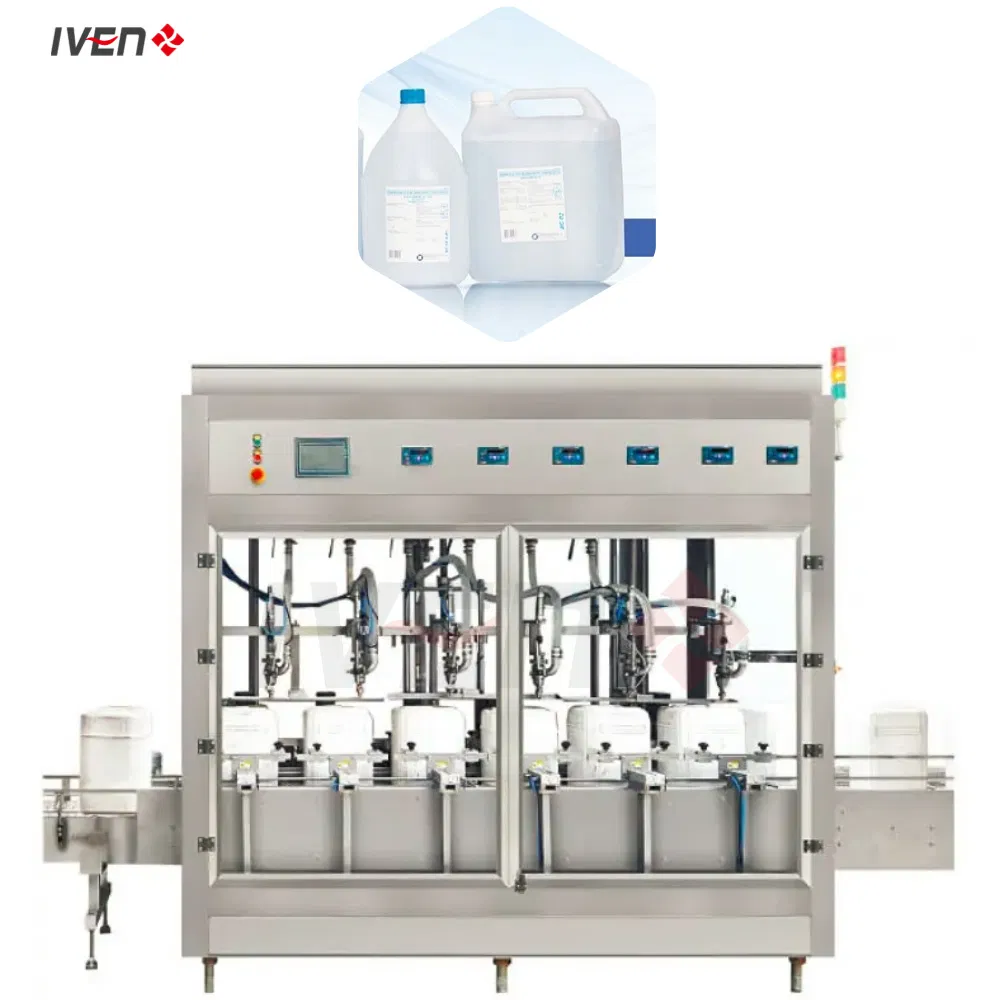

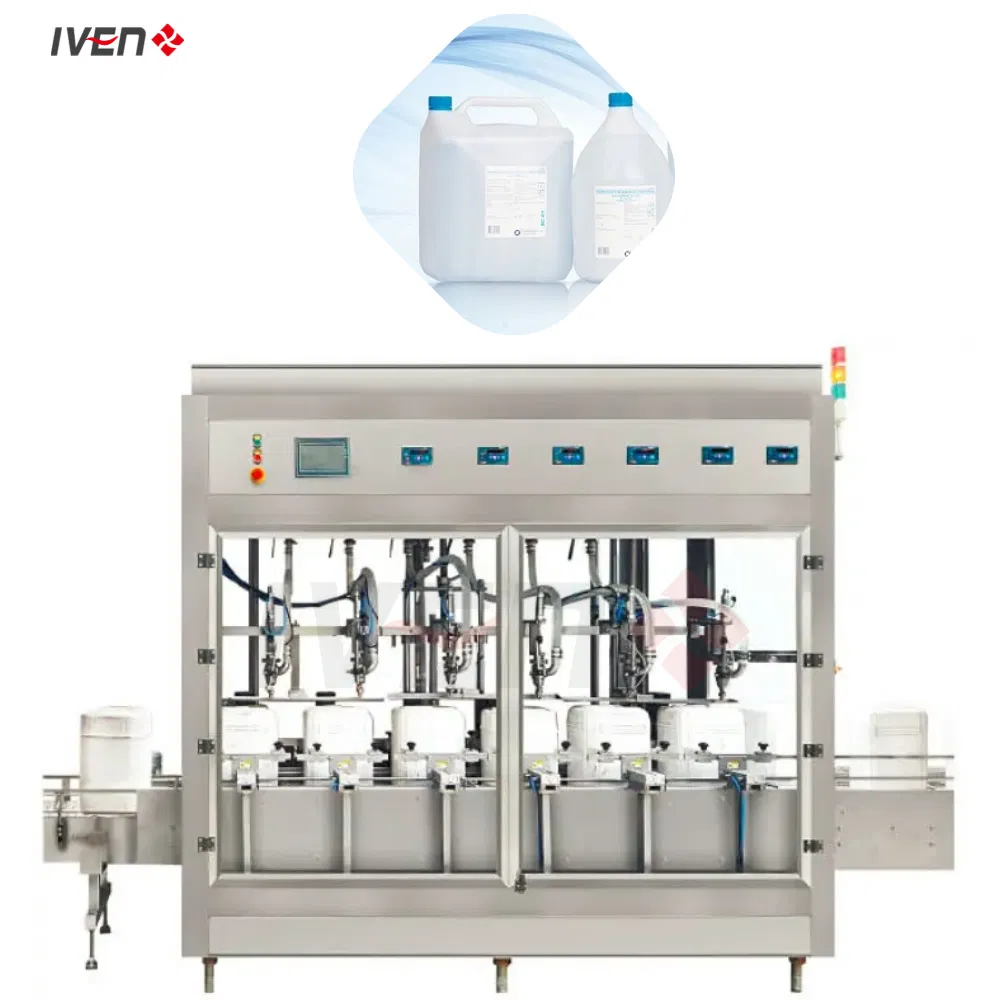

Hemodialysis Solution Production Line with CE and ISO
The Hemodialysis filling line adopts advanced German technology and is specially designed for dialysate filling. The part of this machine can be filled with a peristaltic pump or a 316L stainless steel syringe pump. It is controlled by PLC, with high filling accuracy and convenient adjustment of the filling range. This machine has reasonable design, stable and reliable operation, easy operation and maintenance, and fully meets GMP requirements.
🚀 Key Features & Application
- Servo drive and stable during high-speed movement, the positioning is accurate, durable, and the maintenance cost is low.
- High production capacity: range from 4000-15000 bottles per hour.

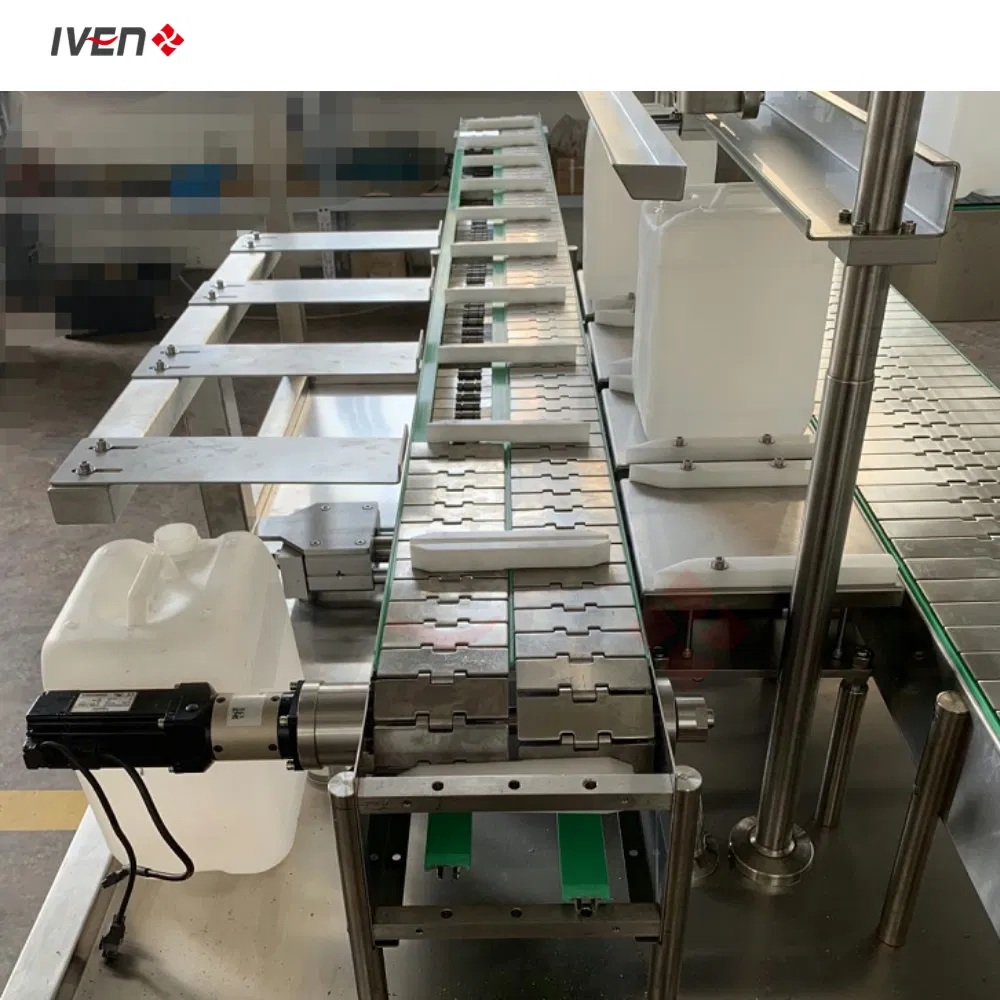

- High precision: adopt weigh filling system (METTLER TOLEDO weighing sensor), increase the filling precision. Special small ball conveying, make the bottle running stably on conveyor.
- Fast-slow filling valve: guarantee fast filling in earlier stage to save filling time, and slow filling in last stage to increase the filling precision.
- Whole machine is controlled intelligently, bottle sensor reading, no bottle no filling, crash proof design for each container.
- Machine is fully covered by SS304, tempered glass door, anti-corrosive, and easy clean. Pipeline supports CIP/SIP.
📊 Technical Parameters
| Item |
CPS 4 |
CPS 6 |
CPS 8 |
CPS 10 |
CPS 12 |
| Production capacity |
500ml |
4000 BPH |
6000 BPH |
8000 BPH |
10000 BPH |
12000 BPH |
| Max bottle height |
mm |
240 |
240 |
240 |
240 |
230 |
| Compressed air |
8-10bar |
3 |
3 |
4.2 |
4.2 |
4.5 |
| Chilled Water |
m³/h |
4 |
4 |
7.87 |
7.87 |
8-10 |
| Weight |
T |
7.5 |
11 |
13.5 |
14 |
15 |

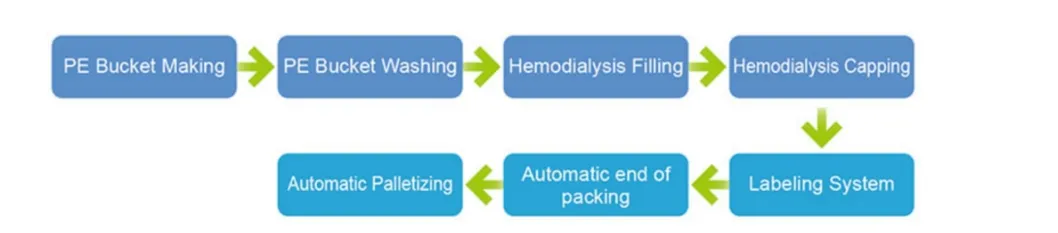

🏭 Production Facility & Process
❓ Frequently Asked Questions
Q1: What is the maximum production capacity of this line?
The production capacity ranges from 4,000 to 12,000 bottles per hour (BPH) depending on the machine model selected (CPS 4 to CPS 12).
Q2: Does the machine meet pharmaceutical safety standards?
Yes, the machine is CE and ISO certified, fully covered by SS304 stainless steel, and meets all GMP requirements for pharmaceutical production.
Q3: How is the filling accuracy ensured?
The system utilizes a METTLER TOLEDO weighing sensor and a fast-slow filling valve system to achieve high filling accuracy with a tolerance of ±2%.
Q4: What types of pumps can be used for filling?
The filling line is designed to be flexible and can be equipped with either a peristaltic pump or a 316L stainless steel syringe pump.
Q5: Can the pipeline be sanitized easily?
Absolutely. The machine pipeline is designed to support both CIP (Clean-in-Place) and SIP (Sterilization-in-Place) processes.
Q6: What materials are compatible with the packaging?

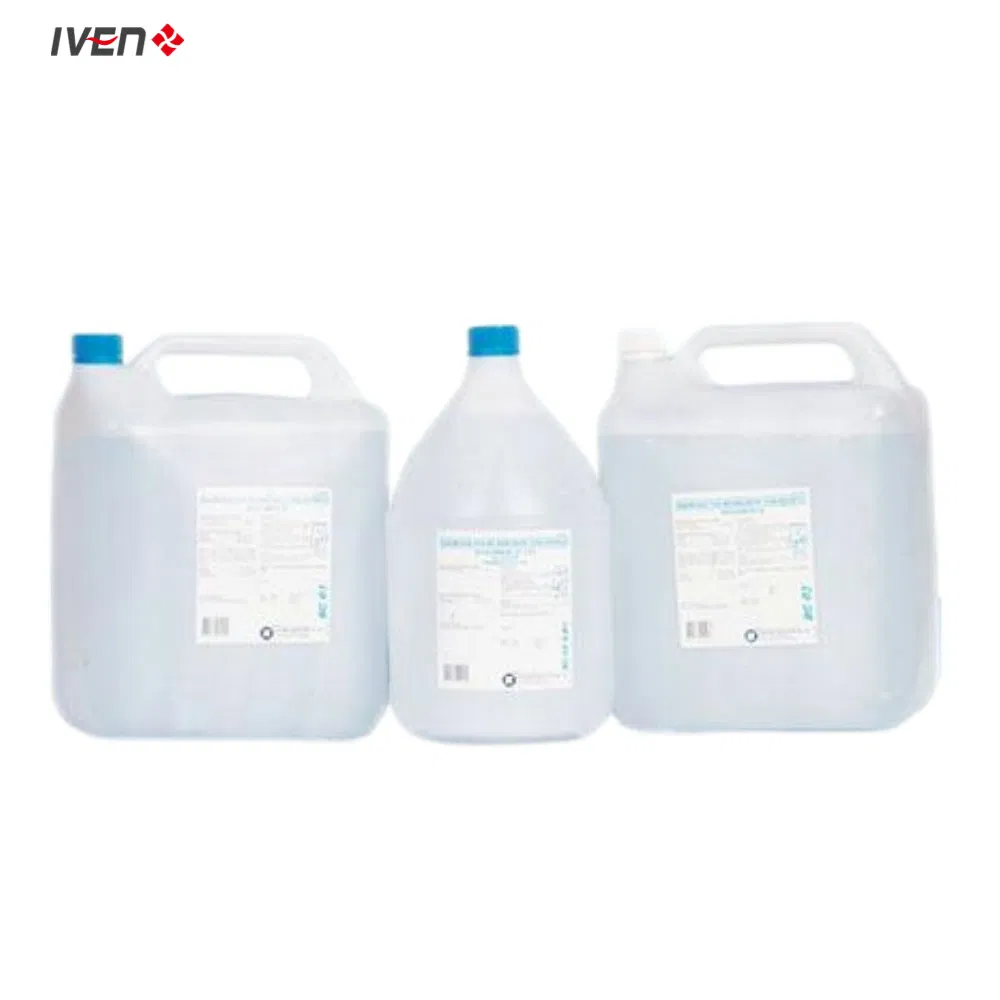

This rotary filling line is primarily designed for plastic bottle containers with volumes ranging from 50ml up to 5000ml.
