Automatic Pet/PP/HDPE Round Bottle Square Bottle Glass Bottle Aluminum Can PVC Pet OPS Sleeve Shrink Labeling Machine with Heat Tunnel

Customization: Available
After-sales Service: Provided
Warranty: Two Years

Product Description

📊 Basic Information
Model NO.
TB series
Automatic Grade
Automatic
Type
Sleeve Labeling Machine
Driven Type
Electric
Core Components
PLC, Pressure Vessel, Gear, Motor
Label Material
PVC, PET, OPS
Label Thickness
0.03-0.13mm
Voltage
220V/380V
Control
PLC Touch Screen
Transport Package
Wooden Case
Origin
Jiangsu
Capacity
100PCS/Year
📦 Packaging & Delivery
Package Size
600.00cm * 300.00cm * 550.00cm
Gross Weight
5000.000kg
⚙️ Product Description

Automatic PET/PP/HDPE Round/Square/Glass Bottle & Aluminum Can PVC/PET/OPS Sleeve Shrink Labeling Machine with Heat Tunnel

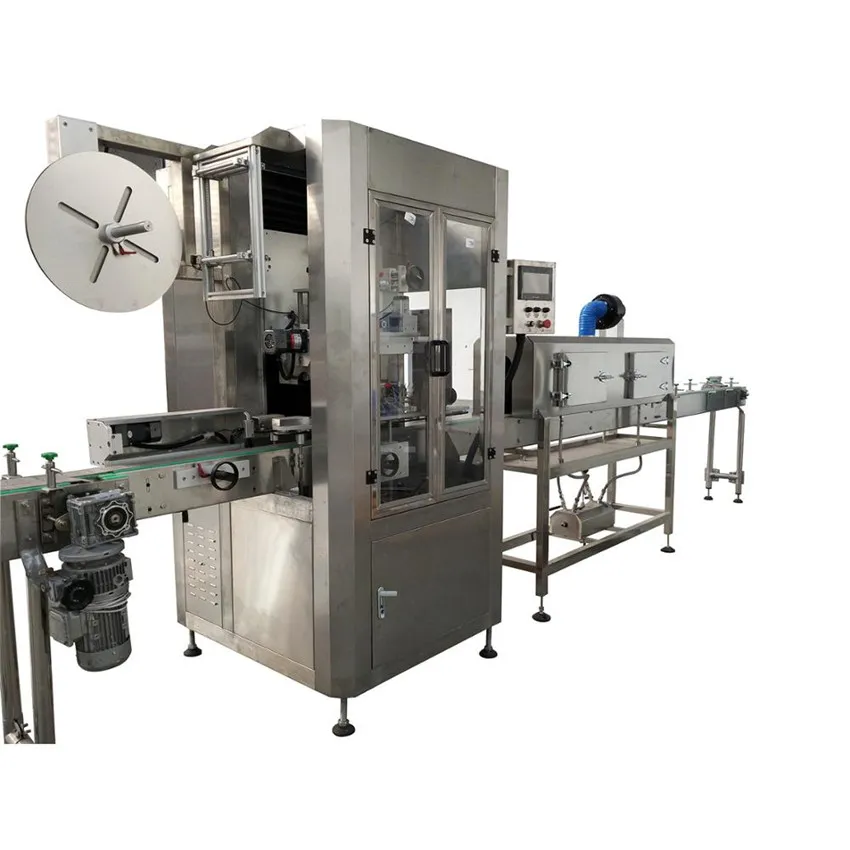

Sleeve Shrink Labeling Machine
High precision sleeve positioning highlights bottle shape after shrinking.
High-stable structure with stainless steel frame and CNC aluminum parts.
Versatile for round, square, and oval bottles or bottle mouth covering.
Unique synchronous cutter seat: change specifications in just 5 minutes.
Low maintenance costs using easily replaceable disposable blades.
Advanced PLC, high-performance servo motor, and sensor positioning.
Reciprocating cutter design doubles the tool life.
Simple central column positioning for ease of operation and learning.
🛠 Technical Parameters
Sleeve Labeling Machine Specifications (Model: LDL-150B)
Input Power / Voltage3KW / AC380V, 50/60HZ, 3 Phases
Productivity150BPM (label length ≤ 100mm)
Success Rate (FPY)≥99.9%
Machine Size2100 × 850 × 2000 mm
Applicable Bottle DiameterΦ28mm - Φ125mm
Label Length / Thickness30-250mm / 0.027-0.13mm
MaterialPVC, PET, OPS
Weight360Kg
Machine Detail 1
Machine Detail 2

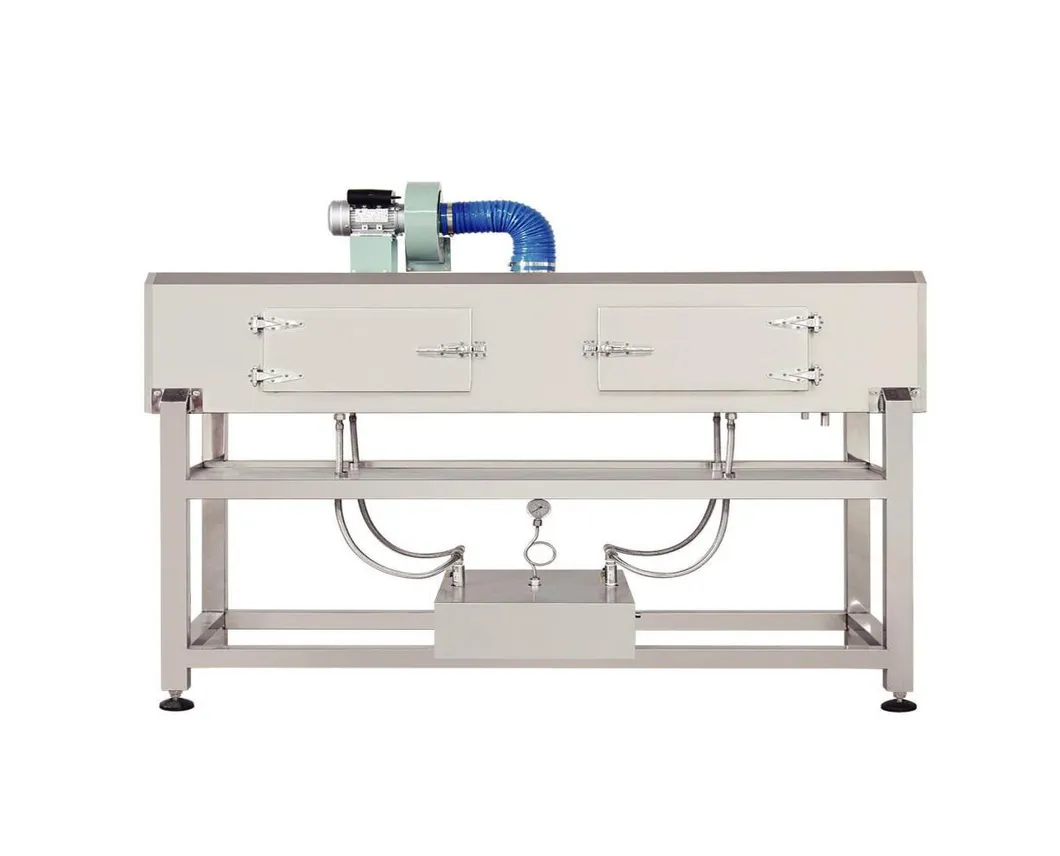

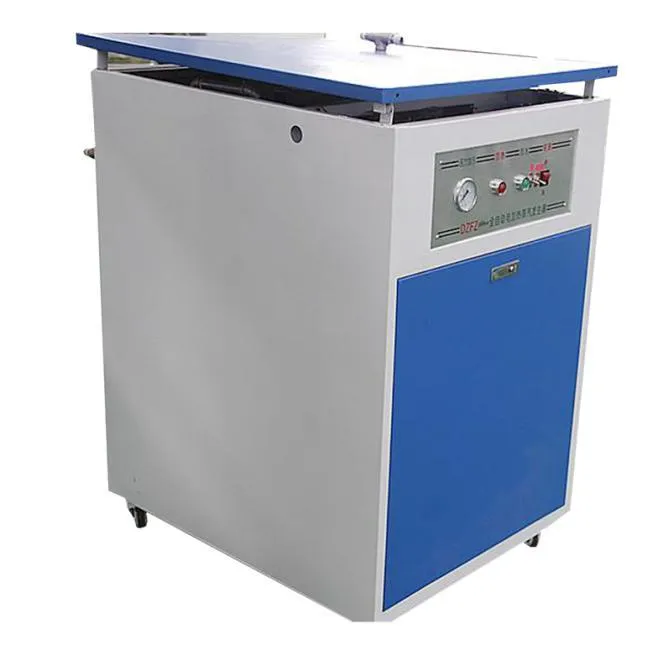

Steam Shrink Tunnel & Generator
Steam Generator Power18KW / 380V
Steam Consumption24Kg/H
Work Pressure≤0.1Mpa (Tunnel) / 0.25-0.4Mpa (Generator)
Tunnel Size / Weight1800 × 400 × 1000 mm / 230Kg

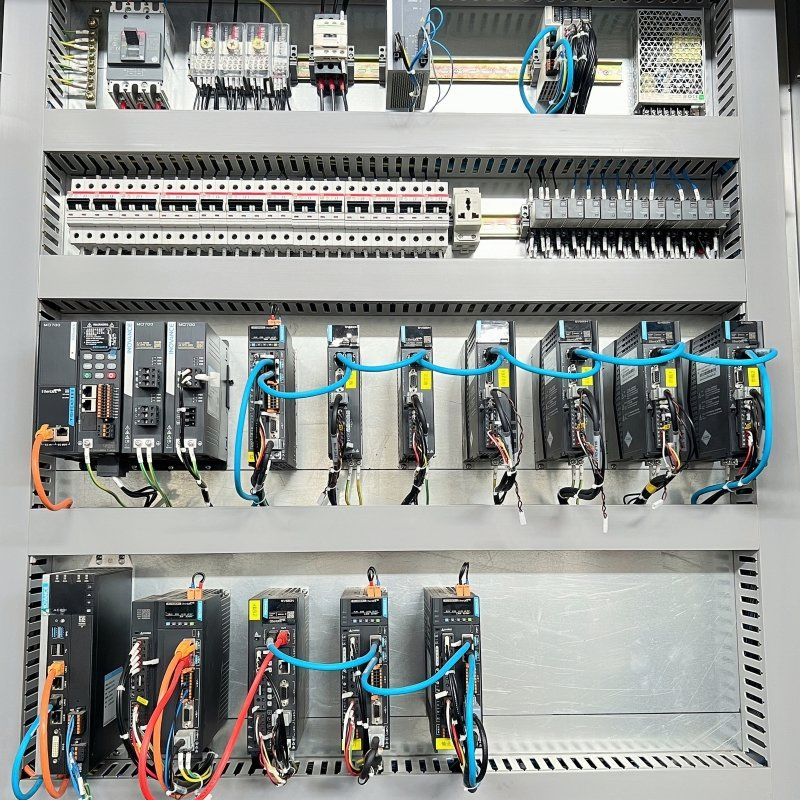

🔌 Main Component Configuration
Component Model Brand Origin
PLCFPX-C40TPanasonicJapan
Touch ScreenTK6070IQSiemensGermany
Servo Motor/DriveSchneider SeriesSchneiderFrance
InvertersAMK3000P42PanasonicJapan
SensorsFX/LX/PM SeriesPanasonicJapan

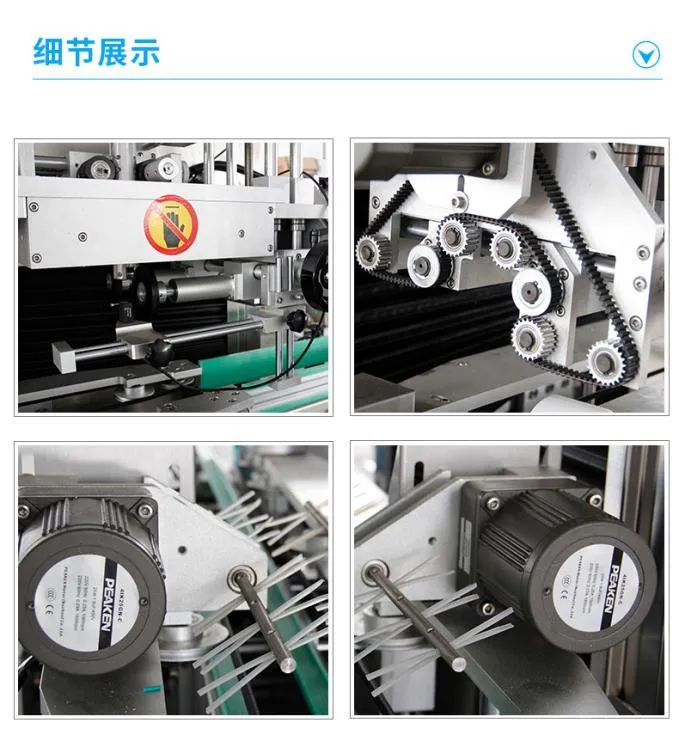

Components

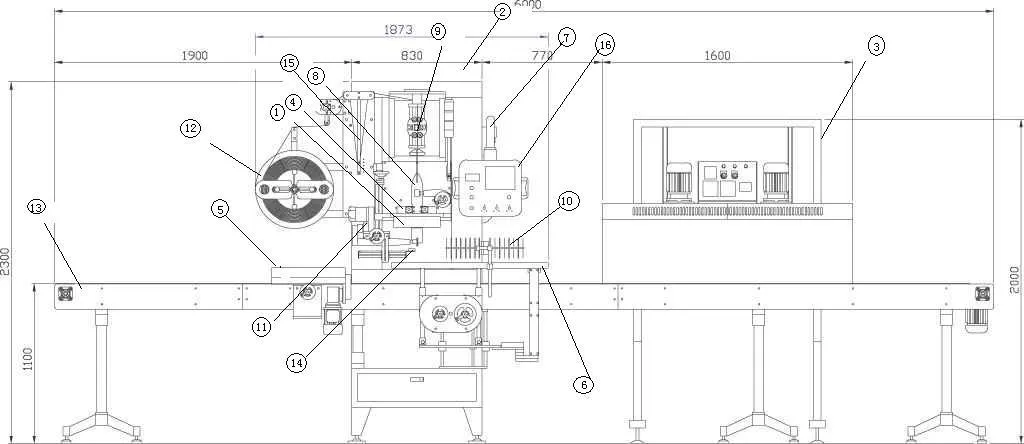

Layout
Frequently Asked Questions
Q1: Which industries is this labeling machine suitable for? A: It is ideal for food and beverage, dairy, condiments, beer, cleaning supplies, cosmetics, and medicine industries using various plastic or glass containers.
Q2: What types of bottle shapes can the machine handle? A: The machine is highly flexible and can process round bottles, square bottles, oval bottles, and even aluminum cans.
Q3: How difficult is it to change machine specifications? A: It is very simple. Due to the unique synchronous cutter seat and central column positioning, specifications can be changed quickly within 5 minutes.
Q4: What are the main label materials supported? A: The machine supports PVC, PET, and OPS label materials with a thickness range of 0.03mm to 0.13mm.
Q5: How is the maintenance cost of the machine? A: The maintenance cost is low. It uses cost-effective disposable blades that are easy to replace, and the simple structure ensures a low failure rate.
Q6: What kind of technical support is provided? A: We provide reliable after-sales service including video technical support and online support, with a full range of spare parts available at any time.
