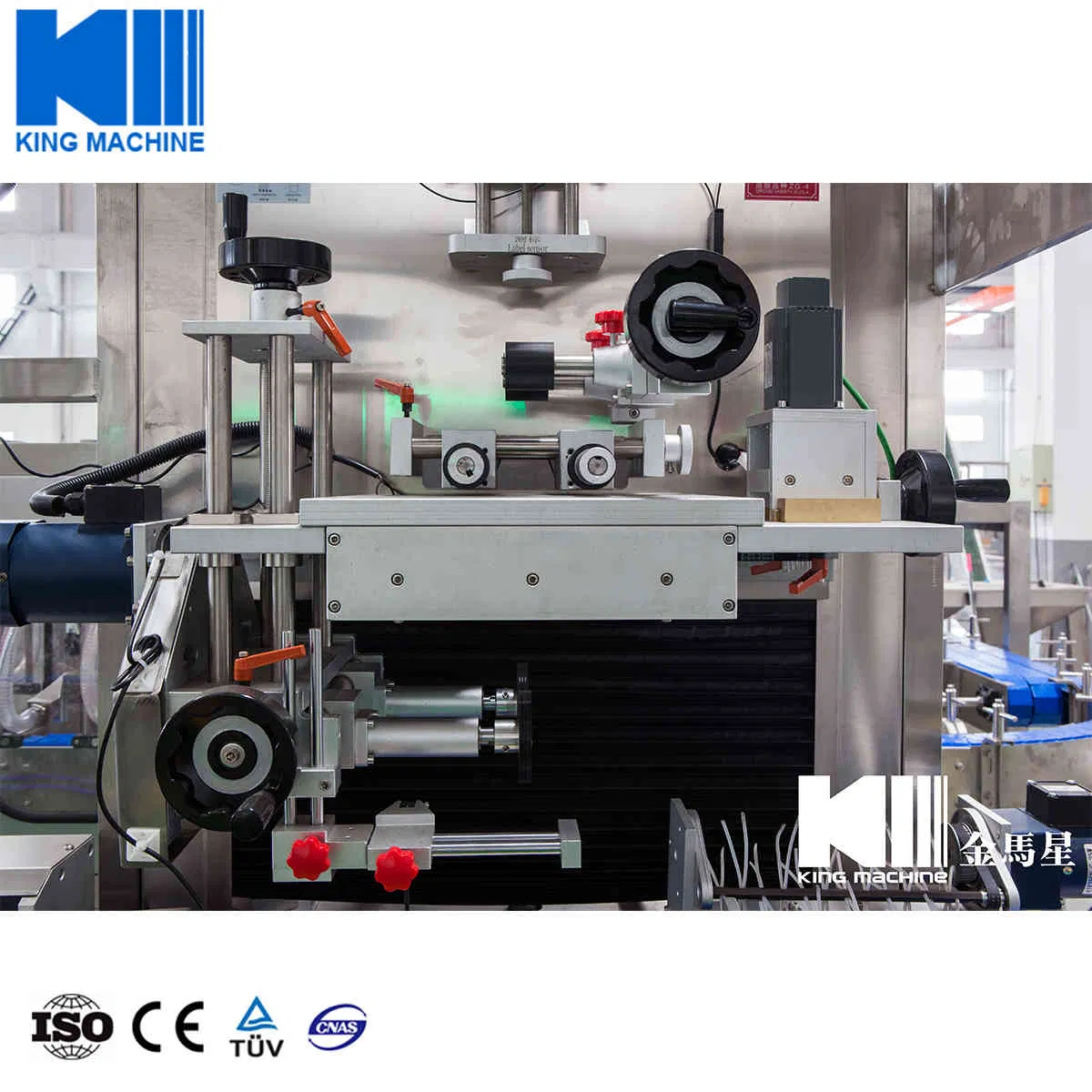

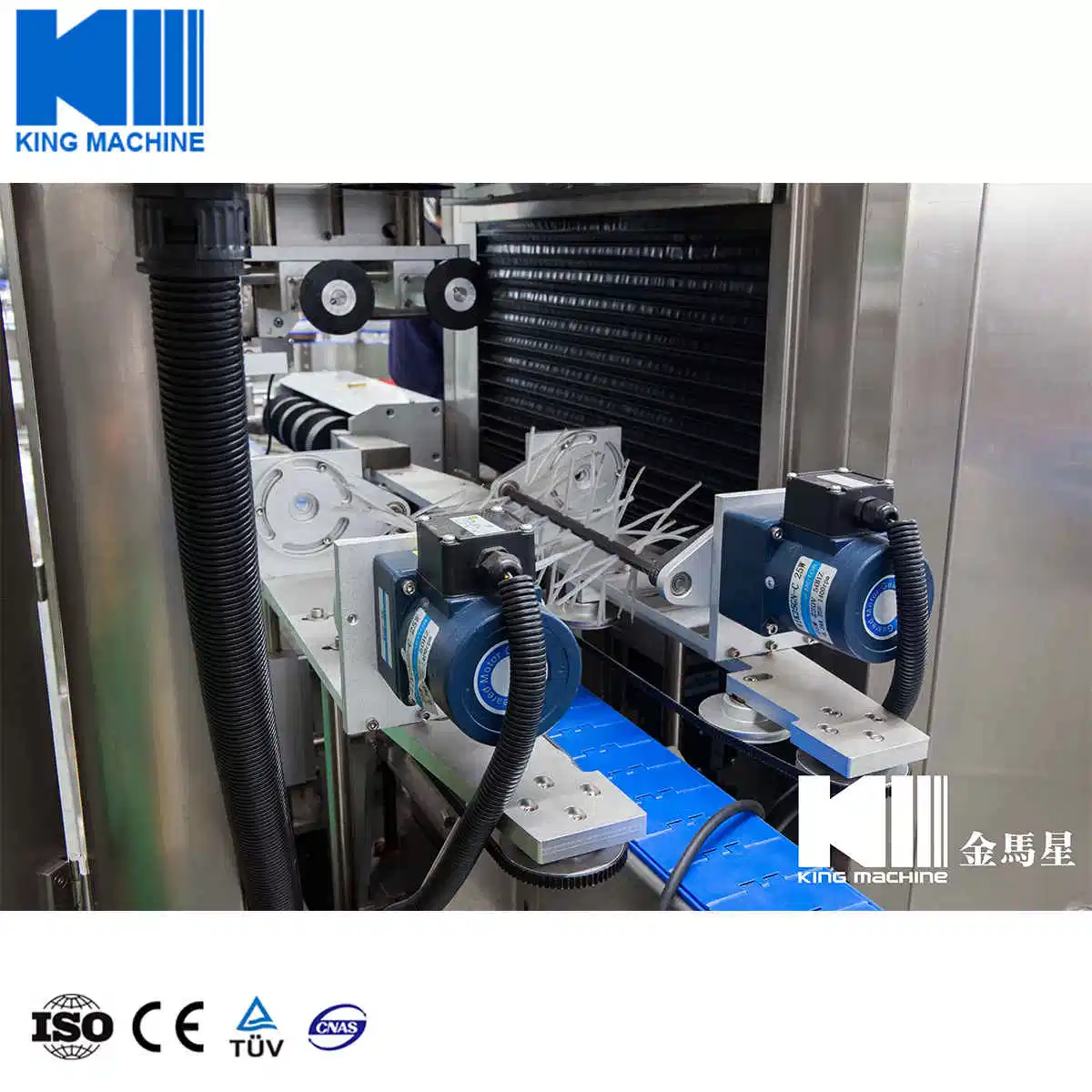

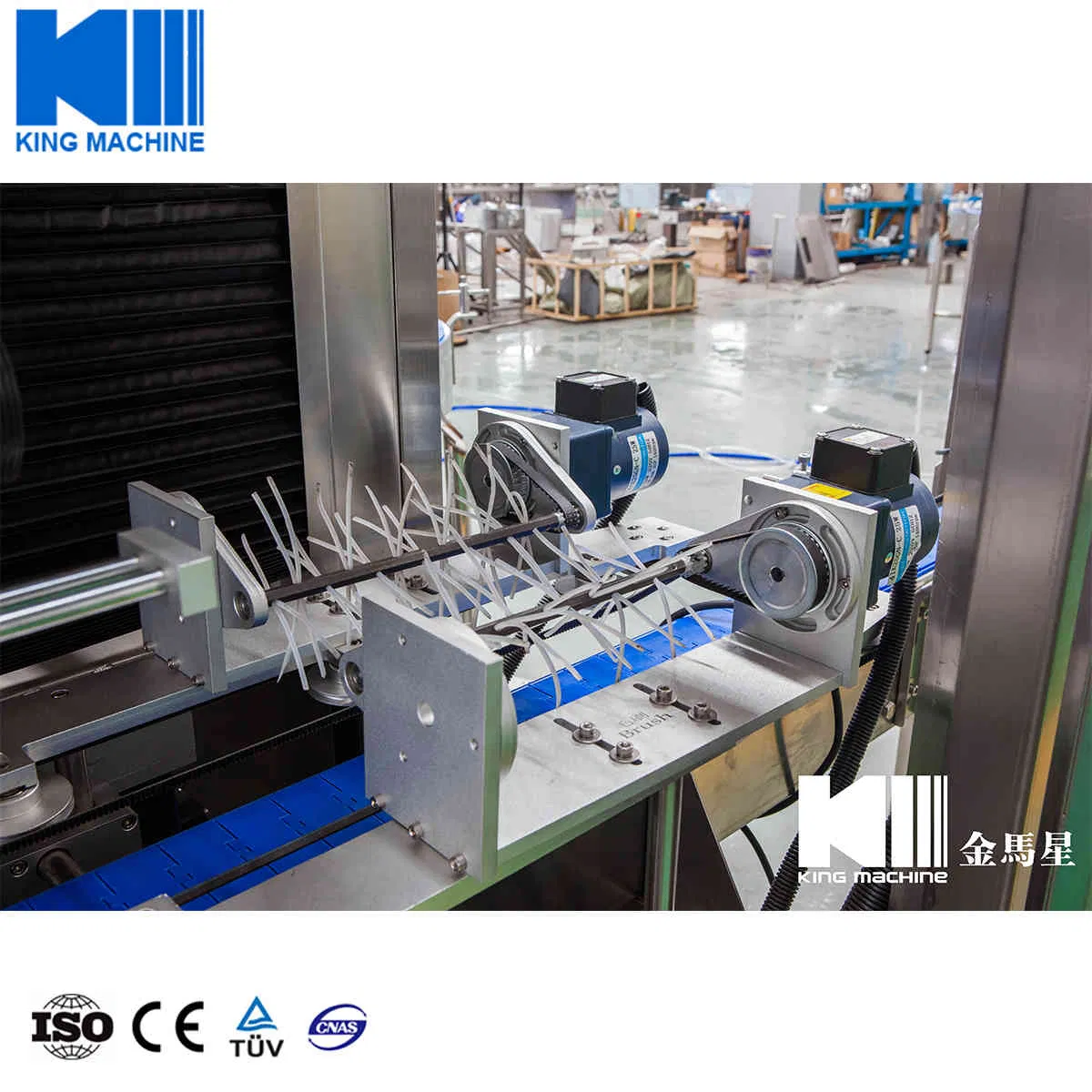

Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
1 / 5
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine
Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine

Automatic Liquid Water Juice Tea Beverage Wine Carbonated Soft Drink Honey Edible Oil Coffee Sauce Round Plastic Bottle PVC Label Sleeve Shrink Labeling Machine

Customization: Available
Automatic Grade: Automatic
Applicable Industry: Beverage
Send Inquiry

Product Description

Basic Info.

Model NO.
KM
Application
Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Dairy Products
Type
Sticker Labeling Machine
Driven Type
Mechanical
Classification
Automatic Vertical Round Bottle Labeling Machine
Guarantee
12 Months
After Sale Service
Engineers Available to Service Overseas
Capacity
80~180bottles/Min
Labels
1~3sides
Motor
Servo Motor
Transport Package
Standard Export Package
Specification
CE, SGS
HS Code
8422
Production Capacity
1000sets /Year

Automatic Plastic Bottle PVC Label Sleeve Shrink Labeling Machine

✓
Made of stainless steel and high-quality aluminum alloy with a reasonable, intact frame.
✓
Feet bolts are not needed, making it easy to move for different workspace requirements.
✓
Shrinkable film roll with adjustable locking gear, compatible with 5'-10' rolls.
✓
Highly versatile: Suitable for both square and round bottles.
✓
No tools required for adjusting machinery to meet various bottle sizes.
✓
Advanced inserting label methods that are reasonable and convenient.
✓
Full automatic feeder with integrated shrinking and tension adjustments.
✓
High precision label cutting inspection to ensure low error rates.
✓
Particular blade design with free-change base for quick and easy maintenance.
✓
Utilizes Mitsubishi PLC and ANCHUAN servo motor for top-tier precision and reliability.

Technical Parameters

ParameterSpecification
Max Capacity15,000 BPH (Based on 500ml label length)
Label sizeDiameter 30-125mm
Bottle diameterDiameter 28-125mm
Label sleeve length30-250mm
Label materialPVC / PET
Electrical power2.5KW (380V 50HZ)
Overall dimensions2440 * 890 * 2200mm
WeightApprox. 750KG (Including steam shrink machine)

Main Component Brands

NoNameBrandOrigin
1SUS304 Stainless Steel-South Korea
2MotorTWTTaiwan
3BearingNSK / MNB / EZO / IJKJapan
4Stepper MotorTamagawaJapan
5Stepping DriverErtlTaiwan
6PLC ControllerOmronJapan
7InverterDeltaTaiwan
8Touch-screenOmronJapan
9ContactorSchneiderFrance
10SensorSUNXJapan

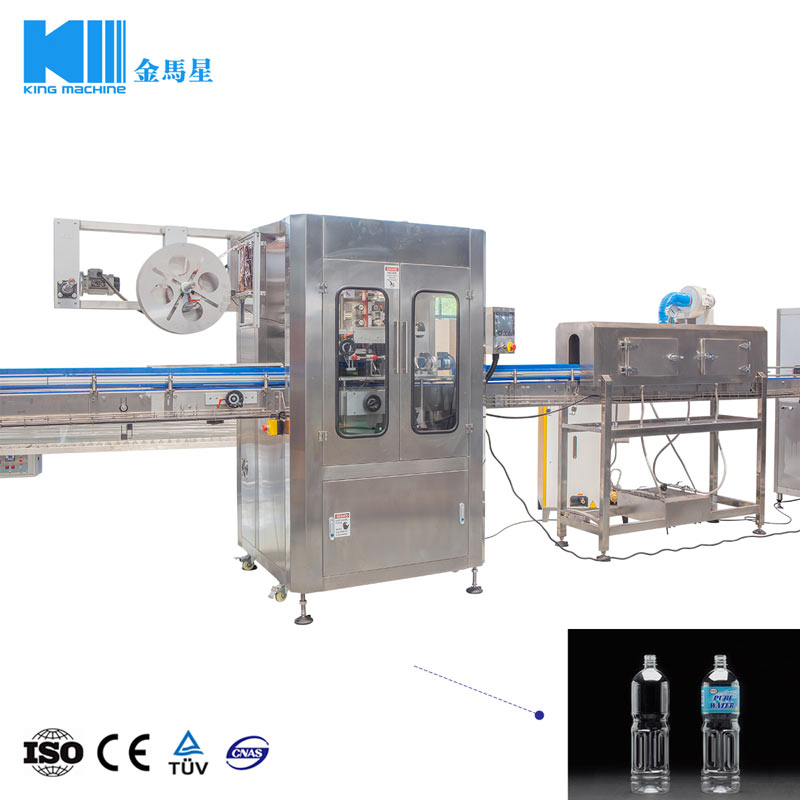

Labeling Machine Overview

Machine Details Description

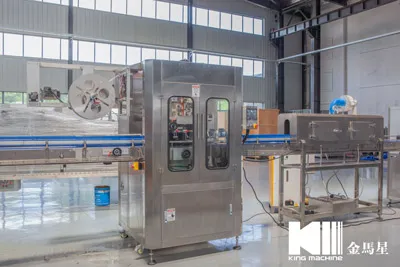

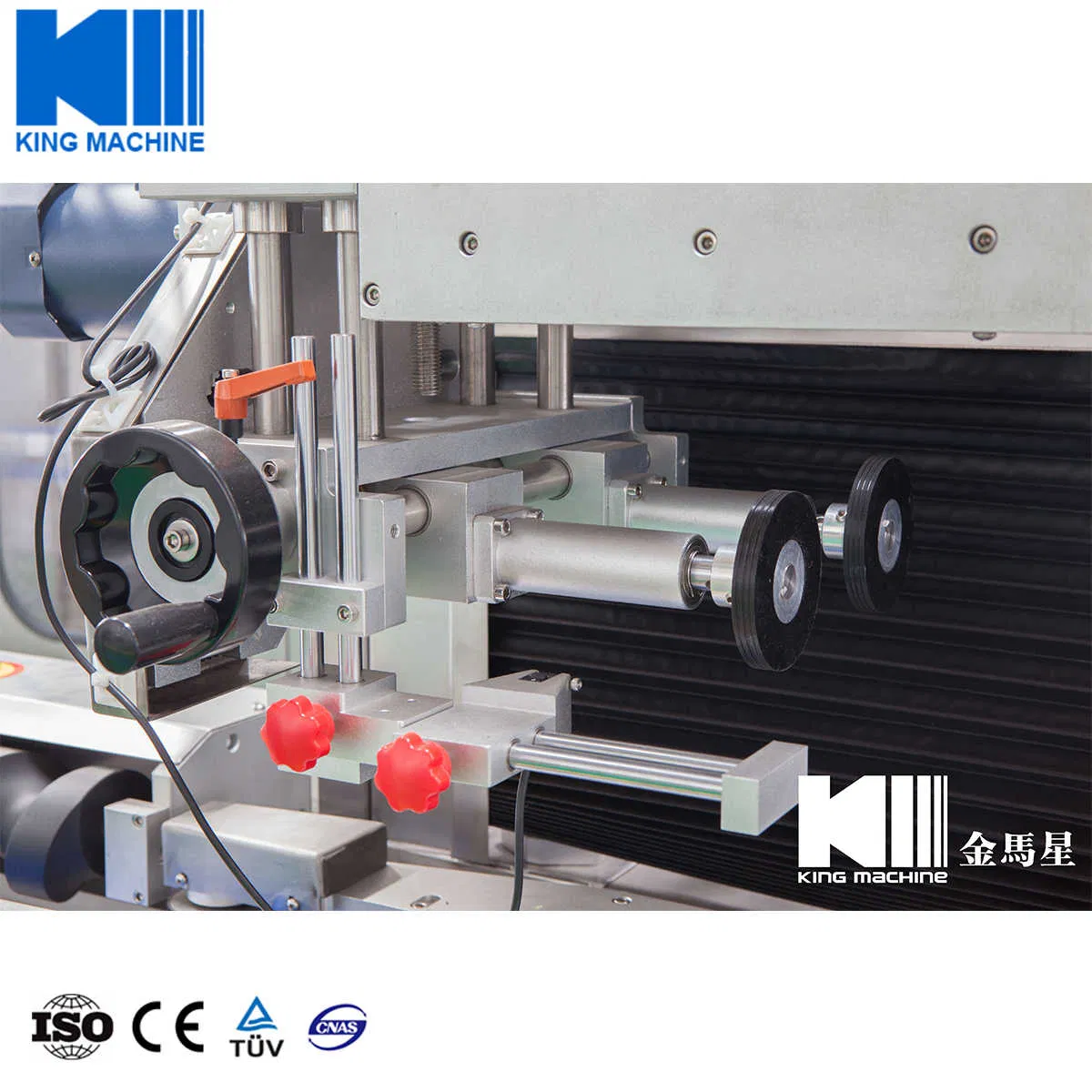

Sleeve Labeling Machine

Sleeve Labeling Machine

Application: PVC / PET / OPS label sleeve

Applicable Bottle Types: Various kinds including round, square, flat, curved, and cup-shaped bottles.

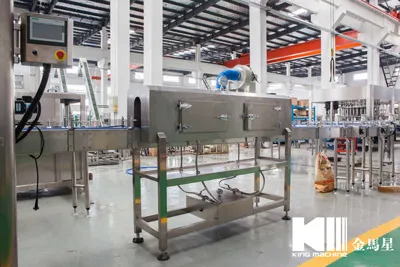

Shrink Tunnel

Application: Label Shrink by Steam or Electric heating

• Stainless steel full cover body
• Water proof design
• Easy adjustment for different bottle sizes
• Even shrink with precise steam pressure control

Shrink Tunnel

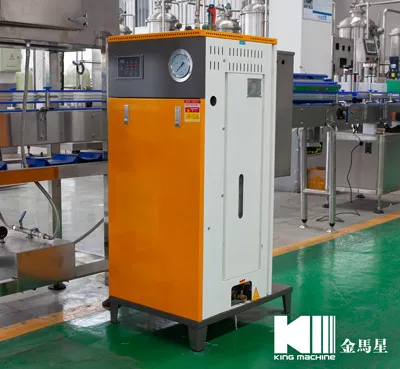

Steam Generator

Steam Generator

Application: To provide steam for the shrink tunnel

• Full automatic steam pressure control
• Automatic water feed system
• High quality heating tube
• Water softener available as an option

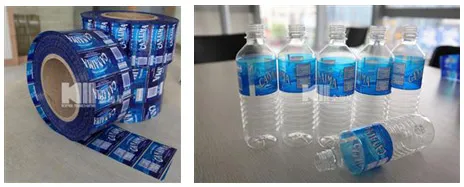

PVC / PET / OPS Shrink Label

Application: Food, beverages, mineral water, and daily products.

Shrinkage Rates:
PVC: Longitudinal 1%-4%, Transverse 55%
PET: Longitudinal 1%-3%, Transverse 70%

Shrink Labels

Facility & Manufacturing

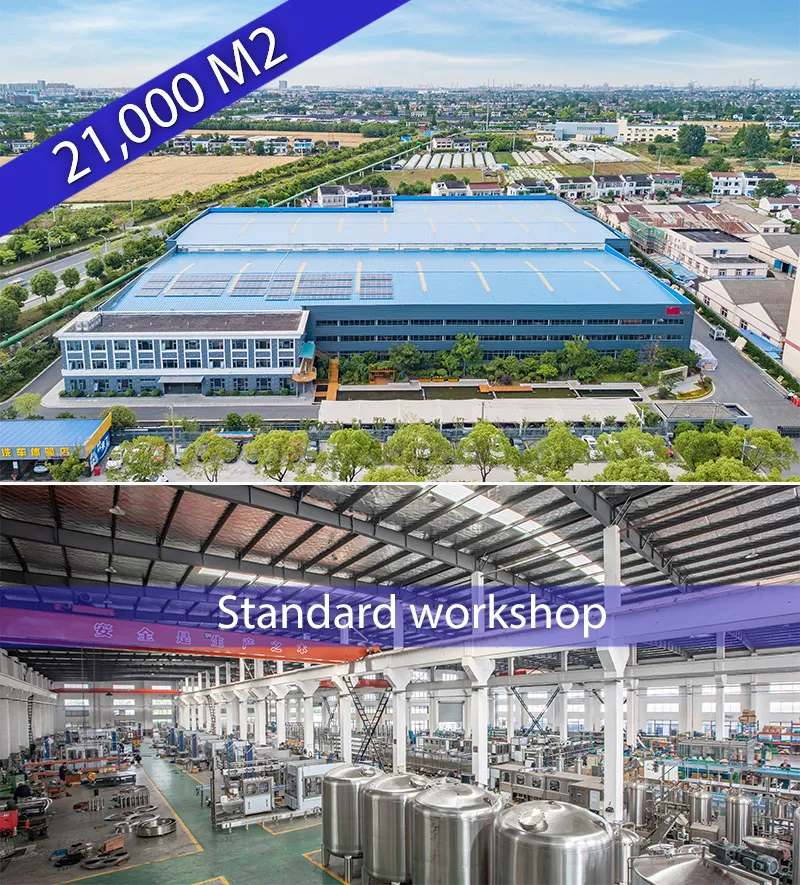

Factory Overview
Production Line Service Support

Our Services

1
Well-trained & experienced staff to answer all inquiries in English and Chinese.
2
24-hour engineer response time for technical support.
3
12 Months guarantee and life-long technical support provided.
4
All business relationships are kept strictly confidential to third parties.
5
Comprehensive after-sale service to address any operational questions.

Frequently Asked Questions

What types of bottles can this labeling machine handle?
The machine is highly versatile and can process round bottles, square bottles, flat bottles, curved bottles, and cup-shaped containers.
What is the production speed of the machine?
The maximum capacity is up to 15,000 bottles per hour (BPH), based on a standard 500ml bottle label length.
Is it difficult to switch between different bottle sizes?
No, the driven machinery can be adjusted to meet different bottle sizes without the need for special tools, ensuring a quick changeover process.
What materials are suitable for the shrink labels?
The machine is compatible with PVC, PET, and OPS shrink label materials commonly used in the food and beverage industry.
What kind of after-sales support do you offer?
We provide a 12-month guarantee, 24-hour engineer response times, and life-long technical support to ensure your production line runs smoothly.
Which key electrical components are used in the machine?
We use high-quality components from world-renowned brands, including Mitsubishi PLC, Omron controllers, and ANCHUAN servo motors.
