Intention to Purchase Zp17e/Zp19e Irregular Tablet Press

Customization:	Available
Automation Level:	Fully Automatic
Capacity:	132,600 PCS/H

📋 Basic Information

Model NO.	ZP17E	Certification	CE, GMP, ISO
Number of Stations	17	Max Main Pressure	50 kN
Max Pre-Pressure	10 kN	Max Turret Speed	40 R/Min
Max Production Capacity	48,000 PCS/H	Motor Power	2.2 Kw
Tablet Shape	Oval, Rectangular, Round, Square
Overall Size	950×770×1740 mm
Machine Weight	900 Kg

📊 Product Description

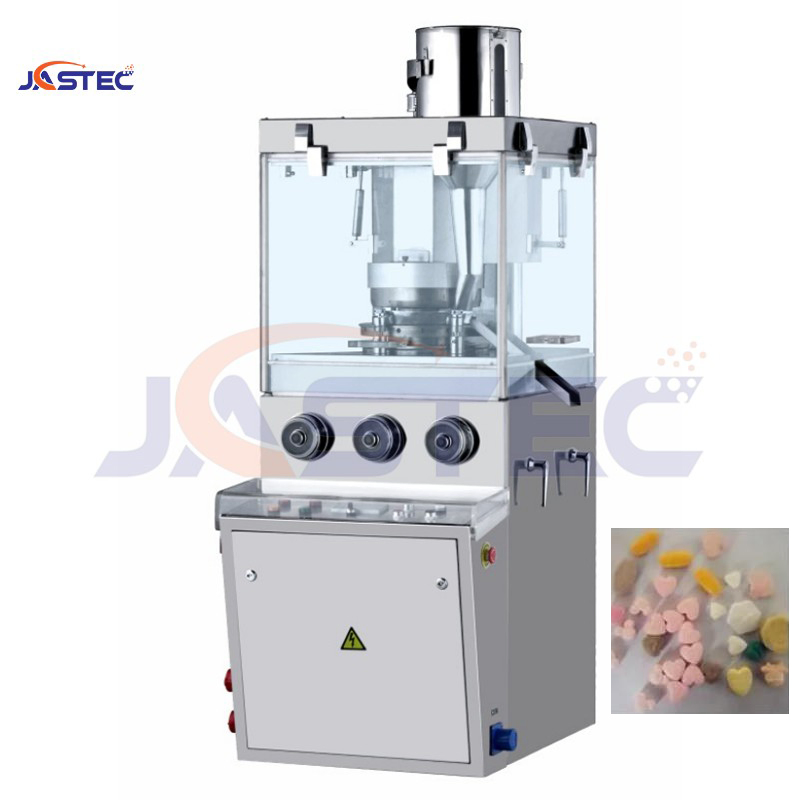

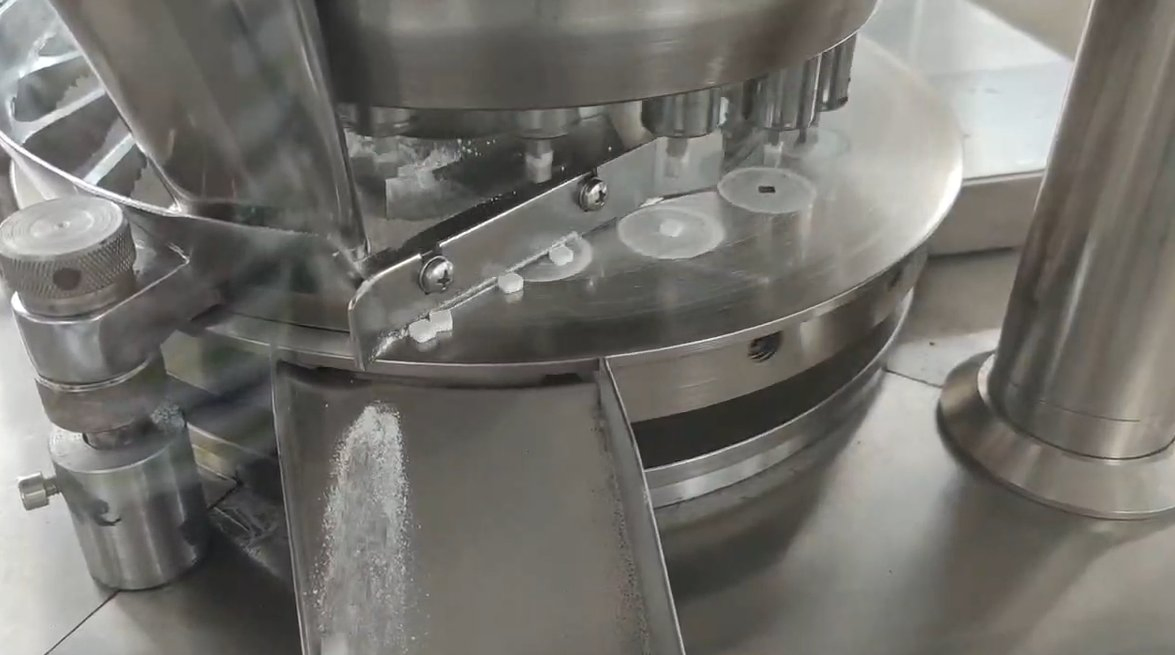

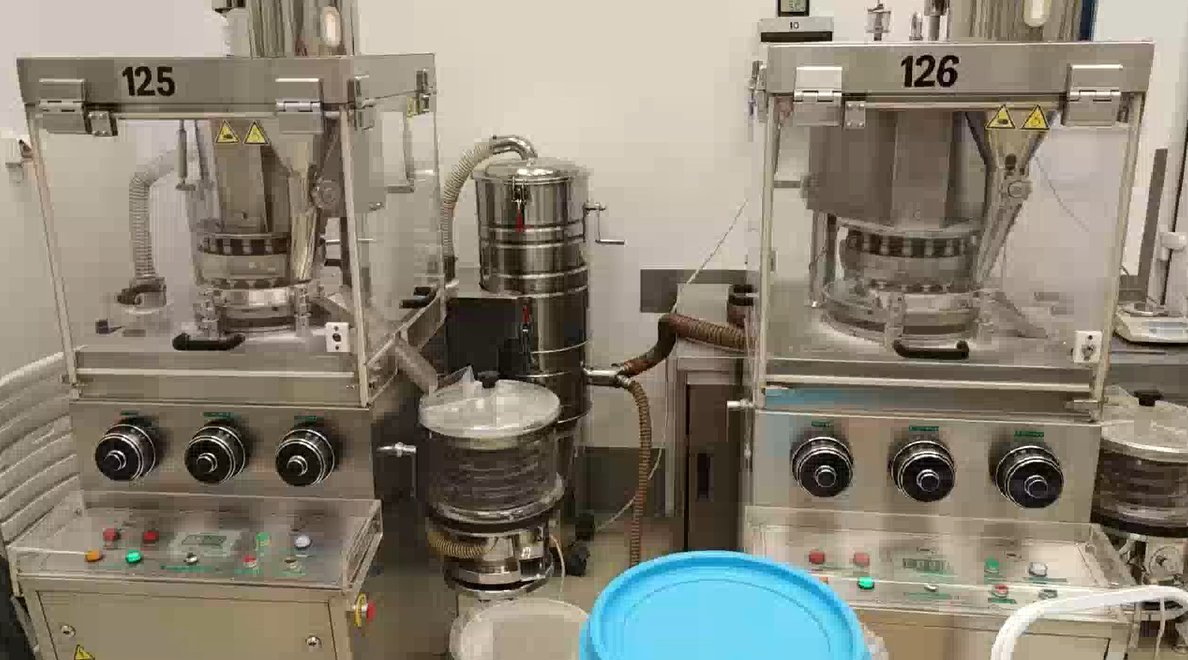

The ZP17E/ZP19E Rotary Tablet Press is a high-performance, small-batch-oriented tablet-forming device designed to solve the flexible production needs of round and irregular-shaped tablets. It combines GMP-compliant hygiene, safe operation, and easy maintenance, making it an ideal choice for small-scale manufacturing scenarios.

The machine features a fully enclosed housing made of stainless steel, with a wear-resistant hardened layer on the turret surface, effectively preventing cross-contamination and meeting strict hygiene requirements. The transparent acrylic shield allows real-time observation and can be fully opened for thorough cleaning.

For operational stability, it adopts variable frequency speed regulation (up to 40 r/min). The built-in pre-pressure device eliminates air trapped in granular materials, improving tablet density and reducing defects like capping or cracking. Safety is ensured via over-pressure shutdown protection.

⚙ Technical Parameters

Model	ZP17E	ZP19E
Number of Stations	17	19
Max Main Pressure (KN)	50
Max Pre-pressure (KN)	10
Max Tablet Dia - Round (mm)	20	13
Max Tablet Dia - Irregular (mm)	22	16
Max Filling Depth (mm)	15
Max Tablet Thickness (mm)	6
Max Turret Speed (r/min)	40
Production Capacity (pcs/h)	40,800	45,600

💡 Product Functions

✔

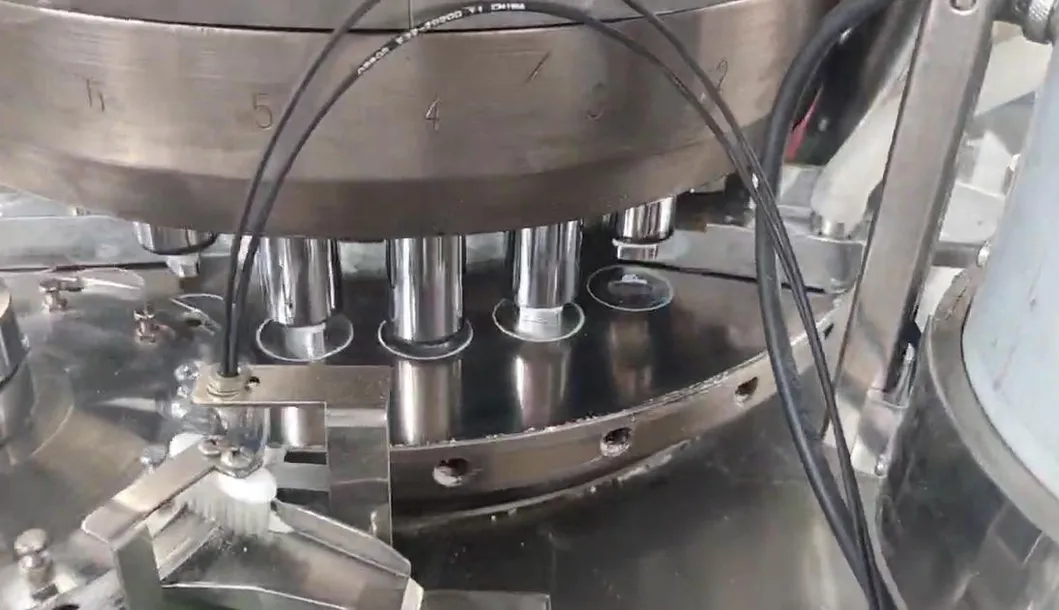

Multi-Type Pressing: Processes round, irregular, and double-scoring engraved tablets.
✔

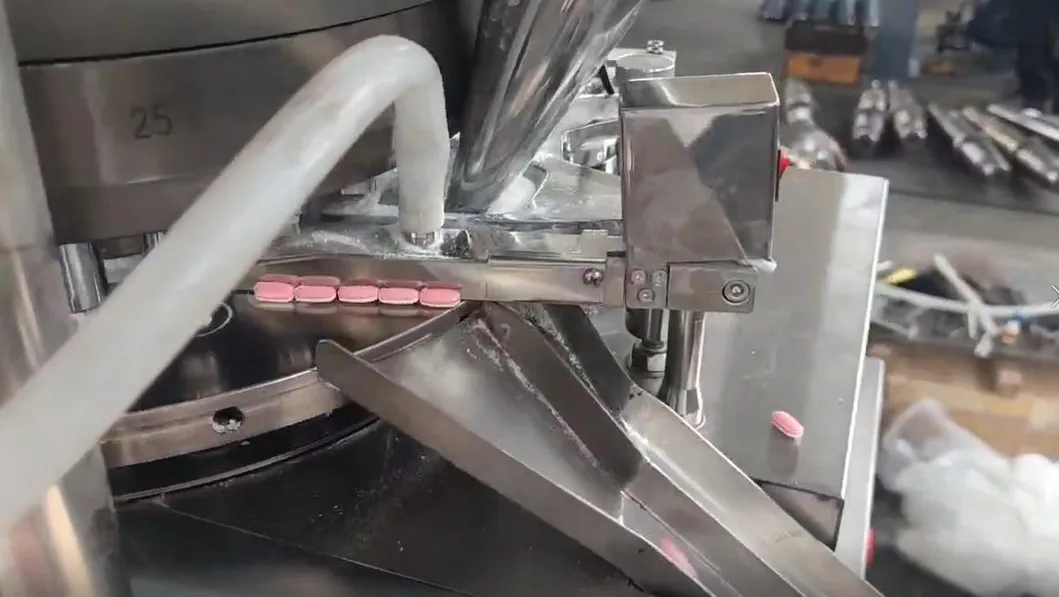

Intelligent Control: Uses PLC and touch screen to set and monitor operating parameters.
✔

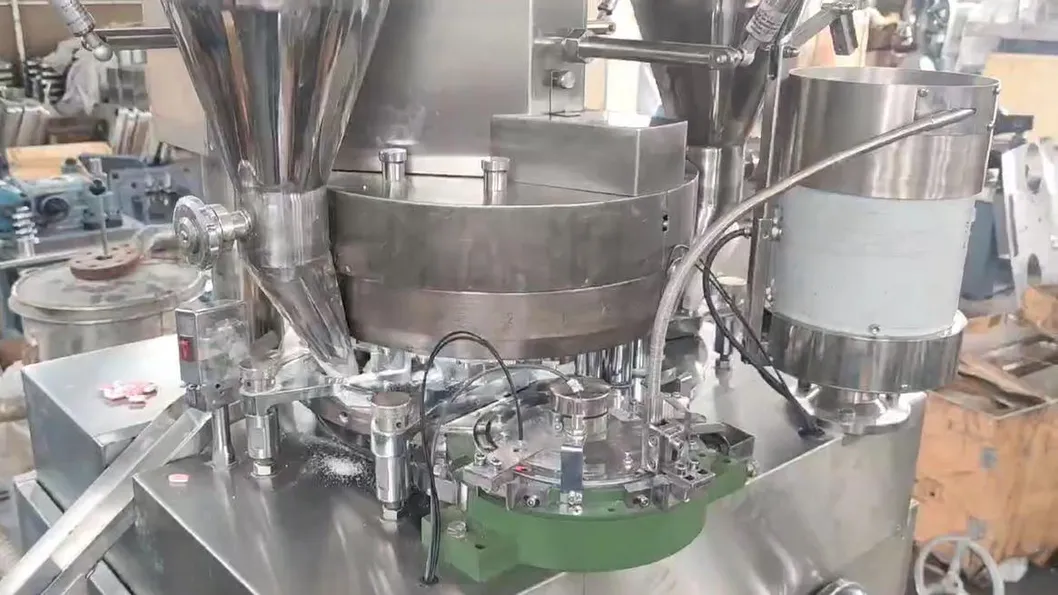

Safety Protection: Triggers emergency stop for punch breakage or over-pressure.
✔
Pre-Press Optimization: Enhances tablet density and quality stability.

🎖 Core Selling Points

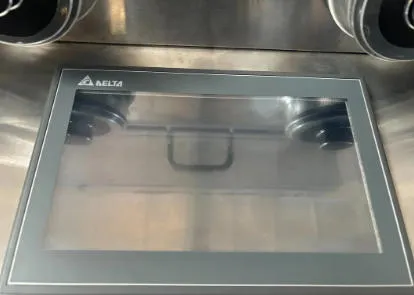

HMI Touch Screen Control

10-inch Delta HMI (Multi-language support)
Real-time pressure display for each punch
Automatic adjustment of main pressure and tablet weight
CFR 21 part 11 electronic records (Optional)

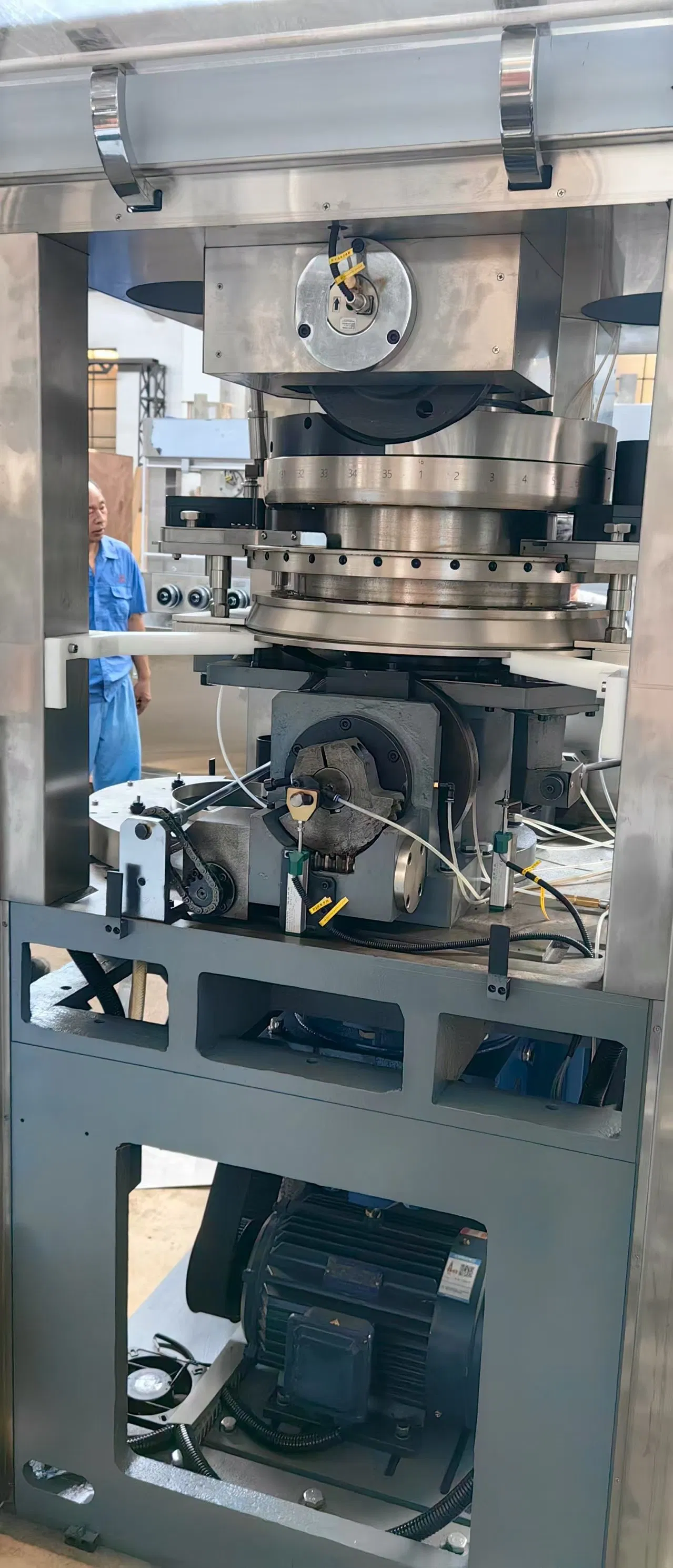

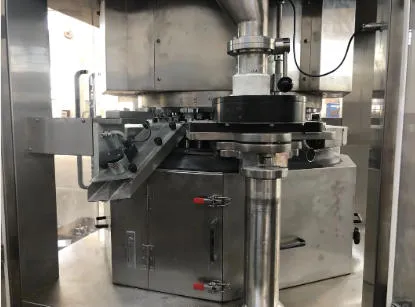

Advanced Turret Structure

Three-part structure using HT300 & 2Cr13 materials
Wear-resistant hardened surface layer
Oil protect rings and dust-proof rings on punches
Fully closed working zone for high hygiene

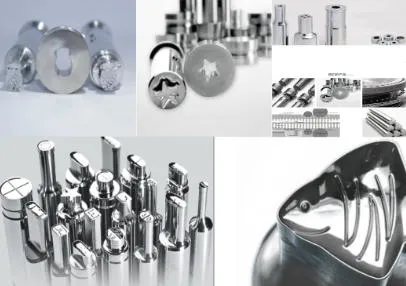

Customizable Tooling

Adopts TSM-Tooling standard
Available in round, irregular, concave, bevel edged, and more
Premium materials: S7/D2, DC53, 6CrW2Si

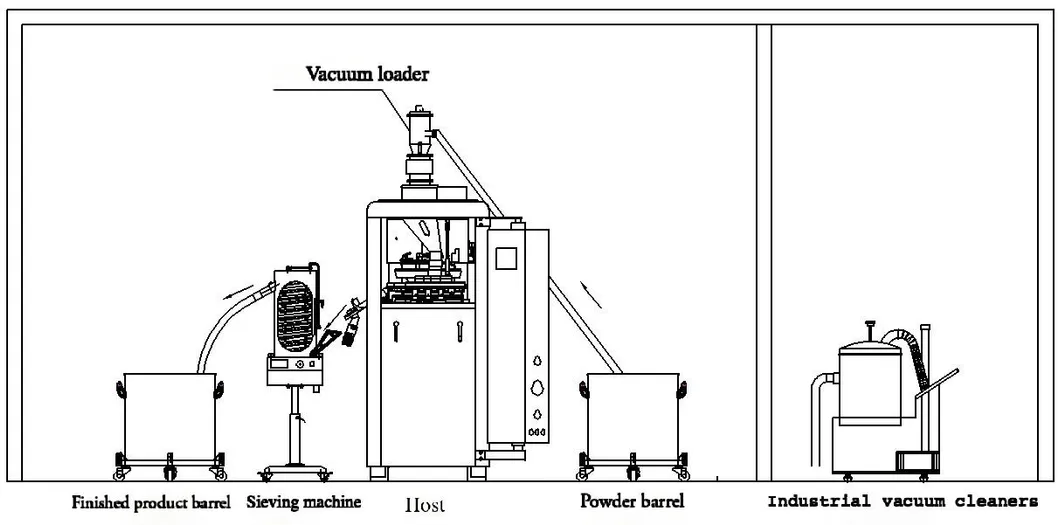

Design Drawings

🌐 Application Fields

Pharmaceutical: Pressing granules into oral medications.
Chemical: Manufacturing detergent or catalyst tablets.
Food: Producing vitamin or effervescent tablets.
Electronic: Processing functional electronic tablets.

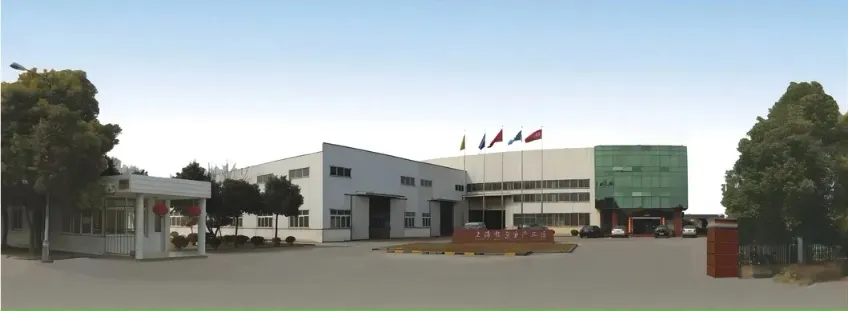

🏭 Manufacturing & Facility

Our machinery integrates development, sales, and after-sale services, providing professional equipment for extraction, drying, mixing, and grinding. With high stability and reliability, our production lines have been delivered to over 160 countries across Asia, Europe, and the Americas. We prioritize efficiency and quality through constant innovation.

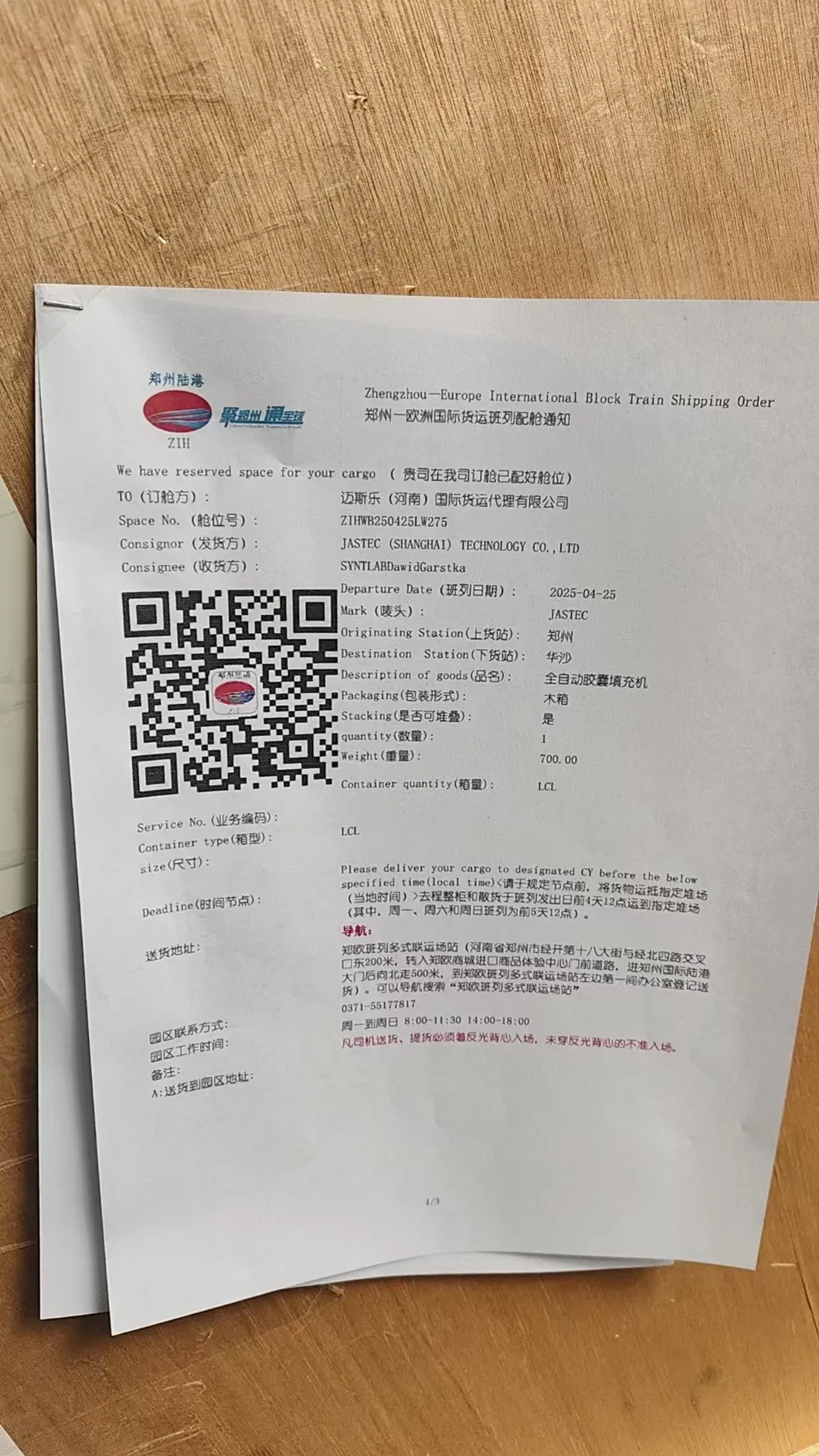

📦 Packaging & Shipping

🏆 Certificates & Exhibitions

❓ Frequently Asked Questions

Q1: What types of tablets can the ZP17E/ZP19E produce?

A1: It can press granular materials into both round tablets and various irregular geometric-shaped tablets, meeting diverse product form requirements.

Q2: Is the machine suitable for large-scale production?

A2: It is specifically designed for small-scale batch production and trial production, offering a compact structure and flexible operation.

Q3: Does the machine comply with GMP standards?

A3: Yes. It features a fully enclosed stainless steel housing, wear-resistant turret, and easy-to-clean components, fully meeting GMP hygiene requirements.

Q4: Can the operating speed be adjusted?

A4: Absolutely. It is equipped with variable frequency speed regulation, allowing you to set the optimal speed for different material properties.

Q5: How does the machine ensure tablet quality?

A5: It includes a built-in pre-pressure device that removes air from granules and extends pressing time, which effectively improves tablet density.

Q6: What safety features are included?

A6: The machine is equipped with over-pressure shutdown protection and automatic sensors that stop the machine if a punch breaks or powder sticks to the tooling.
