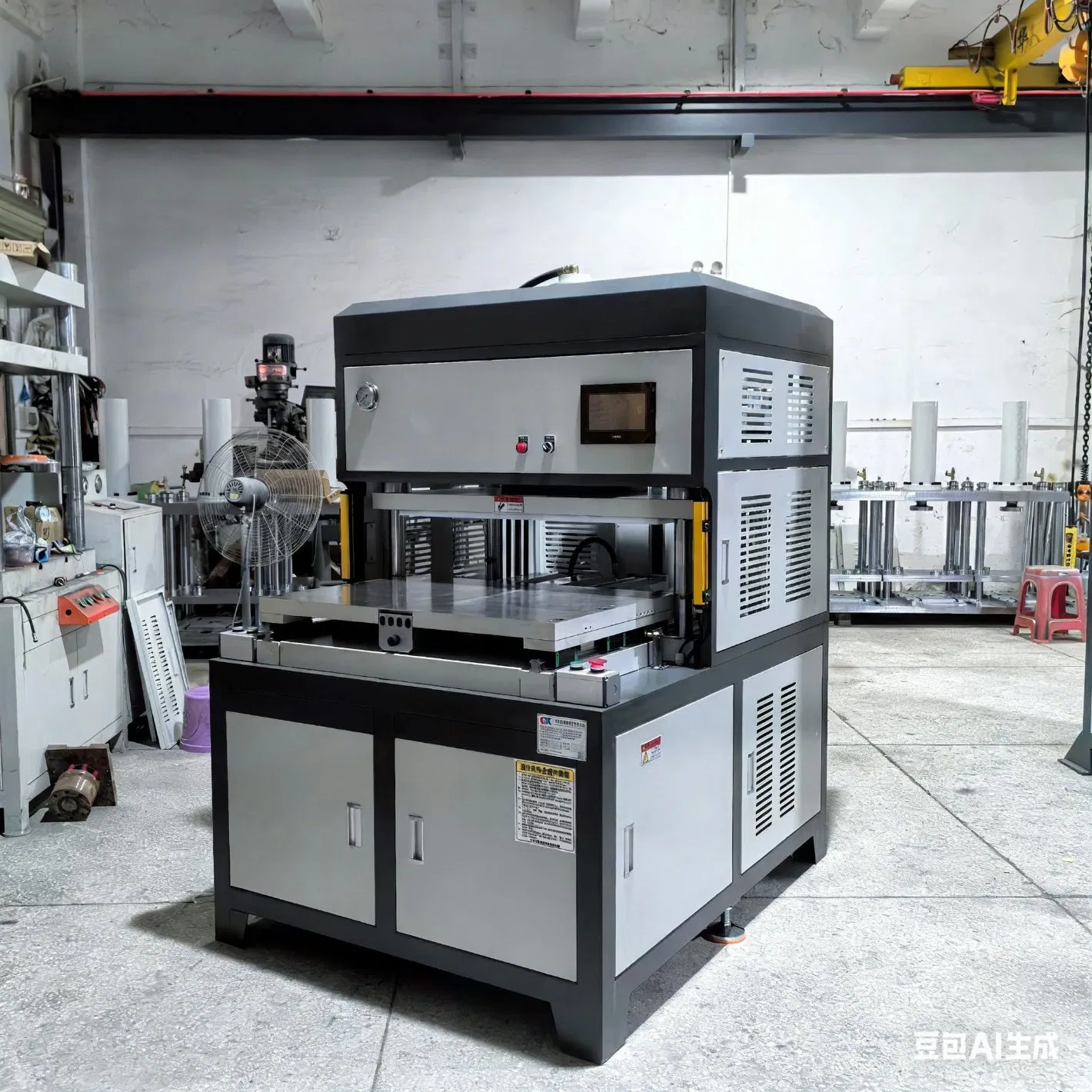

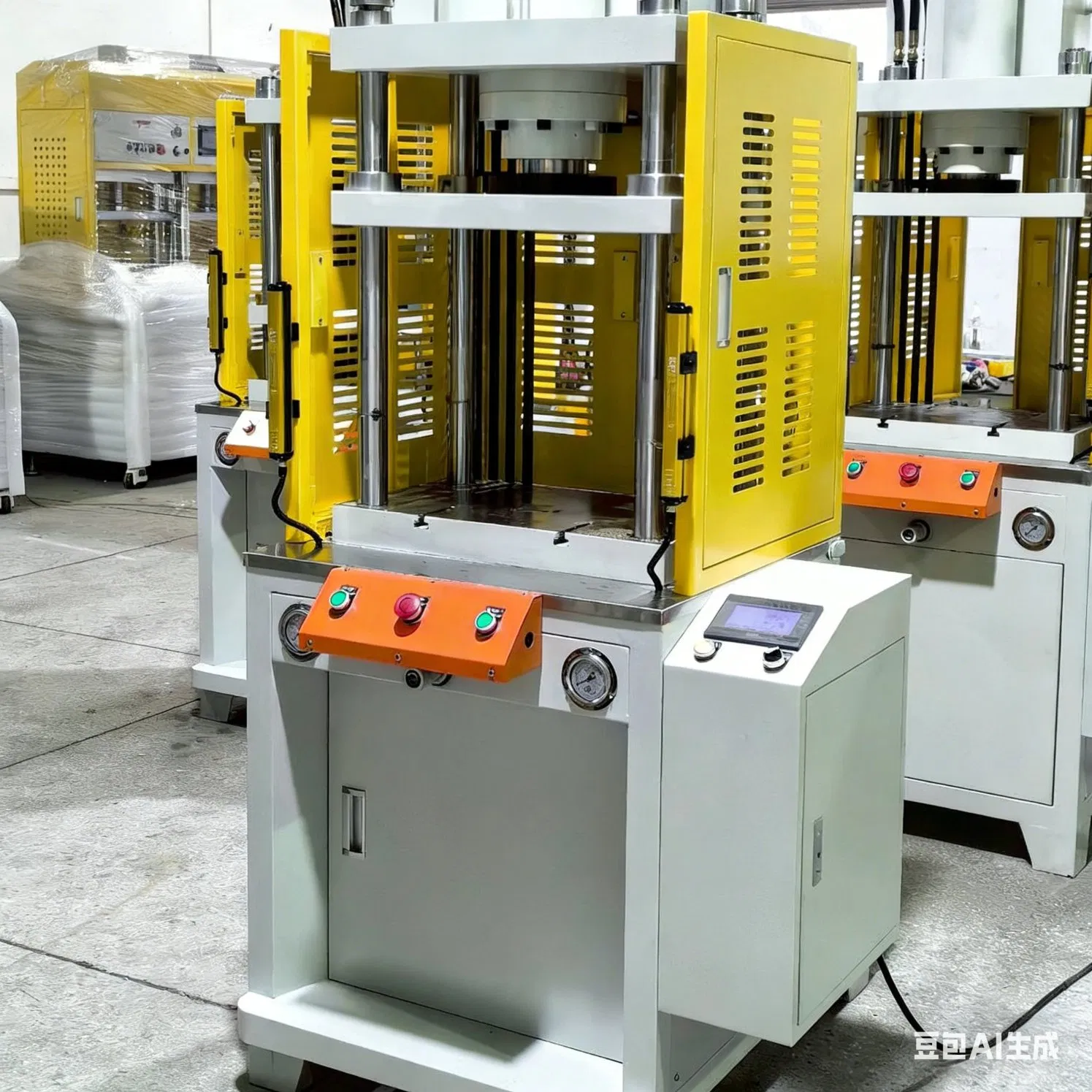

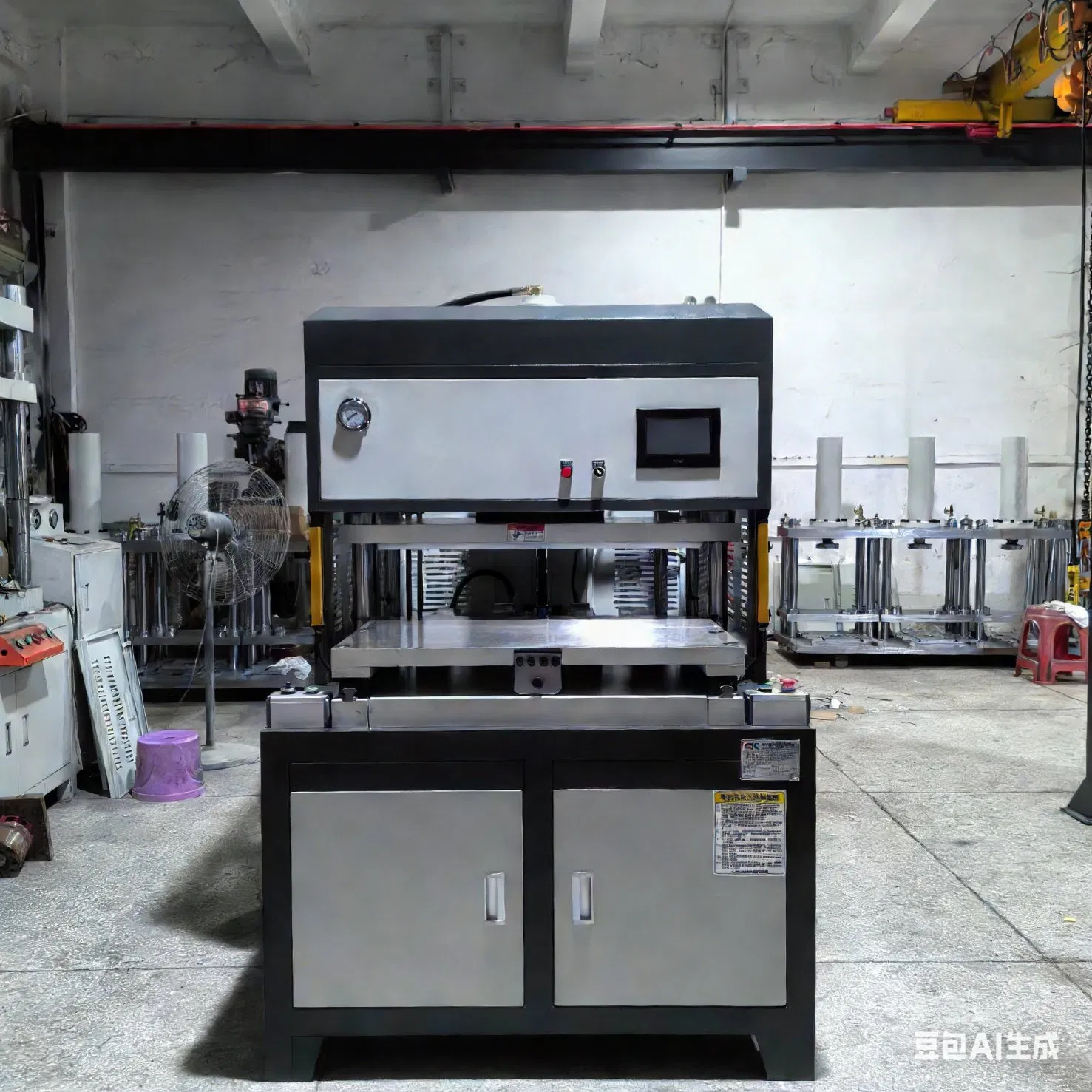

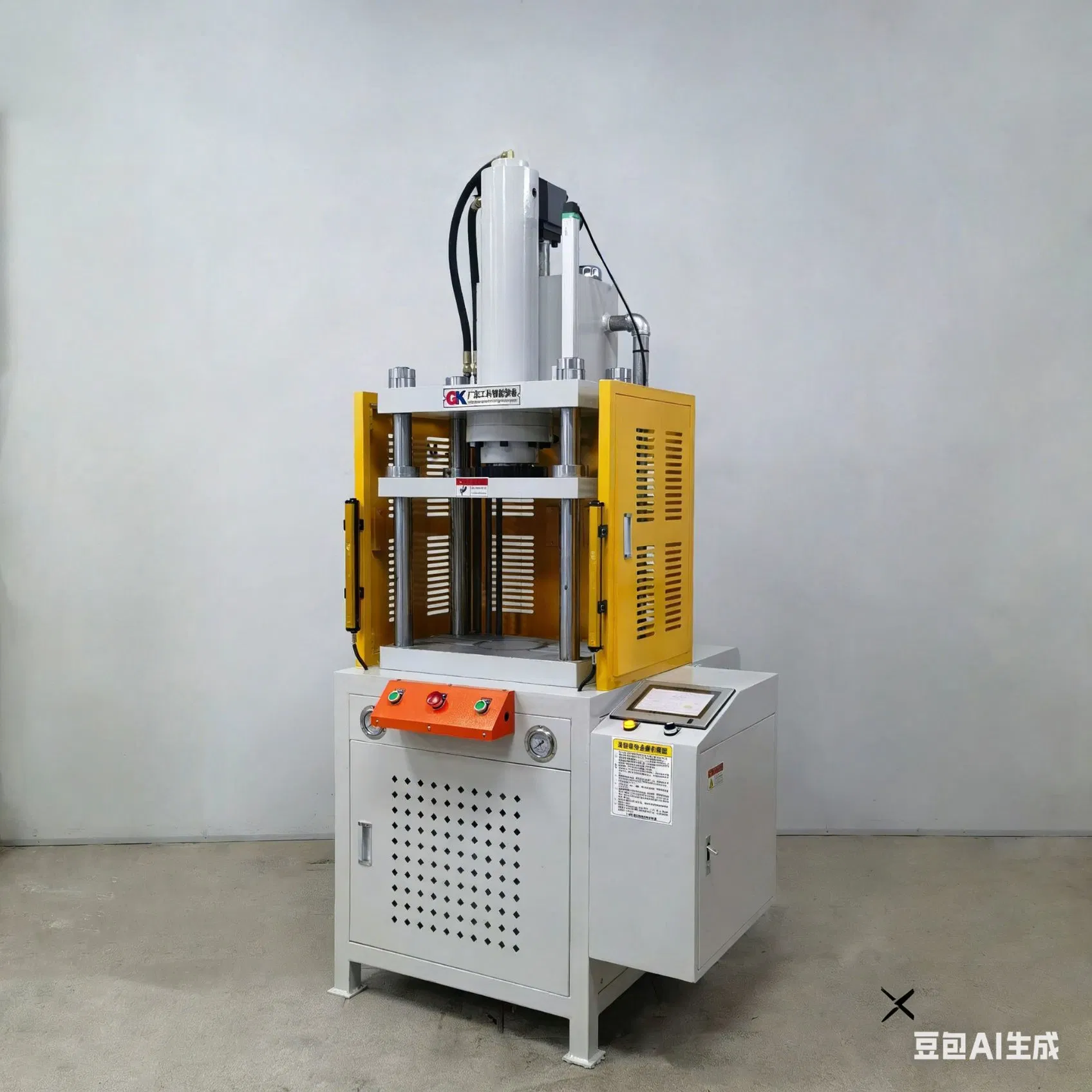

Industrial Hydraulic Press with Precision Cutting and Sliding Table

1 / 5

Industrial Hydraulic Press with Precision Cutting and Sliding Table

Customization:	Available
After-sales Service:	One Year
Warranty:	Technical Guidance

Send Inquiry

Product Description

Basic Specifications

Type

General Punching Machine

Punch Shape

Open Punch

Controlling Mode

CNC

Automatic Grade

Automatic

Power Source

Mechanical Drive

Precision

High Precision

Certification

ISO 9001

Condition

New

Origin

China

Capacity

2000 pieces/Year

Technical Parameters

Item	Parameter
Rated Pressure	10-100T
Oil Tank Capacity	110L
Weight	720KG
Column Quantity	Four Columns
Specification	SFY-10T to SFY-100T
Workbench Size	450mm*350mm (Customizable)

Product Key Features

Ultimate Safety Performance Built-in multi-layer safety protection system including safety grating, emergency stop device, anti-pinch hand design and overload pressure protection.

High-Precision Servo Hydraulic Control Advanced servo hydraulic drive technology enables stepless adjustment of cutting pressure and precise control of pressing stroke.

Automatic Sliding Table Equipped with automatic reciprocating sliding table, realizing automatic feeding, positioning and blanking without manual hand pushing.

Stable & Reliable Performance Optimized hydraulic system design features low noise, small vibration and stable pressure output. High-strength integrated frame structure avoids deformation.

Strong Material Adaptability Compatible with diverse materials such as plastic, rubber, foam, leather, non-woven fabric and soft metal.

Energy-Saving Operation Servo power control mode realizes on-demand energy supply, greatly reducing unnecessary energy loss.

Simple Operation Humanized control panel with intuitive parameter setting, easy to operate without professional training.

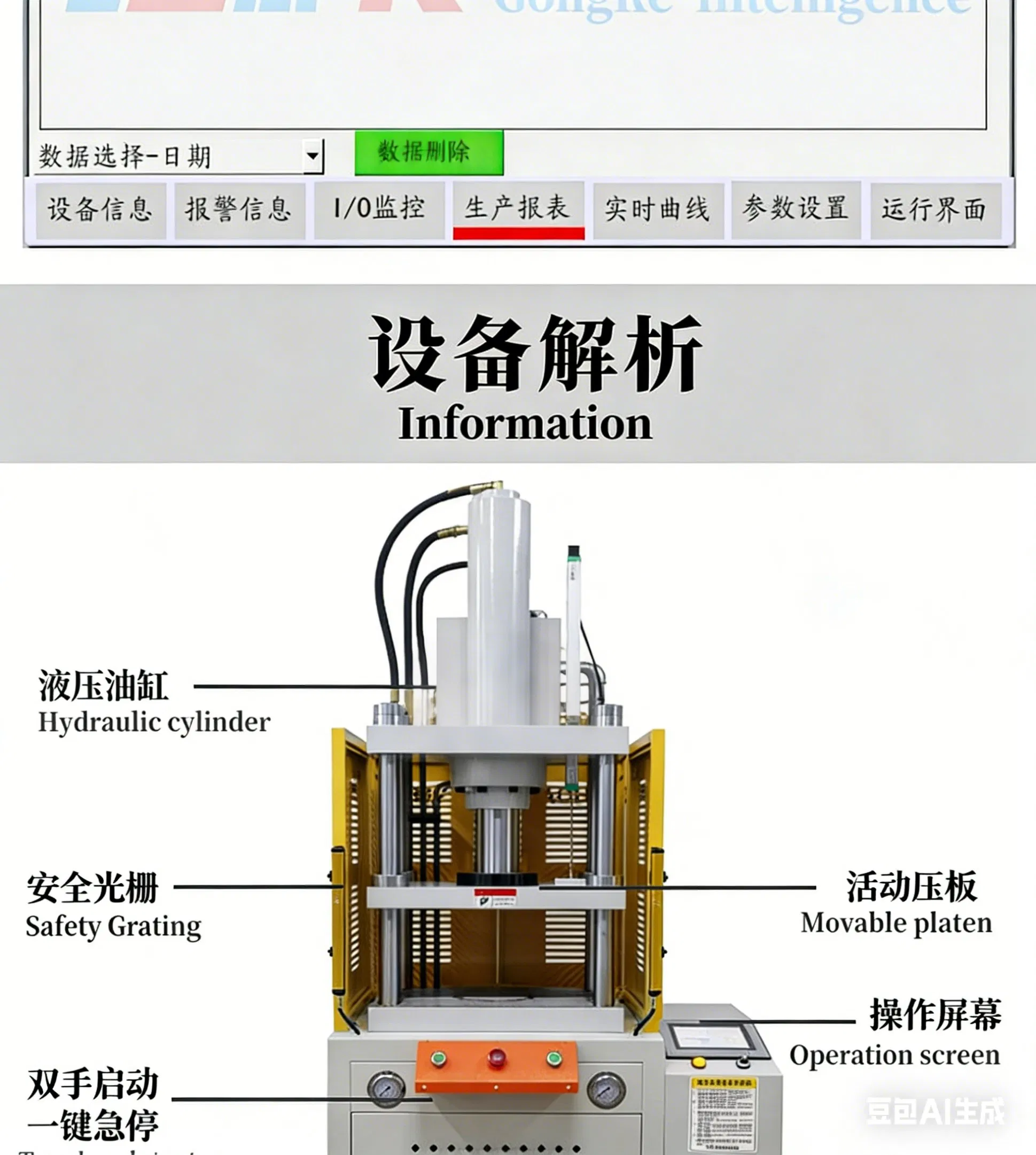

Product Display

Frequently Asked Questions

Q: What is the pressure range of this hydraulic press?

A: The machine offers a rated pressure range from 10T to 100T, depending on the specific model selected (SFY-10T to SFY-100T).

Q: Is the workbench size customizable?

A: Yes, while the standard size is 450mm*350mm, we can customize the workbench dimensions to meet your specific production needs.

Q: What materials can this machine process?

A: It is highly versatile and suitable for cutting plastic, rubber, foam, leather, non-woven fabrics, and soft metals.

Q: How does the automatic sliding table benefit production?

A: The automatic reciprocating sliding table handles feeding and positioning automatically, which significantly increases efficiency and reduces manual labor.

Q: Does the machine include safety protections?

A: Absolutely. It features safety gratings, emergency stop devices, anti-pinch designs, and overload protection to ensure operator safety.

Q: Is professional training required for operation?

A: No, the machine features a humanized control panel and intuitive settings, making it easy to operate with minimal instruction.
