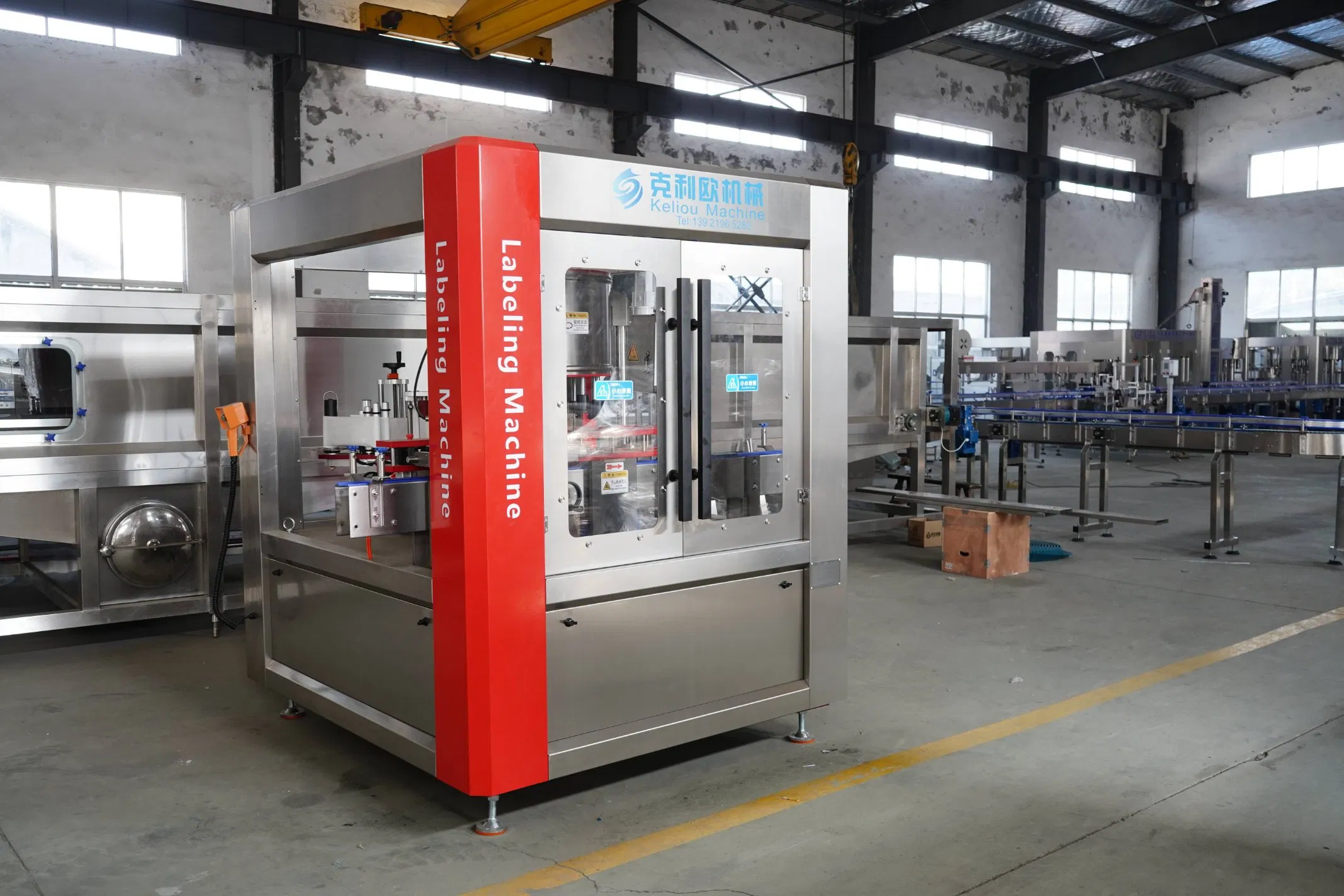

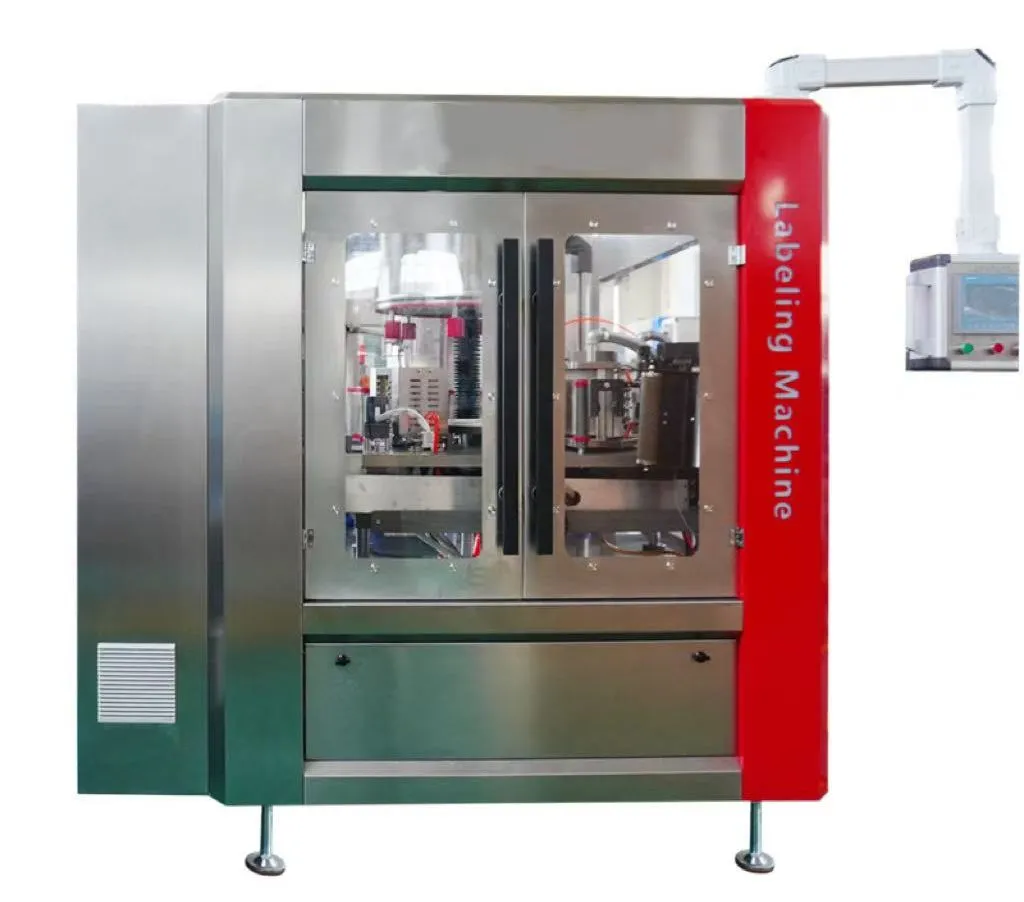

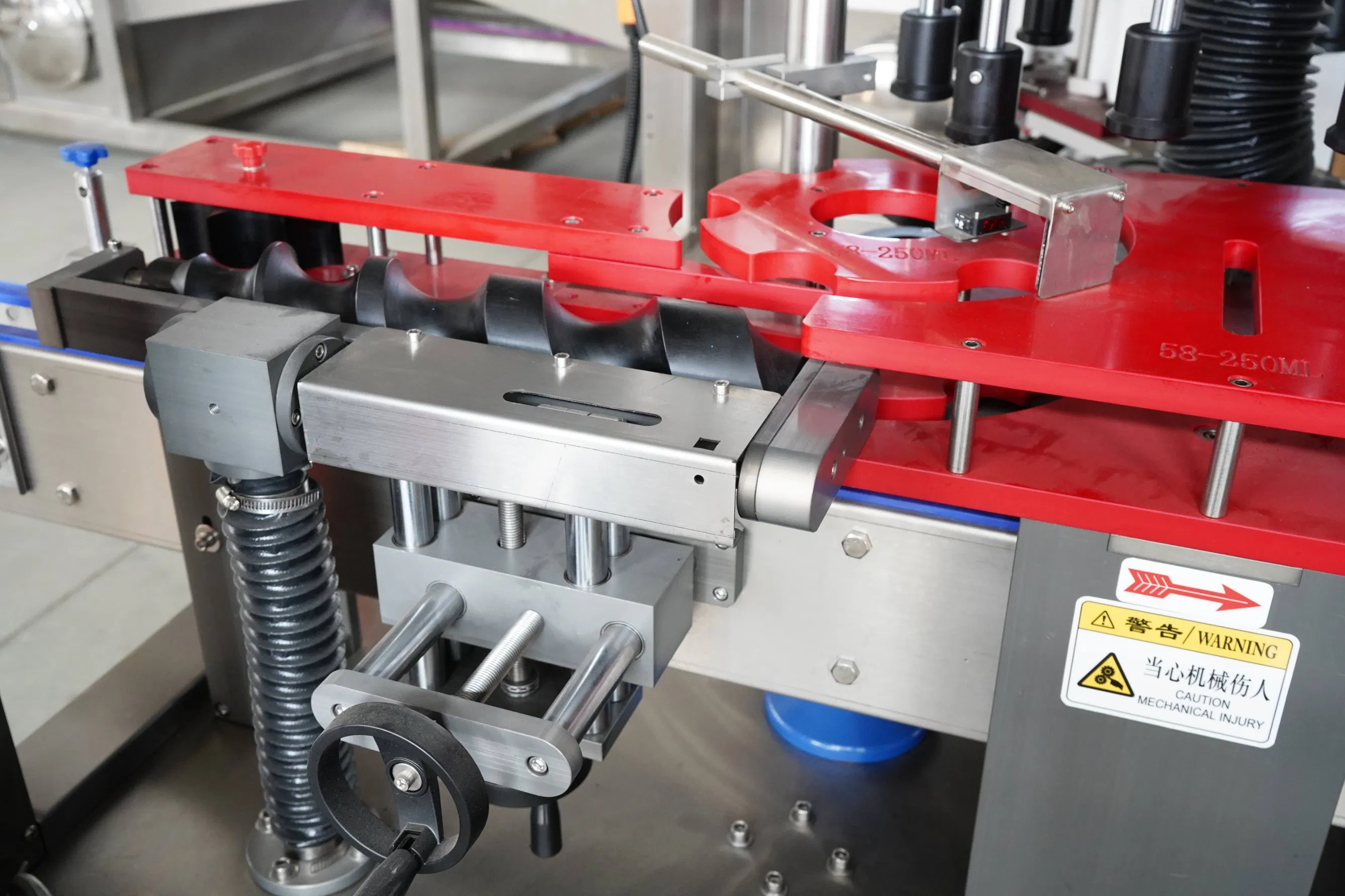

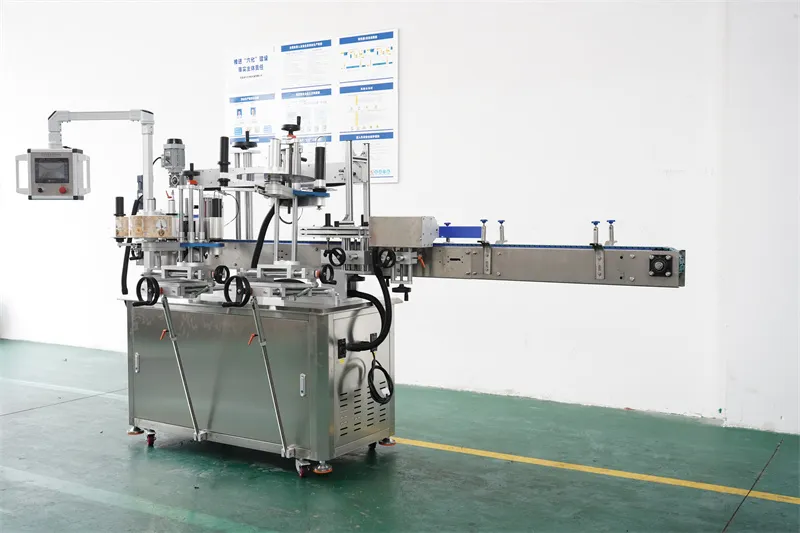

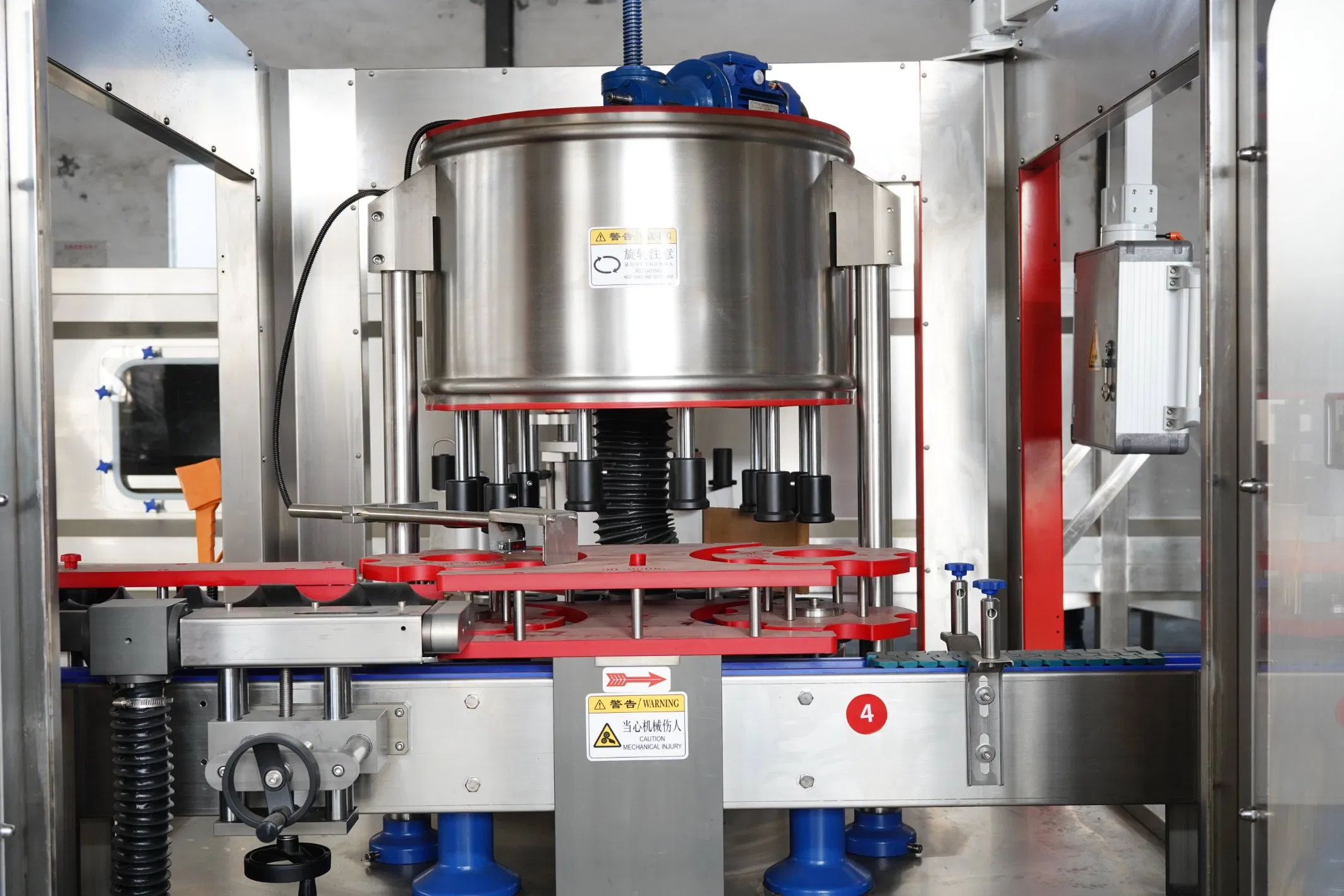

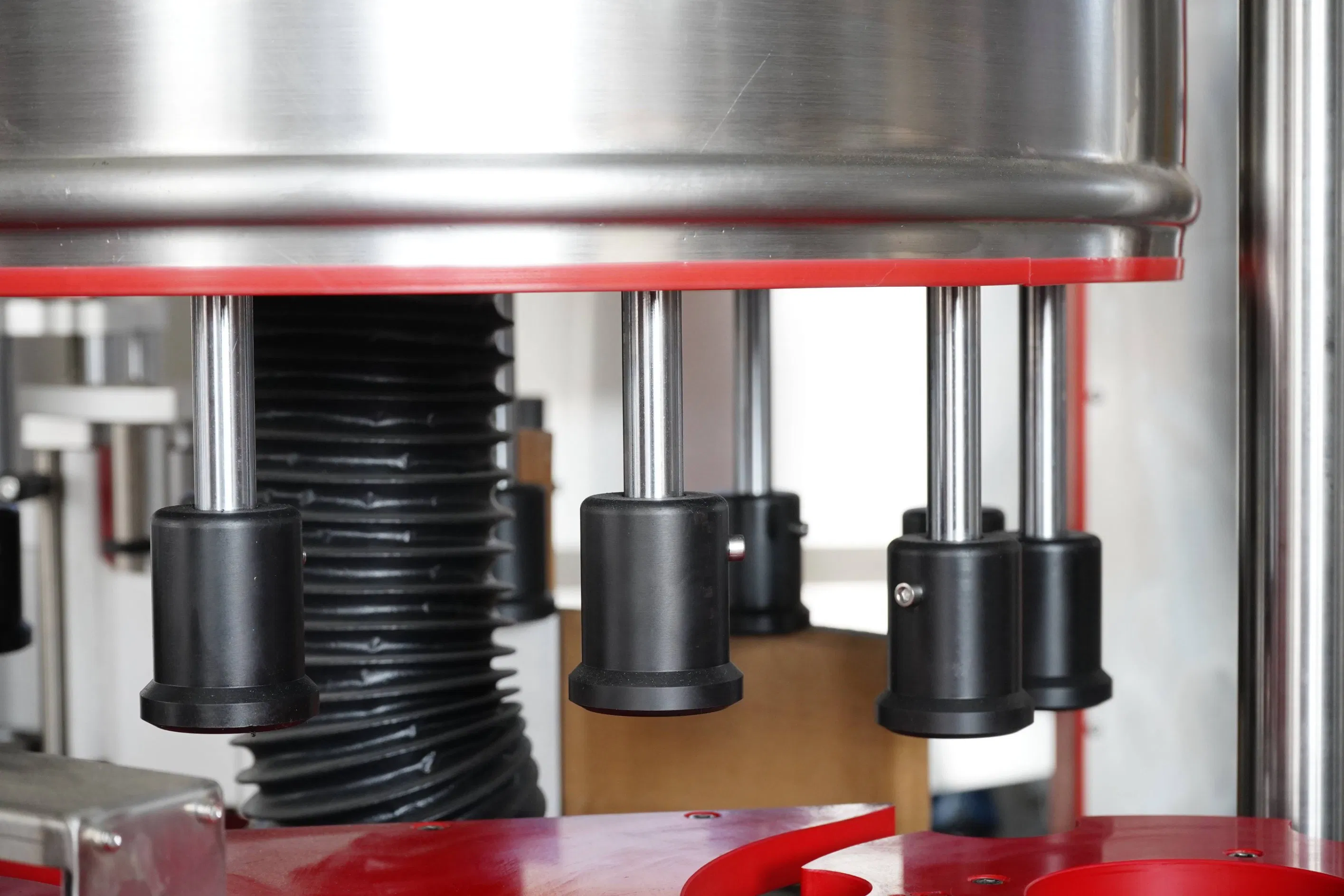

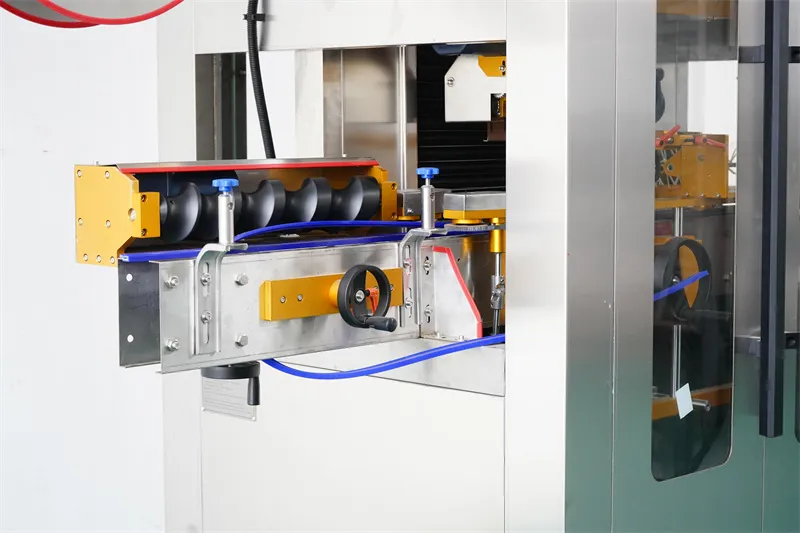

This rotary, continuous operation label applicator is designed for OPP hot melt adhesive. The equipment automatically adjusts input and output transmission conditions. Products are evenly spaced by a bottle screw and transported to a rotary disc via a star wheel. After being secured by the bottle pressing mechanism and mold seat, products rotate at a fixed speed for precise mechanical positioning and label application.

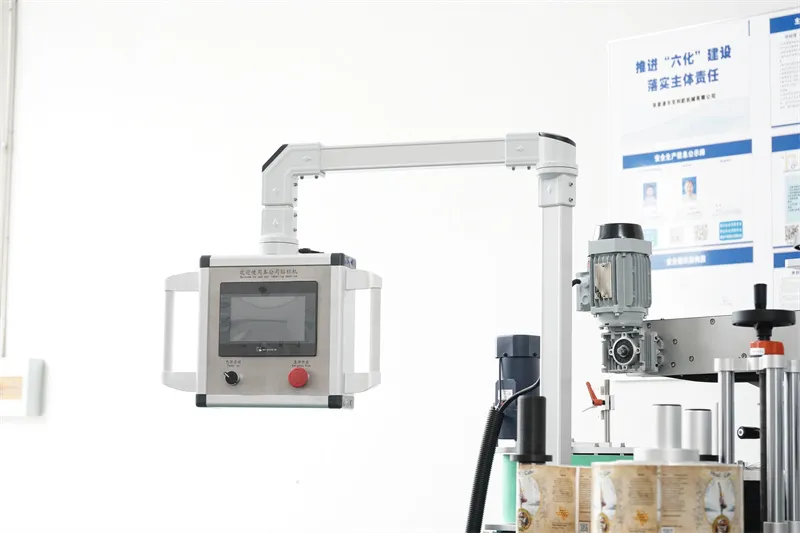

The system utilizes PLC control to feed labels when product detection occurs. A high-speed cutter, driven by Japanese small-inertia servo motors, ensures feeding accuracy and stability. Glue is applied only to the front and back edges of the labels, significantly reducing hot melt adhesive consumption.

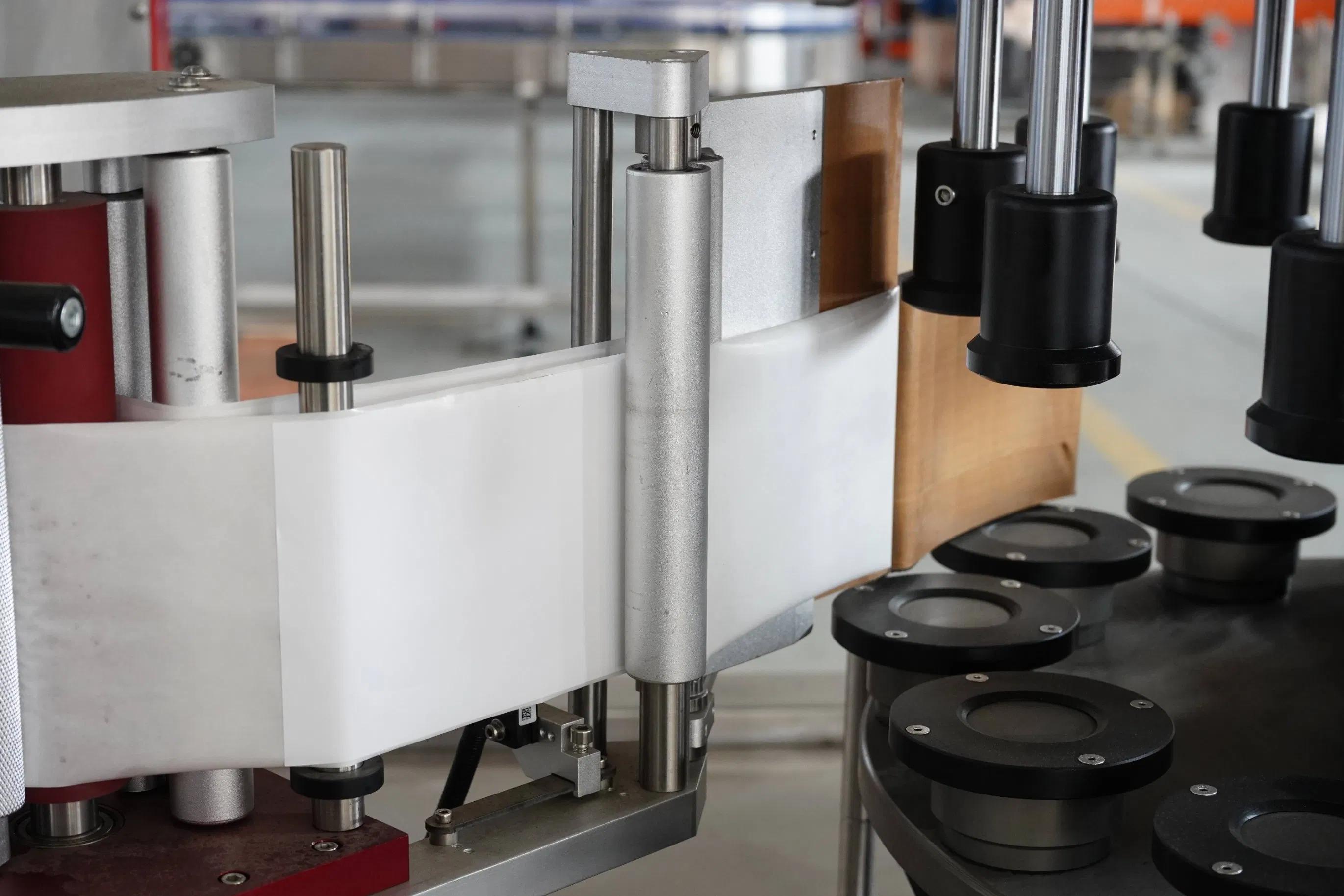

The label application process ensures smooth and tight adhesion as the product rotates. The final adhesive strip creates a secure overlap seal. The workflow includes: bottle entry, pre-positioning, label cutting, gluing, labeling, and pressing.
| Use Power | AC380V 60HZ 14KW |
| Labeling Station | 8, 12, 15, 18, 24 (Customizable) |
| Speed Adjustment | Infinitely Variable Speeds |
| Bottle Diameter | Φ 30-110mm (Round) / L30-160mm (Square) |
| Max Label Height | 210mm |
| Label Core Size | Inner Φ152.4mm / Outer Φ 600mm |
| Colloid Type | Hot Melt Glue (Two-end application) |
| Solvay Temperature | 120-160ºC |

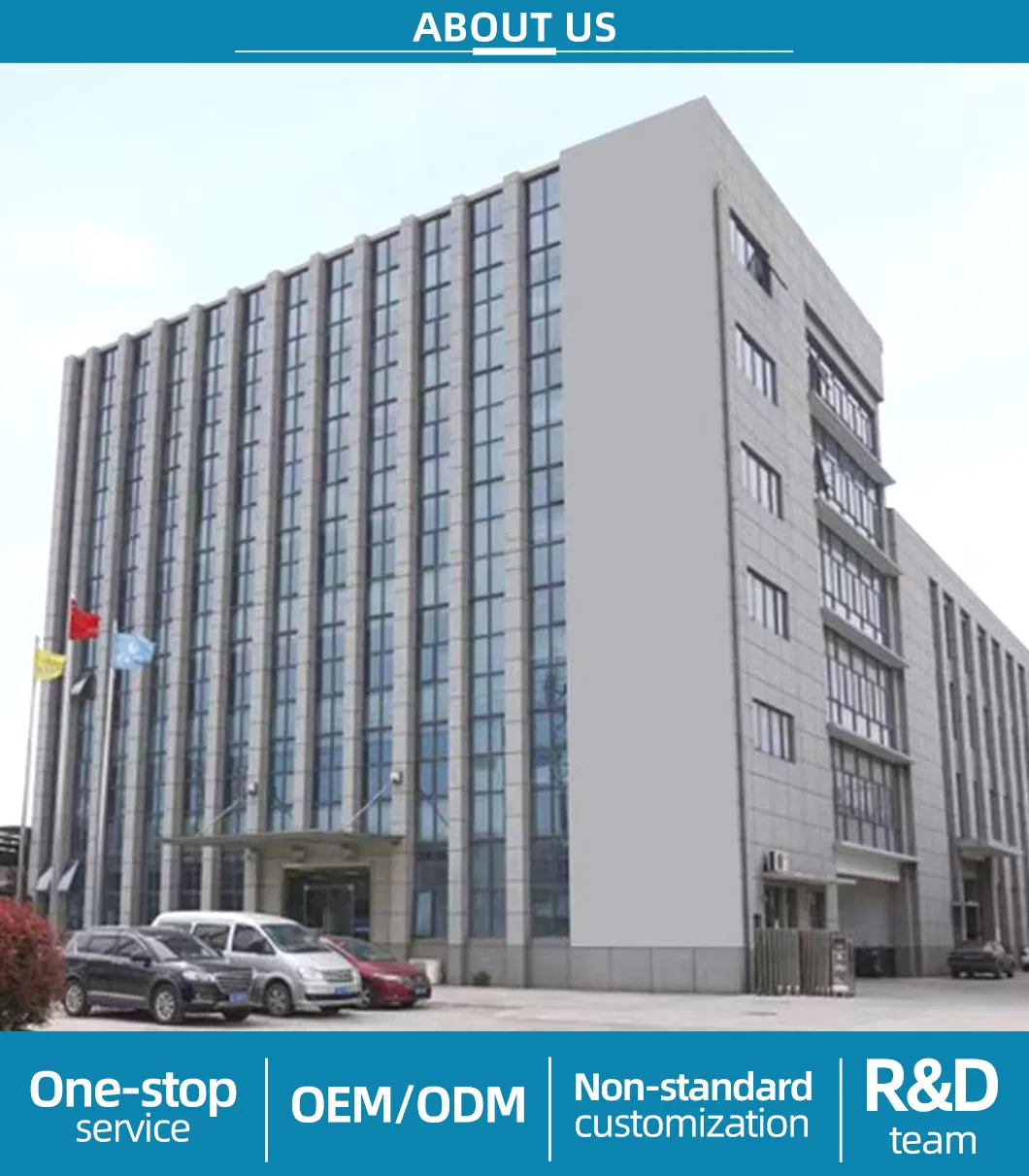

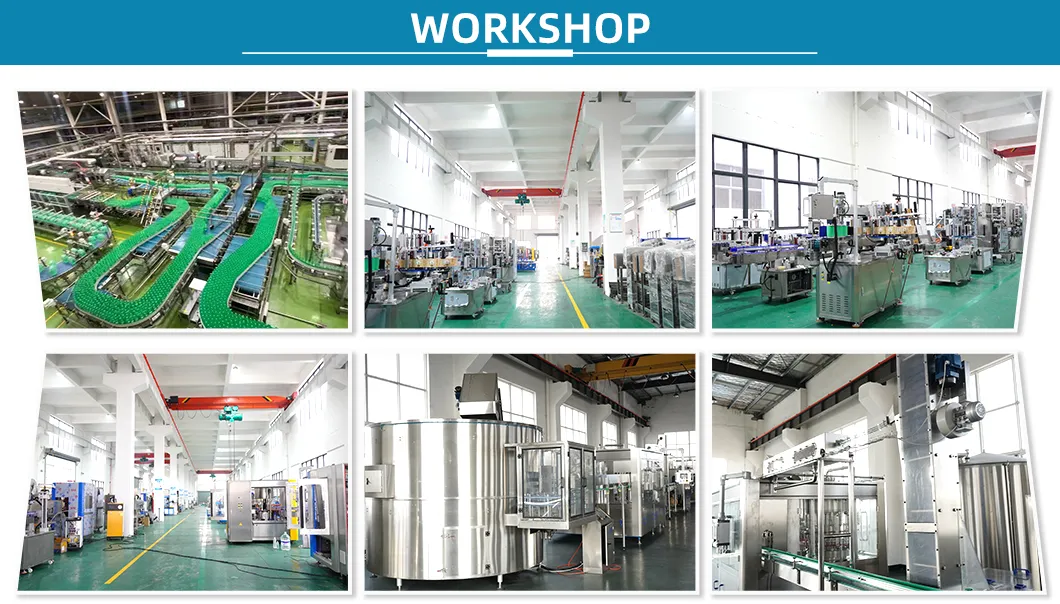

As a leading manufacturer of beverage packaging production lines, we integrate research, development, production, and sales. Our expertise lies in providing high-quality solutions for bottle washing, filling, capping, and labeling equipment for global customers.
With a decade of experience in beverage machinery, we focus on machine manufacturing technology and innovative product design. Our dedicated technical teams ensure smooth equipment operation and comprehensive troubleshooting services.
