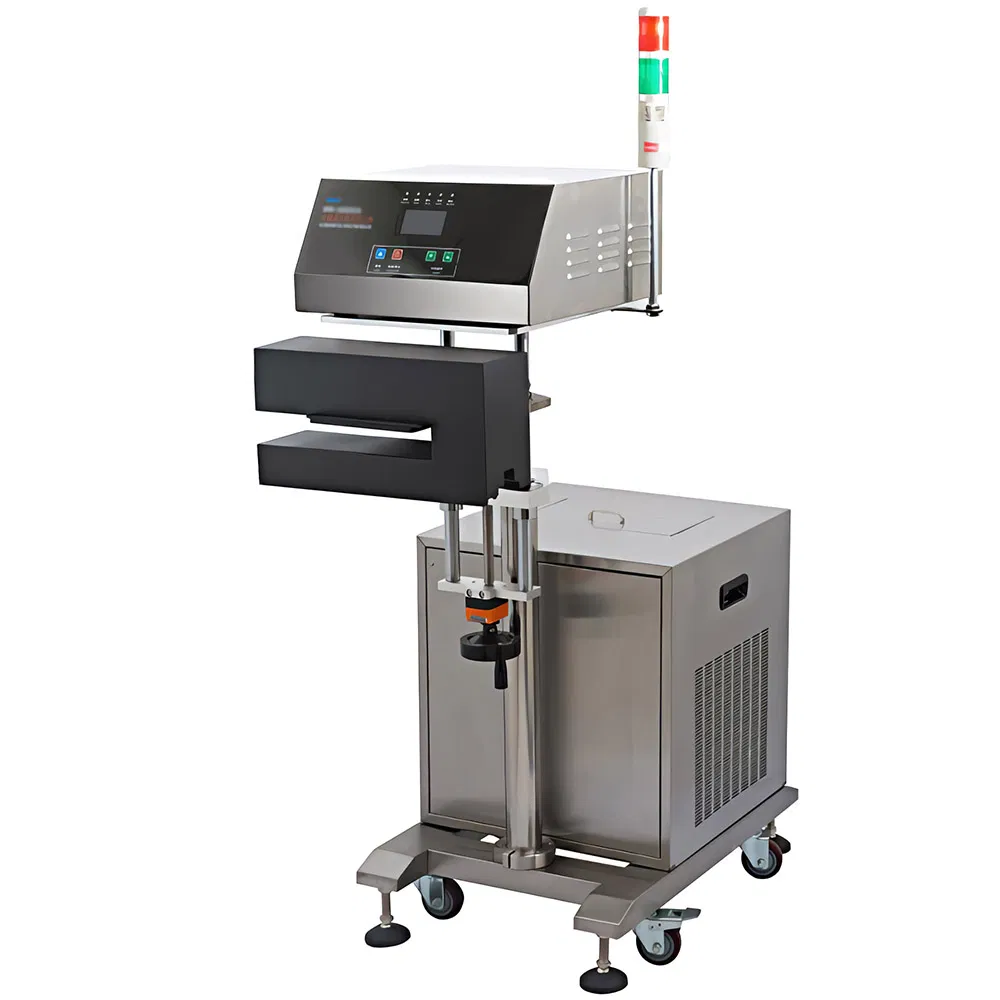

Induction Cap Sealing Machine Water Cooled Tunnel U Shape High Speed

Customization: Available
After-sales Service: Remote Internet Guidance
Warranty: 1 Year

Product Description

Basic Information

Model NO.:R304
Automatic Grade:Automatic
Material Type:Liquid
Induction Shape:Tunnel
Packaging:Wooden Case
Machine Material:304 Stainless Steel
Application:Cosmetics, Cleaning, Dairy, Oil
OEM Logo:Available

Product Description

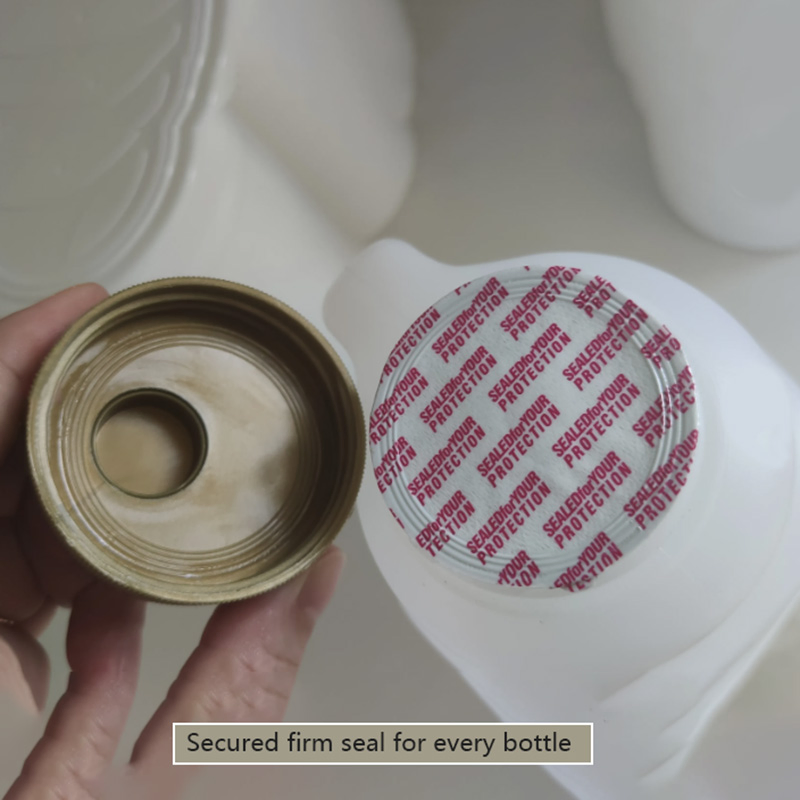

This water-cooled electromagnetic induction sealing machine is engineered for high-speed continuous cap sealing using aluminum foil liners. It is an ideal solution for packaging in food, medicine, healthcare, chemical, and cosmetic industries, ensuring a firm and secured seal for various container closures.

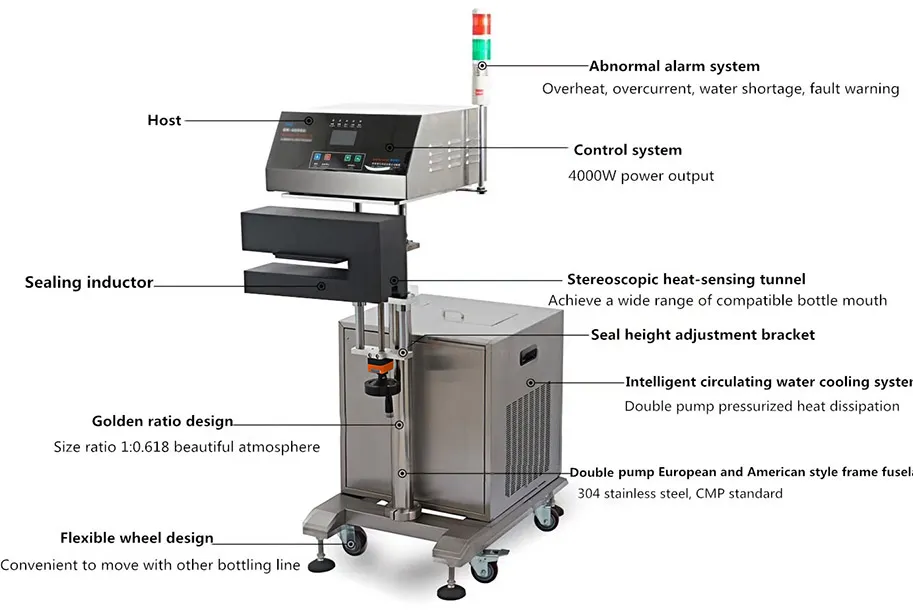

Induction Cap Sealing Machine

Technical Features

  • Three-track three-dimensional magnetic field induction mode for superior performance.
  • Precise control of magnetic and thermal intensity levels.
  • Double water pump circulation heat dissipation system for maximum efficiency.
  • Built-in regulated power supply ensuring stable constant output.
  • Excellent anti-electromagnetic interference performance for industrial environments.
  • Fully enclosed module chip circuit for extended equipment lifetime.

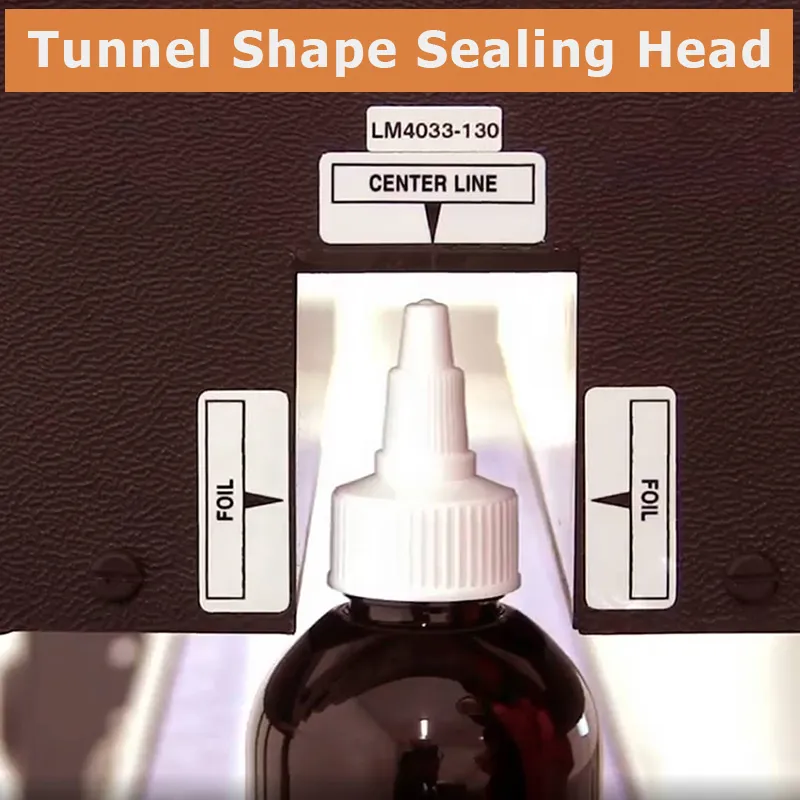

  • Tunnel U-Shape sealing head capable of handling pharmaceutical CRC caps and typical cap types.
Tunnel U-Shape sealing head

Structure & Operation

  • Spiral sliding & lifting device for easy height adjustment (up to 420mm).
  • Full 304 stainless steel enclosure with IP51 protection grade, meeting GMP standards.
  • Integrated ABS alloy sensor head structure.
  • Low noise operation design (Noise < 65DB).
  • Optional PLC touch screen panel and conveyor systems.
Machine Structure Detail
Control System Detail

Safety Features

  • Intelligent electrical protection (over voltage, current, overheat, water shortage).
  • Automatic audible and visual alarms for abnormal running status.
  • Optional: Detection of bottle overheating to prevent fire.
  • Optional: Product counting and missing foil/cap detection sensors.

Product Parameters

Parameter Specification
Power frequencyAC220V 50/60 Hz (customizable)
Power OutputMax. 4000 W
Induction ModeThree track stereo magnetic field induction
Cooling TypeWater-cooled
Line SpeedUp to 24 meters/min. (Approx. 240 BPM)
Sealing Height860-1260mm (customizable)
Bottle Height Range10-390mm
Cap Diameter Range15-45 mm / 50-80mm / 60-120mm / 30-80mm
Applicable CapsFlat plastic caps, shaped tip caps, CRC caps, etc.
Applicable ContainersPlastic, Glass

Packaging Info

Packaging TypeWooden Case
Dimensions1330*860*600mm
Total Weight140 Kgs
Packaging Overview

Frequently Asked Questions

Q: What makes the water-cooling system superior to air-cooling?
A: Our water-cooled system uses double water pump circulation, which provides much higher heat dissipation efficiency, allowing the machine to run continuously at high speeds (up to 240 BPM) without overheating.
Q: Can this machine handle Child Resistant Closures (CRC)?
A: Yes, the Tunnel U-Shape sealing head is specifically designed to deliver a stable and extensive power output capable of sealing pharmaceutical CRC caps effectively.
Q: Is the machine compatible with different bottle heights?
A: Absolutely. The machine features a spiral sliding and lifting device that allows you to easily adjust the sealing height between 860mm and 1260mm to accommodate various bottle sizes.
Q: Does the machine meet cleanroom or pharmaceutical standards?
A: Yes, the machine is constructed with a 304 stainless steel enclosure and has an IP51 protection grade, making it fully compliant with GMP demands.
Q: What happens if there is a malfunction during production?
A: The machine is equipped with an intelligent electrical protection system and will automatically trigger audible and visual alarms if issues like water shortage, overheating, or power surges occur.
