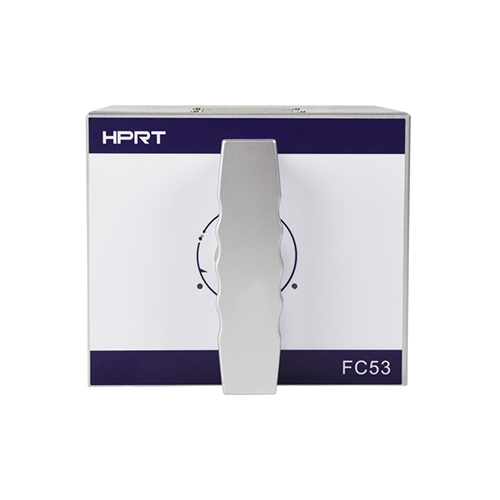

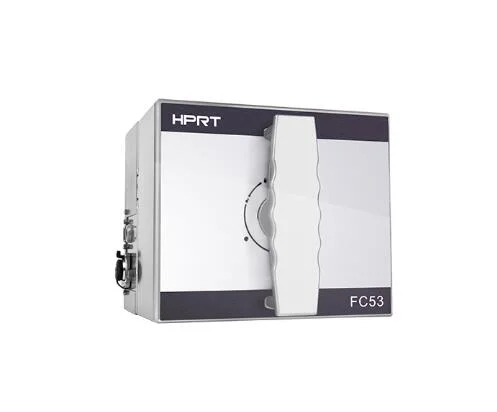

HPRT TTO FC-53Lc Coding Machine with High Print Speed

Customization:	Available
Type:	TTO
Usage:	Daily Industrial, Chemical Products, Drug, Food

Send Inquiry

Product Description

Basic Information

Model NO.

FC-53Lc

Automatic Grade

Automatic

Principle

Thermal Transfer

Application

Thermal Transfer Printing Machine

Working Patterns

On-Line

Supplies

Non-ink

Packaging

Box

Printing Speed

40-600mm/s

Printing Width

53mm

Specification

219.6*180*228cm

HS Code

84433990

Product Description

FC53-Li Thermal Transfer Overprinting

Label and soft packaging code solutions help you create more value. The FC53/32 is suitable for food, medicine, daily chemical, household paper and other types of soft packaging variable code printing, including traceability codes and barcodes.

Reducing total cost of ownership (TCO) is the key to TTO design. The FC53/32 paired with original ribbon ensures the best print effect and lower use cost.

Technical Specifications

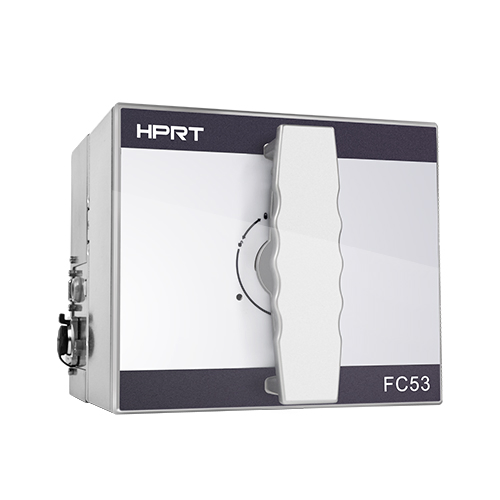

Structure	All-metal structure
Printing Method	Thermal Transfer Printing
Resolution	300dpi (12 dots/mm)
Printing Speed	40-600mm/s
Printing Width	53mm
Print Area	53mm * 100mm (Continuous)
CPU	32-bit RSIC
Flash Memory	8MB (minimum)
Dynamic Memory	16MB (minimum)
Real-time Clock	STD (Battery Lifespan: min 3 years)
Sensors	Ribbon Tension, Thermal Head Position, Cover Open, TPH over Temperature, Ribbon Break Detection
Material Compatibility	PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE, VMPET, VMCPP and other composite films

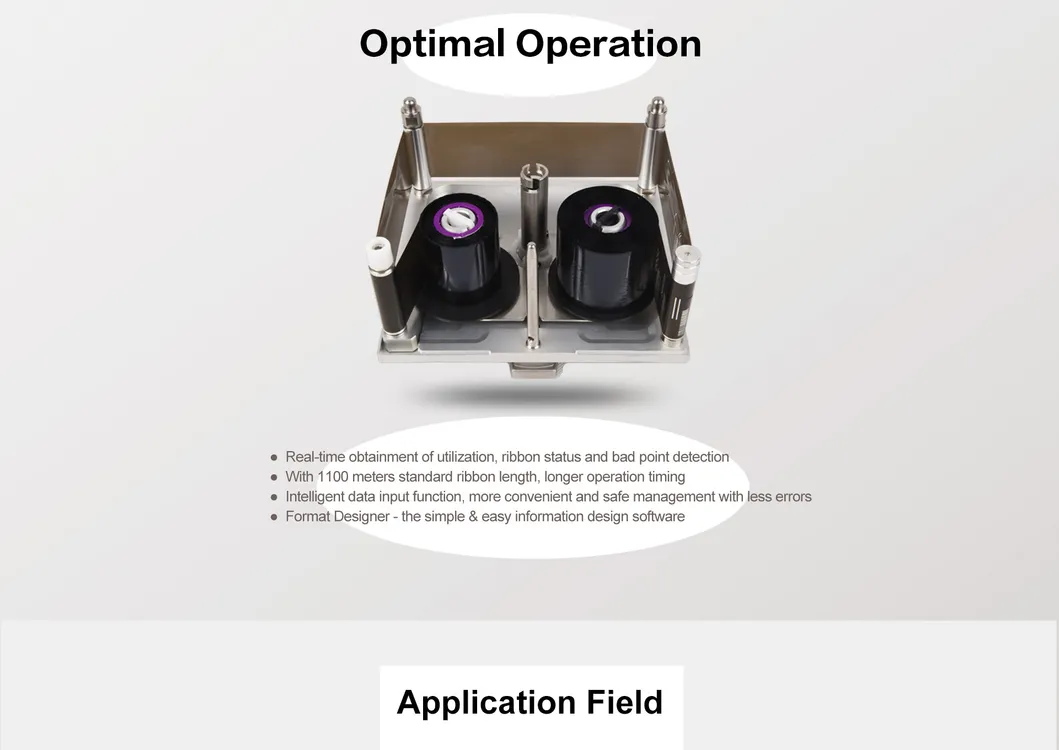

Ribbon Capacity	1" mandrel with a maximum length of 1100 meters
Ribbon Type	Wax / Resin-based; Width: 20 mm to 55 mm
Ribbon Saving	Support interlaced, radial, multiple print signals, digital saving modes; Min interval ≤ 0.5mm
Air Pressure Supply	Max. 6 bar/90 PSL
Airflow Consumption	As low as 4 ml / print at 2.5 bar
Interfaces	USB Device 2.0, USB Host 2.0, Serial Port (D-SUB 9-pin), Ethernet (RJ-45)
Power Supply	AC90V-264V, 47/63 Hz; 150 VA
Environmental	Operation: 0 to 40°C; Humidity 10% to 90% non-condensing

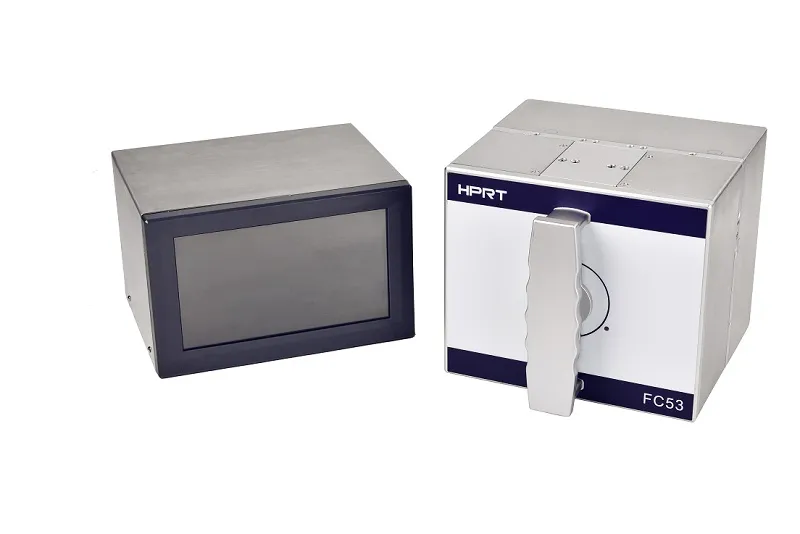

Machine Weight	Printer: < 8 kg; Controller: < 5 kg

Product Gallery

Frequently Asked Questions

What types of packaging materials can the FC-53Lc print on?

The FC-53Lc is compatible with a wide range of soft packaging materials including PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPA, and various composite films.

What is the maximum printing speed of this machine?

The machine offers a high-speed printing capability ranging from 40mm/s up to 600mm/s, making it suitable for high-demand production lines.

Does this printer support ribbon saving features?

Yes, it supports multiple ribbon-saving modes including interlaced, radial, and digital ribbon saving, with a minimum interval between prints of no more than 0.5mm.

What is the print resolution and quality?

The printer provides high-resolution 300dpi (12 dots/mm) quality, ensuring clear and readable traceability codes and barcodes.

What built-in sensors does the system include?

It is equipped with advanced sensors for ribbon tension detection, thermal head position, cover open status, TPH temperature monitoring, and ribbon break detection.

Is the machine suitable for on-line production environments?

Absolutely. The FC-53Lc is designed for on-line integration and features an all-metal structure for durability in industrial environments.
