Basic Info
Type:Water Filling
Automatic Grade:Automatic
Material Type:Liquid
Filling Valve Head:Single-Head
Dosing Device:Rotor
Application:Cosmetics, Drinks, Detergent
Driven Type:Electric
Control System:Siemens PLC / Servo Motor
Accuracy:Within ±2mm
Melt Temperature:120-160℃
⚙️
Product Description

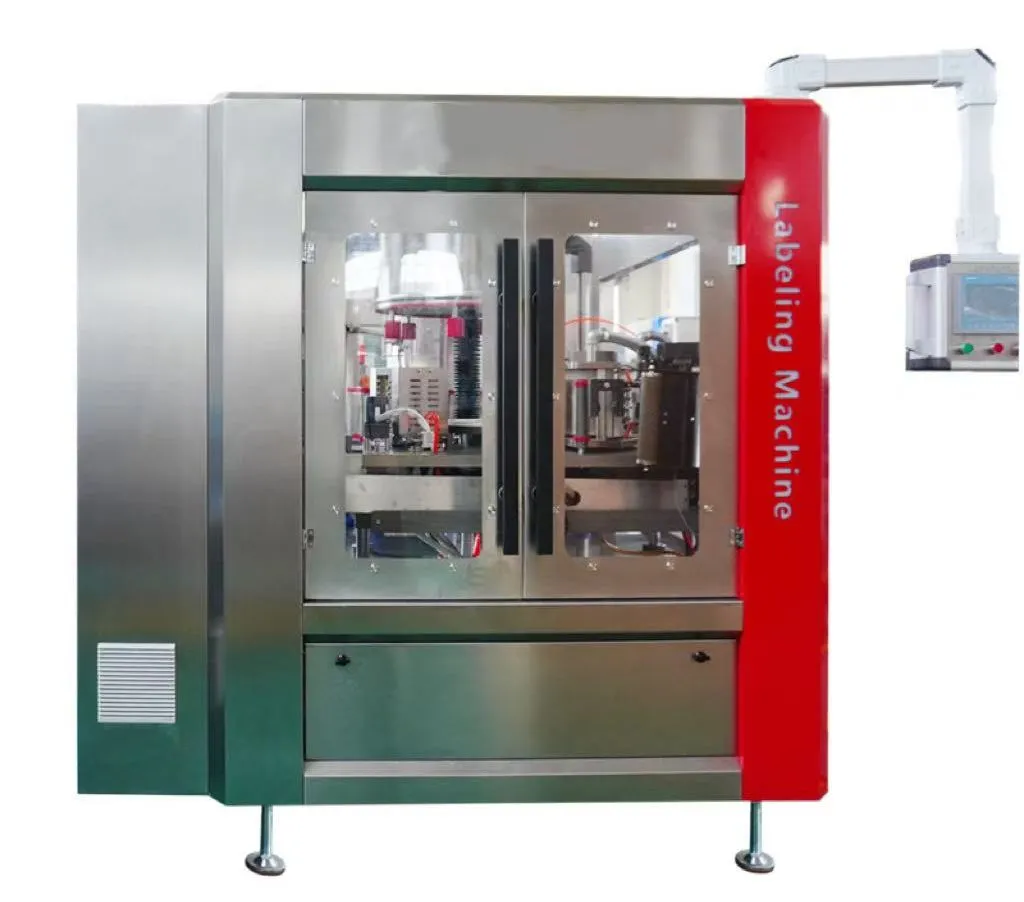

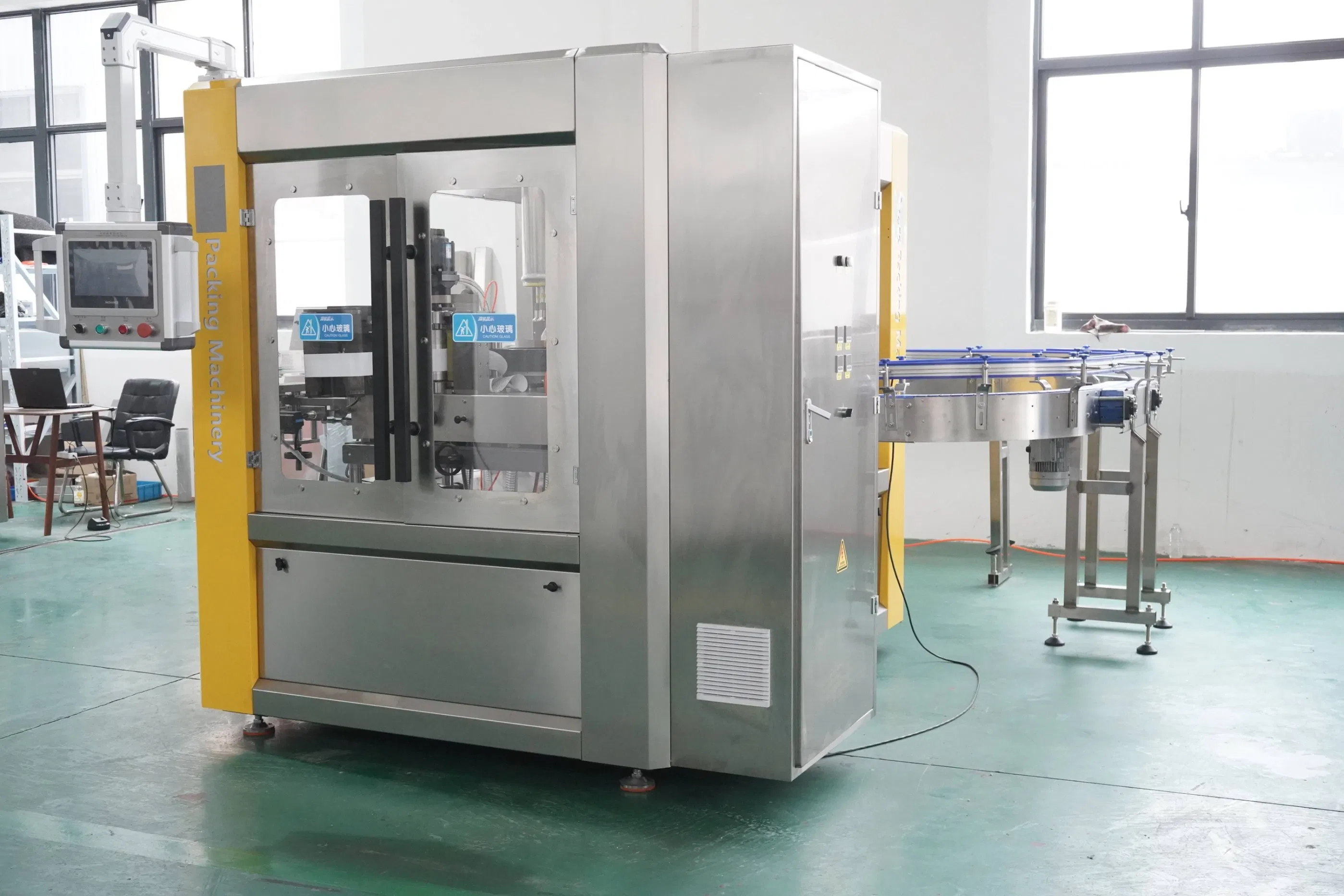

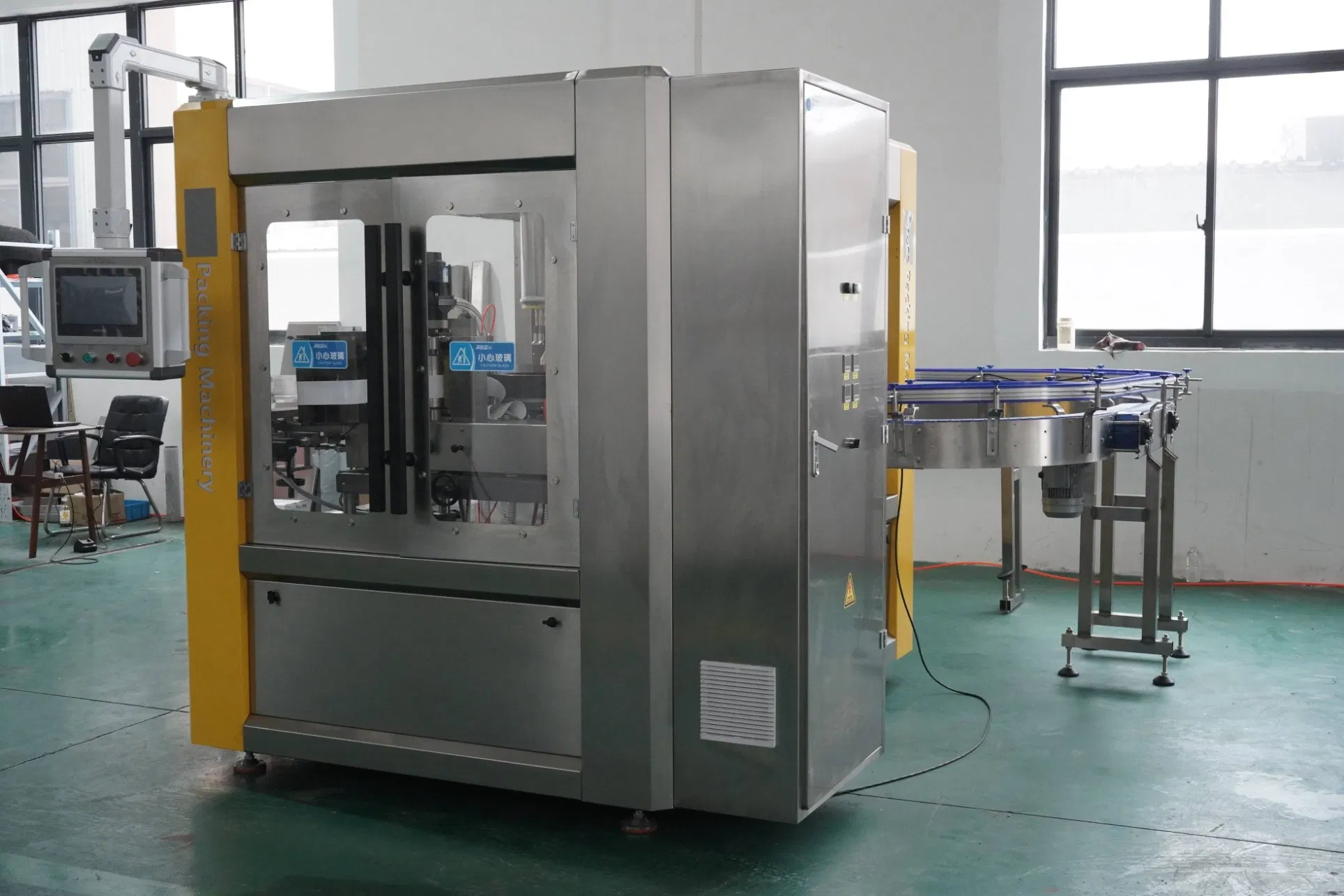

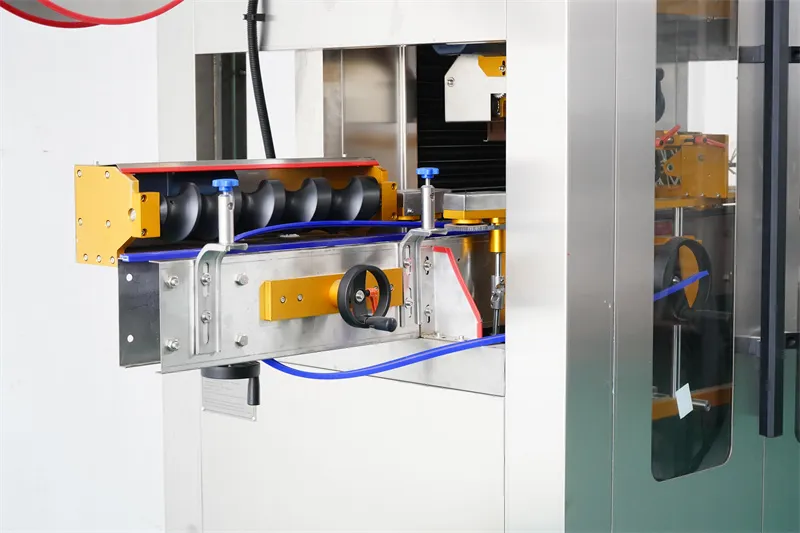

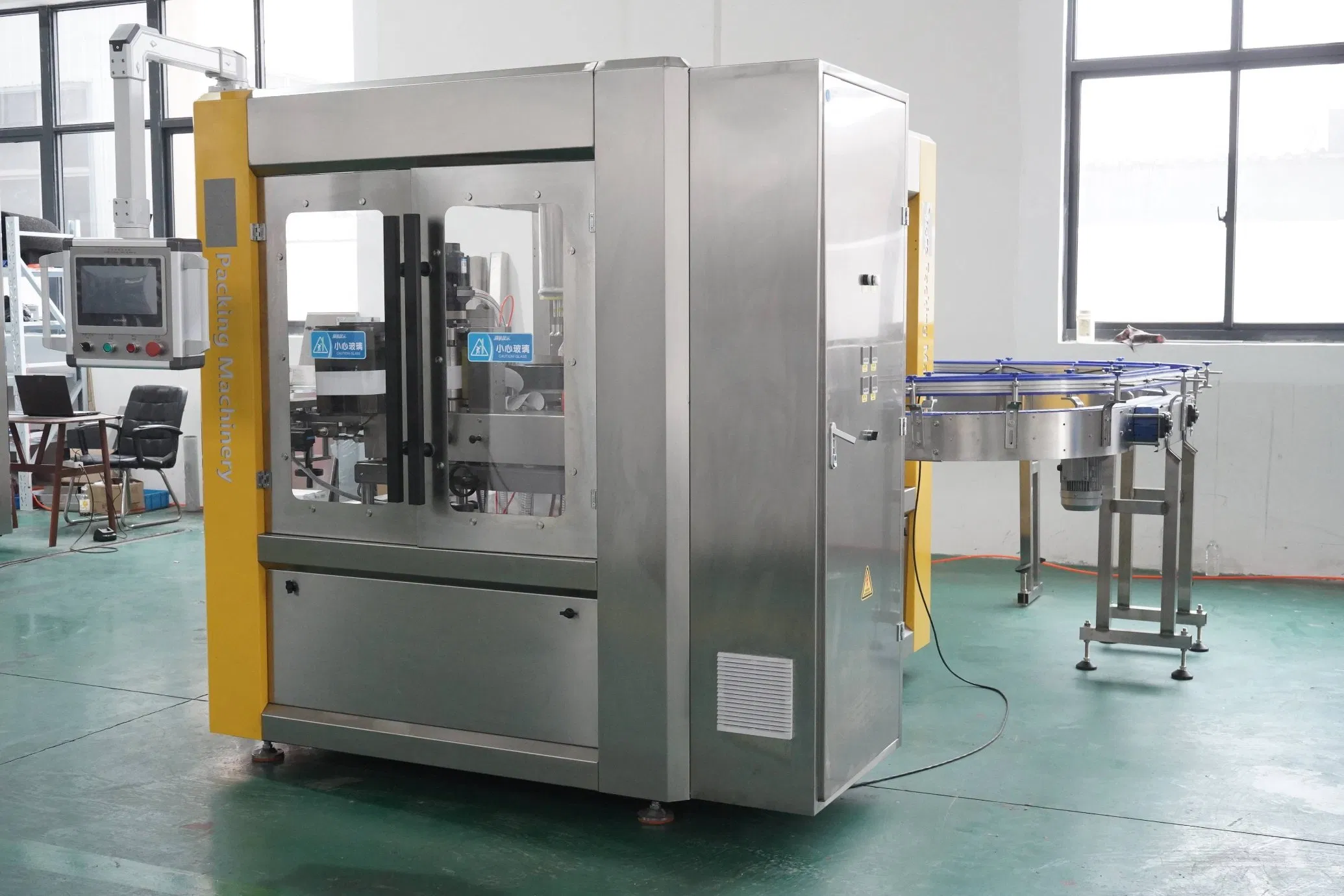

This rotary, continuous operation label applicator is designed for OPP hot melt adhesive. The equipment automatically adjusts input and output transmission conditions. Products are spaced evenly by a bottle screw and transported to the rotary disc where they are fixed by a pressing mechanism. Labels are applied precisely according to the mechanical trajectory.
Utilizing imported high-speed servo motors, the feeding process is dynamically adjusted for maximum speed and accuracy. The system applies glue only to the front and back edges of the labels, significantly minimizing the consumption of hot melt adhesive. The whole process includes bottle entry, pre-positioning, cutting label, gluing, labeling, and pressing.
🏗️
Main Equipment & Profile
The manufacturer is a leading provider of beverage packaging production lines that integrates research and development, production, and sales. With advanced technology and robust R&D capabilities, the company has established a pioneering position in the packaging market. The company excels in providing high-quality design and manufacturing services for a wide range of beverage machinery, including bottle washing machines, filling machines, capping machines, and labeling equipment.
❓
Frequently Asked Questions
1. What is the production capacity of this labeling machine?
The machine supports high-speed continuous operation with a capacity ranging from 6,000 to 20,000 bottles per hour, depending on the specific model.
2. What types of containers are compatible with this equipment?
It is compatible with circular, square, and irregular-shaped containers, making it suitable for food, beverage, cosmetics, and chemical industries.
3. How accurate is the labeling process?
The equipment provides high precision with a labeling accuracy within ±2mm and a label cutting accuracy of ±0.5mm to 1mm.
4. What kind of adhesive does the machine use?
It uses OPP hot melt adhesive. The system is designed to apply glue only to the front and back edges of the label to minimize glue consumption.
5. Does the machine feature an intelligent control system?

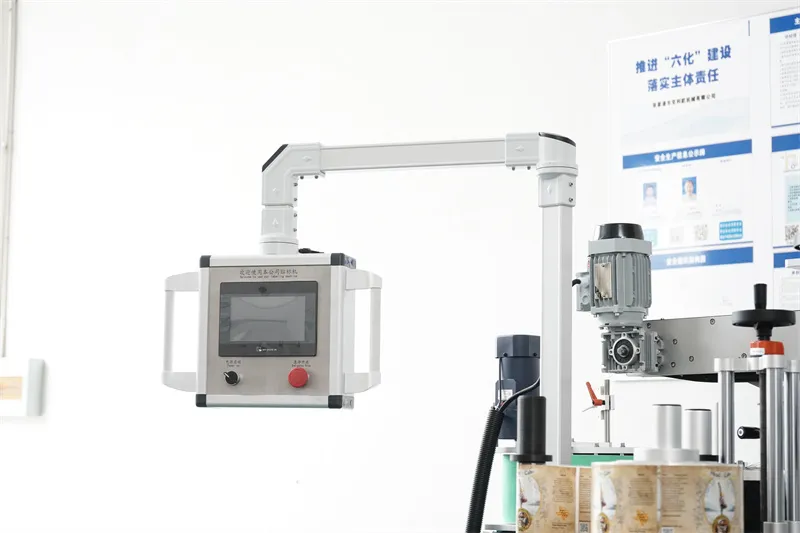

Yes, it uses a Siemens PLC control system and Schneider imported servo motors, along with a 7-inch touch screen for real-time monitoring and fault alarms.
6. Is the equipment easy to maintain?
Yes, the modular design reduces mechanical transmission parts and includes wear-resistant materials like self-lubricating synthetic parts, which can reduce maintenance costs by over 50%.
