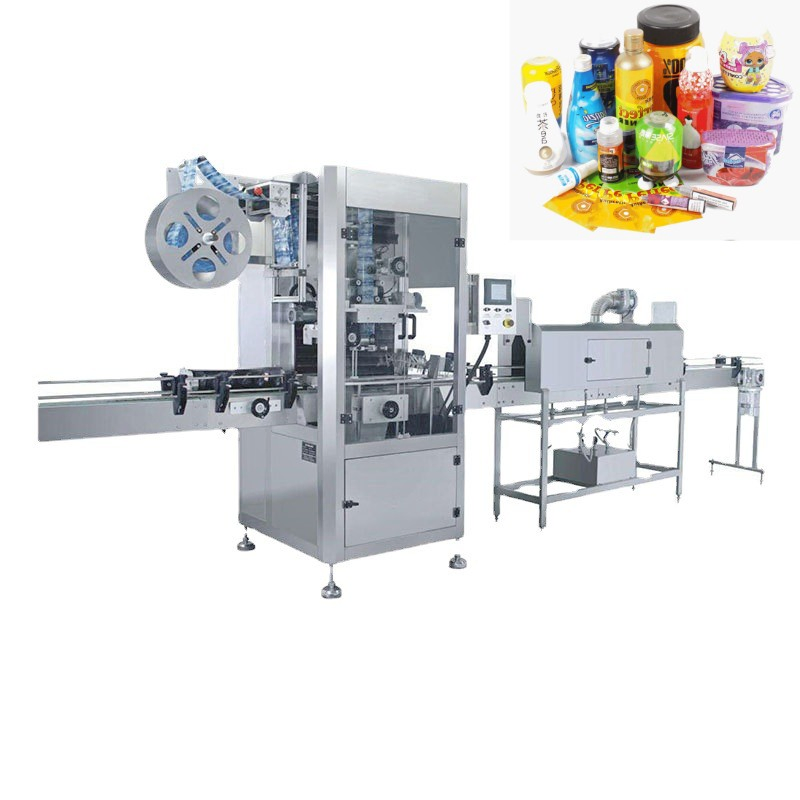

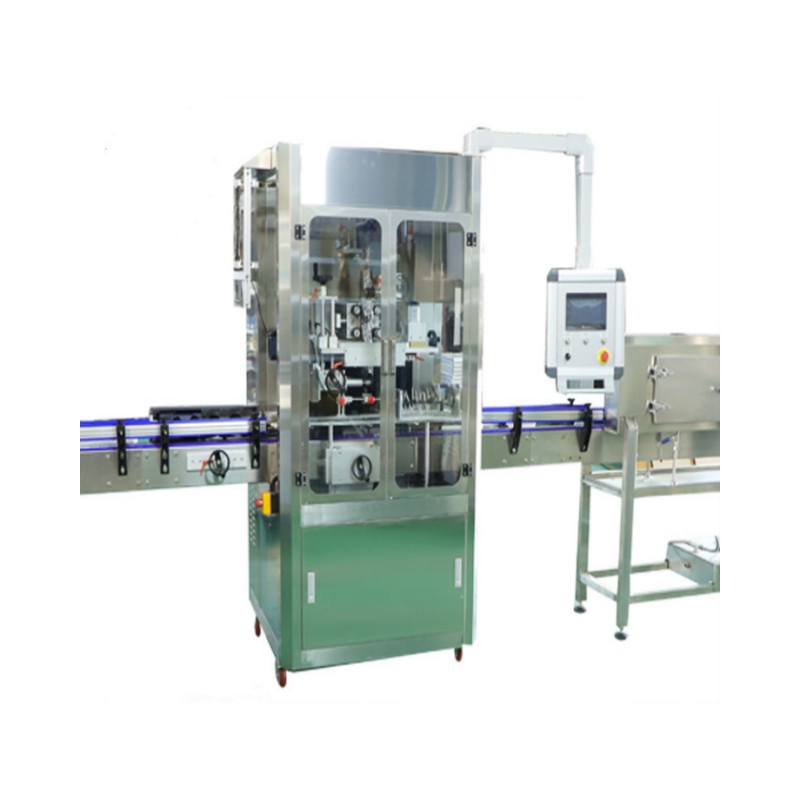

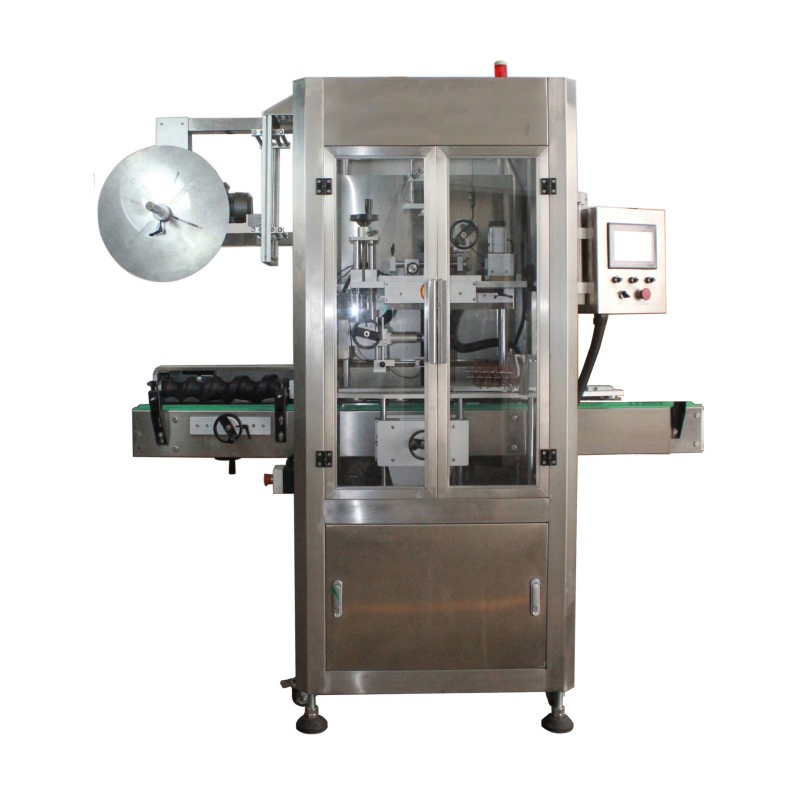

High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
1 / 5
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment
High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment

High Speed Plastic Bottle Shrink Sleeve Labeling Device Sleeve Labeling Equipment

Customization: Available
After-sales Service: Online Support
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information

Model NO.
TBJ
Automatic Grade
Automatic
Application
Cosmetics, Drinks, Cleaning, Detergent, Skin Care, Food
Type
Sleeve Labeling Machine
Driven Type
Electric
Raw Material
SUS304
Feature
High Speed
Specification
150-250pcs/min
Origin
China

Product Description

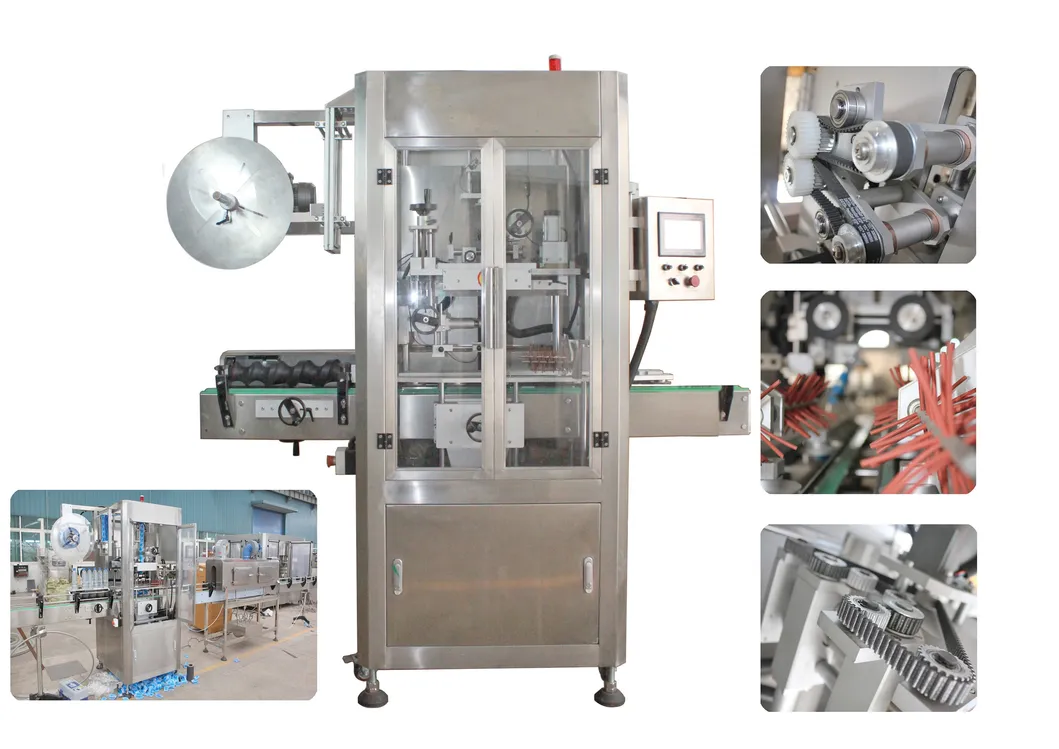

High Speed Sleeve Labeling Device

Application Scope

Suitable for various kinds of bottle types such as fruit juice, tea beverage, dairy products, pure water, condiment, beer, and sports drinks. It is applicable to:

  • Various bottle shapes: round, square, flat, curve, cups, etc.
  • Multiple container materials: plastic bottles, glass bottles, PVC, PET, PS, tin, and other containers.

Operation Principle

  1. The sleeve label is unwound evenly from the reel and conveyed to the cutting unit.
  2. The sleeve is opened over a mandrel, and a servomotor-controlled cutter cuts the sleeves exactly to length.
  3. The applicator fork pulls the sleeves over the container.
  4. Optional positioning brushes and hot-air nozzles ensure perfect positioning before entering the steam tunnel.

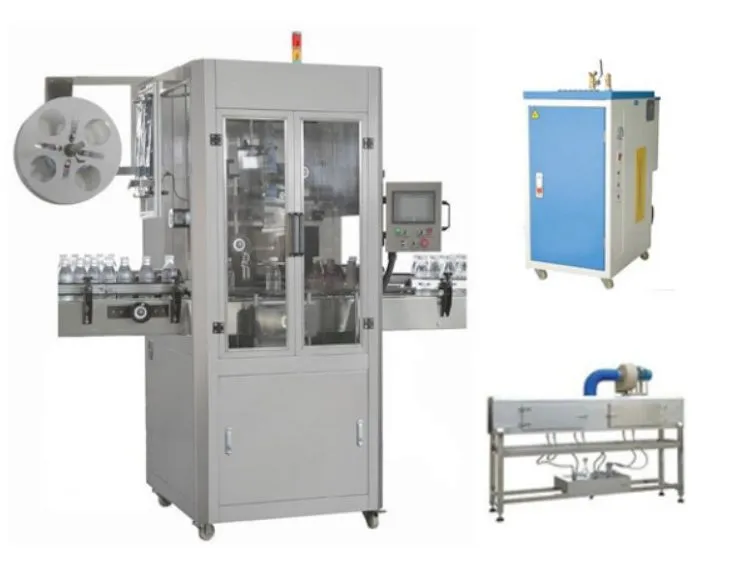

Steam Heating Shrink Tunnel

Steam Heating Shrink Tunnel Features:

  • Applies to irregular bottle types (round, square, flat).
  • Unified low-pressure steam drum distribution.
  • Adjustable three-segment steam nozzles for perfect shrinking.
  • Stainless steel construction with energy-saving heat preservation.
  • Waterproof design with easy maintenance.

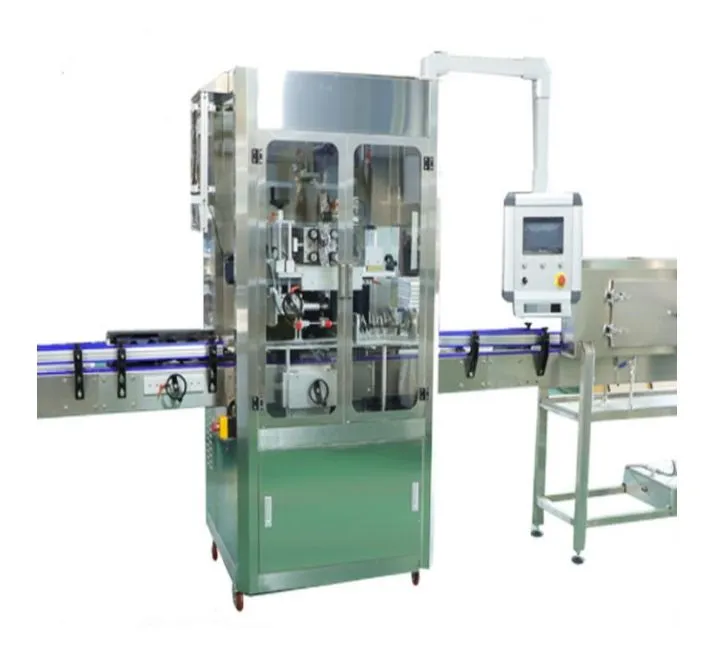

Equipment Detail 1

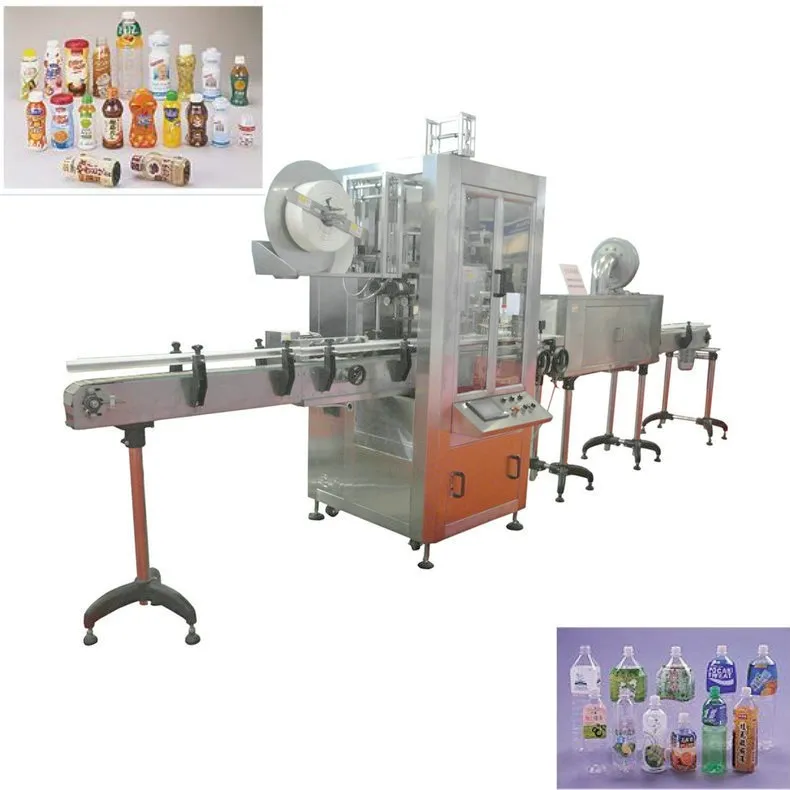

Equipment Detail 2
Model Parameter BM150 BM250
Host Size2100L*850W*2000H2100L*850W*2000H
Production Speed150-170B/min200-250B/min
Power Supply1ø/220V, 3ø/220V1ø/220V, 3ø/220V
Host Power2KW2KW
Framework MaterialStainless SteelStainless Steel
Label Length30mm~260mm30mm~260mm
Label Thickness0.03mm~0.13mm0.03mm~0.13mm
Bottle Diameter28mm~125mm28mm~125mm
Bottle Height50mm~280mm50mm~280mm
Bottle ShapeSquare, round, oval, flatSquare, round, oval, flat

Features & Advantages

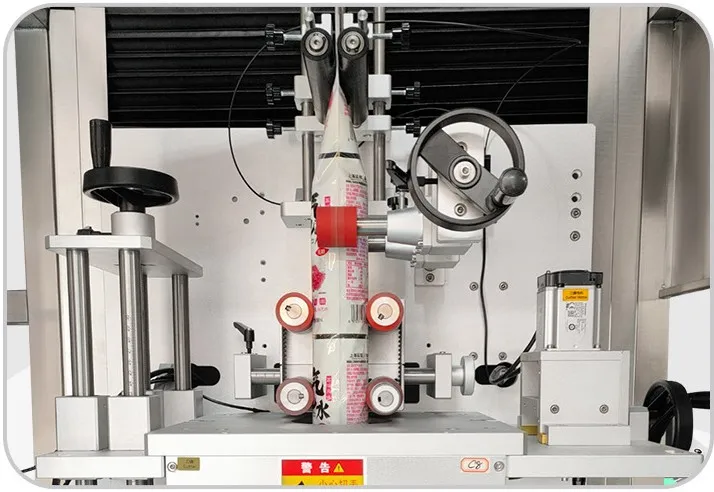

Advantage 1

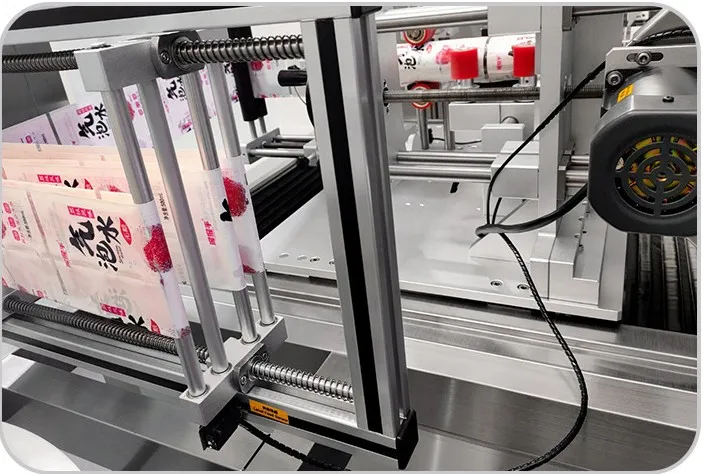

Advantage 2
  • High Precision: Accurate positioning highlights the perfect bottle shape after shrinkage.
  • Stable Structure: Rigid aluminum alloy frame and stainless steel protection cover (anti-rust).
  • Low Maintenance: Easy-to-change spare parts with low cost burden.
  • Exclusive Cutter Design: Reciprocating cutting knives with extended tool life.
  • User Friendly: Simple center column positioning for easy specifications replacement.

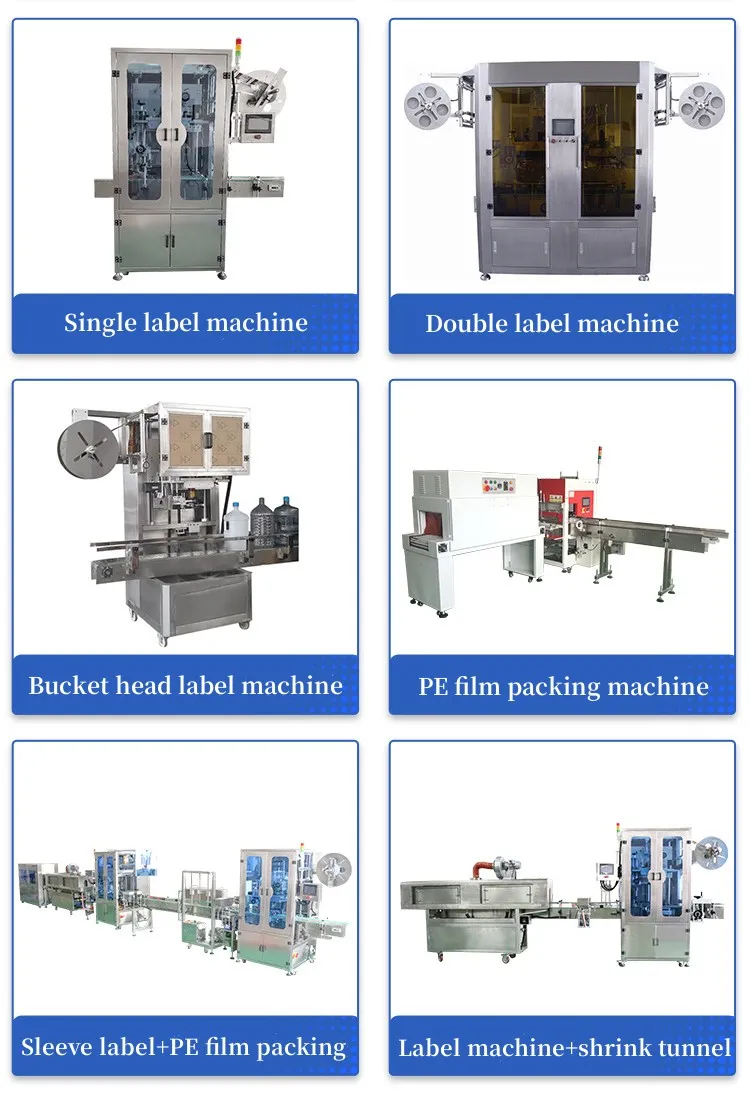

Structural Diagram

Certifications

Certification Documents

Packaging & Shipping

Packing Process 1
Packing Process 2
Shipping

Frequently Asked Questions

Q1: What types of bottles can this sleeve labeling machine handle?
It is designed for a wide range of shapes, including round, square, oval, flat, and irregular curve bottles or cups.
Q2: What is the maximum production speed of the equipment?
The speed varies by model; the BM150 reaches 150-170 bottles per minute, while the BM250 can achieve 200-250 bottles per minute.
Q3: Does the machine support different label thicknesses?
Yes, it supports membrane materials with thicknesses ranging from 0.03mm to 0.13mm.
Q4: How does the steam tunnel ensure a perfect shrink effect?
The steam nozzle is divided into three adjustable segments where height, position, and steam output can be individually tuned.
Q5: Is the machine construction durable for food industry standards?
Absolutely. The whole machine uses SUS304 stainless steel and aluminum alloy, ensuring it is solid, rust-proof, and meets safety standards.
Q6: Is maintenance complicated for this labeling device?
No, the structure is simplified to ensure a low failure rate, and spare parts are standardized for easy and low-cost replacement.
