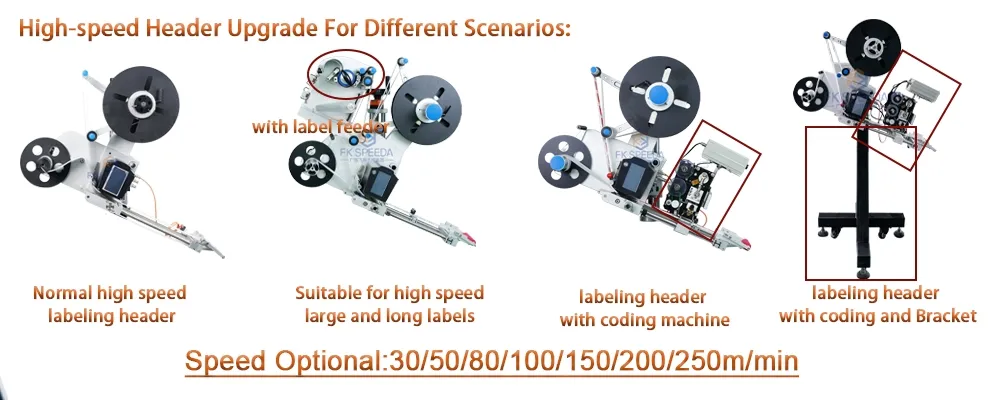

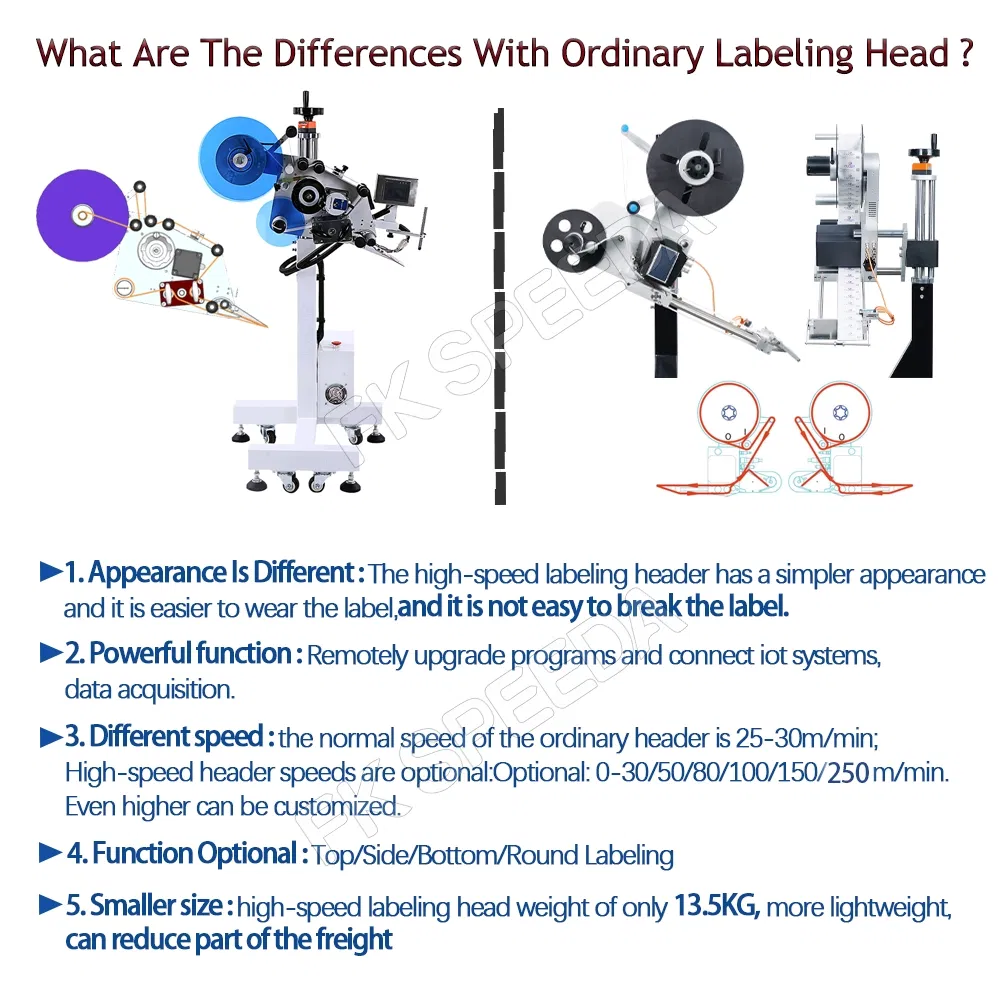

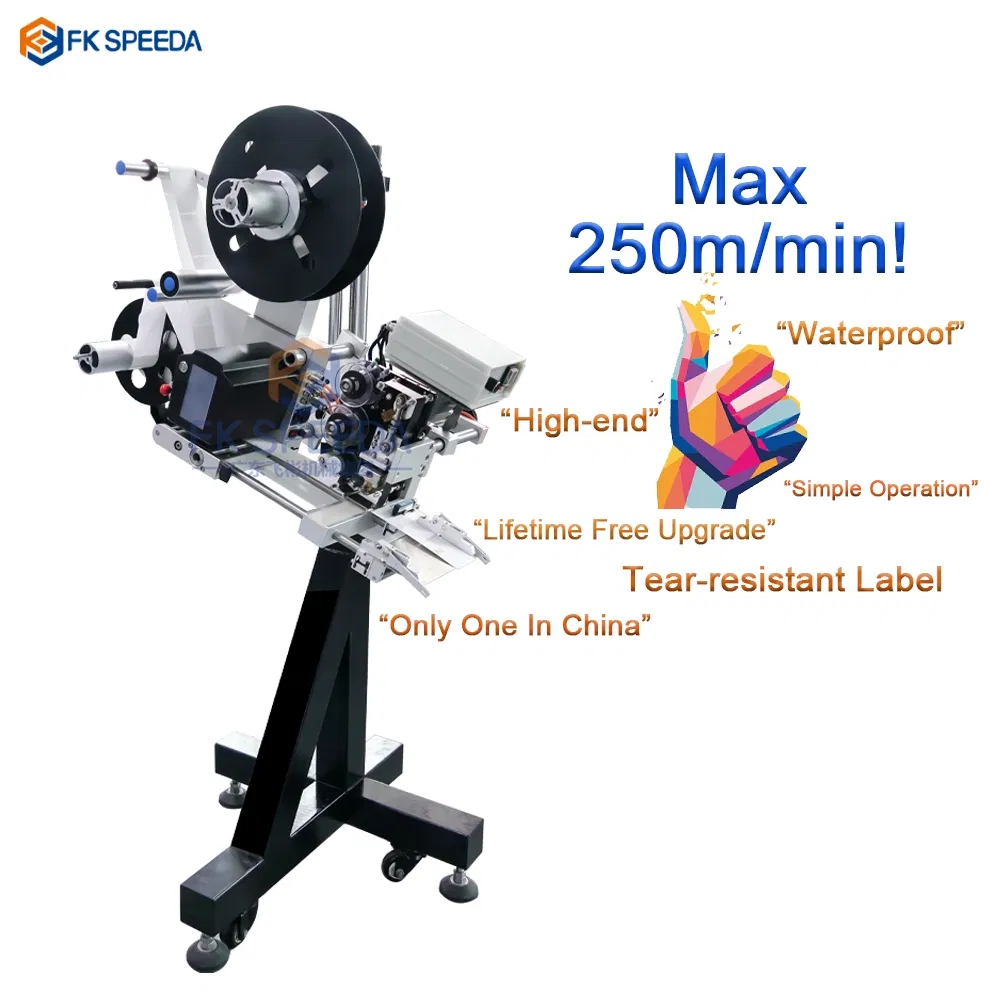

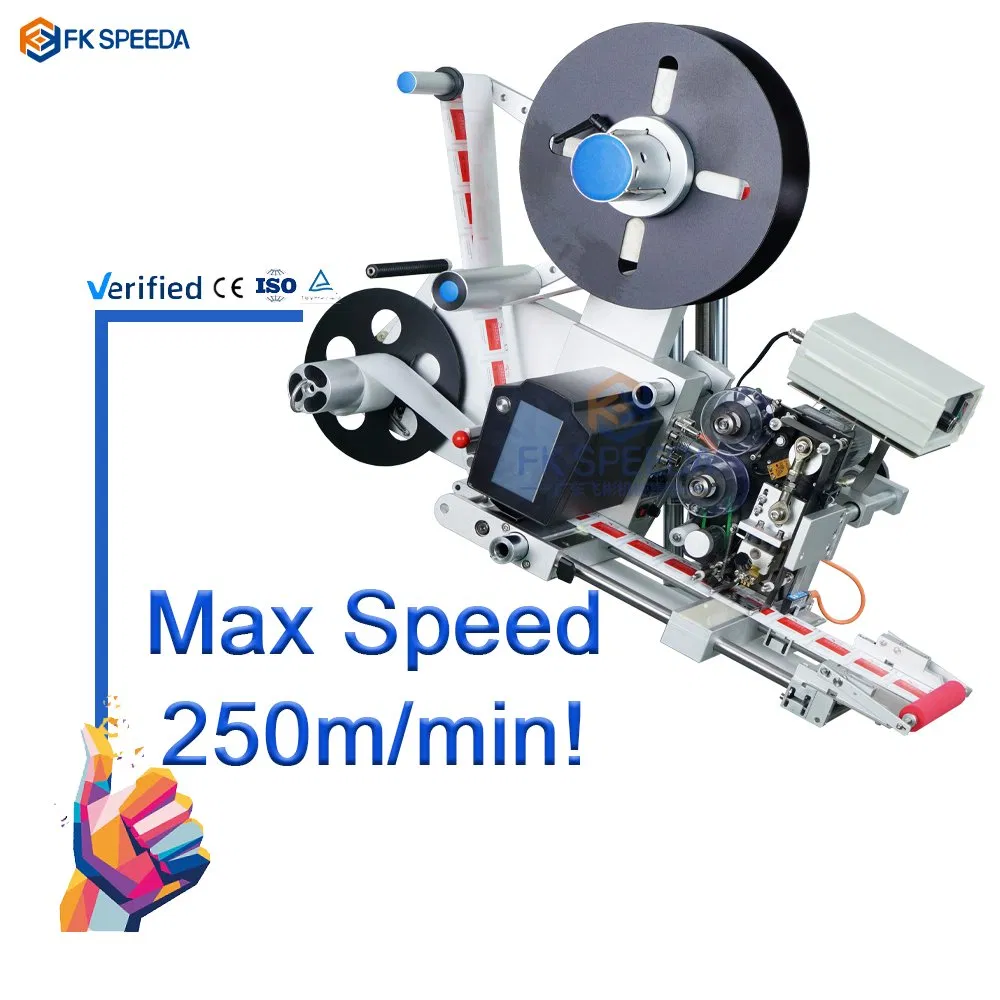

Automatic Line Production High Speed Labeling Head
The automatic line labeling head can be installed on existing assembly lines, enabling high-speed labeling on the upper plane and cambered surfaces of flowing objects. It is designed for seamless integration into production environments across various industries.

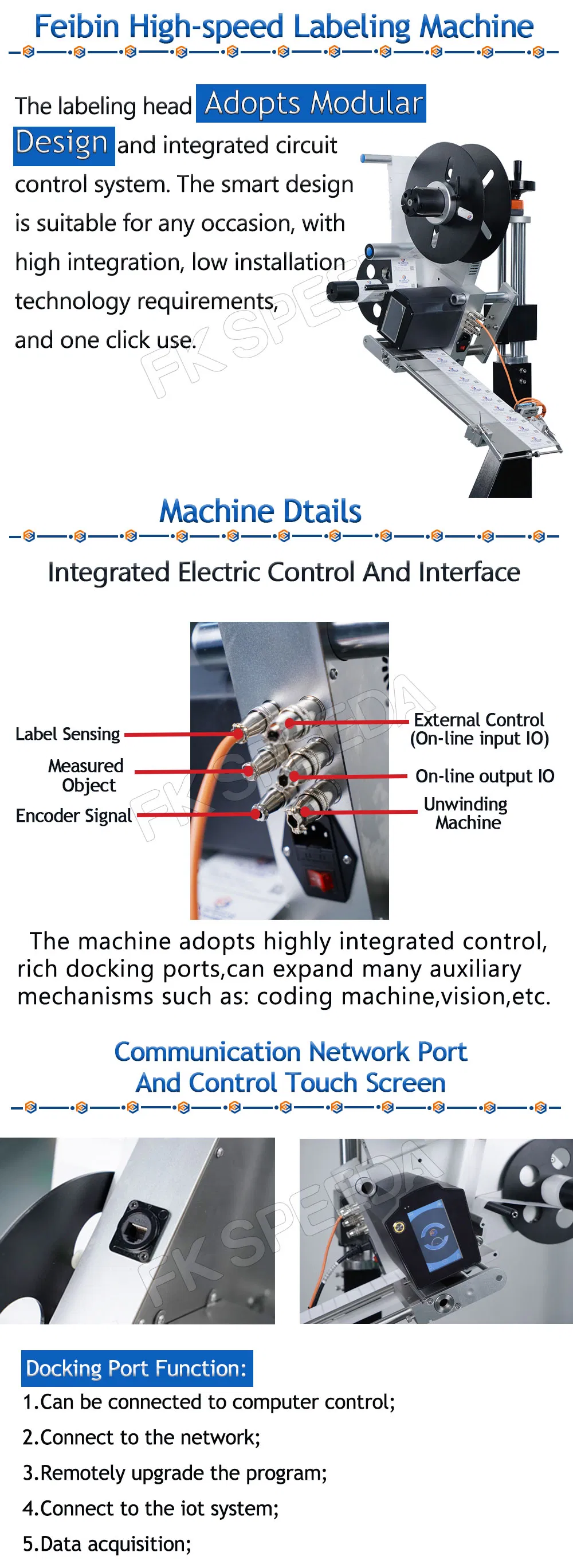

Features a Chinese and English touch operating system for simple man-machine dialogue.

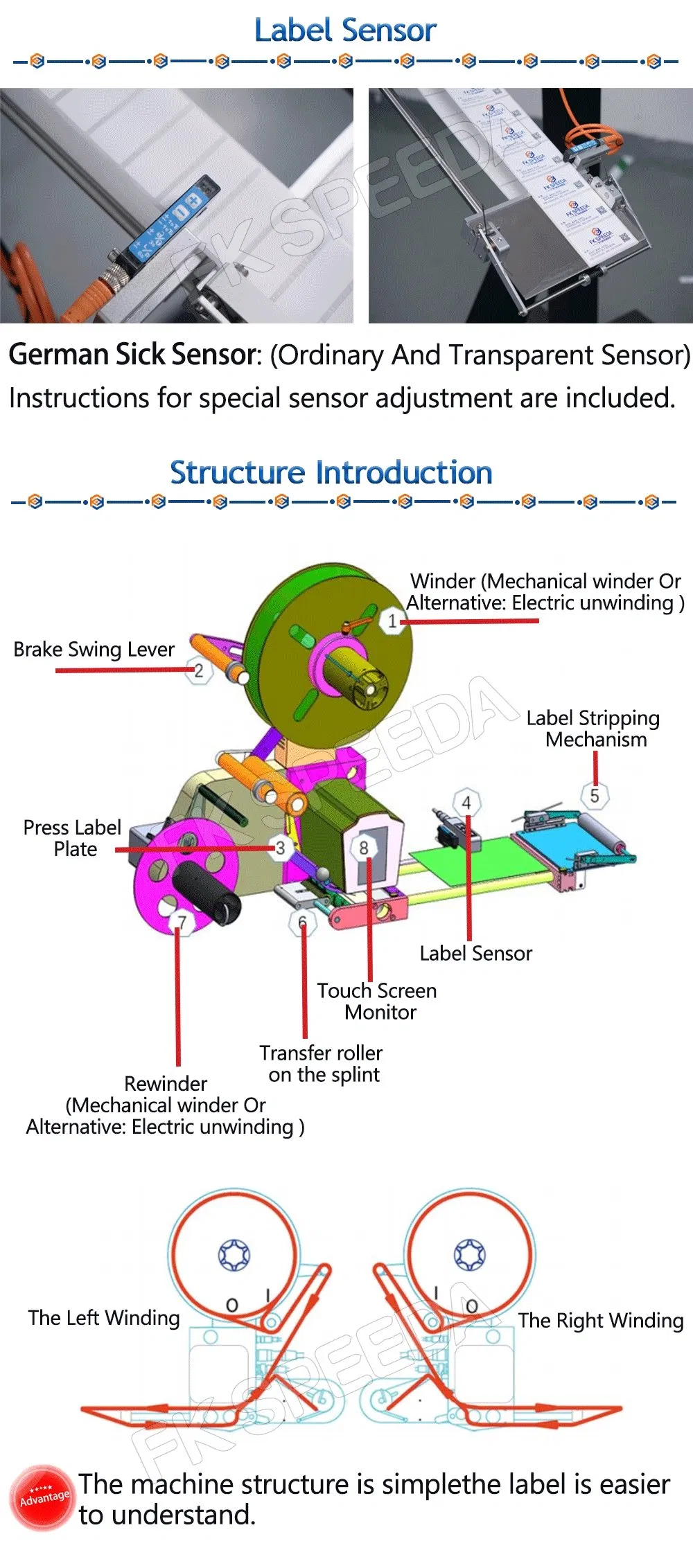

High-precision eye location allows for one or two labels at a time with ±0.5 mm accuracy.
Simple head base plate design makes adjustments quick and straightforward for different object types.
| Parameter Item | Specifications |
|---|---|
| Label Specifications | 10x 10 mm ~ 160 x 400 mm |
| Max Back Paper Width | 160 mm |
| Label Roll Diameter | 300 mm (Winding: inward/outward) |
| Label Reel | 76 mm (Optional: 40 mm, 45 mm) |
| Labeling Speed | Optional: 0 - 30 / 50 / 80 / 100 / 150 / 250 m/min |
| Labeling Accuracy | ± 0.5 mm |
| Installation Method | Left-hand unit or Right-hand unit |
| Power Supply | 220VAC ±10%, 50 / 60 Hz |
Widely applicable to: Cosmetics, Drinks, Cleaning, Detergent, Skin Care, Hair Care, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, and Dairy Products.
