Customization: Available
After-sales Service: Two Years
Warranty: Two Years
Send Inquiry

Product Description

Basic Specifications
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container
Bottle / Metal
Structure
Rotary
Material
SS304
Certificate
CE, ISO, SGS
Control System
Siemens, Mitsubishi PLC
Bottle Volume
200ml-2000ml
Capacity
2000bph to 18000bph
HS Code
8422301090
Production Capacity
400 machines/Year
Product Description
High Speed 10,000bph Carbonated Soft Drinks Plastic Bottle Filling Sealing Opp Labeling Equipment
This 3-in-1 filling machine combines rinsing, filling, and capping into one integrated unit. It is designed for still pure water, mineral water, and carbonated beverages, incorporating advanced technology from Germany and Italy. The system is suitable for PET bottles and plastic bottles, and can be adapted for glass bottles by changing conveyor parts.

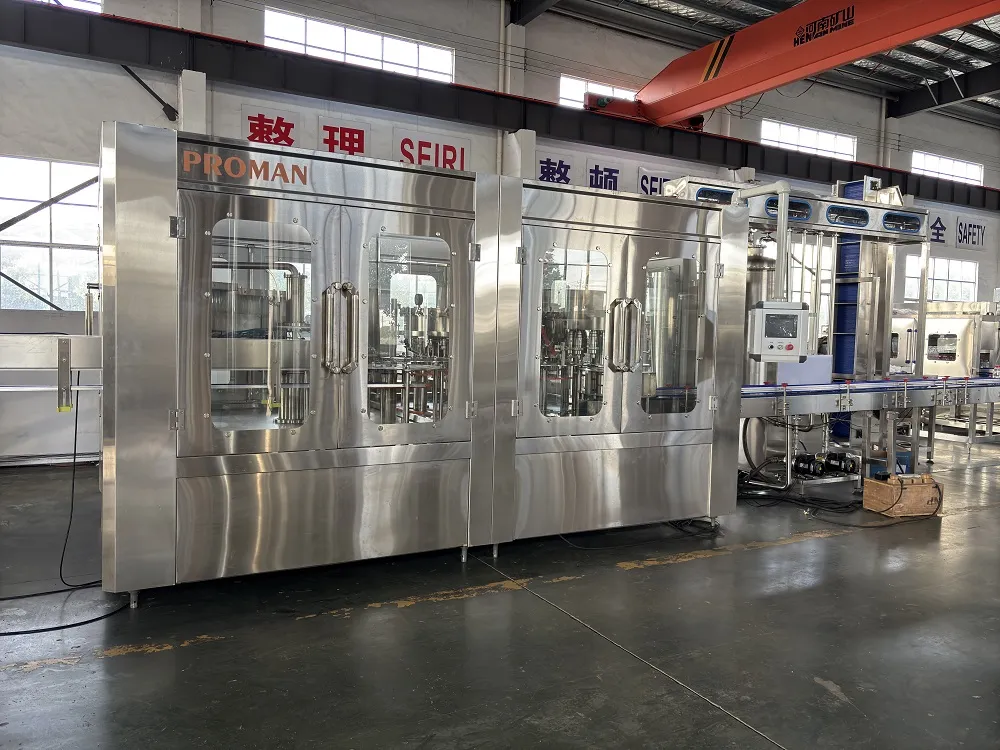

Filling Machine Overview
Technical Parameters
Model CGF14-12-4 CGF16-16-5 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
Capacity (500ML) 4000BPH 6000BPH 8000BPH 12000BPH 15000BPH 18000BPH
Washing Heads 14 16 18 24 32 40
Filling Heads 12 16 18 24 32 40
Capping Heads 4 5 6 8 10 12
Weight 1500kg 2000kg 4000kg 4500kg 6000kg 7800kg
Main Motor Power 1.2kw 1.5kw 3kw 3kw 3kw 5.5kw

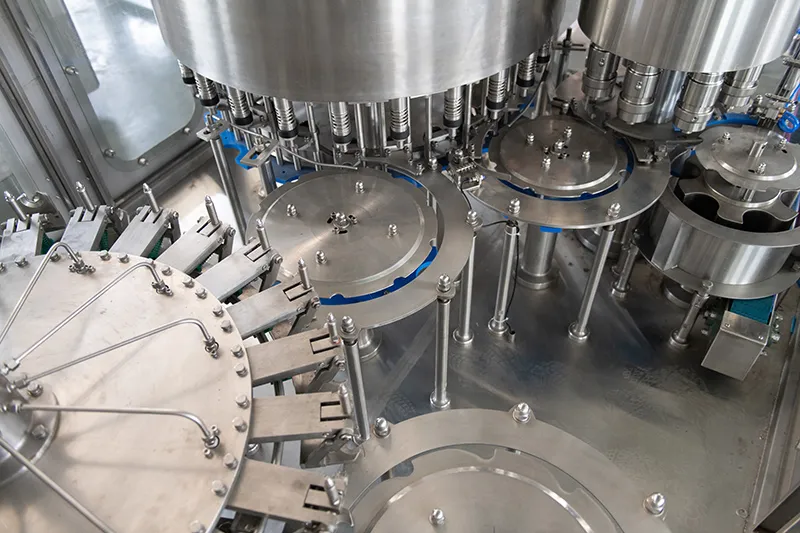

Technical Detail 1

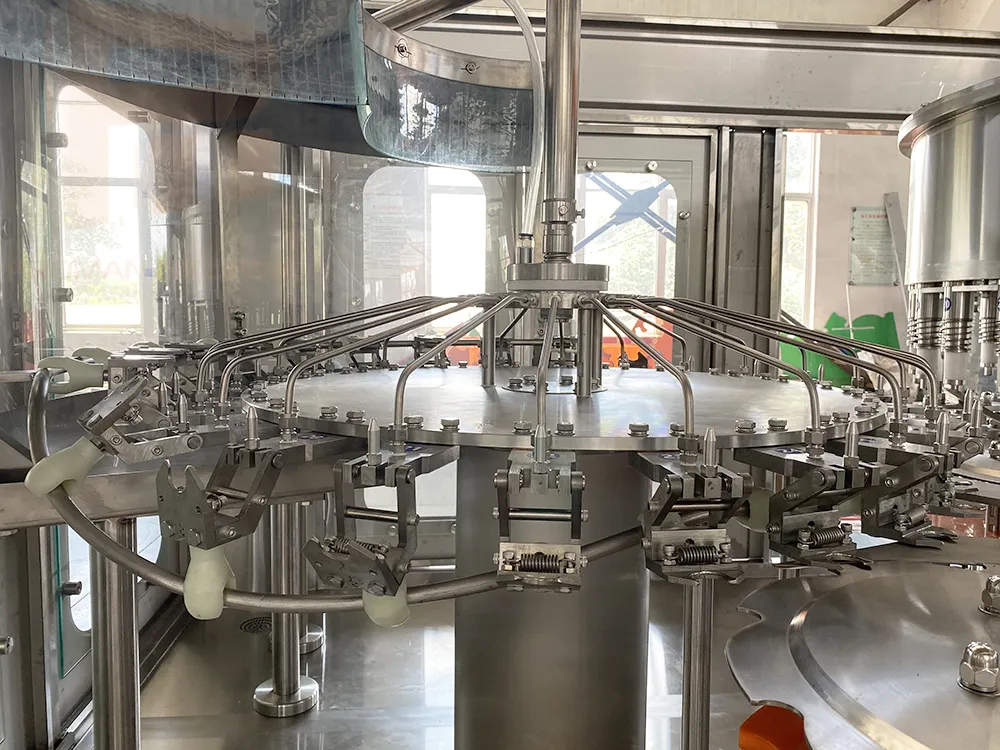

Technical Detail 2
Core Components
🚿

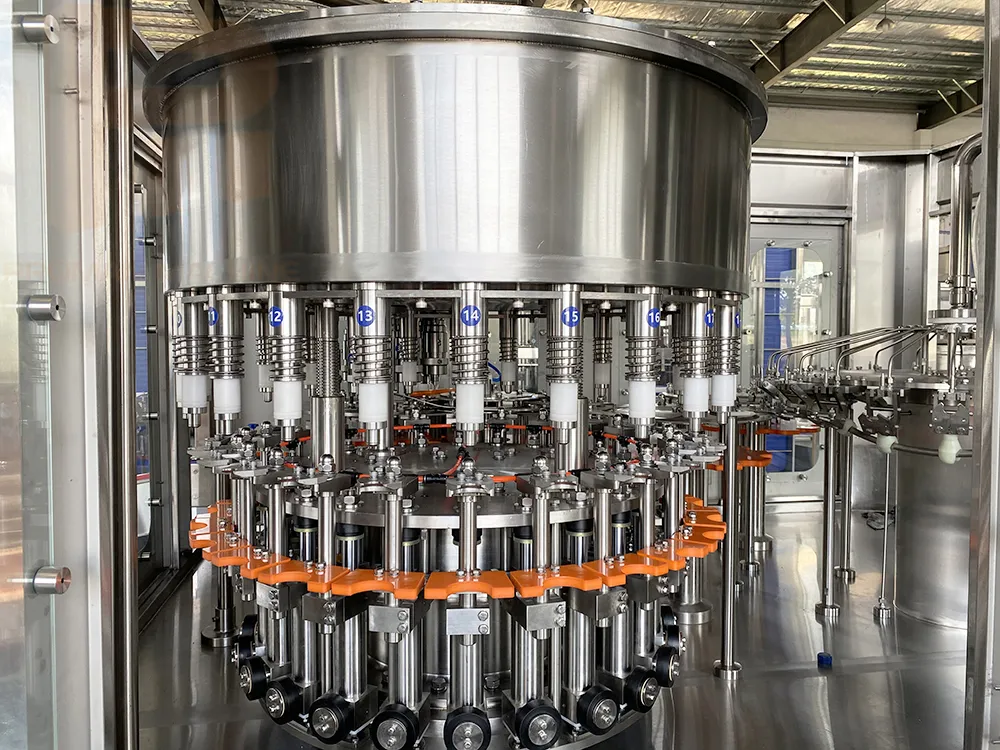

Washing Head

- Air conveyor direct connection with bottle dial.
- 304/316 stainless steel rinse heads with water spray style inject design.
- Stainless steel Gripper with plastic pad to minimize bottle crash.

Washing Head
💧

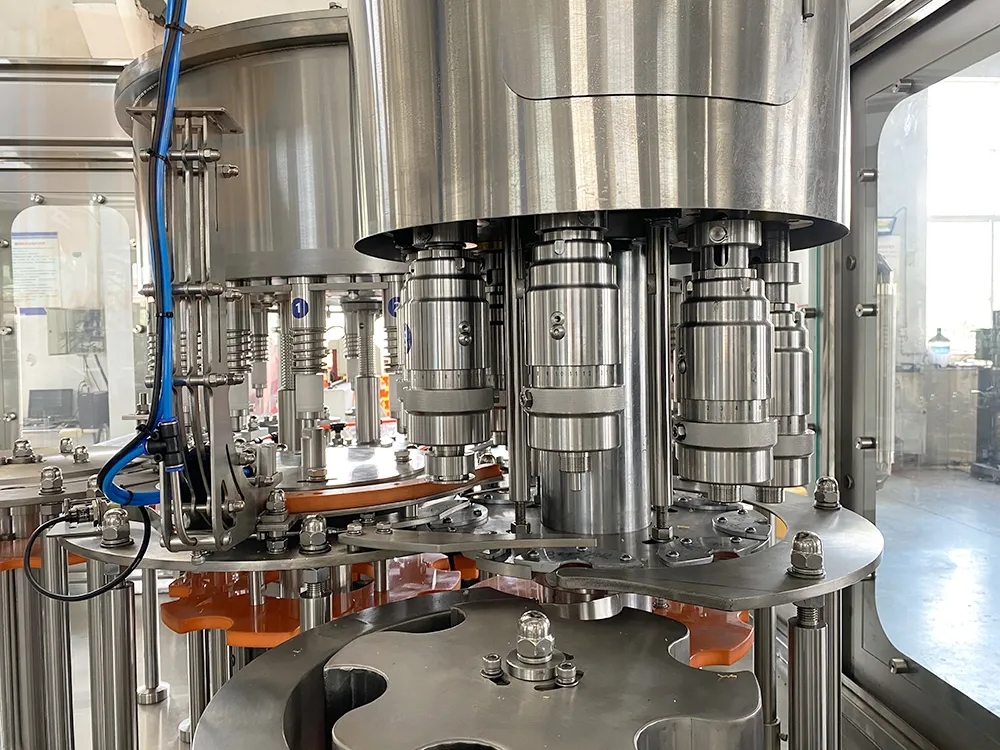

Filling Head

- High precision 304/316 stainless steel nozzles.
- Adjustable filling volume with consistent liquid levels.
- Fine polished contact parts with no dead corners for easy cleaning.

Filling Head
⚙️

Capping Head

- Electromagnetic capping heads with burden discharge function.
- "No bottle, no capping" system with automatic stop feature.
- Highly stable capping effect with defective rate ≤0.2%.

Key Advantages
🚀

1. Integrated 3-in-1 Design: Washing, filling, and capping finished in one machine to save space and ensure hygiene.
2. Advanced Conveying: Bottle neck clamping and suspending technology makes changing bottle sizes convenient.
3. Intelligent Control: Equipped with advanced PLC and touch screen for easy operation.
4. Global Components: Electronic and pneumatic elements sourced from famous international enterprises.
5. Premium Materials: All parts contacting liquid are made from high-quality stainless steel.

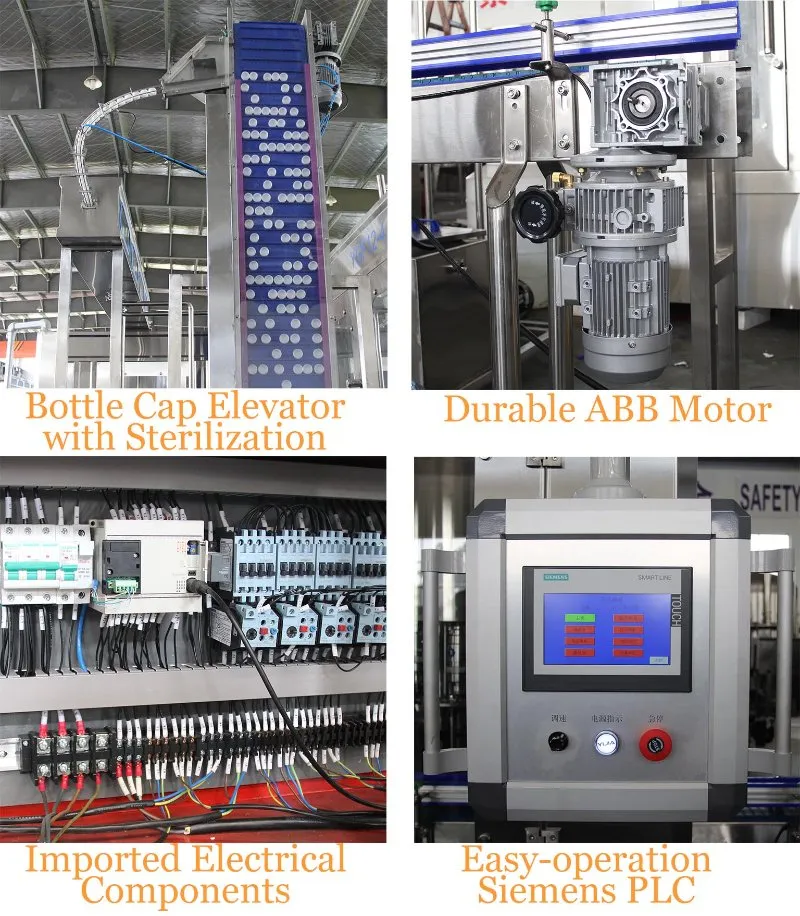

Configuration

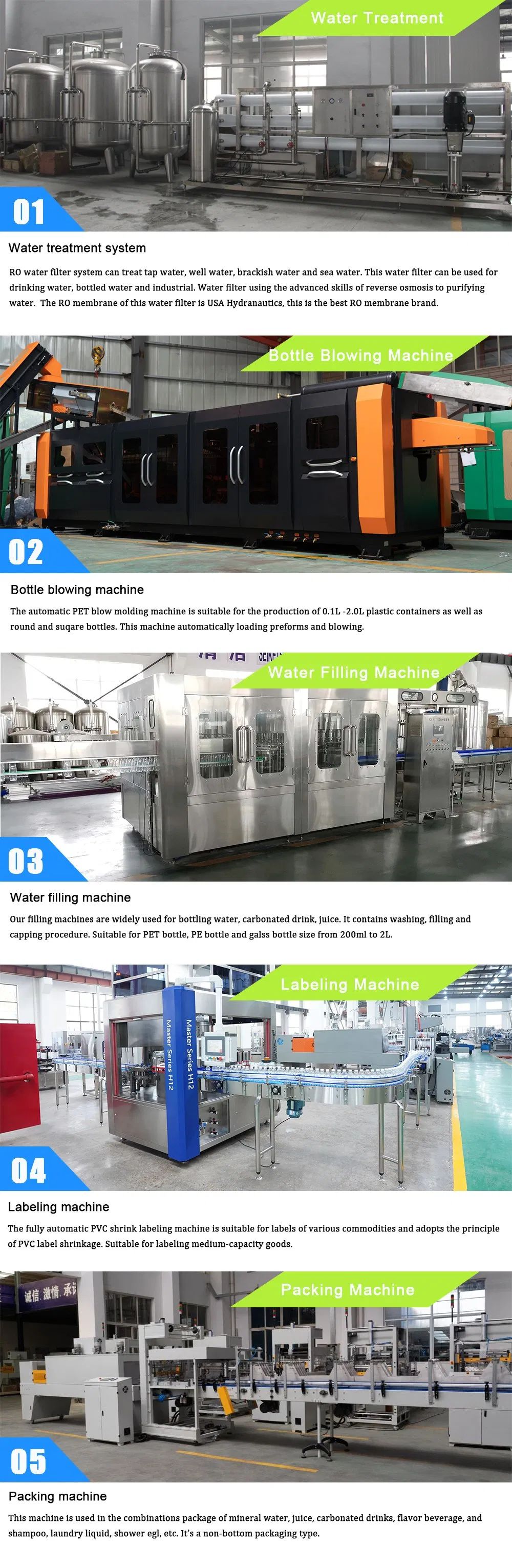

Internal Structure
Logistics & Certifications
Machine Detail
Large Scale Equipment
Packing and Team
Packaging
Certifications
Frequently Asked Questions
What types of bottles can this filling machine handle?
The machine is primarily designed for PET and plastic bottles. However, it can also accommodate glass bottles by replacing certain conveyor components.
What is the production capacity of the equipment?
We offer various models with output capacities ranging from 2,000 bottles per hour (BPH) to 18,000 BPH, depending on the model selected.
Does the machine support multiple functions?
Yes, it is a 3-in-1 integrated machine that performs rinsing, filling, and capping within a single automated unit to save space and maintain high sanitary standards.
What control systems are used in the machine?
The equipment utilizes advanced programmable logic controllers (PLC) from Mitsubishi and Siemens, along with touch-screen interfaces for stable and easy operation.
What materials are used for the contact parts?
All components that come into contact with the liquid are made from high-quality 304 or 316 stainless steel to ensure durability and food-grade hygiene.
Is technical support available for installation and training?
Yes, professional engineering teams are available for installation, debugging, and training to ensure smooth machinery operation.
