Customization: Available
After-sales Service: Online-Service
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information

Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Pressure
Structure
Rotary
Packaging
Bottle
Drive
Servo System
HMI
7.5inch Color Touch Screen
Eligibility Rate
≥99%
Filling Nozzle
1-20
Material
SUS 304 / SUS 316L
Filling Volume
30ml-2L
Filling Speed
1000-5000 bph

Packaging & Delivery

Package Size
240.00cm * 200.00cm * 210.00cm
Package Gross Weight
890.000kg
Transport Package
Non-Fumigation Wooden Box

Product Description

The Multi-Head Rotary Vial Automatic Filling Line is designed for high-speed, precise filling of e-liquid, essential oil, and cigarette oil. Featuring a rotary structure and multiple filling heads, it ensures smooth, efficient, and leak-free operation. Built with a 304 stainless steel frame and PLC control system, this machine offers superior reliability and flexibility, making it ideal for small bottles and mass production in cosmetics, pharmaceuticals, and vape industries.

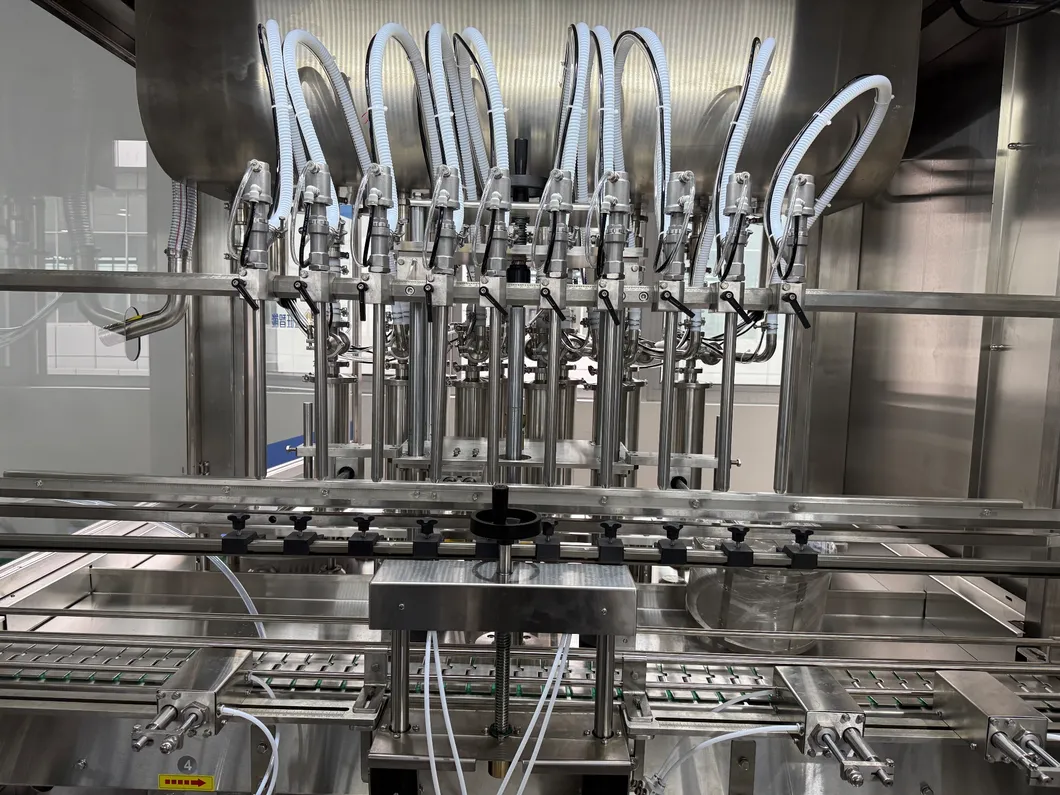

Liquid Filling Machine Banner Machine Overview

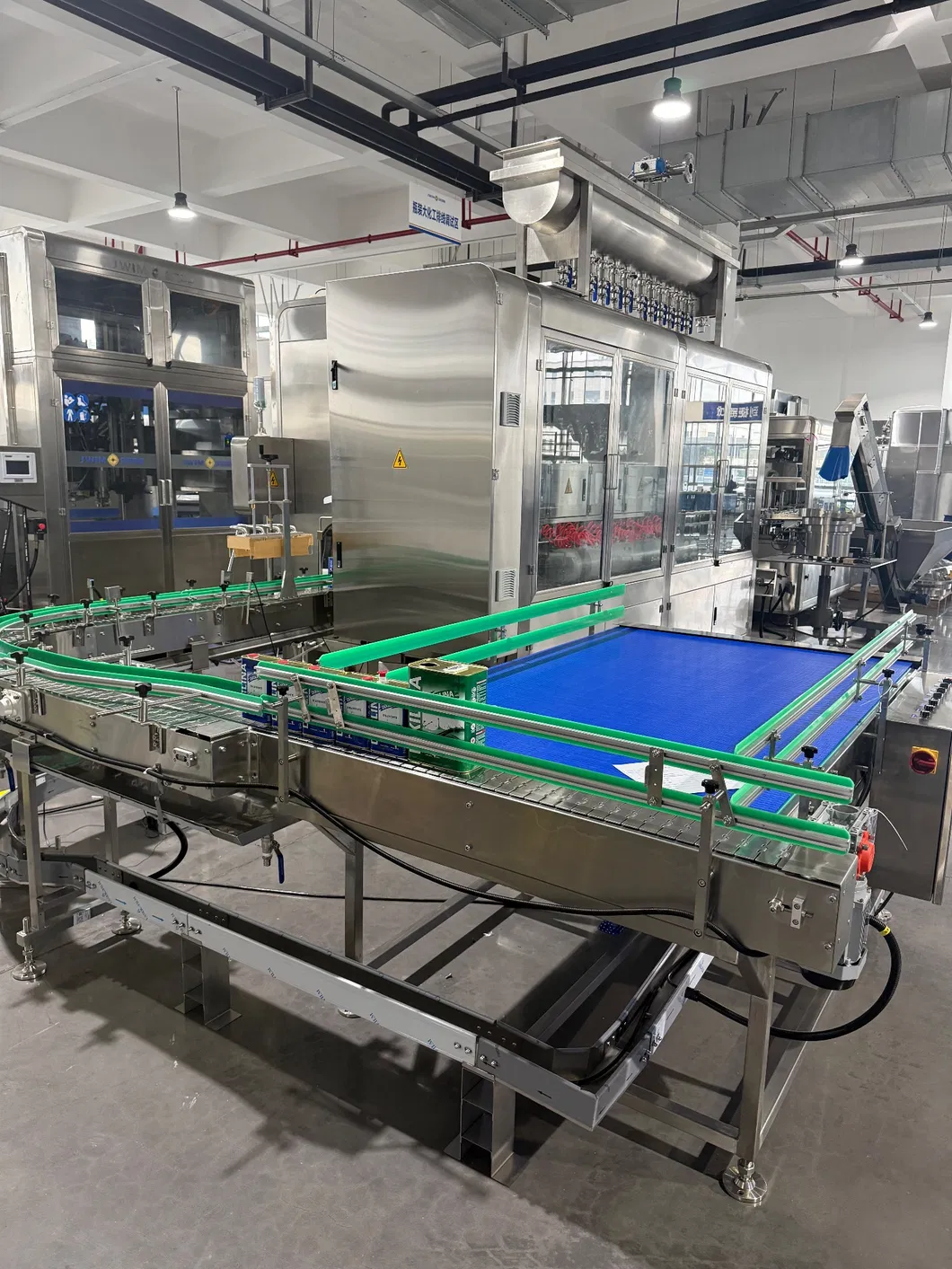

Factory Real Scene

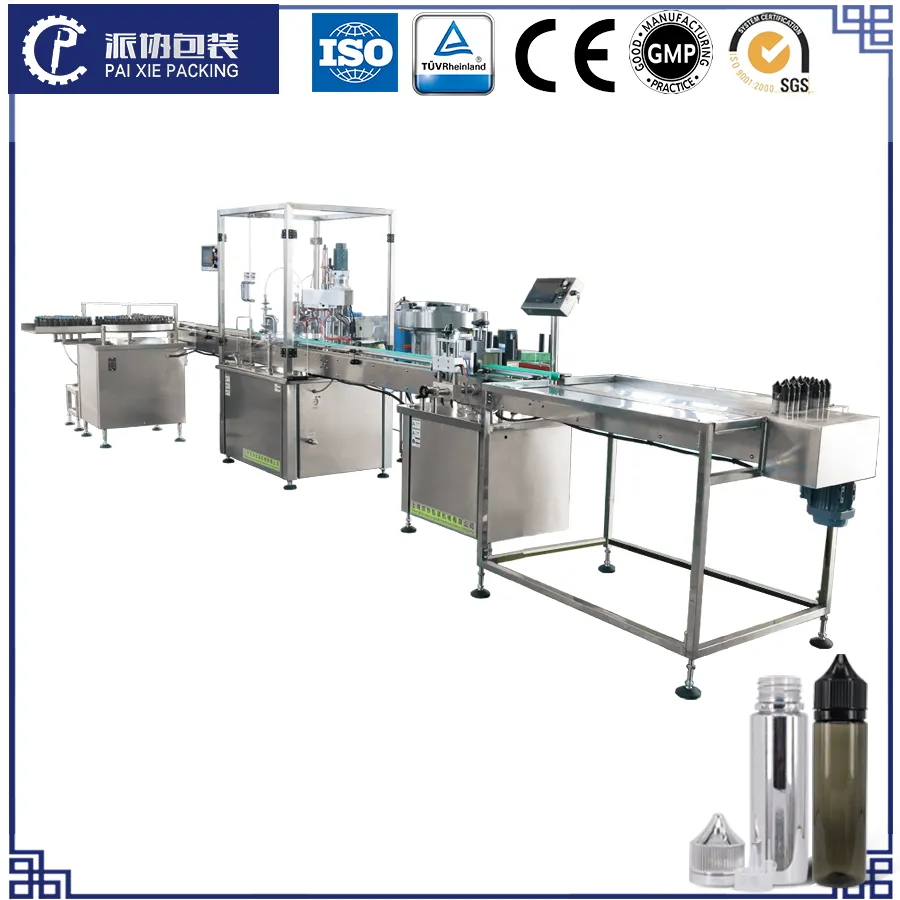

Factory Scene 1 Factory Scene 2

Advanced Small Bottle Filling Line: Rated at 30-80 fillings per minute. The machine is servo-driven to maintain accuracy and speed. Users enter filling volume and speed via the HMI interface. Equipped with a mixing hopper for liquids and pastes, ensuring strong fluidity.

Workflow Process: Bottle Unscrambler → Filling and Capping → Labeling → Cartoning → Collecting Table (Customized).

  • HMI control with PLC for easy operation and accurate measurement.
  • Frequency conversion control with adjustable speed and automatic counting.
  • No bottle, no filling safety function.
  • High-precision servo motor driven filling.
  • Stainless steel SS304 and SS316L construction, GMP compliant.

Technical Parameters

ModelPX-BFC80
Yield (pcs/min)30-80 BPM (Customized)
Filling Heads2 (Customized)
Filling PumpPeristaltic pump or Piston Pump
Accuracy± 1%
DrivingServo motor
Pump Volume2-200ml (Customized)
MaterialSS304 + SS316
ProtectionComprehensive Safety Alarm System

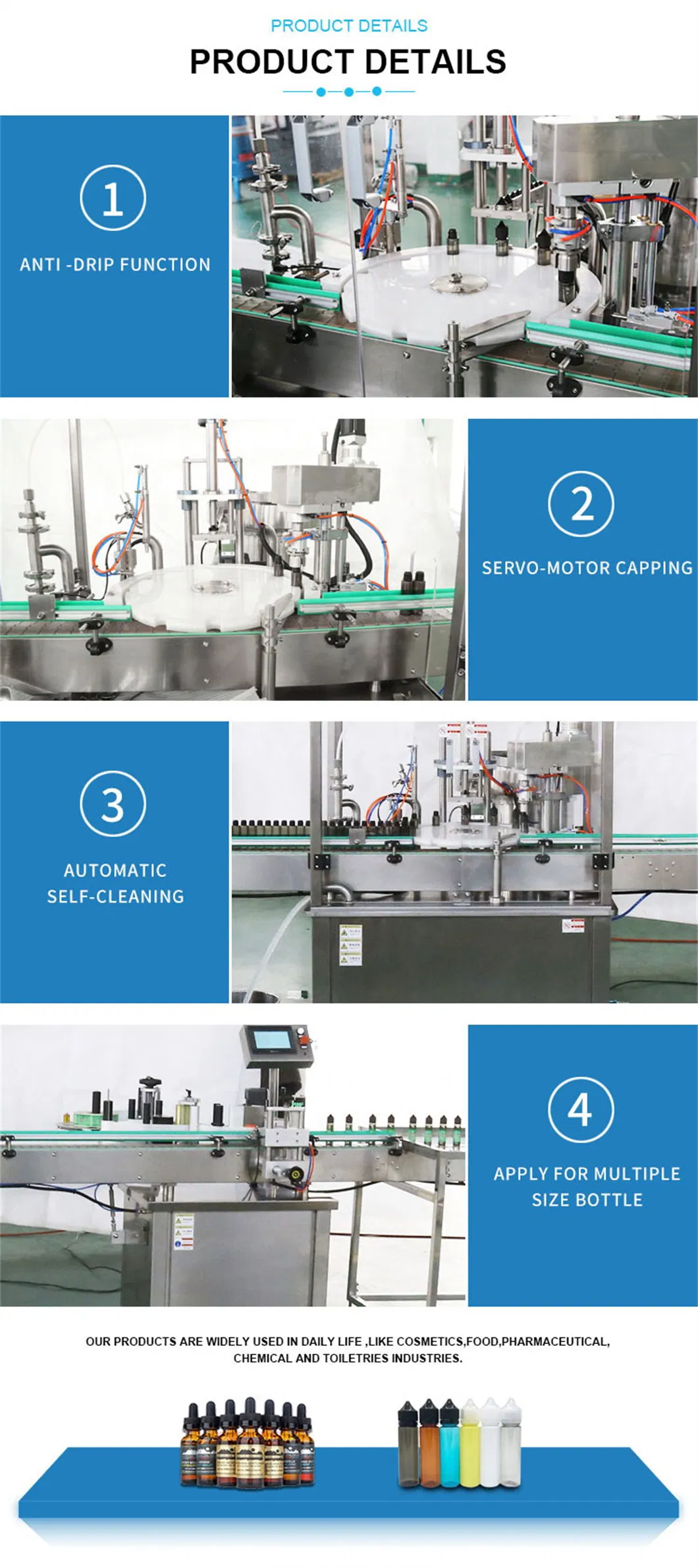

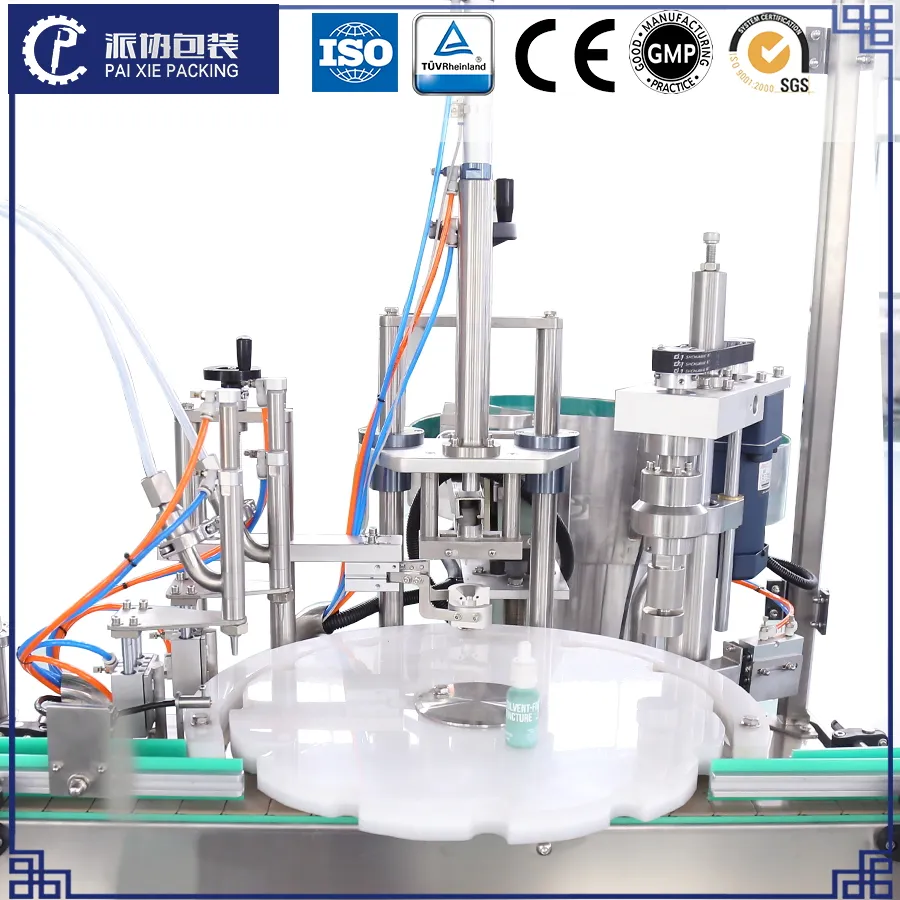

Detailed Dimensions Machine Detail View

Key Components

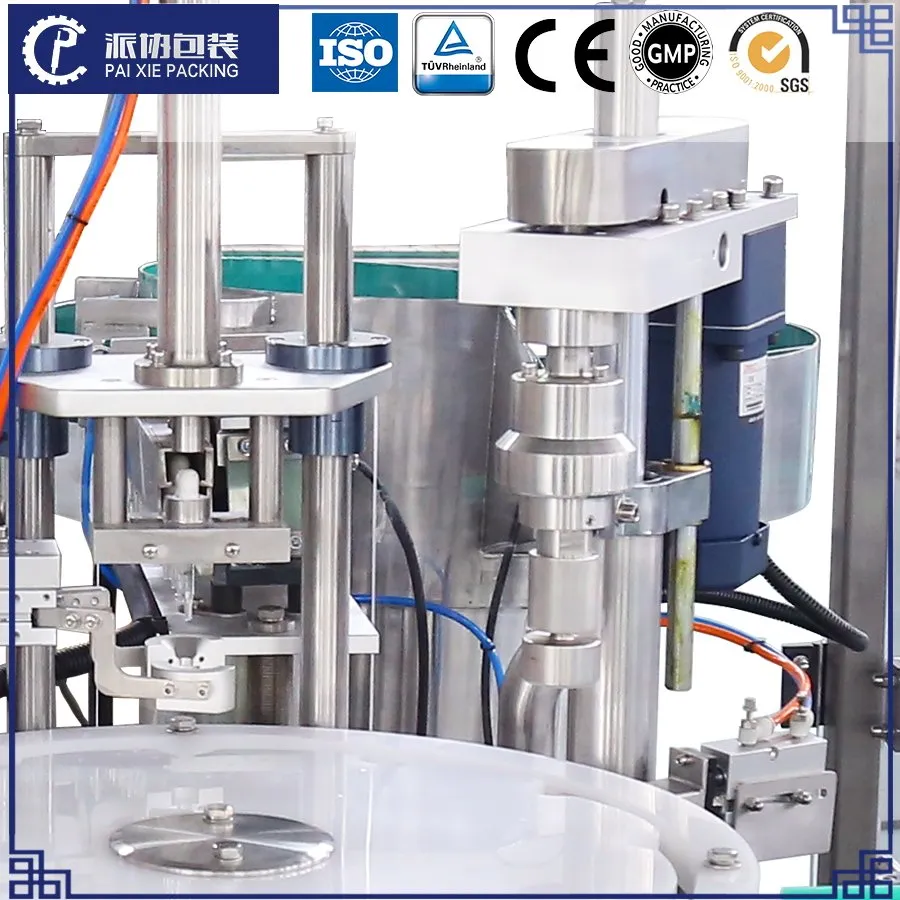

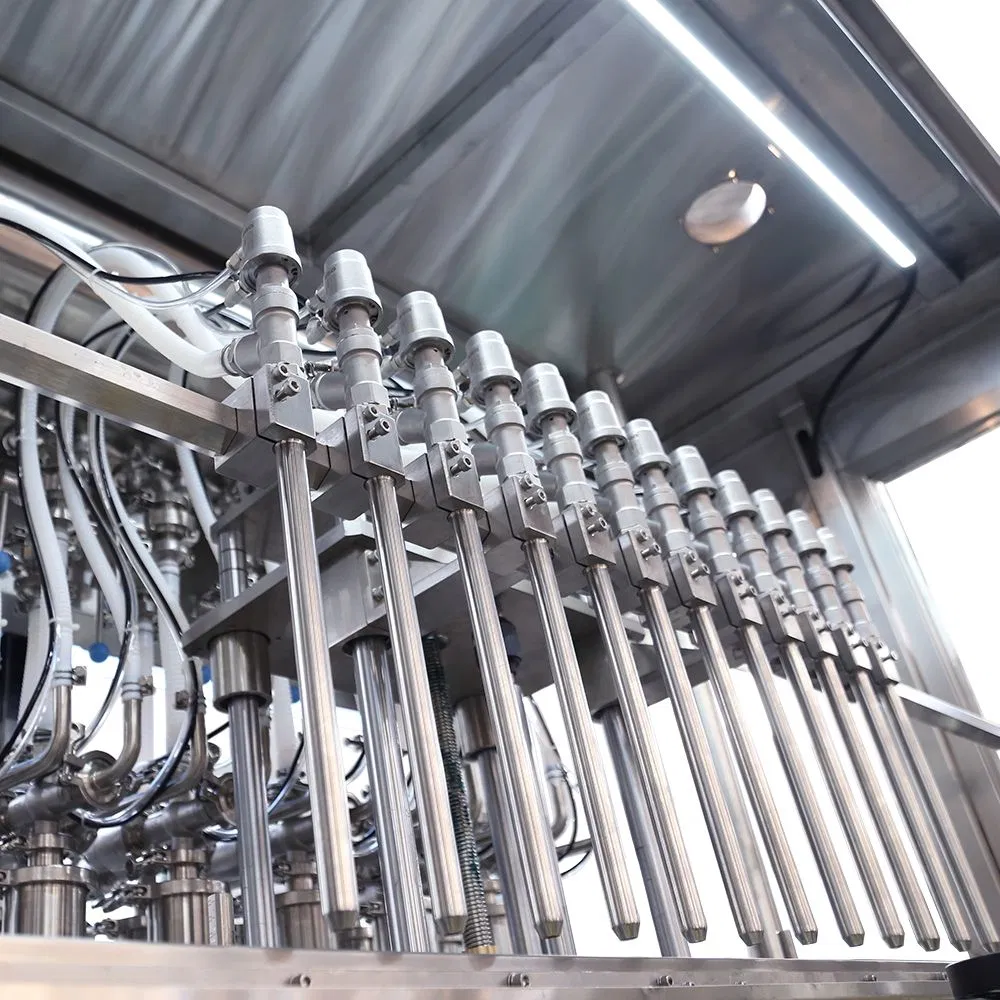

Filling Nozzle System

  • Stainless steel 316L construction.
  • Spring-loaded ball check valve.
  • Food-grade reinforced silicon hoses.
  • Final design adapted to specific product characteristics.
Filling Nozzle

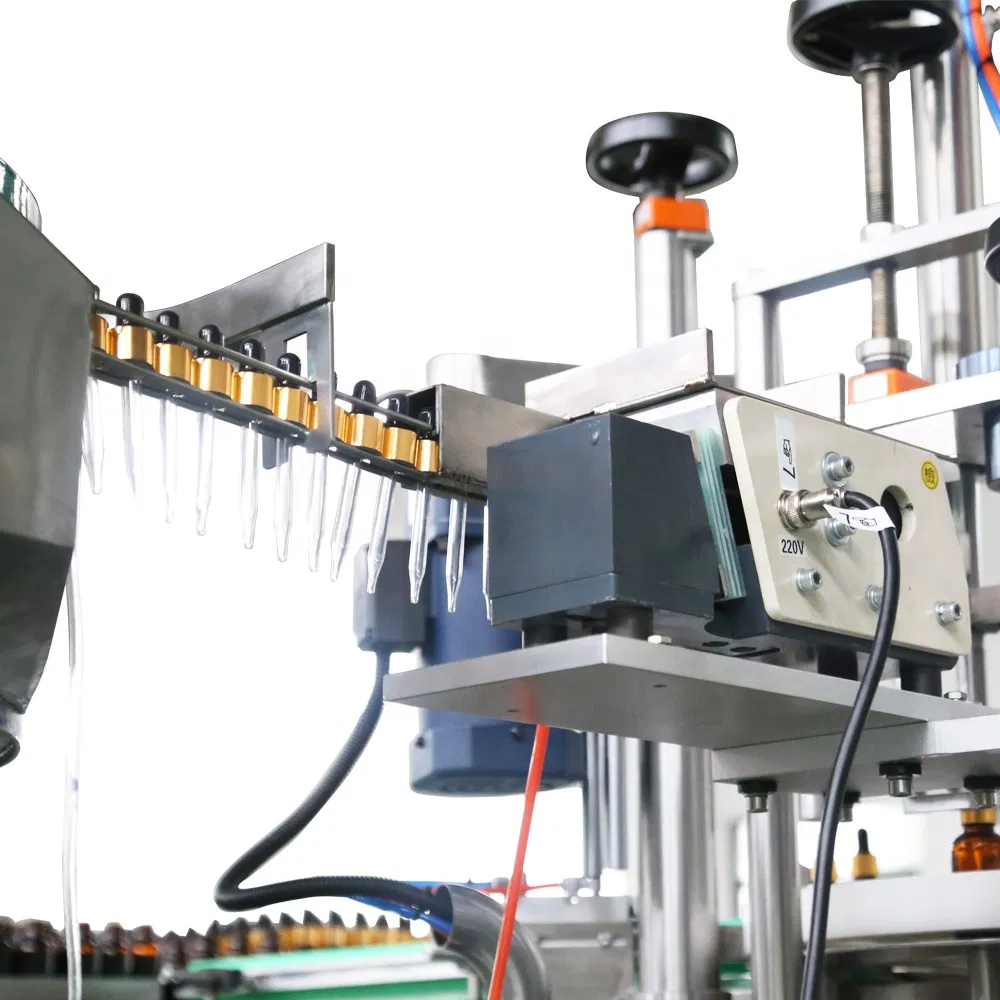

Capping Station

  • Transfer star wheel for stable positioning.
  • Funnel device for proper pipette introduction.
  • Independent motor torque control (Accuracy 0.2 Nm).
  • Adjustable magnetic torque to prevent cap damage.
Power Adaptability: Equipment is configured with standard plugs (American, UK, European, etc.) based on shipping destination requirements.

Installation & Support

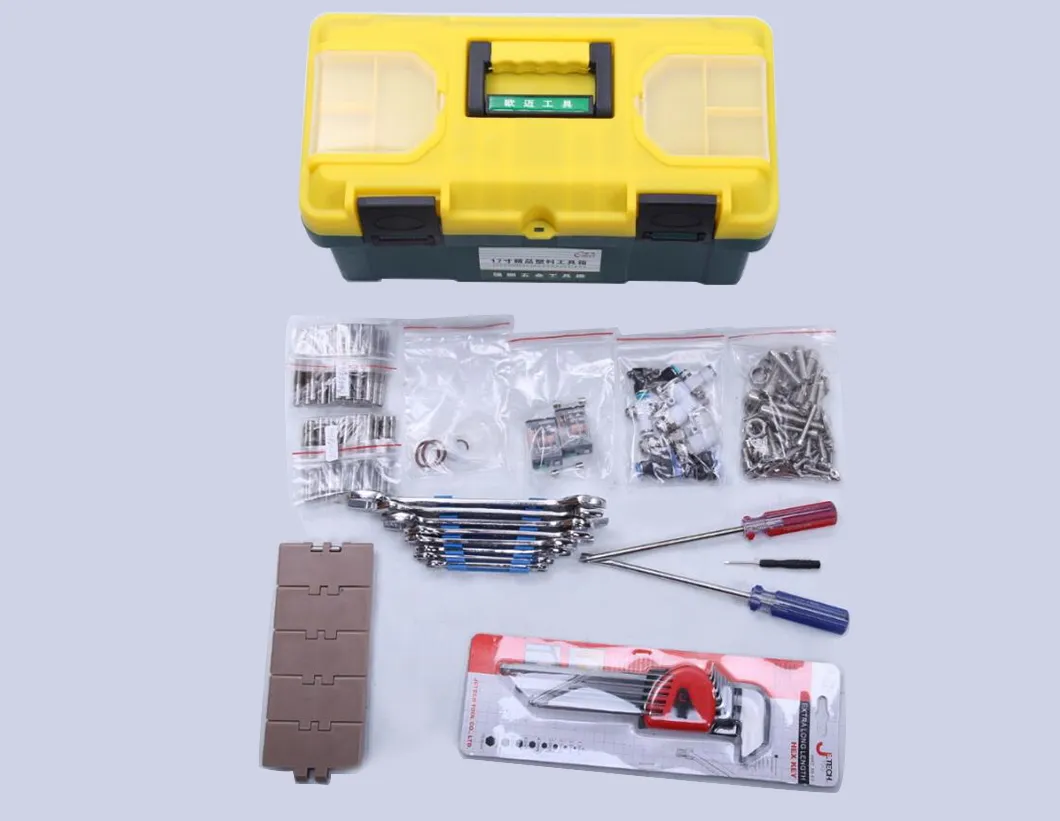

Installation Kit 1 Installation Kit 2

Operational Advantages

Advantage 1 Advantage 2 Advantage 3
  • Smart Filling: Servo driving allows parameter editing directly on HMI for various product formats.
  • Safety: 150mm SS304 protection frame with induction switches stops the machine if doors are opened.
  • Convenience: Equipped with scale rules for quick adjustment and recording of different bottle sizes.
  • Quality Protection: Full SS304/SS316 construction avoids pollution.
  • Plug & Play: Machines are delivered fully assembled to reduce installation stress.
Comparison Banner

Frequently Asked Questions

Q1: Can this machine handle different bottle sizes without complex adjustments? A: Yes, the machine is equipped with scale rules and a servo-driven system, allowing you to record positions and change parameters on the HMI for different formats quickly.
Q2: What materials are used in the construction of the machine? A: The equipment is constructed using high-quality SS304 and SS316L stainless steel to meet GMP standards and prevent product contamination.
Q3: Is the filling precision reliable? A: Absolutely. With the servo-driven plunger or peristaltic pump system, the filling accuracy is maintained within ±1%.
Q4: Does the machine come with any safety features? A: Yes, it includes a comprehensive safety alarm system and induction switches on the protection frame that stop the machine if the plexiglass door is opened.
Q5: How is the machine installed upon arrival? A: The machines are delivered as a whole unit. You simply need to connect the power and air supply. A complimentary installation kit is also provided.
Q6: What happens if no bottles are on the conveyor? A: The machine features an automatic "No bottle, No filling" detection system to prevent liquid waste and maintain a clean working environment.

Related Products

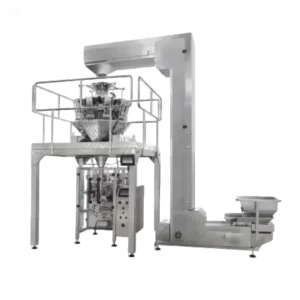

Automatic Vffs Machine Multi-Head Weigher Filling Potato Chip Snack Beans Granules Pouch Bag Packaging Machine

Automatic Vffs Machine Multi-Head Weigher Filling Potato Chip Snack Beans Granules Pouch Bag Packaging Machine
High-Speed Automatic Multi-Head Liquid Filling Machine for Beverage, Honey, Juice, Olive Oil, Lotion, Essential Oil, Perfume, Cosmetics & Pharmaceutical Bottles

High-Speed Automatic Multi-Head Liquid Filling Machine for Beverage, Honey, Juice, Olive Oil, Lotion, Essential Oil, Perfume, Cosmetics & Pharmaceutical Bottles

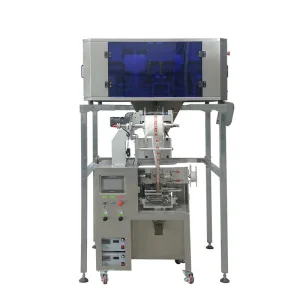

Automatic Vertical Multi-Head Weigher Filling Small Sachet Ceylon Oolong Herbal Tea Non-Woven Triangle Pyramid Tea Bag Making Packing Machine

Automatic Vertical Multi-Head Weigher Filling Small Sachet Ceylon Oolong Herbal Tea Non-Woven Triangle Pyramid Tea Bag Making Packing Machine
Automatic Multi-Head Weigher Premade Ziplock Bag Laundry Pods Wrapping Flow Packaging Packing Filling Sealing Machine

Automatic Multi-Head Weigher Premade Ziplock Bag Laundry Pods Wrapping Flow Packaging Packing Filling Sealing Machine
High Speed Fully Automatic Digital Single Double Multi Filled Head Cream Paste Lotion Detergent Liquid Soap Sauce Oil Bottle Filling Machine

High Speed Fully Automatic Digital Single Double Multi Filled Head Cream Paste Lotion Detergent Liquid Soap Sauce Oil Bottle Filling Machine

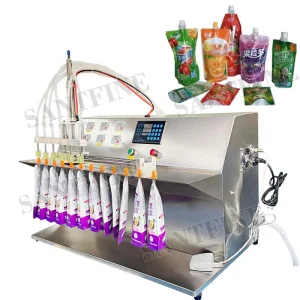

Semi-Automatic Multi Head Desktop 6 Nozzle Suction Nozzle Bag Filling Sealing Machinery Hot Liquid Oil Soup Juice Soft Drinking Sachet Pouch Packaging Machine

Semi-Automatic Multi Head Desktop 6 Nozzle Suction Nozzle Bag Filling Sealing Machinery Hot Liquid Oil Soup Juice Soft Drinking Sachet Pouch Packaging Machine
High-Speed Automatic Multi-Head Liquid Filling Machine for E-Liquid, Essential Oil, Perfume, Beverage, Honey, Olive Oil, Juice, Chemical, Cosmetic & Chemistry

High-Speed Automatic Multi-Head Liquid Filling Machine for E-Liquid, Essential Oil, Perfume, Beverage, Honey, Olive Oil, Juice, Chemical, Cosmetic & Chemistry

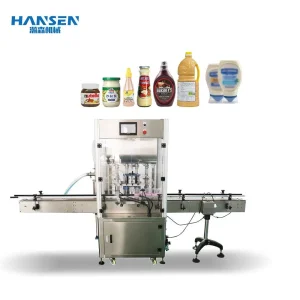

Automatic Multi Head Sauce Filling Machine for Food Salad Dressing and Jam

Automatic Multi Head Sauce Filling Machine for Food Salad Dressing and Jam

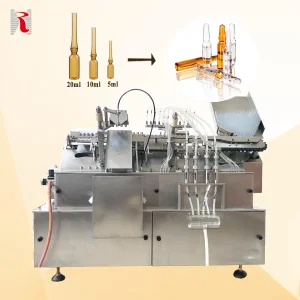

CE Certificate Speed Best Price Multi-Heads High Accuracy Small Scale 1-10ml for Pharmaceutical Liquid Injection Automatic Ampoule Filling and Sealing Machine
