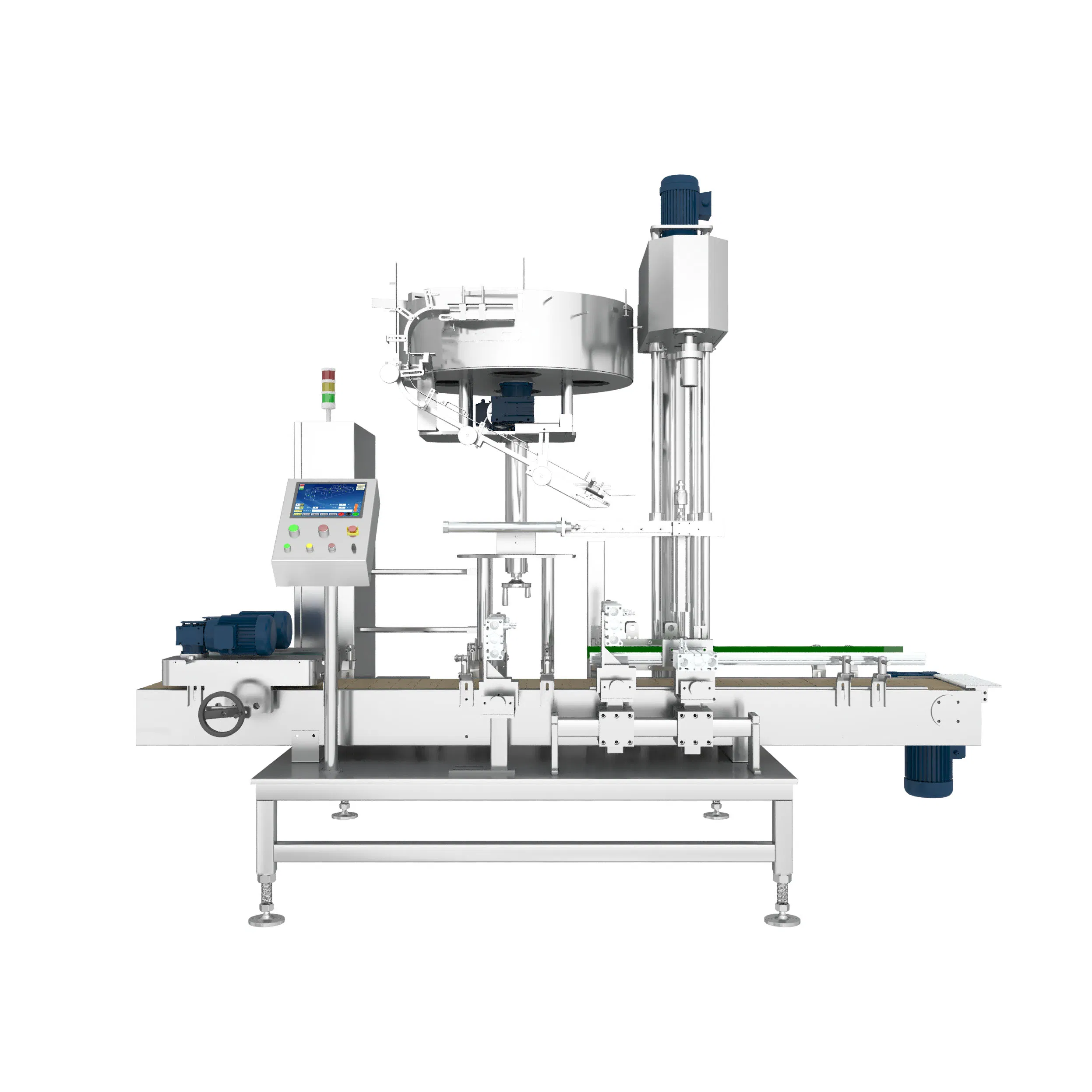

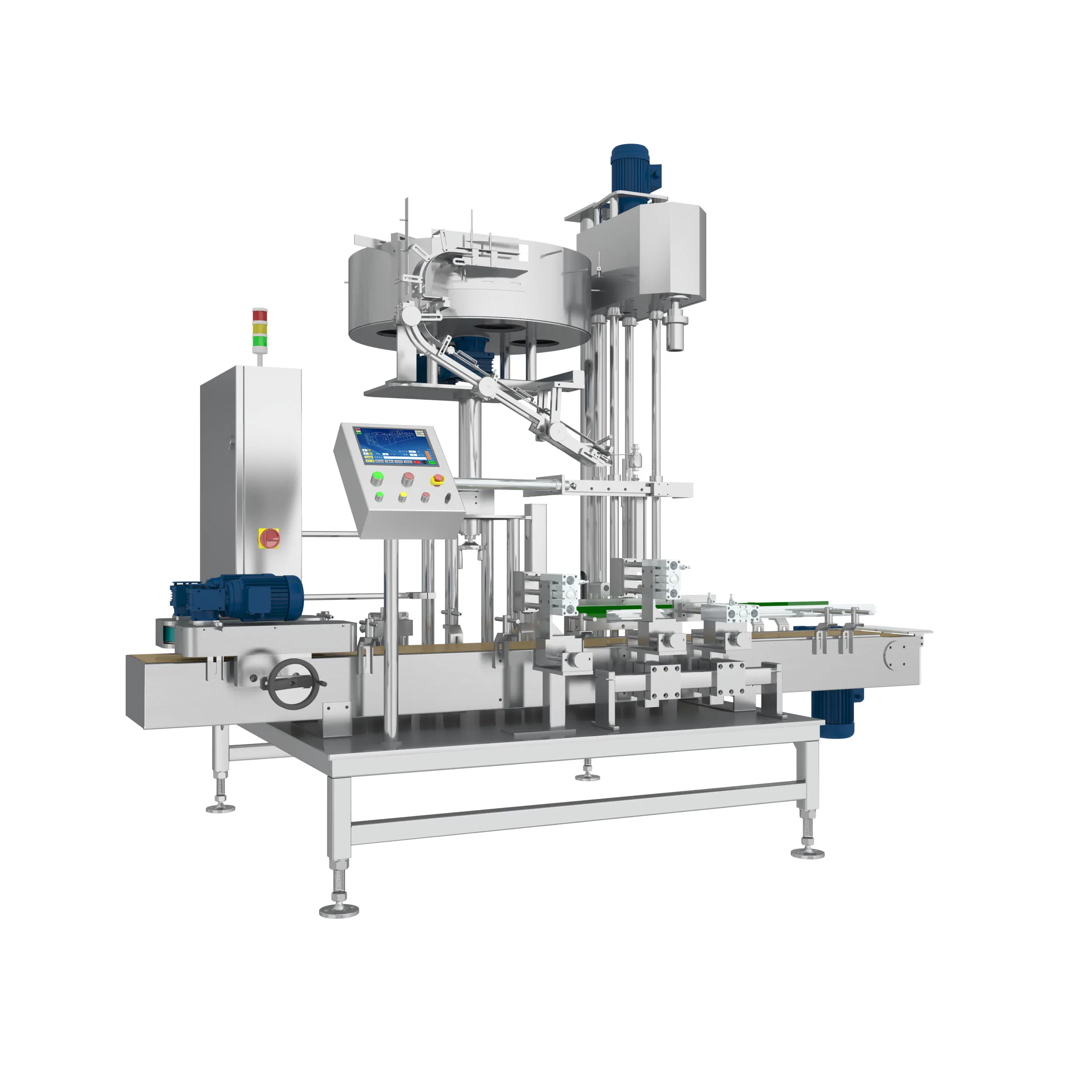

5L-30L High Speed Single Head Screw Automatic Capping Machine for Drum

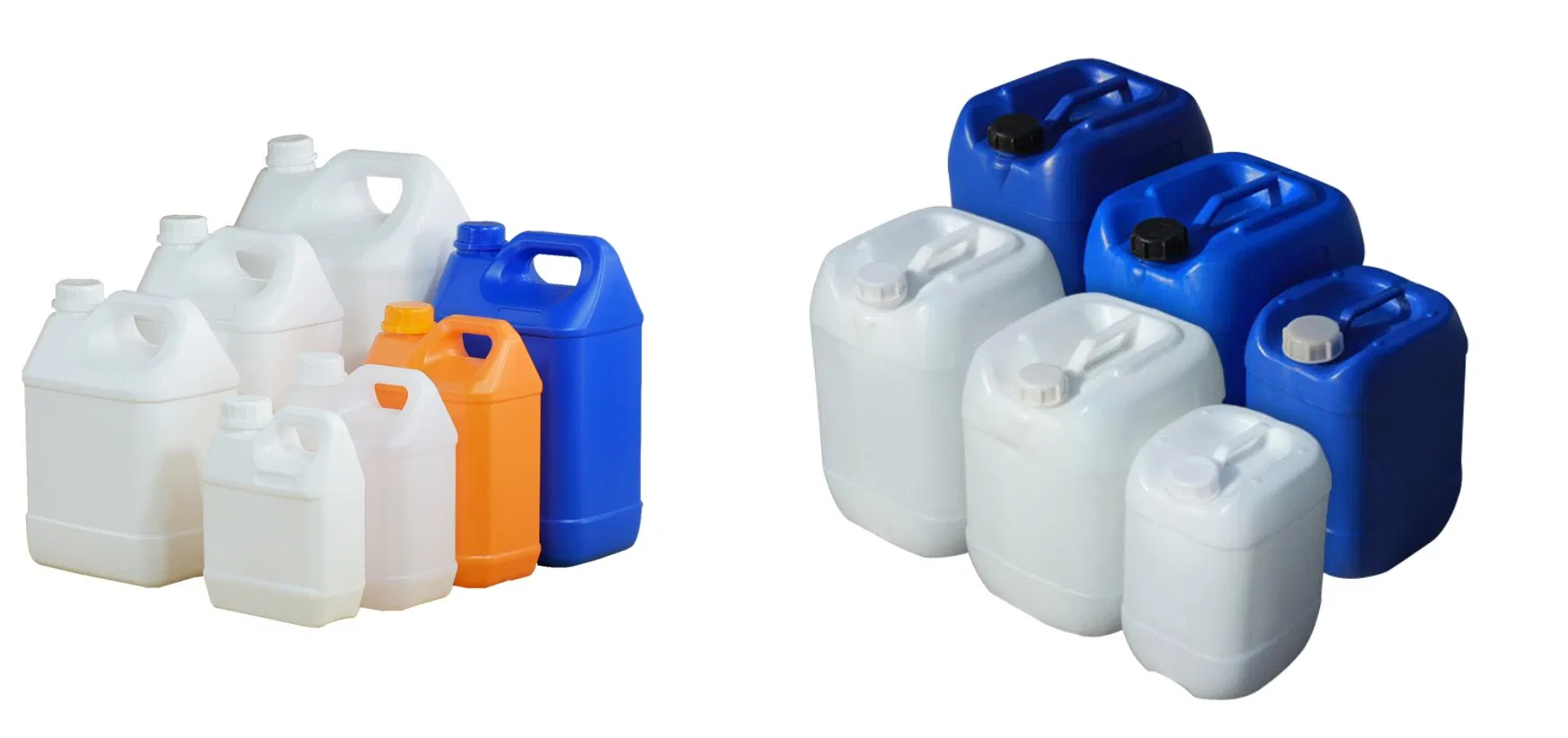

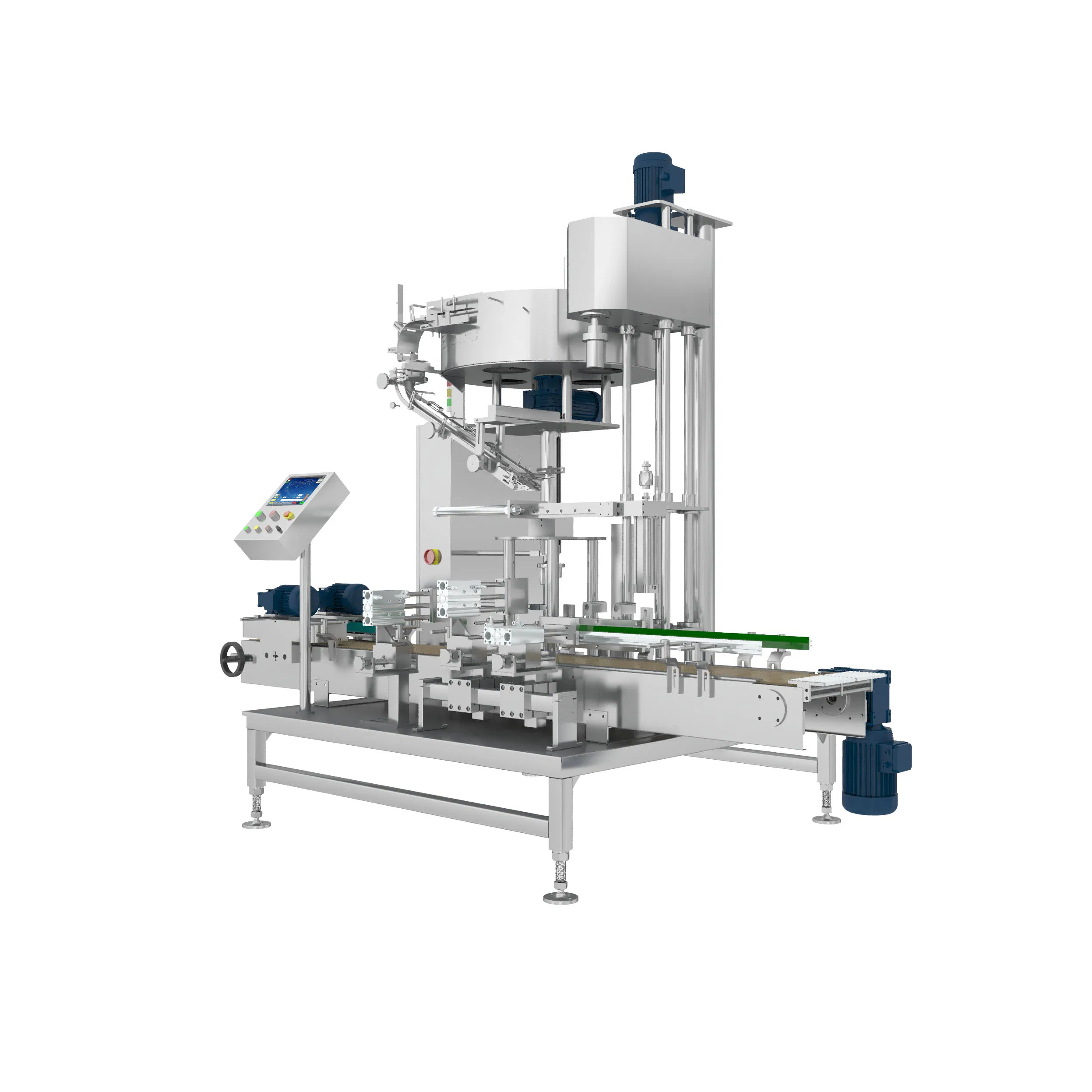

Introduction: The FX-1D single head capping machine is composed of cap sorting & conveying mechanism, cap grabbing & capping mechanism, conveying mechanism and control system. The whole machine has simple structure and convenient adjustment. It is suitable for automatic capping of 5-30L barrels.
| No. | Parameter Item | Specification Details |
|---|---|---|
| 1 | Capacity | ≤500 barrels/hour |
| 2 | Distance from liquid level to mouth | ≥200mm |
| 3 | Qualified rate | ≥99% |
| 4 | Applicable bottle size | Min:140×200×320mm | Max:260×290×410mm |
| 5 | Applicable cap size | Φ35-75mm | H20-40mm |
| 6 | Air pressure | 0.6MPa |
| 7 | Power supply | ~220V 50Hz |
| 8 | Power | 2.0KW |
| 9 | Machine weight | 800Kg |

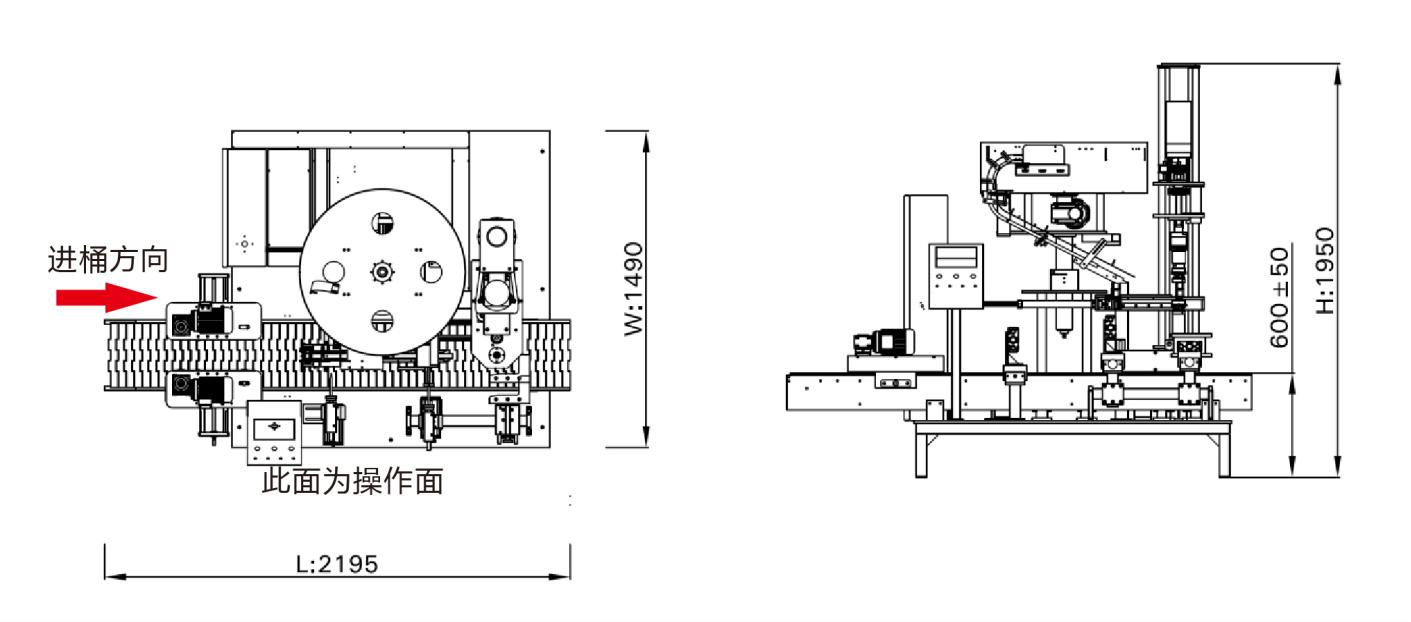

| 10 | Machine size | 2195×1490×1950mm(L×W×H) |

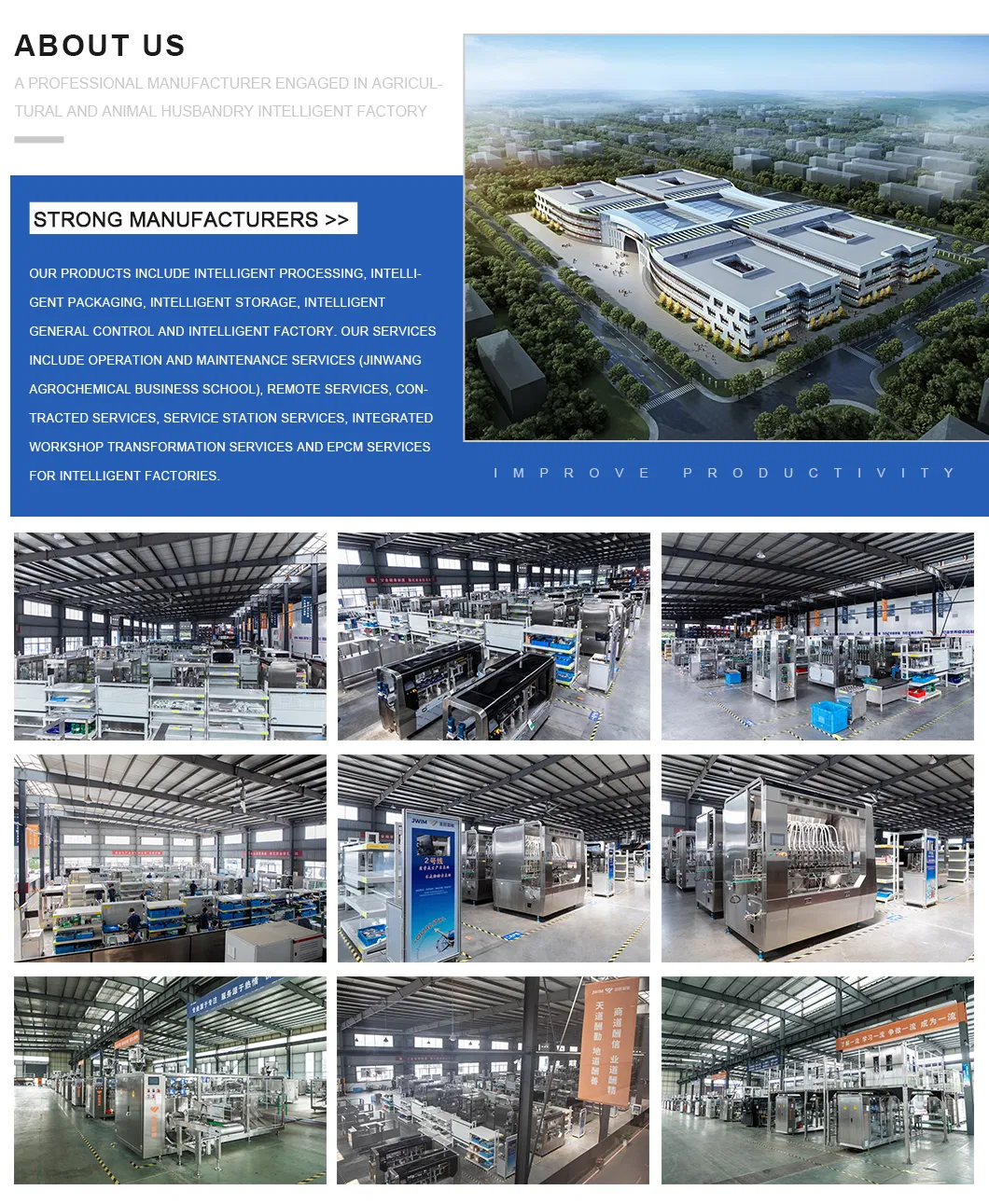

Established in May 2005, this professional manufacturer is engaged in agricultural and animal husbandry intelligent factories. It is a high-tech enterprise integrated with R&D, manufacturing, marketing and service.
Products focus on the agriculture and animal husbandry industry, with more than 100 patent certificates, including 8 invention patents and 8 utility model patents for intellectual formulation workshops. The products have been exported to more than 50 countries, providing professional services to more than 3,000 customers.
In line with Industry 4.0, the developed formulation workshops are safe, environmentally friendly, intelligent, integrated, and efficient. Offerings include intelligent processing, packaging, storage, and general control. Services encompass operation maintenance, remote support, and EPCM services for intelligent factories.
A dedicated after-sales team of 200 service engineers, including 50 overseas engineers, serves global markets including Vietnam, Indonesia, Thailand, and the Philippines. The global Internet service center provides remote support to solve problems online.
