📊 Basic Specifications
Type
General Punching Machine
Power Source
Mechanical Drive
Production Capacity
2000pieces/Year
⚙️ Technical Parameters
| Item |
Parameter Details |
| Power Type | Electric |
| Model | A, B, C |
| Main Motor Power | 15 (kw) |
| Nominal Pressure | 50 (kn) |
| Throat Depth | 50 (mm) |
| Slider Stroke | 50 (mm) |
| Control Mode | Numerical Control (NC) |
| Shank Hole Size | 600*450 (φmm*mm) |
| Layout Type | Vertical |
| Application Scope | Universal |
| Applicable Industry | Universal |
| Stroke Frequency | 40 |
| Material of Working Object | Metal |
| Product Condition | Brand New |
🚀 Core Advantages & Features
⚡ High-Efficiency & Continuous Production
Adopts integrated multi-station linkage design, realizes uninterrupted automatic feeding, punching, positioning and discharging in one go, greatly shortens auxiliary processing time, and boosts overall production efficiency by more than 60% compared with traditional single-station punching equipment. It perfectly meets large-batch, high-cycle industrial processing demands without frequent manual shutdown adjustment.
🎯 Precision CNC Positioning & Ultra-High Machining Accuracy
Equipped with high-precision digital control system and servo-driven positioning module, realizes micron-level punching positioning accuracy. The multi-station synchronous calibration technology eliminates cumulative processing errors, ensuring consistent hole position accuracy, aperture tolerance and verticality for each workpiece, fully complying with high-standard industrial processing and precision parts manufacturing requirements.
🤖 Intelligent Full-Automatic Operation
Supports one-key parameter setting, batch program storage and automatic operation mode, reducing manual operation and manual intervention to the minimum. Workers only need to input processing parameters in advance, and the equipment can complete automatic multi-station continuous punching, which lowers labor costs and operation difficulty, and effectively avoids processing defects caused by human errors.
🔧 Strong Multi-Station Compatibility & Wide Processing Range
Flexible multi-station modular design supports synchronous or sequential punching of different apertures, different hole positions and different processing procedures on a single workpiece. It is highly compatible with various metal and partial non-metal sheet materials, profiles and workpieces, realizing multi-process integrated processing without replacing molds frequently, expanding the application scope of the equipment.
🛡️ Stable Performance & Low Failure Rate
Built-in high-rigidity mechanical structure and optimized power transmission system, featuring strong anti-interference ability and stable long-term continuous operation. The CNC intelligent fault self-diagnosis function can quickly alarm and locate abnormal problems, reducing equipment downtime and maintenance costs, and prolonging the service life of wearing parts.

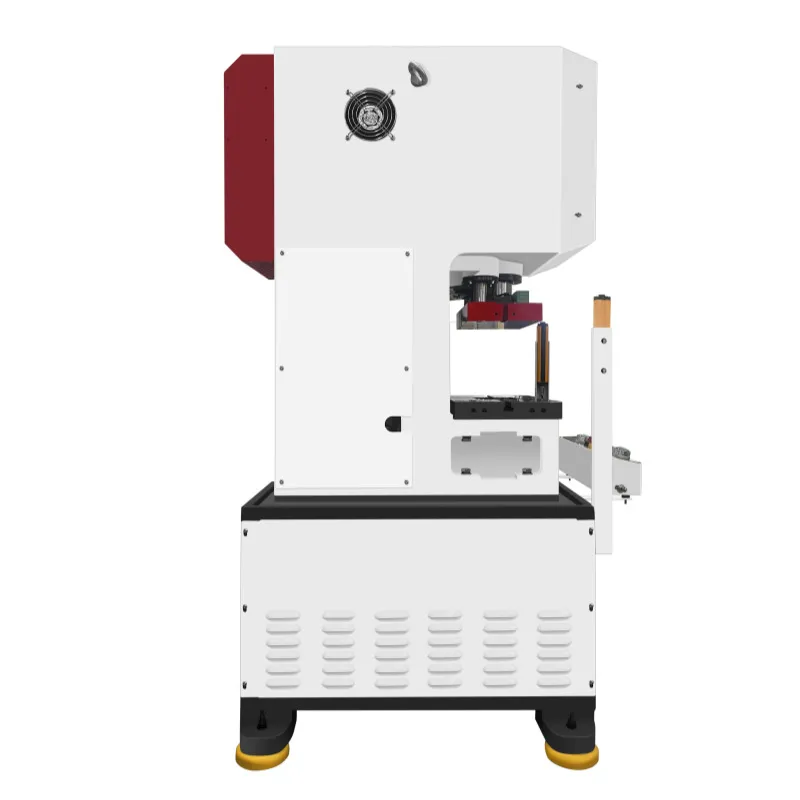

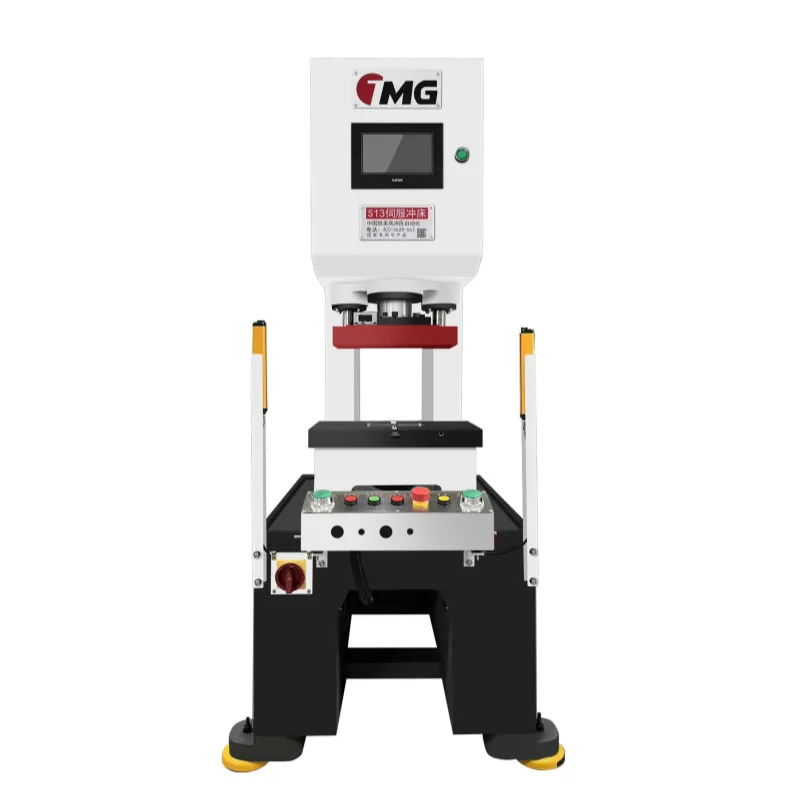

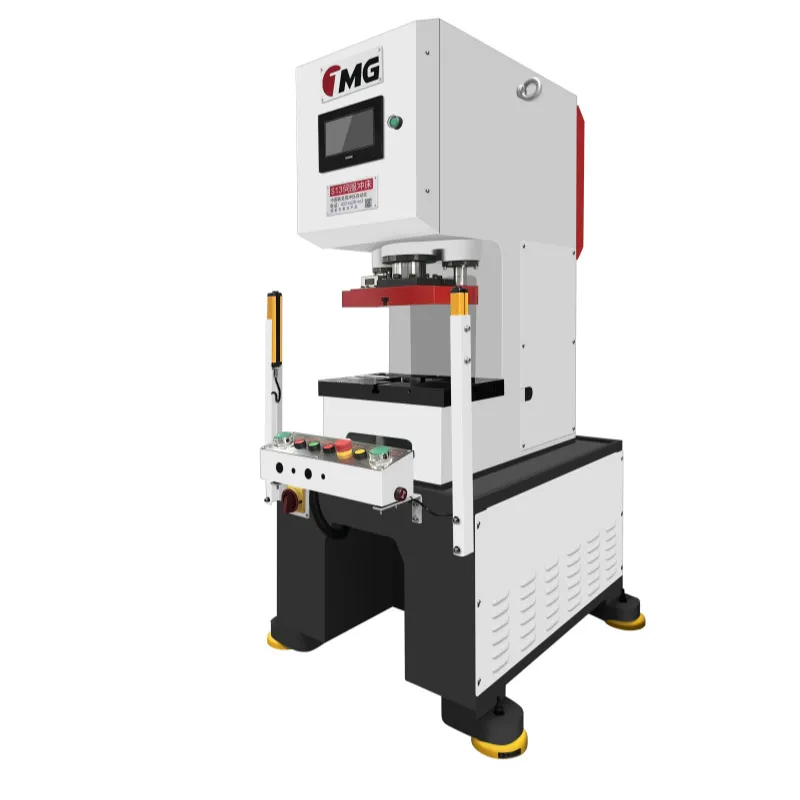

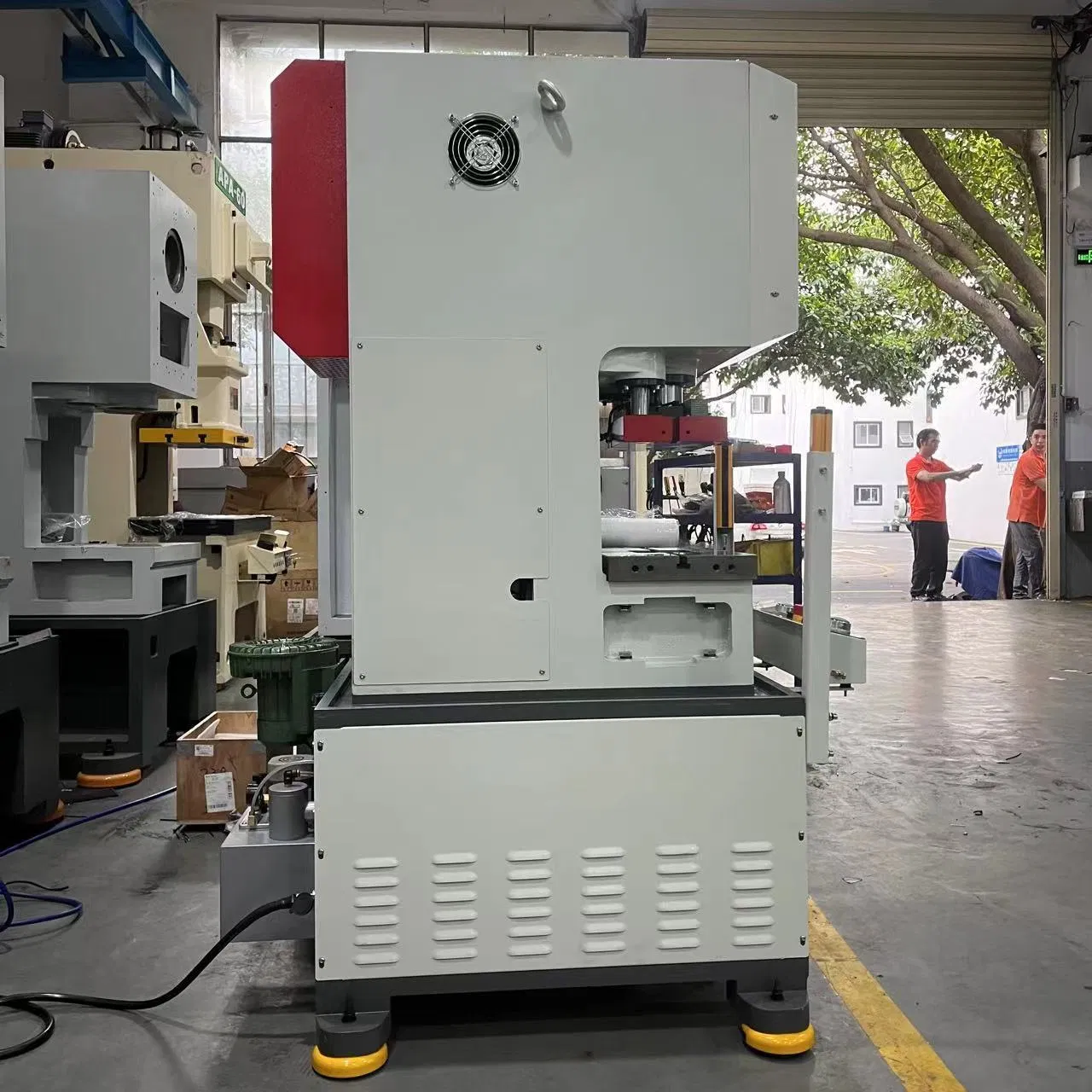

📸 Product Display
❓ Frequently Asked Questions
How does this machine improve production efficiency?
It uses an integrated multi-station linkage design for automatic feeding and punching, boosting efficiency by over 60% compared to traditional single-station machines.
What is the accuracy level of the CNC positioning?
The equipment is equipped with a high-precision digital control system and servo-driven module, achieving micron-level punching positioning accuracy.
Can this machine handle different types of materials?
Yes, it is highly compatible with various metal sheets, profiles, and some non-metal materials, supporting a wide range of industrial applications.
Is the operation difficult for new workers?
The system supports one-key parameter setting and intelligent automatic operation, which significantly lowers the operation difficulty and labor costs.
What happens if there is a mechanical failure?
The built-in CNC intelligent fault self-diagnosis function quickly identifies and locates issues, reducing downtime and maintenance complexity.
Does the machine support custom hole patterns?
Yes, the flexible multi-station modular design allows for synchronous or sequential punching of different apertures and positions on a single workpiece.
