Basic Information
Automatic Grade
Automatic
Type
Automatic Labeling Machine
Label Size
L 20-150mm H 20-160mm
Power Supply
220V 50Hz/2.4kw
Classification
Automatic Vertical Round Bottle Labeling Machine
Product Description

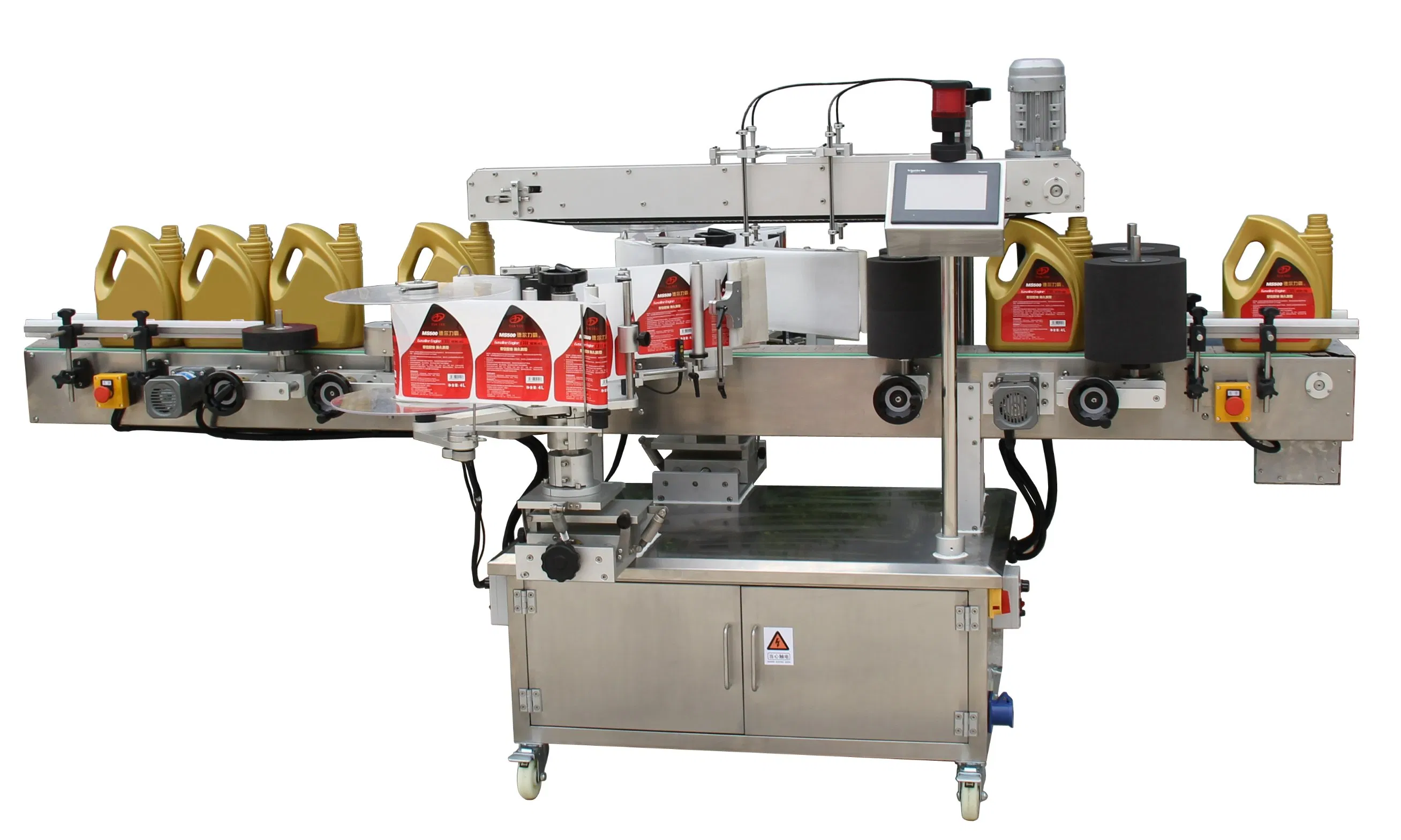

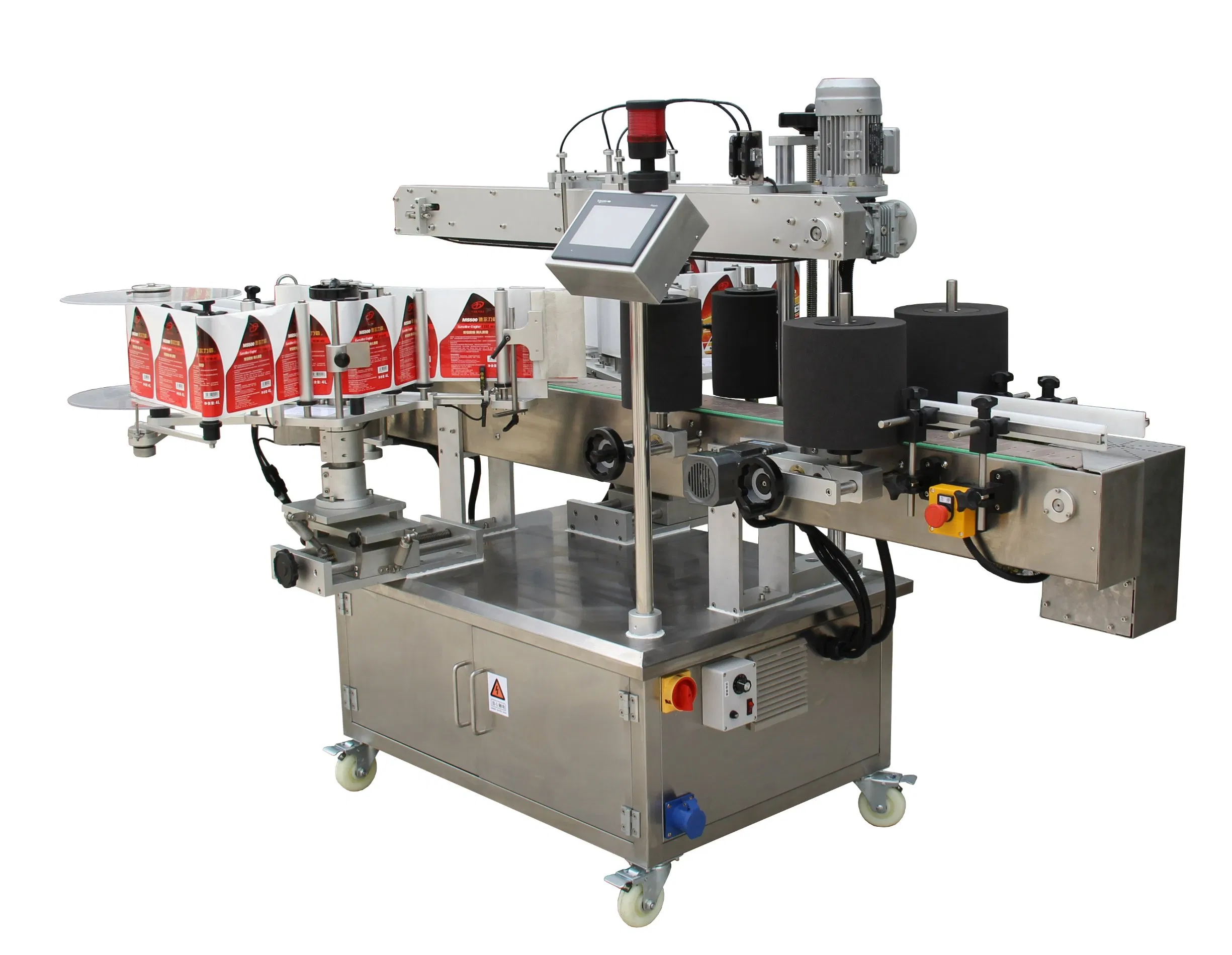

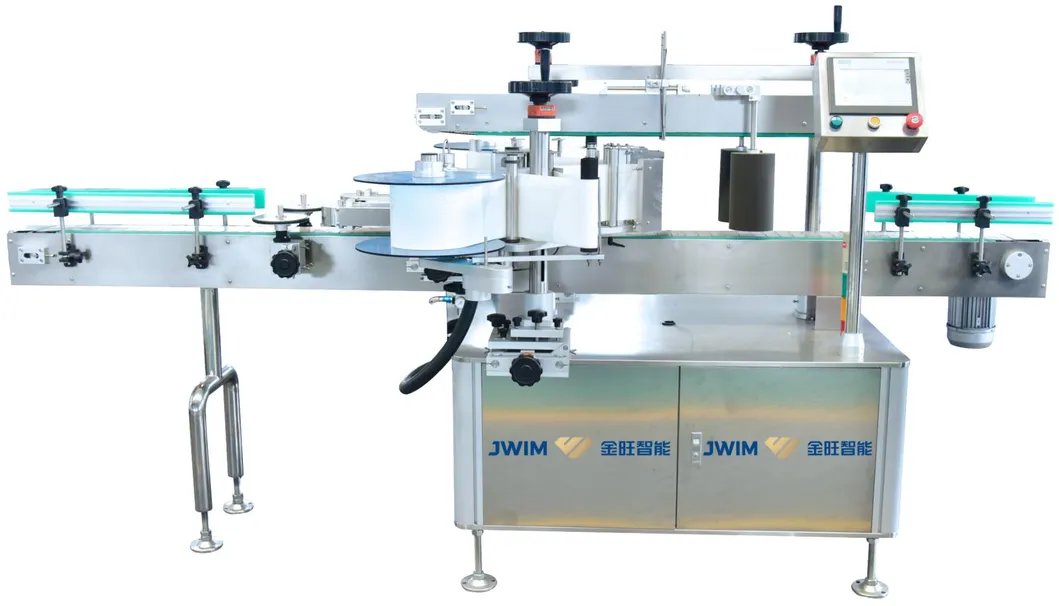

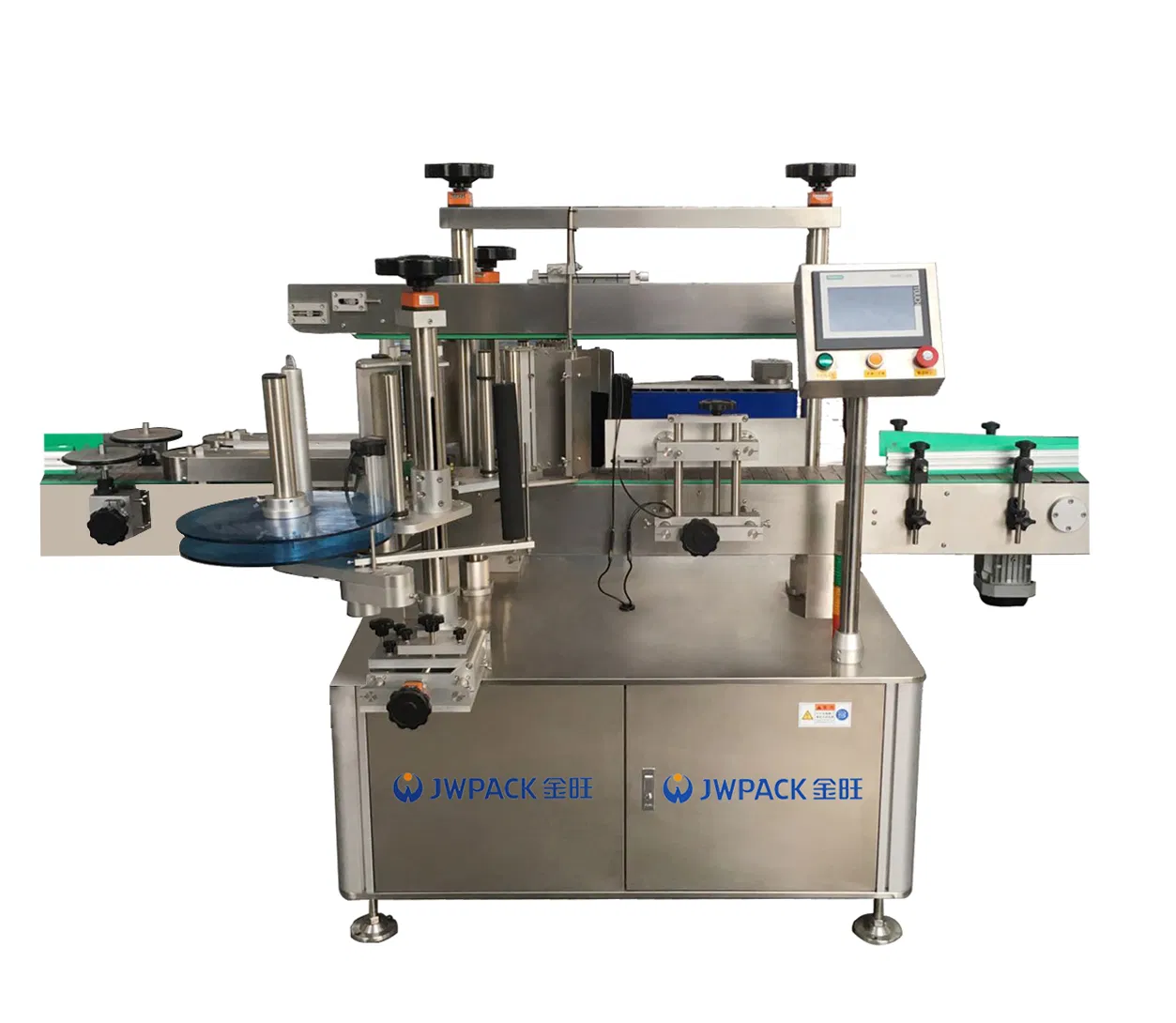

TS-150 Multifunctional Double-sided Labeling Machine
The double-sided self-adhesive labeling machine is an ideal equipment for fast and automatic labeling of square bottles, flat bottles, and other products in pharmaceutical, chemical, and other light industries. The machine features advanced functions, simple operation, and a compact structure. It adopts photoelectric detection, PLC control, and touch screen software operation. The conveying, bottle holding, and bottle separation are stepless speed regulation, ensuring accurate labeling. It includes functions like "no bottle, no labeling", automatic correction, and automatic detection.
Technical Parameters
| No. |
Item |
Specification |
| 1 |
Labeling Speed |
50-100 bottles/min (varies by size) |
| 2 |
Accuracy |
±1mm |
| 3 |
Square Bottle Label Size |
L 20-150mm | H 20-160mm |
| 4 |
Upper Pressure Range |
60-300mm |
| 5 |
Label Output Speed |
3~50 meters/min |
| 6 |
Label Film Inner Diameter |
φ76mm |
| 7 |
Max Label Roll Outside Diameter |
φ340mm |
| 8 |
Power Supply |
~220V 50Hz/2.4KW |
| 9 |

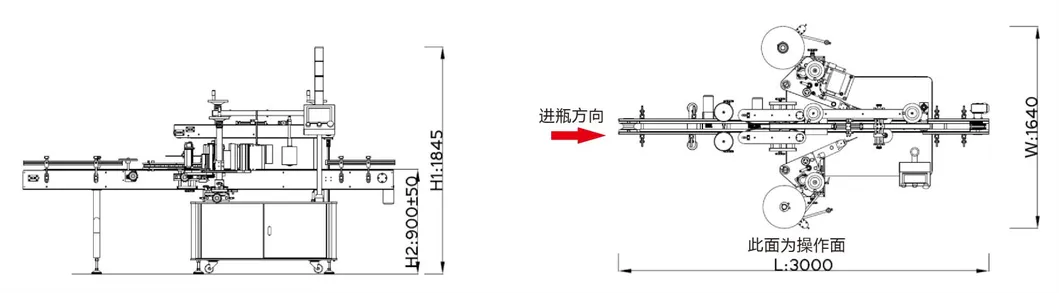

Machine Size |
3000×1500×1850mm (L×W×H) |
| 10 |
Machine Weight |
Around 180Kgs |
Key Advantages
1

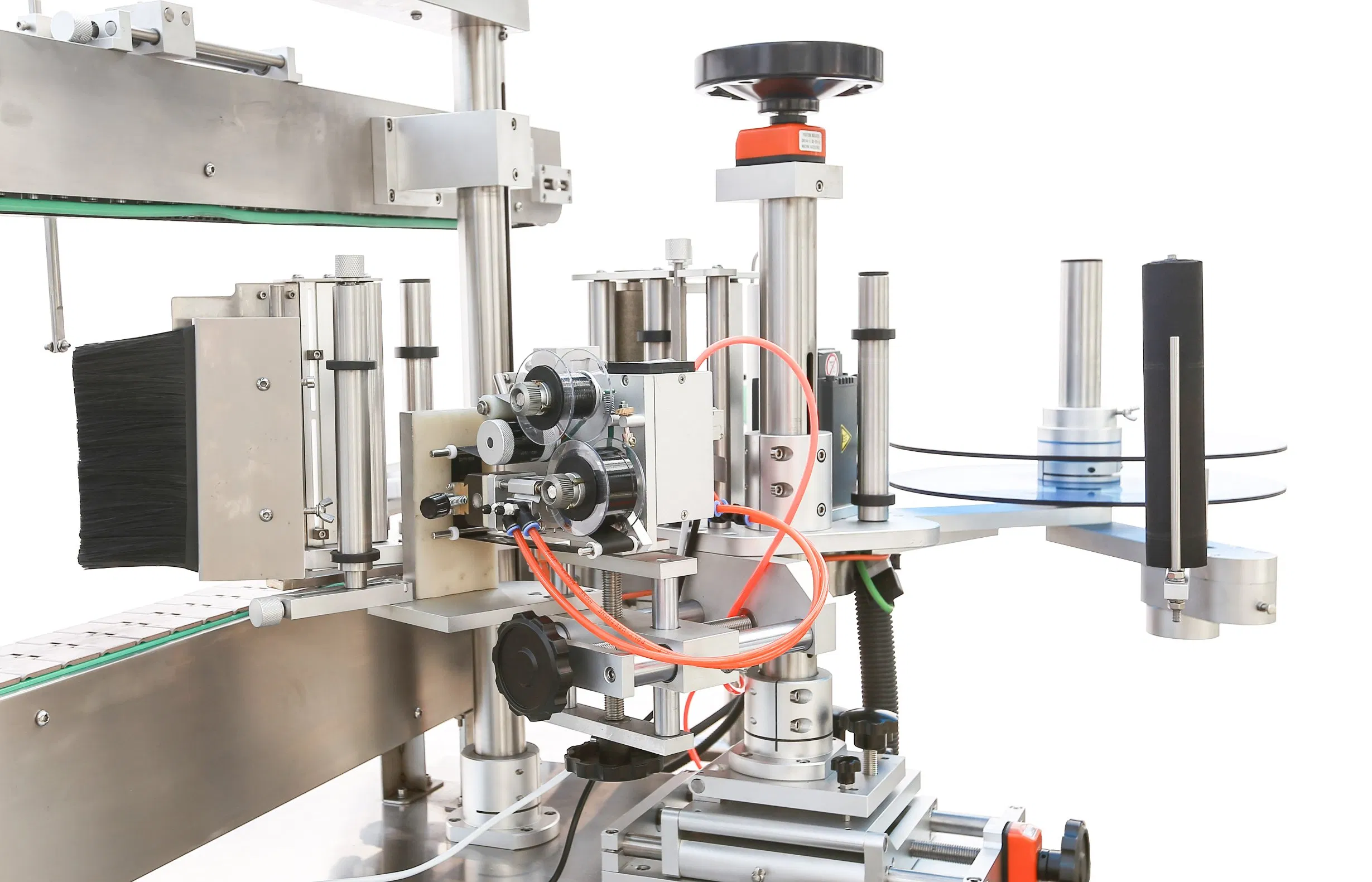

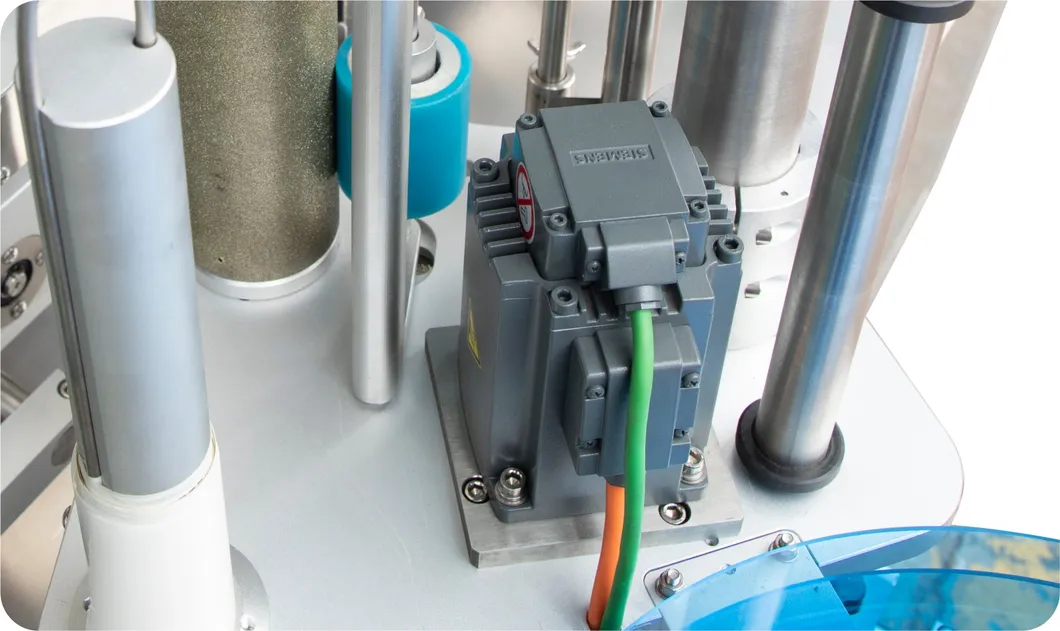

The labeling system is controlled by a servo motor to ensure extreme labeling accuracy.
2

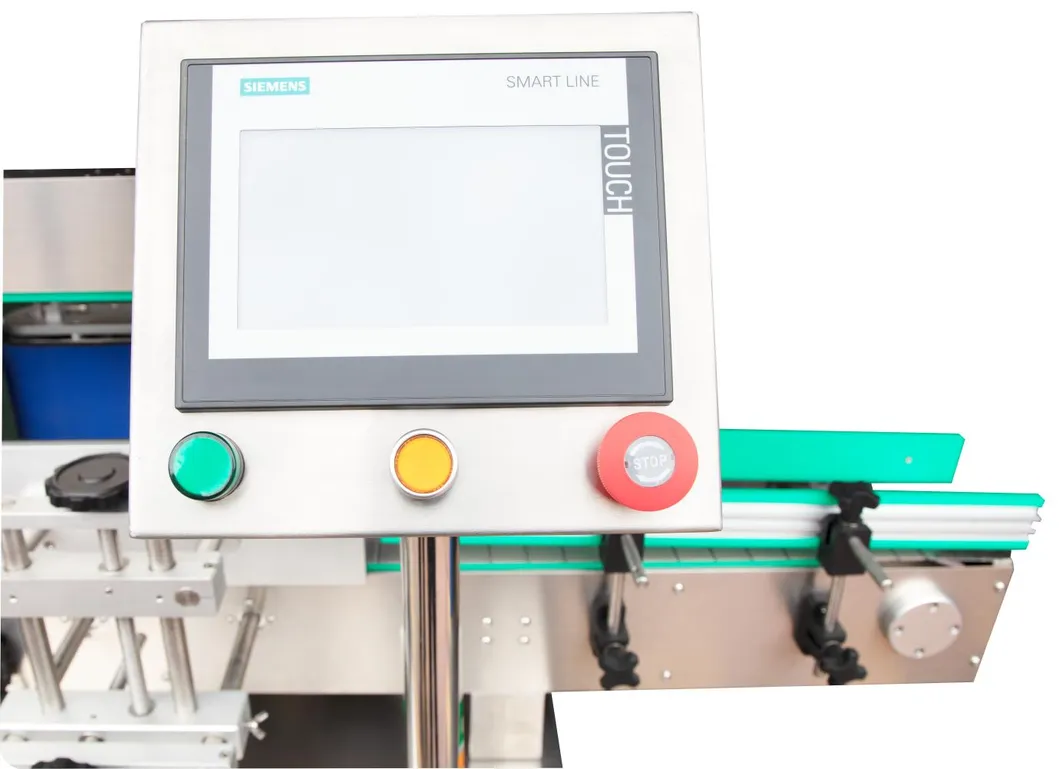

Microcomputer touch screen interface for convenient, intuitive parameter adjustment.
3

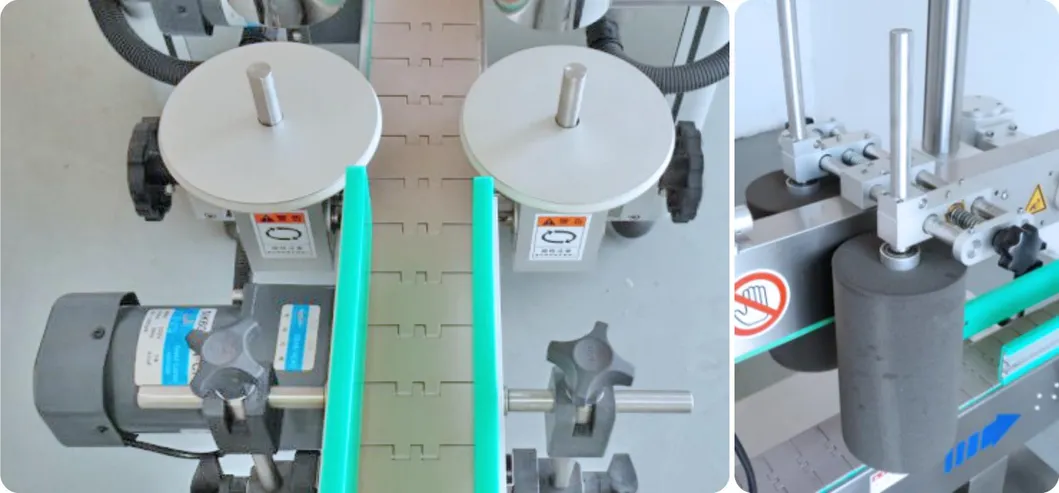

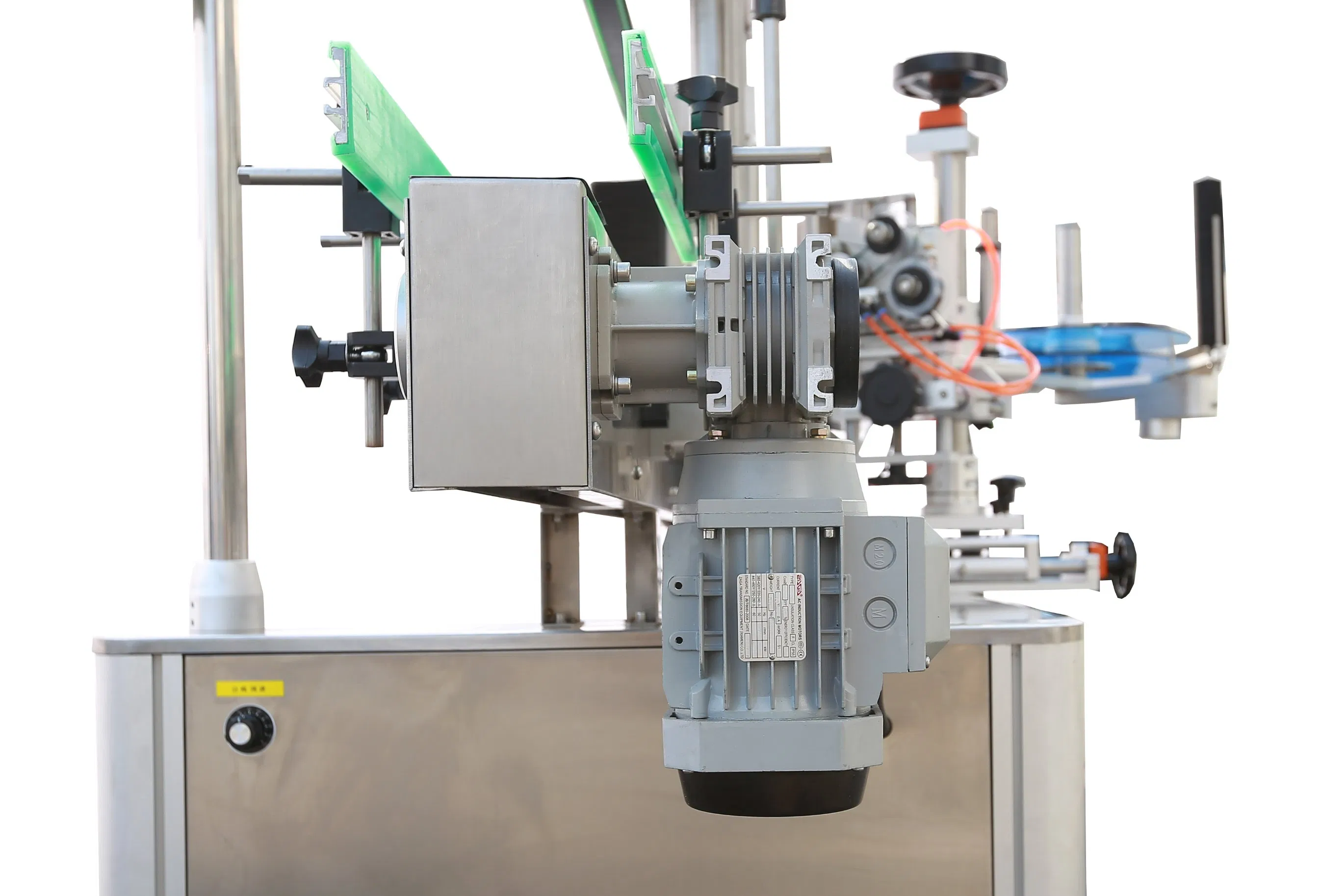

Separate motors for the conveyor belt, dividing wheel, and holding belt with stepless variable frequency speed regulation.
4

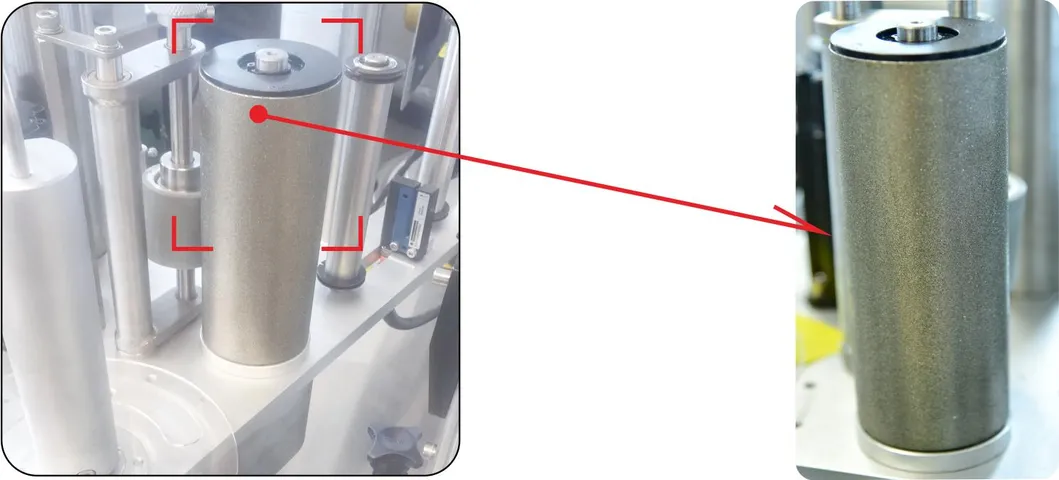

Pure alloy label feeding roller—non-slippery, wear-resistant, and more stable than traditional rubber rollers.

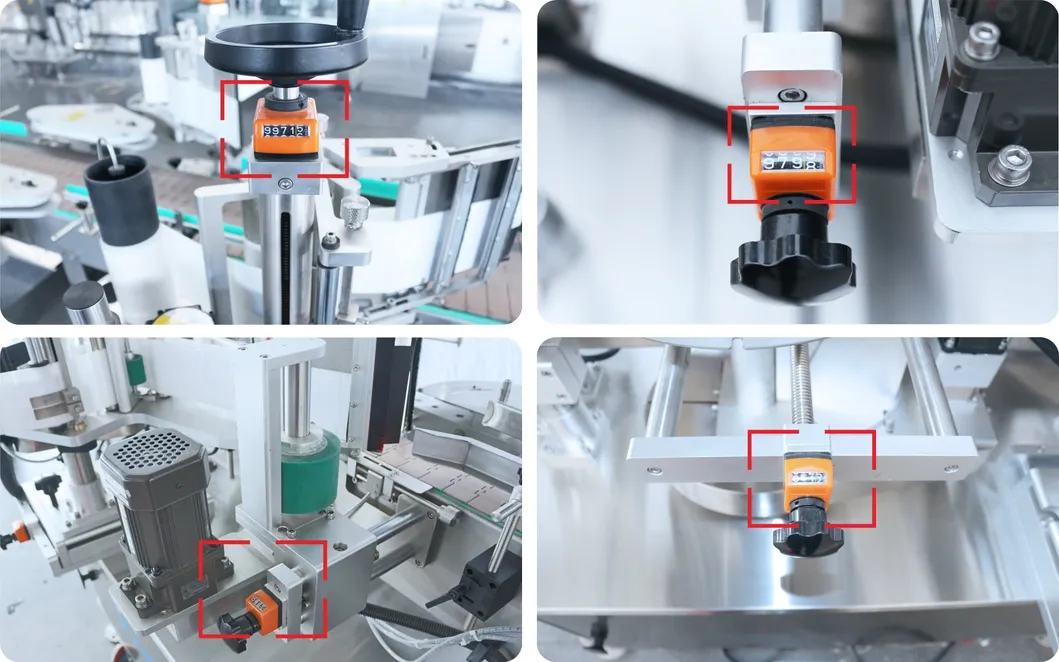

The machine is equipped with a digital adjustment handle for faster specification changes and features a customized integrated electronic control system using imported components for safety and stability.
Application Scenario
Certifications
Frequently Asked Questions
What types of bottles can the TS-150 handle?
The TS-150 is designed for square bottles, flat bottles, and other vertical shapes commonly used in the pharmaceutical, cosmetic, and chemical industries.
What is the labeling accuracy of this machine?
The machine offers high precision with an accuracy of ±1mm, depending on the material and label type.
Does the machine support different label sizes?
Yes, it supports label lengths from 20mm to 150mm and heights from 20mm to 160mm.
How does the "no bottle, no labeling" function work?
The machine uses photoelectric sensors to detect the presence of a bottle. If no bottle is detected on the conveyor, the labeling mechanism will not trigger, preventing label waste.
Is the operation interface user-friendly?
Yes, it features a microcomputer touch screen interface that allows for intuitive parameter adjustments and specification changes.
What is the power requirement for installation?
The machine operates on a standard 220V 50Hz power supply with a power consumption of 2.4kw.
