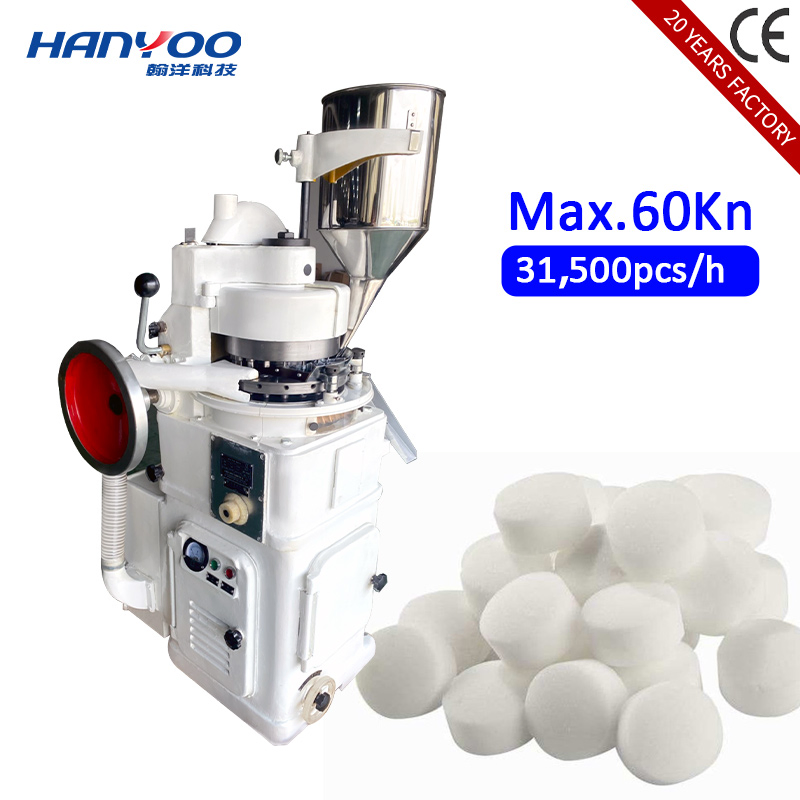

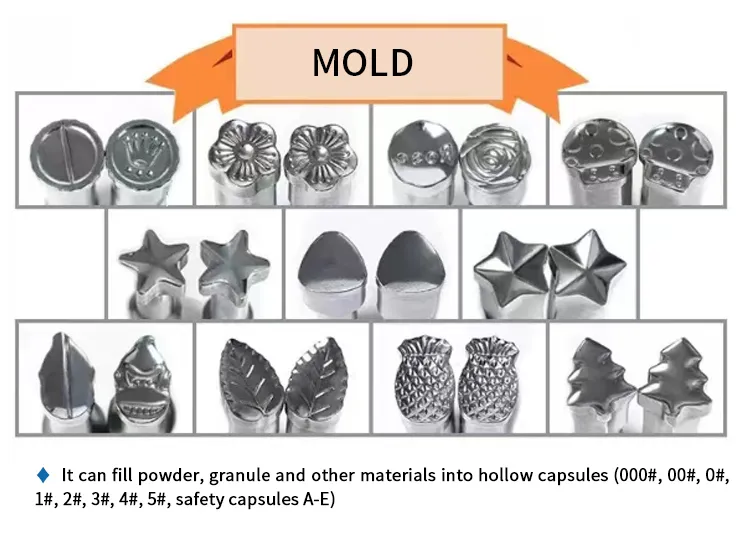

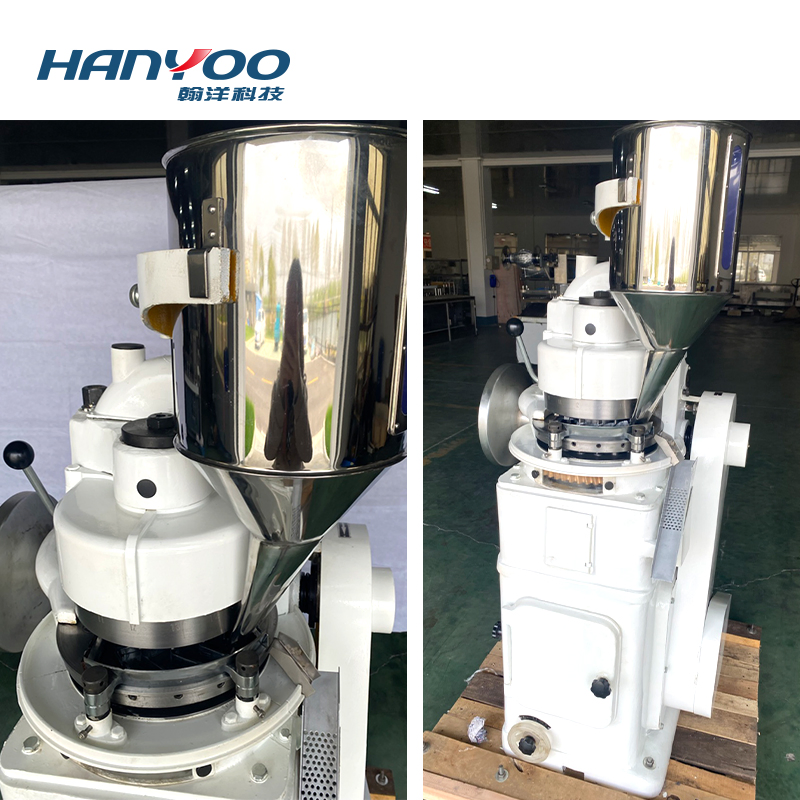

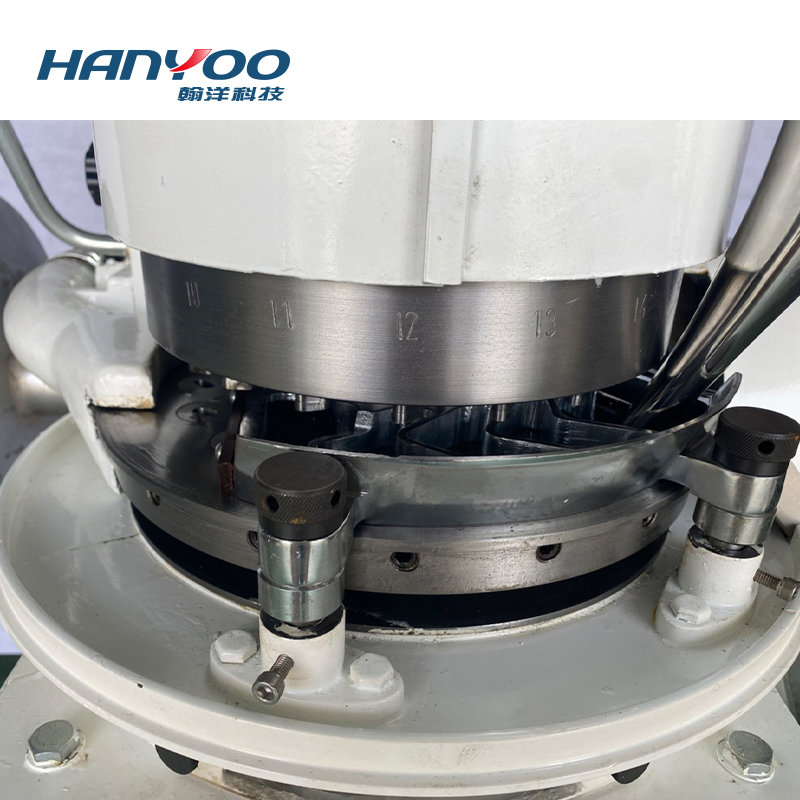

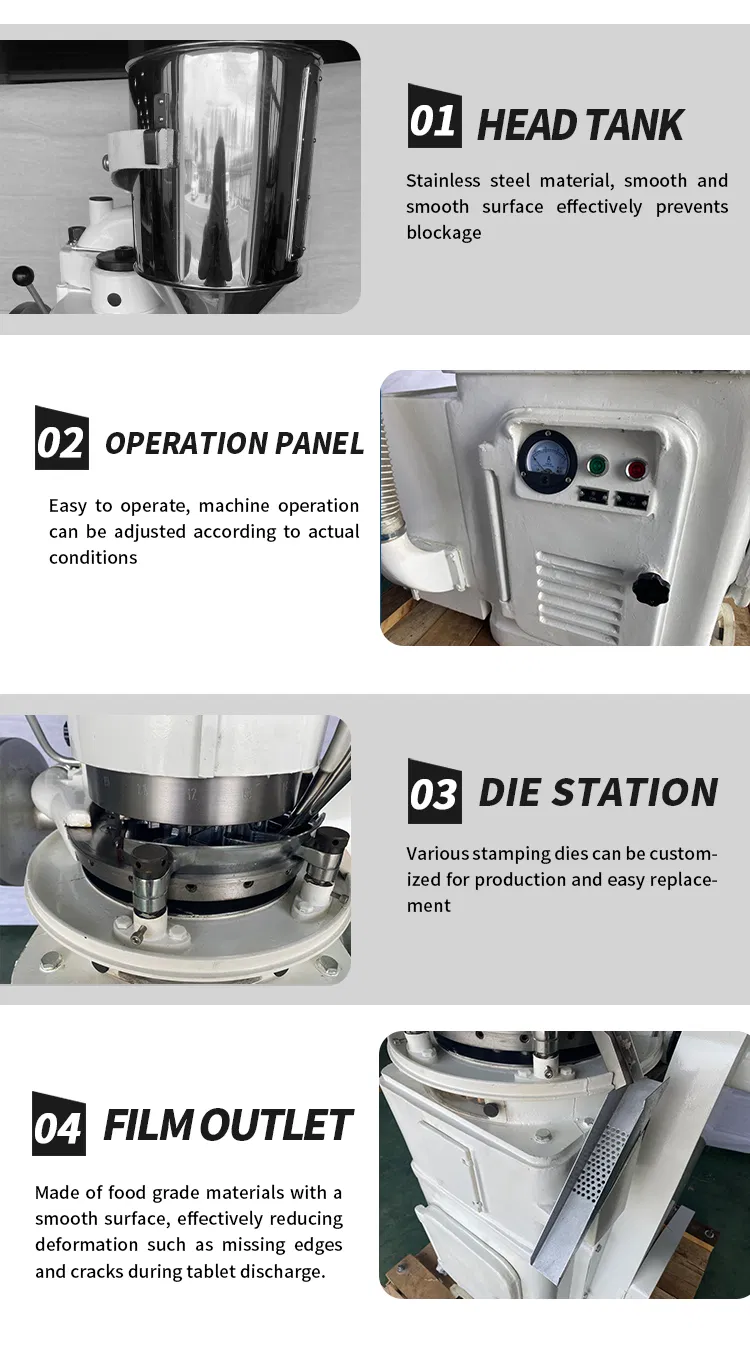

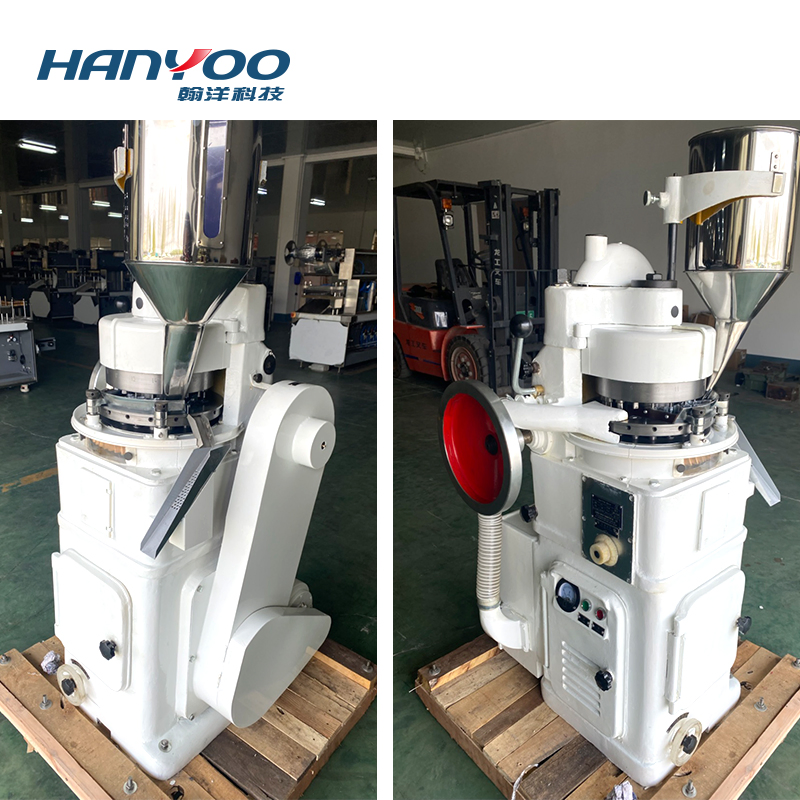

This machine is used to press various granular raw materials into circular tablets, which is most suitable for small batch production. Its characteristic is that 17 sets of stamping dies can be installed on the disc, and 17 pieces can be pressed by rotating it once. The speed of the turntable and the filling depth of the material can be adjusted. The mechanical buffer device on the machine can avoid damage to the components caused by overload. One side of the machine body is equipped with a powder suction box, which can absorb the dust generated during machine operation through the suction nozzle to avoid sticking and blocking.
| MODEL | ZP-17 | ZP-33 |
|---|---|---|
| Punch quantity (Sets) | 17 | 33 |
| Max. tablet pressure (kn) | 60 | 40 |
| Max. tablet diameter (mm) | 21 | 16.5 |
| Max. filling depth (mm) | 15 | 15 |
| Max. tablet thickness (mm) | 6 | 6 |
| Turret rotary speed (r/min) | 22-35 | 11-28 |
| Production capacity (PC/h) | 31500 | 43000-110000 |
| Motor power (kw) | 2.2 | 2.2 |
| Machine weight (kg) | 520 | 950 |

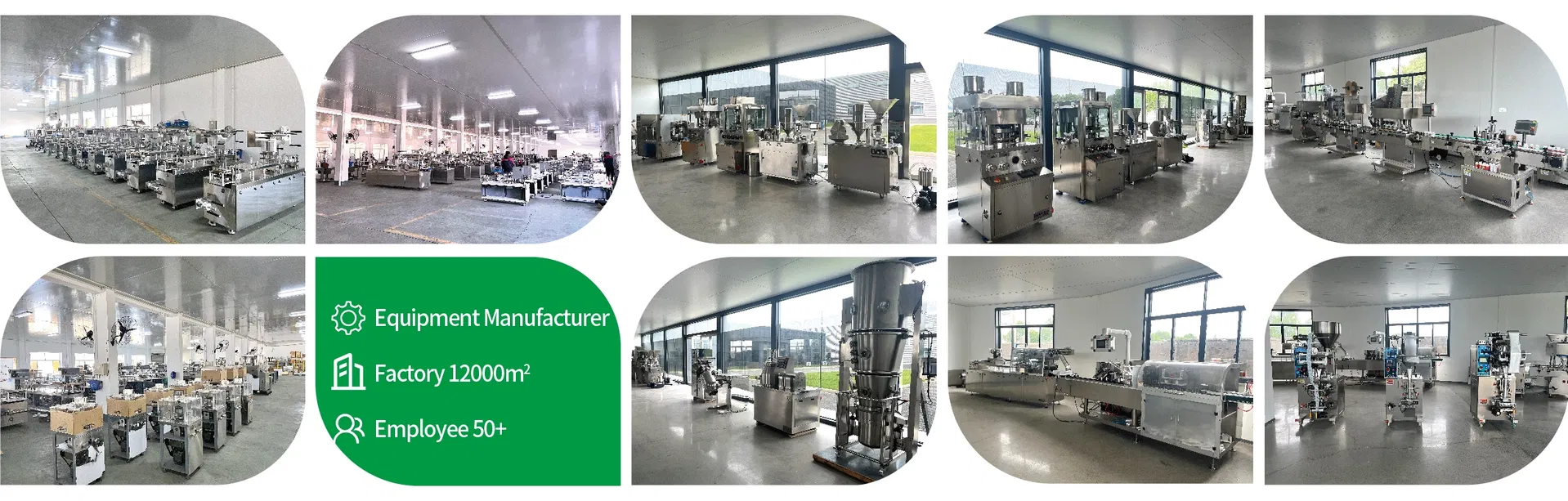

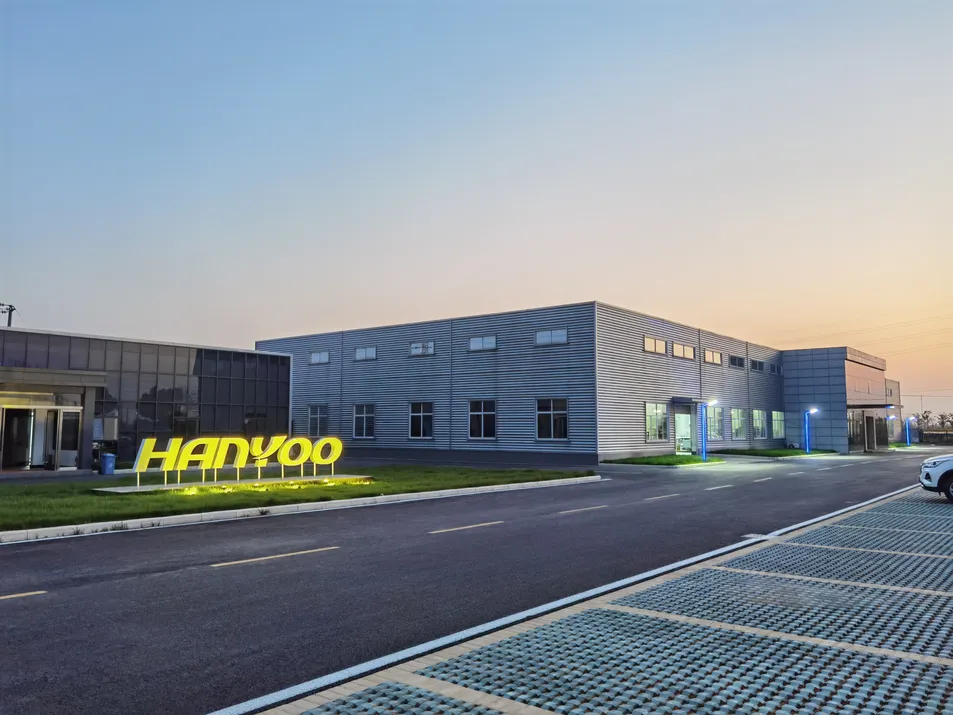

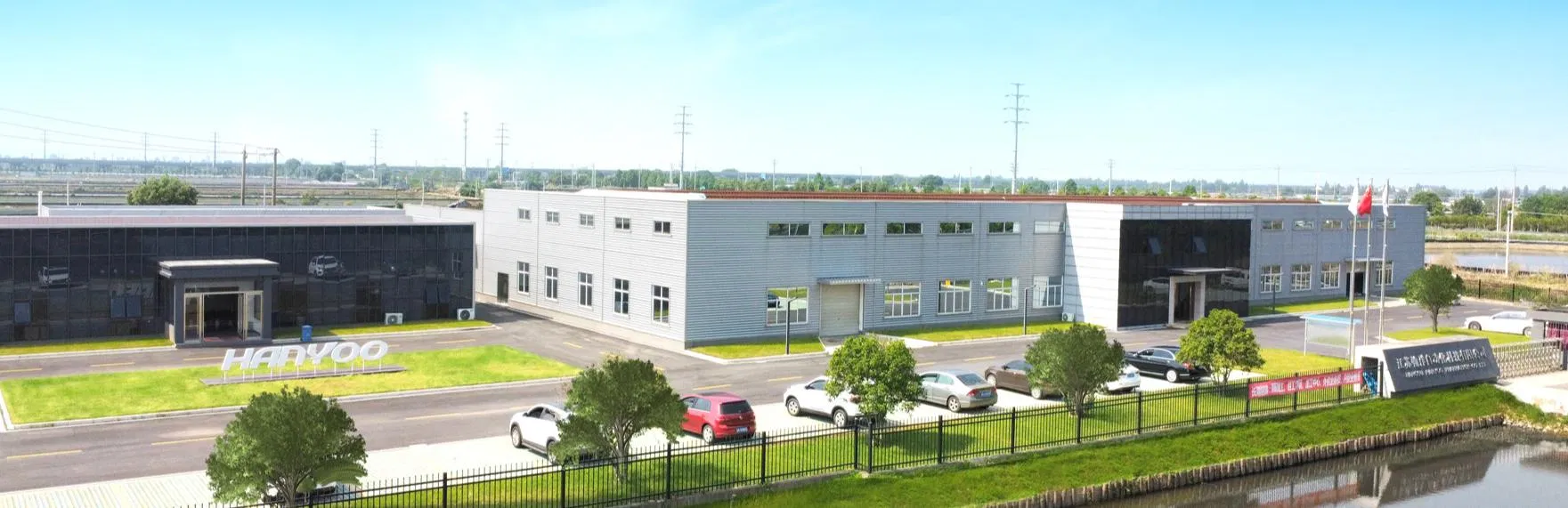

We are a high technology enterprise with strong research, production, sales, and after-service teams. Specialized in providing professional packaging solutions and equipment for pharmaceutical, medical, cosmetic, and electronics industries. With over 20 years of experience, we help build intelligent factories globally. The facility occupies more than 12,000 square meters and is ISO9001:2016 and EU CE certified.
