Product Description

ℹ️

Product Overview

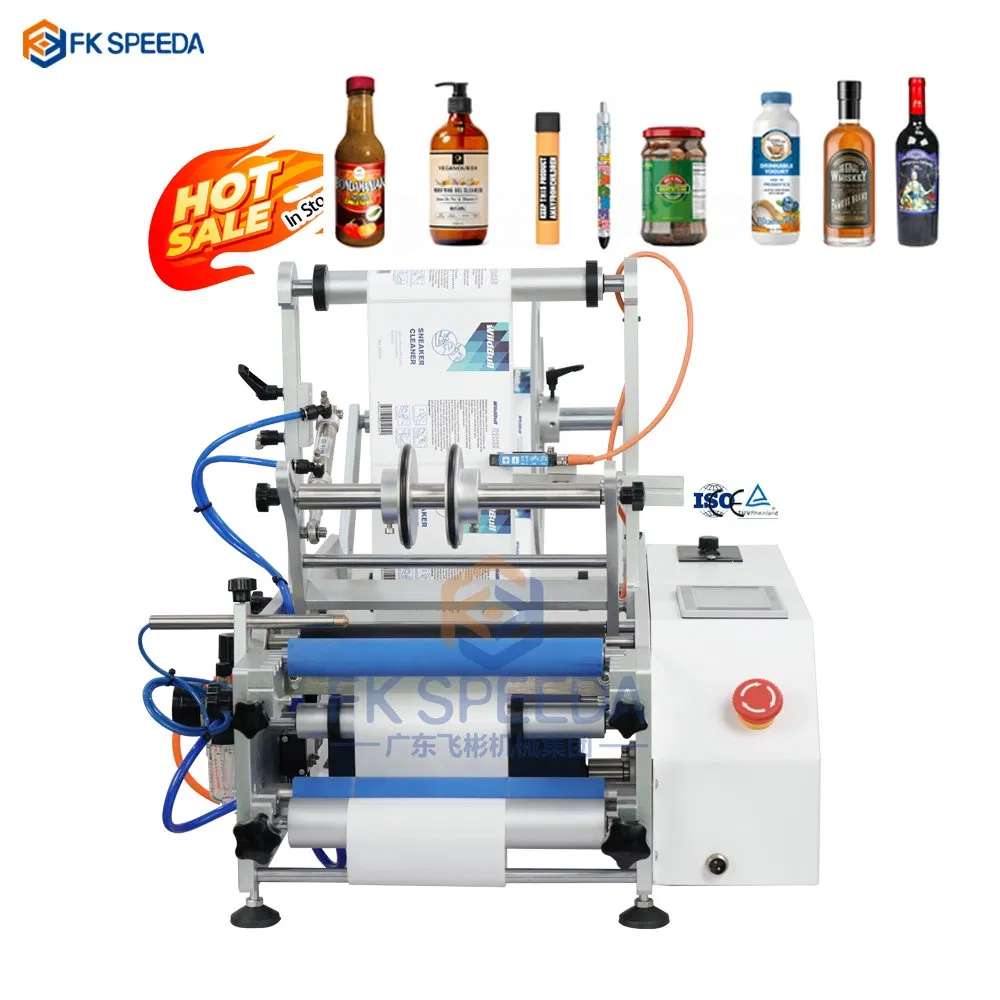

The FK603 is a basic round bottle labeling machine designed for small business plans, ensuring cost-efficiency while maintaining high production quality. It is highly suitable for labeling various cylindrical and conical products such as cosmetic bottles, wine bottles, medicine containers, and plastic bottles.

Semi-Auto Labeling System

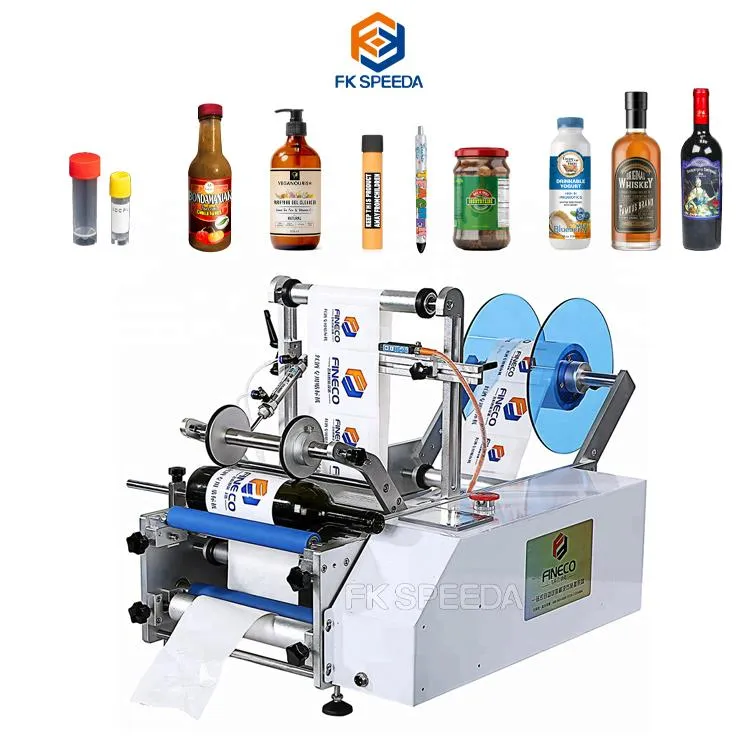

Bottle Labeling Machine Detail
📋

Technical Specifications

ModelFK603
GradeSemi-Automatic
TypeElectric Driven
Precision±0.5mm
Speed15 ~ 45 PCS/Min
Power120W / 220V
Parameter Detailed Data
Label SpecificationAdhesive sticker, transparent or opaque
Labeling Tolerance±0.5mm
Capacity15 ~ 45 pcs/min
Suit Bottle SizeØ15 ~ Ø150mm (Customizable)
Suit Label SizeLength: 20-380mm; Width: 20-220mm
Machine Size≈920*470*560 (mm)
WeightNet: 45kg / Gross: 67.5kg
Air Supply0.4 ~ 0.6Mpa
Label Roll SizeID: Ø76mm; OD: ≤300mm
🚀

Key Features & Applications

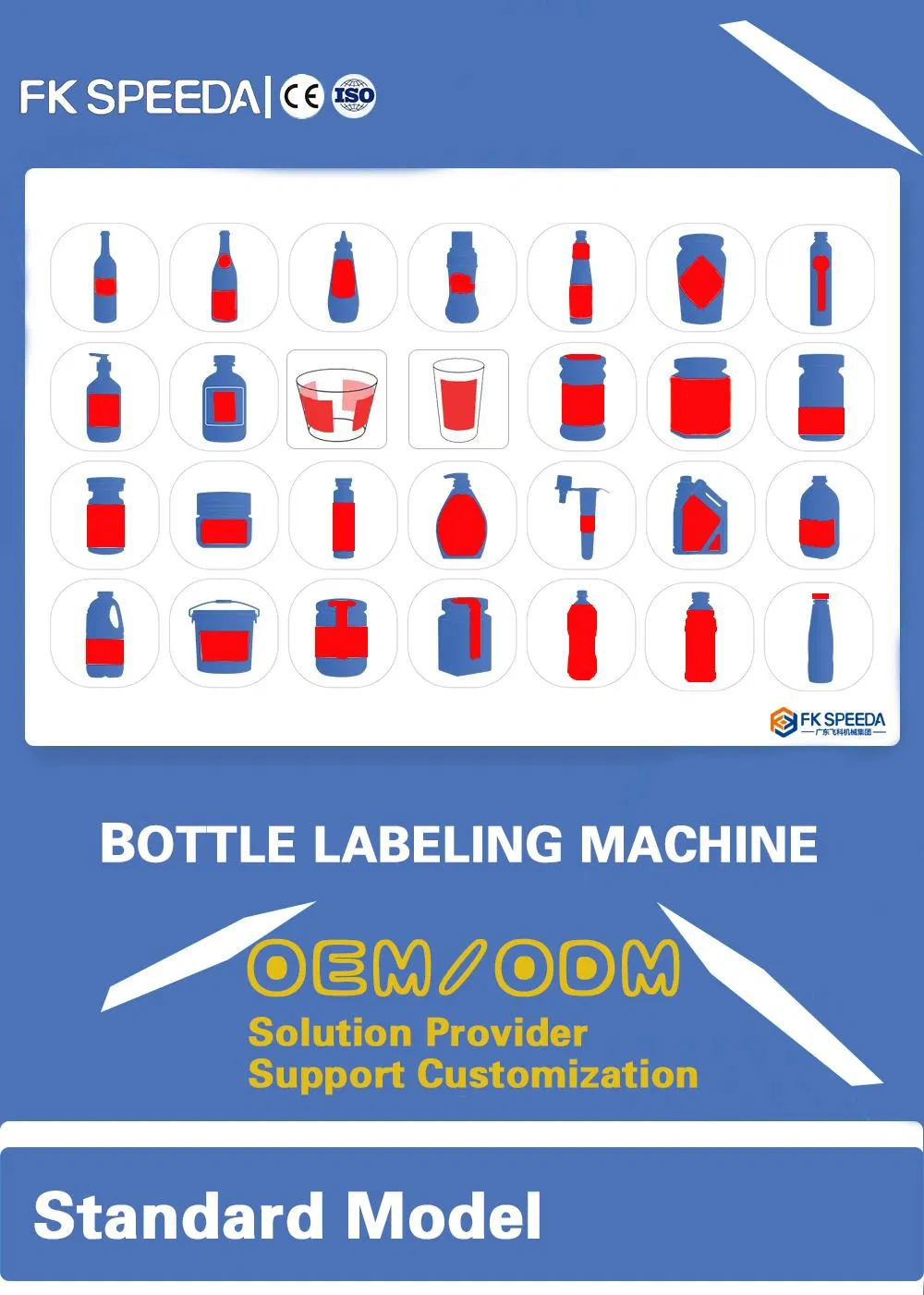

  • Versatile labeling: Supports cylindrical and tapered objects like cosmetics and wine bottles.
  • Multiple Modes: Supports one label wrap-around, front/back side labeling, and orientation labeling.
  • Optional Integration: Date printer can be added for production dates, batch lots, and expiry dates.
  • Industry Wide Use: Perfect for food, cosmetic, chemical, and pharmaceutical industries.
  • High Precision: Maintains a tolerance of within ±0.5mm for professional finishing.
📸

Product Gallery

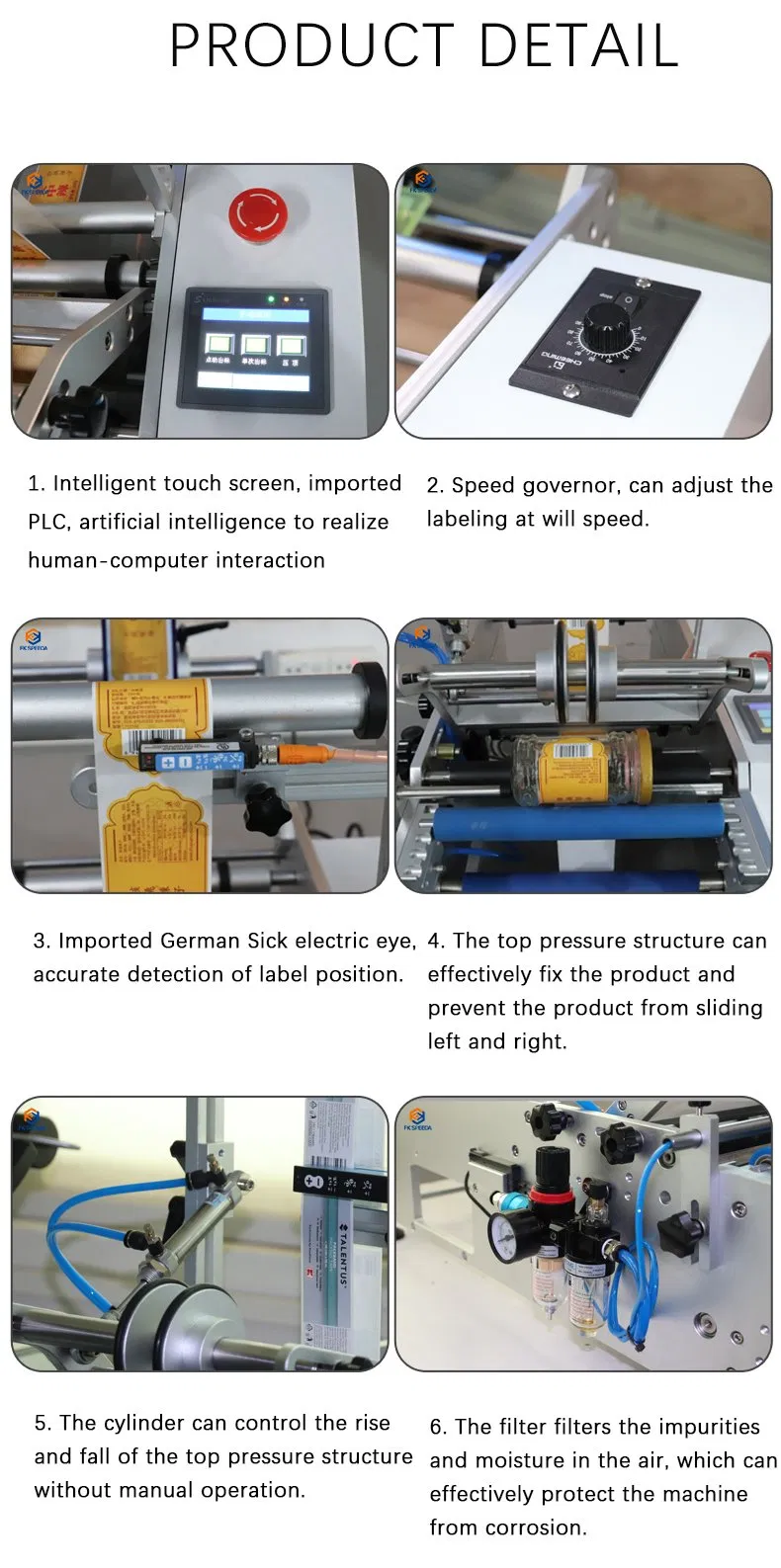

Labeling Machine View 1
Labeling Machine View 2

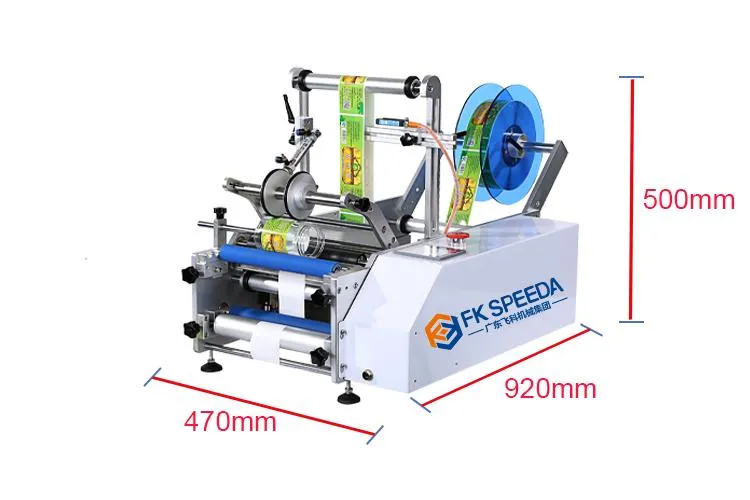

Labeling Machine View 3

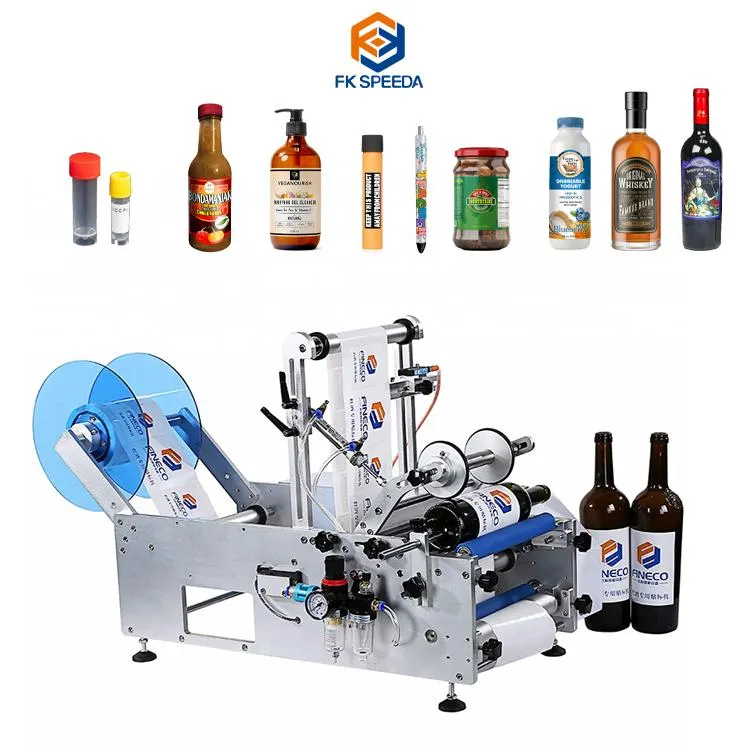

Labeling Machine View 4

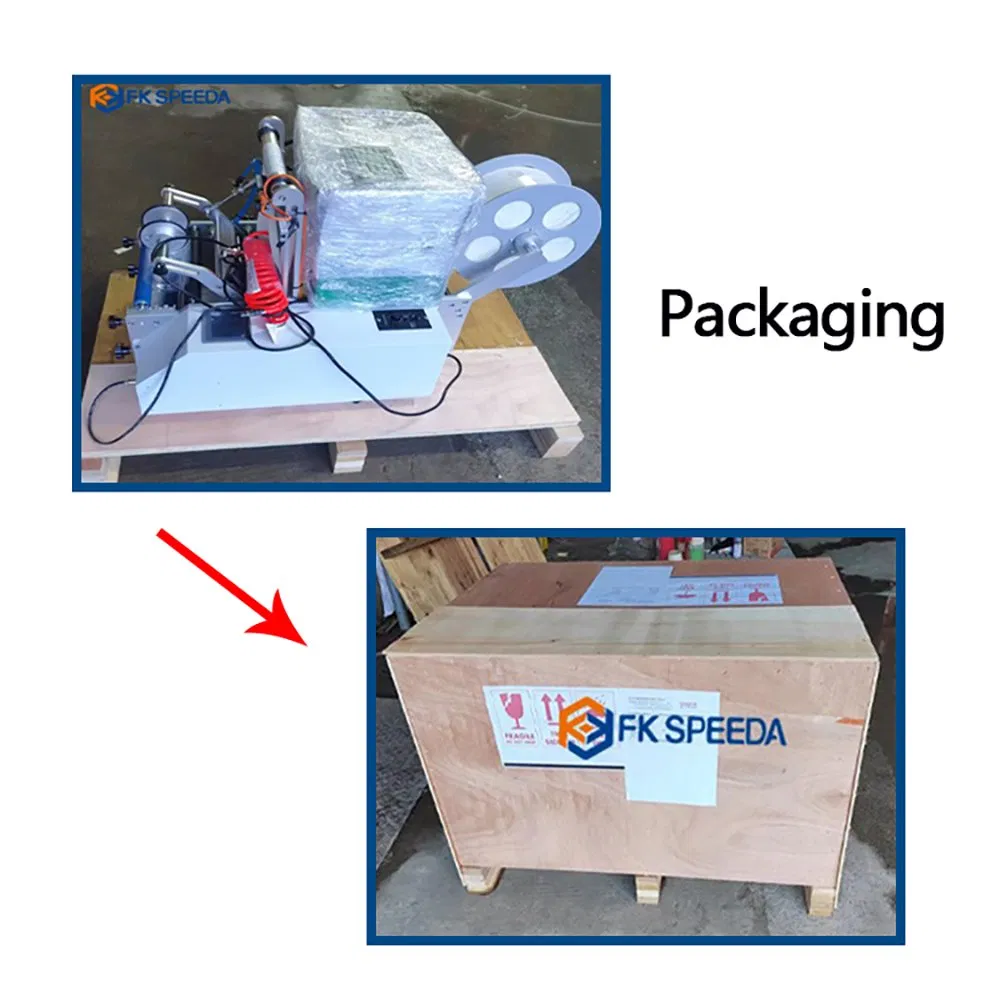

Labeling Application
Labeling Process

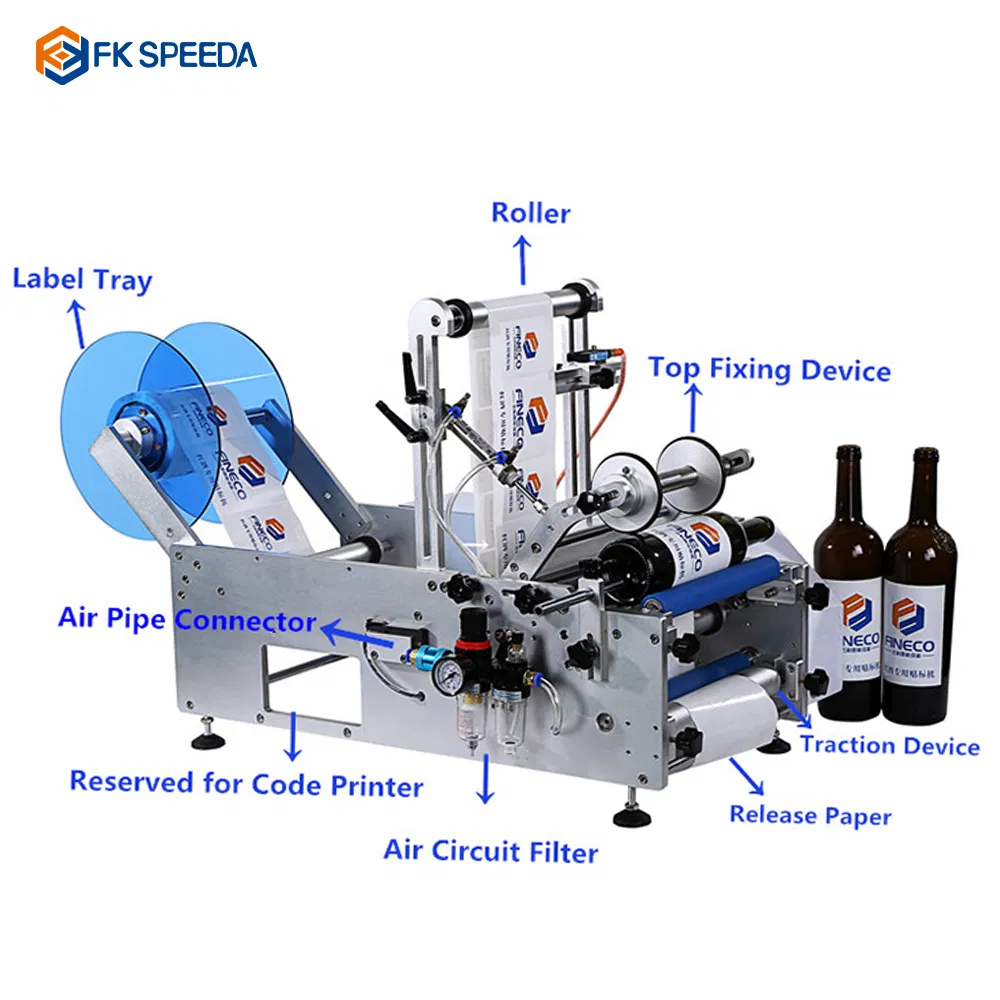

Machine Components
Labeling Mechanism

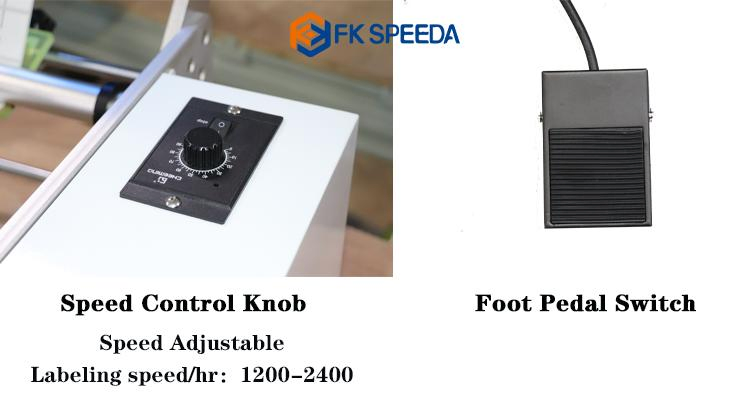

Adjustment Controls
Bottle Placement
Final Product View
Full System Setup
❓

Frequently Asked Questions

What types of products can the FK603 handle?
It is designed for all kinds of cylindrical and tapered objects, including cosmetic bottles, wine bottles, and various plastic or glass containers.
How accurate is the labeling process?
The machine offers high precision with a labeling tolerance of ±0.5mm, ensuring a professional look for your products.
Can this machine print dates or batch codes?
Yes, a date printer can be added as an optional feature to print production dates, batch numbers, and expiry dates during the labeling process.
Is it possible to do both front and back labeling?
Yes, the FK603 supports one label wrap-around, two labels (front and back), and orientation labeling.

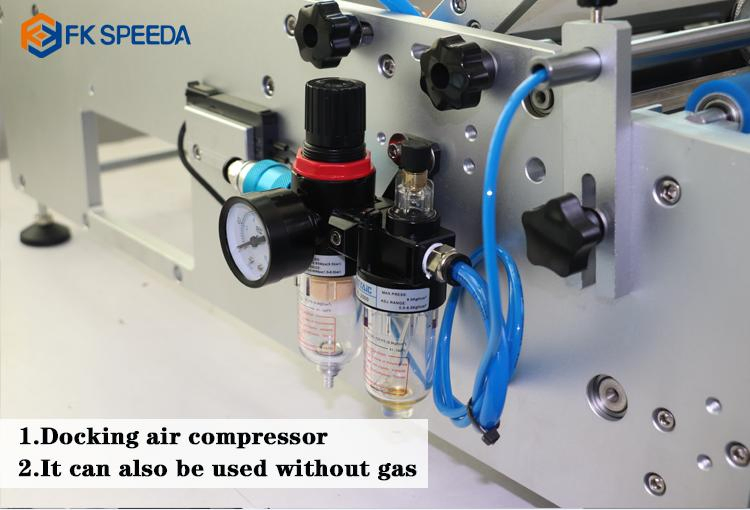

What are the power and air requirements?
The machine operates on 220V/50(60)HZ with 120W power and requires an air supply of 0.4~0.6Mpa.
Can the machine be customized for specific bottle sizes?
Standard support is for bottle diameters of 15mm to 150mm, but further customization is available to meet specific needs.
