High-Efficiency Zp-19 Rotary Tablet Press for Pharma Production

Customization:	Available
Automation Level:	Fully Automatic
Capacity:	20000 tablets/hour

Send Inquiry

Product Description

📋 Basic Information

Model NO.	ZP-17	Certification	CE Certified, GMP Compliant
Tablet Shape	Oval, Rectangular, Round, Square	Warranty	1 Year
Type	Tablet Press Machine	Output Capacity	31500 PCS/H
Number of Dies	17	Maximum Pressure	60 kN
Max Diameter	20 mm	Max Filling Depth	15 mm
Voltage	220/380V	Machine Size	7607501550mm
Weight	520 Kg	Transport Package	Standard Wooden Pack

🔍 Product Overview

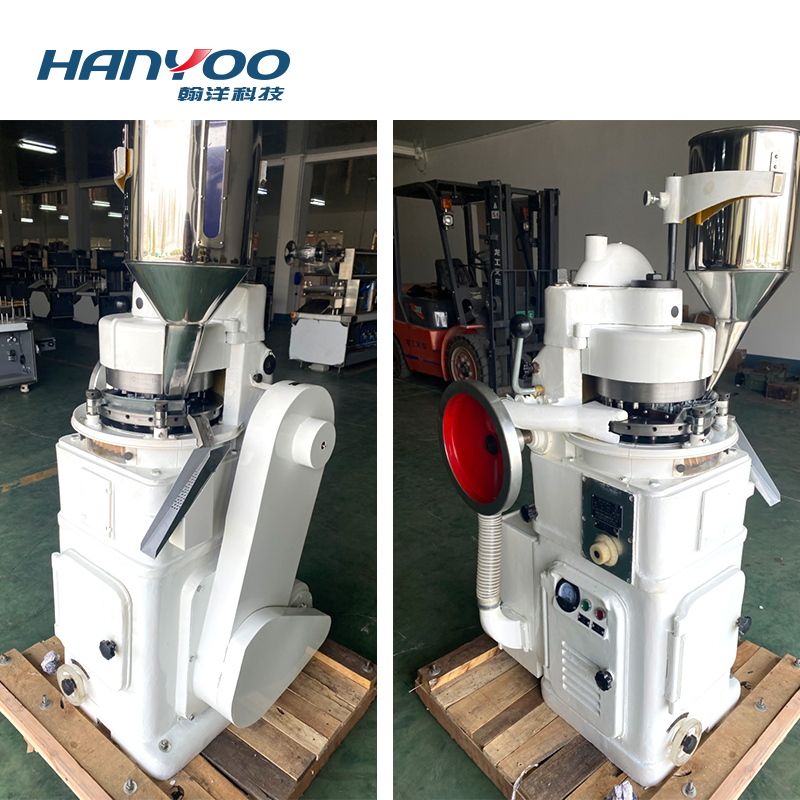

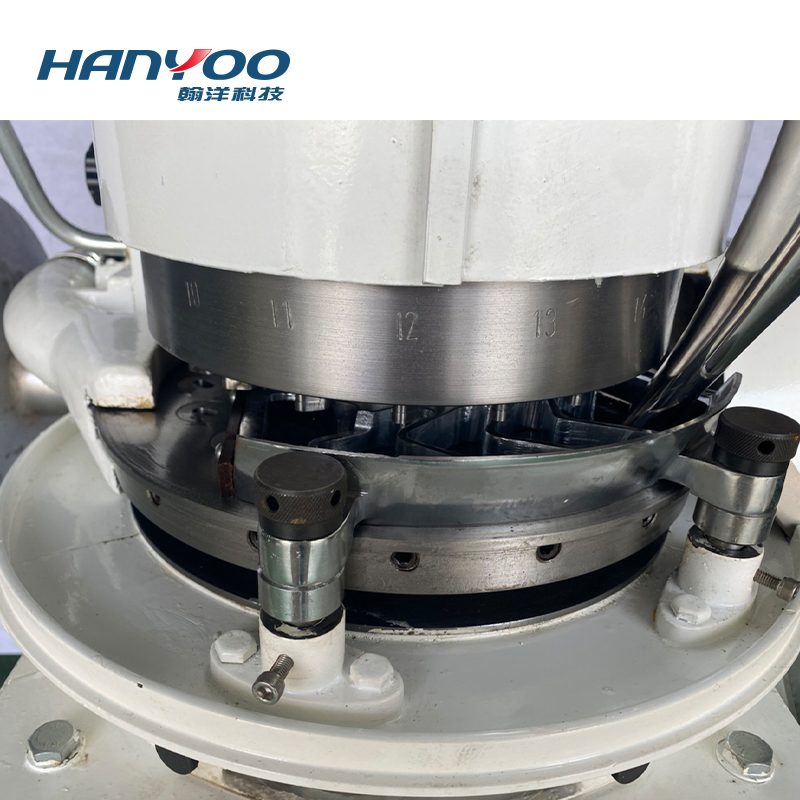

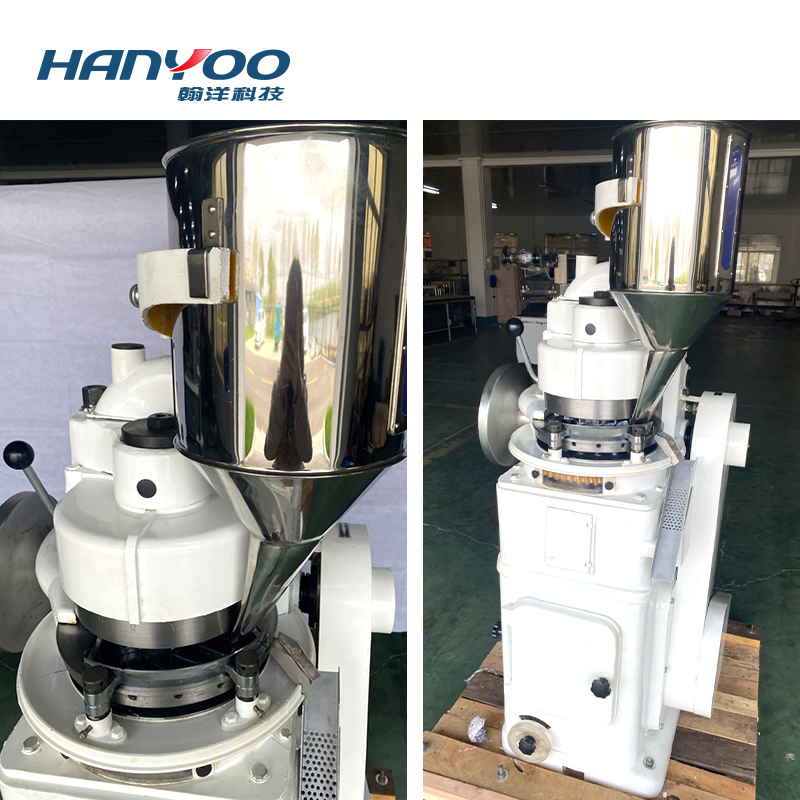

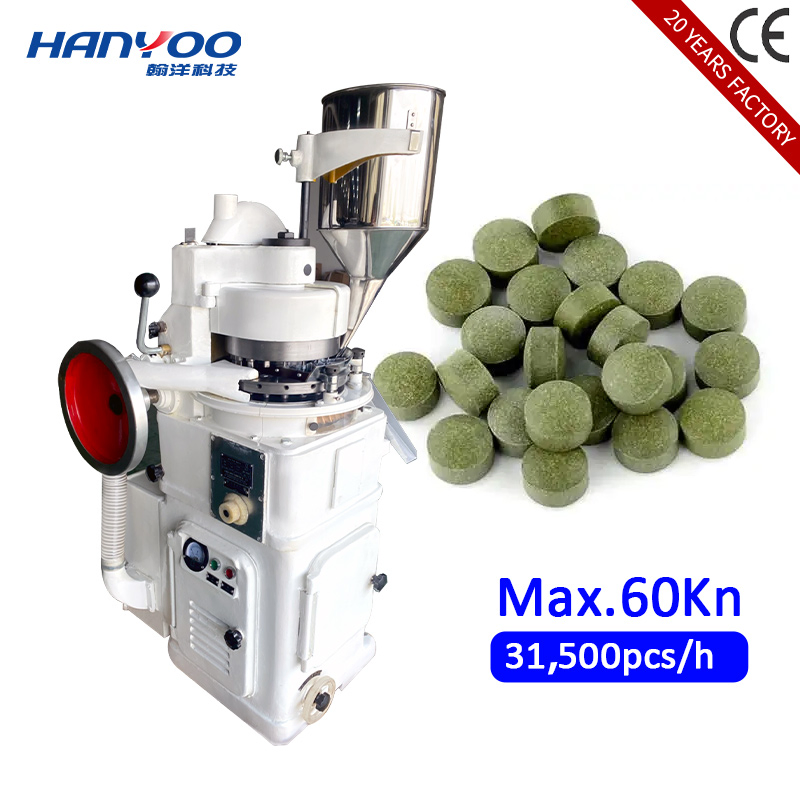

The ZP-17/33 Rotary Tablet Press Machine is designed to press various granular raw materials into circular tablets, making it an ideal solution for small batch production. This machine features a rotating disc where 17 sets of stamping dies can be installed, allowing for high-efficiency output with every rotation.

Key Advantages:

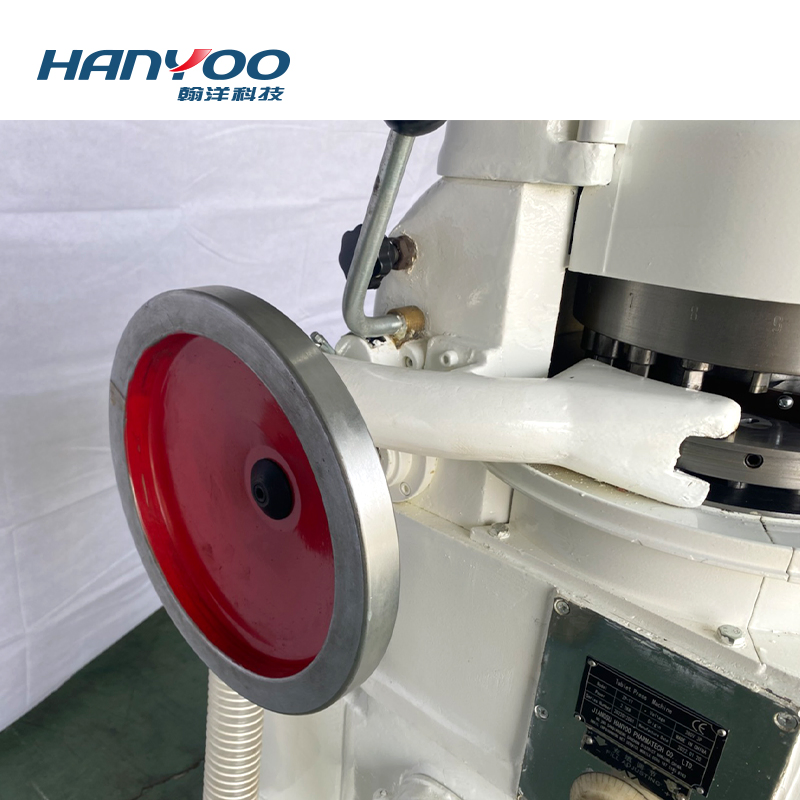

Adjustable turntable speed and material filling depth.
Integrated mechanical buffer device to prevent component damage from overloading.
Equipped with a powder suction box and nozzle to absorb dust during operation, ensuring clean production and preventing sticking.

✨ Machine Features

High Output & Efficiency Designed with multiple die stations for simultaneous filling, pressing, and dispensing to achieve continuous production.

Uniform Tablet Quality Precise mechanical structure ensures consistent weight, hardness, and thickness for every tablet.

Two-Step Compression Utilizes pre-pressure to eliminate air followed by main pressure to improve molding quality and prevent capping.

Forced Feeder System Ensures even powder filling into each mold hole, critical for maintaining uniform tablet weight.

Advanced Control System Equipped with PLC and HMI for real-time monitoring of turret speed and pressure parameters.

GMP Compliance Stainless steel contact parts and easy-to-clean design meet stringent pharmaceutical industry standards.

⚙ Technical Parameters

MODEL	ZP-17	ZP-33
Punch quantity (Sets)	17	33
Max. tablet pressure (kn)	60	40
Max. tablet diameter (mm)	21	16.5
Max. filling depth (mm)	15	15
Max. tablet thickness (mm)	6	6
Turret rotary speed (r/min)	22-35	11-28
Production capacity (PC/h)	31500	43000-110000
Motor power (kw)	2.2	2.2
Overall size (mm)	760×750×1550	850×950×1600
Machine weight (kg)	520	950

🛠 Services & Customization

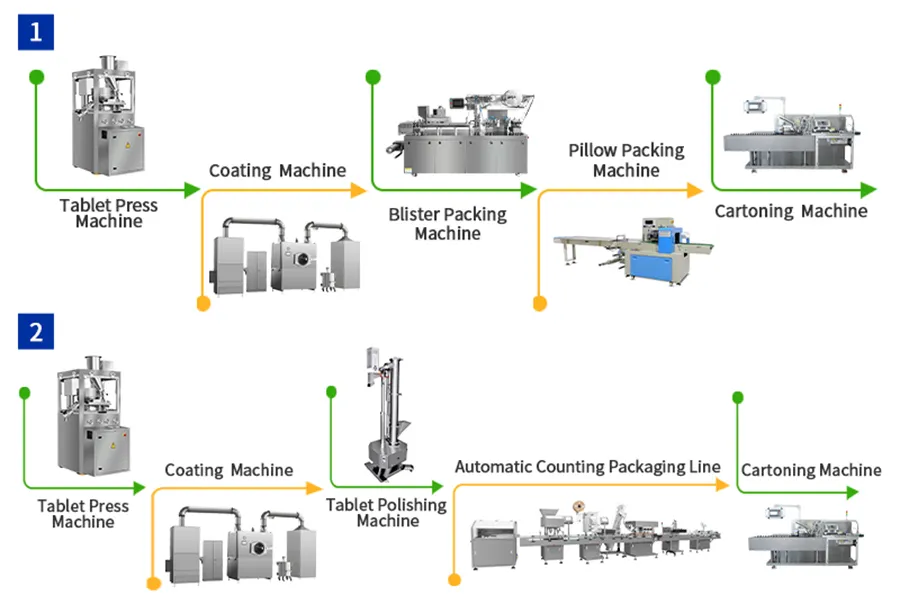

Custom production lines can be designed according to your specific requirements.

Pre-sale Support Free trial service, mechanical layout design, and professional solid preparation solutions.

After-sales Service Installation videos, operation manuals, and free technical guidance from experienced personnel.

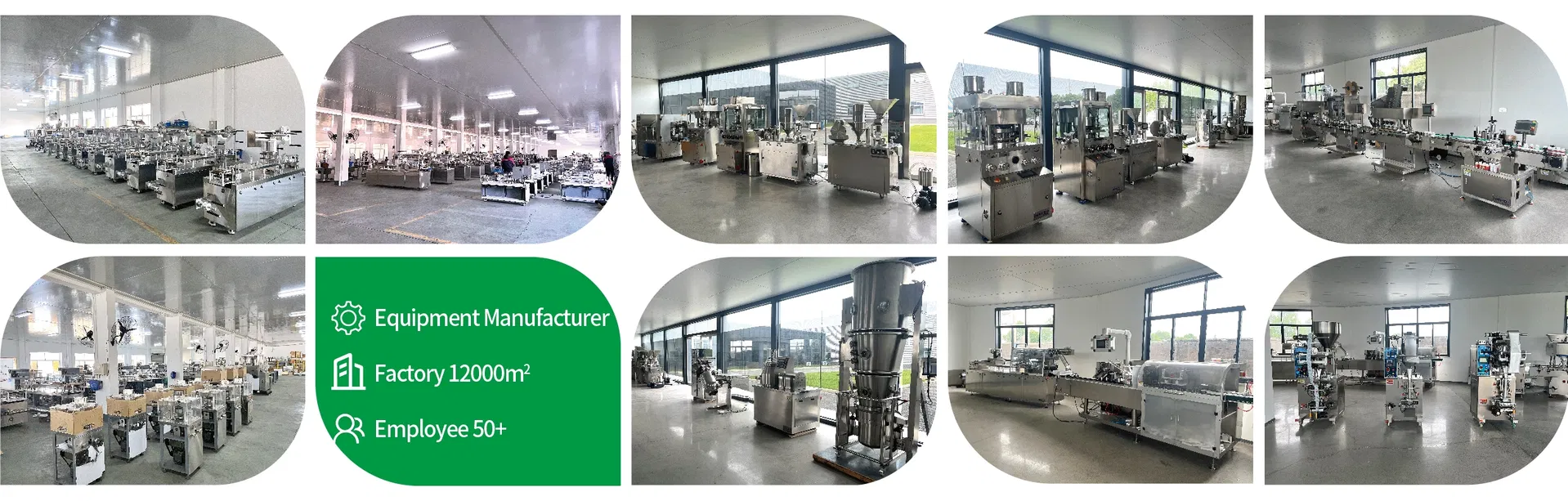

🏭 Workshop & Exhibition

📦 Packaging & Shipping

❓ Frequently Asked Questions

How can I ensure the machine is suitable for my specific product?

We offer a free trial service where you can send us your raw material samples. We will test them on our machines and provide you with detailed videos and photos of the results.

What kind of tablet shapes can this machine produce?

The ZP-17 is versatile and can produce circular, oval, rectangular, square, and other special-shaped tablets based on the die sets installed.

Does the machine comply with international pharmaceutical standards?

Yes, the equipment is CE certified and fully compliant with GMP standards, featuring stainless steel contact parts and an easy-to-clean design.

What is the warranty period and what does it cover?

We provide a 1-year warranty starting from the date of arrival. Technical support is available 24/7 to ensure the long-term operation of your machine.

How does the machine handle dust generated during the pressing process?

The machine is equipped with a professional powder suction box and nozzle system that effectively absorbs dust during operation to prevent clogging and cross-contamination.

Can the production line be customized for my facility?

Absolutely. We provide free design services for mechanical layout drawings and can customize the entire production line to fit your space and output requirements.
