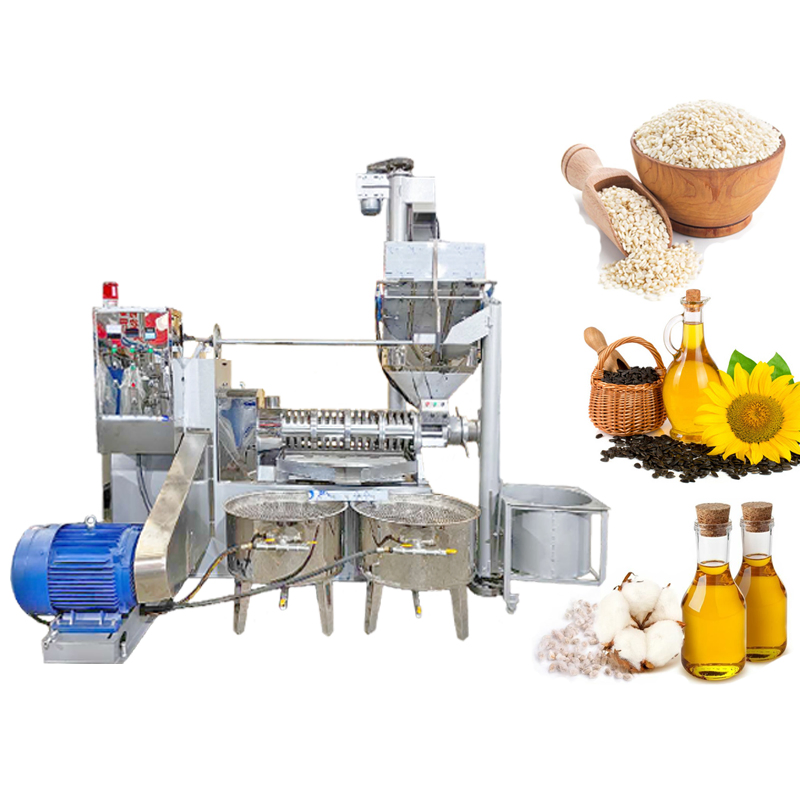

High-Efficiency Large Capacity Oil Press for Soybeans and Seeds

Customization:	Available
After-sales Service:	Onlin Service
Warranty:	1 Year

Basic Information

Model NO.

6YL-290

Structure

Vertical

Capacity

600-1000kg/H

Power

45kw

Voltage

3 Phases 380V

Function

Pressing Cooking Oil

Feature

High Production Large Capacity

Specification

3000*2200*2950mm

Product Description

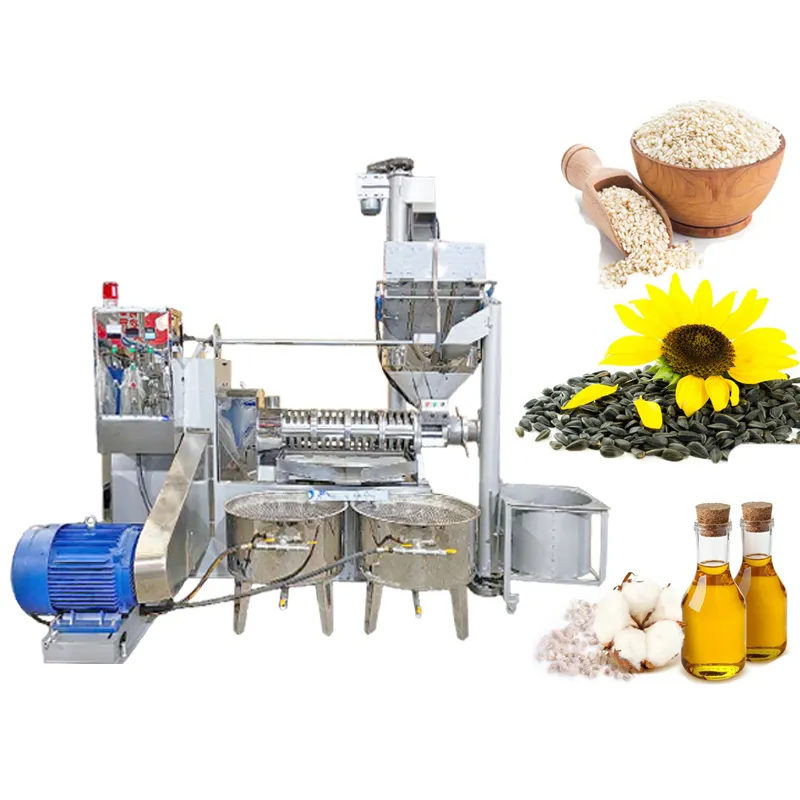

45KW Large Capacity Screw Oil Extraction Machine

Our spiral oil press machine is specially designed for both cold and hot pressing methods. It is a full-set equipment that allows for direct cooking oil production after powering up.

⚙️

Integrated Systems

Equipped with bar pressing system, vacuum filter system, oil cake feeding system, and temperature control.

Model	Weight (kg)	Vacuum Power	Motor (380V)	Speed (r/min)	Capacity (kg/h)	Dimension (mm)
6YL-120	1500	1.1KW	15KW	60-100	120-160	200016002700
6YL-160	1900	2.2KW	30KW	60-100	300-600	265019002700
6YL-220	2000	2.2KW	37KW	100-130	400-800	290019002700
6YL-290	2300	3KW	45KW	120	600-1000	300022002950

Suitable Materials:

Suits for different oil raw materials: coconut, sesame, peanut, avocado, passion seed, sunflower, soybean, olive, etc. The leftover oil cake can be reused for animal feed.

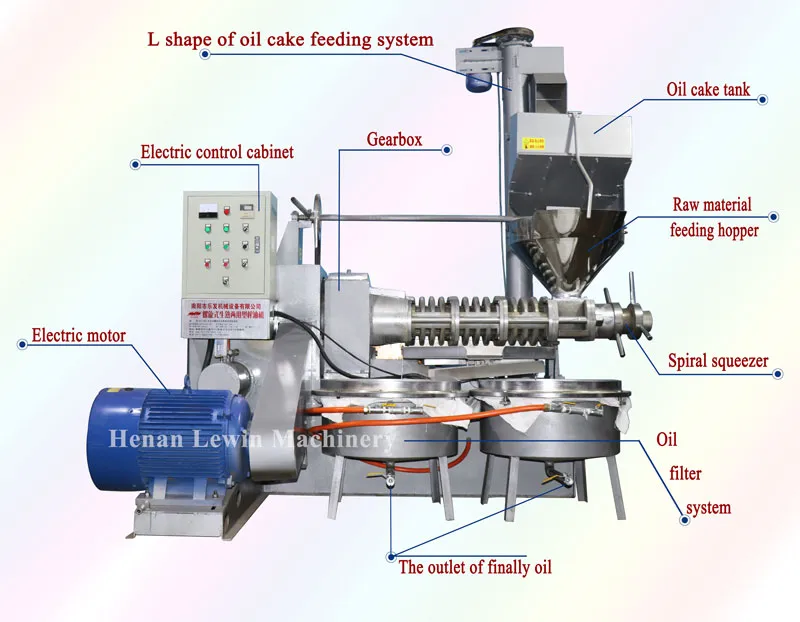

Core Components & Advantages

🛠️

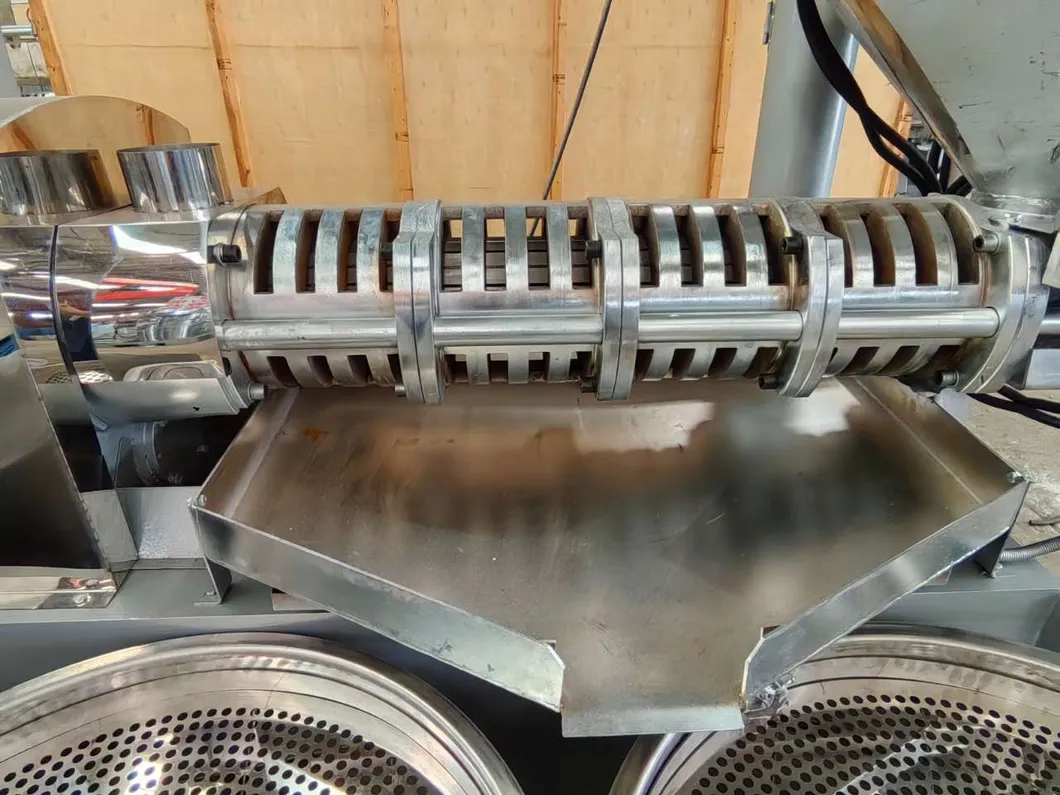

1. Advanced Press System

Uses a bar press system to press materials evenly, reducing oil residue and maximizing yield.

🔄

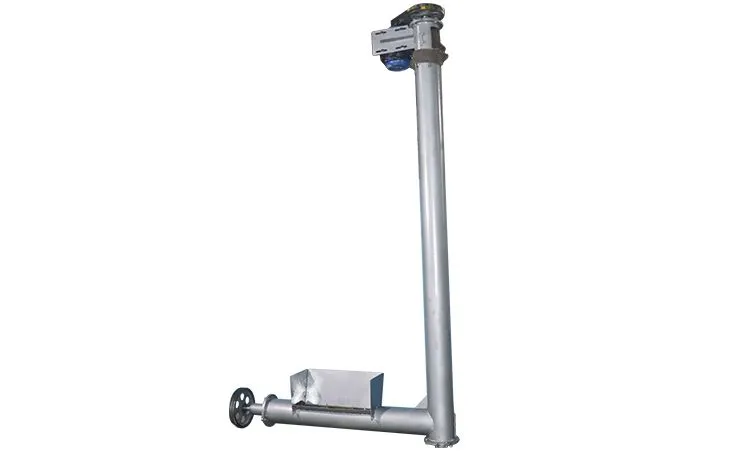

2. Cake Feeding System

Feeds oil cake back into the press automatically to further improve the overall oil yield.

🧪

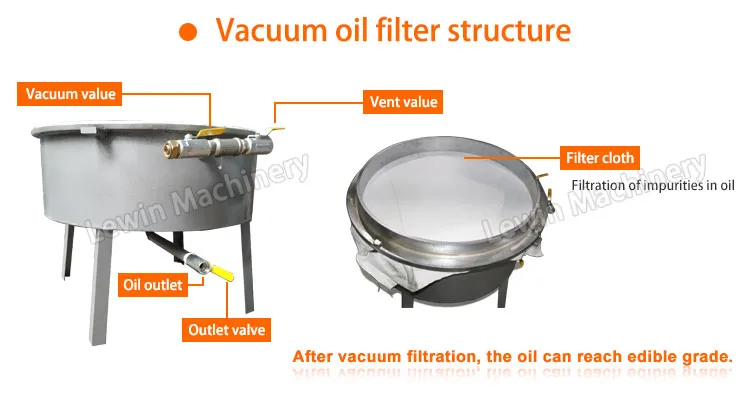

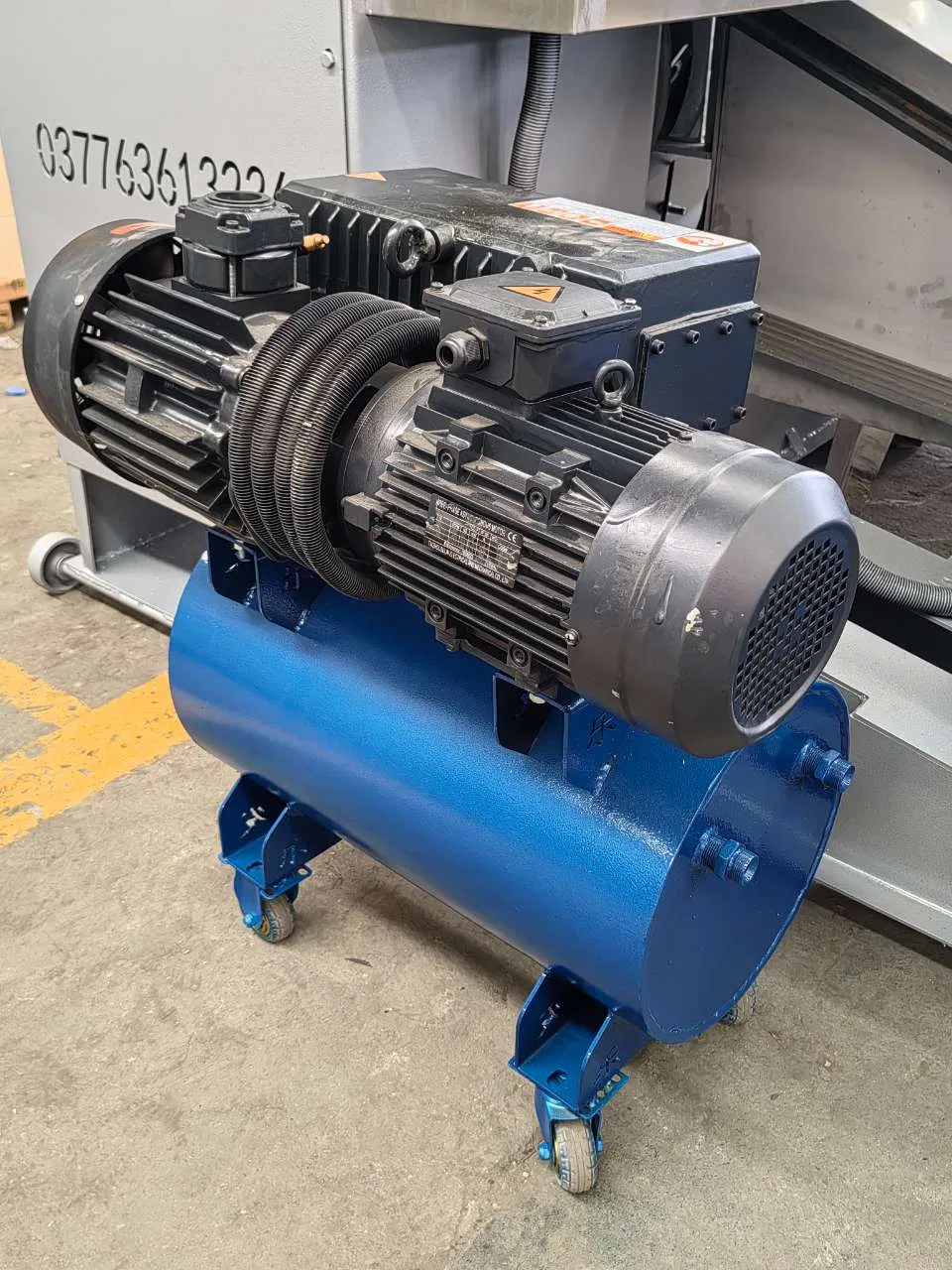

3. Vacuum Filtration

Equipped with dual vacuum filters to purify oil directly, delivering kitchen-grade pure oil.

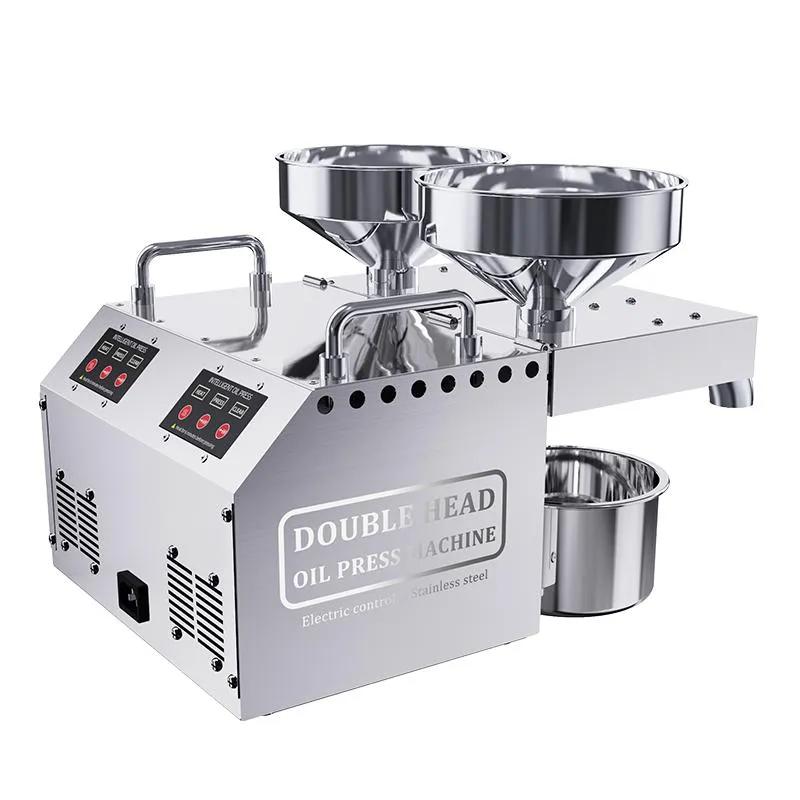

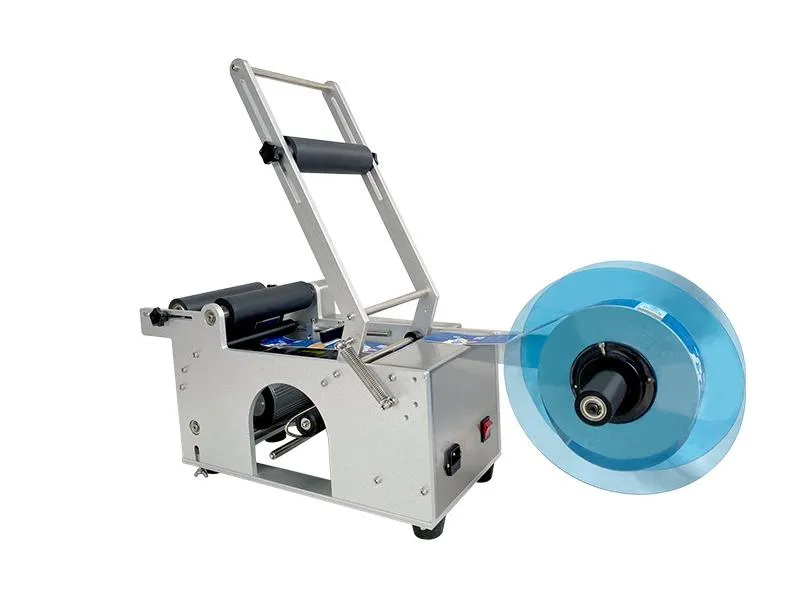

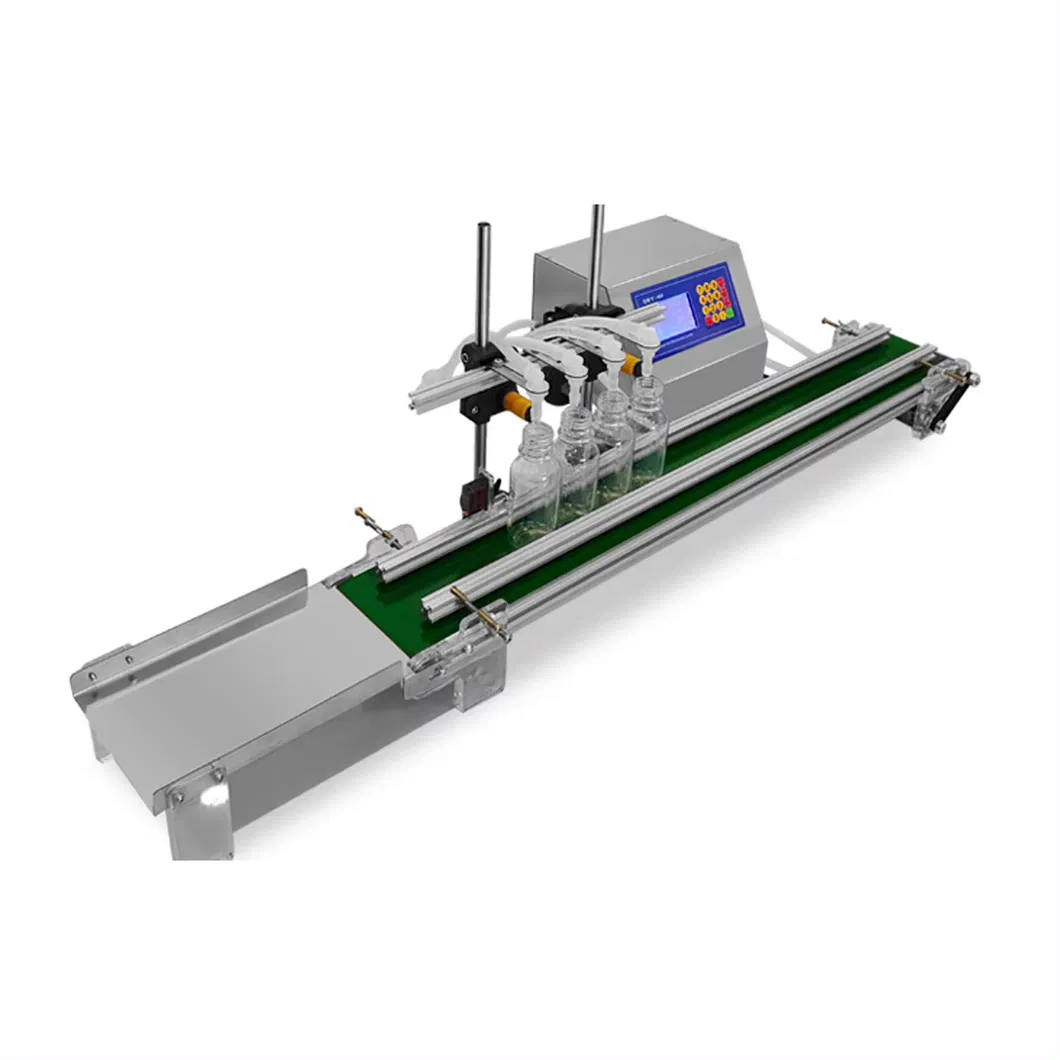

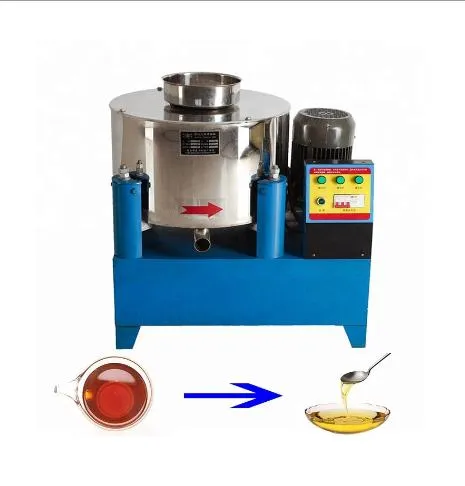

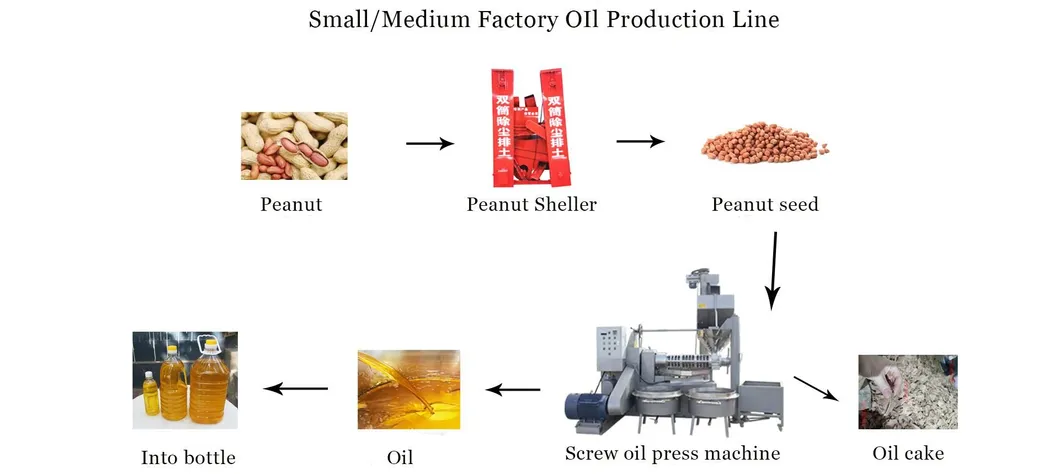

Related Equipment

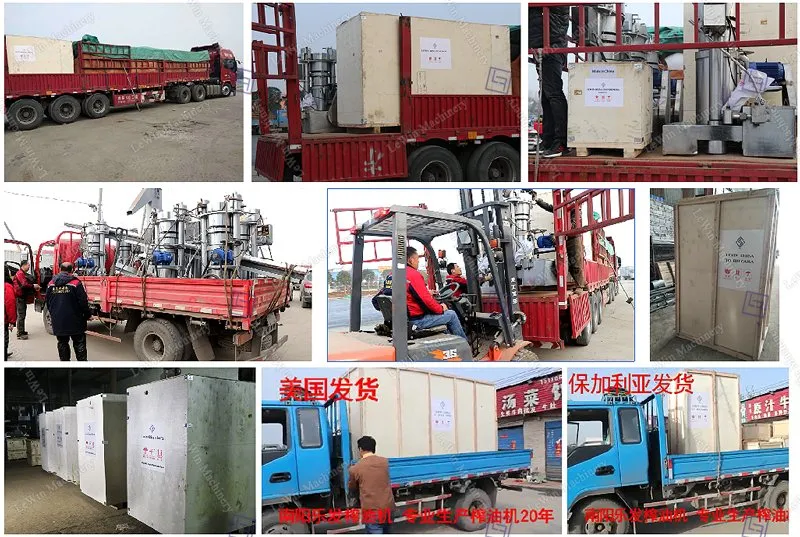

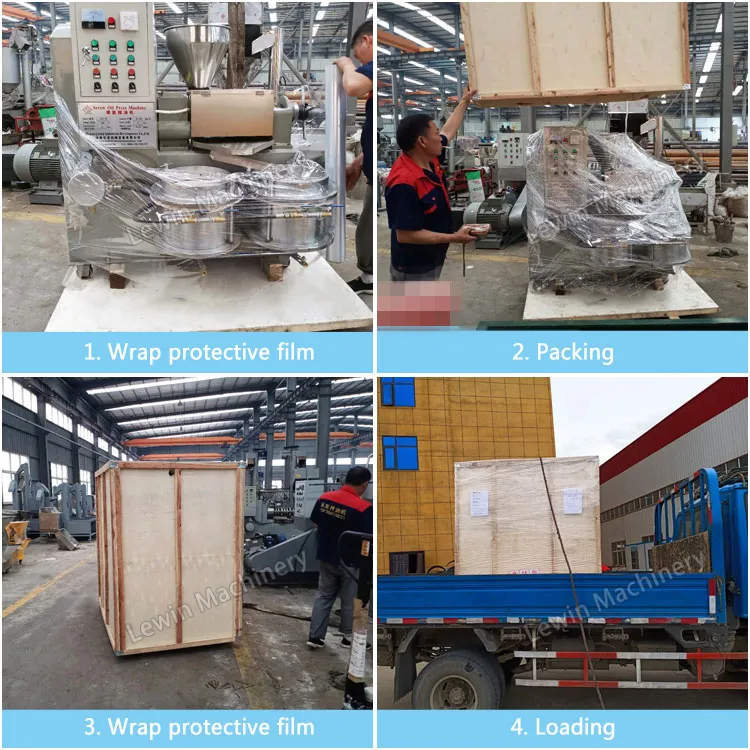

Packaging & Shipping

We utilize film wrapping to prevent moisture damage and export-standard wooden cases for maximum protection during sea transportation.

Frequently Asked Questions

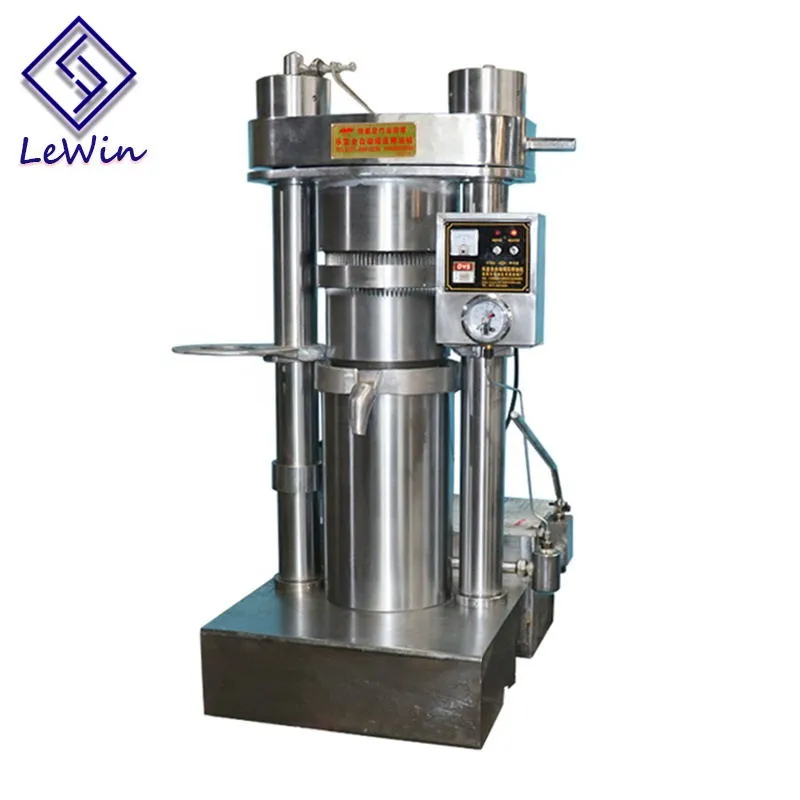

Which machine is best for oil extraction? Hydraulic or screw oil presser?

It depends on the oilseed. High-value oils are fit for hydraulic presses, while screw presses are better for obtaining higher edible oil yields.

What are the different types of oil pressing machines?

There are two main types on the market based on working principles: Hydraulic oil pressers and Screw oil pressers.

What equipment is used to make sunflower oil?

Our screw oil presser handles the entire process. It supports cold pressing (no roaster needed) and includes a vacuum filter to produce kitchen-grade oil directly.

Can I test the machine before ordering?

Yes, we accept testing and customization to ensure the machine meets your specific requirements.

How does a power outage affect the pressing process?

Generally, it won't damage the machine. Simply turn it off and resume when power returns. Note: you must clear the material from the press system if a long outage occurs.

What information is needed to recommend a machine?

Please provide the type of raw material you wish to press and your required daily output capacity.
