High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
1 / 5
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water
High-Efficiency Inline Beverage Filling System for Juice and Water

High-Efficiency Inline Beverage Filling System for Juice and Water

Customization: Available
After-sales Service: 1year
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.GZM-200L
TypeWeighing-type Filling Machine
Automatic GradeSemi-Automatic
Material TypeLiquid
Filling Valve HeadMulti-Head
Filling PrinciplePressure
Filling Capacity100-200kg
Filling Speed60-120barrels/Hour
Material CompatibilityLiquid Like Coating, Printing Ink, Paint, Asphalt
Construction MaterialSUS304 / SUS316 / PTFE
Product Parameters
Rated Capacity300kg/barrel
Rated Speed30-120 barrels (200L)/hr
Weighing DeviceMax 300kg, graduation value d: 50g
Power Supply220V, 50HZ, 1.0kw
Working Air Source0.5MPa±0.1MPa, 10m3/h
Material Inlet Pressure0.2~0.6 MPa
Temperature Range-10°C to +45°C

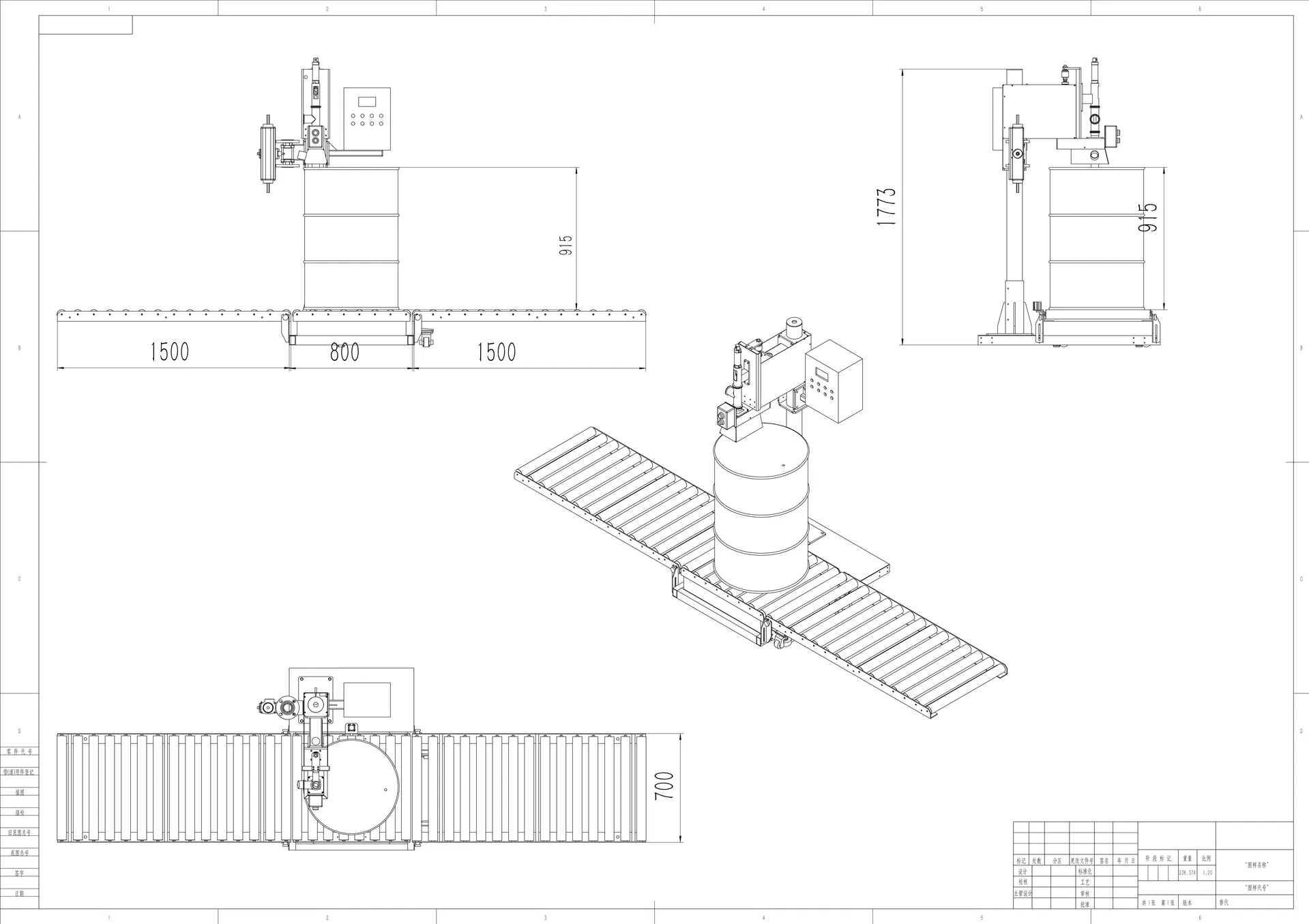

Filling System Overview

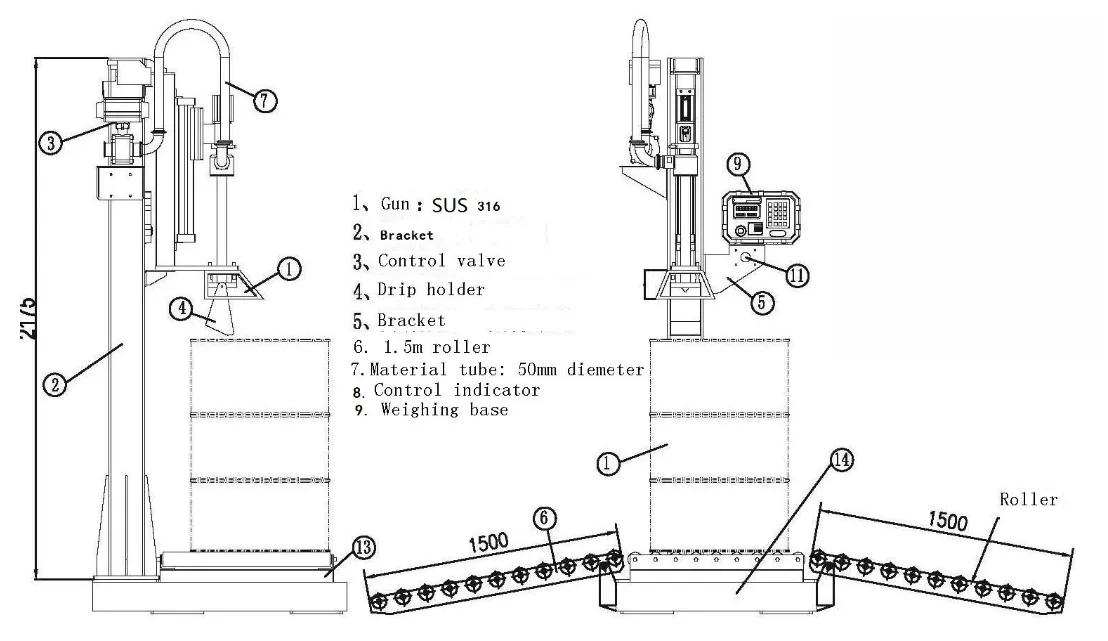

Dimensional Drawing
Drawings & Dimensions Available
Applicable Barrel Types

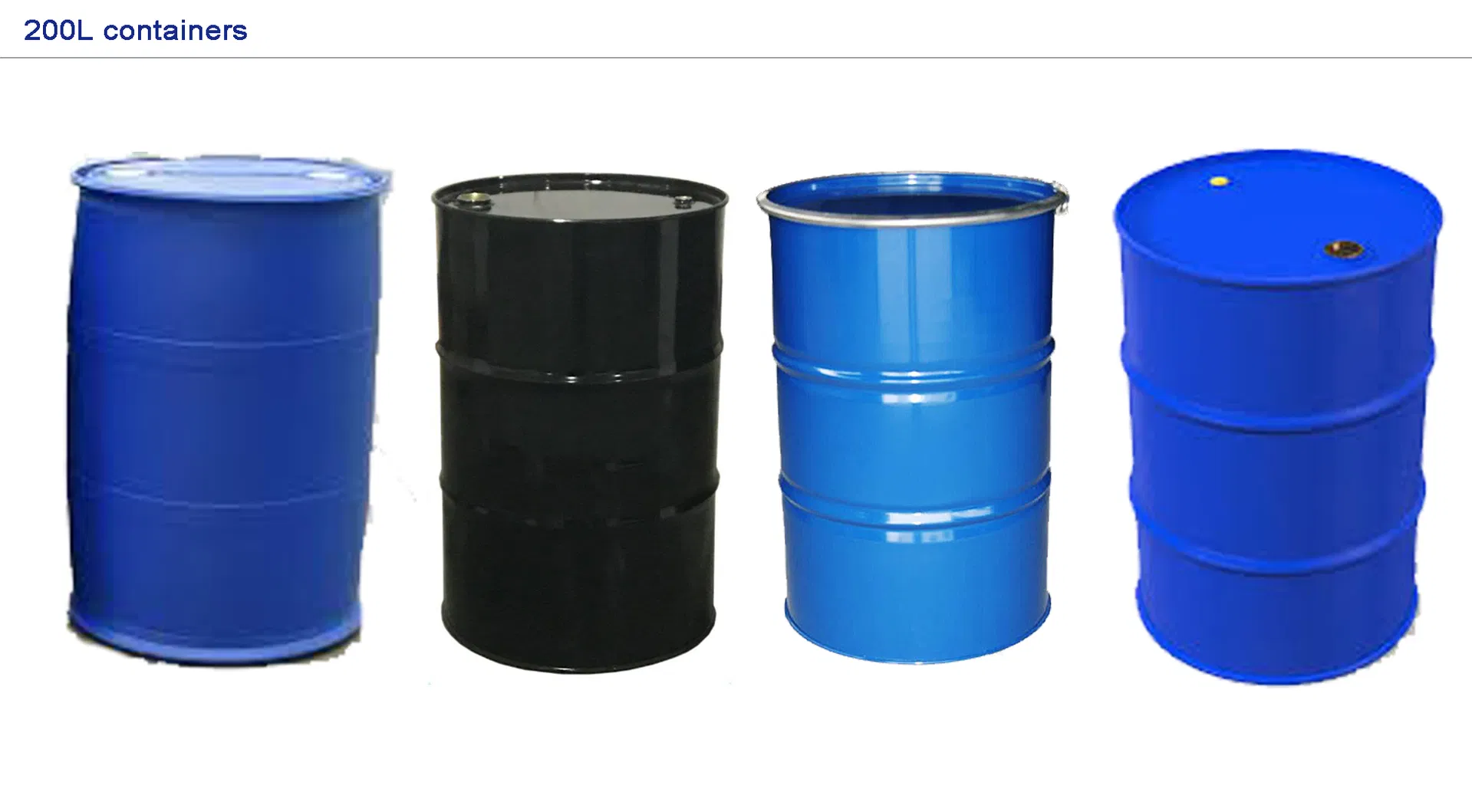

Barrel Compatibility
Product Advantages

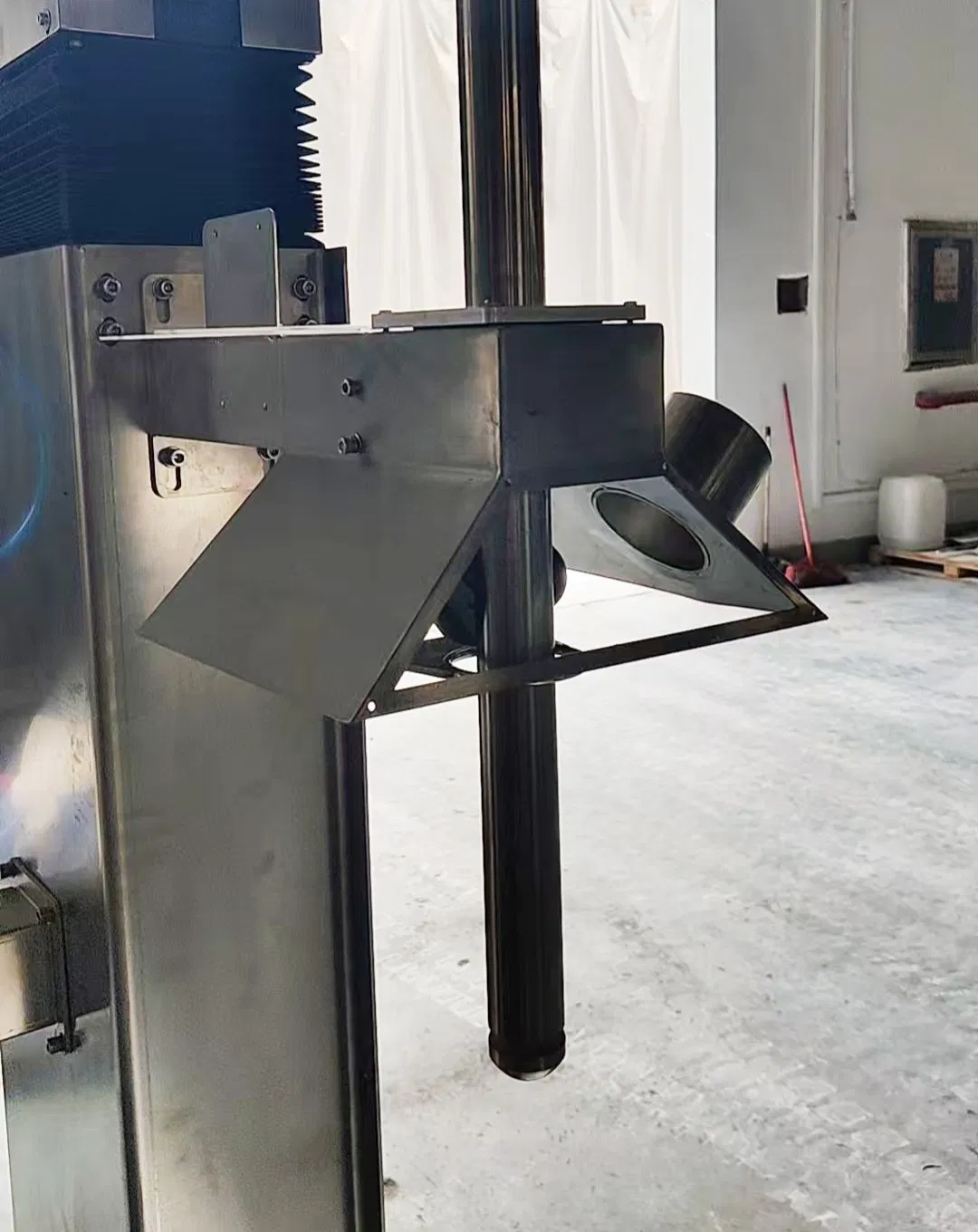

Product Performance
  • Cost-Effective: Ideal for SMEs & batch production with lower initial investment.
  • High Precision: Accuracy of ±0.1~0.3% using load cells to minimize waste.
  • Bottom Filling: Reduces foam/splashing and minimizes vapor release for solvents.
  • Explosion-Proof: Certified options (ATEX/IECEx) for flammable liquids.
  • Durable Construction: Stainless steel build, corrosion-resistant and easy to clean.
Product Features
  • Control System: PLC + Touchscreen HMI with 10+ preset programs.
  • Contact Parts: 316L/304 stainless steel with EPDM chemical-resistant gaskets.
  • Safety: Drip tray with drainage, emergency stop, and barrel detection.
  • Versatility: Suitable for low to medium viscosity liquids.

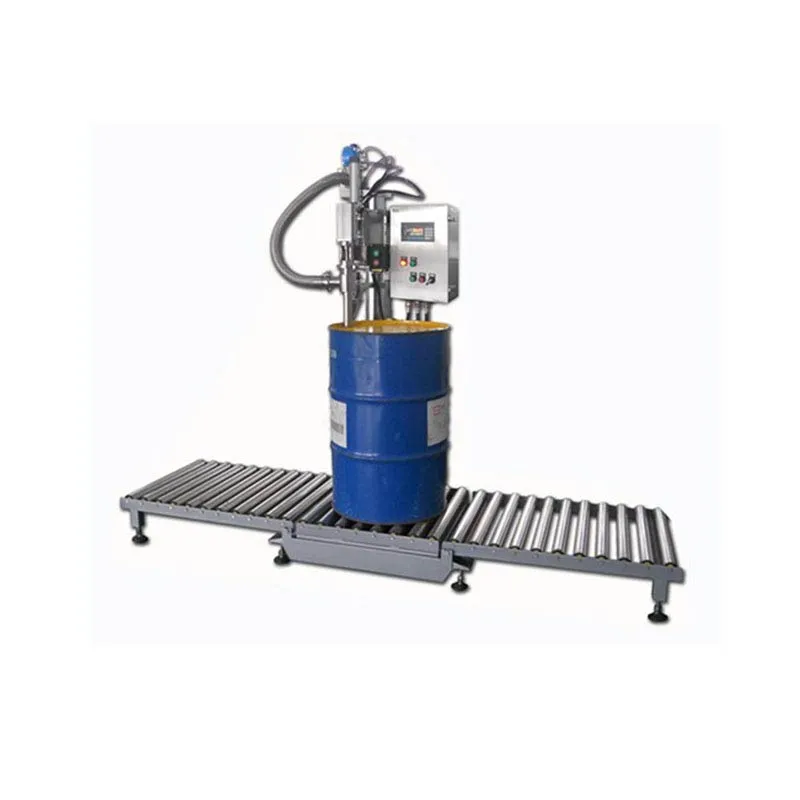

Control System Features
Operation Process

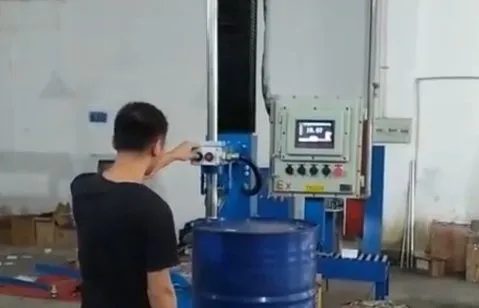

Operation View
1
Manually place the bucket; system detects position and fills the gun automatically.
2
Automatic insertion into bucket mouth - automatic peeling - valve group opens.
3
Four-stage filling (large, medium, small, trace) to reach the target value accurately.
4
Filling gun rises; manual movement to lid lock area and activation of lock button.
5
Pneumatic locking of the cover followed by manual palletizing.
Detail Display

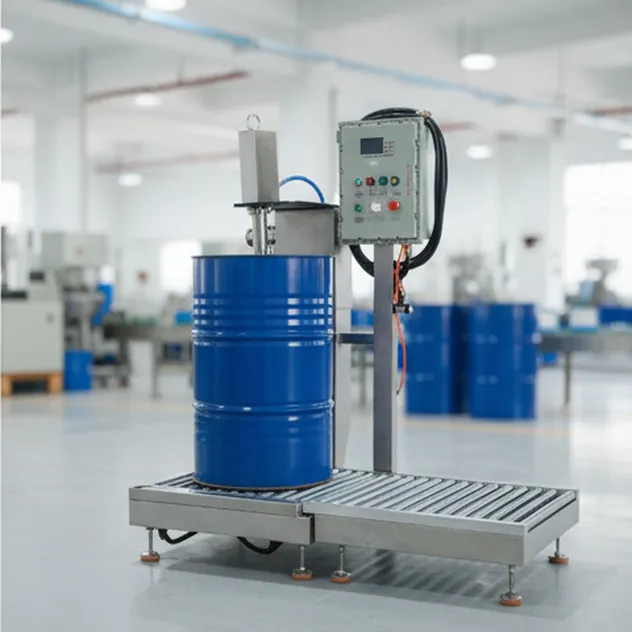

Detail 1
Easy Integration

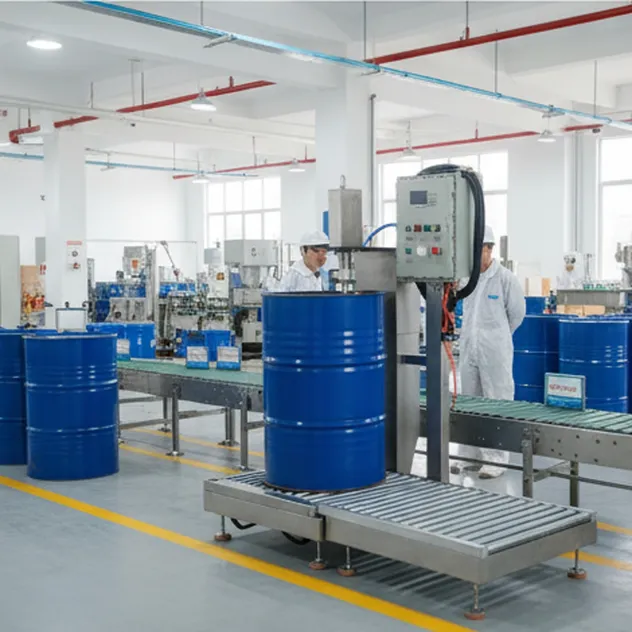

Detail 2
Safety Interlocks

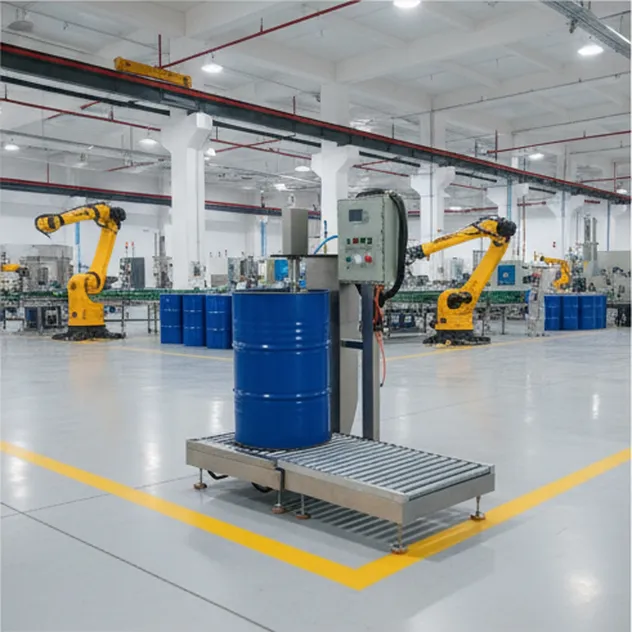

Detail 3
Labor Savings

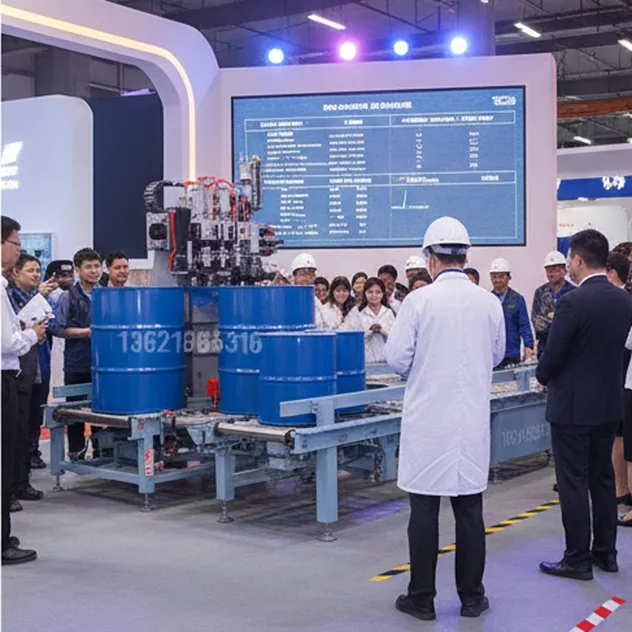

Detail 4
High Capacity

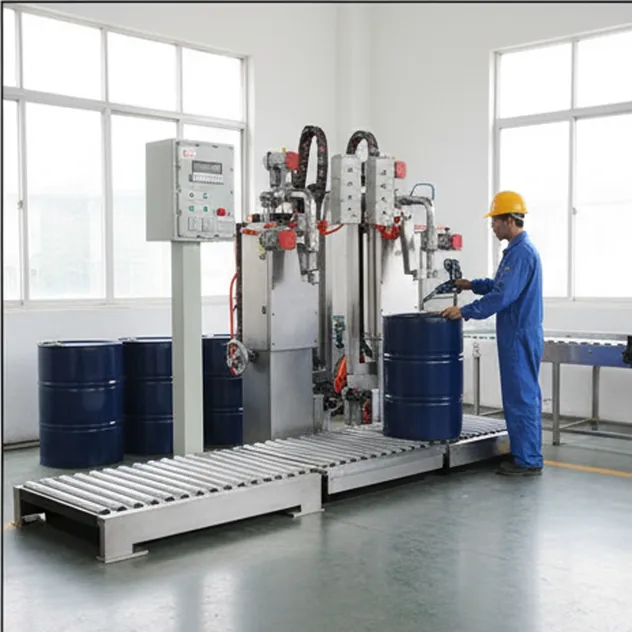

Detail 5
Efficient Speed

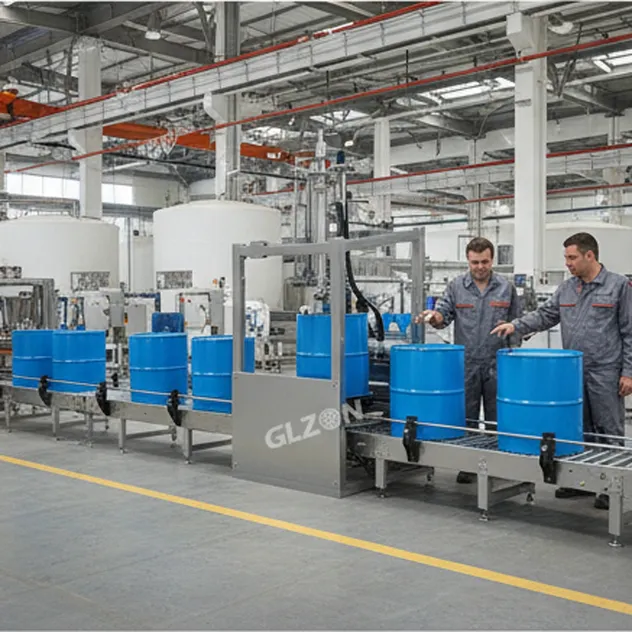

Detail 6
Precision Accuracy
Professional Solutions
Factory View 1

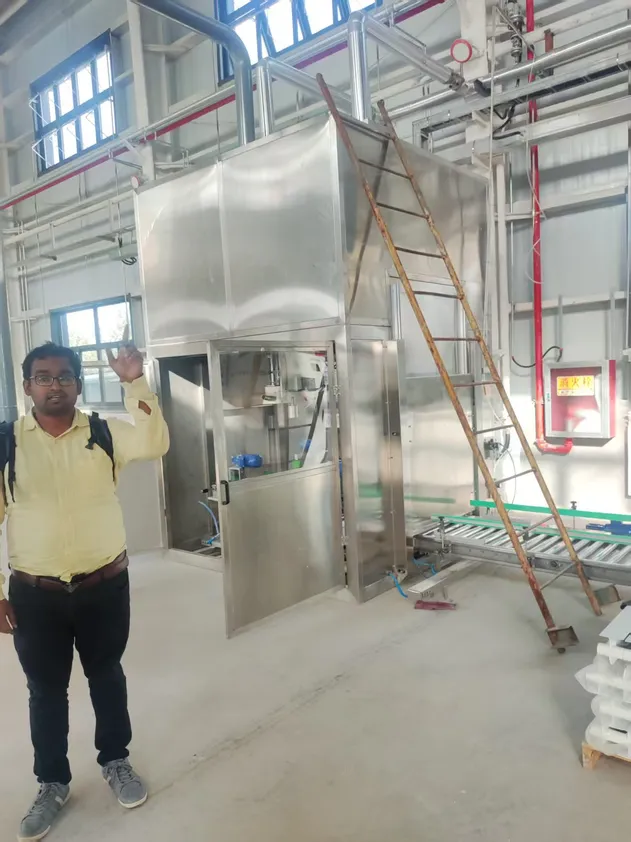

Factory View 2
Factory View 3
Equipment Manufacturing
Global Delivery
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: Comprehensive on-site or remote operation and maintenance training.
Frequently Asked Questions
Q: What's the lead time for orders? A: Standard models ship in 15-30 days, while customized units typically require 30-45 days.
Q: Do you provide after-sales service overseas? A: Yes, we provide global support with partnered service centers in key regions.
Q: Can I request a customized bucket size? A: Absolutely! We offer tailored attachments and designs to meet specific container requirements.
Q: What documents do you provide for export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and CoC.
Q: How do I place an order? A: Please contact our team via email or phone for a formal quote, then confirm with a Purchase Order (PO).
Q: Is training provided for the equipment? A: Yes, our personnel provide on-site operator and maintenance training after equipment commissioning.
