Four-Head Vacuum Negative Glass Bottle Liquid Spray Semi Automatic Perfume Filling Machine

Customization: Available
After-sales Service: Online or Overseas Services
Warranty: 1 Years

Product Description

Basic Specifications
Model NO.
GZJR-XG04 / ZG-4
Industry
Food, Medical, Chemical
Material Type
Liquid
Packaging
Bottles / Cans
Automatic Grade
Automatic
Driven Type
Pneumatic
Filling Range
2-1000ml
Filling Speed
20-40 Sticks /Min
Precision
Liquid Surface ±1mm
Working Principle
Negative Pressure
Product Description

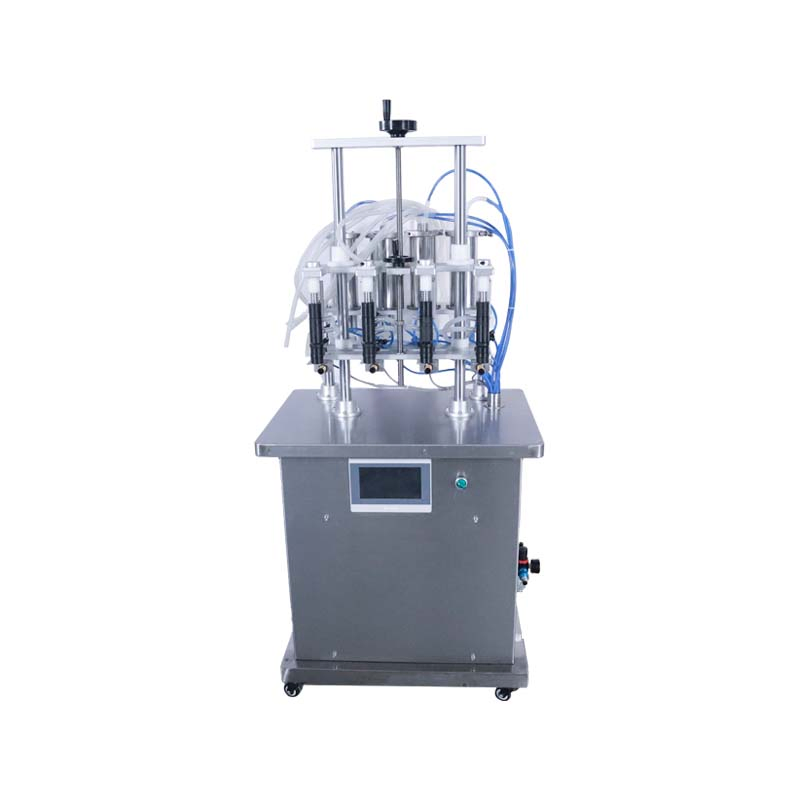

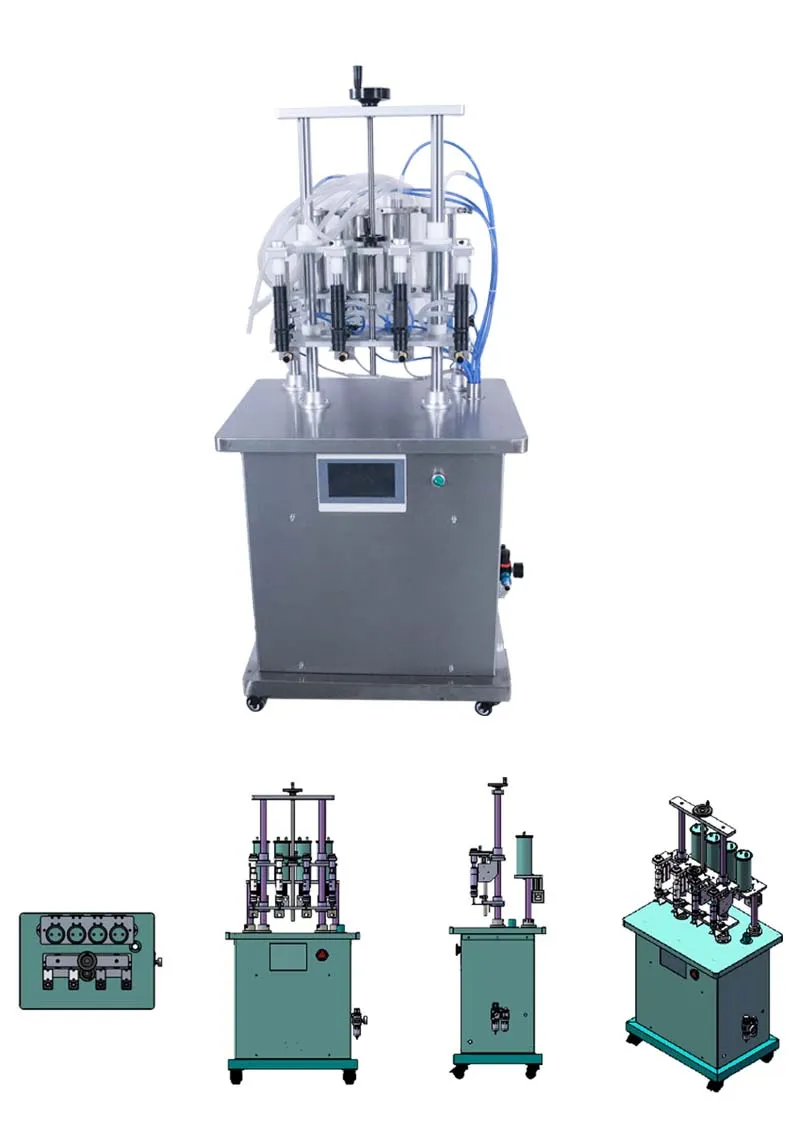

Four-Head Vacuum Negative Perfume Glass Bottle Liquid Spray Semi-Automatic Filling Machine

The pure pneumatic vacuum filling machine adopts a vacuum generator and PLC control, allowing each filling head to be manually and automatically operated separately, ensuring simple and convenient operation for various liquid products.

Key Features & Advantages
  • High Precision: Adopting electronic control and vacuum constant liquid system, accuracy can be controlled within 0.5%.
  • Intelligent Control: Configured with an automatic drainage system for seamless operation.
  • Versatile Application: No strict requirements for bottle shape or consistency; suitable for glass, plastic, and metal containers.
  • Resource Efficiency: Capable of excess material back suction to save raw materials.
  • Safe Operation: Equipped with digital display and emergency stop buttons.
Technical Parameters
Parameter Value
Machine VoltageAC220V 50/60HZ
Machine Power120W
Filling Range2-1000ml
Filling Speed20-40 sticks / min
Filling PrecisionLiquid surface ±1mm
Machine Weight50KG
Machine Dimension720*500*1270mm
Quantity of Filling Heads4
Filling Head SizeExternal 8mm/4mm, Internal 6mm/2mm
Scope of Application

This equipment is ideal for pharmaceutical, chemical, food, and light industries. It is specifically designed for containers where the caliber is small and liquid surface tensile stress prevents leakage when inverted. Common applications include:

  • Perfume and cosmetic bottle filling
  • Oral liquid plastic bottles
  • Essential oil and wind oil bottles
  • Eye drop bottles and small liquid containers
Detail Showcase

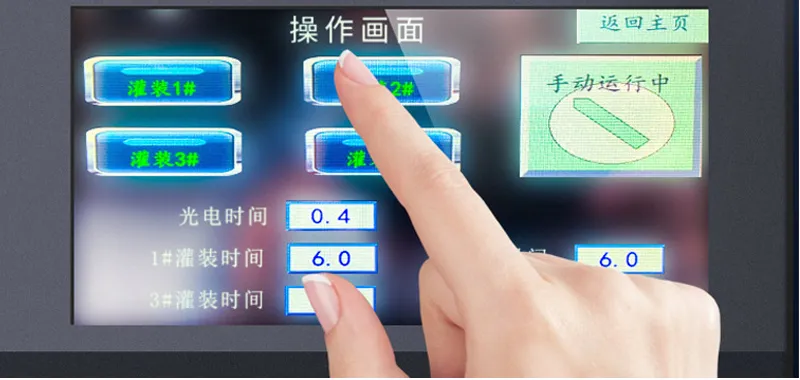

Digital Display Control
Safety Controls: Digital display and emergency stop buttons ensure the operation can be halted immediately if necessary.

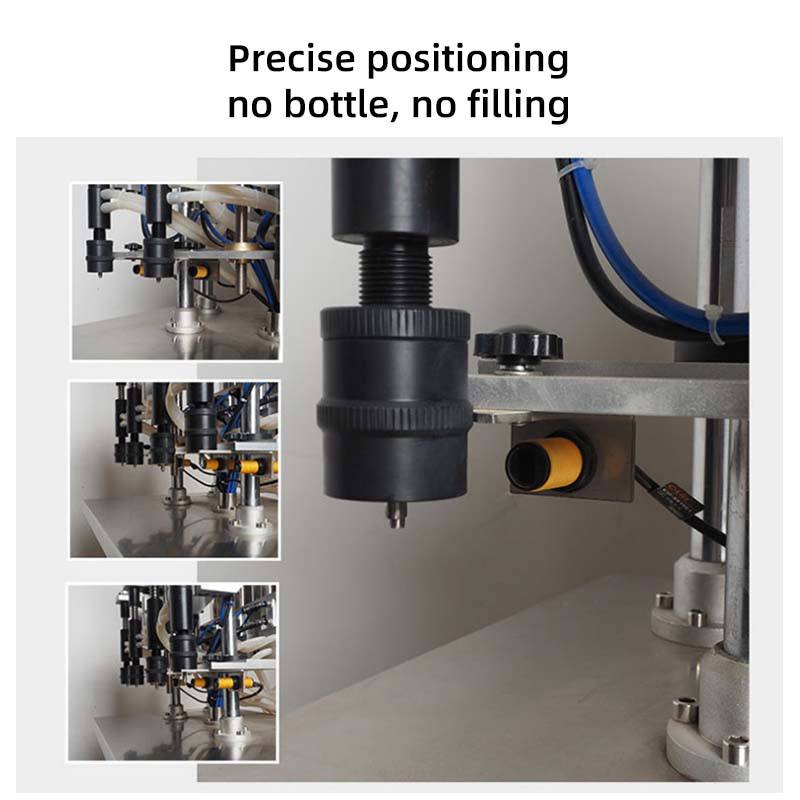

Intelligent Induction: Electric eye induction provides accurate positioning; the "no bottle, no filling" feature prevents waste.

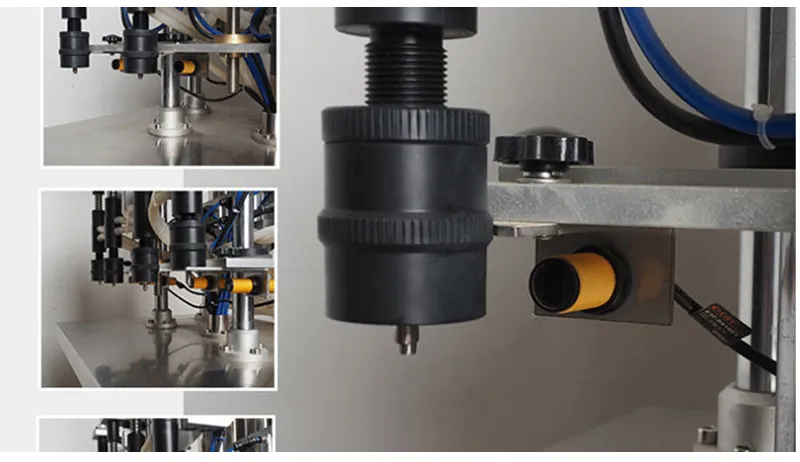

Induction System

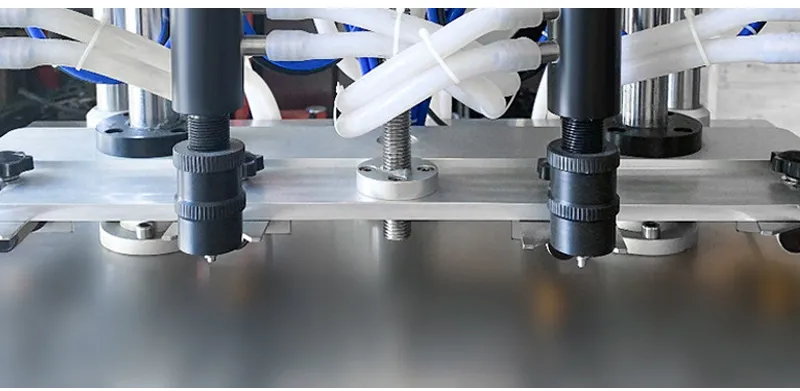

Vacuum Filling Head
Vacuum Negative Pressure: High-efficiency filling system designed for precise liquid levels.
Material Recovery: Excess material back suction system effectively reduces production costs.

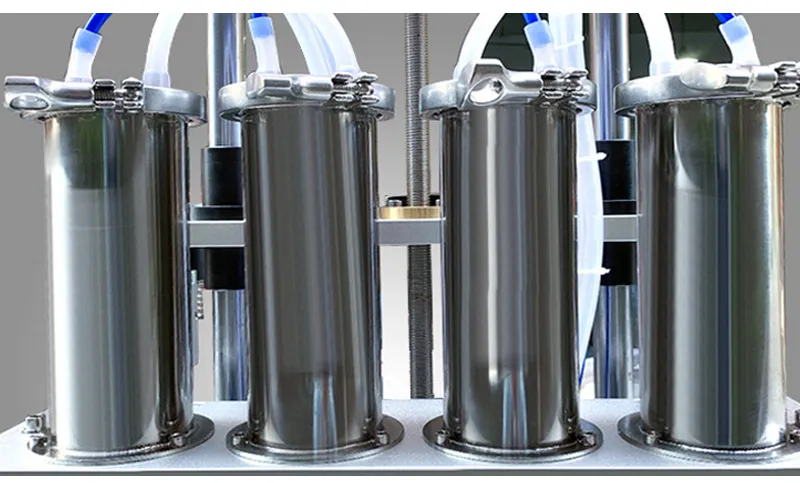

Back Suction System
Packaging & Quality Assurance

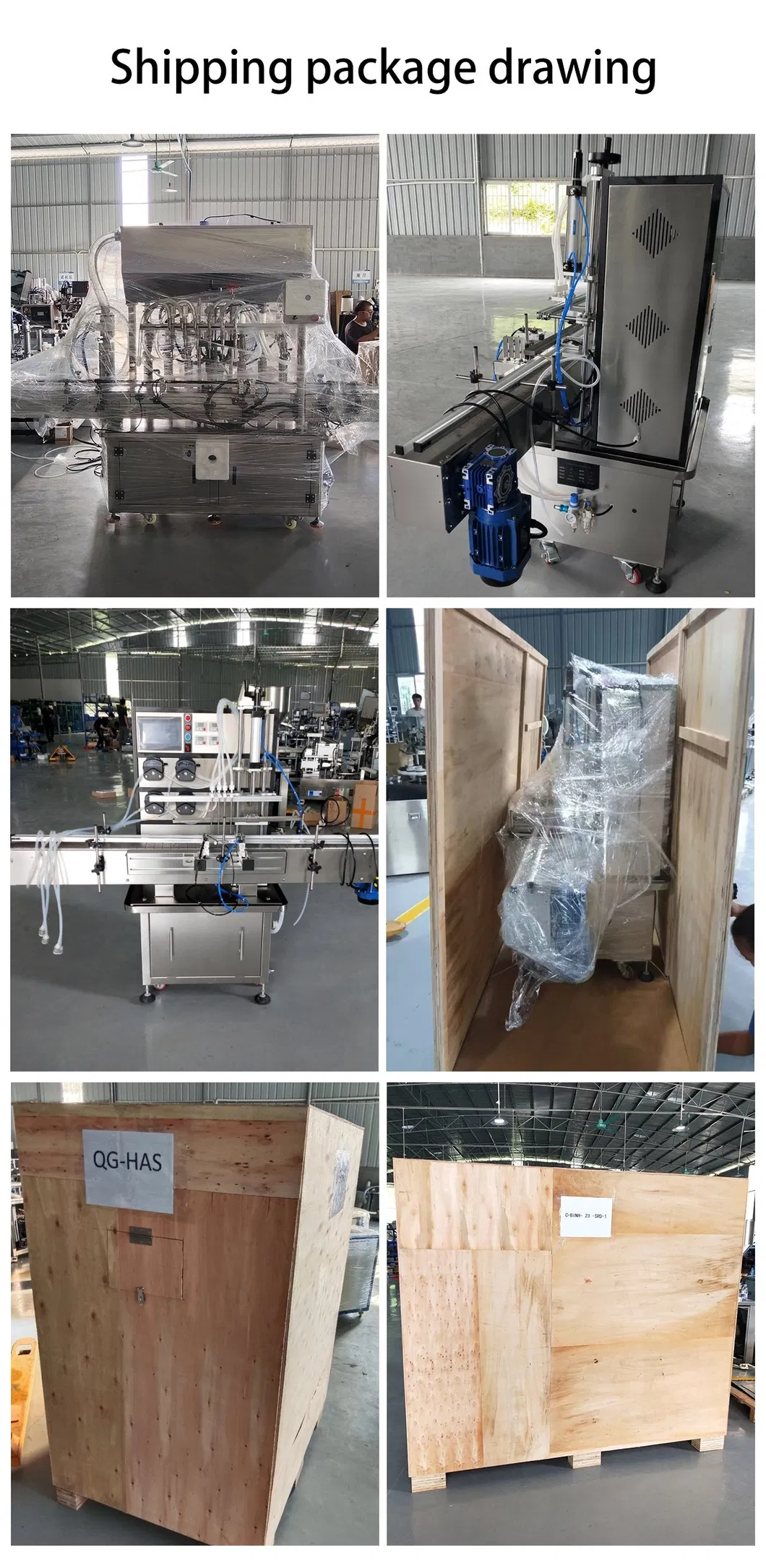

Transport Package Drawing Factory Overview Certificates
Professional Services
  • Professional sales team to communicate your specific needs.
  • Regular production updates via video to track progress.
  • English operation manuals and instructional videos included.
  • Expert after-sales maintenance engineers available for support.
  • Optional door-to-door technical service upon request.
Frequently Asked Questions
Is this machine suitable for different bottle shapes?
Yes, there are no strict requirements for the shape and consistency of the bottle, making it very versatile for various containers.
What is the filling accuracy of the equipment?
The machine uses a vacuum constant liquid system, achieving an accuracy within 0.5% or a liquid surface deviation of ±1mm.
How long is the typical lead time for delivery?
Generally, it takes 5-10 days if the goods are in stock. For non-stock items or larger quantities, the lead time is approximately 15-20 days.
Does the machine prevent wasting raw materials?
Yes, the machine features an electric eye induction (no bottle, no filling) and a back suction system for excess material to maximize savings.
What kind of warranty do you provide?
We offer a 1-year warranty. All machine parts can be replaced for free within 1 year if they fail due to non-human factors.
What are the power requirements for this model?
The machine operates on AC220V 50/60HZ with a power consumption of 120W.
